Hoverboard Powerbase User manual

HOVERBOARDHOVERBOARD
HOVERBOARD GmbH Gewerbepark 10 A-6068 Mils - AUSTRIA www.hover.at
Powerbase
* It is essential that you and any other operator of this product read and
understand the content of this manual before installing and using this product !
* In order to avoid operating errors, these manual must be accessible
to the staff at all times.
* The hoverboard should only be used for the purpose as described.
Please refer particularly to the instructions of the used stretcher.
* The illustrations do not necessarily correspond to the delivered equipment
and are not true to scale.
* We take no liability for damages caused by operating errors
or incorrect assembly or repair.
* Please pay close attention to the country-related, applicable safety regulations
for patient transfer.
* Subject to technical changes.
User manual Edition: 10/2019
General information

5
1... Pneumatic suspensions with automatic weight adjustment from
40-520 kg/88-1146 lbs and hydraulic shock absorbers.
Total vertical stroke 170 mm/6.7"
2... Stretcher mounting platform
3... Lateral movement device with pneumatic release (option)
4... Switch box, contains: a) Relay, 12V
b) Magnetic valves 12V
c) Terminal block
5... Air pressure tank (approx. 4.5 litres/1.2 gal) with pressure switch
6... Reed switch
7... Blue main switch (option)
8... Red toggle switch for highest (rigid) position (option)
9... Pushbuttons for pneumatic release of the lateral movement device (option)
HOVERBOARDHOVERBOARD
111
2
3
3
4
HOVERBOARD 6
9
98
7
Powerbase
5
9
3 3
42
6987
Specification

* Electrical connection: Dimension of all wires must be at least 2,5 mm² !
Brown = ground (wire no. 31)
= (for charging the Stryker PowerLoad Red permanent positive
and release of the lateral movement device)
fused in the vehicle with 15A (wire no. 30)
= , (wire no. 15) Orange ignition positive fused in the vehicle with 30A
Never connect the ignition line together with permanent positive !
This could lead to consequential damages, which are not covered by warranty !
* The valve-control-circuit is internally fused with 5A
* Max. power consumption 25A at 12V DC
HOVERBOARDHOVERBOARD
Powerbase
Technical data
Disinfection and cleaning
Phone [phone]
Mail [e-mail]
www.hover.at
* Disinfection and cleaning of the Hoverboard shall be performed
according to the regulations of the respective country.
* Never use or other corrosive substances !disinfectants containing chloroacetic acid
* In case of malfunctions, please contact our hotline
* Custom Hoverboard for Stryker PowerPro with Stryker PowerLoad
* Height lowered: 135 mm - 5.3"
Height when active: 220 mm - 9.0"
Height for reanimation (rigid): 310 mm - 12.2"
* Standard length: 2273 mm - 89.5", short version: 2153 mm/84.8"
* Total weight 98/124 kg - 216/273 lbs
* Maximum loading capacity 520 kg / 1146 lbs (incl. stretcher)
* Ignition AND main switch ON: Device ready
Ignition OR main switch OFF: Device lowered (e.g. for loading)

HOVERBOARDHOVERBOARD
Powerbase
Starting up
* After successfull assembly and electric connection, start ignition of vehicle
and turn on the blue main switch.
* The compressor will fill the air supply tank to approx. 8,5 bar/120 psi
within about 2 minutes and the Hoverboard is ready.
* The Hoverboard works automatically --> when the air pressure
has lowered to approx. 8 bar/115 psi, the compressor starts automatically
for approx. 20 seconds again. This allows constant operating pressure.
* By turning off the ignition or the blue main switch, the hoverboard automatically
lowers for loading and unloading.
It also lowers when you unlock the PowerLoad on the hoverboard.
* During regular air suspended drive, the red toggle switch (option) is set off.
For lifting the Hoverboard to highest position (e.g. for reanimation) switch it on.
ATTENTION:
When lifting to the highest position, the compressor runs continuously for approx. 3 minutes.
Multiple lifting in short intervals will overheat the compressor ! The thermal protection switch
will turn off the compressor and needs approx. 1 hour to cool down !
* By pushing one of the pushbuttons, the lateral movement device (option)
will unlock pneumatically. While keeping pushed, you can sway the Hoverboard
crosswise in 8 positions of 32 mm / 1,25" (total = 256 mm / 10").
Releasing the button means locking in the nearest position.
This option also works with ingition off.
In case of malfunction or lack of air pressure you may unlock it by the knobs.
* For correct loading and unloading please refer to the instructions of the stretcher.
Please pay attention to the correct locking of the stretcher on the Hoverboard.
HOVERBOARD
Have always a good trip with your new

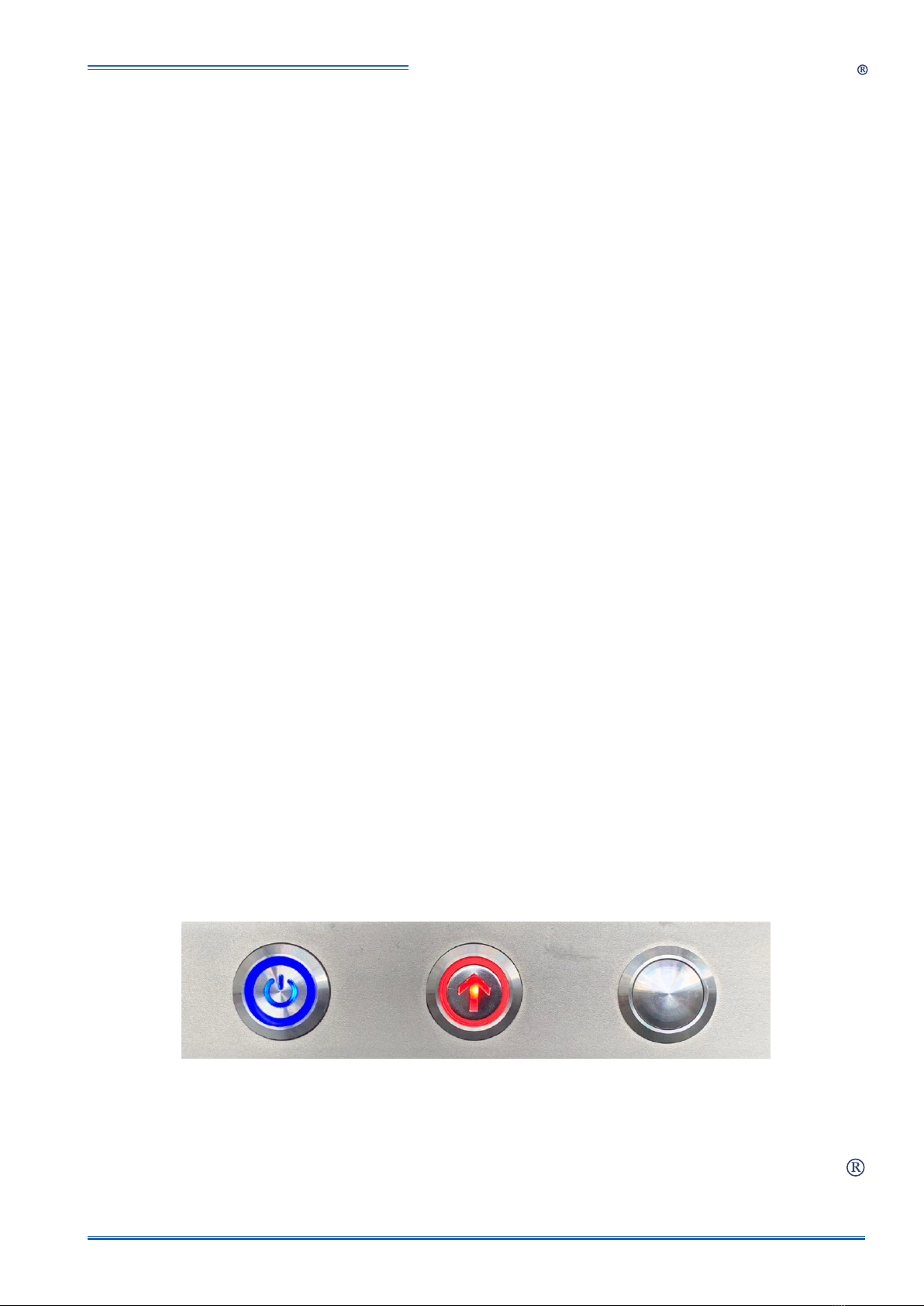

Top position
on/off
Suspension
on/off
Unlock lateral
movement device

HOVERBOARDHOVERBOARD
Connection layout
Option lateral movement device (LMD): blue, Option reanimation (RA):red
target colour cross-section target colour/cross-section
brown
grey
grey
grey
grey
grey
grey
grey
grey
yellow 2
blue
grey
grey
green
orange
light blue
orange
ye/wt
blue
red
red
white
pink
black
black
black
black
black
black
black
black
black
black
blue
blue
green
yellow 1
orange
red
blue
orange
orange
rd-wt
blue-white
rd-wt/ye-wt
blue-white
yellow 2
blue
2,5
1,0
1,0
1,0
1,0
1,0
1,0
2,5
2,5
1,0
1,0
2,5
2,5
1,0
1,0
2,5
2,5
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
1,0
2,5
1,0
2,5
1,0
1,0
1,0
1,0
1,0
1,0
1,0
Powerbase
ground (31)
bridge
bridge
bridge
bridge
bridge
bridge
bridge
bridge
reed switch
toggle switch
pressure switch
pressure switch
main switch
main switch
relay (87)
ignition (15)
LMD switch
LMD mag.valve
Powerload
positive (30)
toggle switch
toggle switch
compressor
Powerload
mag. valve 1
mag. valve 2
LMD mag.valve
RA mag. valve
check valve
relay
main switch
toggle switch
mag. valve 1
mag. valve 2
relay (85)
reed switch
fuse 5A
compressor
check valve
relay (30)
fuse 5A
LMD sw. front
LMD sw. rear
LMD sw. front
LMD sw. rear
reed switch
RA mag. valve

Powerbase HOVERBOARDHOVERBOARD
Air suspension
30620 > with shock absorber
30621 > without shock absorber

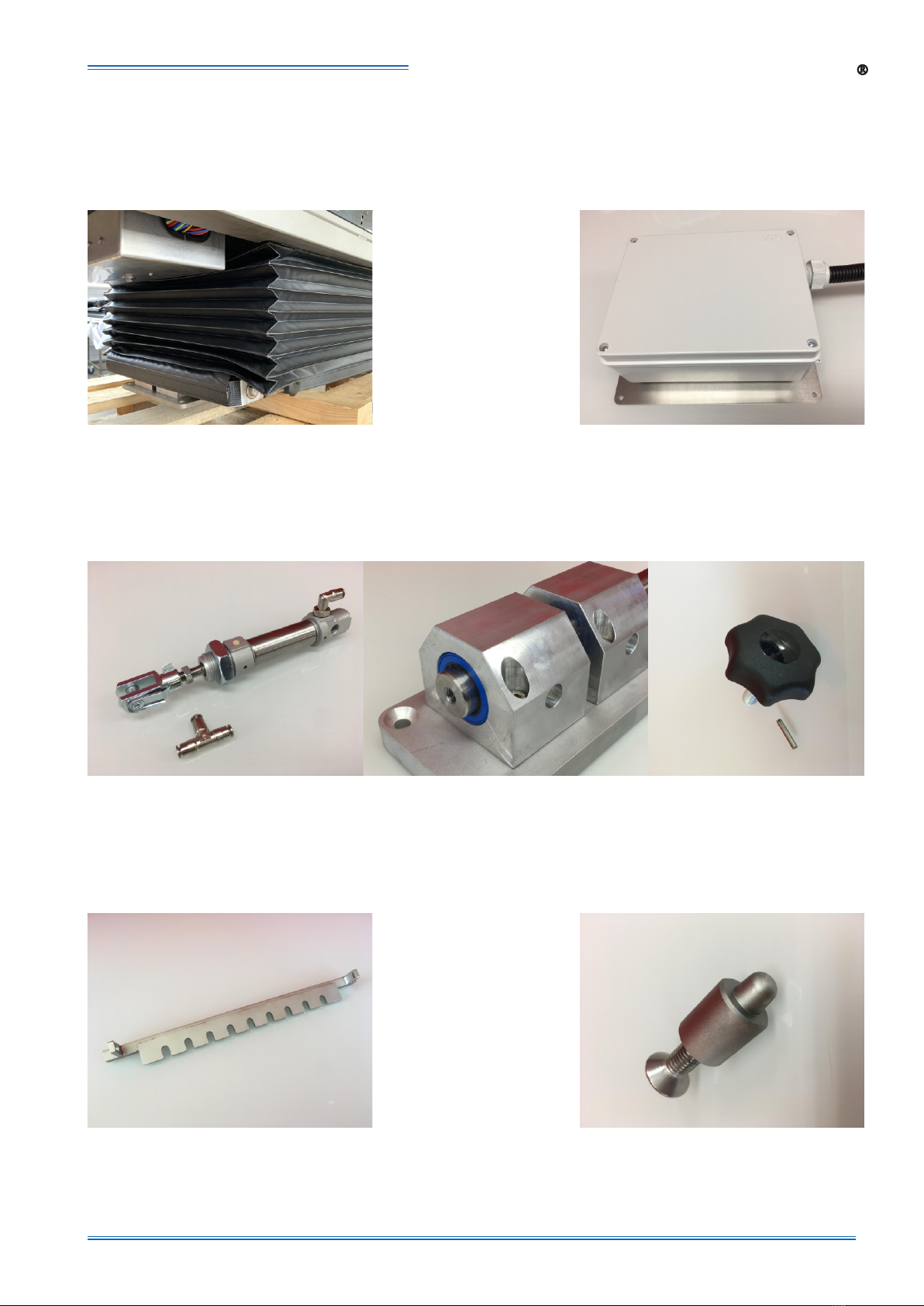

30311 air cushion 30057 magnetic valve block
30058 magnetic valve 1 30059 magnetic valve 2 30209 external compressor
(without Box)
30291 level control valve 30292 valve control bow 30272 air fittings
Spare parts

Powerbase HOVERBOARDHOVERBOARD
30302 adjustable shock absorber
31270 terminal grey
31272 terminal blue
31275 terminal orange
30251 fuse holder
30252 fuse 30A
30253 fuse 5A
31020 quick connector 4-4-4
31021 quick connector 4-4
31022 quick connector 6-6
30520 relay
30530 relay holder
30072 Reed switch
30073 Block magnet
30091 Cable conduit
30500 connector 2 pins, T, f
30501 connector 3 pins, T, f
30502 connector 2 pins, ger., f
30504 connector 2 pins, T, m
30505 connector 3 pins, T, m
30506 connector 2 pins, ger., m
30508 connector 10 pins, f
30509 connector 10 pins, m
31283 cord clip
Spare parts

Powerbase HOVERBOARDHOVERBOARD

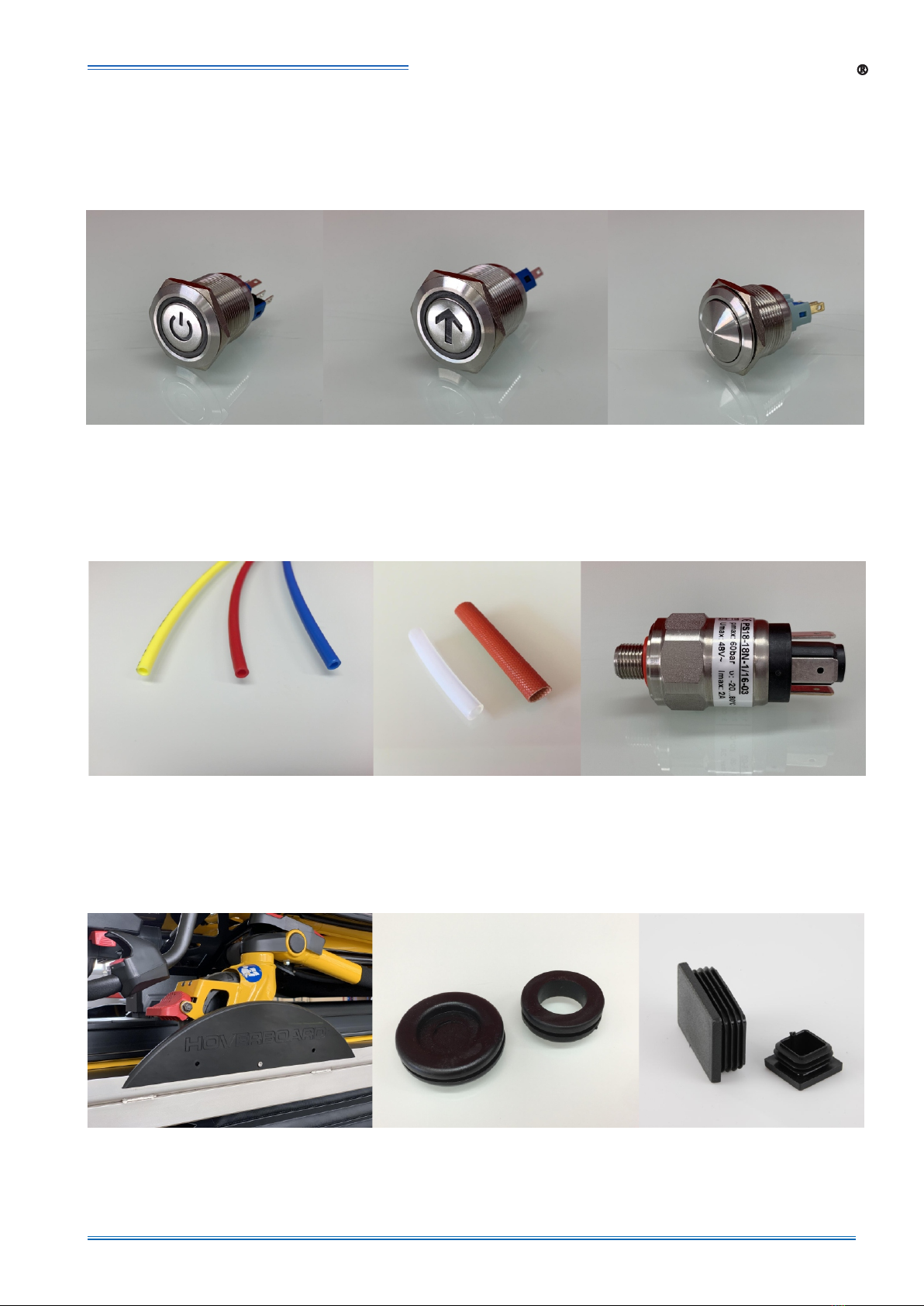

35010 main switch (blue) 35011 toggle switch (red) 35012 LMD pushbutton
30244 pressure tube 4 mm, red
30245 pressure tube 4 mm, blue
30246 pressure tube 4 mm, yellow
30240 pressure tube 6 mm, red
30248 teflon tube,
white
31080 thermal protection-
tube, red
30344 rubber grommet
51091 wheel guide 30361 plug 60 x 40
30066 pressure switch,
pre-adjusted 8,5 bar
Spare parts

Powerbase HOVERBOARDHOVERBOARD
51031 toothcomb back
51041 toothcomb front
31011 LMD pneumatic cylinder
51062 locking bolt
31030 linear bearing 31040 knob
Spare parts
30083 bellows, without lateral movement device
30084 bellows, with lateral movement device
30221 box for external compressor
(without compressor)
