General information
Vivibase

1... Pneumatic suspensions with automatic weight adjustment from
40-520 kg/88-1146 lbs and hydraulic shock absorbers.
Total vertical stroke 170 mm/6.7"
2... Stretcher mounting platform
3... Lateral movement device with pneumatic release (option)
4... Switch box, contains: a) 1x Relay for compressor, 12V
b) 2x Two-state relays for key circuit, 12V
c) 5x Magnetic valves 12V
d) Terminal block
5... Air pressure tank (approx. 4.5 litres/1.2 gal) with pressure switch
6... Reed switch
7... Blue momentary main switch
8... Red momentary switch for highest (rigid) position (for CPR)
9... Momentary switches for pneumatic release of the lateral movement device (option)
HOVERBOARDHOVERBOARD

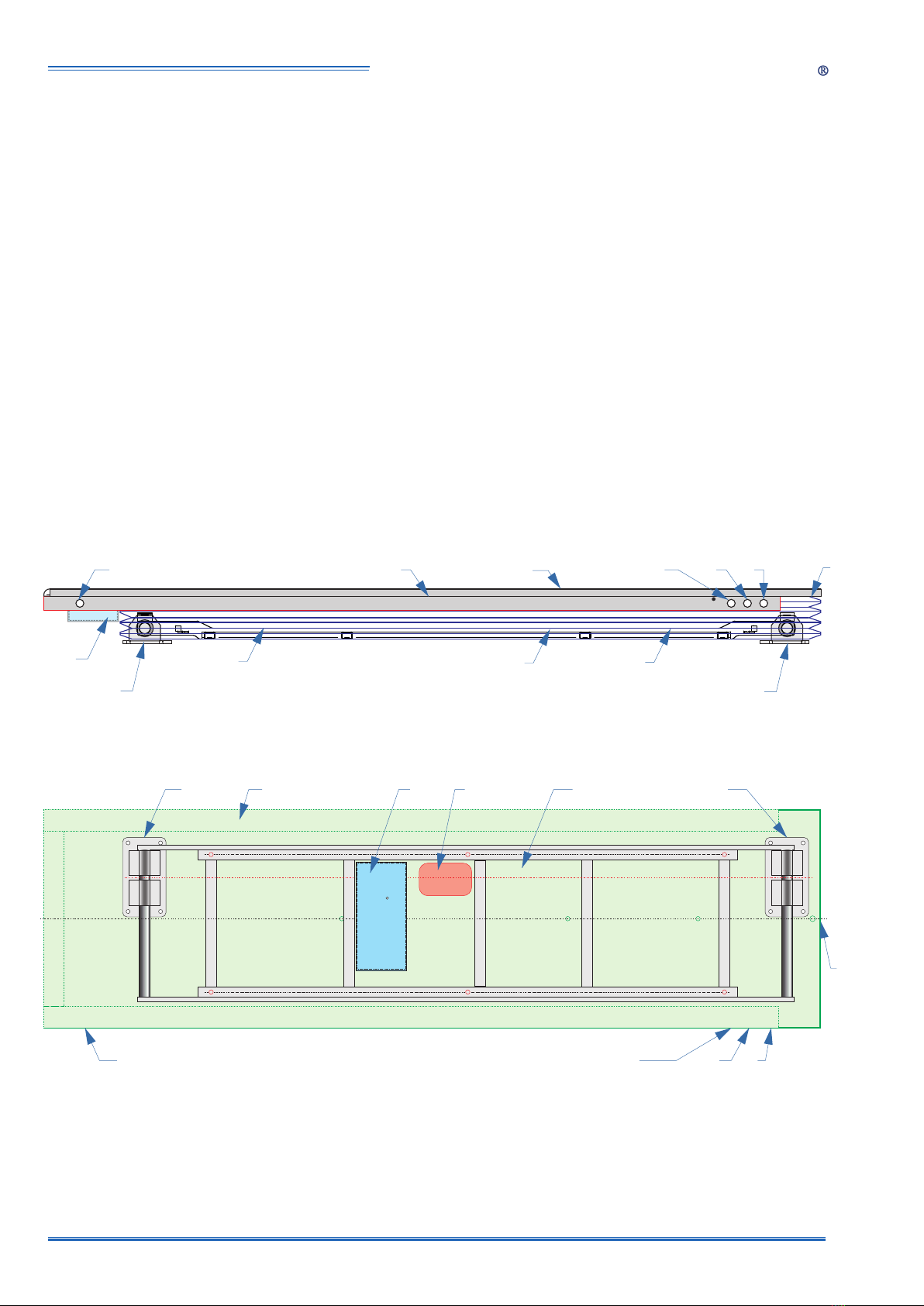

Specification
Vivibase
HOVERBOARD
5
1
1
1
2
3
3
4
976 98
3523
9 7 98
6
Bereich für
Kabelauslass im
Fahrzeugboden
145mm x 90mm
4

* Electrical connection: Dimension of all wires must be at least 4,0 mm² (AWG 12) !
Brown = ground (wire no. 31)
= (for charging the Stryker PowerLoad Red permanent positive
and release of the lateral movement device)
fused in the vehicle with 15A (wire no. 30)
= , (wire no. 15) Orange ignition positive fused in the vehicle with 30A
Never connect the ignition line together with permanent positive !
This could lead to consequential damages, which are not covered by warranty !
* The valve-control-circuit is internally fused with 5A
* Max. power consumption 25A at 12V DC
HOVERBOARDHOVERBOARD
Technical data
Assembly
* Customized Hoverboard for Ferno Viper and Medirol Vivera
* Height lowered: 135 mm - 5.3"
Height when active: 220 mm - 9.0"
Height for reanimation (rigid): 310 mm - 12.2"
* Standard length: 2003 mm - 78.9"
* Total weight 91/119 kg - 200/262 lbs without/with lateral movement device
* Maximum loading capacity 520 kg / 1146 lbs (incl. stretcher)
* Ignition AND main switch ON: Device ready
Ignition OR main switch OFF: Device lowered (e.g. for loading)
* To ensure that the stretcher is always ready for use, the permanent
positive is passed through the Hoverboard for continuous charging of the battery.
The Hoverboard may only be installed by qualified personnel (e.g. car technicians
or body fitters) and in accordance with the assembly instructions supplied.
The assembly operator is responsible for damages caused by improper assembly !
Vivibase

HOVERBOARDHOVERBOARD
Operation
After successfull assembly and electric connection, start ignition of vehicle
and turn on the blue main switch.
The Hoverboard now automatically adjusts to the patient's weight and rises to the level
for optimal suspension comfort, the switch lights up blue.
The Hoverboard is all-automatic, i.e. when the supply pressure
decreases to 8 bar (116 psi), the compressor starts again for approx. 20 seconds,
so that there is always sufficient operating pressure.
By switching off the ignition or pressing the main switch again,
the Hoverboard lowers automatically for easy loading and unloading.
It also lowers by unlocking the stretcher on the Hoverboard.
Pressing the red switch for the CPR-position (for resuscitation) raises the Hoverboard
to the highest (fixed) position, the switch lights up red.
This function is only active when the main switch is switched on.
By pressing it again, the Hoverboard gently lowers to suspended mode.
ATTENTION:
When lifting to the highest position, the compressor runs continuously up to 4 minutes.
Multiple lifting in short intervals will overheat the compressor !
Top position
on/off
Suspension
on/off
Unlock lateral
movement device
By pushing one of the pushbuttons, the lateral movement device (option)
will unlock pneumatically. While keeping pushed, you can move the Hoverboard
crosswise in 8 positions of 32 mm / 1,25" (total = 256 mm / 10").
Releasing the button means locking in the nearest position.
This option also works with ignition off.
The thermal protection switch will turn off the compressor and it takes approx. 1 hour to cool down !
Vivibase

HOVERBOARDHOVERBOARD
Operation
The pneumatic release is supplied by the air tank, which will only be refilled
when the main switch is on.
Frequently use while the Hoverboard is switched off leads to temporary malfunction.
In case of malfunction or lack of air pressure you may unlock it by the knobs.
For correct loading and unloading please refer to the instructions of the stretcher.
Please pay attention to the correct locking of the stretcher on the Hoverboard.
Knobs for emergency release
Vivibase
The serial number is located on the bottom
of the plate at the right end
and contains the production date.
E.g. serial number 212105 means:
2021 - 21th week, 5th production unit.
Please always quote this number for any complaints or spare parts orders !
Serial number
Maintenance
www.hover.at
One of the many advantages of the Hoverboard-types Airbase, Powerbase, Inbase
and Vivibase compared to conventional stretcher tables is that they are not classified as
medical devices according to Medical Devices Act (MPG) and are therefore not required
to be checked mandatory every year.
Hoverboards are basically maintenance-free, but we recommend an annual inspection
with a functional check, regarding e.g. the Powerbase, as part of the maintenance
of the stretcher.
This can be managed by one of our certified service partners, whom you find up-to-date on
You may also contact us directly if you have any questions or problems.

HOVERBOARDHOVERBOARD
Purification
All Hoverboards are made of high quality stainless steel of the type 1.4301 and
are carefully processed in protective atmosphere.
However, „stainless“ does not mean that the material is resistant to all aggressive chemicals,
such as e.g. ionized chlorine solutions.
At outside temperatures below -5 ° (23F), calcium chloride is often used as antifreeze solution,
which is much more aggressive than the commonly used sodium chloride (“common salt”).
This aggressive solution is brought to the surface of the plate by the wheels of the stretcher
and causes surface corrosion as a result.
For a consistently beautiful appearance, it is therefore important to rinse and wipe the surface
of the plate daily with clear water during such conditions.
A final impregnation with oil-based stainless steel care products can also help prevent corrosion.
On request, we will be happy to send you a special cleaning and care set.
Vivibase
Disinfection
Quality
On the European market, there is such an abundance of disinfectants, solvents and cleaning agents ,
so that not every single product can be tested.
In addition, the manufacturers are constantly changing and adapting their recipes.
That is why we only use 1.4301 quality for all stainless steel parts, because it means
the optimal synthesis of corrosion protection, processability and cost.
The correct (means not too high) concentration of the disinfectant is most important.
or other corrosive ingredients !Never use disinfectants with chloroacetic acid
The bellows is made of polyester fabric with a PVC coating and a PVC support frame.
These materials are generally trouble-free, but too high concentrations of disinfectants
may cause color damage (bleaching).
The disinfectant also should not remain on the surface anywhere, but should be wiped off
after it has acted or also rinsed away with clear water.
All Hoverboards are tested in accordance with the latest standards by DEKRA in Klettwitz
and comply with EN 1789: 2020, EN 1865-5: 2012 and ECE R17 (20 g test).
The Hoverboard Powerbase has also been tested by Stryker Medical EMS (USA)
and is homologated for use with the Stryker PowerLoad and PowerPRO XT.
The exclusive use of components of ISO certified pre-suppliers provides industrial manufacturing quality.
Because of our CIP (Continuos improvement programme) and advancement of our products,
your Hoverboard may vary from this description.

HOVERBOARD
Air suspension
30620 > with shock absorber
30621 > without shock absorber
30311 Air cushion

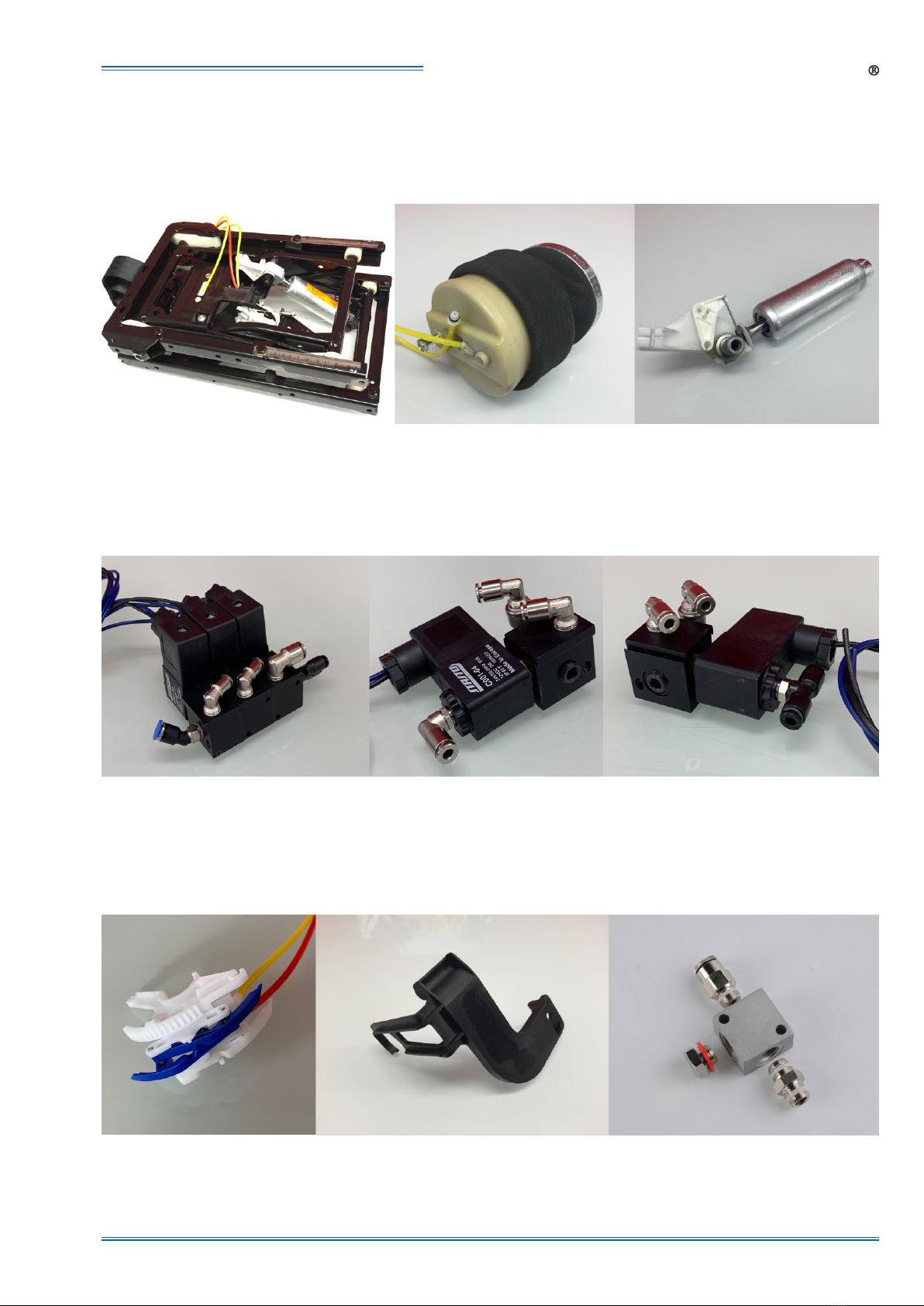

Spare parts
30302
Adjustable shock absorber
30057 Magnetic valve block 30058 Magnetic valve 1 30059 Magnetic valve 2
30291 Level control valve 30292 Valve control bow 30272 Air fittings
Vivibase

HOVERBOARD
Spare parts
30211 External compressor
(without Box)
62002 External box
(without compressor)
62003 External box
(with compressor)
30072 Reed switch
30073 Block magnet
30244 Pressure tube 4 mm, red
30245 Pressure tube 4 mm, blue
30246 Pressure tube 4 mm, yellow
30240 Pressure tube 6 mm, red
30248 Teflon tube,
white
31080 Thermal protection-
tube
30066 Pressure switch,
pre-adjusted 8,5 bar
Vivibase
52014
62302
Switch box, empty
Switchbox for momentary switches,
complete with valves,
terminal block and two-state relays
30513
30514
30517
30518
35060
35061
JPT-crimp female
JPT-crimp male
JPT-connector 2 pins f
JPT-connector 2 pins m
JPT-connector 6 pins f
JPT-connector 6 pins m

31283
Cable fixer, self-adhesive
30520 Load relay
30521 Two-state relay
30530 Relay socket
30083 Bellows, without
lateral movement device
30084 Bellows, with
lateral movement device
30344 Rubber bushing 30361 Plug 60 x 40
HOVERBOARD
35080 Plug combination
including contacts
Spare parts
35010 Main switch
latching (blue)
35013 Main switch
momentary (blue)
35011 CPR switch
latching (red)
35014 CPR switch
momentary (red)
35012 Pushbutton for
lateral movement device
Vivibase

35022
35023
35024
35025
30251 fuse holder
30252 fuse 30A
30253 fuse 5A
31020 hose connector 4-4-4
31021 hose connector 4-4
31022 hose connector 6-6
31023 hose connector 6-4
31024 hose connector 8-6
Connector and cable
for front pushbutton
for rear pushbutton
for main switch
for CPR switch
62260
Edelstahlpflegeset
51031 Zahnkamm hinten
51041 Zahnkamm vorne
51062 Rastbolzen
HOVERBOARD
Spare parts
31011 LMD pneumatic cylinder 31030 Linear bearing 31040 Knob
51031 Rear toothcomb
51041 Front toothcomb
51062 Locking bolt 62260
Care set for stainless steel
Vivibase

Terminal block
31270 grey
31271 green-yellow
31272 blue
31274 jumper
31275 orange
Terminal block
35071 grey
35072 orange
35073 red
35074 blue
35075 black
35076 jumper 2-way
35077 jumper 4-way
HOVERBOARD
Spare parts
Vivibase

HOVERBOARDHOVERBOARD
Vivibase
Have always a safe ride with your
In line with our continuous improvement program, we are always grateful
for your suggestions, requests, complaints and proposals for improvement.
Therefore we look forward to hearing from you at
Phone +43 - 660 - 800 9000
Mail [e-mail]
www.hover.at
Copyright 4/2023
Subject to technical changes
HOVERBOARD GmbH, Gewerbepark 10, A - 6068 Mils info @hover.at www.hover.at
