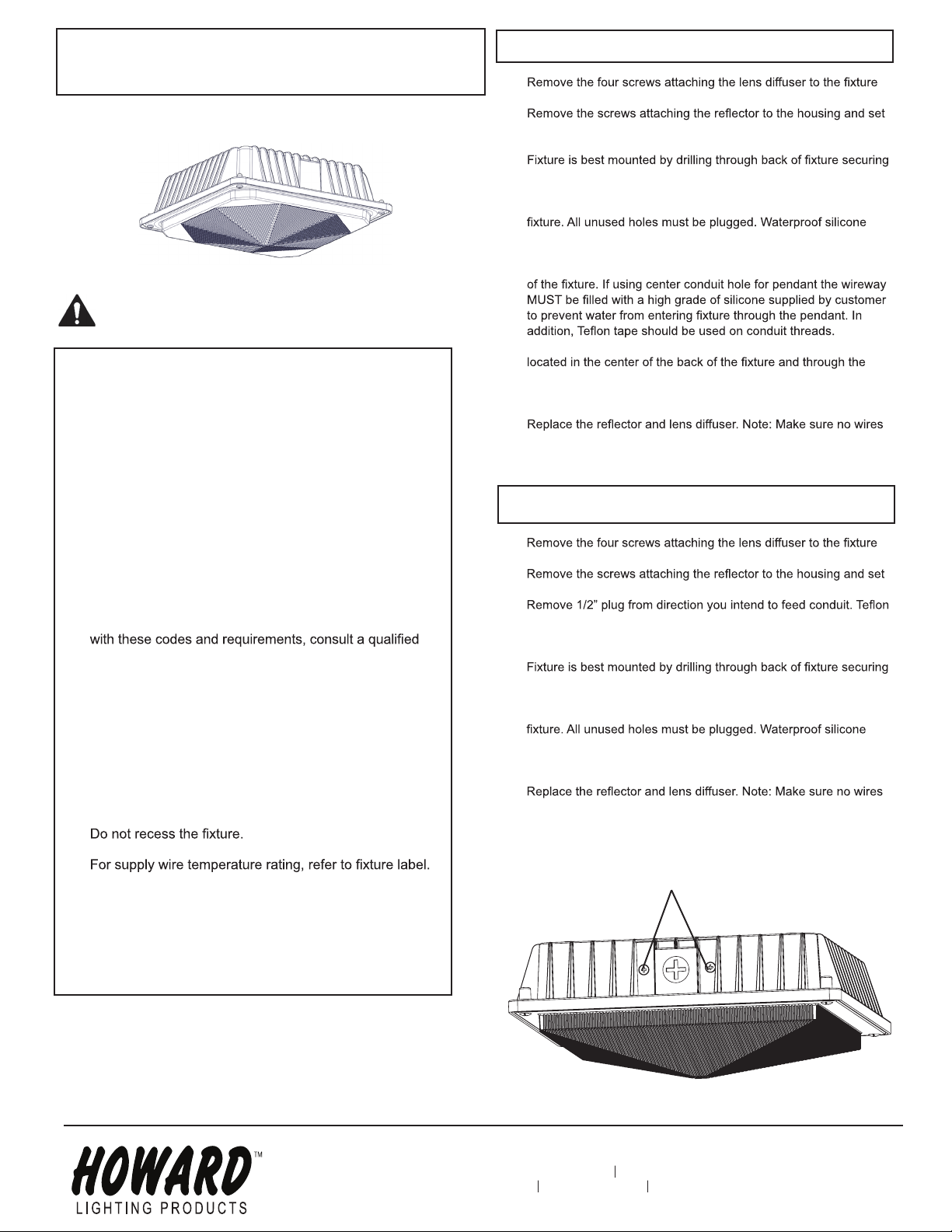

INSTALLATION INSTRUCTIONS
LCN2750MV
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
electrician.
3. Suitable for wet locations.
4. Covered ceiling mount only.
5. MIN. 75C SUPPLY CONDUCTORS.
6. Make certain power is OFF before starting installation or
attempting any maintenance.
7.
8.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
1.
and set the screws and lens aside.
2.
aside.
3. Remove ¾” plug from back for wiring access.
4.
it to the mounting surface using the appropriate mounting
hardware for the surface. Mounting hardware supplied by others.
When drilling holes do not drill within 1/4” (6mm) from edges of
should be used around all holes to ensure watertight enclosure.
NOTE: Fixture can also be pendant mounted by threading the
customer supplied pendant into the ¾” mounting hole on the top
5. Route the incoming power and ground leads through the hole
opening on the side of the LED mounting pad.
6. Complete the wiring to the incoming power and ground (refer to
“Fixture Wiring” section).
7.
are pinched when replacing parts. Do not overtighten lens screws
to prevent damage to lens.
DO NOT TOUCH THE LEDs OR WIRES COMING
FROM CIRCUIT BOARD DURING THE INSTALLATION
PROCESS. DAMAGE MAY OCCUR.
1.
and set the screws and lens aside.
2.
aside.
3.
tape should be used on conduit threads to prevent water entry.
NOTE: The (2) screws on either sides of the 1/2" plug should not
be removed during installation. See Figure 1.
4.
it to the mounting surface using the -appropriate mounting
hardware for the surface. Mounting hardware supplied by others.
When drilling holes do not drill within 1/4” (6 mm) from edges of
should be used around all holes to ensure watertight enclosure.
5. Complete the wiring to the incoming power and ground (refer to
“Fixture Wiring” section).
6.
are pinched when replacing parts. Do not overtighten lens screws
Need help? Call 1.800.956.3456 to speak with our installation and product experts.
Revised 12/05/2019
to prevent damage to lens.
MOUNTING USING ½” PLUGS ON THE SIDE
FIGURE 1
Do NOT Remove These Screws During
Installation
MOUNTING USING ¾" PLUG IN THE BACK
580 Eastview Drive Laurel, MS 39443
(p) 601.422.0033 (f) 601.422.1652 Toll-Free: 800.956.3456
www.Howard-Lighting.com

INSTALLATION INSTRUCTIONS
LCN2750MV CAUTION:
void your authority to use this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
authority to use this equipment.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-005 (B)/NMB-005 (B)
FCC NOTICE Class B
Fixture is equipped with universal volt driver 120-277V
(ie. 120V, 208V, 240V or 277V)
PHASE TO NEUTRAL WIRING 120/277V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply common to fixture neutral (white) lead.
3. Connect supply Vin to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
PHASE TO PHASE WIRING 208/240V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply L1 (Hot) to fixture neutral (white) lead.
3. Connect supply L2 (Hot) to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
ELECTRICAL CONNECTIONS
Need help? Call 1.800.956.3456 to speak with our installation and product experts.
Revised 12/05/2019
