Hoymiles HYT-5.0HV-AUG1 User manual

Open Energy for All
USER MANUAL
HYT-5.0HV-AUG1
HYT-6.0HV-AUG1
HYT-8.0HV-AUG1
HYT-10.0HV-AUG1
HYT-12.0HV-AUG1
HAT-5.0HV-EUG1
HAT-6.0HV-EUG1
HAT-8.0HV-EUG1
HAT-10.0HV-EUG1
HAT-12.0HV-EUG1
Region: Australia REV1.0 hoymiles.com

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 01
CONTENTS
1. Safety Introduction 03
1.1 Explanation of Symbols 03
1.2 Safety Information 04
2. Product Introduction 06
2.1 Product Overview 06
2.2 Operating Modes 08
2.3 System Diagram 10
2.3.1 Basic Diagram 11
2.3.2 Retrofit System 13
2.3.3 Unacceptable Diagram 14
3. Installation Instruction 15
3.1 Packing List 15
3.2 Installation Tools 16
3.3 Mounting 17
3.3.1 Selecting the Mounting Location 17
3.3.2 Mounting Inverter 18
3.4 Electrical Wiring Connection 18
3.4.1 Grounding Connection 18
3.4.2 AC Wiring Connection 19
3.4.2.1 Grid Connection 19
3.4.2.2 GEN Connection (for HAT series inverters) 20
3.4.2.3 EPS Connection 20
3.4.3 PV Wiring Connection (for HYT series inverters) 22
3.4.4 Battery Wiring Connection 23
3.4.5 Communication Wiring Connection 24
3.4.5.1 BMS Connection 25
3.4.5.2 Smart Meter and CT Connection 26
3.4.5.3 DRM Connection 27
3.4.5.4 DI Connection 28
3.4.5.5 DO Connection 29
3.4.5.6 Parallel Connection 29
3.4.6 DTS Connection 30
3.5 Operation 31
3.5.1 Commissioning 31
3.5.2 Decommissioning 31
3.5.3 S-Miles Cloud App 32
3.5.3.1 DTS Online Setting 32
3.5.3.2 System Commissioning of Wireless Access Point (AP) Connection 34

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 02
3.5.3.4 DRM Setting 37
3.5.3.5 Earth Fault Alarm 37
3.5.3.6 Export Limit Settings 38
3.5.3.7 Firmware Version 38
3.5.4 Routine Maintenance 39
4. Troubleshooting 40
5. Technical Datasheet 43
5.1 HYT Series Technical Parameters 43
5.2 HAT Series Technical Parameters 44
Appendix A 45
Appendix B 49

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 03
1. Safety Introduction

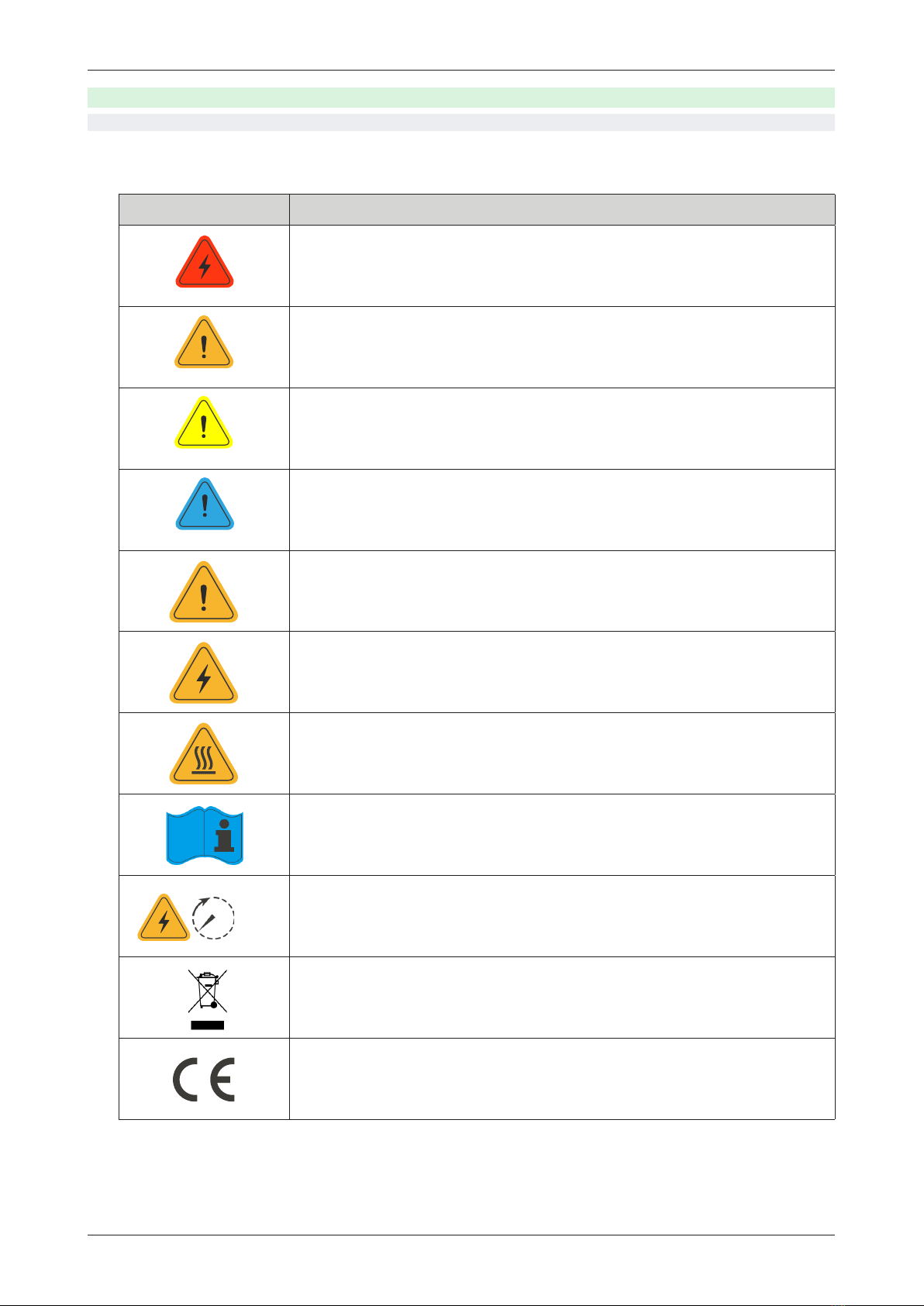

1.1 Explanation of Symbols
The following types of safety precautions and general information symbols used in this manual must be
followed during the installation, operation and maintenance of the inverter.
Symbol Usage
Indicates a hazard with a high level of risk that, if not avoided, will result in
death or serious injury.
Indicates a hazard with a medium level of risk that, if not avoided, can result in
death or serious injury.
Indicates a hazard with a low level of risk that, if not avoided, can result in
minor or moderate injury.
Indicates a situation that, if not avoided, can result in property damage.
NOTICE is used to address practices not related to personal injury.
Caution! Failure to observe any warnings contained in this manual may result
in injury.
Danger to life due to high voltages!
Only qualified personnel can open and maintain the inverter.
Burn danger due to hot surface that may exceed 60℃.
Refer to the operating instructions.
After the inverter is turned off, wait for at least 10 minutes before opening the
inverter or touching live parts.
Products shall not be disposed as household waste.
CE mark.
DANGER
WARNING
CAUTION
NOTICE
10min

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 04
This side up! This package must always be transported, handled and stored in
such a way that the arrows always point upwards.
Fragile - The package/product should be handled carefully and should never be
tipped over or slung.
Keep dry! The package/product must be protected from excessive humidity
and must be stored under cover.
No more than six (6) identical packages are to be stacked on each other.
1.2 Safety Information
This chapter contains important safety and operating instructions. For future reference, please read and
keep this manual.
For the purpose of preventing personal injury and property damage, as well as ensuring the long-term
operation of the product, please read and follow all the instructions and cautions on the inverter and in this
user manual during installation, operation and maintenance.
Safety instructions in this manual cannot cover all precautions that should be taken. Please consider the
actual conditions on site when performing operations. Any damage caused by a violation of the safety
instructions in this manual shall not be the responsibility of Hoymiles.
Symbol Usage
Danger to life from electric shock
• Before performing any work on the inverter, disconnect all DC and AC power
from inverter and wait for at least 10 minutes. Hazardous voltage will exist
for up to 10 minutes after disconnection from power supply.
• Never insert or remove the AC or DC connections when the inverter is
running.
• Any live parts connected to battery ports cannot be touched before removing
all the power from inverter for 10 minutes because there is still danger to life
even battery voltage is lower than 60 V.
• Do not touch DC conductors or any non-isolated cable ends.
• The mounting location must be inaccessible to children.
• Never touch either the positive or negative pole of PV connecting device.
Strictly prohibit touching both at the same time.
WARNING
Risk of burns from hot surfaces
• The surface of the inverter might exceed 60℃, and touching the surface may
result in burns.
• Do not touch hot surfaces before the inverter cools down.
DANGER
6

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 05
WARNING
• Only authorized service personnel are allowed to install the inverter or
perform servicing and maintenance.
• All powers, both AC and DC, should be disconnected from inverter before
attempting any maintenance, cleaning or working on any circuits connected
to inverter.
• Attempting to service the inverter yourself may result in a risk of electric
shock or fire and will void your warranty.
• Keep away from flammable and explosive materials to avoid fire disaster.
• The installation place should be away from humid or corrosive substances.
• The unit contains capacitors that remain charged to a potentially lethal
voltage after the mains, battery and PV supply have been disconnected.
• When accessing the internal circuit of inverter, wait for at least 10 minutes
after disconnecting the power.
• The inverter has a transformer-less design on PV side. Neither positive nor
negative terminals of PV panels should be grounded.
• The frames of PV panels should be grounded for safety reasons.
• Ensure that existing wiring is in good condition and no wire is undersized.
• Do not disassemble any parts of inverter which are not mentioned in
installation.
• Authorized service personnel must use insulated tools when installing or
working with this equipment.
• PV modules shall have an IEC 61730 class A rating.
• The minimum rated temperature of the wire used is 90℃ (194℉).
• All electrical connections must be in accordance with local and national
standards.
• Only with permission of the local utility grid company, the inverter can be
connected to the utility grid.
• Do not open the inverter cover or change any components without
authorization, otherwise the warranty commitment for the inverter will be
invalid.
• Appropriate methods must be adopted to protect inverter from electrostatic
discharge; any damage caused by ESD is not warranted by the manufacturer.
• Prior to the application, please read this section carefully to ensure the
correct and safe application. Please keep the user manual properly.
• The manual contains no instructions for user-serviceable parts. See Warranty
for instructions on obtaining service.
• If an error occurs, refer to troubleshooting or contact your local distributor or
qualified electricians.
CAUTION
NOTICE

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 06
2. Product Introduction
2.1 Product Overview
The HYT-HV Series is a high-performance three-phase hybrid inverter with excellent reliability. The
intelligent EMS function supports self-consumption, economic, and backup modes for multi-scenario
applications. Monitoring management through S-Miles Cloud allows users to remotely diagnose and track
the system performance over time, offering superior energy production.
I
J
K
L
A B C D E F G

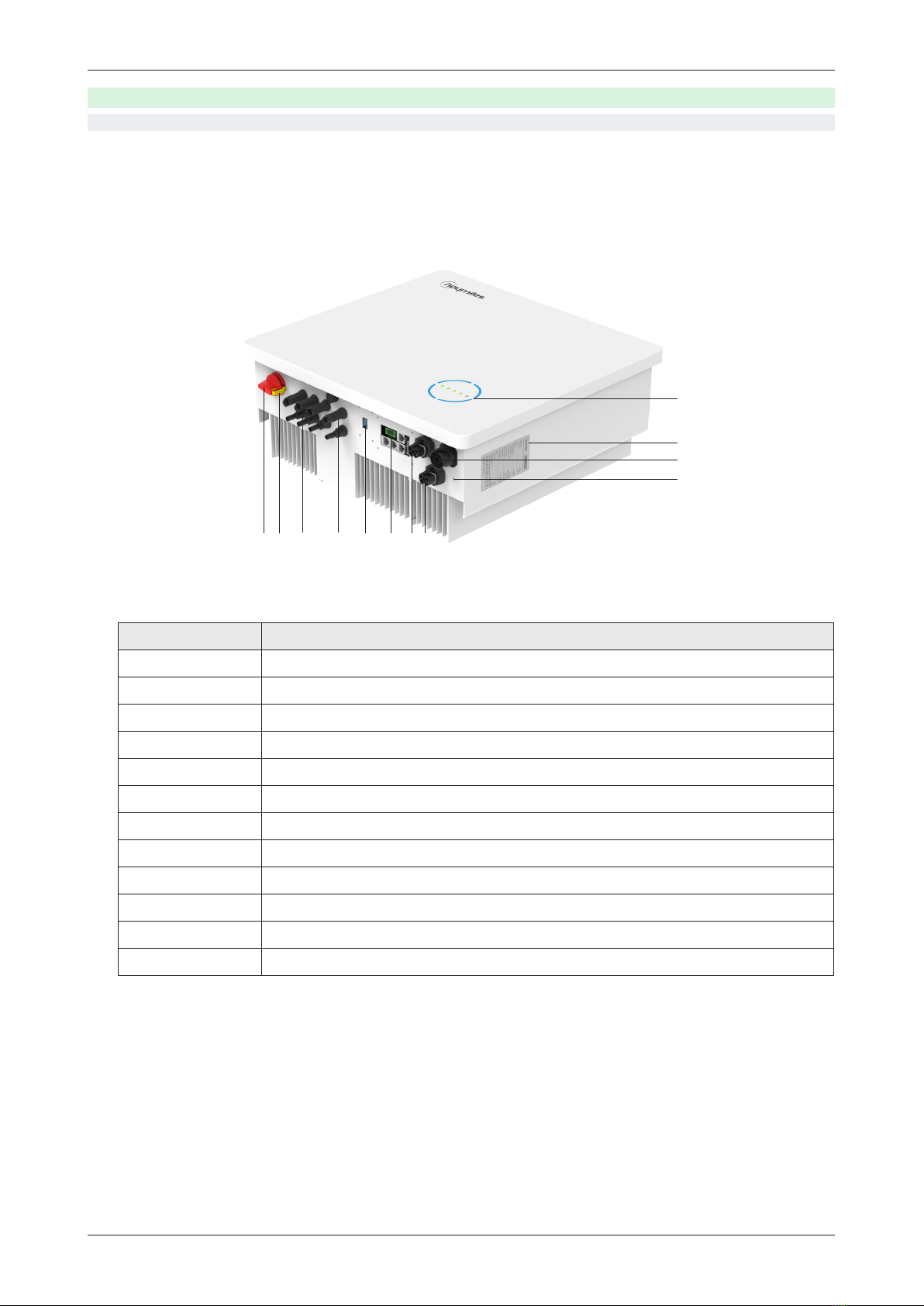

* The image shown here is for reference only. The actual product received may differ.
Object Description
A DC Switch*
B DC Switch Lock*
C PV Terminals*
D Battery Terminals
E Data Transfer Stick (DTS) Port
F Communication Port
G GRID Connector
H Generator (GEN) Connector
I LED Indicators
J Label
K Emergency Power Supply (EPS) Connector
L PE Terminal
* Only for HYT-HV-AUG1 series.
H

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 07

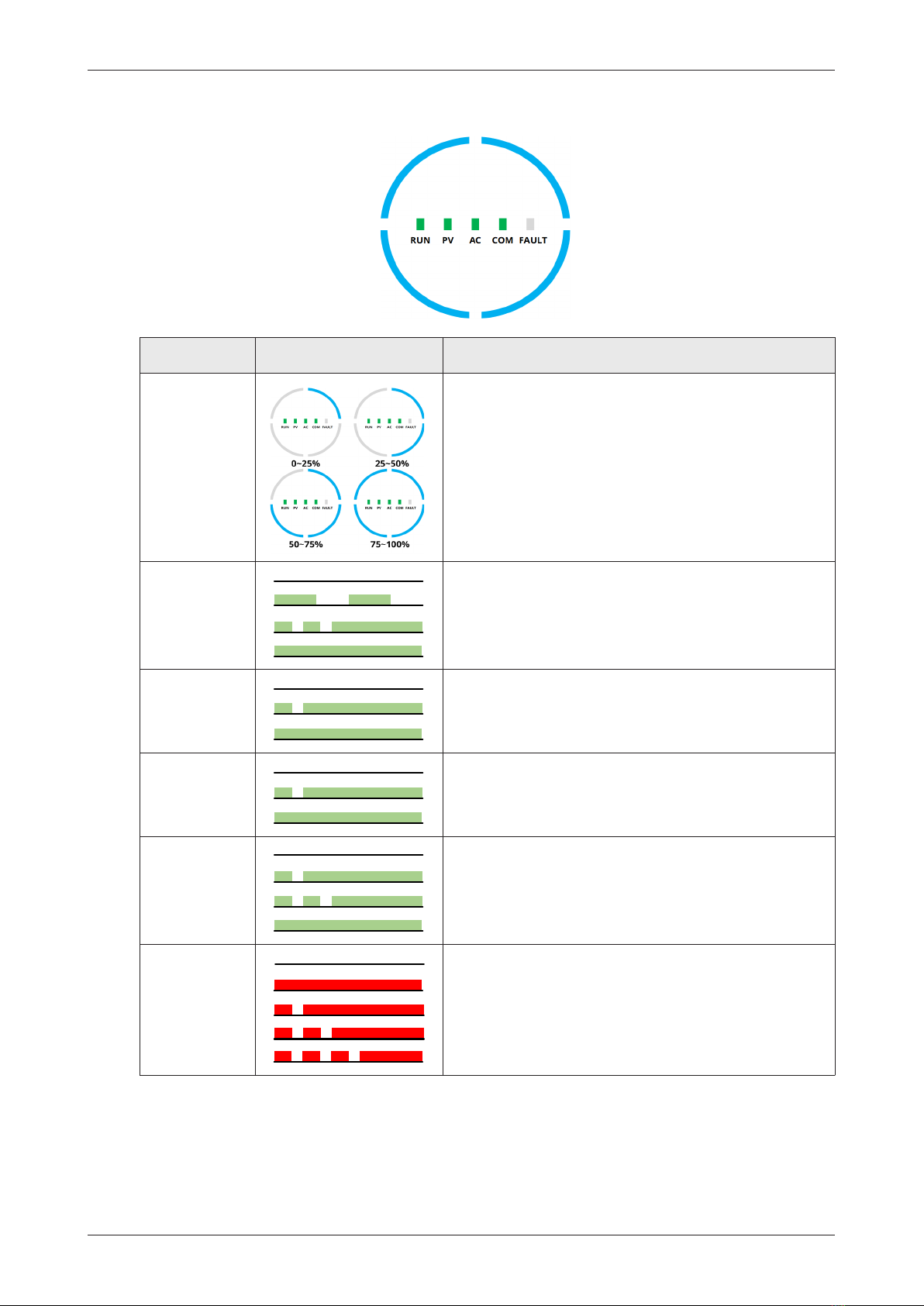

LED Indicators
Indicator Status Explanation
SOC
Full circle LEDs on – SOC is 75-100%
3/4 circle LEDs on – SOC is 50-75%
2/4 circle LEDs on – SOC is 25-50%
1/4 circle LED on – SOC is 10-25%
1/4 circle LED blinks – SOC is below 10%
All circle LEDs off – No BMS communication
RUN
Off – Inverter is not operating
Blink 1 – Inverter is booting
Blink 2 – Inverter is in bypass mode
On – Inverter is operating
PV
(only for HYT)
Off – PV voltage is low
Blink 1 – PV power is low
On – PV is generating power
AC
Off – Grid is disconnected and EPS is off
Blink 1 –Grid is disconnected but EPS is on
On – Grid is connected
COM
Off – Communication error of both meter and BMS
Blink 1 – Meter communication failure
Blink 2 – BMS communication failure
On – BMS and meter communications are normal
FAULT
Off – No fault
On - A fault happens
Blink 1 – EPS port overload
Blink 2 – ISO/RCD fault
Blink 3 – Arc fault

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 08
2.2 Operating Modes
Main Operation Modes
The following operation modes are applicable for the HYT series inverter, and are also applicable for the
HAT series inverter which is connected to the PV inverter through the GEN port.

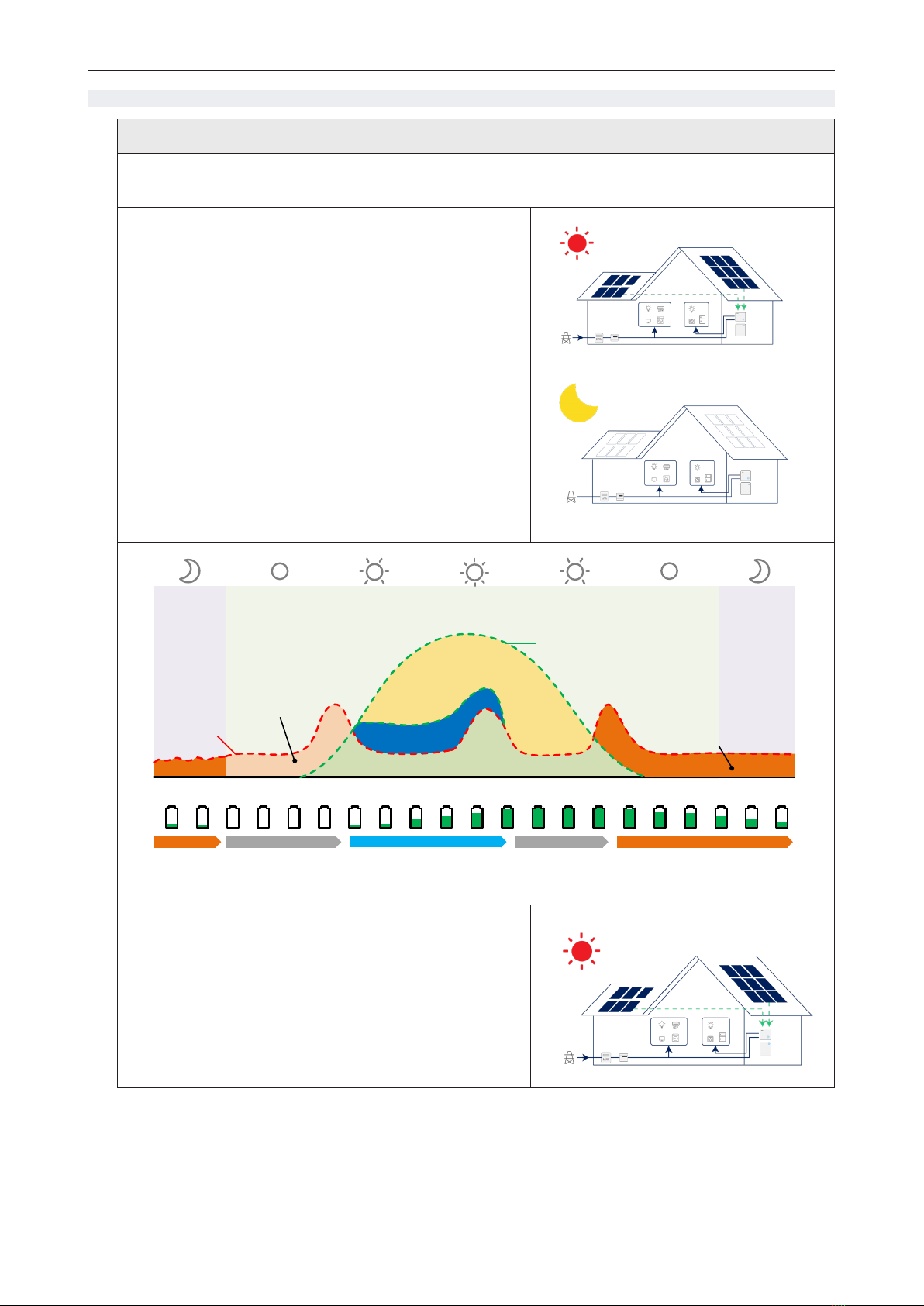

Self-consumption
Mode
In the daytime, solar energy is
used to power the loads first,
and surplus energy is stored in
the battery. After the battery has
been fully charged or reaches
its maximum charge power, the
excess solar energy is fed into the
grid (or limited if necessary).
At night, the battery discharges
for the loads first, and once the
battery power is insufficient, the
grid supplies power to the loads.
In this mode, battery cannot be
recharged from grid at night.
00:00 24:00

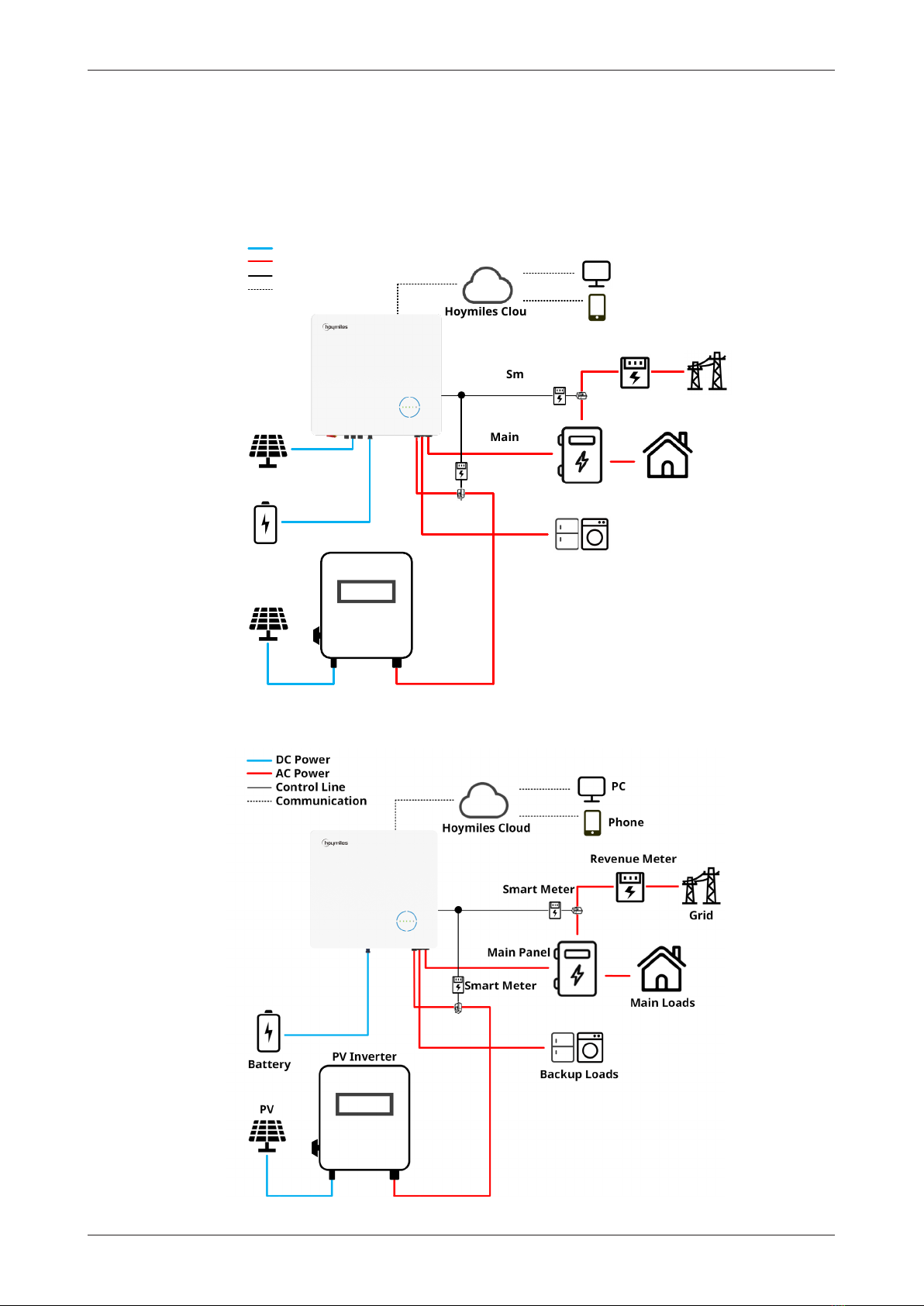

Power flow of self-consumption mode
Economic Mode
In this mode, the time of battery
charge and discharge needs to be
set. Meanwhile, the battery can
be forced to charge from the grid
during the preset charge time.
For instance, the battery could be
charged or discharged according
to valley or peak electricity price.
Loads
Consuming from grid
Self consuming (PV power generation)
Battery charging
PV surplus power selling
PV power
Battery discharging
at night
discharging standby charging standby discharging

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 09
Power flow of economic mode
Back-up Mode
In case of frequent power outages,
a backup power SOC can be
configured, which ensures that the
battery always has enough energy
to handle critical loads.
00:00 24:00
Power flow of back-up mode
00:00
charging
charging
24:00
PV power
Self consuming (PV power generation)
Battery charging
PV surplus power selling
Loads
Battery discharging
at morning
Battery fully
charged
Battery discharging
at evening
Battery charging at
deep night
standby discharging charging standby discharging charging
Loads
Consuming from grid
Self consuming (PV power generation)
Battery charging
PV surplus power selling
PV power Battery discharging
at night
Discharge stopped
when set SOC is
reached
standby charging standby discharging standby

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 10
2.3 System Diagram
The HYT-HV series inverter can be connected to a battery and PV panels to form a PV Energy Storage
System (ESS). In the event of a grid outage, it can be used as an emergency power supply (EPS) through the
self-consumption of solar energy. It can either form a DC-coupled system for a new installation or an AC-
coupled system to retrofit existing installations.
• This diagram is a simplified system sketch that is only intended to explain
system architecture.
• Please refer to https://www.hoymiles.com for compatible battery list,
and the user should first contact Hoymiles for technical consultation and
obtain official confirmation prior to installing any battery not included in
the official published list.
NOTICE
PV
Battery
Backup Loads
Revenue Meter
Grid
Main Panel
Main Loads
Generator
DC Power
AC Power
Control Line
Communication
Hoymiles Cloud Phone
PC
Smart Meter
The HAT-HV series inverter can be connected to a battery and any grid-connectd PV inverters to form a PV
Energy Storage System (ESS). In the event of a grid outage, it can be used as an emergency power supply
(EPS) through the self consumption of solar energy, as the grid-connected PV inverter can also work when
it is connected to the GEN port even if there is a grid outage.

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 11

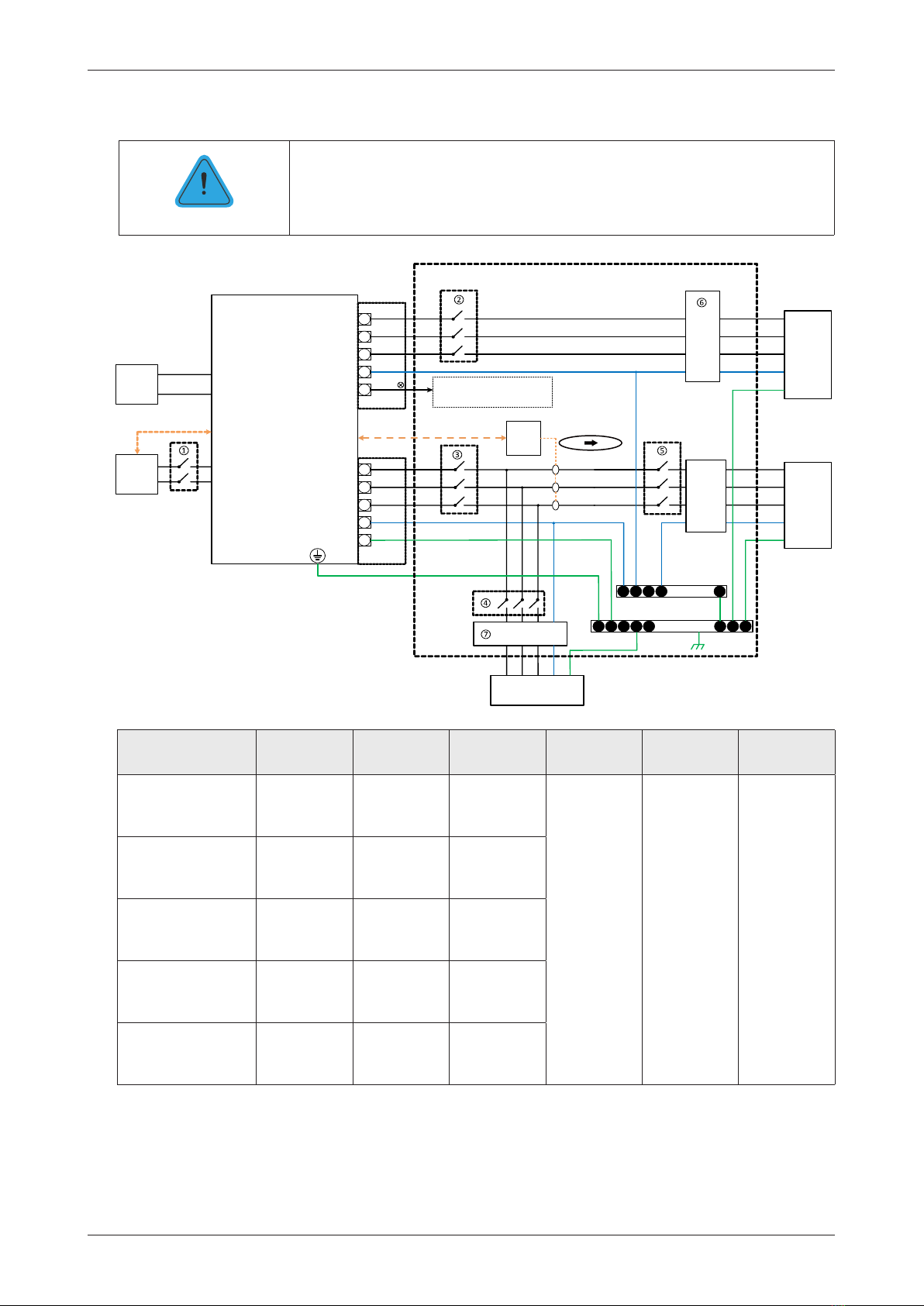

2.3.1 Basic Diagram
• This diagram is an example of application in which the neutral connects
with PE in distribution box.
• For countries such as Australia, New Zealand, South Africa, etc., please
follow local wiring regulations!
NOTICE
Model ①②③④⑤⑥⑦
HYT-5.0HV-AUG1 25 A/600 V
DC Breaker
16 A/400 V
AC Breaker
20 A/400 V
AC Breaker
Depends
on Loads
Main
Breaker
30 mA RCD
(Type A)
HYT-6.0HV-AUG1 25 A/600 V
DC Breaker
16 A/400 V
AC Breaker
25 A/400 V
AC Breaker
HYT-8.0HV-AUG1 40 A/600 V
DC Breaker
20 A/400 V
AC Breaker
32 A/400 V
AC Breaker
HYT-10.0HV-AUG1 40 A/600 V
DC Breaker
25 A/400 V
AC Breaker
32 A/400 V
AC Breaker
HYT-12.0HV-AUG1 40 A/600 V
DC Breaker
25 A/400 V
AC Breaker
32 A/400V
AC Breaker
Note:
• If the battery integrates a readily accessible internal DC breaker, no additional ①DC breaker is required.
• ⑥⑦ 30 mA RCD is recommended but not mandatory; please comply with local regulation.
E-BAR
Battery
BMS
Backup
Loads
Smart
Meter
PV
RCD
Grid
Normal Loads
Distribution Box
PEor
L1
L2
L3
N
L1
L2
L3
N
PE
EPS
GRID
Meter
L1
L2
L3
N
PE
L1
L2
L3
N
PE
L1 L2 L3 N PE
CT1
CT2
CT3 Utility
Meter
RCD
Do not connect this terminal
when the neutral wire and PE
wire are connected together.
N-BAR
E-N
Link
LOAD GRID
HYT-HV Series
A. Diagram for Australia, New Zealand, South Africa, etc. (for HYT series inverters)

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 12
• This diagram is an example of application in which the neutral connects
with PE in distribution box.
• For countries such as Australia, New Zealand, South Africa, etc., please
follow local wiring regulations!
NOTICE
B. Diagram for Australia, New Zealand, South Africa, etc. (for HAT series inverters)
Model ① ② ③ ④ ⑤ ⑥ ⑦⑧
HAT-5.0HV-EUG1 25 A/600 V
DC Breaker
16 A/400 V
AC Breaker
16 A/400 V
AC Breaker
20 A/400 V
AC Breaker
Depends
on Loads
Main
Breaker
30 mA
RCD
(Type A)
HAT-6.0HV-EUG1 25 A/600 V
DC Breaker
16 A/400 V
AC Breaker
16 A/400 V
AC Breaker
25 A/400 V
AC Breaker
HAT-8.0HV-EUG1 40 A/600 V
DC Breaker
20 A/400 V
AC Breaker
20 A/400 V
AC Breaker
32 A/400 V
AC Breaker
HAT-10.0HV-EUG1 40 A/600 V
DC Breaker
25 A/400 V
AC Breaker
25 A/400 V
AC Breaker
32 A/400 V
AC Breaker
HAT-12.0HV-EUG1 40 A/600 V
DC Breaker
25 A/400 V
AC Breaker
25 A/400 V
AC Breaker
32 A/400 V
AC Breaker
Note:
• If the battery integrates a readily accessible internal DC breaker, no additional ①DC breaker is required.
• ⑦⑧ 30 mA RCD is recommended but not mandatory; please comply with local regulation.
E-BAR
Battery
BMS
Backup
Loads
Smart
Meter
1
RCD
Grid
Normal Loads
Distribution Box
PE or
L1
L2
L3
N
L1
L2
L3
N
PE
EPS
GRID
Meter
L1
L2
L3
N
PE
L1
L2
L3
N
PE
L1 L2 L3 NPE
CT1
CT2
CT3 Utility
Meter
RCD
⑧
①
②
④⑥
⑦
Do not connect this terminal
when the neutral wire and PE
wire are connected together.
N-BAR
E-N
Link
HAT-HV Series
⑤
Generator
/Inverter
GEN
L1
L2
L3
N
PE
CT1
③
Smart
Meter
2
CT2
CT3
L1
L2
L3
N
PE
LOAD GRIDLOAD GRID
RJ45
Coupler
INV GENINV GEN

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 13
2.3.2 Retrofit System
The HYT/HAT-HV series inverter is compatible with any three-phase grid-connected PV inverters. With the
addition of Hoymiles hybrid inverter or AC-coupled inverter, existing PV system can be retrofitted to be a
PV Energy Storage Syestem (ESS) allowing more self-consumption energy and more backup energy.
Consult with your system integrator for detailed wirings according to your requirements.
HYT Series
HAT Series
PV
Battery Backup Loads
Revenue Meter
Grid
Main Panel
Main Loads
DC Power
AC Power
Control Line
Communication
Hoymiles Cloud Phone
PC
Smart Meter
PV
PV Inverter
Smart Meter

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 14
2.3.3 Unacceptable Diagram
Avoid the following installation types to prevent damage to the system or the HYT/HAT series inverter.
One battery cannot be connected to multiple inverters. One meter cannot be connected to multiple inverters and
different CTs cannot be connected to the same line cable.
Single PV cannot be connected to multiple inverters. Neither EPS or on-grid port can be connected to generator
directly.
EPS port cannot be connected to grid directly. Incompatible battery cannot be connected to battery port.
PV PV On-grid EPS
EPS
Smart Meter
Generator
Incompatible
battery

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 15
3. Installation Instruction
3.1 Packing List
Please ensure that none of the components listed below are missing or damaged upon receipt of the hybrid
inverter or AC-coupled inverter.
HYT Series

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 16
HAT Series
Hammer drill Wire stripper Hydraulic pliers
PV terminal
crimping tool
Tubular termianl
crimping tool
Network cable crimper
OT terminal
crimping tool
Heavy-duty connector
crimping tool
Phillips screwdriver
Protective goggles
Dust maskSafety gloves Safety shoes
3.2 Installation Tools
The following tools are recommended in the installation process, and other auxiliary tools can also be used
on site if necessary.

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 17
3.3 Mounting
3.3.1 Selecting the Mounting Location
• Make sure there is no electrical connection before installation.
• In order to avoid electric shock or other injuries, make sure that holes are
not be drilled over any electrical parts or plumbing installations.
WARNING
• Make sure the inverter is correctly installed according to the following list.
Any incorrect installation would require a risk assessment.
• In order to prevent inverter damage and personal injury, make sure the
inverter is carefully moved.
• The inverter can not be vertically placed on the ground, since the terminals
and ports at the bottom of the inverter can not bear the weight of inverter.
Such protection materials as foam and paper can be used to protect the
enclosure if it is placed on the ground.
NOTICE
Check List
1. The inverter installation should be protected by shelter from direct sunlight or bad weather such as
snow, rain or lightning.
2. The inverter should be installed on a solid surface which is suitable for the inverter’s dimensions and
weight.
3. The inverter should be installed vertically or at a maximum back tilt of 15°. Leave enough space around
the inverter according to the figure below.
4. The inverter should be installed in an environment with good ventilation and heat dissipation
conditions.
5. The ambient temperature should be between -25°C and 45°C. High ambient temperatures will cause
power derating of the inverter.
6. The relative humidity should be less than 95%, without condensing.
7. The inverter should be installed at eye level for convenient maintenance.
8. The product label on the inverter should be clearly visible after installation.
9. The inverter should be installed far from flammable materials.

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 18

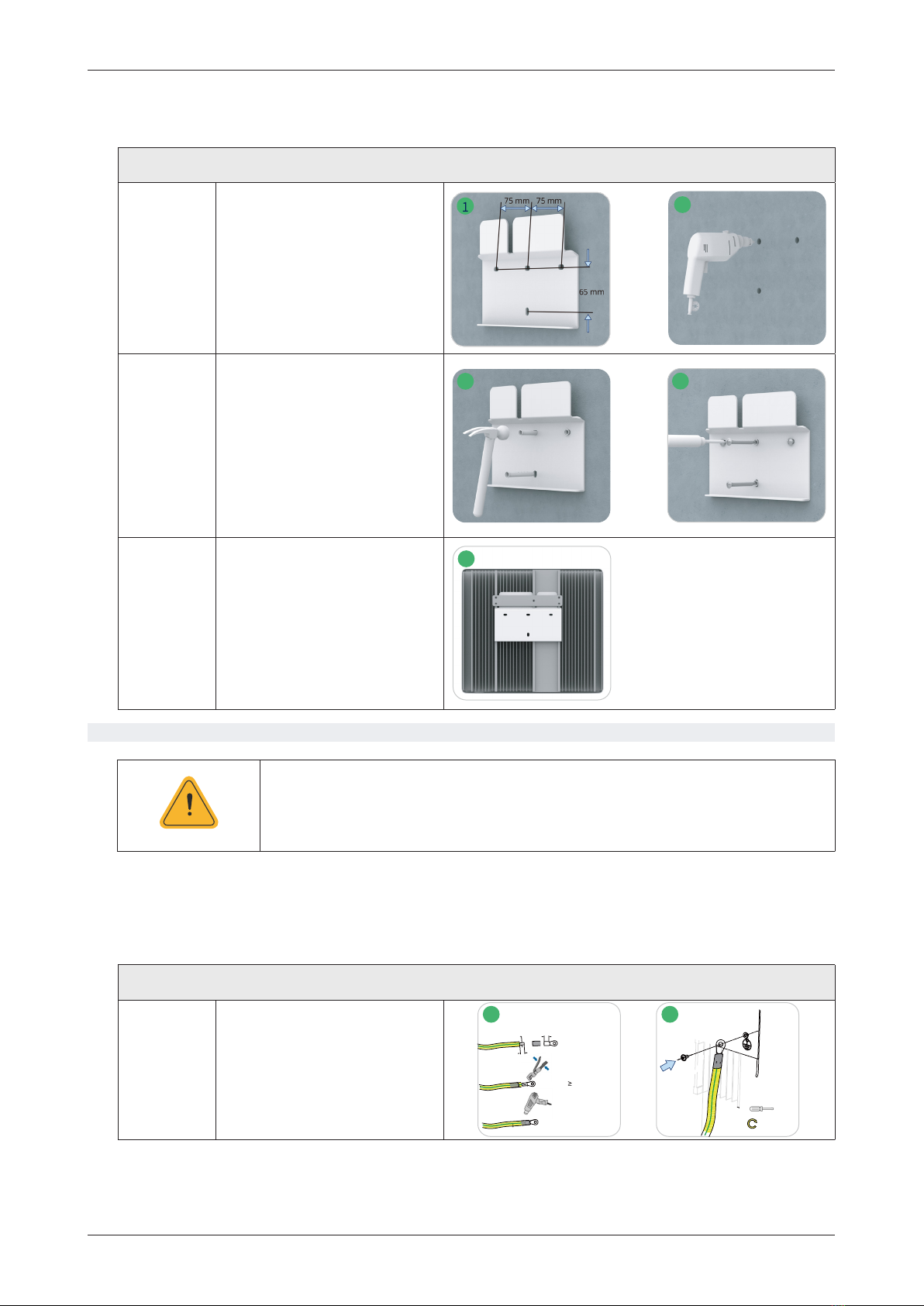

3.3.2 Mounting Inverter
Install the inverter on the wall using the provided wall-mounting bracket and expansion plug sets.
Procedure
Step 1
Step 2
Position the bracket against the
wall and mark the 4 drilling hole
locations.
Drill holes with a driller,and
make sure the holes are deep
enough (at least 60 mm).
2
Step 3
Step 4
Place sleeves in the holes, and
then tighten them.
Fix the wall bracket with
expansion screws. Please
confirm that the bracket is
firmly attached to the mounting
surface.
3
4
Step 5 Mount the inverter on the
bracket.
5
3.4 Electrical Wiring Connection
3.4.1 Grounding Connection
All non-current carrying metal parts and device enclosures in the PV power system should be grounded.
There is an additional grounding terminal located at bottom right of the inverter, being connected to a
nearby grounding point.
Procedure
Step 1
Step 2
Prepare the cable and OT/DT
terminal.
Use the screw from the
accessory box. Then fasten the
cable with a screwdriver.
WARNING
• Prior to any electrical connections, keep in mind that the inverter has dual power
supplies. It is mandatory for the qualified personnel to wear personal protective
equipment (PPE) during the electrical work.
1 2
M4
1.2 N·m
L=H+(2-3) mm
S4 mm²
SH
L

Hybrid Inverter User Manual
© 2023 Hoymiles Power Electronics Inc. All rights reserved. 19

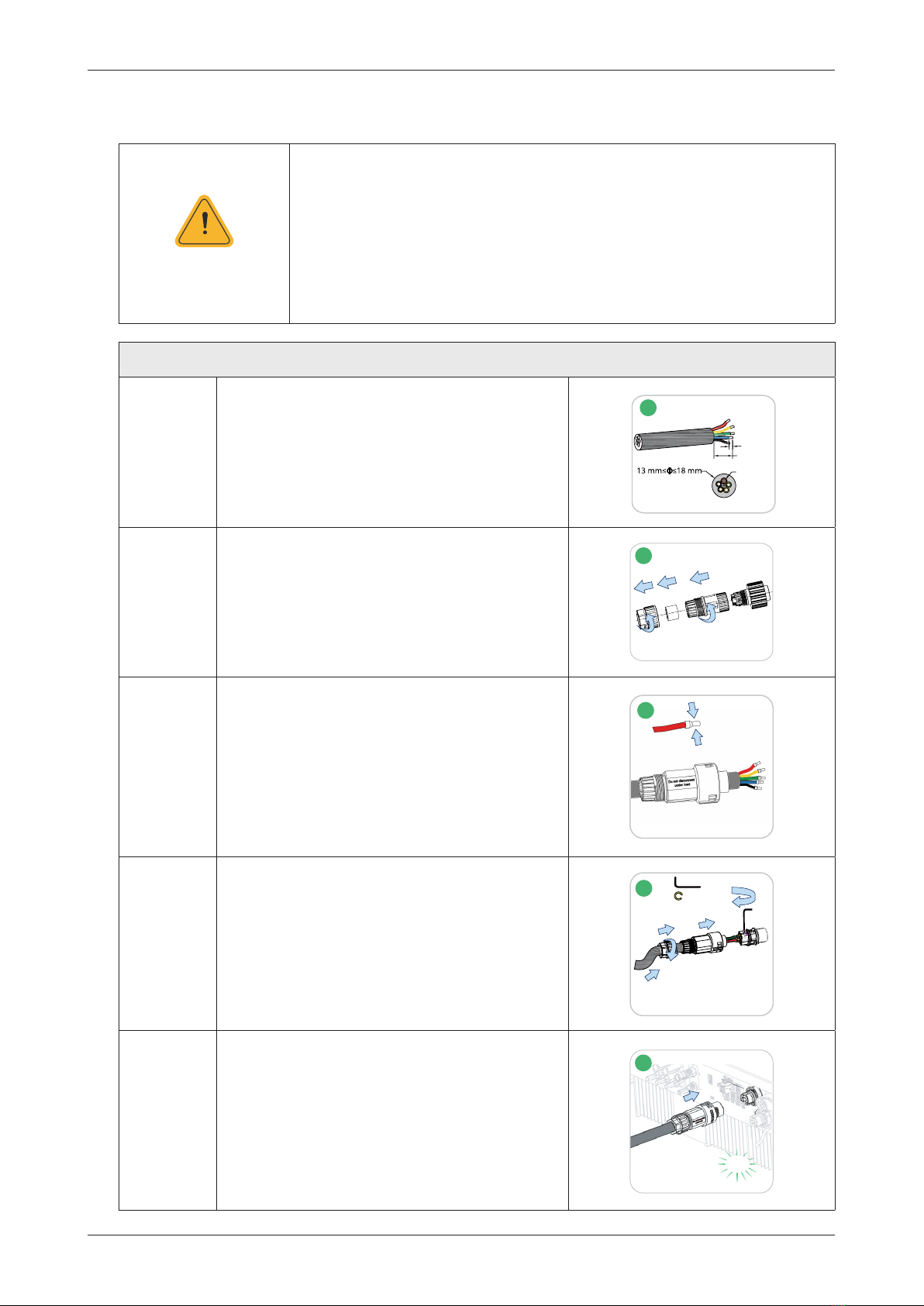

3.4.2 AC Wiring Connection
3.4.2.1 Grid Connection
WARNING
Before connecting the grid, please make sure all requirements listed below are
followed.
• Use the grid connector from the accessory box. Damage to the device due
to the use of incompatible connector shall not be covered by the warranty.
• An independent three or four-pole circuit breaker must be installed on the
output side of the inverter to ensure safe disconnection from the grid.
• Multiple inverters cannot share one circuit breaker.
• Never connect a load between the inverter and the circuit breaker.
• Do not connect the AC circuit breaker until all inverter electrical connections
are completed.
Procedure
Step 1
• Remove the cable jacket by 20-25 mm, and
strip the wire insulation by 7-8 mm.
• The conductor cross-sectional area: 4 mm².
Step 2 • Unscrew the grid connector counterclockwise.
• Disassemble the parts in sequence. 1
2
4
5
2
3
Step 3
• Insert the cable conductor core into the
terminals and crimp them tightly. Make
sure the cable jacket is not locked within the
connector.
• Thread the AC cable of appropriate length
through the waterproof terminal.
3
Step 4
• Fix all cables to the corresponding terminals
with a torque of 1.2 N•m using the screwdriver
according to markings on the connector. Make
sure the L/N/PE are correctly assembled.
• Assemble the parts in sequence.
Step 5
• Tighten the waterproof terminal clockwise.
• Connect the grid connector to the inverter.
There should be a “click” sound, if it is plugged
in correctly. Click
5
1
S=4 mm²
7-8 mm
20-25 mm
3
2
4
M4
1.2 N·m
1
5
4
