HP 9030 CE User manual

HP 9000 Series 500 Computers
Models 530/540
HP 9030/9040 CE Handbook
Part No. 09040-90035
E0385
Requires Binder
No. 9282-0683
r/i~ HEWLETT
~e.. PACKARD
Printed in USA
Edition 1. March 1985

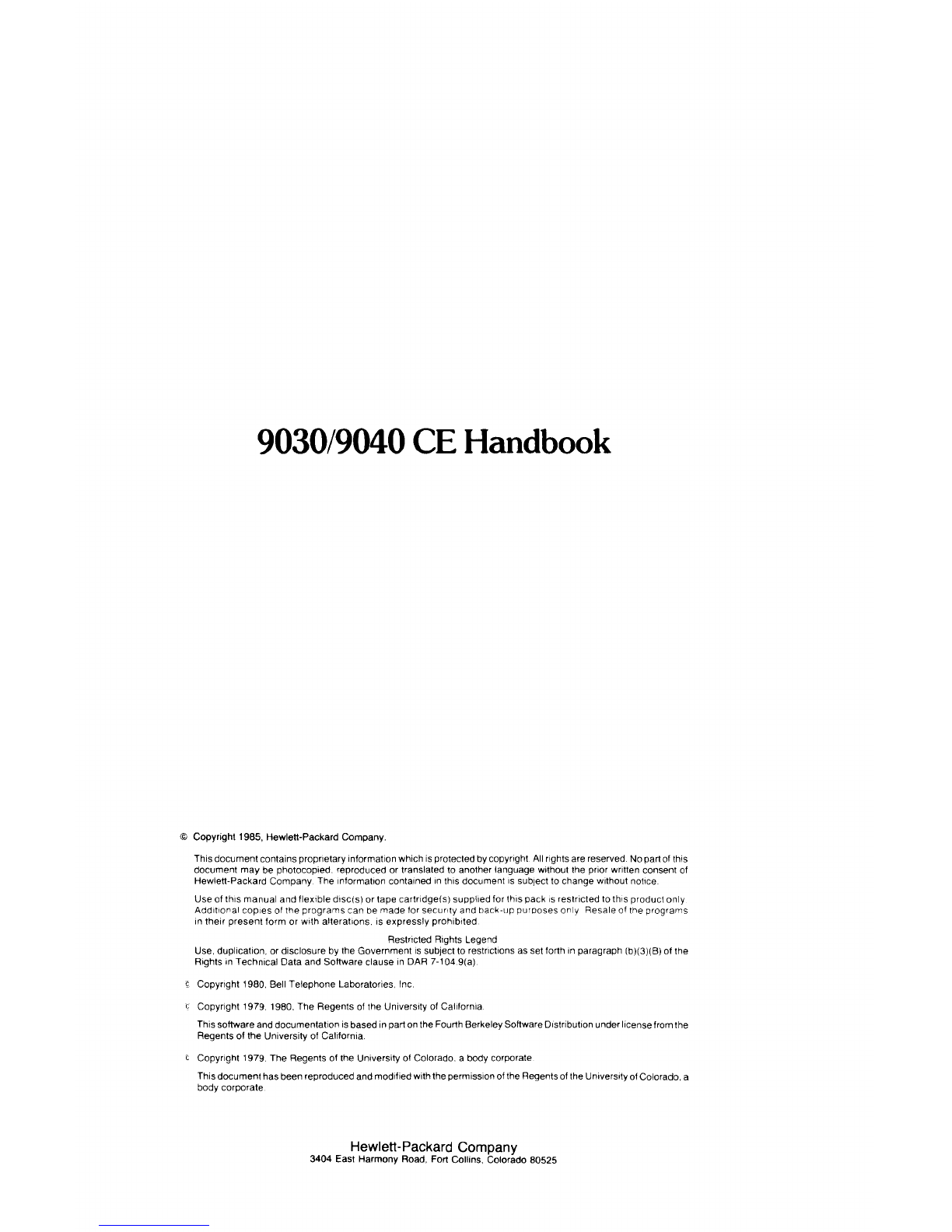

9030/9040 CE Handbook
© Copyright 1985, Hewlett-Packard Company.
This document contains proprietary information which
is protected by copyright All rights are reserved. Nopartof this
document
may be photocopied. reproduced or translated to another language without the prior written consent of
Hewlett-Packard Company The Informalion contained
In this document IS subject to change without notice
Use of thiS manual and fleXible dlsc(s) or tape cartridge(s) supplied for thiS pack
IS restricted to thiS productonly
Addilional copies of the programs can be made for secu"ty and back-up purposes only Resale Of the pro9'ams
in their present form or with alterations. is expressly prohibited
Restricted Rights Legend
Use, duplication, or disclosure by the Government
is subject to restrictions as set forth In paragraph (b)(3)(B) of the
Rights in Technical Data and Software clause
in DAR 7-104.9(a)
~ COPYright 1980, Bell Telephone Laboratories. Inc
c Copyright 1979. 1980. The Regents of the University of California
This software and documentation is based in part on the Fourth Berkeley SoftwareDistribution underlicensefrom the
Regents of the University of California
t Copyright 1979. The Regents of the University of Colorado. a body corporate
Thisdocumenthasbeen reproduced and modified with the permission ofthe Regents of the University ofColorado, a
body corporate
Hewlett-Packard Company
3404 East Harmony Road, Fort Collins, Colorado 80525

Chapter 1
9030/40 Product Information
Chapter 2
9030 40 Environmental Installation PM
Chapter 3
9030 40 Configuration
Chapter 4
903040 Trouhleshooting
Chapter 5
9030 40 DiagnostICs
Chapter 6
9030 40 Adjustments
Chapter 7
9030 40 Peripherals
Chapter 8
9030 40 Replaceable Parts
Chapter 9
9030 40 Diagrams
Chapter 10
9030 40 Reference
Chapter 11
903040 Service Notes

ii

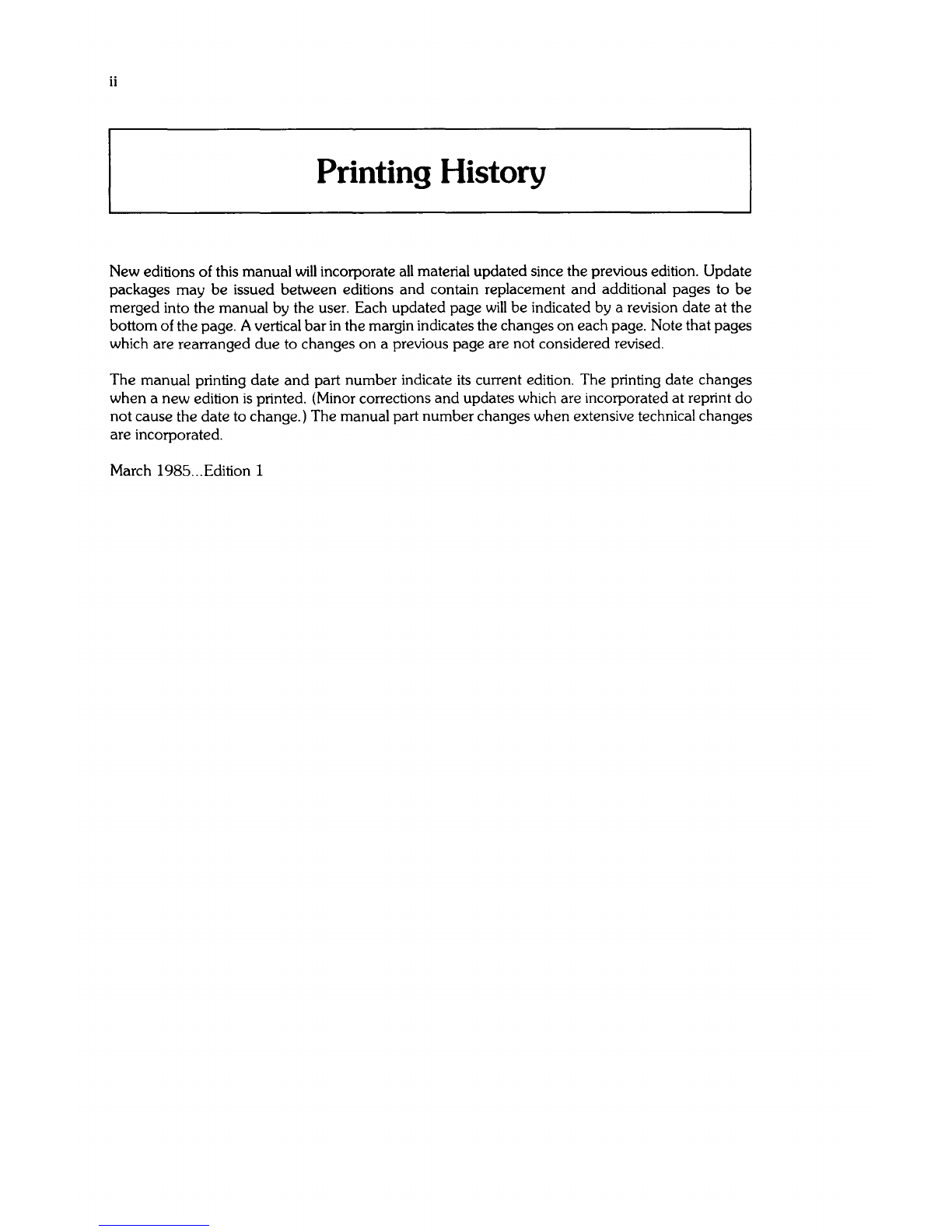

Printing History
New editions of this manual will incorporate all material updated since the previous edition. Update
packages may be issued between editions and contain replacement and additional pages to be
merged into the manual by the user. Each updated page will be indicated by a revision date at the
bottom ofthe page. Avertical bar
in the margin indicates the changes on each page. Note that pages
which are rearranged due to changes
on a previous page are not considered revised.
The manual printing date
and part number indicate its current edition. The printing date changes
when a new edition
is printed. (Minor corrections and updates which are incorporated at reprint do
not cause the date to change.) The manual part number changes when extensive technical changes
are incorporated.
March 1985...Edition 1

r 1-1

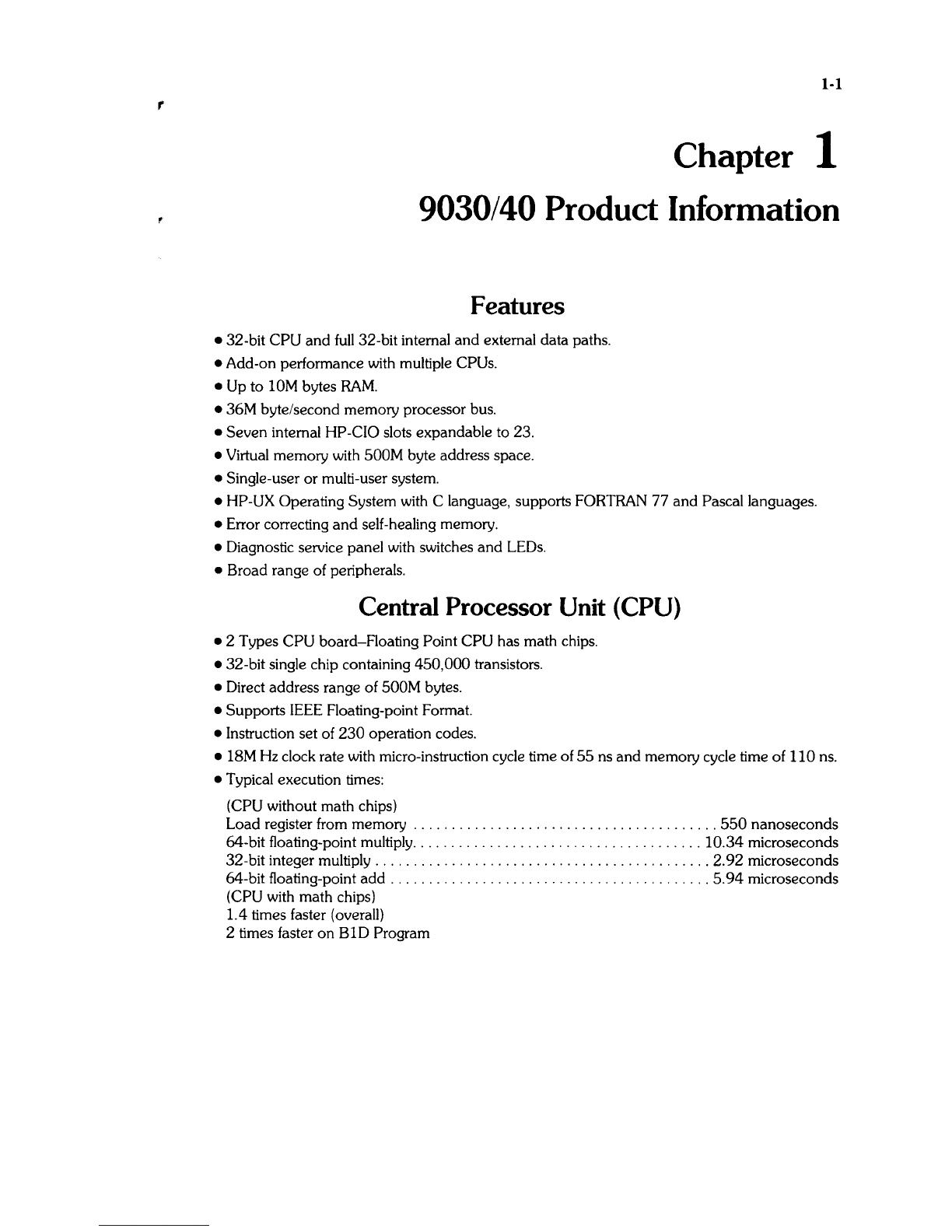

Chapter 1
9030/40 Product Information
Features
• 32-bit CPU and full 32-bit internal and external data paths.
• Add-on performance with multiple CPUs.
• Up to 10M bytes
RAM.
• 36M byte/second memory processor bus.
• Seven internal HP-CIO slots expandable to 23.
• Virtual memory with 500M byte address space.
• Single-user or multi-user system.
• HP-UX Operating System with C language, supports FORTRAN 77 and Pascal languages.
• Error correcting and self-healing memory.
• Diagnostic service panel with switches and LEOs.
• Broad range of peripherals.
Central Processor Unit (CPU)
• 2 Types CPU board-Aoating Point CPU has math chips.
• 32-bit single chip containing 450,000 transistors.
• Direct address range of 500M bytes.
• Supports IEEE Aoating-point Format.
• Instruction set of 230 operation codes.
• IBM Hz clock rate with micro-instruction cycle time of 55 ns and memory cycle time of 110 ns.
• Typical execution times:
(CPU without math chips)
Load register from memory
........................................ 550 nanoseconds
64-bit floating-point multiply
...................................... 10.34 microseconds
32-bit integer multiply
............................................ 2.92 microseconds
64-bit floating-point add
.......................................... 5.94 microseconds
(CPU with math chips)
1.4 times faster (overall)
2 times faster
on BID Program

1-2 9030/40 Product Information
Memory
• 256K byte RAM boards.
• 512K byte RAM boards.
• 1M byte RAM boards-2M byte increments.
• RAM expandable to 10M bytes.
• Single-bit error detection and correction.
• Double-bit error detection.
110 Processor (lOP)
• Supports 8 110 channels with DMA capability on every channel.
• Two additional lOPs and their associated 97098A 110 Expanders are supported.
• Nominal lOP bandwidth of 900K bytes/second.
• Maximum lOP bandwidth of 5.1M bytes/second.
Real-Time Clock
• Provides date and time of day.
• Accuracy within 30 seconds/month operating and 3 minutes/ month storage.
• Battery-maintained up to 30 days nominal and 10 days worst case.
• Located on System Control Module (SCM).
System Components
Base Systems I
9030A I9040A I9050A 9040AT I Bundled Systems
9040AM
~RA __ M~(S~td_.~)~ ____ 5~1~2K~by~te ____ ~!L- ______________________ ~I~.5~M_b~y~te _________________________ _
RAM (Op!.) Up to 10M bytes in
2M byte increments or up to 5M bytes in SI2K byte increments
I
Servicel
Diagnostic
Panel
CPU Options
liOOptions
I
'system
Software
I
Standard
Single is standard; up to two additional CPUs are allowed.
Models 9030/9040 -Up to two additional
110 Processors (lOP) allowed.
Each lOP
adds eight DMA-capable 110 slots
IHP-CX plus ! HP-CX plus
: addlhonal suftware addlhonal sufh\'are
Optional (HP-UX) 1 options and I options and. I
compilers IcompIlers (multI-user) I
I (single-user)

9030/40 Product Information 1-3

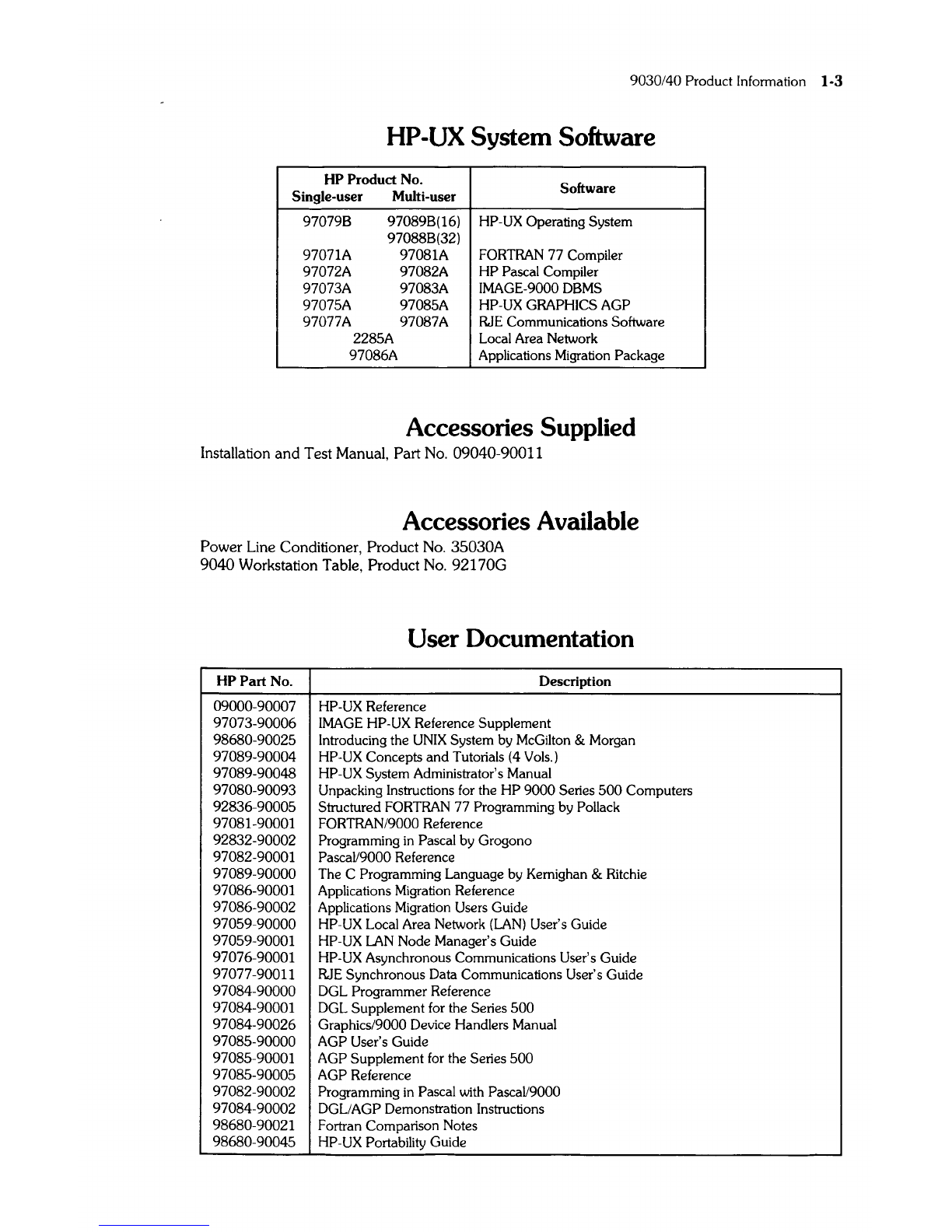

HP-UX System Software
HP Product No.
Single-user Multi-user Software
97079B 97089B(16) HP-UX Operating System
97088B(32)
97071A 97081A FORTRAN 77 Compiler
97072A 97082A
HP Pascal Compiler
97073A 97083A IMAGE-9000 DBMS
97075A 97085A HP-UX GRAPHICS AGP
97077A 97087A RJE Communications Software
2285A Local Area Network
97086A Applications Migration Package
Accessories Supplied
Installation and Test Manual, Part No. 09040-90011
Accessories Available
Power Line Conditioner, Product No. 35030A
9040 Workstation Table, Product
No. 92170G
User Documentation
HP Part No. Description
09000-90007 HP-UX Reference
97073-90006
IMAGE HP-UX Reference Supplement
98680-90025 Introducing the UNIX System by McGilton & Morgan
97089-90004 HP-UX Concepts and Tutorials (4 Vols.)
97089-90048 HP-UX System Administrator's Manual
97080-90093 Unpacking Instructions for the HP 9000 Series 500 Computers
92836-90005 Structured FORTRAN 77 Programming by Pollack
97081-90001 FORTRAN/9000 Reference
92832-90002 Programming in Pascal by Grogono
97082-90001 PascaV9000 Reference
97089-90000 The C Programming Language by Kernighan & Ritchie
97086-90001 Applications Migration Reference
97086-90002 Applications Migration Users Guide
97059-90000 HP-UX Local Area Network (LAN) User's Guide
97059-90001 HP-UX LAN Node Manager's Guide
97076-90001 HP-UX Asynchronous Communications User's Guide
97077-90011 RJE Synchronous Data Communications User's Guide
97084-90000 DGL Programmer Reference
97084-90001 DGL Supplement for the Series
500
97084-90026 Graphics/9000 Device Handlers Manual
97085-90000 AGP User's Guide
97085-90001 AGP Supplement for the Series
500
97085-90005 AGP Reference
97082-90002 Programming
in Pascal with PascaV9000
97084-90002 DGLlAGP Demonstration Instructions
98680-90021 Fortran Comparison Notes
98680-90045 HP-UX Portability Guide

1-4 9030/40 Product Information
HP Part No.
09040-80030
09040-90011
09040-90038
09040-90035
09000-90040
97060-90030
97062-90020
97098-90020
27132-91001
Service Documentation
Description
Service Documentation Package (includes 09040-90011, 09040-90038, Sales and
Support Offices List (5955-6587), and
l-lI2-inch binder (9282-0987)).
Installation and Test
Service Manual
CE Handbook
HP 9000 Series 200/500 Site Preparation Manual
HP 97060A Graphics Processor Service
HP 97062A Color Output Interface Installation and Service
HP 97098A 110 Expander Installation and Service
HP 27132A HP-CIO Technical Reference Manual
Tools List
HP Part No. Description
8710-0899 # 1 Pozidriv screwdriver
8710-0900 #2 Pozidriv screwdriver
8730-0001 Rat-blade screwdriver
8720-0006 7/16-inch nutdriver
8710-1220 5.5-millimetre nutdriver
8710-0881 lI8-inch Allen hex key
09855-67004 Power supply discharge tool
9300-0794 Antistatic kit
Safety Considerations
WARNING
SWITCH POWER OFF AND UNPLUG POWER CORD FROM AC
OUTLET BEFORE REMOVING ANY ASSEMBLY. LETHAL VOL-
TAGES ARE PRESENT INSIDE THE COMPUTER. OBSERVE ALL
WARNING LABELS.
PRIMARY WIRING CHANGE WARNING
AFTER MAKING A PRIMARY WIRING CHANGE, PERFORM CON-
TINUITY TEST BETWEEN POWER CORD GROUND AND METAL
CHASSIS. RECORD RESULTS ON REPAIR ORDER.
POWER SUPPLY WARNING
WHEN POWER SUPPLY IS REMOVED FROM COMPUTER. YOU
ARE EXPOSED TO LETHAL VOLTAGE FROM POWER SUPPLY
CAPACITORS. WAIT AT LEAST 15 MINUTES AFTER POWER
IS
SWITCHED OFF BEFORE REMOVING SUPPLY, OR USE THE
POWER SUPPLY DISCHARGE TOOL TO DISCHARGE THE CAPA-
CITORS PRIOR TO REMOVING THE SUPPLY.

2-1

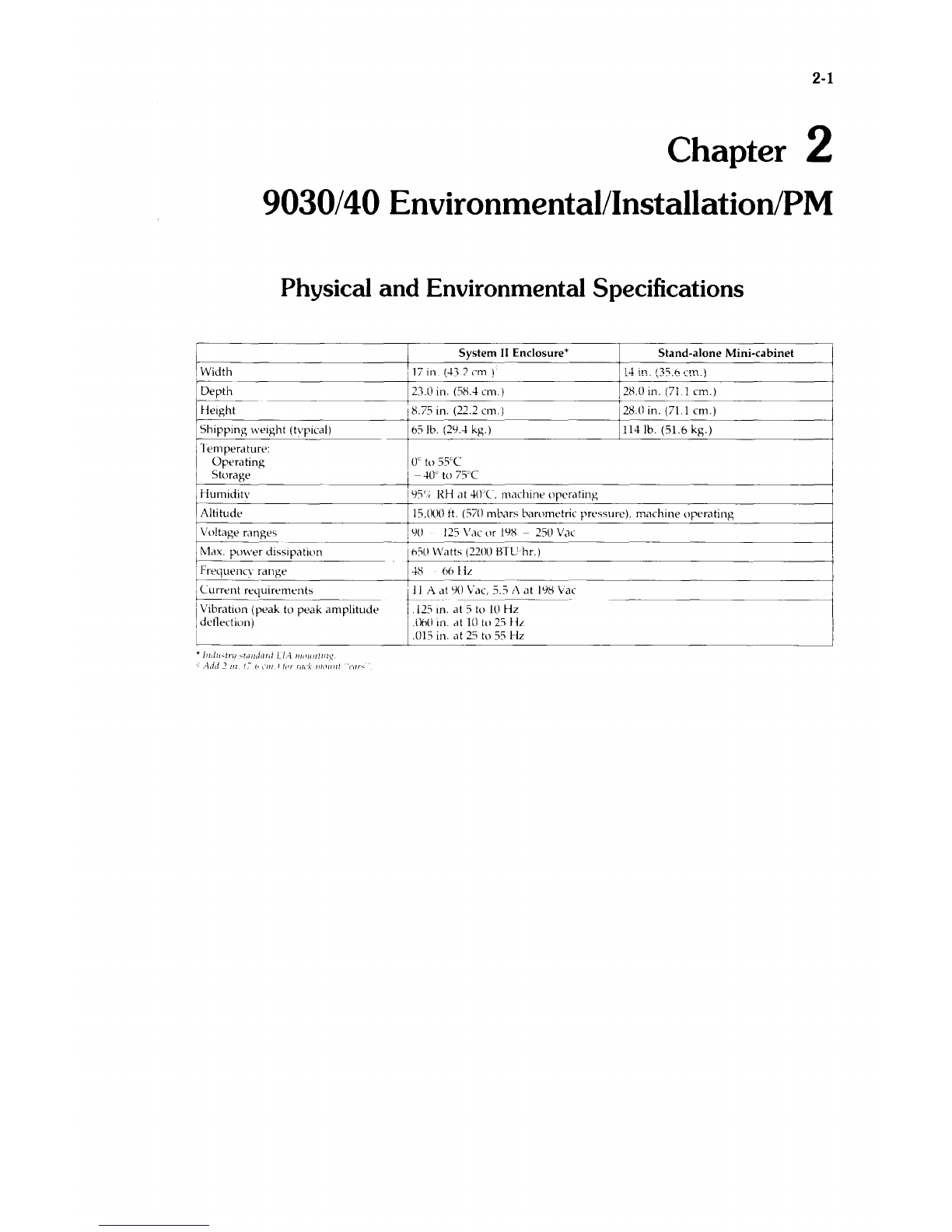

Chapter 2
9030/40 Environmental/InstallationlPM
Physical and Environmental Specifications
I System II Enclosure' I Stand-alone Mini-cabinet
~ ____________________ -+r_17 __ in __ (~_1_)_C_m __ ) _______________ tll~_~_"0;_nl·-n-(-.3-·(~7·-61-.Ll·n-··e1-m·)-.-)------------~
Depth 1230 in'. (58 . .t e~1.) ._0
Height 18.75 in. (22.2 em.) i 28.0 in. (71.1 em.)
rS_h~ip~p_in~g~\_\._ei~g_ht_(~t\~·p_ic_·a_I) _______ 165Ib.(2_9_. .t_k~g~') ________________ ~!ll_l_4_lb_._(_51_._6_k~g-·)--------------4
Temperature:
Operating I Oc to 55'C
Storage I - .to' to 75
cC
IHumlliltv 195'., RH at .tWc. machIne operatll1g
Altitude 15.000 ft. (570 mbars barometric pressure), machine operating
Voltage ranges
I Max. power dissipation
IFrequenev range
Ie
I L1rrent requirements
IVibration (peak to peak amplitude
IddlectJun)
:90
125 Vac or 198 -- 250 Vac
I h5U Watts (2200 BTL! hr.)
.t8 hh ilL
I . __
tl!_;\~'1t 90 vae, J.J A at 198 Vae
i .125 In. at 5 to 10 Hz
I .llhO in. at 10 io 25 HL
.015 in. at 25 to 55 Hz

2-2 9030/40 Environmental/Installation/PM

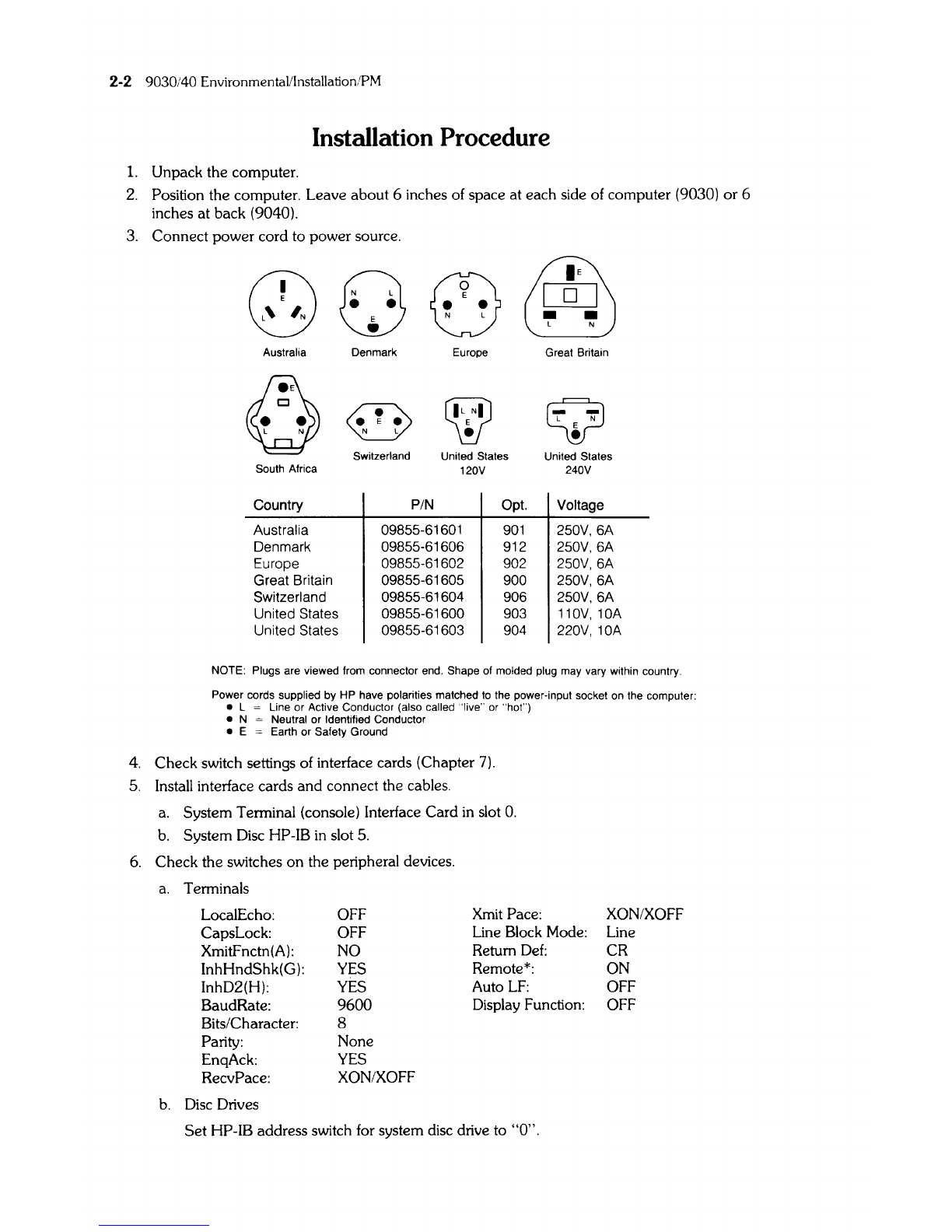

Installation Procedure
1. Unpack the computer.
2. Position the computer. Leave about 6 inches of space at each side of computer (9030) or 6
inches at back (9040).
3. Connect power cord to power source.
Q),
~
~
E
[JLJ
••
L N
Australia
South Africa
Country
Australia
Denmark
Europe
Great Britain
Switzerland
United States
United States
Denmark
~
~
Europe
Switzerland United States
120V
PIN
09855-61601
09855-61606
09855-61602
09855-61605
09855-61604
09855-61600
09855-61603
Opt.
901
912
902
900
906
903
904
Great Britain
Q-
L N
E
•
United States
240V
Voltage
250V,6A
250V,6A
250V, 6A
250V, 6A
250V,6A
110V,10A
220V,10A
NOTE: Plugs are viewed from connector end. Shape of molded plug may vary within country.
Power cords supplied by HP have polarities matched
to the power-input socket on the computer:
• L = Line or Active Conductor (also called "live" or "hot")
• N = Neutral or Identified Conductor
• E = Earth or Safety Ground
4. Check switch settings of interface cards (Chapter 7).
5. Install interface cards and connect the cables.
a. System Terminal (console) Interface Card in slot O.
b. System Disc HP-IB in slot 5.
6. Check the switches on the peripheral devices.
a. Terminals
LocalEcho: OFF
Xmit Pace: XON/XOFF
CapsLock: OFF Line Block Mode: Line
XmitFnctn(A): NO Return
Def:
CR
InhHndShk(G):
YES
Remote*: ON
InhD2(H): YES Auto
LF: OFF
BaudRate: 9600 Display Function: OFF
Bits/Character: 8
Parity: None
EnqAck:
YES
RecvPace: XON/XOFF
b. Disc Drives
Set HP-IB address switch for system disc drive to "0".

9030/40 EnvironmentalllnstallationlPM 2-3
7. Install and connect the peripheral devices.

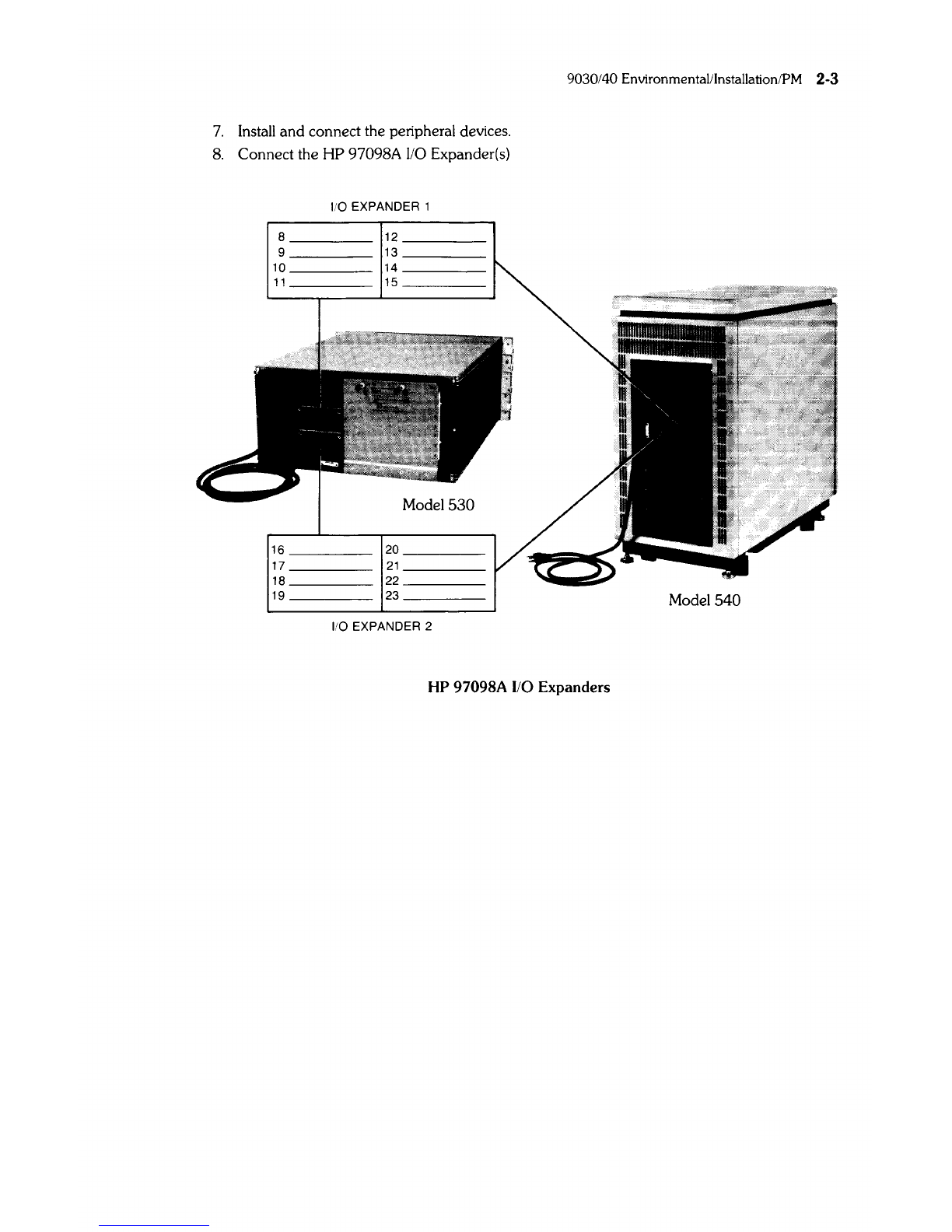

8. Connect the HP 97098A 110 Expander(s)
I/O EXPANDER 1
8 ____ _
12 ____ _
9
____ _ 13
____ _
10 ____ _ 14 ____ _
11 ____ _ 15
____ _
16 ____ _ 20 ____ _
17 ____ _
21 ____ _
18
____ _ 22 ____ _
19 ____ _ 23
____ _ Model
540
I/O EXPANDER 2
HP 97098A 1/0 Expanders

2-4 903040 Environmental;Installation PM

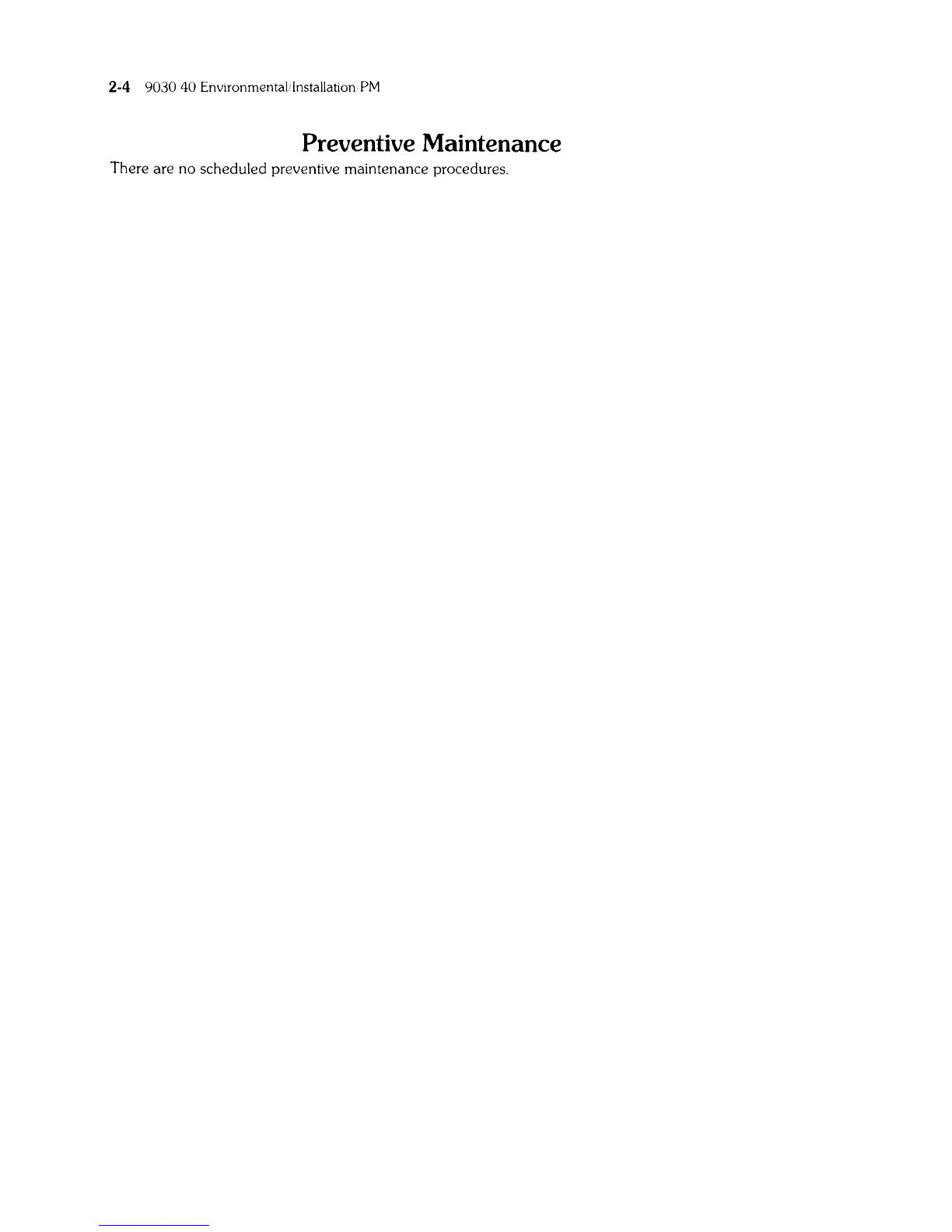

Preventive Maintenance
There are no scheduled preventive maintenance procedures.

9020/9030/9040 Environmental/Installation/PM 2-5
Finstrate Installation
Instructions for HP-Qualified Personnel:
Start on page 2-6 (RAM/CPU), or 2-7 (lOP) and follow the instructions that apply to the installation
you are performing. For example,
if you are installing a 2nd lOP in a 520 computer you would start
on page 2-7, and perform all steps that begin with: (ALL), (ALL 2nd lOP), (ALL EXCEPT 520-3rd
lOP), (520), (520 ONL Yl, and (520-2nd lOP).
ALL RAM and CPU Instuctions start on 2-6.
ALL lOP Instructions start
on 2-7.
When completed with the installation of the finstrate, Insert the following pages
in your CE Hand-
book (after page 2-4 of either the 9020 or 9030/9040 section).

2-6 9020/9030/9040 Environmental/Installation/PM
RAM/CPU Finstrate Installation
1. (ALL)
TURN THE POWER OFF AND DISCONNECT THE POWER CORD.
2. (520)
Open the left door.
(530)
Remove the front panel.
(540)
Remove the front bottom panel.
3. (530/540 ONLY)
From the front of the computer, remove the Radio Frequency Interference (RFI) shield by
loosening
the six thumbscrews.
4.
(ALL)
Open processor stack door.
5. (ALL)
CAUTION
ELECTROSTATIC DISCHARGE DAMAGE CAN OCCUR IN THE
FOLLOWING STEPS. FOLLOW THE PRECAUTIONS IN CHAPTER
4 OF THE SERVICE MANUAL.
DO NOT TOUCH EDGE CONNECTOR OR FINSTRATE PLANE.
HOLD FINSTRATE BY EJECTORS OR SIDE EDGES ONLY. HAND-
LING FINSTRATE INCORRECTLY COULD CAUSE
ELECTROSTATIC DISCHARGE DAMAGE. WHEN INSTALLING
FINSTRATE,
HOLD BY EJECTORS AND MOVE AIR CONTROLLER
OUT OF THE WAY WITH THE SIDE EDGE OF THE FINSTRATE.
Install the finstrate in the first unoccupied slot from the bottom. DO NOT LEAVE EMPTY
SLOTS BETWEEN FINSTRATES.
6.
(ALL)
Close the processor stack door. Firmly tighten thumbscrews to prevent RFI radiation.
Replace
the label that is used as a seal for the processor stack door (Part Number
5180-5201).
7. (530/540 ONLY)
Replace RFI shield.
8. (520)
Close left door.
(530)
Replace front panel.
(540)
Replace the front bottom panel.
9. (ALL)
Connect power cord to ac outlet.

9020/9030/9040 Environmental/Installation/PM 2-7
1. (ALL)
lOP Finstrate Installation
WARNING
OBSERVE ALL WARNINGS AND SAFETY PROCEDURES IN THE
COMPUTER SERVICE MANUAL. LETHAL VOLTAGES ARE PRE-
SENT IN THE COMPUTER.
TURN THE POWER OFF AND DISCONNECT THE POWER CORD.
2. (520 -2nd lOP)
Remove the left door.
(520 - 3rd lOP)
Open the left door. Remove the 110 expander cable from the 1/0 EXPANDER 1 slot on
the processor stack door (if connected).
(530)
Remove front panel.
(540)
Remove both front panels and flip-top cover.
3. (520 -2nd lOP)
Remove the trim piece on the left side of the computer by loosening the two #2 Pozidriv
screws (Figure I). The screws do not have to be completely removed to remove the trim
piece.
(520 - 3rd lOP)
Continue with next step.
(530/540)
Remove top and bottom covers from System II enclosure. From the front of the computer
remove the Radio Frequency Interference (RFI) shield by loosening 6 thumbscrews.
* TRIM PIECE *
#2 POZIDRIV SCREW *
Figure 1. Model 520 Computer Stack.

2-8 902019030/9040 EnvironmentaLinstallation/ PM
4. (520 ONLY)
Remove the flat metal plate covering the appropriate 1,0 EXPANDER connector slot by
removing the two
#2 Pozidriv screws (Figure 2):
(2nd lOP) 110 EXPANDER 1.
(3rd lOP) 110 EXPANDER 2.
(530/540)
Continue with next step.
*
*
* CAPTIVE THUMBSCREW
*#2 POZIDRIV CAPTIVE SCREW
CONNECTOR
COVER PLATE *
Figure 2. Series 500 Computer Stack Door Removal.
5. (ALL EXCEPT 520 -3rd lOP)
*
Loosen the two #2 Pozidriv captive screws at the bottom of the processor stack door
(Figure 2).
(520 -3rd lOP)
Continue with next step.
6. (ALL EXCEPT 520 -3rd lOP)
Remove the processor stack door by loosening the two captive thumbscrews (Figure 2).
(520 -3rd lOP)
Open processor stack door.

9020/9030/9040 Environmental/Installation/PM 2-9
CAUTION
DO NOT TOUCH EDGE CONNECTOR OR FINSTRA TE PLANE.
HOLD FINSTRA TE BY EJECTORS OR SIDE EDGES ONLY. HAND-
LING FINSTRATE INCORRECTLY COULD CAUSE ELECTROSTA-
TIC DISCHARGE DAMAGE. WHEN INSTALLING FINSTRATE.
HOLD BY EJECTORS AND MOVE AIR CONTROLLER OUT OF
THE WAY WITH THE SIDE EDGE OF THE FINSTRATE.
7. (ALL - 2nd lOP)
Move all finstrates above slot 2 up one slot.
(ALL - 3rd lOP)
Move all finstrates above slot 3 up one slot (Slot 3 is first accessible finstrate without
removing door).
8. (520 -ONLY)
Remove cable clamp from processor stack door by removing two # 1 Pozidriv screws.
9. (ALL)
Slide the lOP finstrate into the appropriate slot without seating fin strate into the mother-
board. Open the connector gate (Figure 3):
(2nd lOP) Slot
3.
(3rd lOP) Slot 4.
CONNECTOR GATE lOP CABLE CABLE CLAMP
IOP#2
DOOR CONNECTOR REMOVED

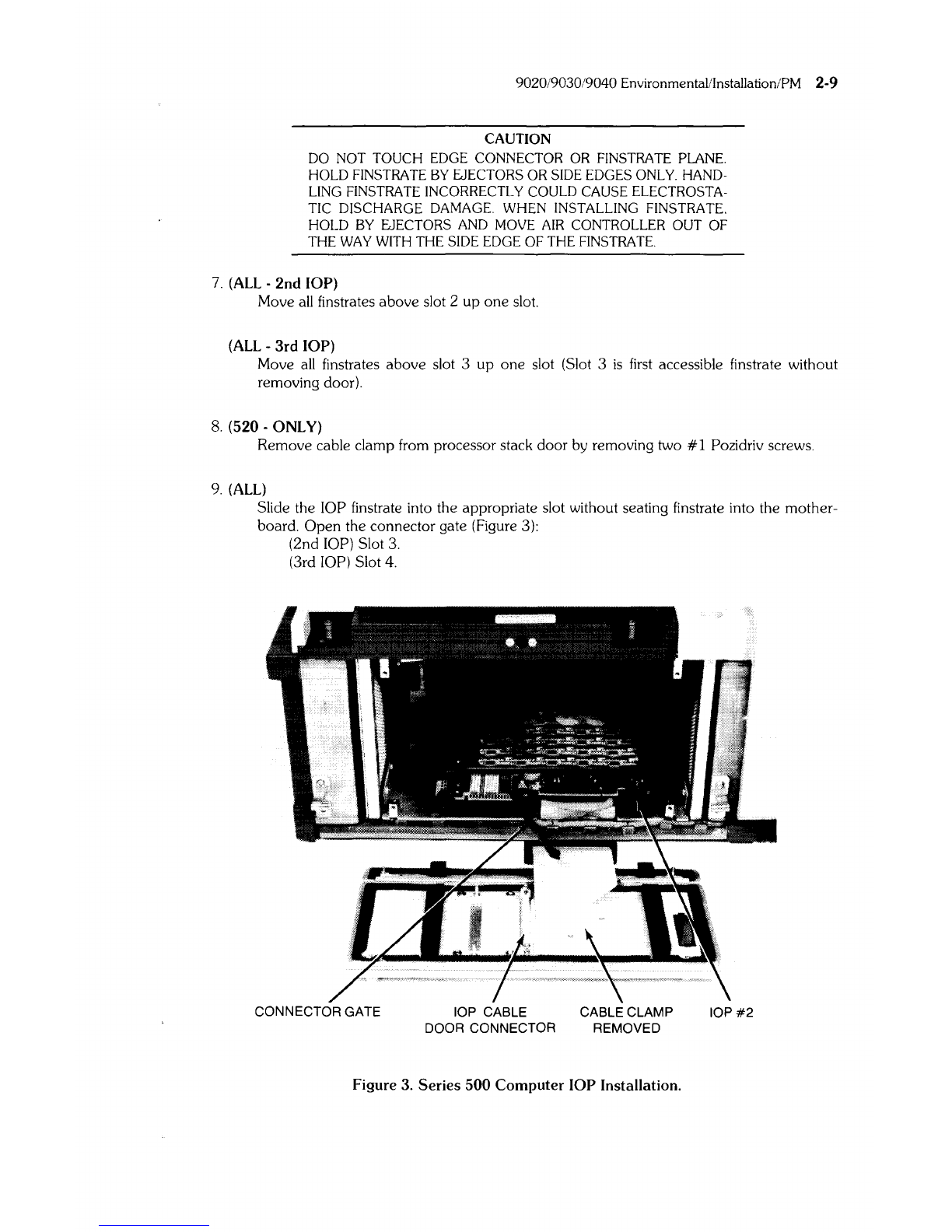

Figure 3. Series 500 Computer lOP Installation.

2-10 9020/9030/9040 Environmenta[ilnstallation·PM
10. (520)
Place lOP cable door connector over studs on ends of appropriate
110 EXPANDER
connector slot.
and tighten connector to door with two nuts (Figure 3):
(2nd lOP) 1/0 EXPANDER 1 slot.
(3rd lOP)
\10 EXPANDER 2 slot.
(530/540)
Continue with step 12.
11. (520 ONLY)
Install cable clamp on door so that it holds cable(s) in position (Figure 4).
CONNECTOR GATE CABLE CLAMP

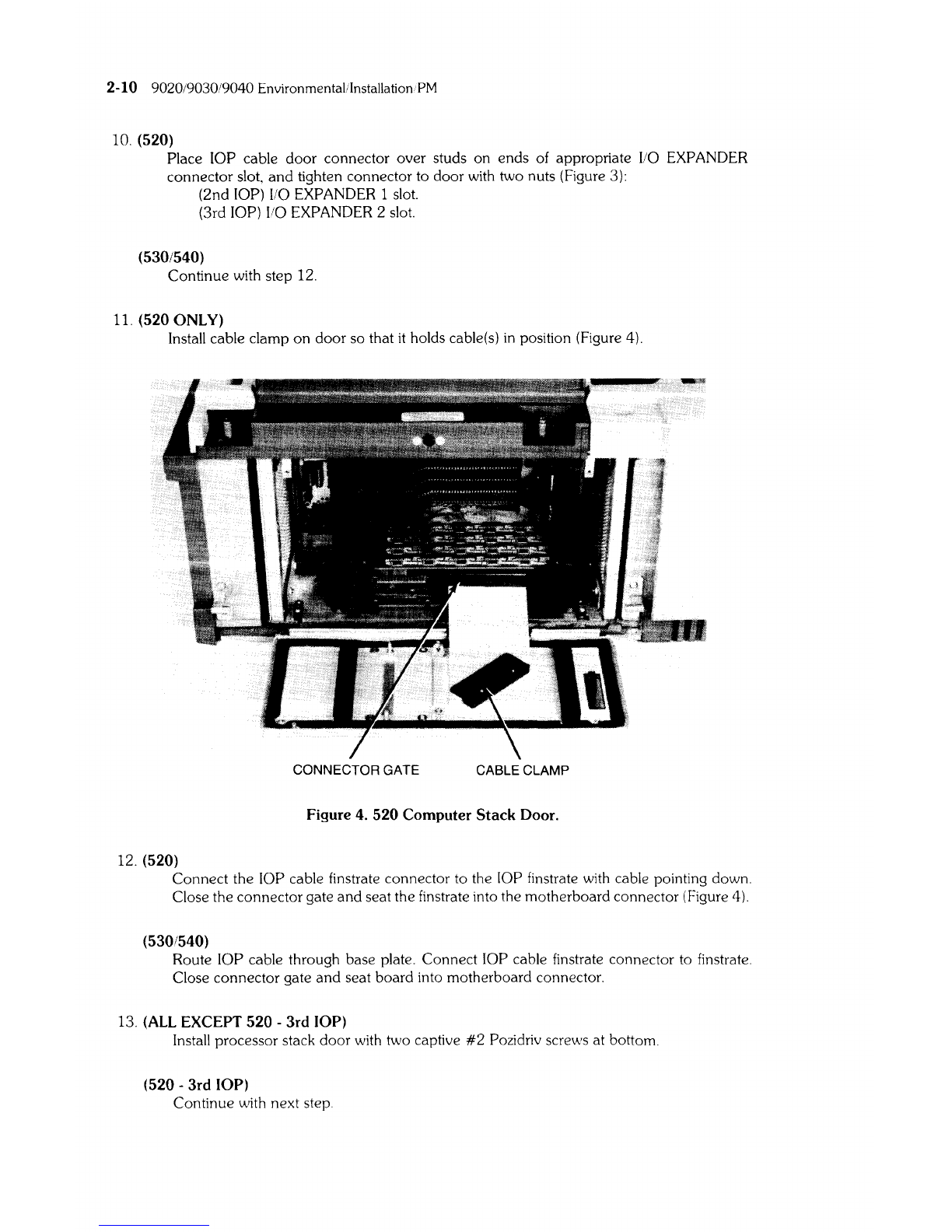

Figure 4. 520 Computer Stack Door.
12. (520)
Connect the lOP cable finstrate connector to the lOP finstrate with cable pointing down.
Close the connector gate
and seat the finstrate into the motherboard connector (Figure 4).
(530/540)
Route lOP cable through base plate. Connect lOP cable fin strate connector to finstrate.
Close connector gate
and seat board into motherboard connector.
13.
(ALL EXCEPT 520 - 3rd lOP)
Install processor stack door with two captive #2 Pozidriv screws at bottom.
(520 - 3rd lOP)
Continue with next step.

9020/9030/9040 Environmental/Installation/PM 2-11
14. (ALL)
Close processor stack door. Tighten thumbscrews to prevent Radio Frequency Interfer-
ence
(RFl) radiation. Replace the label that is used as a seal for the processor stack door
(Part Number 5180-5201).
15. (520)
CAUTION
ENSURE THE I/O EXPANDER CONNECTOR ON THE PROCESSOR
STACK DOOR IS COVERED. AS EXPLAINED IN THE NEXT STEP
TO PREVENT
RFI RADIATION.
Attach I/O expander cable(s) to the appropriate I/O EXPANDER connector (Figure 5), or
cover connector with plastic connector cover (Figure 6).
(530/540 -2nd lOP)
Route lOP cable along outside of base plate and attach lOP cable strain relief clamp to
base with four
#2 Pozidriv screws. Ensure cable is centered in clamp and is not pinched.
(530/540 -3rd lOP)
Remove I/O cable strain relief clamp which holds 2nd lOP cable in place on outside of
base plate. Route lOP cable along outside of base plate and attach lOP cable strain relief
clamp to base with four
#2 Pozidriv screws. Ensure cable is centered in clamp and is not
pinched.
M"_liK!a~ •
r
""
~,,~~ Y>~. ,",X«'N
Figure 5. lOP Connector Attached to Door.

2-12 902090309040 Environmental Installation PM
Figure 6. Plastic lOP Connector Cover.
16. (530/540 ONLY)
Route cable between terminal block and base plate into enclosure.
17. (530/540 ONLY)
Remove cover plate from appropriate lOP expander slot in the computer rear panel. Insert
lOP cable connector into the appropriate slot and secure in place with two nuts on the
posts: (slots viewed from rear.)
(530 - 2nd lOP) Upper slot.
(530 - 3rd lOP) Lower slot.
(540 - 2nd lOP) Right slot.
(540 - 3rd lOP) Left slot.
CAUTION
ENSURE THE LO EXPANDER CONNECTOR ON THE PROCESSOR
STACK DOOR IS COVERED TO PREVENT RFI RADIATION.
18. (530,540 ONLY)
Attach 110 expander cable to connector on rear panel, or cover connector with plastic
connector cover.
19. (520 -2nd lOP)
Replace the trim piece and the left door.
(520 - 3rd lOP)
Close the left door.
(530)
Replace RFI shield. top and bottom covers of System II enclosure. and front panel.
(540)
Replace RFI shield. top and bottom covers of System II enclosure. front panels and flip top
cover.
20. (ALL)
Plug the power cord into the ac outlet and switch on the power.
