contents
This chapter provides:
❒Product model numbers
❒Supported Accessories
❒System Board, BIOS, and memory information
❒Part numbers
replacement and exchange parts
The difference between a replacement and an exchange part is that when using
an exchange part you should return the replaced part to HP.
Replacement and exchange parts listed in this manual are subject to change.
However, updated part numbers are automatically cross-referenced to the old
number. This means that you will receive the correct part using the numbers
listed in this manual (even if the part’s actual number has been updated).
ordering parts
Contact your local HP Customer Care Center or an HP Authorized support
provider to get parts. Diagnostic is required in both cases, prior to any shipments.
For HP Customer Care Centers
www.hp.com/go/vectrasupport and select contact hp
xe310-shc.book Page 3 Monday, January 28, 2002 11:36 AM

microtower vectras hp vectra xe310 series 2 pc 1-1
1
1
hp vectra xe310 series 2 pc
models and accessories
product
number
hard
drive
video
controller
std.
RAM
multimedia Modem/
LAN
OS1
Vectra XE310 Series 2 PC
Models with Intel Celeron Processor,
100 MHz System Bus Speed, and 128 KB Level 2 Cache Memory
HP Vectra XE310 PC 950/100 (CPL: 01/2002 )
P6901B 20 GB IDE,
5400 rpm
Direct AGP
integrated
128 MB
SDRAM
48 ✕Max IDE
CD-ROM
no XP HE
P7916B 40 GB IDE,
5400 rpm
48 ✕Max IDE
CD-ROM
HP 10/100
BT
Linux
xe310-shc.book Page 1 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-2 hp vectra xe310 series 2 pc microtower vectras
1
HP Vectra XE310 PC 1000/100 (CPL: 01/2002 )
P7257A 20 GB IDE,
5400 rpm
Direct AGP
integrated
128 MB
SDRAM
no no XP HE
P7258A 40 GB IDE,
5400 rpm
48 ✕Max IDE
CD-ROM
XP Pro
P7284B 20 GB IDE,
5400 rpm
XP HE
P7604B no
P7605B 48 ✕Max IDE
CD-ROM
P7606B XP Pro
P7607T no Linux
P7608T XP HE
P7609T 48 ✕Max IDE
CD-ROM
P7610T 56K V90 PCI
P7617B no Linux
P7618A no XP HE
P7908B 40 GB IDE,
5400 rpm
HP 10/100
BT
XP HE
P7909B 48 ✕Max IDE
CD-ROM
56K V90 PCI
HP 10/100
BT
XP HE
P7910B 256 MB
SDRAM
16✕10✕40
IDE CD-RW
HP 10/100
BT
XP HE
P7911B 20 GB IDE,
5400 rpm
64 MB
SDRAM
48 ✕Max IDE
CD-ROM
Linux
product
number
hard
drive
video
controller
std.
RAM
multimedia Modem/
LAN
OS1
xe310-shc.book Page 2 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-3
1
HP Vectra XE310 PC 1100/100 (CPL: 01/2002 )
P7259A 20 GB IDE,
5400 rpm
Direct AGP
integrated
128 MB
SDRAM
48 ✕Max IDE
CD-ROM
no XP HE
P7260A 40 GB IDE,
5400 rpm
XP Pro
HP Vectra XE310 PC 1200/100 (CPL: 01/2002 )
P7261A 40 GB IDE,
5400 rpm
Direct AGP
integrated
128 MB
SDRAM
48 ✕Max IDE
CD-ROM
no XP HE
P7262A XP Pro
P7280A 20 GB IDE,
5400 rpm
no HP 10/100
BT
Linux
P7281A 48 ✕Max IDE
CD-ROM
P7282A no XP HE
P7283A 48 ✕Max IDE
CD-ROM
P7611T no no XP Pro
P7612T 48 ✕Max IDE
CD-ROM
P7613T XP Pro+
Off SBE
P7619A no XP Pro
P7620A 48 ✕Max IDE
CD-ROM
HP Vectra XE310 PC 1300/100 (CPL: 01/2002 )
P7263A 40 GB IDE,
5400 rpm
Direct AGP
integrated
128 MB
SDRAM
48 ✕Max IDE
CD-ROM
no XP HE
P7264A XP Pro
product
number
hard
drive
video
controller
std.
RAM
multimedia Modem/
LAN
OS1
xe310-shc.book Page 3 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-4 hp vectra xe310 series 2 pc microtower vectras
1
Vectra XE310 Series 2 PC
Models with Intel Pentium III Processor FCPGA3package (socket 370),
133 MHz System Bus Speed and 256 KB Level 2 Cache Memory
HP Vectra XE310 PC 1000/133 (CPL: 01/2002 )
A7725T 20 GB IDE,
5400 rpm
Direct AGP
integrated
256 MB
SDRAM
48 ✕Max IDE
CD-ROM
no XP
A8213S 40 GB IDE,
5400 rpm
128 MB
SDRAM
XP HE
P7614T 20 GB IDE,
5400 rpm
XP HE
P7615T XP Pro
P7621A no XP HE
P7622A 48 ✕Max IDE
CD-ROM
XP Pro
P7623A no
P7912B 40 GB IDE,
5400 rpm
48 ✕Max IDE
CD-ROM
HP 10/100
BT
XP Pro
P7913B XP HE
P7914B 256 MB
SDRAM
56K V90 PCI
HP 10/100
BT
P7915B 20 GB IDE,
5400 rpm
64 MB
SDRAM
HP 10/100
BT
Linux
HP Vectra XE310 PC 1130/133 (CPL: 01/2002 )
A7728S 20 GB IDE,
5400 rpm
Direct AGP
integrated
256 MB
SDRAM
16✕10✕40
IDE CD-RW
no XP HE
P7616B/T 128 MB
SDRAM
48 ✕Max IDE
CD-ROM
XP Pro+
Off SBE
P7624A XP Pro
P7625A 16 ✕/40 ✕IDE
DVD-ROM
product
number
hard
drive
video
controller
std.
RAM
multimedia Modem/
LAN
OS1
xe310-shc.book Page 4 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-5
1
note
All models have:
❒Integrated Analog Devices AD1885 AC’97 stereo audio codec.
❒Integrated Direct AGP video controller.
❒Integrated Intel PRO/100 VE network controller.
Vectra XE310 series 2 PC
Models with User Defined Processor, Main Memory, and Hard Disk
HP Vectra XE310 PC2(CPL: 01/2002 )
P6900AV User defined
1. Indicates operating system and other preloaded software. W98 = Windows 98,
W2000 = Windows 2000, NT4 = Windows NT4, XP Pro = Windows XP Professional,
XP HE = Windows XP Home Edition, Off SBE = Microsoft Office XP Small Business
Edition.
Models with Windows XP Professional operating system come with a CD-ROM for
recovering Windows XP Professional or downgrade to Windows 2000.
2. Channel Assembly Program (CAP) models: Processor type and speed, hard disk size,
memory and operating system is user defined.
product
number
hard
drive
video
controller
std.
RAM
multimedia Modem/
LAN
OS1
xe310-shc.book Page 5 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-6 hp vectra xe310 series 2 pc microtower vectras
1
supported accessories
Memory
64-MB SDRAM, non-ECC PC133 main memory module P1536A
64-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P5100A
128-MB SDRAM, non-ECC PC133 main memory module P1537A
128-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P5101A
256-MB SDRAM, non-ECC PC133 main memory module P1538A
256-MB SDRAM, non-ECC PC133 main memory module (pack of 10) P5102A
Monitors
All current HP Monitors (see the HP Monitors Service Handbook)
Multimedia
48✕Max IDE CD-ROM drive D9444A
HP 16✕10✕40✕Max Speed IDE CD-RW drive P1534B
HP 16✕Max Speed IDE DVD-ROM drive P1544B
Input Devices
HP PS2 Windows Keyboard C4735B/C
HP PS2 Scrolling Mouse C4736B
Data Communications and LAN Adapter Boards
HP External USB Modem P1979A
Audio
HP Amplified External Speakers 9.6WRMS P1534A
HP Headset with microphone P1968A
xe310-shc.book Page 6 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-7
1

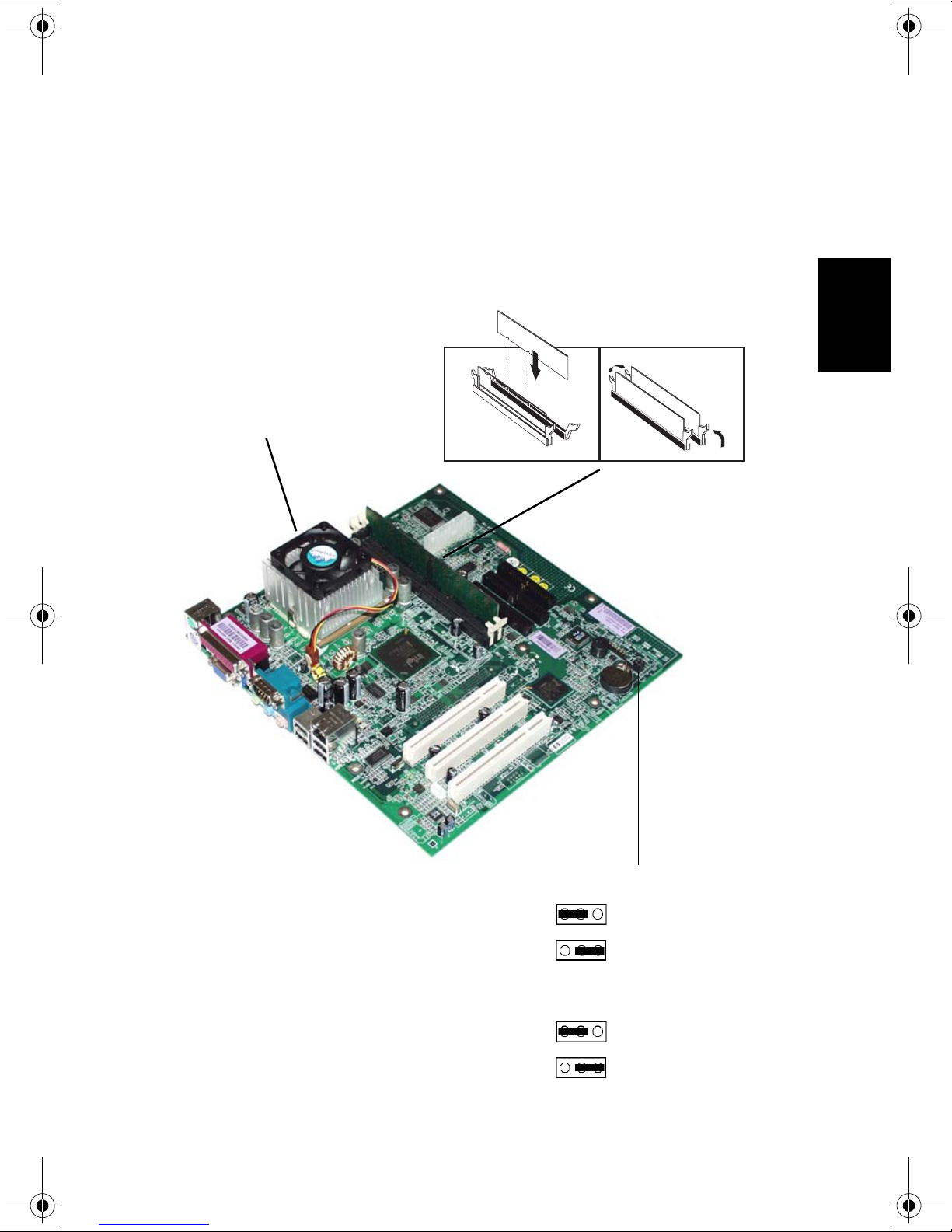

system board, BIOS, and memory
Processor:
Intel Pentium III or
Intel Celeron FC-PGA
package with Zero
Insertion Force (ZIF)
socket.
M
a
i
n
M
emory:
Two DIMM sockets which support up to
a maximum of 512 MB.
Install 64 MB, 128 MB or 256 MB SDRAM
modules.
Clear Passwords (J29)
Clear Passwords
Default position
Clear CMOS (J27)
Clear CMOS
Default position
xe310-shc.book Page 7 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-8 hp vectra xe310 series 2 pc microtower vectras
1
system board jumpers
BIOS history
For the latest BIOS, the flasher utility program, and the BIOS history refer to the
HP’s Web site.
beep codes for hp vectra xe310 series 2
Jumper Function Default
J27 CLEAR Clears CMOS (to reload the Setup program defaults) NORMAL
NORMAL Normal operation
J29 CLEAR Clears User and Administrator passwords NORMAL
NORMAL Normal operation
http://www.hp.com/go/vectrasupport/
Beep Pattern Beep Code Numeric
Code
Description
— - - - - - - - 1-2-2-3 16h BIOS ROM check-sum failure
— - - - — — 1-3-1-1 20h DRAM refresh test failure
— - - - — - - - 1-3-1-3 22h 8042 Keyboard controller test failure
— - - - - - - — 1-3-3-1 2Ch Autosize DRAM failure (RAM
module missing or not installed
correctly)
— --- ---- — 1-3-4-1 2Ch RAMfailureonaddresslinexxxx1
1. If the BIOS detects error 2C or 2E (base 512K RAM error), it displays an additional word-
bitmap (xxxx) indicating the address line or bits that failed. For example, “2C 0002” means
address line 1 (bit one set) has failed. “2E 1020” means data bits 12 and 5 (bits 12 and 5 set)
have failed in the lower 16 bits.
— --- ---- --- 1-3-4-3 2Eh RAMfailureondatabitsxxxx1of
low byte of memory bus
— ---- — — 1-4-1-1 30h RAMfailureondatabitsxxxx1of
high byte of memory bus
- - — - - - - - 2-1-2-3 46h ROM copyright notice check failure
- - - - - - - — 2-2-3-1 58h Unexpected interrupts test failure
— - - 1-2 98h Video configuration failure or option
ROMs check-sum failure
- 1 B4h This does not indicate an error.
There is one short beep before
system startup.
xe310-shc.book Page 8 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-9
1
part numbers
6
78
4
3
2
5
10
1
9
11
13
12
xe310-shc.book Page 9 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-10 hp vectra xe310 series 2 pc microtower vectras
1
parts list for hp vectra xe310 series 2 pc
Item Description Repl.
Part Number
Exchange
Part Number
1 Chassis barebone1
•North America, Latin America 5065-7301 —
•Asia Pacific, Europe 5065-7302 —
2 Plastic parts kit25065-8935 —
3 Floppy disk drive (bezel-less) P4680-63012 —
4 Power supply
PFC (Europe/Asia Pacific)3P4680-63021 —
non-PFC (US/Latin America) P4680-63022 —
5 Cable Kit (including FDD, CD-ROM, HDD
and CD audio connector cables)
P6901-63041 —
6 Internal PCI modem: P4680-63041 —
7 48X IDE CD-ROM drive
16X 10X 40X IDE CD-RW Multiread drive
16X/40X IDE DVD-ROM drive
D4389-60052
—
—
—
D4389-69181
P4388-69016
8 IDE hard disk drive:
20GB 5400 rpm Maxtor
20GB 5400 rpm Seagate
40 GB 5400 rpm Maxtor
40 GB 5400 rpm Seagate
20GB 7200 rpm Quantum
—
—
—
—
—
P4447-69001
P4738-69001/3
P4448-69001
P4737-69001/3
P2812-69005
9 Scrolling mouse C4737-60001 —
xe310-shc.book Page 10 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-11
1
10 Telephone Cable for4:
#AB0, #AB1, #AB2, #AB4, #AB6, #ABA,
#ABB, #ABC, #ABM, #ABT, #ABV, #AC8,
#AKB, #AKL, #AKR, #AKV, #AR6, #ARL
5182-5432 —
#ABE 5182-5434 —
#ABD 5182-5435 —
#ABF 5182-5436 —
#ABH 5182-5437 —
#AB5, #ABU, #ACJ 5182-5438 —
#ABG 5182-5438
5184-3806
—
#ABS 5182-5439 —
#AB9, #ABY 5182-5441 —
#ABZ 5182-5442 —
#ABN, #ABX 5183-9453 —
#ABW 5184-1599 —
#AB7 5184-2043
5182-5432
—
#AB8 5184-3803 —
#ABJ 5184-3805 —
11 External USB e- Modem4
#AB0, #AB1, #AB2, #AB4, #AB5, #ABA,
#ABC, #ABJ, #ABM, #AC8, #ACJ, #AKL,
#AKV, #AR6
5065-2590 —
AB6, #AB7, #AB8, #AB9, #ABB, #ABD,
#ABE, #ABF, #ABG, #ABH, #ABN, #ABS,
#ABT, #ABU, #ABV, #ABW, #ABX, #ABY,
#ABZ, #AKB, #AKR, #ARL
5065-2591 —
12 System board See PC’s system board parts list
13 Rear panel I/O gasket 5002-6282 —
not
shown
Standard keyboard (not shown) C4739-601xx —
Power Cord (not shown) 8120-xxxx —
On-Off LED Cable Assembly (not shown) P4680-63031 —
1. Includes chassis frame, side covers, front bezel, top cover, foot, airflow guide, floppy drive,
floppy and hard drive bay, I/O plate, 5.25 inch fillers, PSU, FDD, CD cables
2. Includes front bezel, foot, top cover and two 5.25 inch fillers.
3. PFC=Power Factor Correction. PFC power supplies should be used in the EU as of
December 1, 2000 in compliance with EU standards.
4. See localization option codes table below.
parts list for hp vectra xe310 series 2 pc
Item Description Repl.
Part Number
Exchange
Part Number
xe310-shc.book Page 11 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-12 hp vectra xe310 series 2 pc microtower vectras
1
localization option codes
Loc. Country or Area Loc Country or Area
#AB0 Taiwan #ABS Sweden
#AB1 Korea #ABT Hebrew
#AB2 China #ABU UK/English
#AB4 Singapore/Malaysia #ABV Arabia/English
#AB5 Hong Kong #ABW Belgium/Flemish
#AB6 Arabia/French #ABX Finland
#AB7 Greece #ABY Denmark
#AB8 Turkey #ABZ Italy
#AB9 Portugal #AC4 Brazil
#ABA USA/English #AC8 Argentina/Spanish
#ABB Europe/English #ACB Russia
#ABC Canada/French #ACJ India/English
#ABD Germany #ACQ South Africa
#ABE Spain #AKB Czech Republic
#ABF France #AKC Hungary
#ABG Australia #AKD Poland
#ABH Netherlands #AKL Thailand
#ABJ Japan #AKN Slovenia
#ABM Latin America/Spanish #AKR Slovakia
#ABN Norway #AKV South America/Spanish
#ABP Switzerland/German #AR6 Indonesia/English
#ABQ Switzerland/French #ARL Baltic States
xe310-shc.book Page 12 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
microtower vectras hp vectra xe310 series 2 pc 1-13
1
system board parts list for hpvectra xe310 series 2 pc
Description Repl.
Part Number
Exchange
Part Number
System board:
Vectra XE310 Series 2 system board with
audio subsystem
— P6901-69001
Processors (FC-PGA and FC-PGA2 package):
Intel Celeron 800/100 128KB L2 cache P1841-63001 —
Intel Celeron 850/100 128KB L2 cache P1842-63001 —
Intel Celeron 900/100 128KB L2 cache P1843-63001 —
Intel Celeron 950/100 128KB L2 cache P1844-63001 —
Intel Celeron 1000/100 128KB L2 cache P1845-63001 —
Intel Celeron 1100/100 128KB L2 cache P1846-63001 —
Intel Celeron 1200/100 256KB L2 cache P6095-63001 —
Intel Celeron 1300/100 256KB L2 cache P6096-63001 —
Intel Pentium III 866/133 256KB L2 cache — D9873-69001
Intel Pentium III 933/133 256KB L2 cache — D9486-69001
Intel Pentium III 1000/133 256KB L2 cache — P1579-69001
Intel Pentium III 1133/133 256KB L2 cache — P3339-69001
Intel Pentium III 1200/133 256KB L2 cache — P4787-69001
Heatsink (up to Celeron 1100 MHz
processors)
5065-1297 —
Active Heatsink (Celeron/Pentium III 1200
MHz and higher frequency processors)
5065-4275 —
Main memory modules:
1 ✕64-MB non-ECC PC133 SDRAM P1536-63010 —
1 ✕128-MB non-ECC PC133 SDRAM P1537-63010 —
1 ✕256-MB non-ECC PC133 SDRAM P1538-63010 —
software recovery CD-ROMs
Image Creation & Recovery CD-ROM (Windows XP Professional
and Windows 2000)
5970-0550-xx1
1. Where “xx” is the code for your language.
Image Creation & Recovery CD-ROM (Windows XP Home
Edition)
5970-0541-xx1
Image Library & Diagnostics CD-ROM 5970-4641
manuals and documentation for hpvectra xe310 series 2 pc
Quick User’s Guide 5070-5250
Technical Reference Manual no number1
1. Electronic files available on HP’s Web site.
Upgrade Guide no number1
Troubleshooting Guide no number1
xe310-shc.book Page 13 Monday, January 28, 2002 11:36 AM

hp vectra xe310 series 2 pc
1-14 hp vectra xe310 series 2 pc microtower vectras
1
xe310-shc.book Page 14 Monday, January 28, 2002 11:36 AM
