HP ProLiant SL160s User manual

HP ProLiant SL160 s G6 Server
Installation Instructions
Part Number 635239-002

2
Identifying server components
Front Panel Components
SL160s G6 Server Front Panel Components
Figure 1 Front panel components of the s6500 chassis with 4 SL160s
G6 servers
Item Description
1 Serial port
2 VGA port
3 Top: USB 2.0 Port
Bottom: USB 2.0 Port
4 Top: NIC2 Connector
Bottom: NIC1 Connector
5 Server 1
6 Server 2
7 Power LED/Switch
8 Health LED
9 Server 3
10 Server 4
11 UID LED/Switch
12 Mgmt NIC

3
Rear Panel Components
Figure 2 Rear panel components of the s6500 chassis with 4 SL160s
G6 servers
Item Description
1 Fan 6
2 Fan 5
3 Power Supply 1
4 Power Supply 2
5 Power Supply 3
6 Fan 2
7 Fan 1
8 Fan 3
9 Fan 4
10 Power Blank
11 Chassis UID
12 SLAPM(SL Advanced Power Manager) connector
13 Fan 7
14 Fan 8
System Board Components
Figure 3 System Board components
Item Designator Description
1 J2 Serial Port (COM1)
2 J1 VGA Port
3 J8 Top: USB 2.0 Port
Bottom: USB 2.0 Port
4 J7 Top: NIC port2
Bottom: NIC port1
5 J21
J22
J79
J23
J24
J78
J25
J26
J77
CPU2 DIMM 9C slot (from left to right)
CPU2 DIMM 8F slot
CPU2 DIMM 7I slot
CPU2 DIMM 6B slot
CPU2 DIMM 5E slot
CPU2 DIMM 4H slot
CPU2 DIMM 3A slot
CPU2 DIMM 2D slot
CPU2 DIMM 1G slot
6 SW1 UID LED/Switch
7 J90 IPMI connector
8 J17 PCIe x16 FH/FL Riser slot1A
9 J27 Jumper
10 J29 TPM connector
11 J11 Mini SAS connector
12 J69 USB 2.0 Port
13 J3 Storage card slot
14 J56 LCD connector
15 B1 CMOS Battery
16 J82 Power supply backplane connector
17 J65 Backplane I2C connector
18 J42 Front panel connector
19 J67
J68
J70
J62
J71
Fan6 connector (from left to right)
Fan5 connector
Fan4 connector
Fan3 connector
Fan2 connector
20 J64 12V Power connector
21 J57
J58
SATA5 connector
SATA6 connector
22 J63 Fan1 connector
23 J74
J43
J44
J75
J45
J46
J76
J47
J48
CPU1 DIMM 1G slot (from left to right)
CPU1 DIMM 2D slot
CPU1 DIMM 3A slot
CPU1 DIMM 4H slot
CPU1 DIMM 5E slot
CPU1 DIMM 6B slot
CPU1 DIMM 7I slot
CPU1 DIMM 8F slot
CPU1 DIMM 9C slot
24 J51 System power connector
25 U73 Processor 1 socket
26 J60 12V Power connector
27 U34 Processor 2 socket

4
Server Configuration Resources
In addition to this Installation Sheet, other resources are available for
more information regarding the configuration and maintenance of
your server:
•For safety information and detailed procedures relating to
installation of options, refer to any installation instructions that
came with the option, as well as the HP ProLiant SL160s G6 Server
Maintenance and Service Guide.
•For safety information, regulatory notices, and detailed
procedures related to the rest of the steps listed in the “Configuring
the Server” section, refer to relevant chapter of the HP ProLiant
SL6000/6500 Scalable System User Guide.
•For information relating to system BIOS configuration and
operating system installation, refer to relevant section of the HP
ProLiant SL160s G6 Server Software Configuration Guide.
•You can also access additional information and documentation
from the HP website at
http://www.hp.com/servers/proliantsl160s.
Server Configuration Overview
The steps listed below give an overview of the necessary setup
procedures for preparing the HP ProLiant SL160s G6 Server for
operation:
1. Connect the AC power cord and peripheral devices.
2. Power up the server.
3. Press “F10” to enter BIOS setup.
4. Note the server BIOS version.
5. Verify the server BIOS version against the latest BIOS version
listed for this server on the HP website: http://www.hp.com.
6. If you do not have the latest BIOS, update the BIOS now. Refer to
the HP ProLiant SL160s G6 Server Maintenance and Service
Guide available on the HP website: http://www.hp.com.
7. Install a supported operating system of your choice. For detailed
procedures, refer to the documentation provided by the
operating system vendor. For a list of operating systems
supported by your ProLiant server, go to
http://www.hp.com/go/supportos.
Pre- and Post-installation
Procedures
When installing additional options in your HP ProLiant SL160s G6
Server, observe the following procedures:
Pre-installation procedures
1. Turn off the server and all the peripherals connected to it.
2. Remove the server tray from the chassis by following the
procedure described later in the “Removing the tray” section.
Post-installation procedures
1. Be sure all components are installed according to the described
step-by-step instructions.
2. Check to make sure you have not left loose tools or parts inside
the server.
3. Reinstall the PCI riser, peripherals, and system cables that you
have removed.
4. Reinstall the tray into the chassis.
5. Connect all external cables to the system.
6. Press the power button on the front panel to turn on the server.
Removing the Tray
You need to remove the tray from the chassis before you can remove or
replace a tray component.
To remove the tray:
1. Press the two handles on both sides at the same time to release
the tray.
2. Pull out the tray from the chassis until the release latch catches.
3. Firmly holding the tray, press the release latch on both sides of
the tray.
4. Remove the tray from the chassis.

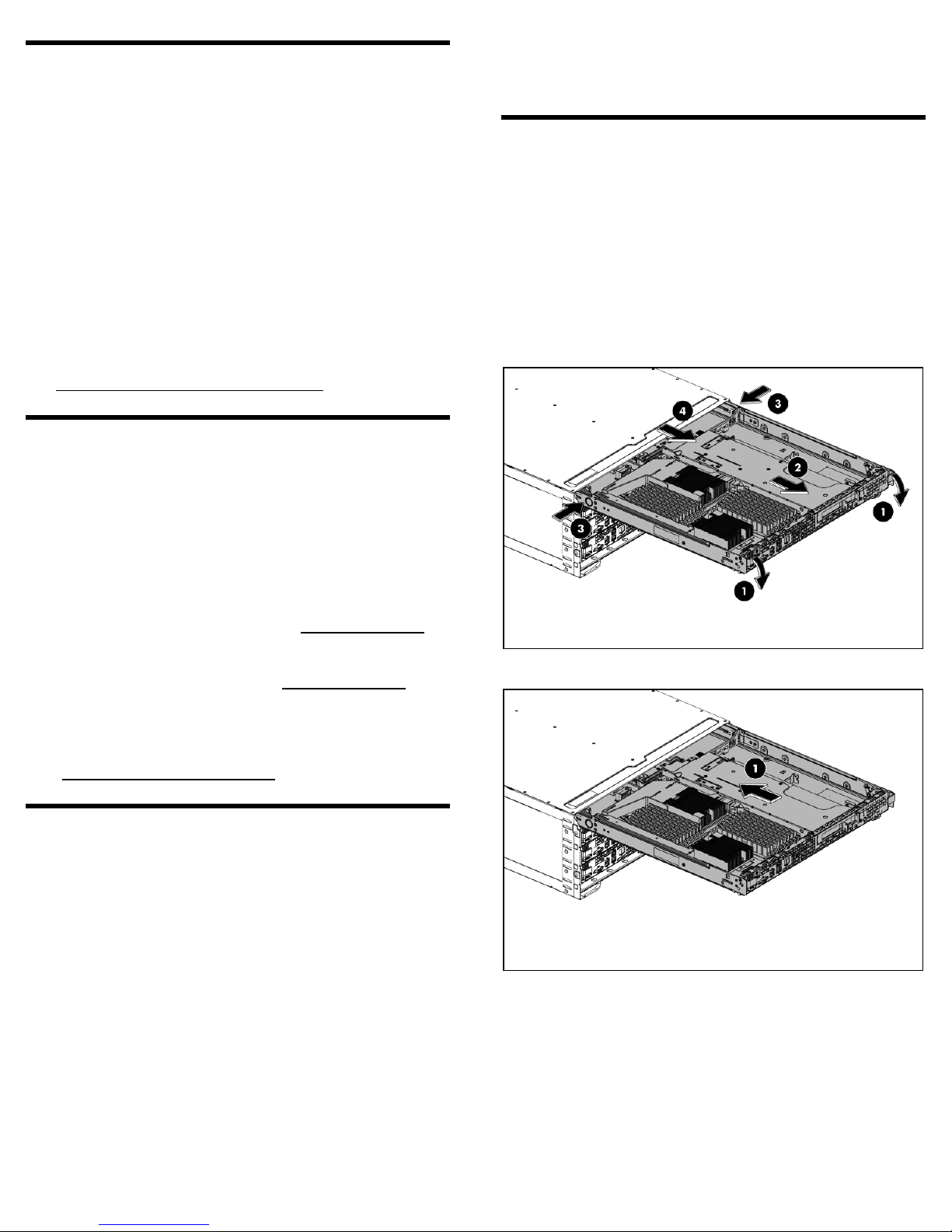

Figure 4 Removing the SL160s G6 server tray
Figure 5 Installing the SL160s G6 server tray

5
Installing the Hard Disk Drive
One SL160s G6 server tray can accommodate up to 6 LFF SATA, 4 LFF
SAS, or 8 SFF SATA/SAS Non Hot-Plug hard disk drives, and the
chassis can accommodate 4 server trays for up to 24 LFF SATA or 32
SFF Non Hot-Plug hard disk drives. The server supports both SAS and
SATA hard disk drives.
NOTE: For specific supported hard drive configurations and
cable routing, refer to HP ProLiant SL160s G6 Server
Maintenance and Service Guide located on the HP website:
http://www.hp.com/support/ProLiant_SL160sG6_MSG_en
CAUTION: Drives can be damaged by static electricity. Before
handling drives, touch an unpainted metal surface to discharge
static electricity.
To install the LFF hard disk drive in the server tray:
1. Unlock the HDD carrier latches.
2. Lift the HDD carrier handle up.
3. Insert the HDD carrier and align the pins.
4. Press the HDD carrier handle down.
5. Lock the HDD carrier latches.

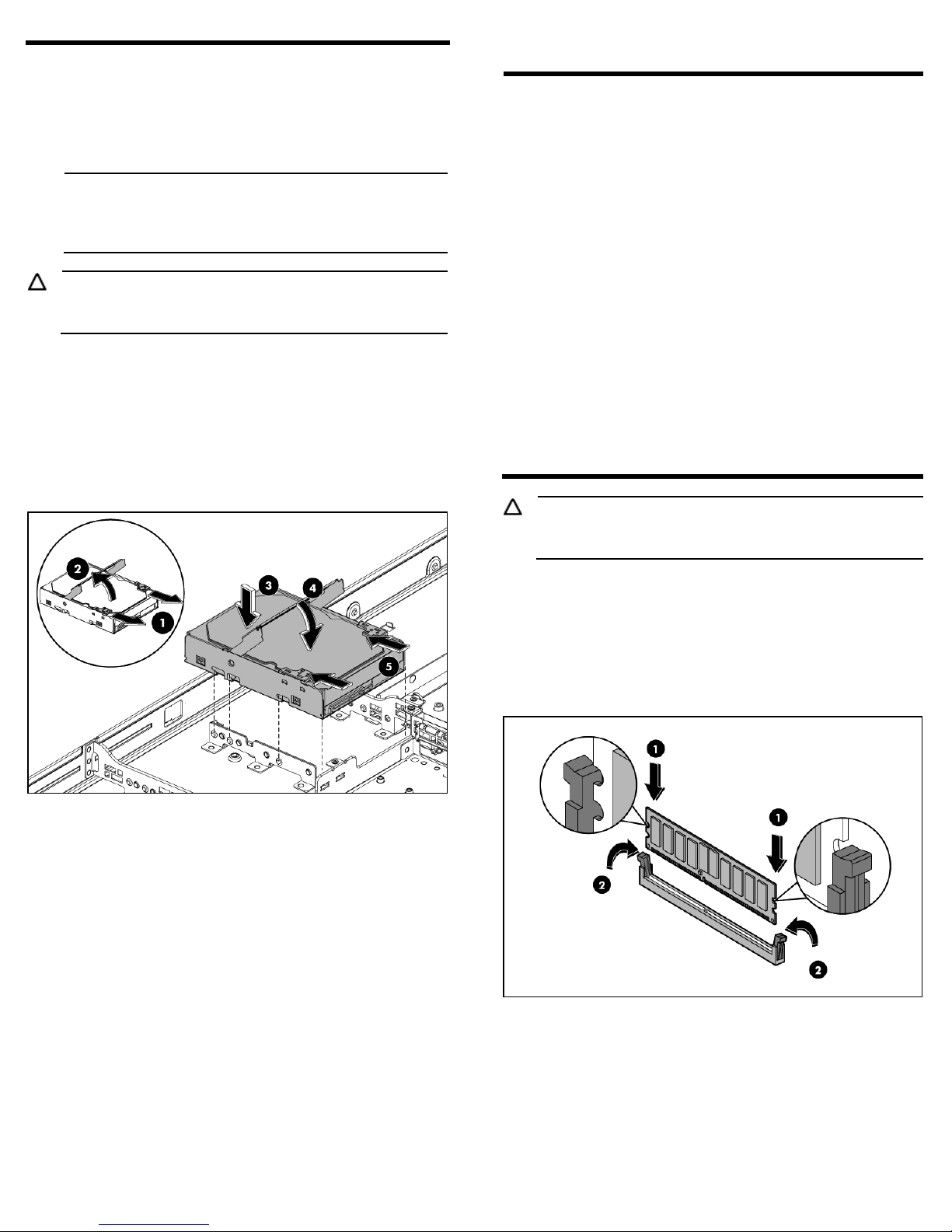

Figure 6 Installing the hard disk drive
Installing the Memory Module
Memory Module Population Order
Population
order
A B C D E F G H I
Memory
Socket
3 6 9 2 5 8 1 4 7
NOTES:
•Installation guide for 1P configuration:
oFollow the sequence of 3A, 6B, 9C, 2D, 5E, 8F, 1G, 4H, and
7I for the corresponding processor when installing the
memory.
•Installation guide for 2P configuration:
oFollow the sequence of 3A, 6B, 9C, 2D, 5E, 8F, 1G, 4H, and
7I for the corresponding processor when installing the
memory.
oInstall at least one memory DIMM for each processor.
oThe memory quantity installed for each processor can be
different.
oThe DIMM slot 1 should be the closest one of the processor.
CAUTION: DIMMs can be damaged by improper handling.
Always use an anti-static wrist strap and grounding mat, and
discharge static electricity before touching DIMMs.
To install a memory module:
1. Align the notch on the bottom edge of the module with the keyed
surface of the DIMM slot and then press the module fully into the
slot.
2. Firmly press the holding clips inward to secure the memory
module in place.
Figure 7 Installing the memory module
DIMM slots are structured to ensure proper installation. If you insert a
DIMM but it does not fit easily into the slot, you may have inserted it
incorrectly. Reverse the orientation of the DIMM and insert it again.

6
Installing the Processor
NOTE: If one processor is being installed, it should be
installed in the socket furthest from the IOH/chipset.
To install the new processor:
CAUTION: Failure to completely open the processor locking
lever prevents the processor from seating during installation,
leading to hardware damage.
1. Open the processor locking lever and the processor socket
retaining bracket. Do not remove the processor socket cover.

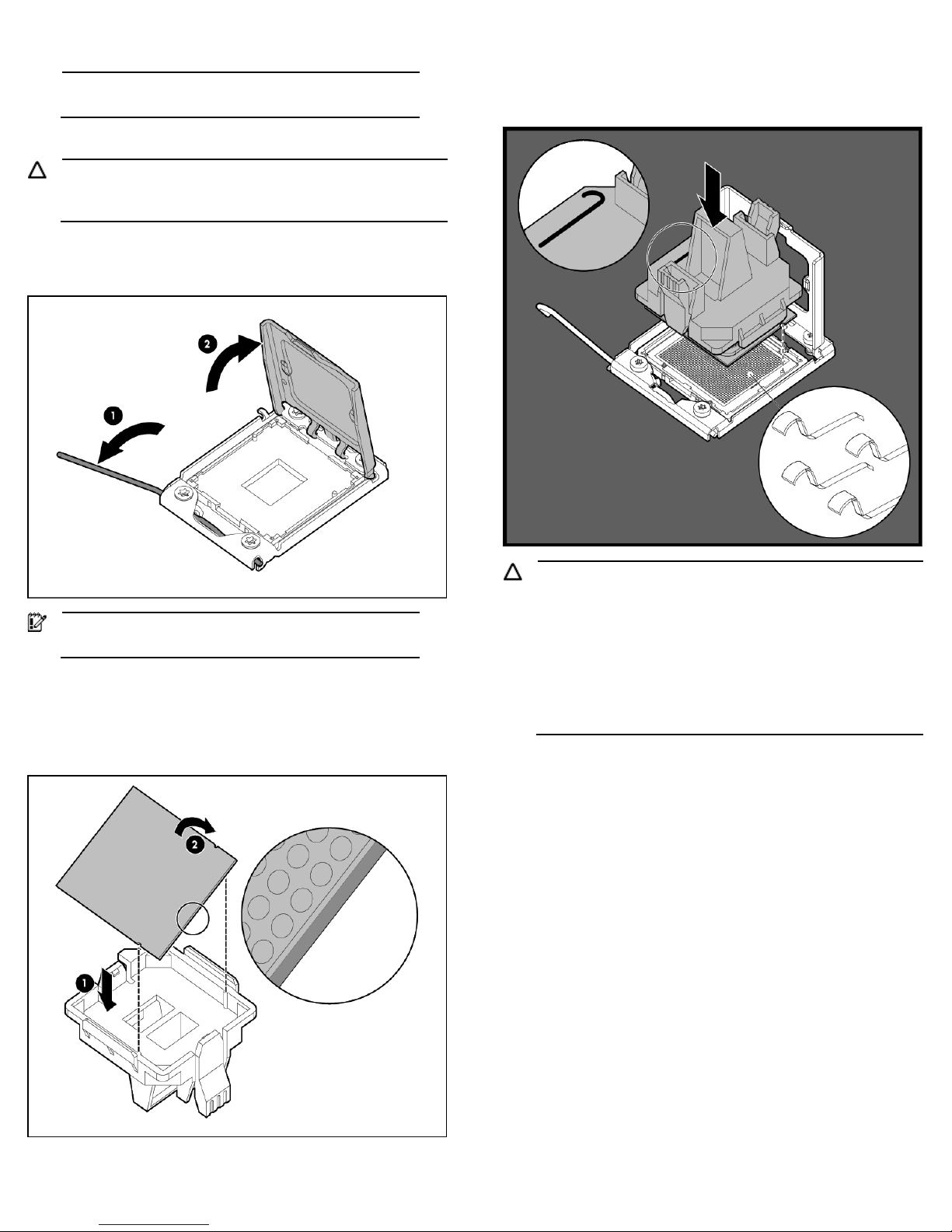

Figure 8 Opening the lever and bracket
IMPORTANT: Be sure the processor remains inside the
processor installation tool.
2. If the processor has separated from the installation tool, carefully
re-insert the processor in the tool. Handle the processor by the
edges only, and do not touch the bottom of the processor,
especially the contact area.
Figure 9 Installing the processor in the installation tool
3. Align the processor installation tool with the socket and install the
processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE
AND EASILY DAMAGED.
Figure 10 Installing the processor
CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY
FRAGILE AND EASILY DAMAGED. To avoid damage to the
system board:
•Never install or remove a processor without using the
processor installation tool.
•Do not touch the processor socket contacts.
•Do not tilt or slide the processor when lowering the
processor into the socket.

7
4. Press the tabs on the processor installation tool to separate it from
the processor, and then remove the tool.
Figure 11 Removing the processor installation tool
5. Close the processor socket retaining bracket and the processor
locking lever. The processor socket cover is automatically
ejected. Remove the cover.
Figure 12 Closing the processor socket
CAUTION: Failure to completely open the processor locking
lever prevents the processor from seating during installation,
leading to hardware damage.
For processor removal, reverse the above installation procedures.
To install the PCI air baffle:
NOTE: The PCI air baffle is required for proper thermal
solution. Need to install a PCI air baffle before installing
the heat sink.
1. Align the PCI air baffle facing the hole on the system board and
installed it as described in below figure.
Figure 13 Installing the PCI air baffle
Figure 14 Detail information for installing the PCI air baffle
To install the heatsink:
1. Properly align the heat sink mounting pins to the system board
mounting holes.
2. Tighten the mounting pins clockwise to secure the heat sink
connection to the system board.
CAUTION: To prevent the heat sink from tilting to one side
during installation/removal, turn each screw a couple of turns,
alternatively between both of them, and then apply the final
torque. Do not over tighten the spring loaded screws to prevent
them from breaking off. A maximum torque of 4.5 inch-lb is set
for each screw.

IMPORTANT: The one close to front panel is processor 2 and
the other one is processor 1. During install the heat sink, make
sure the side with a triangle logo close to the DIMMs.

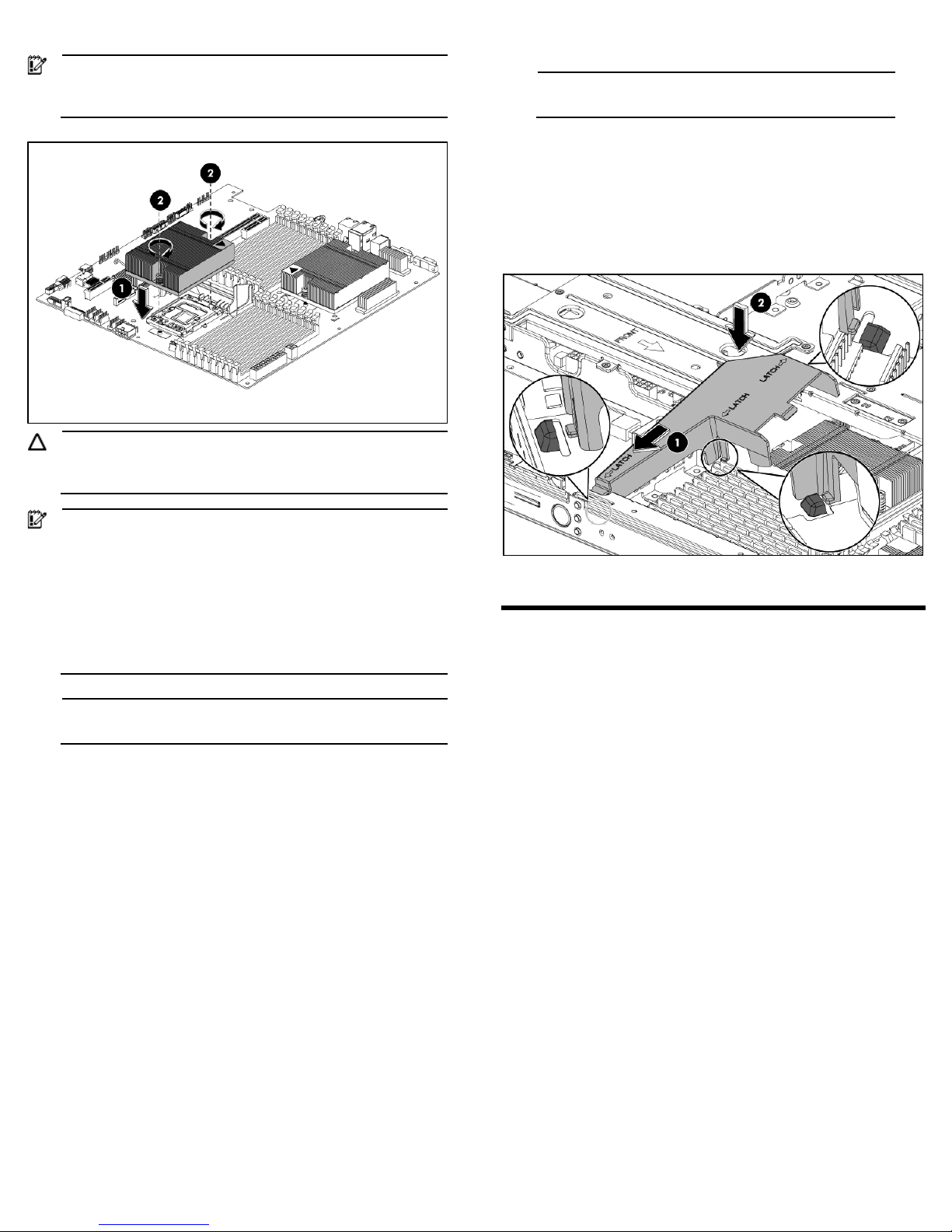

Figure 15 Installing the heat sink assembly
CAUTION: Be sure that the heat sink sits squarely on the
processor, or overheating and damage to the processor may
occur.
Installing the CPU Air Baffle
NOTE: The CPU air baffle is required for proper thermal
solution.
To install the CPU air baffle:
1. Align the CPU air baffle to the tray.
2. Secure the latches to the tray as described in below figure.
3. Press down the CPU air baffle to install it and make sure it full
connects to the tray.
Figure 16 Installing the CPU air baffle into the tray
Additional Documentation
For additional documentation, refer to HP ProLiant SL160s G6 Server
Easy Set-up CD. You can also access additional information and
documentation from the HP external website, either by connecting
directly or through the Easy Set-up CD.
Legal notices
© Copyright 2010, 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should
be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Part Number 635239-002
February 2011 (Second Edition)
IMPORTANT: If the heat sink has been removed for any reason,
it is critical that you apply more thermal interface material to the
integrated heat spreader on the processor to ensure proper
thermal bonding between the processor and the heat sink.
Clean the contact surface of both the processor and heat sink
with an alcohol pad, and then re-apply an HP-approved
thermal interface material before reinstalling the processor. Use
a pattern of five dots when applying the thermal interface
material—one dot in the center, and one dot at each corner.
NOTE: Do not over tighten the heat sink’s spring-loaded screws
to prevent them from breaking off.
