HP ProLiant XL730f Gen9 Server
Overview
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
HP ProLiant XL730f Gen9 Server
For ground-breaking research in science and engineering workloads such as climate modeling or manufacturing simulations, the
HP ProLiant XL730f Gen9 Server advances the science of supercomputing with up to 144 x 2P servers per HP Apollo f8000 Rack.
The ProLiant XL730f Gen9 Server in the HP Apollo 8000 System reaches new heights of performance density.
The ProLiant XL730f Gen9 Server has 2 x 2P nodes per tray with up to 144 servers per rack for more performance per rack. Each
node delivers performance density with Intel® Xeon® processors, provide the processing power needed to handle a variety of
demanding workloads. Supports up to 256Gb memory/node, with 1 x 120GB SSD. One high performance FDR InfiniBand port per
server and 1Gb NIC per server enhance connectivity and data availability.
The all new ProLiant XL730f Gen9 Server with HP ProActive Insight architecture delivers even greater levels of configurability for
Supercomputing environments that require the highest possible performance density and cooling efficiency, with an eye toward
energy recycling. Dry disconnect server trays provide liquid cooling via sealed copper tubes, with heat exchange via thermal bus
bars in the rack. Delivering on the promise of server lifecycle automation, the ProLiant XL730f Gen9 Server features the exclusive
HP Active Heath System and provides continuous, proactive, monitoring for over 1600 system parameters with zero impact to
application performance.
The HP Apollo 8000 System Solution is comprised of the following components:
One or more Apollo f8000 Racks with HP ProLiant XL730f Gen9 Servers, one or more HP Apollo 8000 iCDU Racks,
and their associated onboard CDU control system.
Primary plumbing interface assembly kit that connects the individual Apollo 8000 iCDUs Racks to the facility water
system.
Secondary plumbing system that connects the individual the Apollo f8000 Racks to the HP Apollo 8000 iCDU
Racks. This secondary closed loop system provides cooling for the Apollo f8000 Rack and isolates it from
untreated, potentially incompatible primary water.
High-speed (FDR) InfiniBand networking built into the Apollo f8000 Rack.
Front view of the ProLiant XL730f Gen9 Server
Item Description
1. SUV (serial, USB, video) port
2. Power Switch
3. iLO LED
4. Health LED
5. UID LED
6. NIC2
7. NIC1

QuickSpecs
HP ProLiant XL730f Gen9 Server
Overview
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 2
Open View
Item Description
1. Front Server
2. Rear Server
3. Sixteen (16) DDR4 DIMM slots per server
4. Two Intel® Xeon® E5-2600 processors
5. Optional one (1) SSD
6. IB Adapter Kit
7. 1Gb Ethernet Adapter

QuickSpecs
HP ProLiant XL730f Gen9 Server
Standard Features
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 3
NOTE: For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
E5-2600 v3 series Processors
Performance Processors
NOTE: All support up to 2133MHz DDR4 memory speeds.
Intel® Xeon® E5-2695 v3 (2.3GHz/14-core/35MB/9.6GT-s QPI/120W, DDR4-2133, HT)
Intel® Xeon® E5-2690 v3 (2.6GHz/12-core/30MB/9.6GT-s QPI/135W, DDR4-2133, HT)
Intel® Xeon® E5-2680 v3 (2.5GHz/12-core/30MB/9.6GT-s QPI/120W, DDR4-2133, HT)
Intel® Xeon® E5-2670 v3 (2.3GHz/12-core/30MB/9.6GT-s QPI/120W, DDR4-2133, HT)
NOTE: The processor specifications are the Intel values given at time of publication and are subject to
change based on Intel information.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
NOTE: For the Intel® C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates
the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation,
00 = Processor SKU, and x = v3.
Cache Memory
One of the following
depending on Model
35MB (1x35MB) Level 3
NOTE: For Fourteen-core processors.
30MB (1x30MB) Level 3
NOTE: For Twelve-core processors.
Chipset
Intel® C610 Series Chipset
Intel® E5-2600 v3 Processor Family
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
HP Server UEFI ROM
The HP ProLiant System BIOS is an EDK2 UEFI solution, and adheres to the latest revisions of UEFI Class
2 specifications, which supports both UEFI Boot Mode and Legacy BIOS Boot Mode. The HP ProLiant
XL730f Gen9 Server defaults to UEFI Boot Mode and can be factory or field configured for Legacy BIOS
Boot Mode if required.
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured
properly to support UEFI.
To modify the server configuration ROM default settings, press F9 in the HP ProLiant POST screen to
enter the HP UEFI System Utilities screen. By default, the System Utilities menus are in the English
language.
NOTE: UEFI System Utilities support Legacy BIOS Boot Mode like HP ROM-Based Setup Utility (RBSU).
For more information, please visit http://www.hp.com/go/proliantuefi/docs.
UEFI enables numerous new capabilities, including both industry standard functionality and features
specific to HP ProLiant servers. The following are some of the features that UEFI enables and that the
HP ProLiant XL730f Gen9 Server can support when configured for UEFI Boot Mode:
Secure Boot - A new feature in which the system firmware, option card firmware, operating
systems, and software collaborate to greatly enhance platform security.
Support for > 2.2 TB (using GPT) boot drives - Such drives could previously only be used for
boot drives when using RAID solutions such as HP Smart Array.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Standard Features
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 4
UEFI Shell - Provides a pre-boot environment for running scripts and tools. The HP ProLiant
UEFI Shell provides both standard capabilities as well as numerous enhancements.
PXE boot support for IPv6 networks.
PXE Multicast Boot allowing for faster PXE deployments for large numbers of servers.
Boot support for option cards that only support a UEFI option ROM.
On System Management
Processor
HP iLO (Firmware: HP iLO 4 v2.0)
NOTE: For more information, visit: http://www.hp.com/go/ilo.
Memory Protection
Advanced ECC (multi-bit error protection)
Memory Online Spare Mode
Memory Lock Step Mode
Memory Mirroring Mode
Memory
Type
HP SmartMemory
DDR4 Registered (RDIMM)

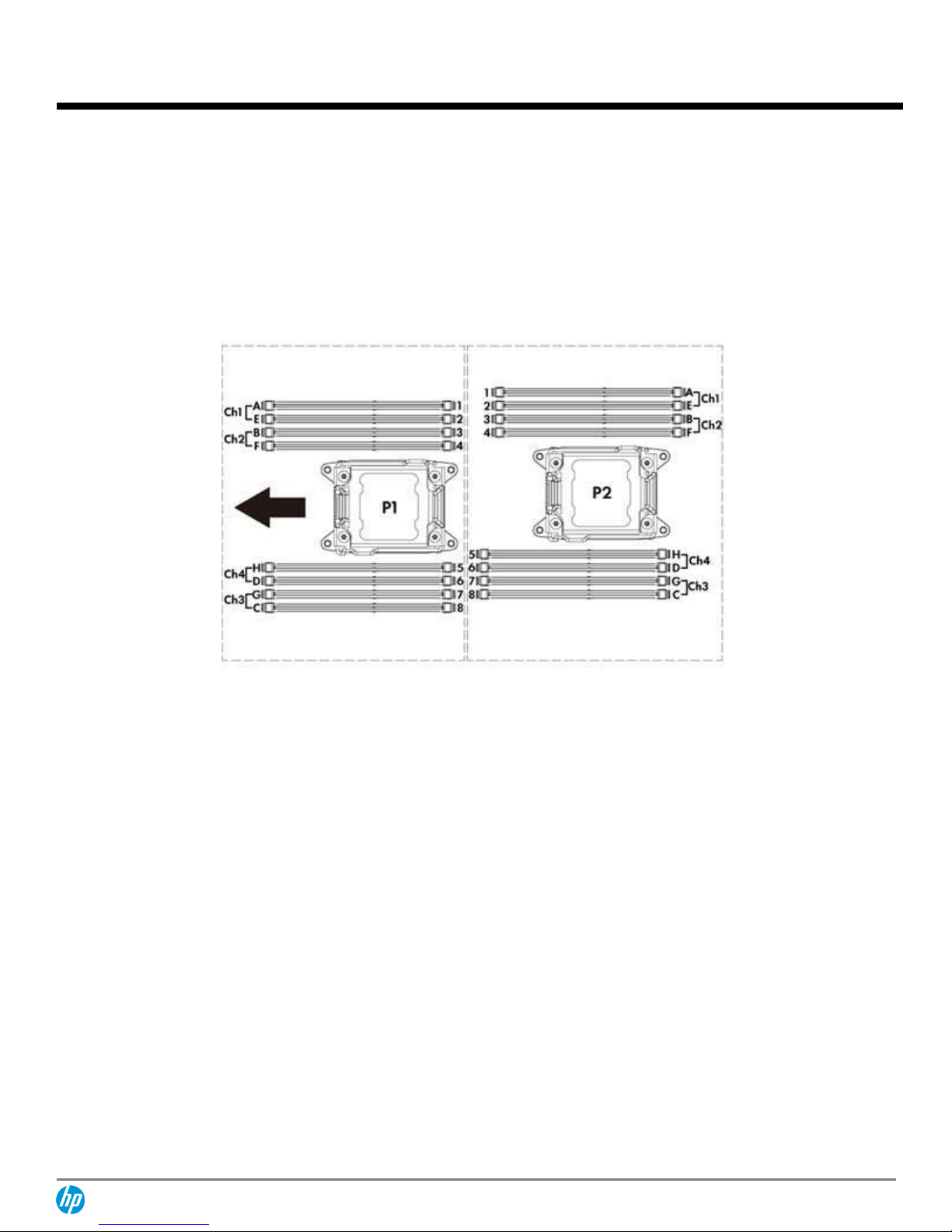

DIMM Slots Available
16 DIMM Slots available per server and 32 slots available per tray
Maximum (RDIMM) (per
server)
256GB (16 x16GB) Registered memory configurations
NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant
Server. HP SmartMemory is required to realize the memory performance improvements and enhanced
functionality listed in this document for Gen9. For additional information, please see the HP
SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
Network Controller
HP Ethernet 1Gb 2-port 363i Adapter
HP InfiniBand FDR/Ethernet 10/40Gb 2-port 544+A8L Adapter
NOTE: One 1GbE port and one port of FDR InfiniBand per server
NOTE: Each adapter interoperates with the corresponding Ethernet switch and InfiniBand switch via
the HP Apollo f8000 Rack infrastructure.
Storage Controller
1x SATA 3 port from Embedded C610 Chipset controller for the embedded SSD.
Internal Storage
Devices
Diskette Drives
Via USB through the SUV port, external support only
Optical Drives
Via USB through the SUV port, external support only
Solid State Drives
One SSD per server
Maximum Internal
Storage
SATA SFF SSD
120 GB
1x120 GB
SATA SFF SSD
80 GB
1x80 GB
Interfaces
NOTE: The only interface
that is front pluggable on
the ProLiant XL730f Gen 9
Server is the SUV port
Base Network
Two 1GbE NIC ports per XL730f Gen9 tray (one 1GbE NIC port per server)
InfiniBand Interface
The ProLiant XL730f Gen9 Server offers InfiniBand Adapter Kit.
KVM
Serial USB Video Port (SUV)
Micro SD
1 (internal)
USB Ports
1 (internal)
HP iLO Remote
Management Network
Port
1 GbE dedicated internal port

QuickSpecs
HP ProLiant XL730f Gen9 Server
Standard Features
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 5
iLO LED
2 front
Health LED
2 front
Power
2 front
UID
2 front
Network LED
2 front
Industry Standard
Compliance
ACPI 2.0b Compliant
WOL Support
PXE Support
USB 1.1 and 2.0 Compliant
SMBIOS 2.7.0
Tray Power Supply
Each ProLiant XL730f Gen 9 Server Tray comes equipped with a High Voltage to 12V Power converter
to supply each server in the tray.
Each power supply embedded on the ProLiant XL730f Gen9 Server Tray is capable of providing 1200 W
total and 600 W per server node.
Operating Systems
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on the HP Certified and Supported ProLiant Servers for OS and latest
listing of software drivers available for your server including how to purchase from HP, please visit our
OS Support Site at: http://www.hp.com/go/ossupport and our driver download page:
http://www.hp.com/support.
Graphics
Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
HP iLO 4 On System Management Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
The ProLiant XL730f Gen9Server is 1U, half-width.
Embedded Management
The ProLiant XL730f Gen9Server has a comprehensive set of embedded management features
supporting the complete lifecycle of the server, from initial deployment, through ongoing
management, to service alerting and remote support. These features come standard on all HP
ProLiant Gen9 servers. The HP iLO Management Engine portfolio includes:
HP iLO: Monitor your servers for ongoing management, service alerting, reporting and
remote management with iLO. Learn more at www.hp.com/go/ilo.
UEFI: Configure and boot your servers securely with industry standard Unified Extensible
Firmware Interface (UEFI). Learn more at www.hp.com/go/ProLiant/uefi.
Intelligent Provisioning: Provision servers by discovering and deploying one to few servers
with Intelligent Provisioning. Learn more at www.hp.com/go/intelligentprovisioning.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Standard Features
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 6
Embedded Remote Support: HP’s embedded remote support, Insight Online direct connect
or HP Insight Remote Support, enables HP ProLiant systems to directly link to phone home
support without additional software or hardware and user’s monitor their IT environment
anywhere, anytime. Learn more at www.hp.com/go/insightonline/info.
HP Server
Utilities and
Tools
HP Smart Updates
Optimize firmware and driver updates with HP Smart Update solutions.
www.hp.com/go/smartupdate.
HP Systems Insight
Manager (HP SIM)
HP SIM allows you to monitor the health of your HP ProLiant Servers and HP Integrity
Servers, and also provides you with basic support for non-HP servers. Learn more at
www.hp.com/go/sim.
Scripting Toolkits
Provision servers using your own scripts to discover and deploy servers at scale. Learn
more at www.hp.com/go/ProLiantSTK.
HP iLO Mobile
Application
Enables the ability to access, deploy, and manage your server anytime from anywhere
from select smartphones and mobile devices. For additional information please visit:
www.hp.com/go/ilo/mobileapp.
Security
Power-on password
Keyboard password
QuickLock, Network Server Mode
Serial interface control
Administrator's password
iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption
iLO 4 can be disabled via a Global Setting
iLO Advanced supports directory services integration
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for
one year from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty.
NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business
day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR)
parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy
replacement. A travel and labor charge will result when customers decline to replace a Mandatory
CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added
complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Optional Features
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 7
Server & Infrastructure
Management
HP iLO Advanced
The license includes the full integrated remote console, virtual keyboard,
video, and mouse (KVM), multi-user collaboration, console record and replay,
and GUI-based and scripted virtual media and virtual folders. Learn more
about HP iLO Advanced at www.hp.com/go/iloadvanced.
HP iLO Scale-Out
The license includes advanced power management, fast access through
scripting tools and lower operational cost, in massive scale out
environments, for maximum data center efficiency. Learn more about HP iLO
Scale-Out www.hp.com/go/ilo/scale-out.
HP Insight Control
HP Insight Control, lets you deploy, migrate, monitor, remote control, and
optimize your IT infrastructure through a single, simple management
console. For more information, see http://www.hp.com/go/insightcontrol.
High Performance Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated large-
scale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster
Management Utility
HP Insight Cluster Management Utility is a Hyperscale cluster management
framework and suite of tools for large Linux clusters such as those found in
High Performance Computing (HPC) environments. Learn more at
www.hp.com/go/cmu.
HP Insight Online
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product
and HP support information personalized to your IT environment. Insight Online can automatically
display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy
navigation you can efficiently track your IT support contracts and device status from anywhere and at
anytime. www.hp.com/go/insightonline
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array
of servers and storage and HP networking products.
For more information on Factory Express services for the Apollo 8000 System model please contact
your sales representative or go to: http://www.hp.com/go/factory-express.

QuickSpecs
HP ProLiant XL730f Server
Service and Support
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 8
Service and Support
HP Technology Services for Industry Standard Servers
HP Technology Services delivers confidence, reduces risk and helps customers realize agility and
stability. Connect to HP to help prevent problems and solve issues faster. Our support technology lets
you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in
control, anywhere, any time.
Protect your business beyond warranty with HP Care Pack Services
HP Care Pack Services enable you to order the right service level, length of coverage and response
time as you purchase your new server, giving you full entitlement for the term you select.
Services
recommendation
Preferred recommendation:
HP Datacenter Care service
HP Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable
agility and innovation. It is a structured framework of repeatable, tested, and globally available
services “building blocks.” You can deploy, operate, and evolve your datacenter wherever you are on
your IT journey. With HP Datacenter Care, you benefit from a personalized relationship with HP via a
single point of accountability for HP and others’ products. For more information, visit
www.hp.com/services/datacentercare
Standard Services
recommendation
Standard recommendation:Maintains high level of server availability
Foundation Care 24x7, three-year Care Pack Service
HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on
resolving issues. Hardware onsite response within four hours if needed; collaborative software
included in this Care Pack service provides troubleshooting assistance on industry leading software
running on your HP server. Simplify your support experience and make HP your first call for hardware
or software questions.
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Related Servivces
Data Center Platform Consulting Services
Choose HP Technology Services Consulting to modernize and migrate your key systems. These
services help fine tune your data center to improve security, management and efficiency across IT
infrastructure, operations, and facilities and prepare you for the new style of IT. HP understands the
needs of the data center of the future and will serve as your guide for the journey.
www.hp.com/services/consulting
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional
manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
Factory Express for Servers and storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed. For more information on Factory Express services for your specific
server model please contact your sales representative or go to: http://www.hp.com/go/factory-
express.
Data Privacy Services
Protect your data through better media management. HP Data privacy services help manage and
protect sensitive data to reduce the risk of unauthorized access to private information and help meet

QuickSpecs
HP ProLiant XL730f Server
Service and Support
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 9
compliance requirements. Our retention services allow you to keep drives and other devices upon
failure, our removal services provide convenient data sanitization and our recovery services allow you
to safely retire IT assets and capture any remaining value from the hardware.
www.hp.com/services/dataprivacy
Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc
Get connected to HP to improve your support experience
Prevent problems with innovative, automated monitoring tools and proactive services. Combining
Proactive Care Services with our remote support technology such as Insight Online provides you with
expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned
down time and solve problems quickly. For more information, visit:
www.hp.com/go/proactiveinsightexperience
Get connected to HP to
improve your support
experience
Prevent problems with innovative, automated monitoring tools and proactive services. Combining
Proactive Care Services with our remote support technology such as Insight Online provides you with
expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned
down time and solve problems quickly. For more information, visit:
www.hp.com/go/proactiveinsightexperience
HP Support Center
Personalized online support portal with access to information, tools and experts to support your HP
Apollo 8000 System. Submit support cases online, chat with HP experts, access support resources or
collaborate with peers. Learn more http://www.hp.com/go/hpsc
HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent
for live support. Now, you can get access to personalized IT support anywhere, anytime.
Our support tools are available at no additional cost with a HP warranty, HP Care Pack or HP
contractual support agreement.
*The HP Support Center Mobile App is subject to local availability
Parts and Materials
HP will provide HP-supported replacement parts and materials necessary to maintain the covered
hardware product in operating condition, including parts and materials for available and
recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum
usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the
technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.
For more information
To learn more on HP Apollo 8000 System, please contact your HP sales representative or HP
Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant

QuickSpecs
HP ProLiant XL730f Gen9 Server
Configuration Information - Factory Integrated Models
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
0
NOTE: The HP Apollo 8000 System ships as a Configured-To-Order (CTO) product only.
The Apollo 8000 System consists of up to seventy-two (72) HP ProLiant XL730f Gen9 Server Trays in a single HP Apollo f8000
Rack, cooled by a single HP Apollo 8000 iCDU Rack. The Apollo 8000 System is only sold as a Factory Integrated Model. To ensure
only valid configurations are ordered, the sales system acts as a configurator. Contact your local sales representative for
information on configurable product offerings and requirements. This section lists some of the steps required to configure a
Factory Integrated Model of the Apollo 8000 System.
NOTE: The Configure-To-Order Apollo 8000 System must include an Apollo f8000 Rack, an Apollo 8000 iCDU Rack, at least
seventy-two (72) ProLiant XL730f Gen9 Server Trays and eight (8) HP InfiniBand Switches for Apollo 8000.
NOTE: Configure-To-Order Apollo 8000 Systems start with the 144 ProLiant Servers part of 72 HP ProLiant XL730f Gen9 Server
Trays.
NOTE: FIO indicates that this option is only available as a factory installable option.
HP ProLiant XL730f Gen9 Server
Step 1. Choose at least seventy-two (72) ProLiant XL730f Gen9 Server Trays for 144 servers
total.
For each ProLiant XL730f Gen9 Server choose the processor type. Four processors (two 2P servers) ship standard with each
ProLiant XL730f Gen9 Server Tray.
NOTE: Processor mixing of different frequencies and Wattage is not supported in any single tray.
Step 2. Choose one of the following kits for the Intel E5 2600v3 Xeon processor for each
server tray.
Intel Xeon E5-2670 v3
HP XL7x0f Intel® Xeon® E5-2670 v3 FIO Processor Kit
775159-L21
Intel Xeon E5-2680 v3
HP XL7x0f Intel® Xeon® E5-2680 v3 FIO Processor Kit
775160-L21
Intel Xeon E5-2690 v3
HP XL7x0f Intel® Xeon® E5-2690 FIO v3 Processor Kit
775161-L21
Intel Xeon E5-2695 v3
HP XL7x0f Intel® Xeon® E5-2697 FIO v3 Processor Kit
775162-L21
Step 3. Choose memory for each ProLiant XL730f Gen9 Server Tray.
NOTE: Choose a minimum of 4 kits per server tray or a maximum of 32 kits per server tray. Choose in multiples of 4.
HP 8GB (1x8GB) Single Rank x4 Registered Heat Spreader Memory Kit
778267-B21
HP 16GB (1x16GB) Dual Rank x4 Registered Heat Spreader Memory Kit
778268-B21
Step 4. Choose the SFF SSD for the server tray.
NOTE: Choose a minimum of 0 kits or a maximum of 2 kits per server tray, must be ordered in pairs.
NOTE: If you choose to have SSDs in the server tray, both SSDs must be the same size.
HP 120GB 6G SATA 2.5in VE NHP SSD
745794-B21

QuickSpecs
HP ProLiant XL730f Gen9 Server
Configuration Information - Factory Integrated Models
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
1
HP 80GB 6G SATA 2.5in VE NHP SSD
744683-B21
Step 5. Choose a hard drive enablement kit for the SSD.
NOTE: Choose an enablement kit for each drive chosen.
HP XL7x0f Solid State Drive Enablement Kit
777899-B21
Step 6. Choose the required network solution.
NOTE: Each ProLiant XL730f Gen9 Server Tray ships with 2 network adapters, 1 per server.
HP InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+A8L Adapter
778509-B21
HP Apollo f8000 Rack
Choose the Apollo f8000 Racks.
For 1-72 Server Trays, a single Apollo f8000 Rack is required. For more information, please see the HP Apollo f8000 Rack
QuickSpecs.
Step 7. Choose one of each of the following.
NOTE: The Top and Bottom Rack must be ordered together
HP Apollo f8000 Bottom IT Rack
J1P06A
HP Apollo f8000 Top IT Rack
J1P07A
Step 8. Choose the infrastructure kits to support the Apollo f8000 Rack.
NOTE: Choose a minimum of 2 kits or a maximum of 2 kits per top or bottom of each Apollo f8000 Rack, must be ordered in pairs.
HP XL7x0f Integrated InfiniBand 18 2-port Fabric FIO Cartridge Cable Kit
774057-B21
HP InfiniBand FDR/Ethernet 10/40Gb 2-port 544+A8L Adapter
HP XL7x0f Integrated InfiniBand FDR 18-port FIO Switch Tray Kit
774059-B21
Step 9. Choose the rack plumbing kit for each Apollo f8000 Rack.
HP Apollo f8000 Rack Plumbing Kit
J1P10A
Step 10. Choose a power meter for each Apollo f8000 Rack, one per rack.
HP 480VAC Watertight FIO Power Meter
779240-B21
HP 415VAC FIO Power Meter Kit
779245-B21
Step 11. Choose a packaging option kit.
NOTE: Select this option only when shipping the rack stacked is an option. This option available only in North America.
HP Apollo f8000/iCDU Rack Packaging FIO Kit
778976-B21
HP Apollo 8000 iCDU Rack

QuickSpecs
HP ProLiant XL730f Gen9 Server
Configuration Information - Factory Integrated Models
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
2
This cooling rack requires special site considerations, which can be understood with the HP Apollo 8000 System Site Preparation
Guide available from your HP advisor. A single Apollo iCDU Rack can support up to four Apollo f8000 Racks. Please see the Apollo
8000 iCDU Rack QuickSpec for additional information.
Choose the Apollo 8000 iCDU Racks. For 1-4 Apollo f8000 Racks an Apollo 8000 iCDU Rack is required.
Step 12. Choose one of each of the rack bottoms.
NOTE: The Top and Bottom Rack must be ordered together.
HP Apollo 8000 iCDU Top Rack
J1P09A
NOTE: The Top iCDU Rack (J1P09A) is included as default with the Bottom iCDU Rack selection
HP Apollo 8000 iCDU Bottom Rack
J1P08A
HP Apollo 8000 iCDU International Bottom Rack
J1P08B
Step 13. Choose the plumbing kits required.
HP Apollo 8000 iCDU Rack Plumbing Kit
J1P12A
NOTE: The Hose Kit is required for each rack.
HP Apollo 8000 Secondary Plumbing Kit
J1P14A
NOTE: One Apollo 8000 Secondary Plumbing Kit can support up to 3 full racks of any combination: an Apollo
8000 iCDU (Top and Bottom) or an Apollo f8000 (Top and Bottom) Rack.
HP Apollo 8000 End Assembly Kit
J1P15A
NOTE: One Apollo 8000 end plumbing kit maximum per rack.
Step 14. Choose a power meter for the Apollo 8000 iCDU Rack.
HP 480VAC Watertight FIO Power Meter
779240-B21
HP 415VAC FIO Power Meter Kit
779245-B21
Step 15. Choose other rack options.
HP Apollo Rack Ramps Packaging Kit
778975-B21
NOTE: One HP rack ramps kit per site needed for deployment as determined by Site Analysis.
HP 5900AF-48XG-4QSFP+ Switch
JC772A
NOTE: A minimum of 0 and a maximum of 6 per Bottom iCDU Rack and a minimum of 0 and a maximum of
22 per Top iCDU Rack.
HP A58x0AF 650W AC Power Supply
JC680A
NOTE: One for every switch ordered above.
HP A58x0AF Back (power side) to Front (port side) Airflow Fan Tray
JC682A
NOTE: Two for every switch ordered above.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Core Options
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
3
Processors
E5-2600 v3 series Processors
Intel Xeon E5-2670 v3
HP XL7x0f Intel® Xeon® E5-2670 FIO Processor Kit
775159-L21
Intel Xeon E5-2680 v3
HP XL7x0f Intel® Xeon® E5-2680 FIO Processor Kit
775160-L21
Intel Xeon E5-2690 v3
HP XL7x0f Intel® Xeon® E5-2690 FIO Processor Kit
775161-L21
Intel Xeon E5-2695 v3
HP XL7x0f Intel® Xeon® E5-2697 FIO Processor Kit
775162-L21
HP Memory
HP SmartMemory
DDR4 Registered (RDIMM)
16 DIMM Slots available per server and 32 slots available per tray
256GB (16 x16GB) Registered memory configurations
HP 8GB (1x8GB) Single Rank x4 Registered Heat Spreader Memory Kit
778267-B21
HP 16GB (1x16GB) Dual Rank x4 Registered Heat Spreader Memory Kit
778268-B21
NOTE: For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: HP certified SmartMemory must be used.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133
MHz or 1866MHz. Please see the Online Memory Configuration Tool at: www.hp.com/go/DDR4memory-
configurator.
NOTE: The Apollo System requires heat spreaders on the DIMMs for the ProLiant XL730f Gen9 Servers.
These are installed directly on the DIMM itself. These DIMMs are specifically for the ProLiant XL730f Gen9
Servers and should not be used in any other server.
HP Hard Drives
NOTE: The components of a storage subsystem (e.g., the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid
State Drive
744683-B21
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid
State Drive
745794-B21
HP InfiniBand
HP InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+A8L Adapter
778509-B21
NOTE: Dual port ConnectX-3 FDR/QDR IB or 40/10GbE. No IB Enablement Kit
required.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

QuickSpecs
HP ProLiant XL730f Gen9 Server
Additional Options
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
4
HP Insight Software
HP Insight Control
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
QL803B
HP Insight Cluster Management Utility Media
BD477A
Integrated Lights-Out (iLO)
HP iLO Scale Out
HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and
Updates Flex Qty E-LTU
BD776AAE
HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and
Updates Tracking License
BD777A
HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and
Updates Flex Qty E-LTU
BD778AAE
HP Integrated Lights-Out Scale-Out 1yr 24x7 Tech Support and Updates Flex
Quantity License
BD778A
HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and
Updates Tracking License
BD779A
HP iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU
NOTE: The Electronic software license is available in EMEA only
E6U59ABE
HP iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU
NOTE: The Electronic software license is available in EMEA only
E6U64ABE
HP iLO Advanced 1 Server with 3yr 24x7 Technical Support and Updates LTU
G6F49A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux
can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-
linux (click on Download button).
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single set of activation keys.
NOTE: For additional license options please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License
512485-B21
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Flexible
Quantity License
512486-B21
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Tracking
License
512487-B21
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic
License
TA850AAE
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates
BD505A
HP iLO Advanced Flexible Qty License with 3yr 24x7 Tech Support and Updates
BD506A
HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates
BD506AAE
HP iLO Advanced Tracking License with 3yr 24x7 Tech Support and Updates
BD507A
NOTE: For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html
NOTE: For more information, visit: http://www.hp.com/go/ilo
High Performance
Clusters
HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
NOTE: These part numbers can be used to purchase one certificate for multiple
BD476A

QuickSpecs
HP ProLiant XL730f Gen9 Server
Additional Options
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
5
licenses and support with a single activation key. Each license is for one node
(server). Customer will receive a printed end user license agreement and license
entitlement certificate via physical shipment. The license entitlement certificate
must be redeemed online in order to obtain a license key. Customer also will
receive a support agreement.
HP Insight Cluster Management Utility Media
BD477A
NOTE: For additional license kits please see the QuickSpecs at
http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP USB and SD Options
HP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit
608447-B21
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HP Enterprise Mainstream Flash Media Kits for Memory Cards
HP 8GB microSD Enterprise Mainstream Flash Media Kit
726116-B21
HP 32GB microSD Enterprise Mainstream Flash Media Kit
700139-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html
Other USB and SD Options
HP 36pin Serial/USB/VGA Dongle Cord Kit
676277-B21

QuickSpecs
HP ProLiant XL730f Gen9 Server
Memory
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
6
HP ProLiant XL730f Gen 9Server
DDR4 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool:
www.hp.com/go/DDR4memory-configurator
Each Intel® Xeon® E5-2600 family processor socket contains four memory channels that support two DIMMs each for a total of
eight (8) DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 16GB capacity DIMMs are
supported for 256GB of memory (16 DIMM slots x 16GB per DIMM).
Memory Population Rules and Guidelines:
White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
To maximize performance, it is recommended to balance the total memory capacity between all installed processors and
to load the channels similarly whenever possible.
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel.
Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor.
RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher
voltage.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not qualified on the ProLiant XL730f Gen9
Server. Certain HP SmartMemory features such as memory authentication and enhanced performance may not be
supported.
To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional
information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html.
For memory population rules and additional memory guidelines, please see the ProLiant XL730f Gen9 User Guide at
http://www.hp.com/support.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Memory
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 1
7
NOTE: Capacity references are rounded to the common Gigabyte values:
8GB = 8192MB
16GB = 16384MB
DDR4 memory options part number decoder
Following are memory options available from HP:
HP Memory
NOTE: HP memory from previous generation servers are not qualified or warranted
with this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen9. For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html.
Registered DIMMs (RDIMMs)
NOTE: The following memory is supported by the E5-2600 v3 series Processors.
HP 8GB (1x8GB) Single Rank x4 Registered Heat Spreader Memory Kit
778267-B21
HP 16GB (1x16GB) Dual Rank x4 Registered Heat Spreader Memory Kit
778268-B21
NOTE: This memory is only supported by the E5-2600 series Processors.
NOTE: For detailed memory configuration rules and guidelines, please use the Online
DDR4 Memory Configuration Tool: www.hp.com/go/DDR4memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Technical Specifications
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 18
Server Tray
Tray Dimensions (H x W x D)
1.75 x 7.9 x 38.27 in (4.45 x 20.07 x 98.98cm)
Weight
(approximate)
Maximum
30 lb (13.6 kg)
Input Requirements
(per power supply)
Power input provided by
HP Apollo f8000 Rack
Power Supply Output
(per power supply)
Rated Steady-State Power
600W per server
System Inlet Temperature
Operating
50° to 95° F (10° to 35° C) at sea level with an
altitude derating of 1.8°F per every 1000 ft
(1.0°C per every 304.8 m) above sea level to a
maximum of 10,000 ft (3048 m), no direct
sustained sunlight. Maximum rate of change is
18°F/hr (10°C/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 86°F (30°C).
Non-operating
-22° to 140° F (-30° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).
Altitude
Operating
10,000 ft (3048 m). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
1500 ft/min (457 m/min).
Non-operating
30,000 ft (9144 m). Maximum allowable
altitude change rate is 1500 ft/min (457
m/min).
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt
15; ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
HP Inifiniband
FDR/Ethernet 10Gb/40Gb
2 port 544 AL Adapter
Network Interface
InfiniBand QDR, FDR10, and FDR; Ethernet 10 or 40 Gb/sec
Compatibility
IEEE 802.1AS
IEEE1588
IEEE 802.3az
Data Transfer Method
PCI Express v 3 x8 adapter
Controller
Mellanox Connect X-3 Pro
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to http://www.hp.com/go/green. To recycle your product,
please go to: http://www.hp.com/go/green or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.

QuickSpecs
HP ProLiant XL730f Gen9 Server
Technical Specifications
c04293382 —DA —15204 Worldwide—Version 2—November 1, 2014
Page 19
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard web site at: http://www.hp.com/go/green. These
instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
