HP SA1120 - Web Hosting Server Appliances User manual

hp web hosting
server appliance
sa1100 and sa1120
Quick Start Guide

© Copyright 2001 Hewlett-Packard Company. All rights reserved.
Hewlett-Packard Company
3000 Hanover Street
Palo Alto, CA 94304-1185
Publication Number
5971-0867
February 2001
Disclaimer
The information contained in this document is subject to change without
notice.
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY
KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIM-
ITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be
liable for errors contained herein or for incidental or consequential dam-
ages in connection with the furnishing, performance, or use of this mate-
rial.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
Warranty
A copy of the specific warranty terms applicable to your Hewlett-Packard
products and replacement parts can be obtained from http://
www.hp.com/serverappliances/support.
*Other brands and names are the property of their respective owners.

Contents
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

1
English
FCC and emissions disclaimer
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
Federal Communications Commission (FCC) Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the
interference at his/her own expense.
To ensure Electro Magnetic Compatibility (EMC) compliance with
your local regional rules and regulations, the final configuration of
your end system product may require additional EMC compliance
testing. For more information, please contact your supplier.
Warnings
1. This guide is intended for use by qualified technical
personnel with experience in installing and configuring
hosting appliances. These appliances are complete, and it
is recommended that you not open the appliances unless
you are installing an auxiliary hard drive or memory.
2. Read and adhere to all warnings, cautions, and notes in
documents supplied with the hosting appliance chassis,
power supply, server board, and accessories. If the
instructions for the chassis, server board, and power
supply are inconsistent with these instructions or the
instructions for accessories, contact the supplier to find
out how you can ensure that your hosting appliance
meets safety and regulatory requirements.

2
3. This hosting appliance was evaluated for use only in
computer rack cabinets within computer rooms, data
centers, or similar locations. Other uses require further
evaluation. Any use of this hosting appliance outside of
computer rack-mounting within a computer room, data
center, or similar location will void the product warranty
associated with the product.
4. Make sure the AC power connection is through a properly
grounded outlet. See "Checking the power cord" section
for more information. Pressing the power button does
NOT turn off all power to this hosting appliance. Some
circuitry in the hosting appliance may continue to operate
even though the front panel power button is off. Before
performing any procedures, disconnect the hosting
appliance from power sources, telecommunications links,
networks, or modems. Failure to do so can result in
personal injury or equipment damage.
5. Electrostatic discharge (ESD) can damage hosting
appliance components. It is strongly suggested that you
perform the installation procedures in this guide only at
an ESD workstation. If you choose to perform the
installation other than at an ESD workstation, you can
reduce the risk of ESD by taking these precautions:
• Wear an antistatic wrist strap, and attach it to a
metal part of the hosting appliance chassis.
• Touch the metal on the hosting appliance chassis
before touching the server components or
connectors.
• Keep part of your body in contact with the metal
server chassis to dissipate the static charge while
handling the hosting appliance components.
• Avoid moving around unnecessarily.

3
• Hold the boards and drives only by the edges.
• Place the server components on a grounded,
static-free surface. Use a conductive foam pad if
available, but do NOT use the component
wrappers.
6. Make sure that the AC power service connection is
through a properly grounded outlet. See "Checking the
power cord" section for more information.
Unpacking and inspecting the HP
Web Hosting Server Appliance
SA1100 and SA1120
Remove and inspect the HP Web Hosting Server Appliance
SA1100 or SA1120 and accessories for damage. If the contents
appear damaged, file a damage claim with the carrier immediately
(it may be helpful to photograph the packaging).
These items should be present:
• AC power cord
• Serial cable
• Rack-mount brackets (2) and screws
• SA1100 or SA1120 hosting appliance
• This Quick Start Guide
Save the package box and packing materials in the event that you
need to package the hosting appliance for reshipment.
Auxiliary drive size
If you add an auxiliary hard drive, the size of the hard drive must be
exactly the same as the original hard drive. Otherwise, the hosting
appliance will not detect the auxiliary drive. For more information on
installing an auxiliary hard drive, refer to the online user's guide.

4
Checking the power cord
Check the power cord to ensure that it's the correct type
specifically required in the region where you are installing and/or
using the hosting appliance. Do NOT modify or use the supplied
AC power cord if it's not the correct type. Power cord and
connector requirements include, without limitation, the following:
• Rating: Power cords must be rated for available AC
voltage and have a current rating at least 125 percent of
the current rating of the hosting appliance.
• Connector, wall outlet end: Power cords must be
terminated in a grounding type-male plug designed for use
in your region. For US/Canadian installations, the
connector should be a NEMA 5-15P type attachment plug.
Power cords must have certification marks showing
certification by an agency acceptable in your region.
• Connector, power supply end: The connector that plugs
into the AC receptacle on the hosting-appliance power
supply must be an IEC 320, sheet C13, type-female
connector.
• Power cord length and flexibility: Power cords must be no
more than 4.5 meters (14.76 feet) long, and, for North
America, must be flexible SVT or SJT type cord, 18 AWG
minimum and, outside North America, must be
harmonized <HAR> cord or VDE-certified cordage to
comply with hosting-appliance safety certifications.
Installing the hosting appliance
Follow these steps to rack-mount the hosting appliance:
• Install the rack-mount brackets
• Prepare for rack-mounting the hosting appliance
• Install the hosting appliance in a rack

5
To install the rack-mount brackets
1. With the short flange facing the front of the hosting
appliance chassis, position one of the rack-mount
brackets with the two bottom holes in the long flange
aligned with the two mating holes in the side of the
chassis.
2. Using two of the four screws supplied with the brackets,
securely attach the bracket to the side of the chassis.
3. Install the remaining rack-mount bracket to the opposite
side of the chassis by repeating steps 1 and 2.
To prepare for rack-mounting the hosting appliance
1. Set the hosting appliance near a properly earthed,
grounded power outlet:
• In the US and Canada-A NEMA 5-15R outlet for
100-120 V
• In other geographic areas-A properly earthed,
grounded outlet in accordance with the
requirements of the local electrical authorities
and the electrical code of the region
2. Ensure that the area is:
• Clean and relatively free of excess dust
• Well ventilated and away from sources of heat,
with the ventilating openings on the hosting
appliance kept free of obstructions
• Away from sources of vibration or physical shock
• Isolated from strong electromagnetic fields and
noise caused by electrical devices such as,
without limitation, elevators, copy machines, air
conditioners, large fans, large electric motors,
radio and TV transmitters, and high-frequency
security devices
3. Ensure that access space is available so that the hosting-
appliance power cord can be unplugged from the AC
power source.

6
To install the hosting appliance in a rack
1. Position the hosting appliance with the rack-mount
brackets aligned with the mounting holes in the rack rail.
2. Use two screws to securely attach the hosting appliance
to the rack rail.
Front panel controls and
indicators (bezel closed)
Figure 1
A. Pull tabs for opening bezel F. 100 Mbps indicator for network
adapter 1
B. Power G. Network adapter 2
C. Alert H. 100 Mbps indicator for network
adapter 2
D. Hard drive activity I. Mail activity
E. Network adapter 1 J. Web activity
BA A
CDEFGHI J

7

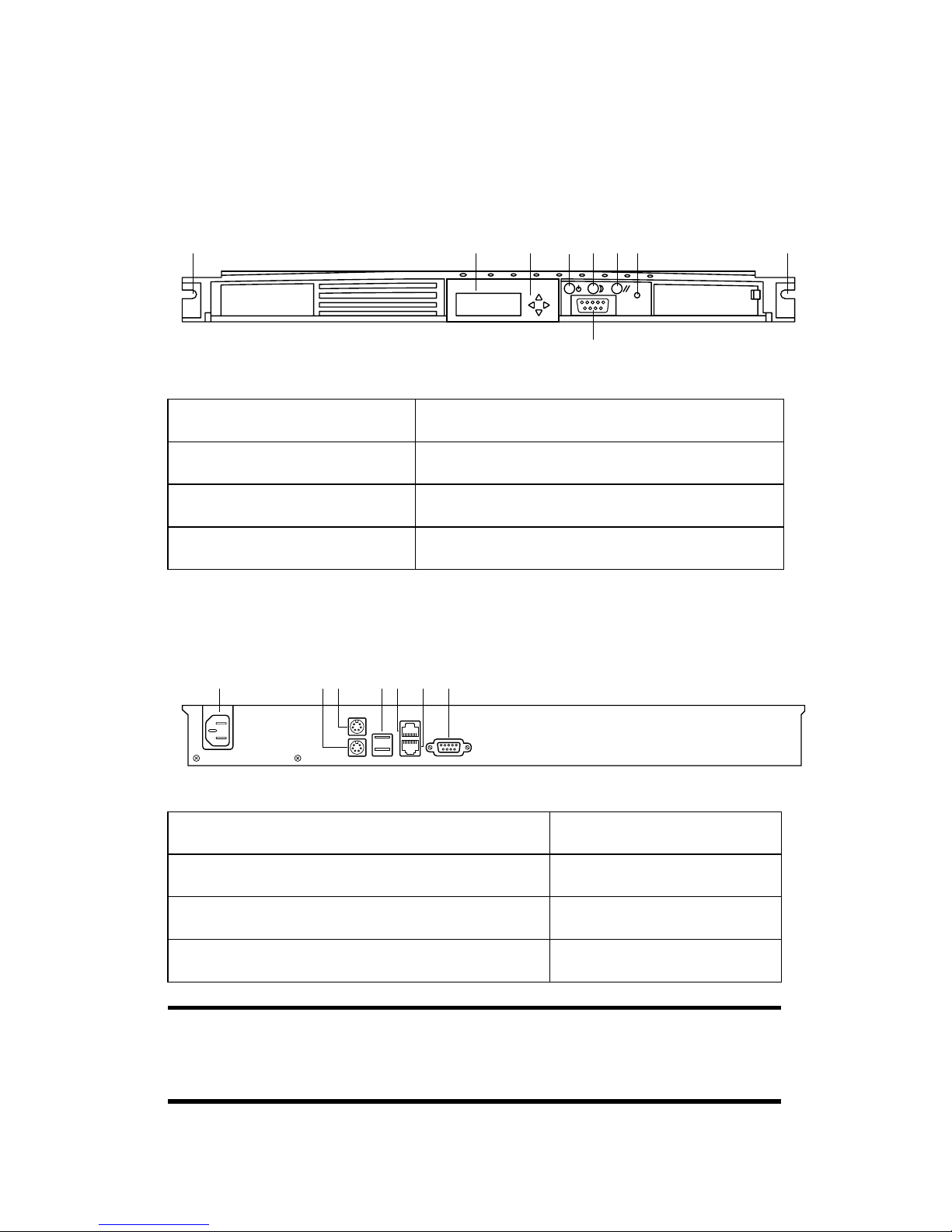

Front panel controls and
indicators (bezel open)
Figure 2
Back panel connectors
Figure 3
Network adapter ports
You do not have to use both network adapter ports to successfully
operate the hosting appliance.
A. Rack-mount brackets E. Not applicable for hosting appliances
B. LCD F. Hard reset button
C. Control buttons G. Not applicable for hosting appliances
D. Power button H. COM port 2
A. AC input power connector E. Network adapter 2
B. Not applicable for hosting appliances F. Network adapter 1
C. Not applicable for hosting appliances G. COM port 1
D. Not applicable for hosting appliances
A A
BCDE
H
FG
ABCDEFG

8
Booting up and assigning
addresses, masks, and default
gateways
The hosting appliance is "headless," and can be administered
remotely using the hosting appliance browser interface (in
Netscape Navigator* 4.73 or Internet Explorer* 5.0). Before your
browser can "see" the hosting appliance, you must do the
following:
• Boot the hosting appliance
• Assign a static IP address
• Assign a subnet mask
• Set the default gateway
Error codes
If you see "XXXX" (a four-digit number) on the LCD, it's an error code.
During boot up, the hosting appliance will display error code 0109
indicating that a keyboard is not attached to the hosting appliance.
Please ignore this error code, and do NOT use a keyboard or mouse with
the hosting appliance. You may have to press the power button, then
press it a second time to begin the cycle again. Find definitions of the
error codes at: http://www.hp.com/serverappliances/support
To boot the hosting appliance
1. Grasp the pull tab on the right end of the hinged bezel
door (See Figure 1).
2. Gently pull the tab down to swing open the hinged bezel
door.
3. Press the power button (See Figure 2).
4. Wait approximately 1-3 minutes while the appliance
boots. A splash screen will appear on the LCD while the
software loads.

9
Icons during boot up
The LCD displays two icons as the hosting appliance boots: a square
divided into four sections and an hourglass. When the upper right
section of the square is black, the hosting appliance is in POST
(performing Power-On Self Test). When both upper sections of the
square are black, the hosting appliance is preparing to load the
operating system. The hourglass symbol will appear until the operating
system starts and the splash screen appears.

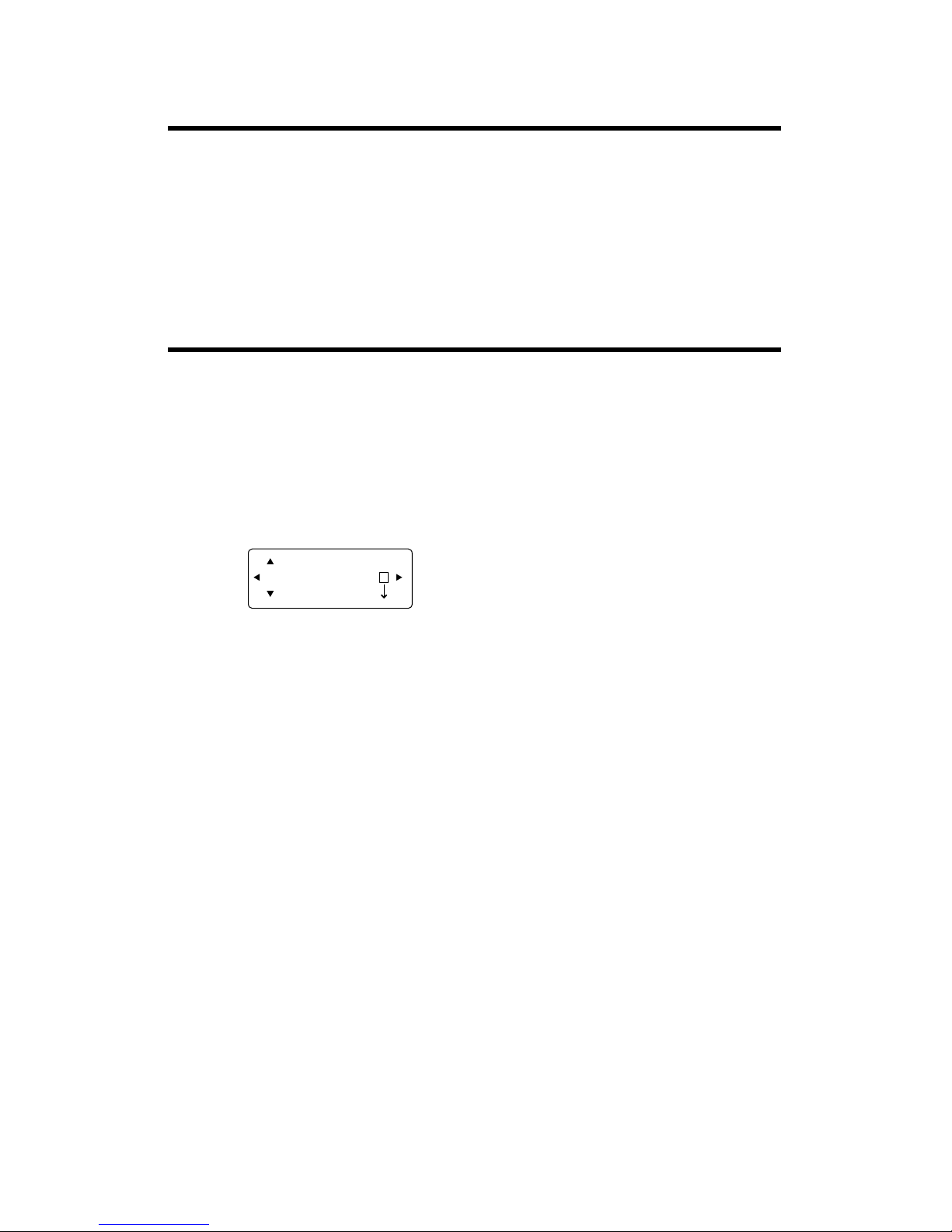

To assign a static IP address
1. After booting, the hosting appliance displays the Set IP
Address menu with blank octets. Enter an IP address for
the hosting appliance by selecting a number for each zero
in each octet:
2. For each zero in each octet, use the up button to change
the value from 0 to 1, 2, 3, and so on. All numbers must be
entered using three digits. For values less than 100, this
will require at least one padding zero. As an example, 5
would be entered as "005" while 79 would look like "079."
You can't set an octet outside the maximum value (255) or
the minimum value (000).
3. To move the cursor from one zero to another zero, use the
right or left buttons. If the cursor is in the square space,
pushing the down button advances you to the next
screen.
000.000.000.000x

10
To assign a subnet mask
1. After entering an IP address, advance to the Set Network
Mask menu. Enter the subnet mask by selecting a number
for each zero in each octet:
2. For each zero in each octet, use the up button to change
the value from 0 to 1, 2, 3, and so on. You can't set an octet
outside the maximum value (255) or the minimum value
(000).
3. To move the cursor from one zero to another zero, use the
right or left buttons. If the cursor is in the square space,
pushing the down button advances you to the next
screen, while the up button moves you to the previous
screen.
To set a default gateway
1. After entering the subnet mask, advance to the Set
Default Gateway menu. Enter the default gateway by
selecting a number for each zero in each octet:
2. For each zero in each octet, use the up button to change
the value from 0 to 1, 2, 3, and so on. You can't set an octet
outside the maximum value (255) or the minimum value
(000).
3. To move the cursor from one zero to another zero, use the
right or left buttons. If the cursor is in the square space,
pushing the down button advances you to the next
screen, while the up button moves you to the previous
screen.
000.000.000.000x
000.000.000.000x

11
4. The next screen displays a No or Yes selection list. To
select an option, press the right button. To move back to
the previous screen, press the left button. Selecting "No"
displays the previous screen, while "Yes" sets the network
configuration and displays the Main menu. A "Please Wait"
message appears for several minutes before the Main
menu appears.
Configuring the hosting appliance using
the COM ports
Although not recommended, the hosting appliance can be further
configured after the first boot up without using the browser
interface. For more information, see the online user's guide.
Logging in to the hosting
appliance via your browser
You can use Internet Explorer 5.0 or Netscape Navigator 4.73 to
connect to your hosting appliance.
To log in to the hosting appliance
• From your computer, enter this address into your Web
browser's Address field:
http://<MY APPLIANCE IP ADDRESS>:5555 (these
four fives are required)
(Where <MY APPLIANCE IP ADDRESS> is the IP address
that you have selected for the hosting appliance.)
This address will connect you to the First Boot Wizard of the
hosting appliance Web interface. From the wizard, you can
continue setting up the hosting appliance.

12
Getting help
You can reach HP’s Internet and Web support services at no
charge. The services contain up-to-date information about HP
products, installation issues, and troubleshooting.
Web and Internet sites
License agreement
Follow the procedure below to access the license agreement
associated with the open-source code incorporated in the hosting
appliance.
To view the license agreement
From the hosting appliance's main Web interface page, click
Online Guide > Help, open the Index, and search for license
agreement.
Regulatory and environmental
specifications
Declaration of the Manufacturer or Importer
We hereby certify that this product is in compliance with
European Union EMC Directive 89/336/EEC, using standards
EN55022 (Class A) and EN55024 and Low Voltage Directive 73/23/
EEC, standard EN60950.
Corporate information http://www.hp.com/serverappliances
Customer support http://www.hp.com/serverappliances/
support

13
Safety compliance
USA: UL 1950 – 3rd Edition/CSA 22.2. No. 950-M93
Canada: UL certified – 3rd Edition/CSA 22.2. No. 950-M93
for Canada (product bears the single UL mark for
U.S. and Canada)
Europe: Low Voltage Directive, 73/23/EEC
TUV/GS to EN60950 2nd Edition with Amendments,
A1 = A2 + A3 + A4
International: TUV/CB to IEC 60950 3rd Edition
TUV/CB - EN60 950 2nd Edition + Amd 1-4
TUV/CB - EMKO-TSE (74-SEC) 207/94
Australia/
New Zealand:
Class A Certificate and Report to IEC 60950, 3rd
Edition including EMKO-TSE (74-SEC) 207/94
Mexico: NOM Certification

14
Electromagnetic compatibility (EMC)
USA: FCC CFR 47 Part 2 and 15, Verified Class A Limit
Canada: IC ICES-003 Class A Limit
Europe: EMC Directive, 89/336/EEC
EN55022, Class A Limit, Radiated & Conducted
Emissions
EN55024 ITE Specific Immunity Standard
EN61000-4-2 ESD Immunity (Level 2 Contact
Discharge, Level 3 Air Discharge)
EN61000-4-3 Radiated Immunity (Level 2)
EN61000-4-4 Electrical Fast Transient (Level 2)
EN61000-4-5 AC Surge
EN61000-4-6 Conducted RF
EN61000-4-11 Voltage Dips and Interrupts
EN61000-3-2 Limit for Harmonic Current Emissions
EN61000-3-3 Voltage Flicker
Japan: VCCI Class A ITE (CISPR 22, Class A Limit)
IEC 1000-3-2 Limit for Harmonic Current Emissions
Australia/
New
Zealand:
AS/NZS 3548, Class A Limit
Taiwan: BSMI Registration
Korea: RRL Approval
Russia: GOST Approved
International: CISPR 22, Class A Limit

15
Electromagnetic Compatibility Notice (USA)
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operating in a
commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference. In this
case, the user is required to correct the interference at their own
expense. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Any changes or modifications not expressly approved by the
grantee of this device could void the user’s authority to operate
the equipment. The customer is responsible for ensuring
compliance of the modified product.
Only peripherals (computer input/output devices, terminals,
printers, etc.) that comply with FCC Class A limits may be
attached to this computer product. Operation with non-compliant
peripherals is likely to result in interference to radio and TV
reception. All cables used to connect to peripherals must be
shielded and grounded. Operation with cables, connected to
peripherals that are not shielded and grounded, may result in
interference to radio and TV reception.

16
Class A device definition: If a Class A device is installed within
this system, then the system is to be considered a Class A system.
In this configuration, operation of this equipment in a residential
area is likely to cause harmful interference.
Electromagnetic Compatibility Notices
(International)
Europe (CE Declaration of Conformity)
This product has been tested in accordance to and complies with
the Low Voltage Directive (73/23/EEC) and EMC Directive (89/
336/EEC). The product has been marked with the CE Mark to
illustrate its compliance.

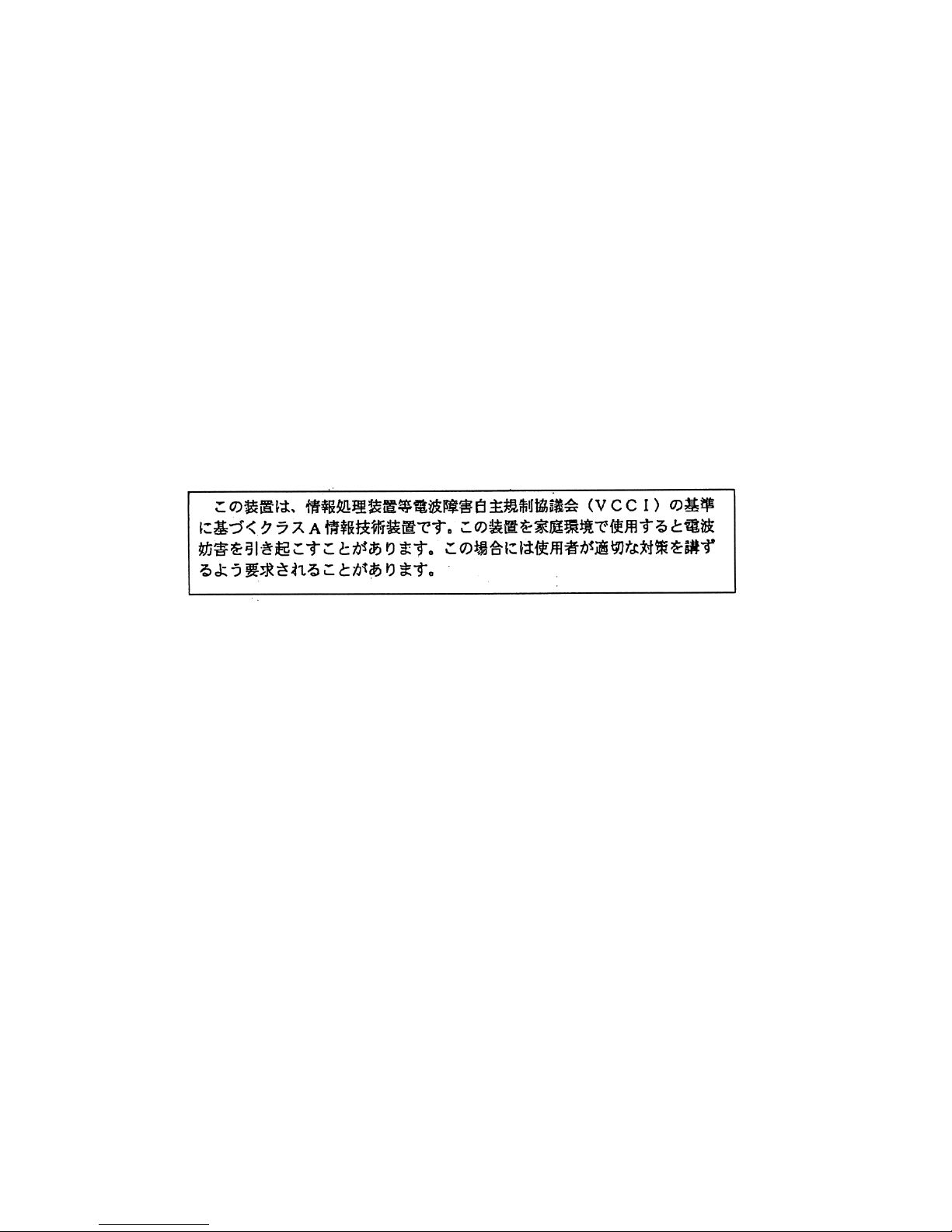

Japan EMC Compatibility
English translation of the notice above:
This is a Class A product based on the standard of the Voluntary
Control Council for Interference by Information Technology
Equipment (VCCI). If this equipment is used in a domestic
environment, radio disturbance may arise. When such trouble
occurs, the user may be required to take corrective actions.
ICES-003 (Canada)
Cet appareil numérique respecte les limites bruits radioélectriques
applicables aux appareils numériques de Classe A prescrites dans
la norme sur le matériel brouilleur: “Appareils Numériques”,
NMB-003 édictée par le Ministre Canadian des Communications.
English translation of the notice above:
This digital apparatus does not exceed the Class A limits for radio
noise emissions from digital apparatus set out in the interference-
causing equipment standard titled “Digital Apparatus,” ICES-003
of the Canadian Department of Communications.
