HP Pro Tablet 610 G1 User instructions

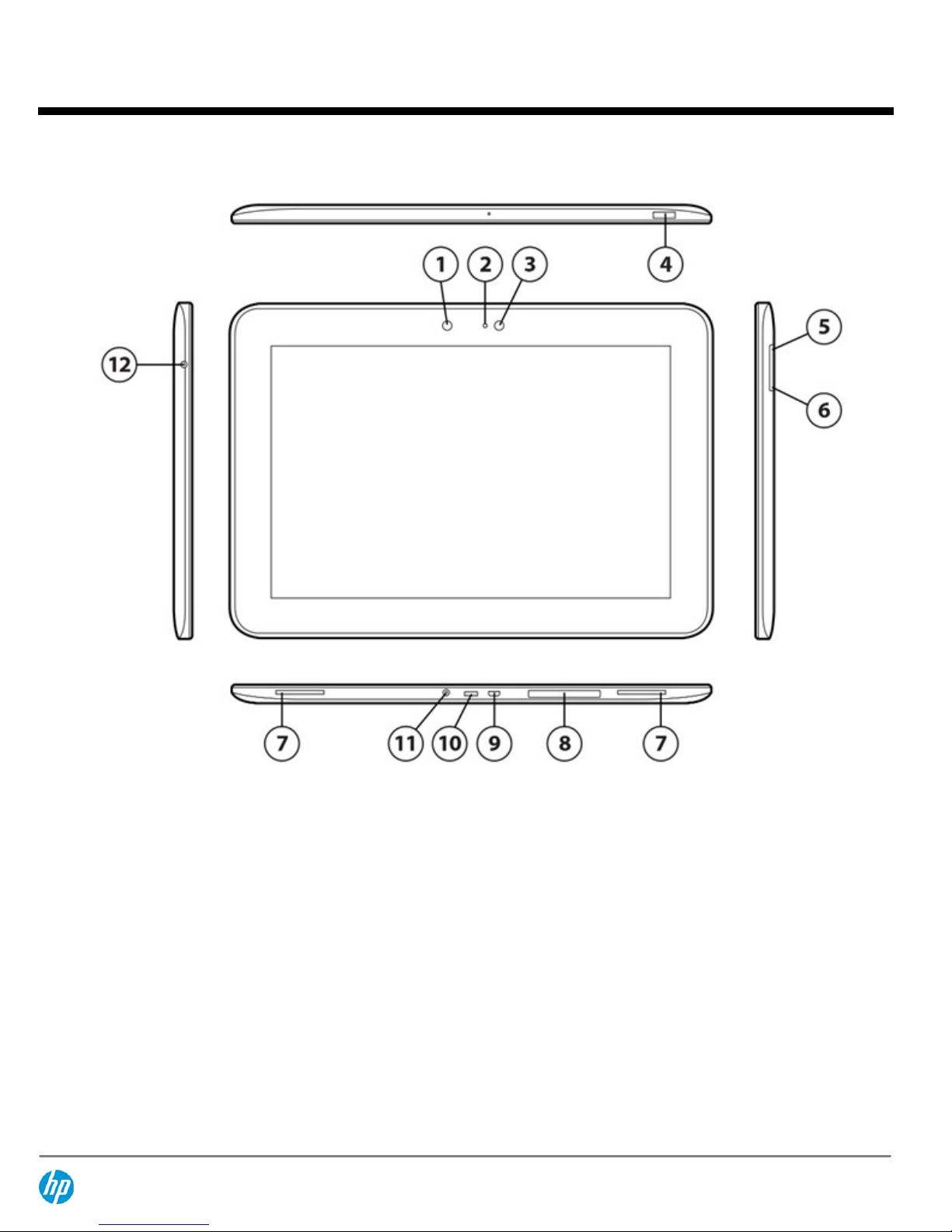

Front Image
1. 2MP front-facing camera 7. Speakers (x2)
2. Webcam LED indicator 8. Micro SD card slot
3. Ambient light sensor 9. Micro HDMI port
4. Power button 10. Micro USB port
5. Volume up button 11. DC-in jack
6. Volume down button 12. Audio-out (headphone)/Audio-in (microphone) jack
QuickSpecs
HP Pro Tablet 610 G1
Overview
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 1

Rear Image
1. Volume down button 3. 8MP Rear-facing camera with auto-focus
2. Volume up button 4. Audio-out (headphone)/Audio-in (microphone) jack
At A Glance
Windows Pro 8.1 (32-bit or 64-bit) or Windows 8.1 (32-bit or 64-bit) operating system *
Intel® Quad-Core Atom™ Processor
10.1-inch diagonal WUXGA diagonal capacitive multi-touch display with wide viewing angle (1920 x 1200)
2GB/4GB LPDDR3 RAM **
32GB/64GB embedded Multi Media Card
MicroSD card slot, supports SDXC and up to 2TB ***
802.11 a/b/g/n **** (Miracast Compatible) *****
Bluetooth® 4.0 + LE (Bluetooth Low Energy)
Attractive graphite color with Soft Touch paint
* Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased hardware,
drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com .
** Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory
above 3 GB may not all be available due to system resource requirements.
*** Card Sold separately
**** Wireless access point and Internet service required and not included. Availability of public wireless access points limited.
*****Miracast compliant devices are tested to operate with Miracast routers. Utilization requires proximity to a Miracast router, which is
not included with the purchase of this tablet.
QuickSpecs
HP Pro Tablet 610 G1
Overview
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 2

PRODUCT NAME
HP Pro Tablet 610 G1
OPERATING SYSTEM
Preinstalled Windows 8.1 64 *
Windows 8.1 Pro 64 *
Windows 8.1 32 *
Windows 8.1 Pro 32 *
Windows 8.1 64 *
Office Home & Student 2013 **
*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or
separately purchased hardware, drivers and/or software to take full advantage of Windows 8.1
functionality. See http://www.microsoft.com/windows/ for details.
**Select Windows SST systems include Office Home & Student 2013 with full versions of Word, Excel,
PowerPoint and One Note and is not available in all regions. Office Home & Student 2013 edition
software may not be used for commercial, non-profit or revenue-generating activities.
PROCESSOR
Intel Atom™ Z3795 Processor (1.6 GHz base/2.39 GHz burst, quad-core, 2 MB L2 cache) (64-bit))
Intel Atom™ Z3775 Processor (1.46 GHz base/2.39 GHz burst, quad-core, 2 MB L2 cache) (32-bit)
DISPLAY
Type 10.1-inch diagonal WUXGA diagonal capacitive multi-touch display with wide viewing angle (1920 x
1200) *
Touchscreen Capacitive multi-touch screen
Aspect Ratio 16:10
Auto rotate Selectable
Screen material Corning® Gorilla® Glass with anti-smudge
Diagonal Size 10.1 inch
Viewing Angles =80°
Refresh Rate 60Hz
Brightness 400 nits (typical)
Color Depth 18-bit color depth with FRC
* Resolutions are dependent upon monitor capability, and resolution and color depth settings
QuickSpecs
HP Pro Tablet 610 G1
Features
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 3

INTERNAL STORAGE
Internal Storage Device
64GB embedded Multi Media Card (available with 64-bit OS)
32GB embedded Multi Media Card (available with 32-bit OS)
MicroSD card slot supporting SDXC and up to 2TB *
*Card sold separately
MEMORY
Standard
4GB LPDDR3 SDRAM (1067 MHz) (available with 64-bit OS)
2GB LPDDR3 SDRAM (1067 MHz) (available with 32-bit OS)
NETWORKING/COMMUNICATIONS
Wi-Fi *
802.11 a/b/g/n 2x2
Bluetooth®
Bluetooth® 4.0 + LE (Bluetooth® Low Energy)
* Wireless access point and Internet service required and not included. Availability of public wireless access points limited.
AUDIO/MULTIMEDIA
Audio
Stereo Speakers
Integrated microphone
HP Premier Sound
3.5mm headphone jack *
Cameras
Front Camera: 2MP, with webcam indicator LED
Rear Camera: 8MP Auto-focus
* Headphones are sold separately
SENSORS
Ambient Light sensor
Accelerometer
e-Compass
Gyro
Hall-effect sensor
QuickSpecs
HP Pro Tablet 610 G1
Features
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 4

SOFTWARE
Windows® Apps (included in Windows 8.1)
Buy Office
Internet Explorer® 11
Alarms
Bing Search for Internet Explorer® 11
Calculator
Camera
Desktop
Finance
Food & Drink
Games
Health + Fitness
Help & Tips
Mail
Maps
Music
News
PC Settings
People
Photos
Reader
Reading List
Scan
Skype™
Sound Recorder
Sports
Store
Travel
Video
Weather
HP Software
Getting Started with Win 8
HP Connected Music *
HP Connected Photo **
HP ePrint ***
HP Registration
HP Support Assistant
Cloud Storage
SkyDrive (included in Windows 8.1)
QuickSpecs
HP Pro Tablet 610 G1
Features
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 5

*Availability of features varies by country. Streaming services may require a paid subscription. May not be compatible with all
music files. Not compatible with DRM tracks. Internet access is required and not included.
** Availability of features varies by country. Snapfish by HP mobile app download and Snapfish membership required. Internet
service required and not included.
*** Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Mobile devices require
Internet connection and email capability. May require wireless access point. Separately purchased data plans or usage fees may
apply. Print times and connection speeds may vary.
POWER
Power Supply
AC charger-18W (12V/1.5A) nPFC AC adapter with DC plug and localized cable plug support
Primary Battery
8380 mAh lithium-polymer battery Non-Removable
1S2P, 2Cell, 31Wh
Video Playback
Up to 8.5 hours *
Power Conservation
Connected Standby
* Battery testing conducted by HP consisting of full battery discharge while running a 720p HD video playback with the speaker at
default volume as the audio output device and video stored on the local embedded Multi Media Card. Prior to testing, the system
was fully charged and set to display brightness of 150 nits, Bluetooth off and WLAN off. Battery life will vary depending on the
product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The
maximum capacity of the battery will naturally decrease with time and usage.
WEIGHTS & DIMENSIONS
Weight
652 grams (1.44 lb) *
Dimensions (w x d x h)
259.6 x 9.9 x 181.8 mm (10.2 x 0.4 x 7.2 in) *
* Weight and system dimensions may fluctuate due to configuration and manufacturing variances
QuickSpecs
HP Pro Tablet 610 G1
Features
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 6

PORTS/SLOTS
Ports
Micro USB 2.0 - One
DC-in jack
Micro-HDMI (type-D connector) *
3.5mm headphone jack - One **
Expansion Slots
MicroSD card slot ***
* HDMI cables sold separately
** Headphones are sold separately
*** Card Sold separately
EXPANSION SOLUTIONS
18W AC Adapter For Windows 8 Tablets (included with purchase of HP Pro Tablet 610 G1) *
HP Pro Tablet 610 G1 Docking Station **
** Sold separately or purchased as an optional feature
IN THE BOX
HP Pro Tablet 610 G1
AC charger-18W (12V/1.5A) nPFC AC adapter with DC plug and localized cable plug support
Quick Start Guide
Office COA card *
* Only available with Windows 8.1 operating system with Microsoft Office 2013 Home & Student.
SERVICE AND SUPPORT
HP Services offers limited 1-year warranty options depending on country
90-day limited warranty on software. On-site service and warranty upgrades are also available. HP Care Pack Services extend
service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available
at: http://www.hp.com/go/cpc .
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
QuickSpecs
HP Pro Tablet 610 G1
Features
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 7

SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating
Voltage
12V
Average Operating Power 4.1W
Max Operating Power <18W
Temperature Operating 32° to 122° F (0° to 50° C)
Non-operating - 4° to 140° F (-20° to 65° C)
Relative Humidity Operating 0%~90%
Non-operating 0%~95%
Shock Operating 40 G, 2 ms, half-sine
Non-operating 240 G, 2 ms, half-sine
Random Vibration Operating 1.043 grms
Non-operating 3.5 grms
Altitude (unpressurized) Operating 0~15000 ft
Planned Industry
Standard
Certifications
UL Yes
CSA No
FCC Compliance Yes
ICES Yes
Australia /
NZ A-Tick Compliance
Yes
CCC No
Japan VCCI Compliance No
KC No
BSMI No
CE Marking Compliance Yes
BNCI or BELUS Yes
CIT No
GOST Yes
Saudi Arabian Compliance
(ICCP)
No
SABS Yes
UKRSERTCOMPUTER Yes
STORAGE AND DRIVES
Internal Storage
QuickSpecs
HP Pro Tablet 610 G1
Technical Specifications
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 8

64 GB embedded Multi
Media Card
Drive Weight Up to 2g
Capacity 64 GB
Height Up to 16mm
Width Up to 12mm
Interface MultiMediaCard Bus
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 80 MB/s Up to 40MB/s
32 GB embedded Multi
Media Card
Drive Weight Up to 2g
Capacity 32 GB
Height Up to 16mm
Width Up to 12mm
Interface MultiMediaCard Bus
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 80 MB/s Up to 40MB/s
ENVIRONMENTAL
ENVIRONMENTAL DATA
Low Halogen *
Mercury-free LED display and arsenic-free display glass
All HP computing products are delivered by SmartWay carriers **
Recycled Packaging
Eligible for recycling or cash back through HP's buyback and recycling program. ***
www.hp.com/go/smbrecycling (10 units or less)
www.hp.com/go/businessrecycling (overview of all business related end of use programs)
Email [email protected] to get a quote or details on recycling programs
Hewlett-Packard Corporate Environmental Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Environment website
http://www.hp.com/environment
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
QuickSpecs
HP Pro Tablet 610 G1
Technical Specifications
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 9

* External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be
Low Halogen.
** Designation based on actions to reduce transportation-related emissions. SmartWay: US only. (14e) Free recycling in select
countries.
***Program may not be available in your area. Check www.hp.com/go/recycling to see if HP offers free recycling in your area.
COUNTRY OF ORIGIN
China
QuickSpecs
HP Pro Tablet 610 G1
Technical Specifications
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 10

Type Description Part #
Cases / Screen Protectors HP Pro Tablet 610 G1 Bluetooth Wireless Keyboard Folio Case TBD
HP Pro Tablet 610 G1 Wired Keyboard Folio Case TBD
HP Pro Tablet 610 G1 Protective Case TBD
HP 10" Zippered Sleeve F3G92AA
HP 10" Stand Case TBD
HP 10" Screen Protector TBD
Power / Adapters HP Pro Tablet 610 G1 Docking Station TBD
HP 18W AC Tablet Adapter TBD
HP Micro-USB to USB/Ethernet Adapter TBD
HP Micro HDMI to HDMI/VGA Adapter TBD
Input / Output HP Tablet Active Pen TBD
HP Slim Bluetooth Keyboard H4Q44AA
HP Mini Wireless Keyboard (Multi-OS) E5J21AA
HP Ultra Mobile Wireless Mouse H6F25AA
Copyright © 2014 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries, Intel and Intel
Atom are trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of its proprietor and
used by Hewlett-Packard Company under license.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP Pro Tablet 610 G1
Options and Accessories (sold separately and availability may vary by country)
DA - 14899 Worldwide — Version 2 — March 26, 2014 Page 11
