HS-Technik HST-MV3 Series User manual
Release date: February 2018
PC-software: 2.0.2.25 and higher
Firmware: V-1.0.1.5 and higher
OPERATING INSTRUCTIONS
HST-MV3 charging station
HST-MV3-02 / HST-MV3-04 / HST-MV3-04W
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 2 -
1. GENERAL INFORMATION 6
1.1.0. Importance of the operating instructions 6
1.2.0. Proper Intended Use 6
1.3.0. Improper use 7
1.4.0. Guarantee and liability 7
1.5.0. Copyright 8
2. BASIC SAFETY INSTRUCTIONS 9
2.1.0. Notices in the operating instructions 9
2.2.0. Operator's responsibility 9
2.2.1. Personnel's responsibility 9
2.2.2. Personnel training 9
2.3.0. Risks when working with the charging station 9
2.4.0. Danger from electrical energy 10
2.4.1. Workplace safety 11
2.4.2. Electrical safety 11
2.4.3. Service 12
2.5.0. Lithium-ion battery 12
2.6.0. Cleaning 14
2.7.0. Set-up 14
2.8.0. Power supply 14
3. COMMISSIONING 15
3.1.0. Benets 15
3.2.0. Additional information 16
3.2.0. Charging process 17

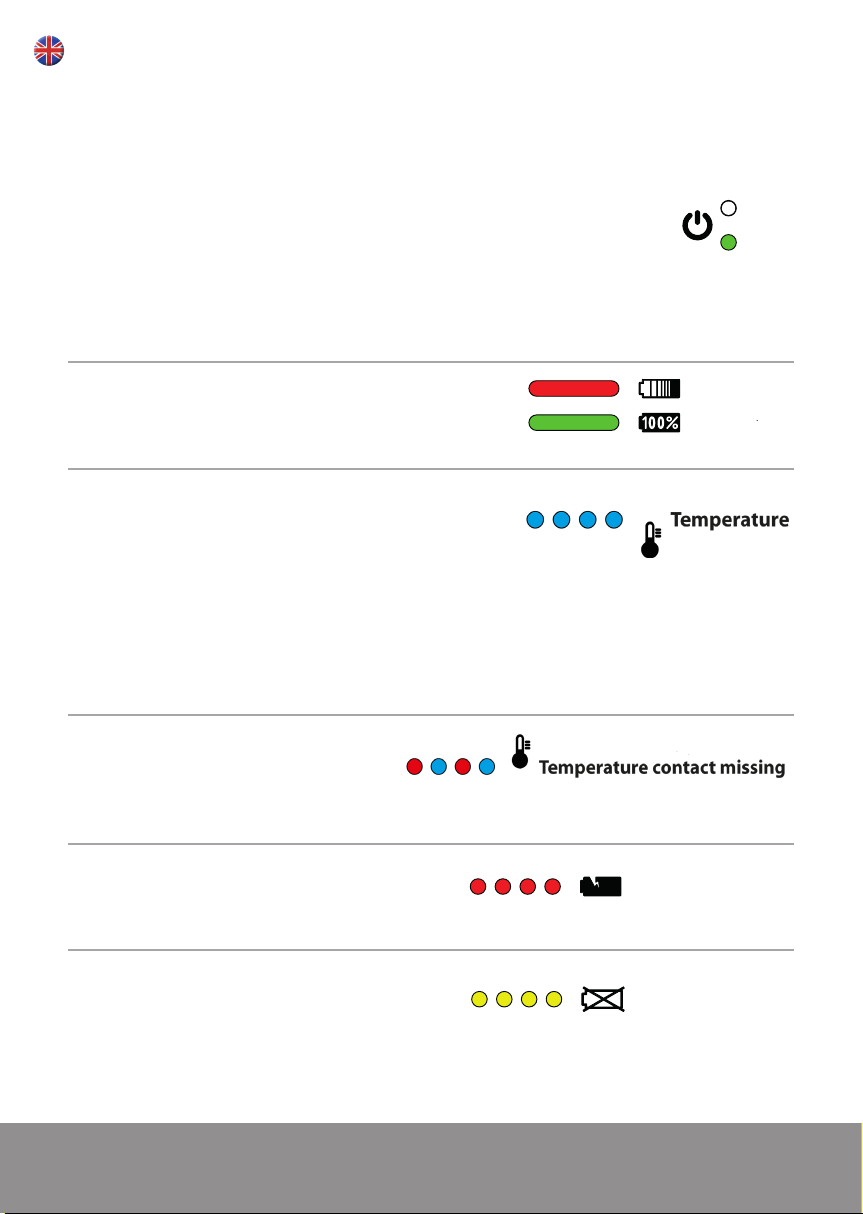

3.2.0. Explanation of the light signals/functions 18
3.2.1. Sleep function 19
3.3.0. Safety functions and special features 19
3.4.0. Software 21
3.5.0. Shut-off criteria 22
4. TECHNICAL DATA 23
5. BATTERY ADAPTER 24
5.1.0. Changing the battery adapter 27
Table of Contents
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 3 -
6. DRAWINGS 29
6.1.0. 4-bay charger station row form (HST-MV3-04) 29
6.2.0. 4-bay charger station cube form (HST-MV3-04W) 29
6.3.0. 2-bay charger station (HST-MV3-02) 30
7. SPARE PARTS LIST 30
CE CONFORMITY DECLARATION 31
NOTICE
This warning symbol indicates additional information that will
make your work easier.
WARNING
General warning to prevent operating errors and failures.
DANGER
This indicates a direct hazard for the worker or the charging
station. This warning symbol is especially important and must
be followed.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 4 -
Disposal
Power tools, batteries, accessories and packaging must be disposed of at
an environmentally-compatible recycling facility. Power tools and batteries
do not go into the household trash.
Only for EU countries:
Directive 2002/96/EG:
Defective power tools must be collected separately and disposed of at an
environmentally-compatible recycling facility.
Directive 2006/66/EG:
Defective or drained batteries must be collected separately and disposed
of at an environmentally-compatible recycling facility.
Drained batteries can be disposed of directly:
Transport
Li-Ion batteries are subject to the specications in the laws pertaining to
hazardous goods. The batteries can be transported on roads by the user
without further constraints.
When shipping with third parties (e.g.: freight forwarders), special
requirements must be observed for packaging and labeling!
Only ship batteries if the casing is not damaged. Cover the contacts with
tape and package the battery so it cannot move around in the packaging.
Please comply with other national and international requirements.
Germany:
Recyclingzentrum Elektrowerkzeuge
Osteroder Landstraße 3
37589 Kalefeld
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 5 -
5
3
4
2
1

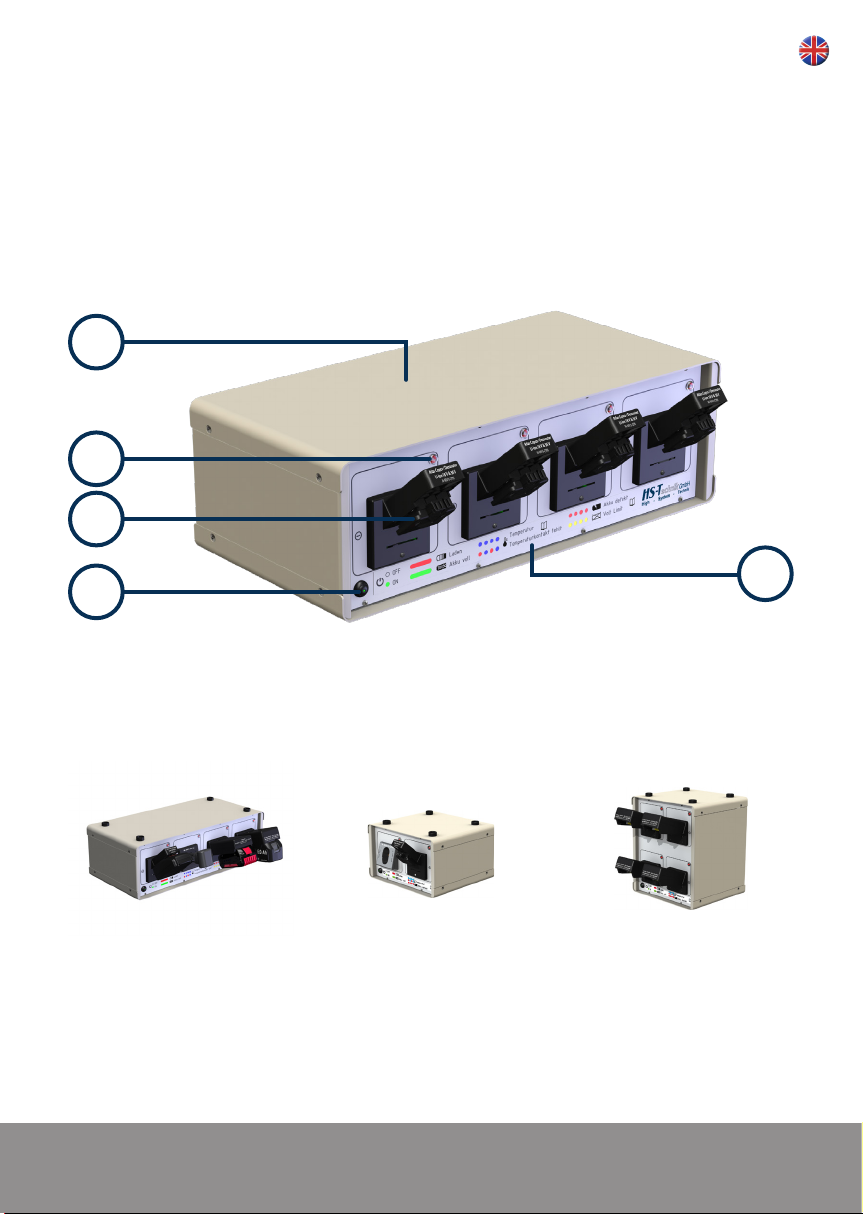

1. Casing
2. Status LED charger compartment
3. Battery adapter
4. Wake-up button
5. LED signal description
Versions
HST-MV3-04
4-bay charger station
row form
Battery charger station excl. battery adapters
HST-MV3-04W
4-bay charger station
cube form
HST-MV3-02
2-bay charger station
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 6 -
1. GENERAL INFORMATION
1.1.0. IMPORTANCE OF THE OPERATING INSTRUCTIONS
This information was written with the intention of being read, understood
and complied with in all points by persons responsible for the operation of
the MV-3 charging station (hereinafter referred to as the charging station).
Prior to commissioning, please read the operating instructions and comply
with the safety instructions. Work station faults can only be prevented if the
contents of these operating instructions are known and fault-free operation
can be ensured.
We are not liable for damages and operational errors that result from non-
compliance with these operating instructions. If difculties arise nonetheless,
please contact us and we will gladly provide assistance.
1.2.0. PROPER INTENDED USE
The charging station may only be used, as described in these instructions, to
charge batteries suitable for the type of charging station.
Any other use beyond this is not considered proper intended use.
HS-Technik GmbH is not liable for any damages resulting from non-
compliance.
NOTICE
Proper intended use also includes:
• complying with all instructions in the operating instructions
• complying with the inspection and maintenance work.
Warning!
These charging stations are solely suitable for charging
Ni-Cd, Ni-MH and Li-Ion batteries 3.6 - 50.4 Volt
(nominal voltage 43.2 V).
Not suitable for all battery types!
On page 24, you will nd the corresponding battery
adapter and its charging functions.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 7 -
1.3.0. IMPROPER USE
We are not liable for damages and operational errors that result from non-
compliance with these operating instructions or improper use.
1.4.0. GUARANTEE AND LIABILITY
Guarantee and liability claims for personal and material damages are
excluded if they can be traced back to one or more of the following causes:
• improper use
• improper assembly, commissioning, operation and maintenance
• operating the charging station with defective safety equipment
or improperly installed or non-functioning safety and protective
equipment
• non-compliance with the instruction in the operating instructions
pertaining to transport, storage, assembly, commissioning, operation
and maintenance of the charging station
• unauthorized structural changes to the charging station
• improper repair
• catastrophes caused by foreign bodies and force majeure
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 8 -
High - System - Technik
1.5.0. COPYRIGHT
These operating instructions are only for the operator and its personnel.
They contain the regulations and instructions, which may neither be
completely nor partially
• reproduced
• edited or
• otherwise published.
The copyrights to these operating instructions remain with
HS-Technik GmbH.
Manufacturer address:
Im Martelacker 12
D-79588 Efringen-Kirchen
Telephone: 0 76 28 - 91 11-0
Fax: 0 76 28 - 91 11-90
e-mail: [email protected]
Internet: www.hs-technik.com
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 9 -
2. BASIC SAFETY INSTRUCTIONS
2.1.0. NOTICES IN THE OPERATING INSTRUCTIONS
• The basic requirement for safe and proper use and fault-free operation
is knowledge of the basic safety instructions and safety regulations.
• In addition, the rules and regulations for the place of use must be
followed.
2.2.0. OPERATOR'S RESPONSIBILITY
The operator is obligated to only allow persons to work with this charging
station who are familiar with the basic regulations for work safety and
accident prevention and are trained in how to use the charging station.
Safety-conscious work of the personnel must be checked at regular intervals.
2.2.1. PERSONNEL'S RESPONSIBILITY
All persons working with this charging station are obligated to comply with
the basic regulations for work safety and accident prevention prior to
starting work.
2.2.2. PERSONNEL TRAINING
Only trained and qualied personnel may work with this charging station. The
responsibilities of the personnel for the assembly, commissioning, operation,
maintenance and servicing must be clearly dened. Personnel-in-training
may only operate the charging station in the presence of an experienced
person.
2.3.0. RISKS WHEN WORKING WITH THE CHARGING STATION
Faults that may hinder safety must be immediately rectied.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 10 -
2.4.0. DANGER FROM ELECTRICAL ENERGY
WARNING
The charging station was built in accordance with the state
of the art in technology and the approved safety regulations.
Still, when using it, risks to life and limb of the user or third
parties or other material assets may arise.
WARNING
Only use the charging station
• for the proper intended use
• in working order with regards to safety
DANGER
Only allow a qualied electrician to perform work on this
charging station. The electrical equipment of the charging
station must be regularly inspected. Loose connections
and charred cables must be immediately repaired. If work
on the charging station is necessary, the device must be
disconnected from the power supply prior to opening it.
WARNING
The charging station must be kept closed at all times. Access
is only permitted for authorized persons with a tool.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 11 -
2.4.1. WORKPLACE SAFETY
a) Keep your workspace clean and well lit.
Disorder or poorly lit workspaces can lead to accidents.
b)
Do not use the charging station in an explosive environment,
in which
ammable liquids, gases or dusts are located.
c) Take environmental inuences into account.
Never subject charging stations to rain.
Do not use charging stations in moist or wet environments.
2.4.2. ELECTRICAL SAFETY
a)
Avoid physical contact with grounded surfaces such as pipes,
radiators, etc
.
There is an increased risk due to electrical shock, if your
body is grounded.
b) Keep the device away from rain or moisture.
Water penetrating into charging station tool increases the risk of an
electrical shock.
c) Keep the charging station away from heat, oil, sharp edges or moving
device parts.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 12 -
2.4.3. SERVICE
2.5.0. LITHIUMION BATTERY
a) Only charge the batteries in suitable chargers
If the battery is not used in a suitable charger, it may be permanently
damaged
.
b)
If the battery is not used for a longer period of time, it must not remain
on the charger or on the tool.
If a work break of more than 3 hours is expected, the battery must be
removed from the tool. Otherwise, the battery may be permanently
damaged.
c)
The lithium-ion battery should not remain on the charger for longer
than 36 hours for safety reasons.
Remove the battery from the charger immediately after the charging
process is completed.
d)
An empty battery should not be in contact with the tool or a charger
that is disconnected from the mains
for a longer period of time.
In both cases, currents can ow that
deep discharge the battery and
can permanently damage it.
NOTICE
Only allow your charging station to be repaired by a
qualied technician using only original
replacement parts,
available from HS-Technik GmbH.
This ensures that the safety of your device is maintained.
NOTICE
Please make sure to follow the following instructions for using
lithium-ion batteries!
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 13 -
e)
Recharge the lithium-ion batteries immediately and
never store them
when empty.
If the battery is stored while disconnected from the tool
and the
charger, it will maintain a constant capacity over a long period of time.
(Loss approx. 5% per year)
f)
Do not subject the lithium-ion battery to high temperatures
(+ 50°C) or direct
sunlight.
If the battery gets warmer than 50°C during operation (charging or
discharging), it must be removed from the charger or tool immediately.
g)
Keep the unused battery away from paper clips, coins, keys, nails,
screws or other small metal objects which might bridge the contacts.
Do not open the battery and do not short-circuit it.
A short-circuit between the battery contacts can lead to burns, re or
explosions.
h)
Under extreme use or temperature conditions, batteries can leak.
Avoid contact with the skin or eyes if the battery leaks.
The battery
uid is acidic and can cause chemical burns on tissue.
If the uid
comes into contact with skin, immediately wash it with soap and water
and then
rinse it with lemon juice or vinegar. If the uid gets into the
eyes,
ush with water for at least 10 minutes and immediately go to the
doctor.
i)
Make sure that the Li-Ion battery does not fall down or is subject to
vibrations and
impacts.
j)
Clean the contacts on the batteries and charging station regularly
with a cloth soaked in high-percentage alcohol
or alternatively with a
cotton swab.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 14 -
2.6.0. CLEANING
Use and dispose of used materials and substances properly, in particular
cleaning agents and solvents.
2.7.0. SETUP
The charging station is only suitable for operation in a dry room. All ventilation
slits must be unobstructed. If possible, set up the charging station up away
from heaters and sun radiation as an ambient temperature of more than
35° C can result in signicantly longer charging times.
2.8.0. POWER SUPPLY
By plugging the power cable into the outlet and toggling the ON/OFF switch
on the back, the charging station is ready to use.
NOTICE
Lithium-ion batteries have nearly no self-discharge and do
not have a
memory effect. If properly used, they will reliably
supply your tool with power for several years (approx. 800 -
1,200 charge cycles).
In general the following applies:
Avoid deep discharging or overcharging the lithium-ion
battery under any circumstances. It will be permanently
damaged from this.
WARNING
The charging station must not be operated in closed
cabinets.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 15 -
All common battery types from 3.6 - 50.4 V (43.2 V nominal voltage) such
as Atlas-Copco, Bosch, Fein, Makita, Panasonic, Desoutter, HS-Technik etc.
can be quickly and reliably charged with the HST-MV3 charging station.
3.1.0. BENEFITS
• Battery parameters are
measured and processed
• Special HST frequency
modulation impulse charging
process®
Anti-memory effect
• Automatic voltage detection
• IFCS - Intelligent Full Charge
System for Li-Ion batteries
• Capacity-based charge
maintenance mode only
for Ni-Cd & NI-MH batteries
• Detection of defective cells
3. COMMISSIONING
• Protection against reverse
polarity
• Can also charge at
temperatures > 40° C
• Adapter can be changed in 2
minutes
• Software update via USB
• Suitable for Ni-Cd, Ni-MH and
Li-Ion batteries
• With PFC (Power Factor
Control)
WARNING
The matching battery adapter and the correct software
and rmware must be mounted/installed to charge the
batteries.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 16 -
3.2.0. ADDITIONAL INFORMATION
If the operation voltage is connected and the charging station is switched
on, a self test will automatically start.
After switching on the charger, all of the LEDs will light up and then a signal
will sound. When all of the LEDs go off, the charging station is ready to use.
Now batteries can be inserted for charging.
NOTICE
HS-Technik offers updates for the charging station for
download in the course of further development.
The operator is obligated to keep the charging station
rmware up-to-date. HS-Technik does not assume any
liability for defective batteries if the charging station is not
operated with up-to-date rmware.
WARNING
Make sure the polarity +/- is correct.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 17 -
When replacing batteries, make sure the new battery is not inserted until the
LEDs have gone out (red or green).
If a battery is replaced very quickly, the electronics may retain the status of
the previous battery pack.
3.2.0. CHARGING PROCESS
Via an initialization routine, the voltage, temperature, short circuits and
reverse polarity of the inserted battery are checked.
Prior to starting the charging process, the temperature contacts (NTC
contact, etc.) are checked. If the temperature contacts are OK, the battery
will be charged.
If the battery is too hot, it can stay in the charging station, and when it
has cooled down, it will automatically charge.
If the red LED lights up, the charging process will start using the
special HST frequency modulation impulse process®and charge the
battery based on how depleted the battery is.
During the charging process, the voltage and temperature of the cells and
the remaining charging time are continuously monitored.
Taking all of the parameters into account, the charging current and
remaining charging time varies on a case-by-case basis. The installed fans
switch on automatically, as needed during each charging process.
Every charging process is recorded on a memory chip for subsequent
evaluation.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 18 -
battery defective
voltage limit
temperature
temperature contact missing
charging
battery full
ON
OFF
battery defective
voltage limit
temperature
temperature contact missing
charging
battery full
ON
OFF
battery defective
voltage limit
temperature
temperature contact missing
charging
battery full
ON
OFF
battery defective
voltage limit
temperature
temperature contact missing
charging
battery full
ON
OFF
3.2.0. EXPLANATION OF THE LED SIGNALS / FUNCTIONS
When the charging station is not in use, it switches to
sleep mode. In order to be able to charge a battery,
the station must be activated by pressing the "wake up"
button. This is located on the lower left of the front side.
If the button is lit green, the charging station is switched on
and batteries can be charged. If the button is pressed for longer than 10
seconds, the charging station switches to sleep mode.
Continuously lit red:
Battery is charging
Continuously lit green:
Battery is fully charged
Blinking blue:
Temperature is too high or too low to charge.
If the temperature of the battery is below
10° C, the LED will blink blue and the
charging station will only charge the
battery with 500 mA up to a temperature of 10° C has been reached. From
then on, the station will charge the battery normally. The same applies
when the temperature of the battery exceeds 55° C; the battery will also
be charged with 500 mA until the temperature of the battery drops below
55° C.
Blinking red/blue:
The charging station cannot
nd a temperature contact.
In most cases, the battery contact
is defective or damaged.
Blinking red:
The battery is defective. The charging
station cannot nd a measurable
voltage.
Blinking yellow:
The battery voltage is too high or too
low for the battery type. This battery
cannot be charged.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 19 -
3.2.1. SLEEP FUNCTION
The sleep function denes the time after which the charging station or the
boards switches to sleep mode when it is not charging batteries. The time
can be set freely up to 18:12:15 hours via the software. The charging station
can be woken up from sleep mode by pressing the wake up button on the
front or by pulling on a battery.
Each board goes into sleep mode seperately after the set time if it is not in
use. If the last board goes in sleep mode the power supply will shut off.
3.3.0. SAFETY FUNCTIONS AND SPECIAL FEATURES
The battery is charged using the HST frequency modulation impulse
charging process®until a charging parameter is reached, then the charger
switches to charge retention mode.
A microprocessor monitors and controls every charging box and
only supplies the battery with as much energy as it can effectively
absorb (dialog between the battery and charging station).
This results in low heat development and faster and better
storage of the capacity. This special charging technology ensures
the charging process is always extremely gentle on the battery and
guarantees a very long service life of the battery. Furthermore, this dynamic
charging technology automatically regenerates older batteries (that were
charged with other chargers) with reduced capacity, so these
batteries can continue to be used.
No "memory effect" for Ni-Cd and Ni-MH batteries, due to the
special charging technology, the residual energy in the cells is
shifted which prevents accumulation or crystallization of the electrolytes.
Every time the battery is charged, the cells are reformatted and the
electromechanical balance is rearranged. Thus, the voltage curve when
discharging is signicantly higher than with other comparable charging
processes. (More energy in the form of joules can be discharged).
NOTICE
Prior to use, always check that the mounted
battery adapter is compatible with the battery you
wish to charge.
Im Martelacker 12 – D-79588 Efringen-Kirchen – Phone 0 76 28 - 91 11- 0 – Fax 0 76 28 - 91 11-90
- 20 -
Higher capacity at lower currents.
The charging boxes are completely short-circuit-proof and protected
against reverse polarity so the batteries will not be destroyed. If the polarity
is reversed or there is a shirt-circuit, the charging box is disconnected from
the power supply and a signal will sound, accompanied by a red blinking
LED.
(The highest level of safety is thus ensured.)
The fans are controlled based on need and cool the batteries quickly, even
under extreme stress.
Absolute protection against overloading via voltage monitoring and
voltage gradient evaluation a well as Delta U, charging time limitation and
dynamic temperature evaluation.
Automatic dynamic evaluation of the temperature contacts depending on
the adapter type.
NOTICE
Only for Ni-Cd and Ni-MH batteries.
This manual suits for next models
3
