HSB Beta 50-C-ARS Quick guide

FM 239 Master MuW Manual Beta Type Z Rev.01
HSB Automation GmbH
In Laisen 74
72766 Reutlingen
Germany
Tel. [phone]
Fax [phone]
[e-mail]
www.HSB-Automation.de
Original
Assembly and
Maintenance Manual
Linear Unit
Types
Beta 50-C-ARS
Beta 70-C-ARS
Beta 70-C-ASS
Beta 80-ARS
Beta 80-ASS
Beta 100-D-ASS
Beta 110-ARS
Beta 110-ASS
Beta 140-ARS
Beta 140-ASS
Beta 140-C-ASS
Beta 180-ASS
Beta 180-C-ASS
Beta 180-AZSS

Safety
FM 239 MuW Beta Type Z Rev.01 2020-07-22 1
Contents
1Safety........................................................................................................................2
1.1 Symbols used............................................................................................................ 2
1.2 Regulation use .......................................................................................................... 2
1.3 General safety........................................................................................................... 3
1.5 Use in explosive environments.................................................................................. 3
1.6 Technical condition of the linear unit.......................................................................... 4
1.7 Modifications to the linear unit ................................................................................... 4
1.8 Requirements for personnel....................................................................................... 5
1.9 Obligations of the operating company........................................................................ 5
2Warranty ...................................................................................................................6
3Technical data –Standard model...........................................................................7

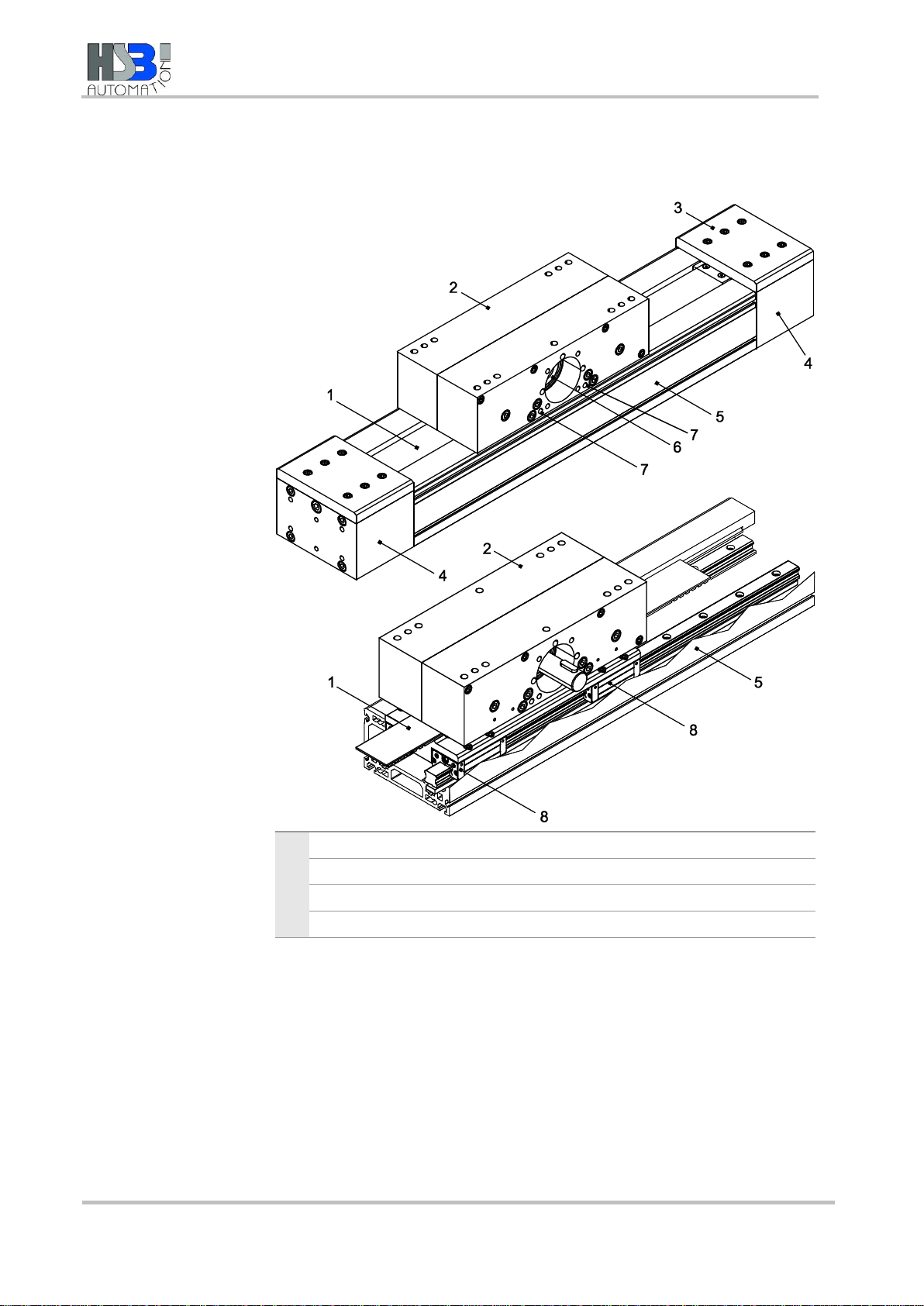

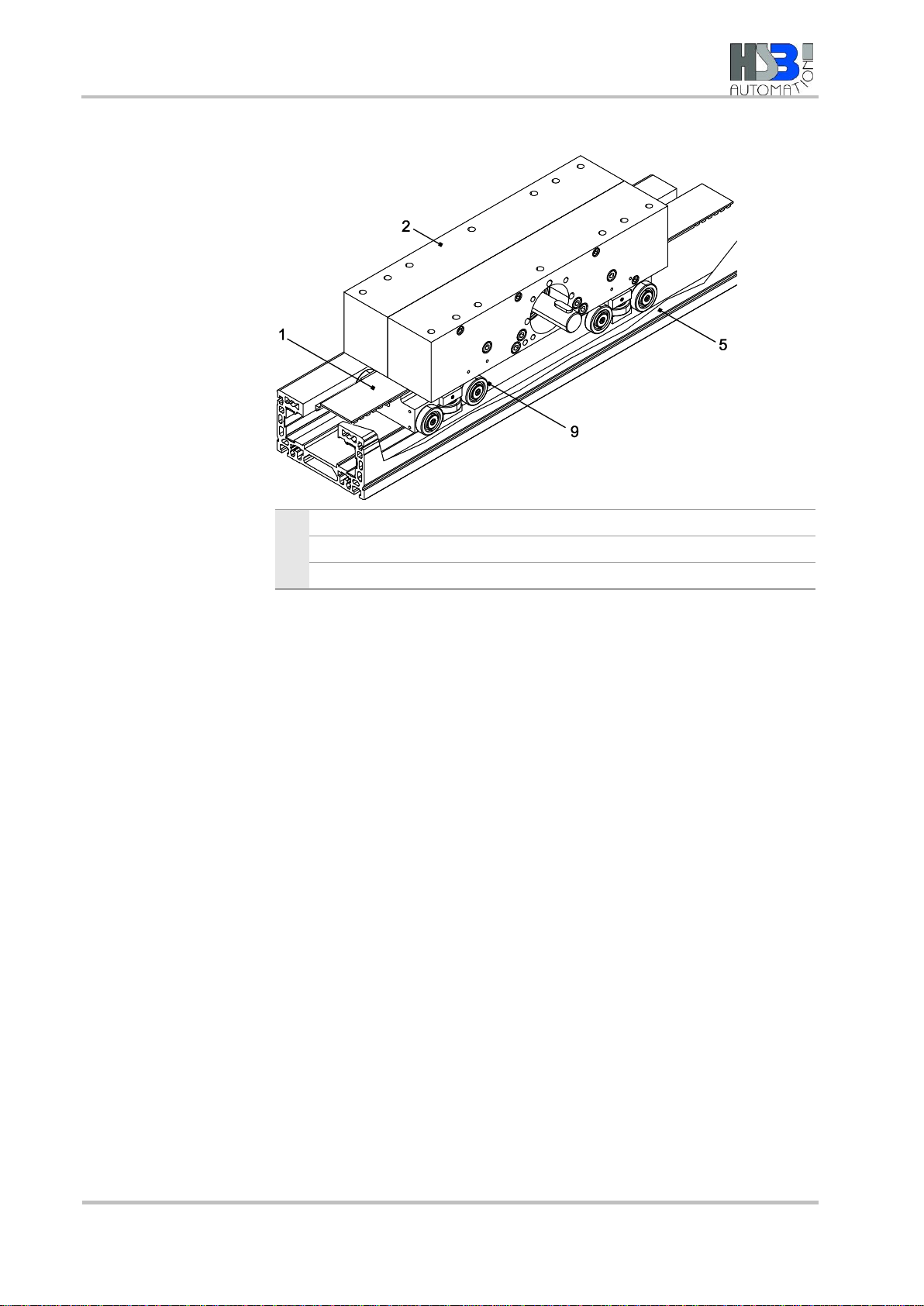

4Product description...............................................................................................11
5Transportation and storage ..................................................................................13
6Installation and adjustment...................................................................................14

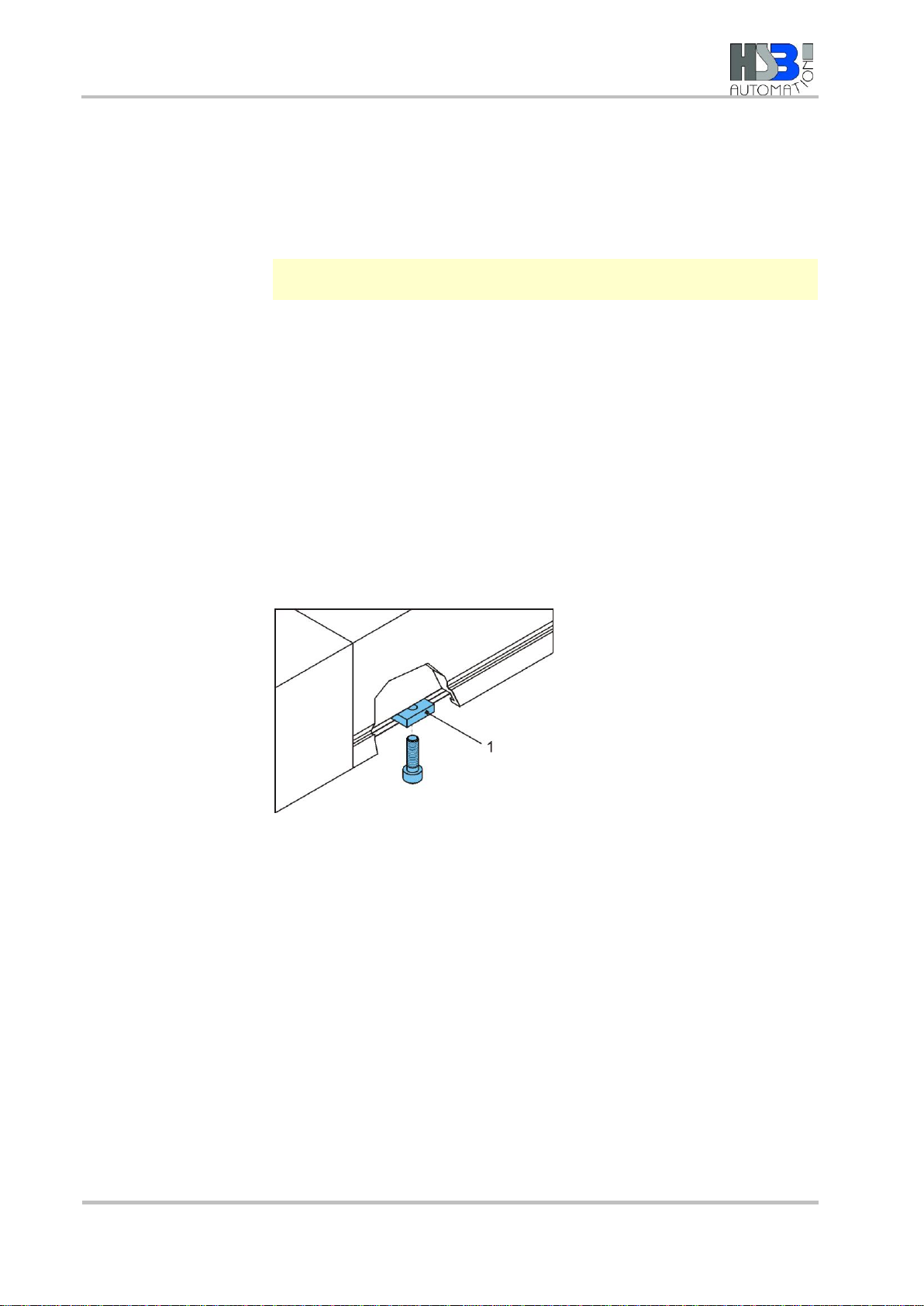

6.1 Attaching the load on the linear unit base profile...................................................... 14

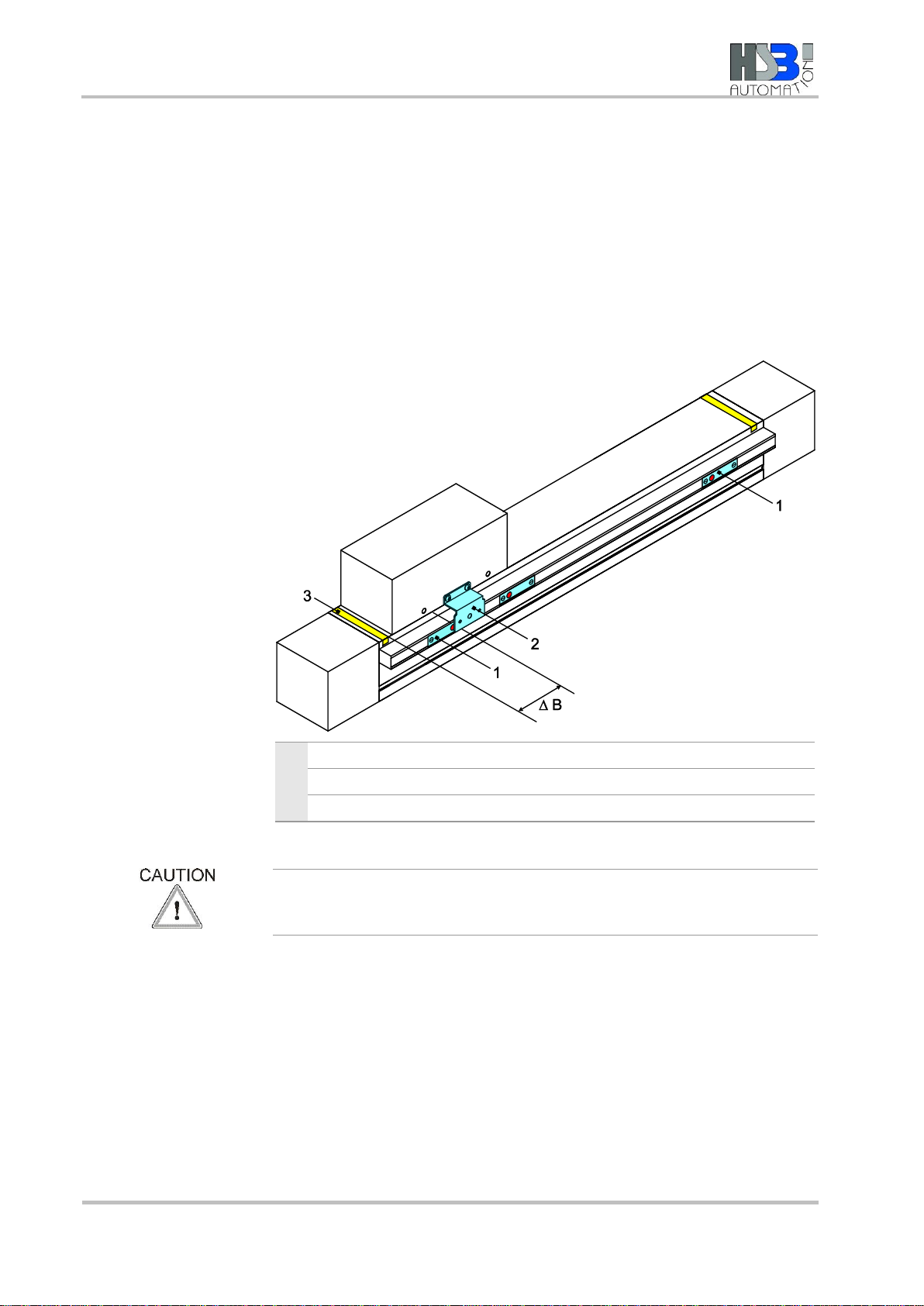

6.2 Setting maximum travel........................................................................................... 15

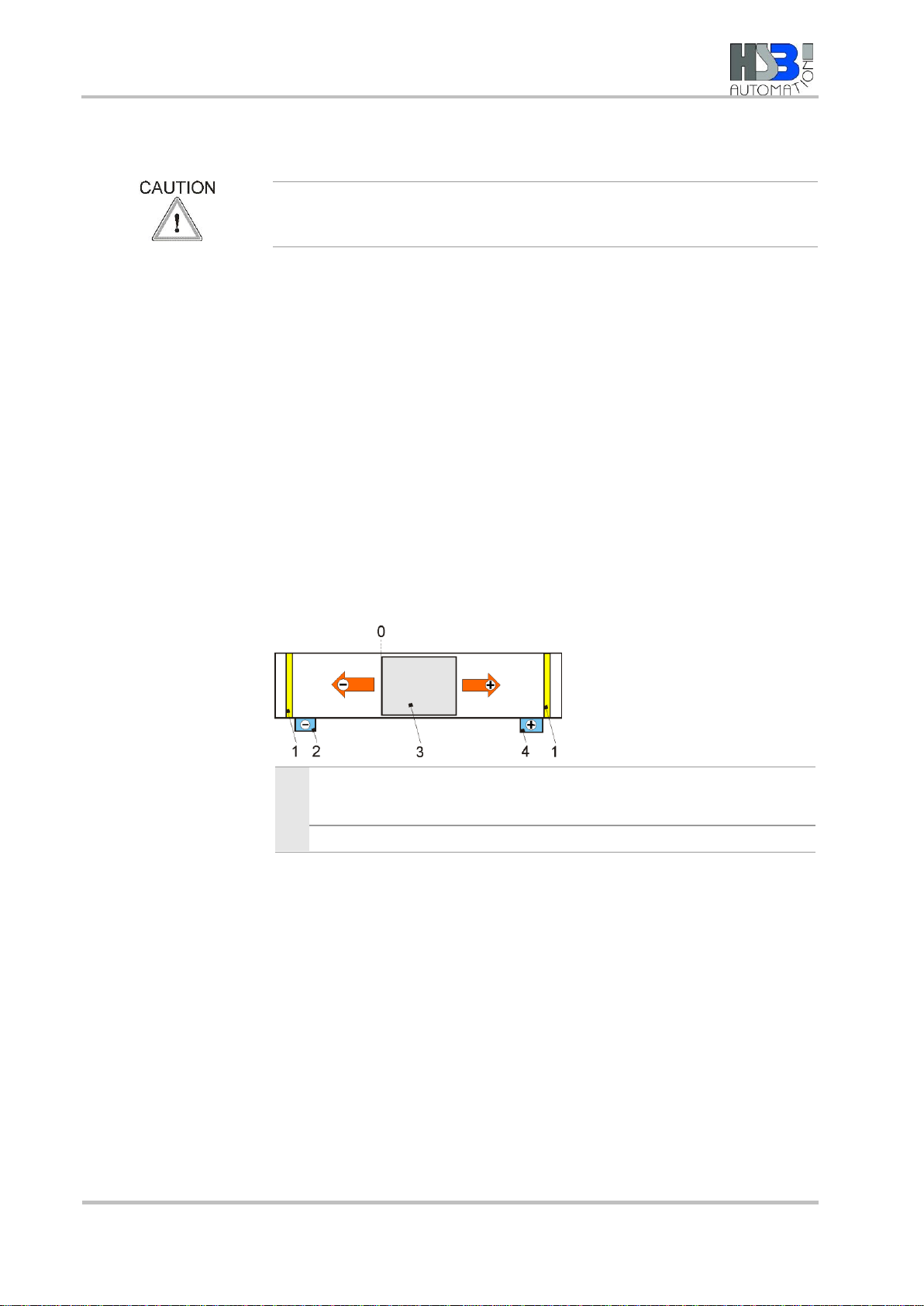

6.2.1 Setting the positions of the inductive limit switches ..................................16
6.2.2 Setting the positions of the mechanical limit switches...............................17
6.3 Mounting a drive unit ............................................................................................... 18
6.3.1 Mounting a motor.....................................................................................19
7Start-up...................................................................................................................20
8Operation................................................................................................................22
9Shutdown................................................................................................................23
10 Maintenance...........................................................................................................24
10.1 Lubrication............................................................................................................... 24
10.2 Replacing the timing belt ......................................................................................... 28

Safety
22020-07-22 FM 239 MuW Beta Type Z Rev.01
1 Safety
The Assembly and Maintenance Manual is a component element of the
product package, and must always be kept to hand as a reference
source.
The Manual must be passed on if the unit is sold on or given away.
If there is anything in this manual which you do not fully understand,
please be sure to contact the manufacturers.
1.1 Symbols used
This Assembly and Maintenance Manual employs the following
symbols to indicate hazards as well as other types of symbol:
Indicates immediate danger.
Failure to observe this notice entails risk of death or very serious injury.
Indicates a danger carrying a medium to high risk.
Failure to observe this notice may result in death or serious injury.
Indicates minor risk.
Failure to observe this notice may result in light to moderate injury or
damage to property.
Note
Indicates tips on use of the machine and optimising its efficiency.
1.2 Regulation use
The mechanical linear unit is intended for installation in machines, and
is used solely for manipulating, positioning, transporting, palletising ,
loading, unloading, clamping, clocking, tensioning, testing, measuring,
handling and pushing workpieces or tools.
Pay attention to the basic applications of the linear unit set out in
sections 4 and 3.
In order to comply with the EU Directive governing Electromagnetic
Compatibility (EMC), the mechanical linear unit may only be used in
industrial environments.
Any other use, or use for purposes beyond those stipulated, will be
classed as illegitimate. The manufacturers accept no liability for any
loss thereby incurred. The risk is borne solely by the operators.

Safety
FM 239 MuW Beta Type Z Rev.01 2020-07-22 3
1.3 General safety
Preconditions for
operation
The linear unit must not be put into operation until the machine or line
into which it is installed conforms to the following:
•Relevant accident prevention regulations
•Generally accepted safety standards
•EU directives
•Standards governing the electromagnetic compatibility of machinery
•Other applicable standards
•Applicable national legislation.
Safe operation
To ensure safe operation, refer to the following documents:
•This operating manual for the linear unit, particularly the technical
data
•The operating manual for the line into which it is installed
1.4 Use in clean rooms (ISO 14644)
The linear units used in clean rooms are fitted with a vent hole
(generally G1/2“) at the basic profile.
The following guidelines must be observed:
•The linear unit must be subjected to a negative pressure of 0.2 bar.
The linear unit must be relubricated with a grease suitable for use
in clean rooms (basic lubrication carried out using Klübersynth
BEM 32-34).
1.5 Use in explosive environments
If the linear units are used in potentially explosive environments,
operators must take steps to prevent explosions in accordance with
ATEX Directive 2014/34/EU and ensure explosion-proofing is installed.
The following ATEX rules must be observed:
•Operators must check the linear unit at least once a week, and
ideally every day. The checks should cover: smooth running,
functionality of all seals, and adequate lubrication.
•After being in continuous service for approximately 5000 hours, the
functionality of the linear unit must be checked by a qualified expert
assigned by the manufacturer.

Safety
42020-07-22 FM 239 MuW Beta Type Z Rev.01
•The operator/manufacturer of the end-product must ensure that the
linear unit is integrated into the potential equalisation system of the
overall plant at the ports provided for the purpose. Where the unit is
used in a dust-explosion hazard zone, the compressed air supply
must additionally be connected to the linear unit.
•The limit switches must be supplied via an isolating amplifier. For
the EX isolation an intrinsically safe input circuit is required. The
isolating amplifier is not supplied by HSB.
•The linear unit may only be used under the operating conditions
approved by the manufacturer. This includes:
−Ambient temperature
−Ambient conditions
−Speed < 1 m/s;
Speeds > 1 m/s only in combination with monitored central
lubrication; operation in areas with potentially explosive dust
possible with additional monitored compressed air loading
−Maximum acceleration
−Duty cycle
−Load etc.
1.6 Technical condition of the linear unit
State of the art
The unit conforms to the current state of the art and applicable rules
and regulations. The unit conforms to the EU Machinery Directive,
harmonised European standards or corresponding national standards:
•Machinery Directive 2006/42/EC
•DIN EN ISO 12 100:2011-03 Safety of Machinery, General Design
Guidelines, Risk Assessment and Reduction
•EN ISO 13850:2008-09: Safety of machinery; emergency-stop
devices
•DIN EN 60 204-1:2006: Electrical equipment for industrial machines
•2004/108/EC: EMC Directive
•EMVG: German law relating to the electromagnetic compatibility of
equipment dated 26.02.2008 (Federal Gazette I p. 220)
1.7 Modifications to the linear unit
Modifications
The linear unit must not be modified, either in its basic design or in its
safety components, without our written consent. Any such unauthorised
modification will void our liability in respect of the unit.

Safety
FM 239 MuW Beta Type Z Rev.01 2020-07-22 5
The operating company may only carry out the maintenance and repair
work detailed in this operating manual. Any other measures, such as to
replace wearing parts and components, may be carried out only in
consultation with our service engineers, by the service engineers
themselves, or by us directly.
Installed safety devices must never be dismantled or disabled.
When fitting special attachments to the unit, follow the fitting
instructions provided by the manufacturers!
1.8 Requirements for personnel
The linear unit has been designed and built in accordance with the
state of the art and accepted safety standards. Hazards may
nevertheless be posed when operating it. Consequently, the unit may
only be installed and operated by trained, competent personnel.
All personnel assigned to install, operate, maintain, repair or dismantle
a linear unit must have read and understood this operating manual, and
in particular section 1, “Safety”.
Work on parts carrying live electrical current may be carried out only by
trained electricians. Such work includes:
•Installing safety limit switches
•Mounting a drive unit
•Checking the direction of rotation of the drive
1.9 Obligations of the operating company
Instruction of
personnel
In accordance with EU Health and Safety Directive 89/655/EEC articles
6(1) and 7 and with the Framework Directive 89/391/EEC articles 1(1)
and 6(1), the company operating the linear unit must provide personnel
assigned to install, operate, maintain, repair or dismantle the unit with
appropriate instruction, in particular with regard to safety.
We recommend that companies require their personnel to provide
written confirmation of having received such instruction.
Checking the unit
In accordance with EU Health and Safety Directive 89/655/EEC article
4a, the operating company must subject to the unit to thorough
checking prior to putting it into operation, after carrying out repairs, and
after malfunctions have occurred.
Legibility and
maintenance of
affixed notices and
labels
The operating company must ensure that all notices and labels
attached to the unit are fully legible (in particular details of the serial
number) and must ensure compliance with all instructions contained on
them. Damaged or illegible notices and labels must be replaced.

Warranty
62020-07-22 FM 239 MuW Beta Type Z Rev.01
2 Warranty
The warranty conditions are laid down in the terms and conditions of
delivery and payment issued at time of order. Warranty cover will be
voided if:
•the unit is not operated in accordance with the stipulated regulation
use;
•the instructions set out in this operating manual are not followed;
•the unit is modified without the consent of the manufacturers;
•screws sealed by locking varnish are unlocked.
The manufacturer’s warranty in respect of maintenance and repair work
applies only if original replacement parts are used.

Technical data –Standard model
FM 239 MuW Beta Type Z Rev.01 2020-07-22 7
3 Technical data –Standard model
Technical data - Linear unit
Sizes
Type Beta with driven base
profile
Beta
50-C
Beta 70-C
Beta 80
Beta
100-D
Beta 110
Beta 140
ARS
ARS
ASS
ARS
ASS
ASS
ARS
ASS
ARS
ASS
Drive element
Tim.b.
Timing belt
Timing belt
Timing belt
Timing belt
Timing belt
Stroke per revolution [mm]
110
220
220
240
300
240
Velocitymax. [m/s]
3
5
8
5
5
8
5
8
5
Acceleration max. [m/s2]
30
30
40
60
60
60
No-load torque [Nm]
1,5
1
1,5
2,5
3,5
3,5
Maximum travel (standard) [mm]
8710
7640
7590
7680
7440
7440
Repeat accuracy [mm]
±0,08
±0,08
±0,08
±0,08
±0,08
±0,08
Operating temperature [°C]
(continuous operation)
0...80
0...80
0...80
0...80
0...80
0...80
Geometrical moment of inertia IY[mm4]
236683
858283
563059
1294343
1303940
917779
5114812
4974348
4974348
Geometrical moment of inertia IZ[mm4]
295187
854713
852507
1732340
1680598
2328911
6177042
5898662
5898662
Length of standard carriage drive [mm]
140
220
260
260
400
380
Weight (without travel) [kg]
3,1
7,5
7,9
10,5
11,5
14
27
29
28
30
Weight (per 100 mm travel) [kg]
0,3
0,38
0,6
0,6
0,85
0,9
1,2
1,4
1,2
1,5
Weight of standard carriage [kg]
2,8
5
5,5
7,5
7
8,6
15
16
13
14
Noise emission max. [dB A] 1)
75
75
75
75
75
75
1) The figure will vary based on assembly with other system components

Technical data –Standard model
82020-07-22 FM 239 MuW Beta Type Z Rev.01
Technical data - Linear unit
Sizes
Type Beta with driven base profile
Beta 140-C
Beta 180
Beta 180-C
ASS
ASS
AZSS
ARS
ASS
Drive element
Timing
belt
Timing
belt
Gear
rack
Timing belt
Stroke per revolution [mm]
240
320
320,
4425
320
Velocitymax. [m/s]
5,00
5,00
1,50
8,00
5,00
Acceleration max. [m/s2]
60
60
5
60
No-load torque [Nm]
3,50
2,50
10,00
8,00
Maximum travel (standard) [mm]
7470
7470
7400
7470
Repeat accuracy [mm]
±0,08
±0,08
±0,05
±0,08
Operating temperature [°C] (continuous
operation)
0...80
0...80
0...80
0...80
Geometrical moment of inertia IY[mm4]
3127894
9236448
Geometrical moment of inertia IZ[mm4]
9071334
23586987
Length of standard carriage drive [mm]
380
400
450
400
Weight (without travel) [kg]
30,00
48,90
56,00
49,50
51,50
Weight (per 100 mm travel) [kg]
1,50
2,80
2,90
2,80
3,60
Weight of standard carriage with carriage [kg]
14,00
25,60
37,20
26,20
27,35
Noise emission max. [dB A] 1)
75
75
75
75
1) The figure will vary based on assembly with other system components
Dynamic load ratings of rail guides - Beta linear unit
Model
Size
Number
of rails
Number
of
carriages
Load rating
per carriage
Cdyn [N]
THK / Rex*
Preten-sion
FV
THK / Rex*
Mt [Nm]
[N]
THK / Rex*
Guide
spacing in
direction x
(lx1) [mm]
Guide
spacing in
direction y
(ly) [mm]
Beta 100-D-ASS
15
2
4
11271 / 9860
564 / 620
-
192
56
Beta 140-ASS
15
2
4
11271 / 9860
564 / 620
-
242 (322)
72
Beta 140-C-ASS
20
2
4
17700 / 23400
885 / 1500
-
220 (300)
76
Beta 180-AZSS
20
2
8
17700 / 23400
885 / 1500
-
430
84
Beta 180-ASS
20
2
4
17700 / 23400
885 / 1500
-
306
84
Beta 180-C-ASS
25
2
4
25160 / 28600
1258 / 1820
-
307
84
Figures in ( ) relate to the long carriage
The load rating and pre-tension figures relate to the standard linear guidance system with recirculating linear ball bearings
* Rex = Rexroth

Technical data –Standard model
FM 239 MuW Beta Type Z Rev.01 2020-07-22 9
Forces and moments - Beta linear unit with timing belt drive
Type designation
Dynamic forces [Nm]
Dynamic moments [Nm]
FX
FY
FZ
-FZ
MX
MY
MZ
Mno-load
Beta 50-C-ARS
700
300
600
400
30
50
50
1,50
Beta 70-C-ARS
900
300
1000
400
35
120
50
1,00
Beta 70-C-ASS
900
600
1800
1200
60
180
120
1,20
Beta 80-ARS
1000
500
1500
800
50
180
100
1,50
Beta 80-ASS
1000
800
3000
2000
100
250
250
1,50
Beta 100-D-ASS
2200
1800
4000
3000
350
950
950
2,50
Beta 110-ARS
2000
2000
5000
2500
300
600
450
3,50
Beta 110-ASS
2000
3000
8000
4000
400
800
600
3,50
Beta 140-ARS
2500
2500
5000
3000
350
700
700
4,50
Beta 140-ASS
2500
2500
6000
4000
500
1000
1000
4,50
Beta 180-ASS
3500
6000
12000
6000
1500
3000
1500
8,00
Beta 180-AZSS
4500
8000
16000
8000
2000
4000
2000
10,00
Beta 180-C-ASS
3500
8000
15000
8000
1800
3600
1800
8,00
Figures in ( ) relate to the long carriage.
Mno-load = No-load torque ±30%
The forces and moments quoted are maximum values for the single load. In the event of combined loading or
simultaneous occurrence of multiple moments or forces, the individual values must be reduced. In case of doubt consult
Technical Support.

Technical data –Standard model
10 2020-07-22 FM 239 MuW Beta Type Z Rev.01
Tightening torques [Nm] for fixing screws
Fixing screws
M4
M5
M6
M8
M10
M12
The figures given are intended as
guides.
For shorter insertion depths, the
figures must be adjusted
accordingly.
DIN912/ISO4762-8.8
2,7
5,4
9,0
22,0
43,0
74,0
DIN912/ISO4762-10.9
3,0
5,7
9,0
22,0
43,0
74,0
DIN912/ISO4762-12.9
3,0
5,7
9,0
22,0
43,0
74,0
Tightening torques [Nm] for clutch with clamping hub
Size
14
19
24
28
38
Clutch diameter [mm]
30
40
55
65
80
Screw size
M3
M6
M6
M8
M8
Tightening torque [Nm]
1,34
10,50
10,50
25,00
25,00
Tightening torques [Nm] for clutch with clamping ring hub
Size
14
19
24
28
38
Clutch diameter [mm]
30
40
55
65
80
Screw size
M3
M4
M5
M5
M6
Tightening torque [Nm]
1,34
2,90
6,00
6,00
10,00

Product description
FM 239 MuW Beta Type Z Rev.01 2020-07-22 11
4 Product description
Linear unit with
timing belt drive and
linear guide
Key
1
Timing belt
5
Base profile
2
Carriage drive
6
Synchro disk
3
Cover panel
7
Lubricating nipple
4
Bearing casing
8
Recirculating ball bearing
Figure 1: Component assemblies of the Beta 140-ASS linear unit with timing
belt drive

Product description
12 2020-07-22 FM 239 MuW Beta Type Z Rev.01
Linear unit with
timing belt drive and
roller guide
Key
1
Timing belt
5
Base profile
2
Carriage drive
9
Roller bearing guidance system
Figure 2: Component assemblies of the Beta 140-ARS linear unit with timing
belt drive
A mechanical linear unit converts rotational motion into linear motion
and is used to move loads quickly, safely and precisely from one
position to another.
The Beta xx-AxS version consists of a mobile aluminium base profile, a
carriage drive supported by a guide element (recirculating ball bearing
or roller bearing guidance system) and a drive element (rack or timing
belt drive).
The carriage drive is permanently fixed. The base profile carries the
load, and can be moved in and out of the working area like a telescopic
arm.
Optionally, the linear unit can be fitted with electronic limit switches and
electromechanical safety limit switches (see section 6.2).
The effective range can be flexibly configured. Linear units of type Beta
xx-AxS in combination with standard linear units of type Beta xx-ZxS or
-SxS may be arranged two-dimensionally (2 axes) or three-
dimensionally (3 axes.
Driven linear units can be connected to non-driven units of the same
type by a plate, to be able to take large-area loads for example.

Transportation and storage
FM 239 MuW Beta Type Z Rev.01 2020-07-22 13
5 Transportation and storage
The mechanical linear unit is a precision item. Its mechanism may be
damaged by heavy jolting, resulting in impairment of its functions.
Risk of damage by heavy jolting or bending!
Transport the assembled linear unit only with the transit protection
fitted.
To prevent damage during transportation and storage, protect the linear
unit against shaking and sliding as follows:
•Stow it in a box of sufficient size.
•Use packing.
Section 3 lists the unit weights.
Protect the unit against:
•dirt;
•corrosion;
•water;
•and aggressive atmospheres.

Installation and adjustment
14 2020-07-22 FM 239 MuW Beta Type Z Rev.01
6 Installation and adjustment
The carriage drive of the linear unit can be attached by way of the
tapped and through holes on the top and sides of the bearing casing.
Install the linear unit on a flat surface. Unit parallelism < 0.2 mm/
1,000 mm.
6.1 Attaching the load on the linear unit base profile
Attachment options
The load can be attached on the base profile by the following methods
(Figure 3):
•By way of the tapped holes on both front faces
•By way of tapped hole rails
•By way of sliding blocks
•By way of the T-slot on the underside
Sliding blocks
Figure 3: Sliding blocks (1) in the groove on the underside of the base profile
Procedure
1. Align the linear unit.
2. Align the sliding blocks (1).
3. Tighten the load (for tightening torques see section 3).

Installation and adjustment
FM 239 MuW Beta Type Z Rev.01 2020-07-22 15
Mounting rails
Figure 4: Mounting rails (1)
The recommended maximum spacing between the mounting rails is
700 mm.
Procedure
1. Attach the mounting rails (1) loosely in position (Figure 4).
2. Align the linear unit axially.
3. Tighten the mounting rails (1)
(for tightening torques see section 3).
6.2 Setting maximum travel
Serious injury may result if the transport carriers topple over.
If the base profile moves to its full extent beyond the safety zone, the
transport carrier mounted on it may break away or topple over. The
linear unit may be destroyed
During setup, observe the specified safety zone and set the limit
switches accordingly.
Electrical switches may only be connected by qualified electricians.
To stop the base profile promptly in the event of an emergency
stop, allow for adequate braking distance.

Installation and adjustment
16 2020-07-22 FM 239 MuW Beta Type Z Rev.01
6.2.1 Setting the positions of the inductive limit switches
The function of inductive proximity switches is to shut down the electric
drive before the mechanical end position is reached.
The necessary braking distance (ΔB) depends on the velocity and
deceleration of the carriage. The braking distance must be between the
switching point of the proximity switch and the actual mechanical end
position.
Key
1
Inductive limit switch
2
Switching cam
3
Band marking safety zone
Figure 5: Inductive limit switches
The limit switches must switch so that the base profile comes to a stop
immediately before the safety zone. The safety zone is factory-marked
on the unit by a band (3).
Procedure
1. Connect the power to the limit switches.
2. Slacken the limit switch fixing screws.
3. Run the base profile as far as the braking position.
4. Move the limit switch (NC contact) under the switching cam until it
trips and the LED on the sensor goes out.
5. Move the base profile away.
6. Tighten the limit switch.
7. Check the correct position of the limit switch: Move the base profile
manually and observe the switching operation.
8. Fit the limit switch array covering.

Installation and adjustment
FM 239 MuW Beta Type Z Rev.01 2020-07-22 17
6.2.2 Setting the positions of the mechanical limit switches
Mechanical safety limit switches (NC contacts) must be used if a
hazard is posed to personnel as soon as the electric drive fails to shut
down.
The drive may only be started up when all limit switches are connected
and correctly set!
A combination with inductive proximity switches is possible.
External shock-absorbers must be fitted to protect against mechanical
destruction.
The necessary braking distance (ΔB) depends on the velocity and
deceleration of the carriage. The braking distance must be between the
switching point of the limit switch and the actual mechanical end
position (Figure 6).
Key
1
Mechanical limit switches
2
Switching cam
3
Band marking safety zone
4
Bracket
B
Braking distance
Figure 6: Mechanical limit switches

Installation and adjustment
18 2020-07-22 FM 239 MuW Beta Type Z Rev.01
The limit switches must switch so that the base profile comes to a stop
immediately before the safety zone. The safety zone is factory-marked
on the unit by a band (3).
Procedure
1. Connect the power to the limit switches.
2. Slacken the bracket fixing screw (Figure 6).
3. Run the base profile as far as the safety zone.
4. Move the limit switch until it trips.
5. Tighten the bracket fixing screw.
6. Check the correct position of the limit switch: Move the base profile
manually and observe the switching operation.
If the braking distance is too short, repeat the set-up.
6.3 Mounting a drive unit
Make sure the direction of rotation of the external drive unit takes into
account the direction of the spindle or timing belt so that the limit
switches work correctly.
Key
1
Safety zone
3
Carriage with positive and
negative directions from
reference point 0
2
Negative limit switch
4
Positive limit switch
Figure 7: Example of travel direction and limit switch configuration
