HSL Profi T-45 User manual

O I
HSL  T-45 / S-45
E
... a product of Johannes-Diakonie Mosbach
HSL-Töpferscheiben
www.hsl-toepferscheiben.de
Made in Germany

Operating instruction HSL Profi T-45 / S-45 Stand: 4/2019
2
HSL P T-45
Please send your requests and orders to:
HSL-Töpferscheiben
Johannes-Diakonie Mosbach
Schwarzacher Werkstätten
Melanie Wilhelm
Schwanheimer Straße 23
D-74869 Schwarzach
Telefon: [phone]
Fax: [phone]
E-Mail: [e-mail]
Internet: www.hsl-toepferscheiben.de

HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · Germany -74869 Schwarzach
3
1. Instruction for use:
The machine is intended for the manual production of rotationally
symmetrical articles from damp ceramic mixtures.
Description of machine:

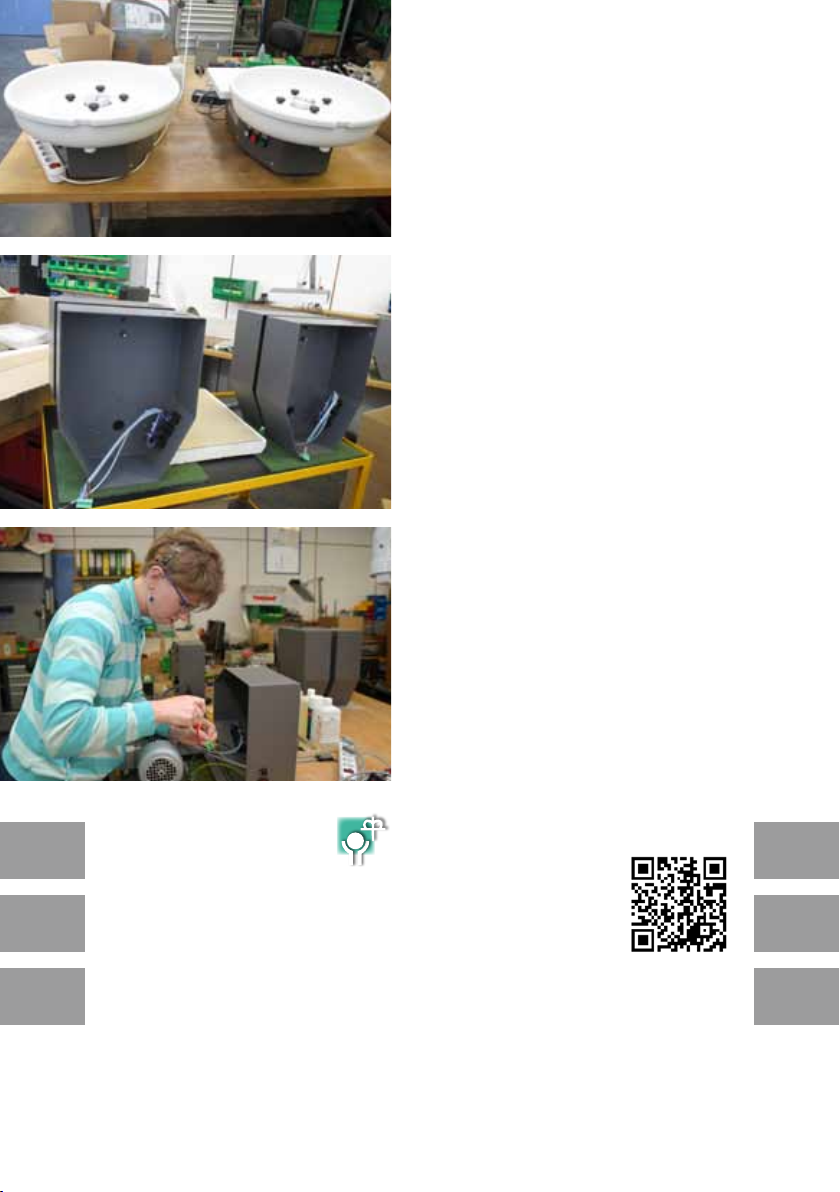

Pottery wheel HSL Profi T-45 / S-45
Manufacturer: Johannes-Diakonie Mosbach
Schwarzacher Werkstätten
Schwanheimer Straße 23
Germany 74869 Schwarzach
phone: [phone],
fax: [phone]
www.hsl-toepferscheiben.de
Dimension: T-45: L x W x H / 720 x 510 x 285 mm
S-45: L x W x H / 700 - 1030 x 510 x 680 mm
Direction of rotation: optional (cw/ccw)
Weight: T-45 about 38 Kg
S-45 about 59 Kg
Voltage: Voltage: 230 V, 50 Hz
Main Switch: with built-in preprotection fuse 6,3 A/ MT
Motor power: 370 W power
Speed: innitely variable up to 250 rpm
Noise emission details: LpArbpl < 70 dB (A)
Frame: powder-coated metal frame, 4 rubber feet with screw
for adjustment, built-in thermal protection switch
Wheelhead: Ø 320 mm, aluminum with centering grooves
(corrosion resistant), with three bores for holding a
wooden plate

Operating instruction HSL Profi T-45 / S-45 Stand: 4/2019
4
1. Instruction for use:
Splash-pan: polystyrene, Ø 500mm, with outow, removable
and easy to clean
Centring: approx. 45 kg
Warranty: 2 years
DGUV-Test: RCI 18004 BG-checked safety (German statutory
accident insurance)

HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · Germany -74869 Schwarzach
5
2. Installation and commissioning
Please read before installation and commissioning of your new
potter‘s wheel, the operating instructions, and observe the instruc-
tions and recommendations of the manufacturer.
Keep the operating instructions.
When unpacking the necessary items for completeness.
● In the box there is:
– 1 potter‘s wheel with wheelhead and splashpan
– 1 power cord
– 1 foot pedal
– 1 rubber stopper for the drain hole in the splashpan
– Allen key, size six
● Place the potter‘s wheel on as even a surface as possible.
● Level the machine by means of the device feet out to ensuring to
a secure footing.
● Bring the master switch to “0” before connecting the power cord.
● The connection the mains by means of power cord to a 220V
socket.
● The foot pedal is inserted into its power socket.

Operating instruction HSL Profi T-45 / S-45 Stand: 4/2019
6
Now you can start using the potter‘s wheel:
1. Unlock the red „stop“ button, yellow LED glows
2. Select (ccw or cw) the direction of rotation
3. Choose your desired speed with the foot pedal.
–2-touch-pedal:
By pressing the right pedal the speed is increased +
By pressing the left pedal the speed is reduced -
– rocker switch:
Yellow LED glowing when pedal is in position „0“
Smooth speeding up when pedal is pressed.
4. By pressing the red „stop“ button, the speed stage is cleared
and the machine goes back to „0“
5. To restart after pressing the red „stop“ button steps 1 - 3
are executed again
2. Installation and commissioning

HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · Germany -74869 Schwarzach
7
3. Maintenance and Cleaning:
The potter‘s wheel is completely maintenance free.
● Disconnect the power plug before cleaning.
● Only clean with water or soapy water – do not use solvents such
as a nitro diluter. Marks on the stainless steel front plate can be
removed with an oily cloth.
● The plate can be taken o for cleaning by removing the central
screw. After that the splash pan can be removed.
● When tting the plate, please make sure that no soiling, e.g. clay
residue, has collected on the ball bearing and the motor shaft.
If this is the case, remove the residue and grease the area with
Vaseline or acid-free grease. Pay attention to the correct position
of groove (hole of the wheelhead) and driving pins (motor shaft).
● After tting the plate, only tighten the central screw on the plate
lightly!
● The potters wheel should only be reconnected and put into opera-
tion after reinstallation of the splash pan and the plate.

Operating instruction HSL Profi T-45 / S-45 Stand: 4/2019
8
4. Faults - Repairs
If a fault occurs, go through the following checklist.
● Is the power plug connected properly?
● Is the foot pedal connected propery?
● Is the direction of rotation selected?
● Is the main switch in position I?
● Does the main switch glow?
● Is the red „stop“ button unlocked?
● Check the built-in preprotection fuse 2A MT (You can nd one spa-
re in the switch.)
●Selection of the rotation direction does not react
Please stop the machine and disconnect the power plug for appro-
ximately 3 minutes.
●Overload
If overloaded, you hear a noise. The machine stops for about 10
seconds before starting automatically again. For safety please put
the foot pedal to position „0“!
If it is not possible to resolve the problem, please contact the
manufacturer.
If a return is required, the manufacturer must be notified in
advance. You are advised to use the original packaging.
This is necessary to ensure a rapid processing of complaints and to
ensure that the manufacturer will take over the shipping costs.
Please use the Repair advice note which you can download on our
website.
If it is determined that repair is necessary outside the warranty, we
will provide you with the cheapest possibilites.

HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · Germany -74869 Schwarzach
9
5. Safety and warnings
●Work on electrical machines and components are only to be
carried out by qualified electricians.
● Before starting to clean, remove the power plug.
● The potter’s wheel must not be used without the splash pan.
● Please make sure that:
– foot pedal does not get wet
– the water in the splash pan only reaches a level which it cannot
run under the wheel and enter the mechanism.
● The potter‘s wheel should only be reconnected and put into opera-
tion after installation of the splash pan guard and the plate.
Warning and danger notes you will find: www.hsl-toepferscheiben.de
This pottery wheel is only for pottery and working with clay.
Do not misuse.
Misuse will lead to expiration of your warranty claim.
You can find all warnings and danger indications on our website:
www.hsl-toepferscheiben.de
Work on electrical machines and components are only to be
carried out by qualified electricians.Work on electric components and
devices are basically carried out only by qualified electricians!

Operating instruction HSL Profi T-45 / S-45 Stand: 4/2019
10
[Geben Sie ein Zitat
aus dem Dokument
oder die
Zusammenfassung
eines interessanten
Punkts ein. Sie können
das Textfeld an einer
beliebigen Stelle im
Dokument
positionieren.
Verwenden Sie die
Registerkarte
'Zeichentools', wenn
Sie das Format des
Textfelds 'Textzitat'
ändern möchten.]
EC Declaration of Conformity
Manufacturer: Schwarzacher Werkstätten
Schwanheimer Straße 23
74869 Schwarzach
Germany
Product: Pottery wheel HSL JUNIOR VS
Pottery wheel HSL PROFI T-45
Pottery wheel HSL PROFI S-45
Type designation:
The designated product is in conformity with the European Directive 2004/108/EC on
the approximation of the laws of the Member States relating to electromagnetic
compatibility and the European Directive 2006/95/EC on the harmonization of the
laws of Member States relating to electrical equipment designed for use within certain
voltage limits.
Full compliance with standards listed below proves the conformity of the designated
Product with the provisions of the EC Directives
Related harmonized standards:
EN ISO 12100:2010 Safety of machinery - General principles for design, risk assessment
and risk reduction
EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1:
General requirements
Schwarzach dated 16.10.2018
________________ __________________________
Michael Werner, Manager of Schwarzacher Werkstätten
For download on our website:
Declaration of the Manufacturer (frequency converter)
Declaration of the Manufacturer (worm gear)

HSL Töpferscheiben · Johannes-Diakonie Mosbach • Schwarzacher Werkstätten · Schwanheimer Straße 23 · Germany -74869 Schwarzach
11
Equipment*for Profi T/S 45:
Seat framework
Dimensions:
L x W x H / 700-1030 / 510 / 560 mm
Weight: ca. 21 Kg
Height measurment
Height: ca. 50 cm / Arms: each 30 cm
Material: VA
Wooden plate with tappets
Diameter: ca. 350 mm, height 15 mm
Material: wood
Foot-pedal for Profi T/S45
2-touch pedal or rocker switch*,
hold the speed in each position
(* available for 2019 models and
following)
Seat with tilt technology
for seat framework
Diameter: ca. 350 / 300 mm
Material: PU or beech wood
Attachment: pigeonhole
Splash pan (Profi)
Ø 500 mm, height 110 mm
Material: PU
bucket with lid
Volume: 1,6 Liter
Plug for splash pan
L x W x H / 35 x 35 x 28 mm
* Equipment must be ordered separately.
