HTW ALP User manual

OWNER’S MANUAL
EVAPORATIVE AIR COOLER
ENGLSIH
ALP
C./ Industria, 13 l Polígono Industrial El Pedregar
08160 Montmeló
Barcelona (Spain)
Phone: [phone]
Fax: [phone]
[email protected]
www.htwspain.com HTW-EVA70PB-ALP
This product is only suitable for well
insulated spaces or occasional use.
Thanks for choossing our evaporative air cooler.
Please, read carefully this manual
before using the product

1 2
I WARNING:
1. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance.
- Children of less than 3 years should be kept away unless
continuously supervised.
- Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position
and they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3
years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
CAUTION —Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
2. Cleaning and user maintenance shall not be made by
children without supervision.
3. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
4. Unplug the appliance during filling and cleaning.
5. In order to avoid overheating, do not cover the heater.
6. The heater must not be located immediately below a
socket outlet.
7. Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.

3 4
8.Care should be taken when using the appliance due to
the emission of hot water vapor.
II. Features
(1) Wind mode: Normal wind;
(2) Three wind speed grades: high, middle, low;
(3) Humidification/Refrigeration;
(4) Timing function;
(5) There is temperature setting function for hot wind and the temperature can be set as 22℃,
29℃and 36℃manually; when the environmental temperature is higher than the temperature
set by manual, hot wind status will be transferred to cool wind.
(6) Auto horizontal and vertical wind;
(7) Remote control function；
(8) Fully removable water tank which is easy to clean; with water pump protection system
(9) Adopt high quality super large honeycomb filter with good evaporation capacity and cooling
effect;
(10) Spray-type water circulation refrigeration technology with larger water circulation volume
and faster cooling effect;
(11)when the machine works 100 hours accumulatively, the washing indicator light will flash
and alarm for reminder;
(12) With negative ions function;
(13) With 2pcs ice boxes to achieve better cooling effect.
III. Feature and Names of Product Components

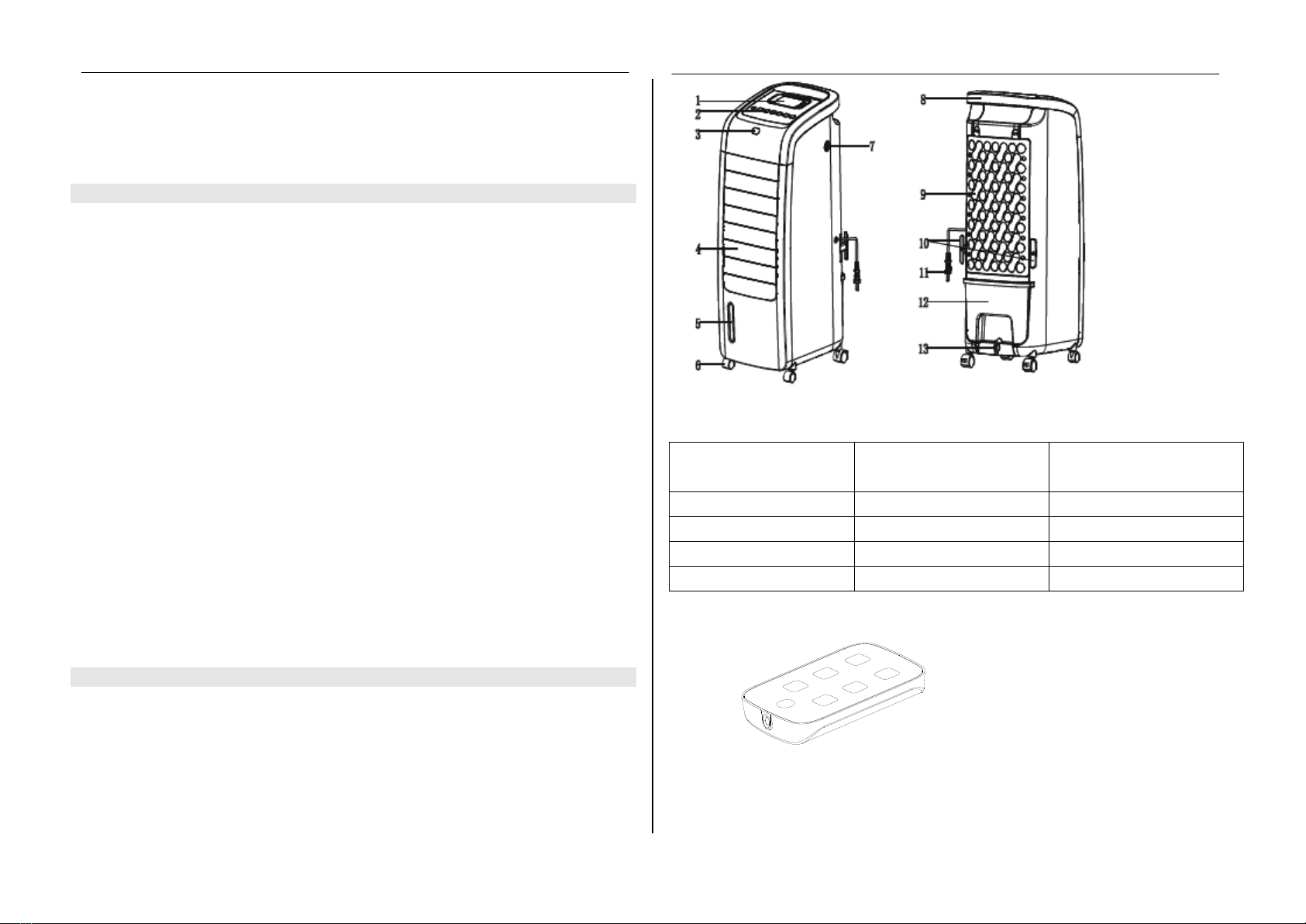

Product structure diagram
1. Remote control depository
2. Operation panel
3. Remote control receiving
window
4. Vane assembly
5. Water level display window
6. Caster
7. Panel switch
8. Handle
9. Air filter
10. Reel
11. Power cable
12. Water tank
13. Water tank lock
Accessories
Remote Control

5 6

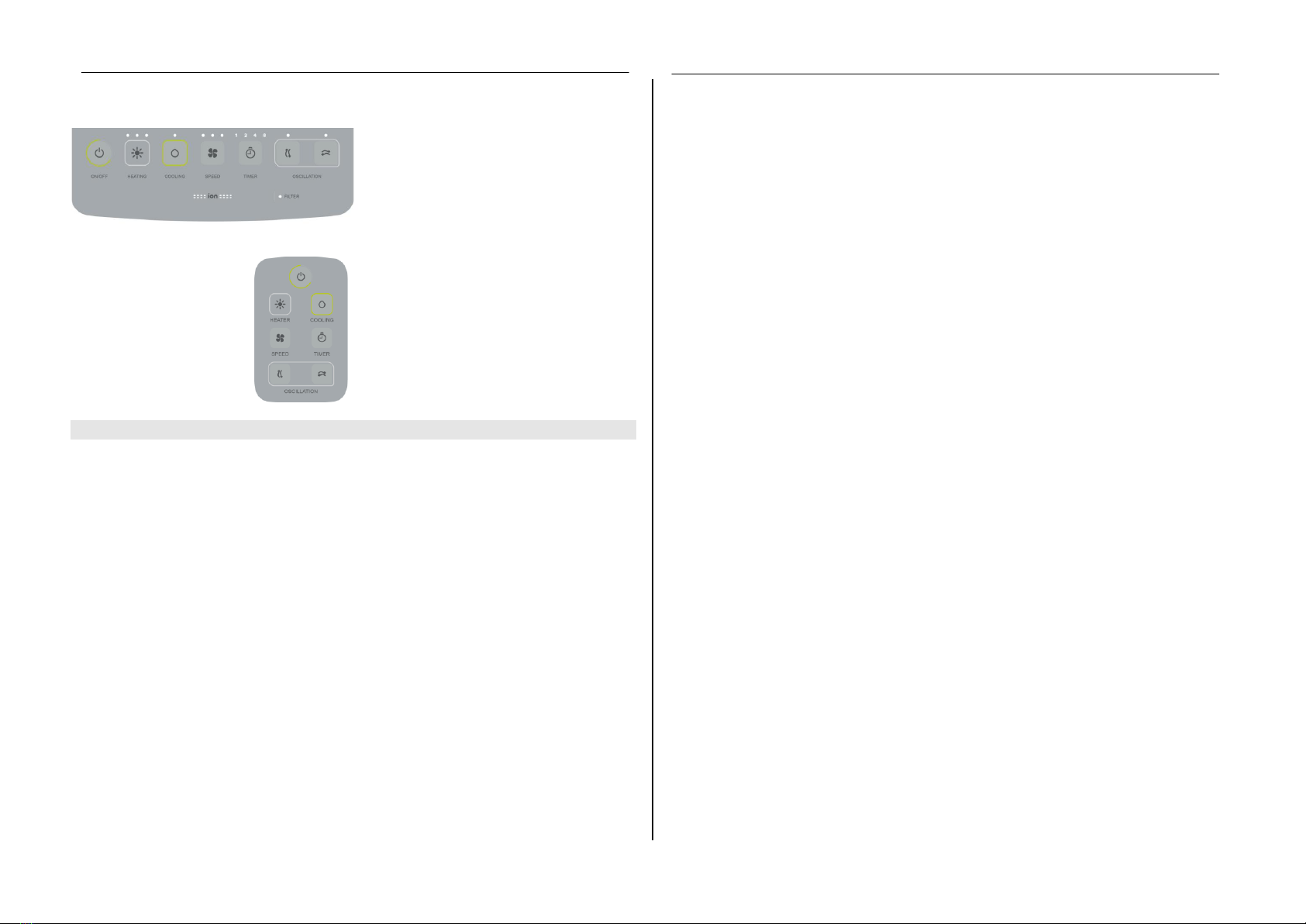

Operation panel and Display panel
Remote control operation panel
IV. Product Installation and Usage
Installation method
The product can be used directly after unpacked (without installation).
Usage of keys
1. Where power comes initially, all the LED lights will light for 2s and produce Bibi signal to
show this product has been correctly inserted. Then, the machine will enter into standby
status and all buttons will be invalid except “ON/OFF” button.
2. a) Press “ON/OFF” button under standby status and the machine will be on, produces Bi
signal and enters into working status as the machine last time off.
b) Press this button under working condition, the whole machine will be off and enter into
standby status with lasting Bi signal (Turn off the machine under hot wind status, the
fan will be off 10s later). Press this button under working condition, the whole machine
will be off and enter into standby status with Bi signal.
3. Press “Wind Speed” button under cool wind status to set wind speed, the machine will
produce Bi voice: related indicator lights will on for low--middle—high; there is only
middle wind speed for hot wind.
4. Press “Timer” button to set power off, the time will be set as 1H, 2H, 4H and 8H when
pressing the button. After the time has been set and countdown begins, machine will be off
when reaches 0 (no voice for power off).
5. a) Press “Wind direction (swing horizontally)” button, the synchronous motor will be
controlled by SCR for fan blade on and off switching.
b) Press “Wind direction (swing horizontally)”and “Wind direction (swing levelly)” button
at the same time for 3s, voice will be cancelled; press again for 3s, voice will be
recovered.
6. Press “Wind direction (swing levelly) for horizontal fan blade on and off switching. When
the machine is on, the horizontal fan blade will be in 127 degrees acquiescently; when
press “Wind direction (swing horizontally)” button, the fan blade will swing freely among
60 to 127 degrees and stay in any angle, then swing among 60 to 127 degrees again.
When the machine is off, the fan blade should always be in 0 degree.
7. a) Press “COOLING” button for refrigeration (pump) function on and off switching;
b) Press “COOLING” button for 3s and the washing indicator light will be off with short
Bi voice to tell the reminder has been eliminated.
8．Press “Heating” switching button:
a) Press this button for cool/hot wind switch under power on status. If it is cool wind status:
press this button once and the heater will move to the air outlet, heat begins with middle
wind speed since the wind speed is nonadjustable, temperature will be set as 22°C and
indicator light is on; press this button twice, temperature will be set as 29°C and indicator
light is on; press this button three times, temperature will be set as 36°C and the indicator
light is on; press this button four time, press heat stops and the heater will move away
from the air outlet after 10s, cool wind status begins (no cool wind indicator light).

7
8
Repeat according to above way.
b) Under heating status, when the indoor temperature reaches (22℃, 29℃or 36℃), PTC
will stop heating and other function will keep working (fan will keep working), when the
indoor temperature is lower than (20℃, 27℃, 34℃), PTC will restart. (E.g. The preset
temperature is 29°C, when the indoor temperature is higher than 29°C, PTC will stop
heating; when the indoor temperature is lower than 27°C, PTC will restart.)
Precautions：
1. Refrigeration/humidification and warming function can be on at the same time.
2. If there is no action for the button within 1min when the indicator light is lighting, the
indicator light will be dim (original brightness is 33%); action this time, the indicator light
will become bright
3. With cleaning reminding function, the red cleaning indicator light will be on without voice
after 100 working hours. (Press humidification button for 3s and the indicator light can be
eliminated).
4. Negative ion will flash once when power on, the light will be off when finished.
5. With power off memory function, the work will be resumed when restart.
Filling water:
If need refrigeration or humidification function, please add water into the water tank. Before adding
water, please open the water tank lock, take the water tank out and add water in it slowly (Figure 1, 2,
3 and 4): put the water tank to the original location after adding water and lock the water tank lock.
For manual water filling, please note the level indicator (Fig. 5).
1. Do not fill the water exceeding the maximum water level (Fig. 5).
2. Be sure to use clean tap water.
3. Tip: It is normal, non-toxic, and will not affect your health if the device has slight odor or the
water in the tank has a slight discoloration when it is used for the first time.
Using the remote control:
1. Open the battery cover of the remote control, and insert a 3V CR2032 battery.
2. Please point to the receiver when using the remote control.
3. If the battery voltage is low, please open the battery cover as shown in the figure and replace
with new battery (CR2032). Please note the positive pole and the negative pole of the battery;
then, put on the battery cover.
(Fig. 2) Water tank
unlocked (Fig. 3) Water tank pulled out (Fig. 4) Filling water
(Fig.1) Water tank
locked
water level(Fig. 5)

910

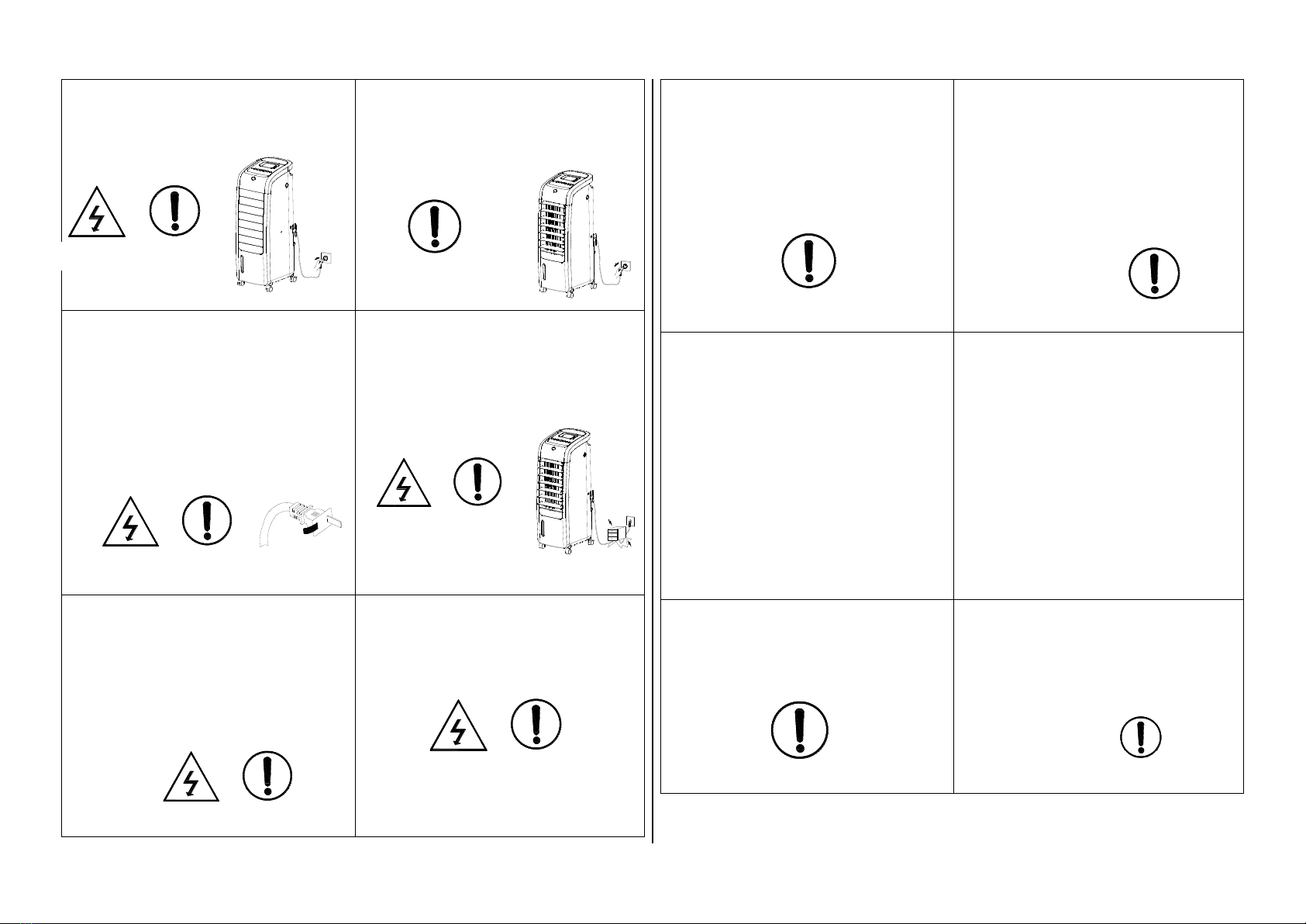

V. Safety Warnings and Precautions
To avoid the dangers caused by misoperation and to use the device more conveniently, several
considerations are given through the following icons. Please get familiar with the icons below, and
read the User Guide.
●Symbol Meaning Description
Warning
Indicate that could result in death or serious injury, or property
damage
General prohibition
Indicate the behaviors that must be absolutely prohibited
Must Obey
Indicate the content that must be enforced
If the product has any failure, please send it
to the repair station or notify the service
center; do not disassemble or replace the
parts.
Disassembly or modification without
permission will affect the safety of the
product.
Do not touch the power cord plug with wet
hands.
Risk of electric shock.
Never insert wooden sticks, metal sticks and
other objects into the inlet and the outlet.
It may cause leakage, short circuit and
damage to the product.
Do not spray insecticides and flammable
sprays around the product.
It may cause damage to the product.
Avoid placing the product at the outlet for
long time or blow to the children directly.
It may cause illness or affect the health of
young children.
Do not pull the cord when removing the
power plug.
It may cause power cord damage, electric
leakage and other hazards.
禁止拆卸
Disassembly prohibited
注意触电 禁止触摸
Electric shock
Do not touch
注意触电 一般性禁止
General prohibitionElectric shock General prohibition
General prohibition
注意触电 一般性禁止
Electric shock General
prohibition

11 12
Make sure that the power plug doesn’t stick
foreign body, and fully insert the plug.
It will lead to the risk of electric leakage.
Exception handling
When the product has unpleasant smell or
abnormal noise in use, immediately stop
using and unplug the power.
Do not use exposed or damaged power cord.
It may cause electric leakage, short circuit or
fire.
If the power cord is damaged, it should be
replaced by the manufacturer, authorized
service center or qualified personnel in order
to avoid hazards.
Do not bend the power cord or place heavy
objects on it.
It will lead to the risk of electric leakage.
The water level of the tank shouldn’t exceed
the maximum level, and shouldn’t be lower
than the minimum level when the
cooling/humidification function is turned on.
After water is filled, do not tilt or collide
while placing or moving, to prevent water
splashing.
If the product has been dumped and there is
water inside, immediately pull out the plug
and wait for 24 hours before starting.
When you go out or if the device won’t be
used for a long time, shut down the device
and disconnect the power plug from the
outlet.
Do not use the device when there is
unattended child, animal or handicapped
person.
Only use the device with qualified power
outlet, and the carrying capacity of the outlet
shouldn’t be lower than 10A/220V.
Make sure that the operating voltage is
consistent with the voltage specified on the
nameplate (AC220V).
Confirm the operating voltage before relocating.
Never use the device near the tub, shower
nozzle or swimming pool.
Do not use the device by placing it directly
below the power outlet.
When the device is being used, please keep it
away from the wall, curtains and other
combustible materials to prevent fire.
To avoid overheating, do not cover the
heater.
Do not place any object on the device.
During humidifying, it is prohibited to
remove or install air filter screen and wet
curtain bracket assembly.
It may cause water drops spraying out of the
air outlet.
●Not to pull the horizontal fan blade by hand, or
the electrical machine will be damaged, then the
product will be damaged. Power off
immediately after pulling the horizontal fan
blade, and then restart.
注意触电 必须执行
注意触电 必须执行
Electric shock Must Obey
必须执行
Must Obey
Must Obey
Must Obey
注意触电 必须执行
Electric shock
Must Obey
注意触电 必须执行
Must Obey
Electric shock
注意触电 必须执行
Electric shock
Must Obey
注意触电 必须执行
Must Obey
Electric shock
注意触电 必须执行
Must Obey
注意触电 必须执行
Must Obey
General prohibition
General prohibition
General prohibition
注意触电 必须执行
Must Obey
Must Obey

13
14
●When the water tank is full of water, the
machine cannot be lifted by handle, or the
water will spill. The machine only can be
moved by pulling the handle. It can be lifted by
handle when there is less or no water in the
tank.
VI. Cleaning and Maintenance
产品存储:
，
图4
松
清洗时请勿使用有化学物剂。
关掉电源并拔掉电源插头。
清洗机体时务必拔掉电源线,否则有触电的可能。
外表面积尘时，要用软布擦拭：当表面太脏时，可用低于50摄氏度的水
和中性洗涤混合后，用软布擦拭并晾干。
清洁时，不能使用汽油、天那水、稀释剂及任何容易损坏外表面的物质。

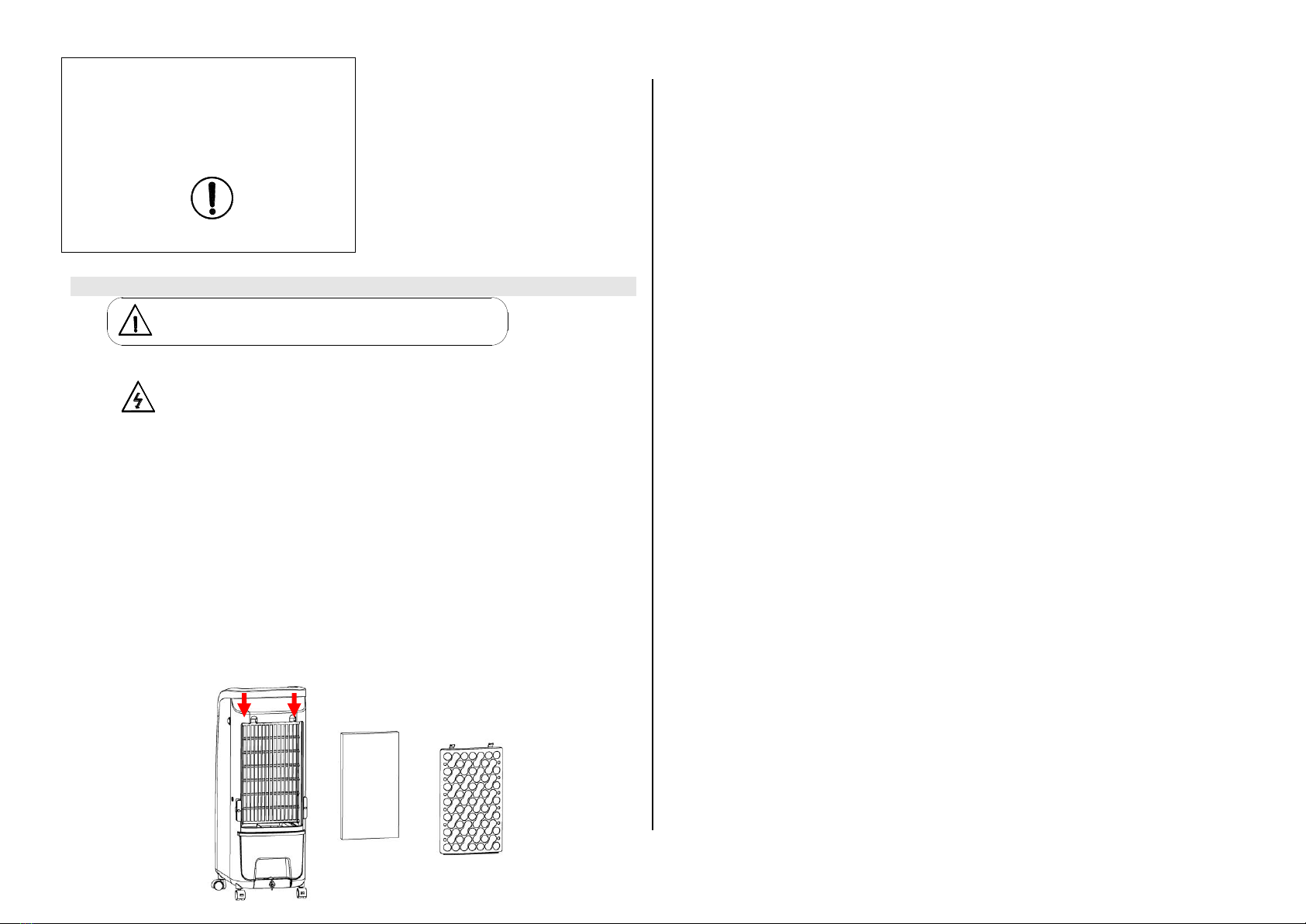

●Air filter net and wet curtain assembly cleaning
If there are too many dust on the Air filter, the wind effect will be impacted, therefore, it should
be cleaned at least once a month.
1. Take the dustproof filte out firstly, then the honeycomb filter assembly can also be taken out
(operation is as below).
2. Use cleanser and banister brush to clean the Air filter.
3. Dip the honeycomb filter assembly into cleanser for several minutes, then clean and dry it.
●Water tank cleaning
1. Cut off the power and rotate the water tank lock to horizontal direction, then take the water
tank out.
2. Use the towel to clean the incrustation of the water tank by cleanser, and then use water to
wash and pour the dirty water out.
●Machine body cleaning
1. Use wet towel to clean the machine body, washing by water directly is forbidden.
2. Do not wash by corrosive cleanser or solvent.
3. The power should be off and power cable should be pulled out when cleaning the machine
body, or there is electric shock risk.
●Installation after cleaning
1. Install the air filter net, wet curtain assembly and water tank orderly and ensure the installation
is correct.
2. Link the power and confirm the machine runs smoothly.
●Maintenance
1. If the machine has not been used for a long time, the power cable should be pulled out and the
machine should be packed to prevent dust.
2. Please ensure the wet curtain and air filter net is dry and there is no water in the tank before
packing.
必须执行
Do not use chemical agents for cleaning.
If dust is accumulated on the surface, please wipe with soft cloth:
if the surface is dirty, mix water lower than 50°C and neutral
detergent, wipe with soft cloth and dry.
Do not use gasoline, thinner and any substance that damages the
surface easily for cleaning.
Turn off the power and unplug the power cord.
Always unplug the power cord before cleaning the
device, or else it may cause electric shock.
Must Obey

15 16
Product model HTW-EVA70PB-ALP
Rated voltage 220 -240V～
Rated frequency 50 Hz
Rated power Cooling:70W; Heating:2000W
Dimensions L/250mm×W/330mm×H/704mm
Net weight 10Kg
Gross weight 12Kg
Environmental Protection
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
VII. Technical Parameters

·Information requirements for the electric local space heaters.
This product is only suitable for well insulated spaces or occasional use.
HTW-EVA70PB-ALP
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output
Pnom 1.9 kW
manual heat charge control, with
integrated thermostat
No
Minimum
heat output
(indicative)
Pmin N/A kW
manual heat charge control with
room and/or outdoor temperature
feedback
No
Maximum
continuous
heat output
Pmax,c 1.9 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
No
Auxiliary
electricity
consumption
fan assisted heat output No
At nominal
heat output
elmax N/A kW
Type of heat output/room temperature
control (select one)
At minimum
heat output
elmin N/A kW
single stage heat output and no
room temperature control
No
In standby
mode
elSB 0 kW
Two or more manual stages, no
room temperature control
No
with mechanic thermostat room No
temperature control with
electronic room temperature
control
with electronic room
temperature control
Yes
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections
possible)
room temperature control, with
presence detection
No
room temperature control, with
open window detection
No
with distance control option No
with adaptive start control No
with working time limitation No
with black bulb sensor No
Contact
details
Gestión Integral de Almacenes, S.L, C/Industria 13, Polígono Industrial El Pedregar
Montmelo, Barcelona, 08160 (SPAIN)
·Seasonal space heating energy efficiency
The seasonal space heating energy efficiency of all local space heaters except
commercial local space heaters, S(%)
37%
