Huawei YDS60-80 User manual

YDS60-80 Smart Power Sensor
Quick Guide
Issue: 02
Date: 2022-08-20

1
1Overview

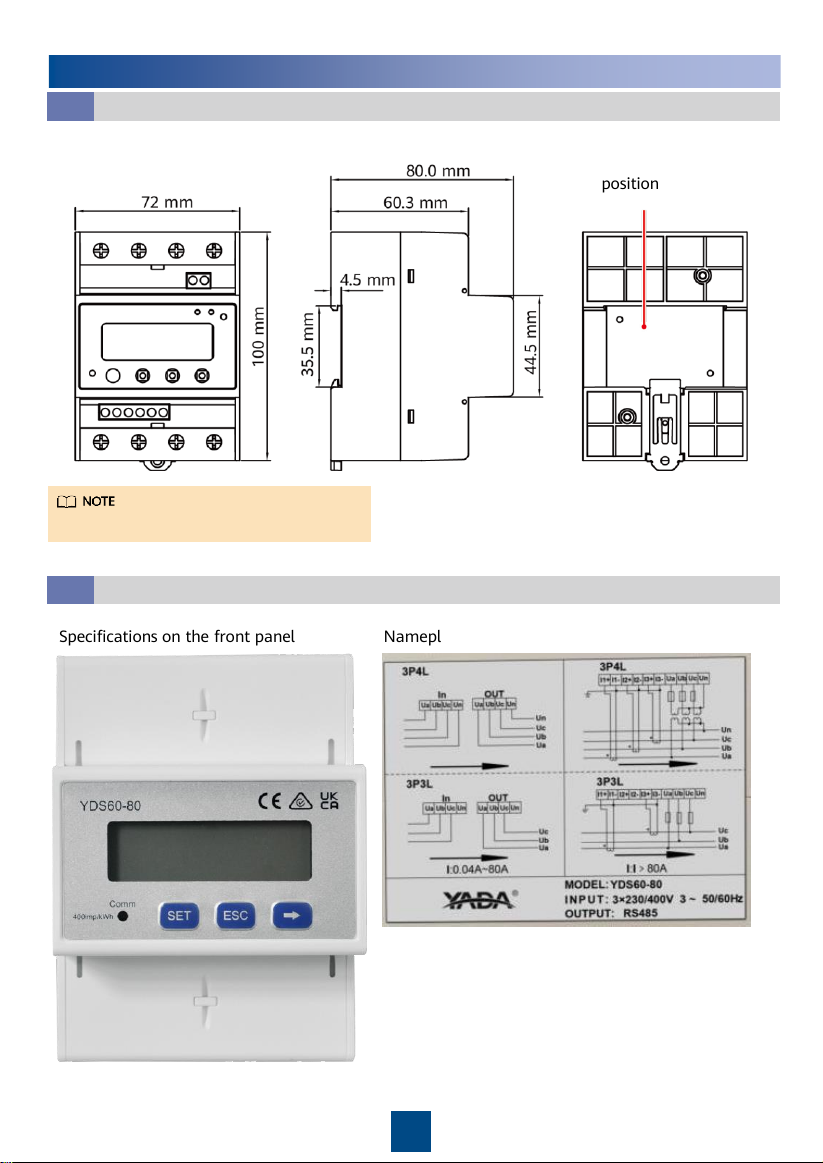

Specifications on the front panel
YDS60-80
The dimensional tolerance is ±1 mm.
Nameplate
Dimensions
Appearance
1.2
1.1
Installation
position

Category YDS60-80
Nominal voltage 230 V AC/400 V AC, 50 Hz/60 Hz
Current measurement range Direct connection: 0–80 A
Connection through current transformers: > 80 A
Voltage measurement range 90–1000 V (line voltage; potential transformers are required
if the voltage is greater than 500 V)
Electricity metering accuracy Class 1 (error within ±1%)
Power grid system Three-phase four-wire or three-phase three-wire
Baud rate 4800/9600/19200/115200 bps (default value: 9600 bps)
Operating temperature –25℃to +60℃
Installation mode Guide rail-mounted
Certification CE, RCM, and UKCA
Key Specifications
1.3
•Input voltage: When the line voltage is less than or equal to 500 V, connect the meter
directly. When the line voltage is greater than 500 V, connect the meter through potential
transformers.
•Input current: When the input current is 0 A to 80 A, connect the meter directly (channel 1).
When the input current is greater than or equal to 80 A, connect the meter through current
transformers (channel 2).
Port Definition
1.4
Cable Inlet Cable Outlet
2

1.4
2Installing the YDS60-80
1. Install the Smart Power
Sensor on the standard
guide rail of DIN35mm.
2. Press the Smart Power
Sensor downwards onto
the guide rail, and then
push it in place along
the guide rail.
Cable Port Type
Conductor
Cross-
sectional
Area Range
Outer
Diameter Source
Channel 1
voltage
cable
Ua IN and OUT Single-core
outdoor copper
cable
25 mm210 mm
Prepared by
the customer
Ub IN and OUT
Uc IN and OUT
Un IN and OUT
Channel 2
voltage
cable
Ua IN Single-core
outdoor copper
cable
4–25 mm25–10 mm
Prepared by
the customer
Ub IN
Uc IN
Un IN
Channel 2
current
transformer
cable
Ia*
Single-core
outdoor copper
cable
2–4 mm23–5 mm
Prepared by
the customer
or supplied
with current
transformers
Ia
Ib*
Ib
Ic*
Ic
Communications
cable
RS485A
T
wo-core
outdoor
shielded twisted
pair copper
cable
0.25–1.5
mm24–11 mm
Supplied by
the
manufacturer
RS485B
3Installing Cables
3.1 Preparing Cables
The maximum torque of Ua, Ub, Uc and Un terminal screws is 1.7 N·m, and the
recommended torque is 0.9–1.1 N·m. The maximum torque of Ia*, Ia, Ib*, Ib, Ic*, Ic, RS485A
and RS485B terminal screws is 0.4 N·m, and the recommended torque is 0.15 – 0.25 N·m.
3

4
Current ≤ 80 A > 80 A ≥ 0 A
Line voltage ≤ 500 V > 500 V
Connection
mode
Current and voltage
direct connection
Connection through
current transformers and
voltage direct connection
Connection through current
transformers and p
otential
transformers
Connection
setting
Direct connection:
SPEC = 1 (default)
Connection through transformers:
SPEC = 0
Current
transformation
ratio
CT = 1
(default)
CT = Ratio of the installed
current transformer
Potential
transformation
ratio
PT = 1.0
(default)
PT = Ratio of
the installed
potential transformer
Wiring
mode
3P4W:
net = n.34
(default)
3P3W:
net = n.33
3P4W:
net = n.34
(default)
3P3W:
net = n.33
3P4W:
net = n.34
(default)
3P3W:
net = n.33
3.2 Wiring Scenarios
•You need to set parameters after cable connections are complete. For details, see section 4
"Display and Parameter Settings".
•This meter is generally used in commercial and industrial high-current scenarios. In external
CT scenarios, the precision of the secondary-side current is ±5 mA. For example, if a CT with
a transformer ratio of 400/1 is selected, the error is ±2 A. This meter is not recommended
in scenarios where the plant power is low or the control precision of the grid-connection
point is high. Instead, use a meter with higher precision.

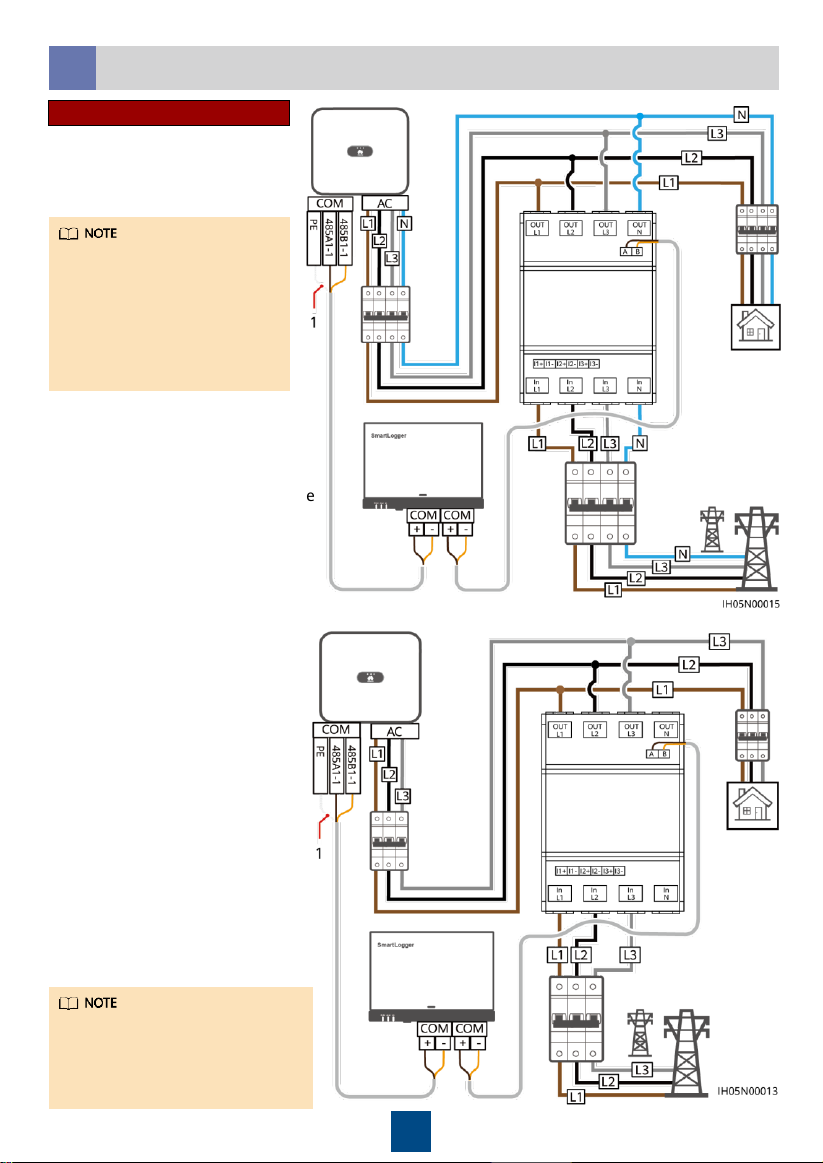

Current and Voltage Direct Connection (Current ≤ 80 A and Line
Voltage ≤ 500 V)
3.3
•Three-phase four-wire
connection
•Three-phase three-wire connection
(1) Shield layer of the signal cable
(1) Shield layer of the signal cable
You need to set parameters after
cable connections are complete.
For details, see section 4 "Display
and Parameter Settings".
5
SmartLogger networking
In the SmartLogger
networking scenario, the
power meter is connected to
the SmartLogger. In the non-
SmartLogger networking
scenario, the power meter is
connected to the inverter.

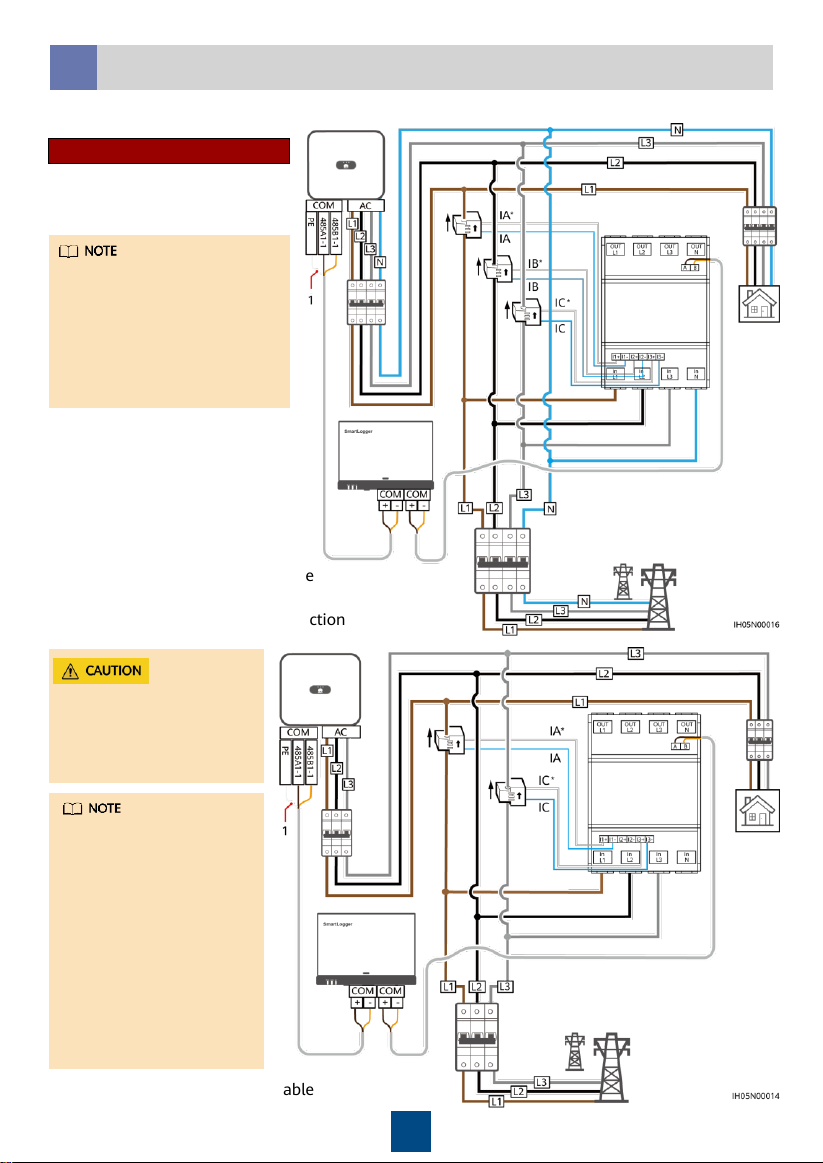

•Three-phase four-wire connection
•Three-phase three-wire connection
(1) Shield layer of the signal cable
(1) Shield layer of the signal cable
You need to set parameters after
cable connections are complete. For
details, see section 4 "Display and
Parameter Settings".
6
Smart Dongle networking

7
Please ensure that the
ground cable is installed
securely. Poor grounding
may cause electric shocks.
Connection Through Current Transformer and Voltage Direct
Connection (Current > 80 A, Line Voltage ≤ 500 V)
3.4
•You need to set
parameters after
cable connections
are complete. For
details, see section 4
"Display and
Parameter Settings".
•For the three-phase
three-wire
connection, phase B
does not need to
connect to a current
transformer.
Current transformers specifications: The accuracy class is 0.5, and the current on the secondary
side is 1 A or 5 A.
•Three-phase four-wire
connection
•Three-phase three-wire connection
(1) Shield layer of the signal cable
(1) Shield layer of the signal cable
SmartLogger networking
In the SmartLogger
networking scenario, the
power meter is connected to
the SmartLogger. In the non-
SmartLogger networking
scenario, the power meter is
connected to the inverter.

8
Please ensure that the
ground cable is installed
securely. Poor grounding
may cause electric shocks.
•You need to set
parameters after cable
connections are
complete. For details, see
section 4 "Display and
Parameter Settings".
•For the three-phase
three-wire connection,
phase B does not need to
connect to a current
transformer.
•Three-phase four-wire connection
•Three-phase three-wire connection
(1) Shield layer of the signal cable
(1) Shield layer of the signal cable
Smart Dongle networking

9
3.4 Connection Through Current Transformer and Potential
Transformer (Current ≥ 0 A, Line Voltage > 500 V)
3.5
Please ensure that the
ground cable is installed
securely. Poor grounding
may cause electric shocks.
Cable outlet (OUT)
•Three-phase four-wire connection
Cable outlet (OUT)
Current
transformers
Cable inlet (IN)
UA UB UC UN
Cable inlet (IN)
UA UB UC
You need to set parameters
after cable connections are
complete. For details, see
section 4 "Display and
Parameter Settings".
Current
transformers
•Three-phase three-wire connection

10
The button → is used to switch the displays. Set parameter disp to enable the rotation
display function.
4Display and Parameter Settings
No. Display Description No. Display Description
1
Positive active
energy
= 10000.00 kWh
2
Negative active
energy
= 2345.67 kWh
3
None parity,
8 data bits,
and 1 stop bit;
baud rate
= 9600
bps (default)
4
011 represents
address
(default)
5Phase A voltage
= 220.0 V 6
Phase B
voltage
= 220.1 V
7Phase C voltage
= 220.2 V 8
Phase A
current
= 5.000 A
9Phase B current
= 5.001 A 10
Phase C
current
= 5.002 A
11
Total phase active
power = 3.291
kW
12
Phase A active
power = 1.090
kW
13
Phase B active
power = 1.101
kW
14
Phase C active
power
= 1.100 kW
15
Total phase
power factor
PFt = 0.500
16
Phase A power
factor
PFa = 1.000
17
Phase B power
factor
PFb = 0.500
18
Phase C power
factor
PFc = –0.500
Display
4.1

11

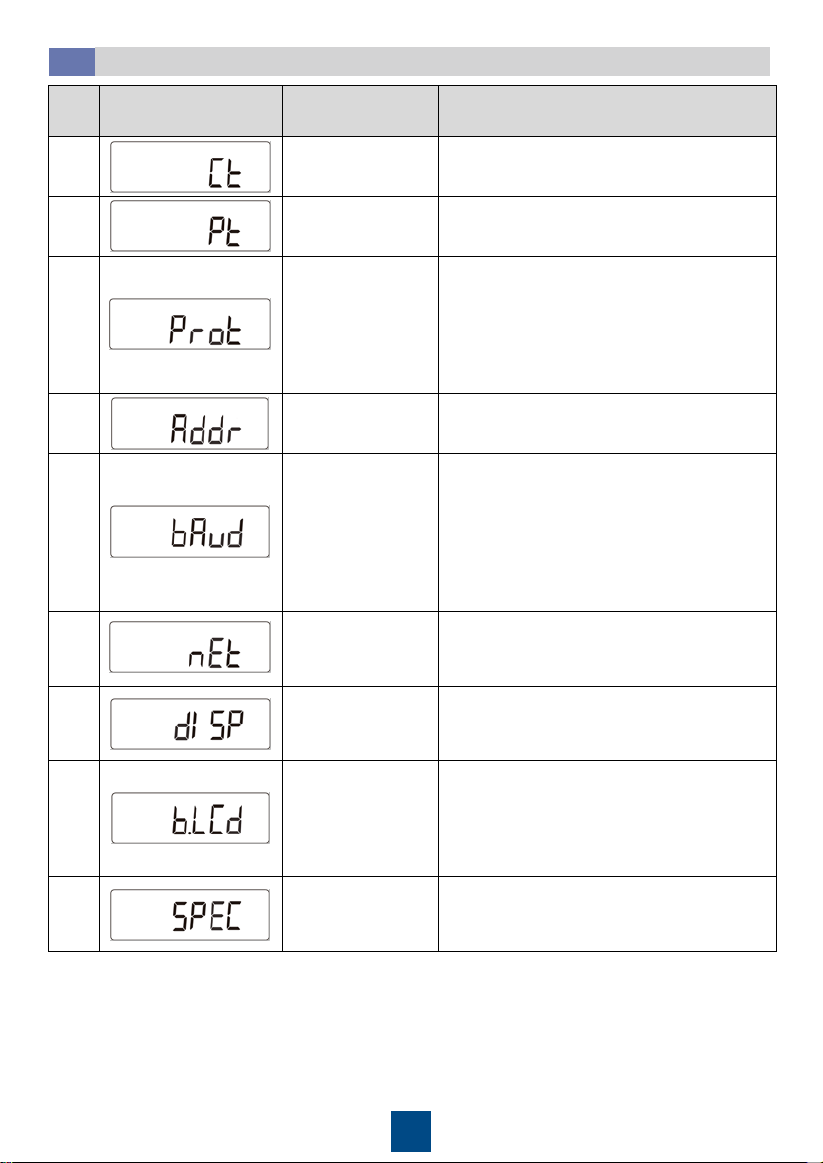

No. Parameter Value Range Description
1 1–6553 Current transformer ratio
20.1–999.9 Potential transformer ratio
3
1: 645
2: n.2
3: n.1
4: E.1
5: 0.1
Communication protocol switchover:
1: Factory mode
2: None parity, 2 stop bits, n.2
3: None parity, 1 stop bit, n.1
4: Even parity, 1 stop bit, E.1
5: Odd parity, 1 stop bit, 0.1
4 1–247 Modbus communication address
5
0: 1.200
1: 2.400
2: 4.800
3: 9.600
4: 19.20
5: 115.2
Communication baud rate:
0: 1200 bps
1: 2400 bps
2: 4800 bps
3: 9600 bps
4: 19200 bps
5: 115200 bps
60: n.34
1: n.33
Wiring mode:
0: n.34, three-phase four-wire
1: n.33, three-phase three-wire
7 0–30
Rotation display time (s):
0: Fixed display
1–30: Time interval of rotation display
8 0–30
Backlight illumination time control
(minutes):
0: Steady on
1–30: Time of backlight illumination
without key operation
90: ct
1: dc
Channel switchover:
0: Transformer connection
1: Direct connection
Parameter Settings4.2

12
Button description: SET means "confirm" or "cursor move" (when inputting numbers or
parameters), ESC means "exit", and → means "add". The default user password is 701 .
The communication parameters are set for the Smart Power Sensor before delivery. If the
communication is abnormal, check and set the parameters.
•Set wiring mode (three-phase four-wire or three-phase three-wire) and channel
switchover (direct connection or current transformer connection):
•Set the current transformation ratio or potential transformation ratio:
•Set communication address or baud rate:
Parameter Setting Operations
4.3

13
•Modify user password:
1. Check that all mounting brackets are securely installed and all screws are tightened.
2. Check that all cables are reliably connected in correct polarity without short circuit.
6Installation Verification
5Troubleshooting
Symptom Cause Analysis Troubleshooting Method
No display after
power-on
1. The cable connection is incorrect.
2. The voltage supplied to the meter
is abnormal.
1. Connect the cables correctly
(see wiring diagrams).
2. Supply the correct voltage
based on the specifications.
Abnormal
RS485
communication
1. The
RS485 communication cable is
disconnected, short-circuited, or
reversely connected.
2. The communication address, baud
rate, data bit, and parity bit of the
meter do not match those of the
inverter.
1. If the communication cable is
faulty, replace it.
2. Set the communication
address, baud rate, data bit,
and parity bit of the meter to
be the same as those of the
inverter by pressing buttons.
For details, see "Parameter
Settings".
Inaccurate
metering
1. The cable connection is incorrect.
Check whether the corresponding
phase sequence of voltage and
current is correct.
2. Check whether the high and low
ends of the current transformer
inlet are reversely connected. If
the values Pa, Pb, and Pc are
negative, the high and low ends
are connected incorrectly.
1. Connect the cables correctly
(see wiring diagrams).
2. If a negative value
is displayed,
change the cable connection
for the current transformer to
ensure that the high and low
ends are connected correctly.
13

14
Customer Service Contact
Region Country Email Tel
Europe
France
[e-mail]
0080033888888
Germany
Spain
Italy
UK
Netherlands
Other
countries
For details
, see solar.huawei.com.
Asia Pacific
Australia
[e-mail]
1800046639
Turkey
[e-mail]
-
Malaysia
[e-mail]
0080021686868
/1800220036
Thailand
([phone]
(local call
rates)
1800290055 (free in Thailand)
China
[e-mail]
400
-822-9999
Other
countries
[e-mail]
0060
-3-21686868
Japan
Japan
[email protected]awei.com
0120258367
India
India
[e-mail]
1800 103 8009
South Korea
South Korea
[email protected]awei.com
-
North America
USA
[e-mail]
1
-877-948-2934
Canada
[e-mail]
1
-855-482-9343
Latin America
Mexico
[e-mail]
018007703456
/0052
-442-4288288
Argentina
0
-8009993456
Brazil
0
-8005953456
Chile
800201866
(fixed-line only)
Other
countries
0052
-442-4288288
Middle East
and Africa
Egypt
[e-mail]
08002229000/0020235353900
UAE
08002229000
South Africa
0800222900
Saudi Arabia
8001161177
Pakistan
0092512800019
Morocco
0800009900
Other
countries
0020235353900
7Customer Service Contact
