Huawei Airbridge DBS3900 Technical specifications

Airbridge DBS3900 CDMA Base Station
V400R006C08
Product Description
Issue 11
Date 2010-06-18
HUAWEI TECHNOLOGIES CO., LTD.

Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. i
Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [email protected]

Airbridge DBS3900 CDMA Base Station
Product Description About This Document
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
About This Document
Purpose
This document describes the overall structure, logical structure, auxiliary devices,
configuration principles, and networking modes of the DBS3900. In addition, this document
describes the transmit and receive performance, physical and electrical specifications,
lightning protection performance, and environmental requirements of the DBS3900. You can
obtain a comprehensive understanding of the DBS3900 by reading this document.
Product Version
The following table lists the product version related to this document.
Product Name Product Version
DBS3900 CDMA V400R006C08
Intended Audience
This document is intended for:
zField engineers
zSystem engineers
Change History
Version Change History
11 (2010-06-18) The modifications in this version are as
follows:
zProduct version update.
10 (2010-03-18) The modifications in this version are as
follows:
zProduct version update.

About This Document
Airbridge DBS3900 CDMA Base Station
Product Description
iv Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
Version Change History
09 (2009-12-25) Ninth release of the DBS3900 V400R006.
08 (2009-09-15) The modifications in this version are as
follows:
zThe contents related to the AWS band
classes supported by the AC RRU3606
are added.
07 (2009-08-30) Seventh release of the DBS3900 V400R006.
06 (2009-08-15) Sixth release of the DBS3900 V400R006.
05 (2009-07-07) Fifty release of the DBS3900 V400R006.
04 (2009-05-30) The modifications in this version are as
follows:
zThe descriptions of the UBRI and UEIU
are added.
03 (2009-04-01) The modifications in this version are as
follows:
zThe contents related to the AC RRU3606
are added.
zThe contents related to the CMPT (8 E1)
are added.
zThe contents related to the 450 MHz band
classes supported by the DC RRU3606
are added.
02 (2008-08-10) The modifications in this version are as
follows:
zThe networking of the DBS3900 is
deleted, and the transmission and
networking of the BTS are added.
zThe contents related to the operation and
maintenance of the BTS are modified.
zThe performance measurement items of
the DBS3900 are modified.
01(2008-06-25) Initial release of the DBS3900 V400R006.
Organization
1 Overall Structure of the DBS3900
This describes the overall structure of the DBS3900, which consists of the BBU3900,
RRU3606, cables, antenna system, and auxiliary equipment.
2 Solutions for the Auxiliary Devices of the DBS3900

Airbridge DBS3900 CDMA Base Station
Product Description About This Document
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
v
This describes the solutions for the auxiliary devices of the DBS3900. The DBS3900 uses a
modular structure. The basic modules of the DBS3900 are the BBU3900 and RRU3606. The
auxiliary devices of the DBS3900 include the indoor centralized installation rack, L-shaped
support, APM, storage battery cabinet, DCDU, EMUA, SLPU, ODF, DDF, DC power system,
and AC power system. The basic modules and auxiliary devices can be flexibly configured to
form integrated site solutions.
3 Configuration Principles of the DBS3900
This describes the configuration principles of the DBS3900, covering the configurations of
the BBU3900, RRU3606, power supply, and satellite synchronization antenna.
4 Transmission and Networking of the BTS
This describes the transmission and networking of the BTS. The networking modes supported
by the BTS are the star networking mode, chain networking mode, and tree networking mode.
5 Operation and Maintenance of the BTS
This section describes the operation and maintenance of the BTS. The operation and
maintenance of the BTS refers to the management, monitoring, and maintenance of the BTS.
The BTS provides various methods and platforms for operation and maintenance to cater to
different scenarios.
6 Technical Specifications of the DBS3900
This describes the technical specifications of the DBS3900.
Conventions
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Indicates a hazard with a high level of risk that, if not avoided,
will result in death or serious injury.
Indicates a hazard with a medium or low level of risk which, if
not avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation that, if not avoided,
could cause equipment damage, data loss, and performance
degradation, or unexpected results.
Indicates a tip that may help you solve a problem or save time.
Provides additional information to emphasize or supplement
important points of the main text.

About This Document
Airbridge DBS3900 CDMA Base Station
Product Description
vi Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
General Conventions
Convention Description
Times New Roman Normal paragraphs are in Times New Roman.
Boldface Names of files, directories, folders, and users are in
boldface. For example, log in as user root.
Italic Book titles are in italics.
Courier New Terminal display is in Courier New.
Command Conventions
Convention Description
Boldface The keywords of a command line are in boldface.
Italic Command arguments are in italics.
[ ] Items (keywords or arguments) in square brackets [ ] are
optional.
{ x | y | ... } Alternative items are grouped in braces and separated by
vertical bars. One is selected.
[ x | y | ... ] Optional alternative items are grouped in square brackets
and separated by vertical bars. One or none is selected.
{ x | y | ... } * Alternative items are grouped in braces and separated by
vertical bars. A minimum of one or a maximum of all can
be selected.
GUI Conventions
Convention Description
Boldface Buttons, menus, parameters, tabs, windows, and dialog titles
are in boldface. For example, click OK.
> Multi-level menus are in boldface and separated by the ">"
signs. For example, choose File > Create > Folder.
Keyboard Operation
Format Description
Key Press the key. For example, press Enter and press Tab.

Airbridge DBS3900 CDMA Base Station
Product Description About This Document
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
vii
Format Description
Key 1+Key 2 Press the keys concurrently. For example, pressing
Ctrl+Alt+A means the three keys should be pressed
concurrently.
Key 1,Key 2 Press the keys in turn. For example, pressing Alt, Ameans
the two keys should be pressed in turn.
Mouse Operation
Action Description
Click Select and release the primary mouse button without
moving the pointer.
Double-click Press the primary mouse button twice continuously and
quickly without moving the pointer.
Drag Press and hold the primary mouse button and move the
pointer to a certain position.

Airbridge DBS3900 CDMA Base Station
Product Description Contents
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ix
Contents
About This Document...................................................................................................................iii
1 Overall Structure of the DBS3900...........................................................................................1-1
1.1 Physical Structure of the DBS3900...............................................................................................................1-3
1.2 Physical Ports of the DBS3900 .....................................................................................................................1-6
1.2.1 Ports on the BBU3900 .........................................................................................................................1-6
1.2.2 Physical Ports of the RRU3606..........................................................................................................1-10
1.3 Logical Structure of the DBS3900 ..............................................................................................................1-12
1.3.1 Functional Structure of the BBU3900................................................................................................1-12
1.3.2 Logical Structure of the RRU3606.....................................................................................................1-13
1.4 Software Structure of the BTS ....................................................................................................................1-13
2 Solutions for the Auxiliary Devices of the DBS3900..........................................................2-1
2.1 Indoor Centralized Installation of the DBS3900 ...........................................................................................2-2
2.2 Indoor Distributed Installation of the DBS3900............................................................................................2-3
2.3 Outdoor Centralized Installation of the DBS3900 ........................................................................................2-4
2.4 Outdoor Distributed Installation of the DBS3900.........................................................................................2-6
3 Configuration Principles of the DBS3900.............................................................................3-1
3.1 Configuration Principles of the BBU3900 ....................................................................................................3-1
3.2 Configuration Principles of the RRU3606 ....................................................................................................3-3
3.3 Configuration Principles of the Power Supply..............................................................................................3-3
3.4 Configuration Requirements of the RF Antennas..........................................................................................3-4
3.5 Configuration Principles of the Satellite Synchronization Antenna ..............................................................3-4
3.6 Typical Configurations of the DBS3900 .......................................................................................................3-5
4 Transmission and Networking of the BTS ...........................................................................4-1
4.1 Star Networking Mode ..................................................................................................................................4-1
4.2 Chain Networking Mode...............................................................................................................................4-2
4.3 Tree Networking Mode .................................................................................................................................4-3
5 Operation and Maintenance of the BTS................................................................................5-1
5.1 Operation and Maintenance Modes of the BTS ............................................................................................5-1
5.2 Operation and Maintenance Functions of the BTS .......................................................................................5-2
6 Technical Specifications of the DBS3900..............................................................................6-1

Contents
Airbridge DBS3900 CDMA Base Station
Product Description
x Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
6.1 Performance Specifications of the DBS3900 ................................................................................................6-1
6.2 Physical and Electrical Specifications of the DBS3900................................................................................6-6
6.2.1 Technical Specifications of the BBU3900 ...........................................................................................6-6
6.2.2 Technical Specifications of the RRU3606 ...........................................................................................6-7
6.3 Reliability Specifications of the DBS3900....................................................................................................6-9
6.4 Lightning Protection Specifications of the DBS3900 ...................................................................................6-9
6.5 Safety Specifications of the DBS3900 ........................................................................................................6-10
6.6 EMC Specifications of the DBS3900.......................................................................................................... 6-11
6.7 Environmental Specifications of the DBS3900...........................................................................................6-12
6.7.1 Storage Environment..........................................................................................................................6-12
6.7.2 Transportation Environment ..............................................................................................................6-15
6.7.3 Requirements for the Running Environment of the DBS3900...........................................................6-19

Airbridge DBS3900 CDMA Base Station
Product Description Figures
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xi
Figures
Figure 1-1 Hardware structure of the DBS3900.................................................................................................1-1
Figure 1-2 Major functional modules of the DBS3900 ......................................................................................1-3
Figure 1-3 BBU3900..........................................................................................................................................1-3
Figure 1-4 Configuration of the BBU3900.........................................................................................................1-3
Figure 1-5 DC RRU3606 ...................................................................................................................................1-5
Figure 1-6 AC RRU3606....................................................................................................................................1-6
Figure 1-7 Logical structure of the RRU3606..................................................................................................1-13
Figure 1-8 Software structure of the BTS ........................................................................................................1-14
Figure 2-1 Indoor Centralized Installation of the DBS3900...............................................................................2-2
Figure 2-2 Indoor distributed installation...........................................................................................................2-4
Figure 2-3 Outdoor centralized installation of the DBS3900 .............................................................................2-5
Figure 2-4 Outdoor distributed installation of the DBS3900 .............................................................................2-7
Figure 4-1 Star networking mode.......................................................................................................................4-2
Figure 4-2 Chain networking mode....................................................................................................................4-3
Figure 4-3 Tree networking mode ......................................................................................................................4-4
Figure 5-1 Networking of the operation and maintenance system .....................................................................5-2
Figure 6-1 Dimensions of the BBU3900............................................................................................................6-7

Airbridge DBS3900 CDMA Base Station
Product Description Tables
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
xiii
Tables
Table 1-1 Boards in the BBU3900......................................................................................................................1-4
Table 1-2 Ports on the RRU3606 (DC type).....................................................................................................1-10
Table 1-3 Ports on the RRU3606 (AC type)..................................................................................................... 1-11
Table 2-1 Auxiliary devices used in the door distributed installation of the DBS3900 ......................................2-3
Table 2-2 Auxiliary devices used in the door distributed installation of the DBS3900 ......................................2-4
Table 2-3 Auxiliary devices used in the outdoor distributed installation of the DBS3900 .................................2-6
Table 2-4 Auxiliary devices used in the door distributed installation of the DBS3900 ......................................2-7
Table 3-1 Power supply configuration in indoor installation..............................................................................3-3
Table 3-2 Power supply configuration in outdoor installation............................................................................3-4
Table 6-1 Transmit specifications in band class 0 (800 MHz)............................................................................6-2
Table 6-2 Receive specifications in band class 0 (800 MHz) .............................................................................6-2
Table 6-3 Transmit specifications in band class 1 (1900 MHz)..........................................................................6-2
Table 6-4 Receive specifications in band class 1 (1900 MHz) ...........................................................................6-3
Table 6-5 Transmit specifications in band class 5 (450 MHz)............................................................................6-3
Table 6-6 Receive specifications in band class 5 (450 MHz) .............................................................................6-3
Table 6-7 Transmit specifications in band class 14 (1900 MHz)........................................................................6-4
Table 6-8 Receive specifications in band class 14 (1900 MHz) .........................................................................6-4
Table 6-9 Transmit specifications in band class 15 (AWS) ................................................................................6-4
Table 6-10 Receive specifications in band class 15 (AWS)................................................................................6-5
Table 6-11 RRU3606 cascading specifications of the DBS3900........................................................................6-5
Table 6-12 BER threshold specifications of BTS transmission links .................................................................6-6
Table 6-13 Technical specifications of the BBU3900.........................................................................................6-7
Table 6-14 Technical specifications of the RRU3606 (DC type)........................................................................6-7
Table 6-15 Technical specifications of the RRU3606 (AC type)........................................................................6-8
Table 6-16 Reliability specifications of the DBS3900........................................................................................6-9
Table 6-17 Lightning protection specifications of the DBS3900........................................................................6-9

Tables
Airbridge DBS3900 CDMA Base Station
Product Description
xiv Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
Table 6-18 Climatic requirements for the storage environment of the equipment............................................6-13
Table 6-19 Requirements for the concentration of mechanically active substances in the storage environment of
the equipment....................................................................................................................................................6-14
Table 6-20 Requirements for the concentration of chemically active substances in the storage environment of
the equipment....................................................................................................................................................6-14
Table 6-21 Requirements for the mechanical stress in the storage environment of the BBU...........................6-15
Table 6-22 Requirements for the mechanical stress in the storage environment of the RRU...........................6-15
Table 6-23 Climatic requirements for the transportation environment of the equipment .................................6-16
Table 6-24 Requirements for the concentration of mechanically active substances in the transportation
environment of the equipment...........................................................................................................................6-17
Table 6-25 Requirements for the concentration of chemically active substances in the transportation
environment of the equipment...........................................................................................................................6-17
Table 6-26 Requirements for the mechanical stress in the transportation environment of the BBU ................6-18
Table 6-27 Requirements for the mechanical stress in the transportation environment of the RRU ................6-18
Table 6-28 Climatic requirements for the running environment of the equipment...........................................6-19
Table 6-29 Requirements for the concentration of mechanically active substances in the running environment of
the equipment....................................................................................................................................................6-20
Table 6-30 Requirements for the concentration of chemically active substances in the running environment of
the BBU.............................................................................................................................................................6-20
Table 6-31 Requirements for the concentration of chemically active substances in the running environment of
the RRU.............................................................................................................................................................6-20
Table 6-32 Requirements for the mechanical stress in the running environment of the BBU ..........................6-21
Table 6-33 Requirements for the mechanical stress in the running environment of the RRU ..........................6-21

Airbridge DBS3900 CDMA Base Station
Product Description 1 Overall Structure of the DBS3900
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-1
1 Overall Structure of the DBS3900
About This Chapter
This describes the overall structure of the DBS3900, which consists of the BBU3900,
RRU3606, cables, antenna system, and auxiliary equipment.
Figure 1-1 shows the hardware structure of the DBS3900.
Figure 1-1 Hardware structure of the DBS3900
Functional Modules of the DBS3900
Functional
Module Description
BBU3900 Being the baseband unit of the DBS3900, this component is responsible
for resource management, operation and maintenance, and environment
monitoring of the system.
RRU3606 Being the remote RF module unit of the DBS3900, this component is
responsible for transmitting and receiving radio signals to achieve
communications between the wireless network system and the MSs.

1 Overall Structure of the DBS3900
Airbridge DBS3900 CDMA Base Station
Product Description
1-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
There are two types of RRU3606s. One type uses DC power supply whereas the other type uses AC
power supply.
The band classes that the DC RRU3606 and AC RRU3606 support are as follows:
zThe DC RRU3606 supports the 450 MHz, 800 MHz, 1900 MHz, and AWS band classes.
zThe AC RRU3606 supports the 800 MHz A and AWS band classes.
Composition of the DBS3900
Device Description
APM30 The APM30 is an integrated power system for outdoor use and
has the following features:
zSupporting -48 V DC and 110/220 V AC power supply
zProviding at most 12 U space for user equipment when not
configured with additional devices
zSupporting internal storage batteries in the case of AC input
zSupporting piled installation with the storage battery cabinet
(under the APM30 cabinet), which is optional
DCDU The DCDU is a power distribution box and supports one DC
input and nine DC outputs.
EMUA The EMUA is an environment monitoring unit and implements
monitoring for the site environment and user equipment.
For details on the functions of the EMUA, see the EMUA User
Guide.
SLPU The SLPU is a lightning protection unit, which is used to
configure the UELP and UFLP. It implements lightning
protection for E1/T1 and FE/GE signals.
DDF DDFs are classified into two types, which are used for coaxial
cables and twisted-pair cables respectively. A DDF is required
when the transmission equipment and BBU3900 are configured
in the same cabinet.
DC power system Made up of PSUDC/DC modules, the DC power system converts
+24 V DC input to -48 V DC output.
AC power system Made up of PSUAC/DC modules and PMU modules, the AC
power system converts 220/110 V AC input to -48 V DC
output.
1.1 Physical Structure of the DBS3900
This describes the physical structure of the DBS3900, which consists of the BBU3900,
RRU3606, and auxiliary equipment.
1.2 Physical Ports of the DBS3900
This describes the physical ports of the DBS3900.

Airbridge DBS3900 CDMA Base Station
Product Description 1 Overall Structure of the DBS3900
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-3
1.3 Logical Structure of the DBS3900
This describes the logical structure of the DBS3900.
1.4 Software Structure of the BTS
This section describes the software structure of the BTS. The BTS software consists of the
platform software, signaling protocol software, operation and maintenance software, and data
center.
1.1 Physical Structure of the DBS3900
This describes the physical structure of the DBS3900, which consists of the BBU3900,
RRU3606, and auxiliary equipment.
Figure 1-2 shows the major functional modules of the DBS3900.
Figure 1-2 Major functional modules of the DBS3900
Physical Structure of the BBU3900
Figure 1-4 shows the configuration of the BBU3900.
Figure 1-3 Configuration of the BBU3900
FAN
UPEU/UEIU
CMPT
CMPT/USCU/LMPT
HCPM/HECM/UTRP/UELP/UFLP
HCPM/HECM/UBRI
HCPM/HECM/USCU
HCPM/HECM
UPEU
HCPM/HECM/USCU/LBBP
HCPM/HECM/UTRP/UELP/UFLP/USCU
0
1
2
3
4
5
6
7
0
1

1 Overall Structure of the DBS3900
Airbridge DBS3900 CDMA Base Station
Product Description
1-4 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
Table 1-1 Boards in the BBU3900
Module Expansion Description Function
CMPT CDMA Main
Processing&Tra
nsmission Unit
It is the main
processing and
transmission
module.
It processes and transmits data
between the BTS and the BSC,
controls and manages the entire
BTS, and provides clock signals
for the BTS system.
HCPM HERT Channel
Processing
Module
It is the 1X
channel
processing
module.
It processes the 1X service data
on forward and reverse channels.
HECM HERT Enhance
Channel
Processing
Module
It is the EV-DO
channel
processing
module.
It processes the EV-DO service
data on forward and reverse
channels.
LMPT LTE Main
Processing &
Transmission
Unit
It is LTE main
control and
transmission unit.
It manages the entire eNodeB in
terms of OM and signaling
processing and provides clock
signals for the BBU3900.
LBBP LTE BaseBand
Processing unit
It is LTE
BaseBand
Processing unit.
It processes the baseband signals
and Common Public Radio
Interface (CPRI) signals.
UTRP Universal
Extension
Transmission
Processing Unit
It is the universal
extension
transmission
processing unit.
It provides connection between
the BBU3900 and the BSC, and
supports IP transmission over
E1/T1 links.
UBRI Universal
Baseband Radio
Interface Unit
It is the universal
extension radio
interface unit.
It implements the functions of PN
sharing, 1X resource pool, and
convergence and distribution of
baseband data.
UEIU Universal
Environment
Interface Unit
It is the universal
environment
interface unit.
It provides the environment
monitoring signal port for the
BBU3900.
UELP Universal E1/T1
Lightning
Protection Unit
It is the universal
E1/T1 surge
protection unit.
It provides surge protection for
E1/T1 signals.
UFLP Universal
FE/GE
Lightning
Protection Unit
It is the FE/GE
surge protection
unit.
It provides surge protection for
FE signals.
FAN FAN Unit It is the FAN unit
of the BBU3900.
It implements heat dissipation for
the BBU3900.

Airbridge DBS3900 CDMA Base Station
Product Description 1 Overall Structure of the DBS3900
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-5
Module Expansion Description Function
UPEU Universal Power
and
Environment
Interface Unit
It is the universal
power and
environment
interface unit.
It converts -48 V DC or +24 V
DC to +12 V DC and provides
environment monitoring signal
ports for the BBU3900.
USCU Universal
Satellite Card
and Clock Unit
It is the universal
satellite card and
clock unit.
It provides the input port for
external signals (including
satellite clock signals), and
provides synchronization clock
signals for the BBU3900 and for
the RF modules connected to the
BBU3900.

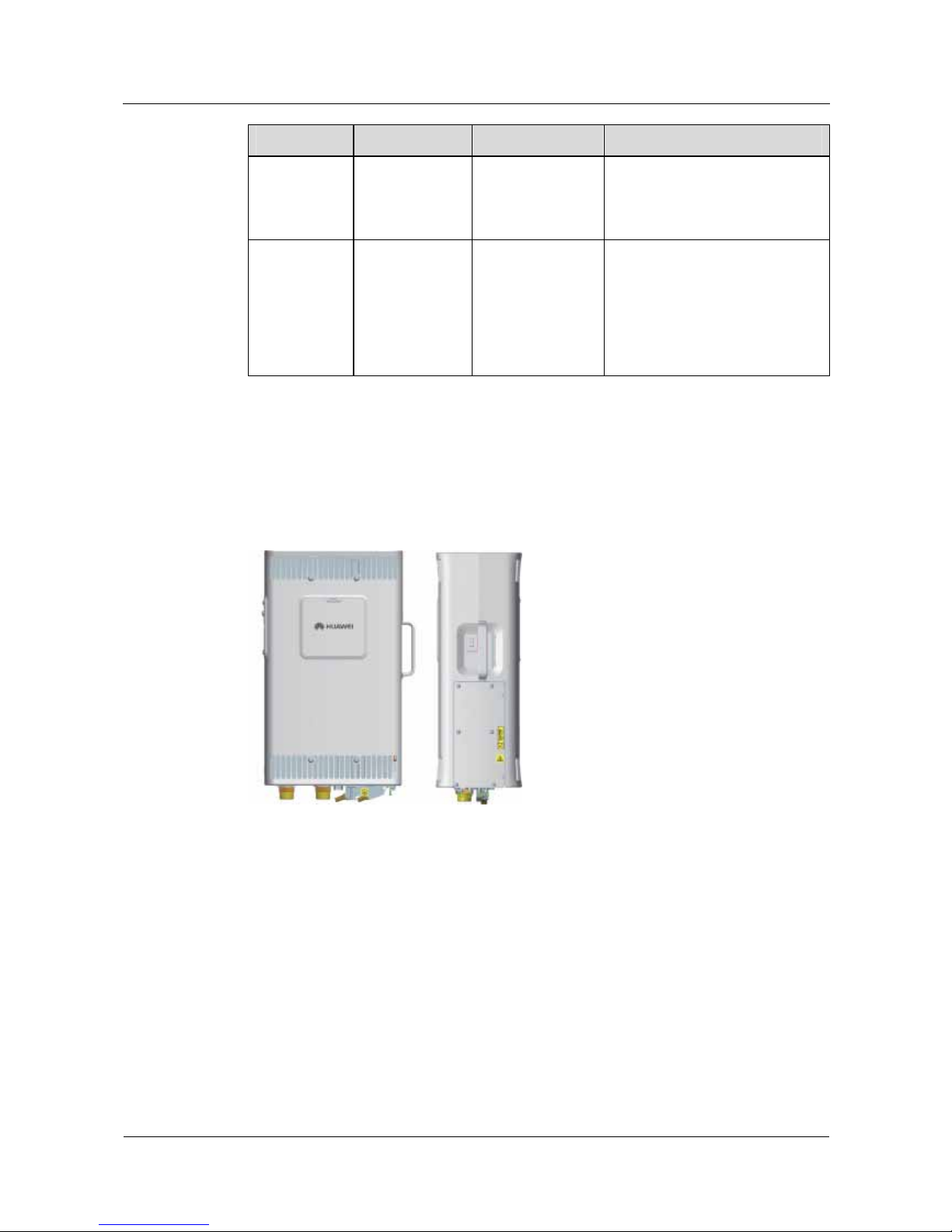

Physical Structure of the RRU3606
The RRU3606 is of two types, that is, the DC RRU3606 and the AC RRU3606, as shown in
Figure 1-5 and Figure 1-6.
Figure 1-4 DC RRU3606

1 Overall Structure of the DBS3900
Airbridge DBS3900 CDMA Base Station
Product Description
1-6 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
Figure 1-5 AC RRU3606
1.2 Physical Ports of the DBS3900
This describes the physical ports of the DBS3900.
1.2.1 Ports on the BBU3900
The ports of the BBU3900 consist of the power ports, transmission ports, alarm ports,
reserved ports, and ports connected to other equipment.
1.2.2 Physical Ports of the RRU3606
The physical ports of the RRU3606 include power ports, transmission ports, alarm ports,
grounding ports, and RF ports. The physical ports of the DC RRU3606 slightly different from
those of the AC RRU3606.
1.2.1 Ports on the BBU3900
The ports of the BBU3900 consist of the power ports, transmission ports, alarm ports,
reserved ports, and ports connected to other equipment.
Ports on Mandatory Boards
Board Port Quantit
y Connector Type Function
CMPT (4
E1)
E1/T1 1 DB26 It is a transmission port,
which is connected to
the BSC and provides
four E1/T1 links.

Airbridge DBS3900 CDMA Base Station
Product Description 1 Overall Structure of the DBS3900
Issue 11 (2010-06-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-7
Board Port Quantit
y Connector Type Function
FE0 1 RJ45 It is the transmission
port, which is connected
to the BSC and provides
one FE link.
FE electrical port,
supporting cable
connection
FE1 1 SFP It is the transmission
port, which is connected
to the BSC and provides
one FE link.
FE optical port,
supporting optical
cables (a removable
optical module is
required)
USB 1 USB It is reserved.
TST 1 USB It is a clock test port.
ETH 1 RJ45 It is a commissioning
port for local
maintenance.
GPS 1 SMA It is used for GPS signal
input.
E1/T1 1 DB44 It is a transmission port,
which is connected to
the BSC and provides
eight E1/T1 links.
FE0 1 RJ45 It is a transmission port,
which is connected to
the BSC and provides
one FE link.
It is an FE electrical port
supporting cable
connection.
USB 1 USB It is reserved.
TST 1 USB It is a clock test port.
ETH 1 RJ45 It is a commissioning
port for local
maintenance.
CMPT (8
E1)
GPS 1 SMA It is used for GPS signal
input.

1 Overall Structure of the DBS3900
Airbridge DBS3900 CDMA Base Station
Product Description
1-8 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 11 (2010-06-18)
Board Port Quantit
y Connector Type Function
HCPM/HEC
M
SFP 3 SFP They are connected to
the RF module.
SFP 0 and SFP 1 2 LC
Indicate Ethernet optical
ports, which are used to
connect to the
transmission device or
gateway
USB 1 USB Loads software to the
board
TST 1 USB Test
ETH 1 RJ-45 Debug
FE/GE0 and
FE/GE
2 RJ-45 Indicate Ethernet
electrical ports, which
are used for connection
to the transmission
device or gateway
GPS 1 SMA Receives GPS signals
LMPT
RST 1 - Resets the BBU3900
LBBP CPRI0 to CPRI5
6 SFP connector
Connecting to the
LRRU, LRFU,
RRU3606 or CRFU for
transmitting service
data, clock signals, and
synchronization
information
Power port 1 3V3 It is used for DC input.
MON0 1 RJ45
MON1 1 RJ45
Each port provides
monitoring function for
one RS485 link. There
are totally two RS485
links.
EXT-ALM0 1 RJ45
UPEU
EXT-ALM1 1 RJ45
Each port provides four
links for dry contact
alarm signal input.
There are totally eight
links of dry contact
alarm signals.
