Huawei R4815N1 User manual

1
R4815N1 Rectifier User Manual V1.2
Environmental Specifications
Item Specification
Operating
temperature –40ºC to +75 ºC (referring to Figure 3)
(–40°F to +167°F)
Storage
temperature –40ºC to +75ºC (not packaged)
(–40°F to +167°F)
Relative humidity 5%-95% (non-condensing)
Altitude range ≤ 4000 m
Item Specification
Input
Operating voltage
85–300 V AC Rated: 200–240 V AC and
100–120 V AC
Frequency 45–66 Hz
Rated: 50 Hz and 60 Hz
Maximum input
current ≤6.4 A
Power factor ≥0.99 (100% load)
THD ≤ 3.5% (full load) ;
≤ 5% (load ≥ 50%)
Output
Output voltage
42–58 V DC Rated voltage: 53.5 V DC
Output power 1000 W (176–300 V AC);
470 W (85–175 V AC decreased linearly)
Regulated voltage
precision ≤ ±0.6%Vo
Ripple and noise ≤ 200 mVp-p
(Bandwidth ≤ 20M Hz)
Dynamic response •25-50% or 50-75% load
−Over shoot:≤ ±5%
−Recovery time: ≤ 200 us (±0.6%)
•10-90% load;
−Over shoot:≤ ±5%;
−Recovery time: ≤ 1ms (±1%)
Standby power ≤5 W
Turn-on output
delay 3–8s
Hold up time > 10 ms
Psophometrically
weighted noise ≤ 2 mV
Broad frequency
noise voltage ≤ 50 mV (3.4–150 kHz) ≤ 20 mV (0.15–30 MHz)
Electrical Specifications
Efficiency The peak point is ≥ 94%
≥ 93% (230 V AC, 30%–100% load)
Height x Width x
Depth 40.8 mm x 95.5 mm x 208 mm (1.61 in. x 3.76 in. x 8.19 in.)
Weight About 1.1 kg
Cooling Built-in fan (The rotation of fan depends
on the internal temperature.)
Description
The R4815N1 is a digital rectifier with high efficiency and
power density. It converts 85–300 V AC input voltage to
53.5 V DC output voltage. The output voltage can be
adjusted by the host.
It performs comprehensive protection functions, supports
soft start, and produces low noise. With the latest power
monitoring technology, states of the rectifier and load are
monitored in real time.
Multiple rectifiers can be paralleled.
Key Features
•Input voltage range: 85–300 V AC
•Operating temperature range: –40ºC to +75ºC
•Total harmonic distortion (THD): ≤ 3.5％
•Digital control mode
•Hot swap
•Supports intelligent electric meter
•Supports CAN communication
•Supports LED display
•Supports voltage adjustment,current
adjustment,and current sharing
•Meet Rohs requirement
•Passes the TUV, CE, UL certifications and gets
the CB certifIcate.
•Disconnect above 320 V AC
Note: If the altitude is within the range of 3000 m to 4000 m, the maximum operating
temperature decreases by 1°C (1.8°F ) as the altitude increases by 200 m.
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.

2
R4815N1 Rectifier User Manual V1.2
Item Specification
Protection
Input overvoltage
protection Protection point: > 300 V AC
Recovery range: 290-300 V AC
Input undervoltage
protection Protection point: < 80 V AC
Recovery range: 70-85 V AC
Output overvoltage
protection 56–60V DC (can be set by monitoring unit)
1. If the overvoltage occurs inside the
rectifier due to a fault, the rectifier
will latch off.
2. If the output voltage is higher than
63 V and lasts for more than 500
ms, the rectifier will latch off.
Output current
limiting protection See Figure 1.
Output short circuit
protection A long term short circuit is allowed. After the fault is rectified, the rectifier
is restored to a healthy state
automatically.
Over-temperature
protection The module protects against overtemperature.
Safety/EMC/Lightening protection
Safety
certification Passes TUV, CE, UL certifications. Catch the CB certificate.
Complies with
UL60950-1;
IEC60950-1;
EN60950-1;
CAN/CSA C22.2 No. 60950-1;
EMC EN55022 Class B ;
EN55024;
EN61000-3-2;
EN61000-3-3;
ETSI EN300 386;
ETSI EN301489;
ITU-T K.20;
Lightning 5 kA
Reliability
MTBF > 500,000 hours
Audible Noise
Specification ≤ 40 dB (25ºC /77°F, full load)

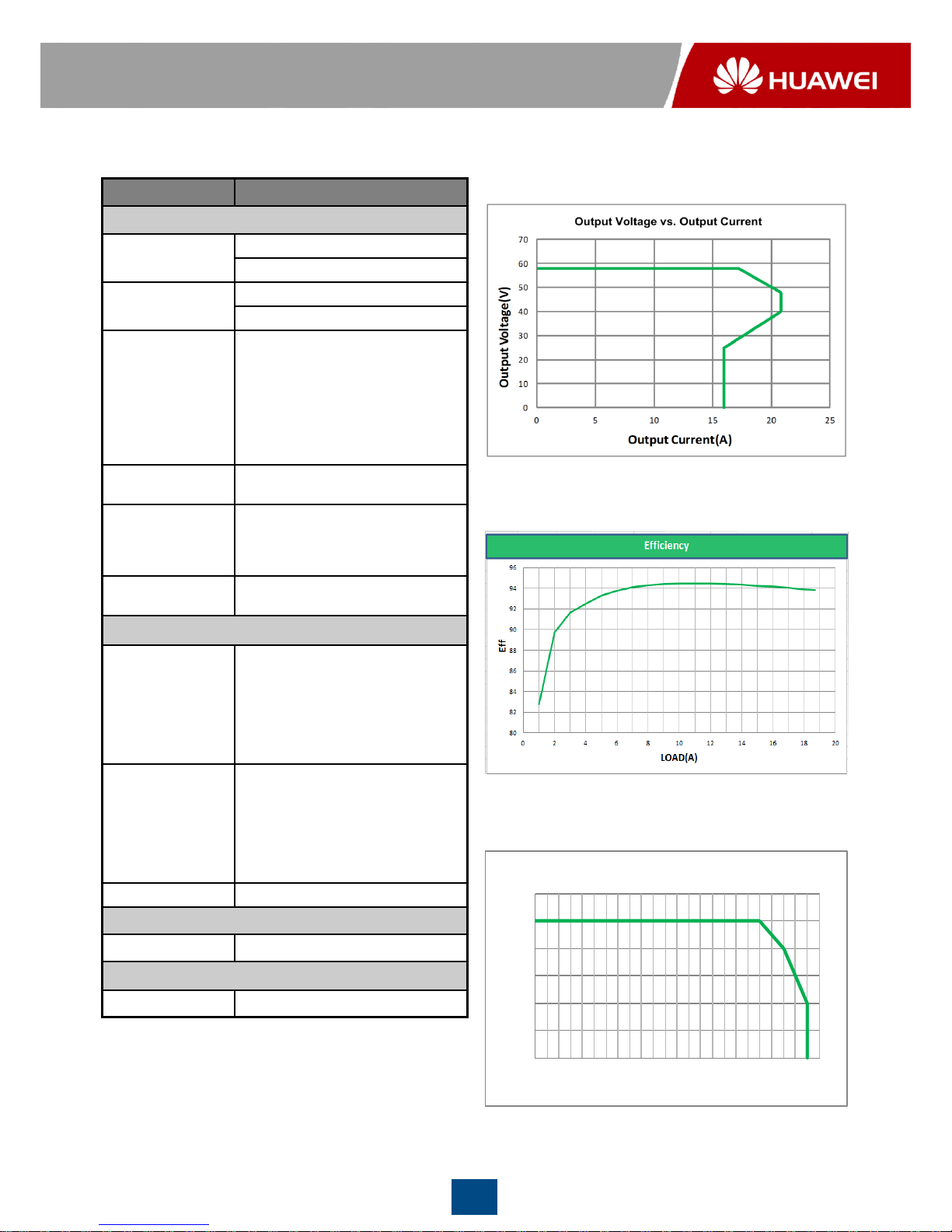

Output Feature
Figure 1 Output feature
Figure 2 Efficiency
(Vin = 230 V AC, Vout = 53.5 V, Ta: 25ºC )
Figure 3 Power derating curve
Other Features
0
200
400
600
800
1000
1200
-40 -20 020 40 60 80
Po(w)
Ta(℃)
Power Derating Curve

3
R4815N1 Rectifier User Manual V1.2

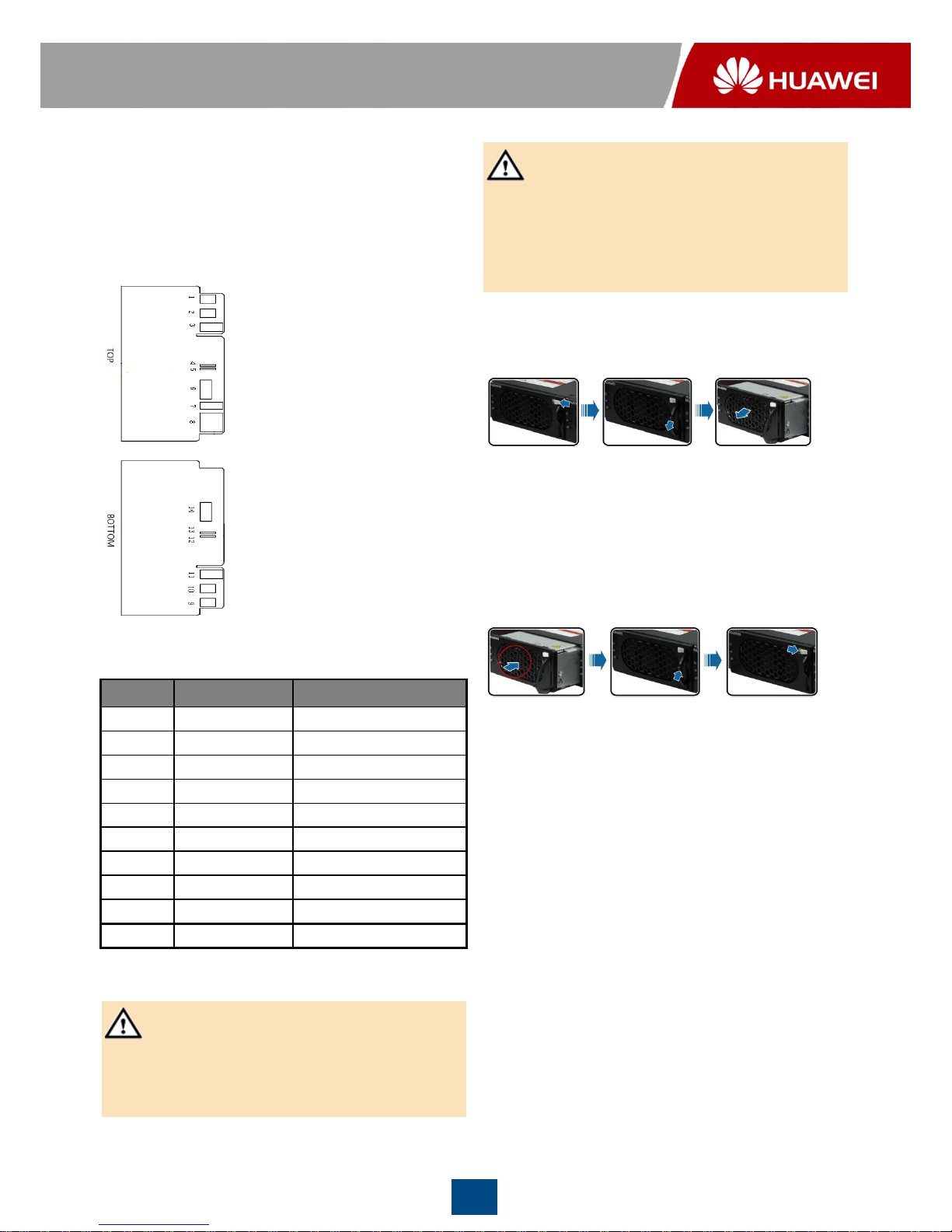

Interface Description
The rear panel of the rectifier provides an golden finger
connection which is used as AC input, DC output and
signal connection.For the location of the pins, see
Figure 3. For the definitions of the pins, see Table 1.
Figure 4 Pins on the rear panel
Table 1 Definitions of the pins on the rear panel
Pin Definition Function
1, 9 L Live line
2, 10 N Neutral line
3, 11 PE Protect earth
4 CANL CANL
13 ACD1 Slot detection signal 1
5 ACD2 Slot detection signal 2
12 CANH CANH
6, 14 OUTPUT+ Output:48V+
8 OUTPUT- Output:48V-
7 Pre-charge Pre-charge
Removing the Rectifier
Figure 5 Removing a PSU
Step 1: Push the locking latch left.
Step 2: Remove the PSU out of the PDU by
externally drawing the handle, as shown
in Figure 5.
Installing the Rectifier
Figure 6 Installing a PSU
Step 1: Push the locking latch left and pull out the
handle.
Step 2: Push the PSU slowly into the subrack
along the guide rail and push the locking
latch right to fix the handle, as shown in
Figure 6.
Transport
The product must be packed with firmly packing
box when transport. Out of the box the mark
“prevent moisture”, “lay down carefully” and other
required mark must have. Any transport tools are
permitted if the product in the packing box. When
transport must avoid rain and snow attack directly
and mechanical shock.
Storage
Product should be packaged in the packing box
before use. The store room should be meet:
-40ºC to +70ºC ambient temperature, related
humidity less than 80%, dry, ventilation and hasn’t
any corrosive gas.
•Only trained and qualified personnel can be allowed to
install or service the rectifier.
•Each rectifier input is protected by two fuses, one for the
live wire and the other for the neutral wire.
CAUTION
•This product should be used in the environment that meets
specifications described in the user manual.
•If the product is used with abnormal power grid input or
exposed to salt mist, dust, or mist, the product may become
faulty, and the resulting product exceptions or component
damage are beyond the warranty scope.
CAUTION

4
R4815N1 Rectifier User Manual V1.2
Indicator Color Status Description Measures
Power
indicator Green Steady on The rectifier is supplied with alternating current (AC) input power. The rectifier runs properly, and no measure is required.
Off The rectifier is not supplied with AC input power. Replace the rectifier if the AC input is
normal.
The rectifier is faulty. Replace the rectifier.
Blinking at
0.5 Hz The rectifier is being queried. No measure is required.
Blinking at
4 Hz The rectifier is loading an application program. The rectifier automatically recovers after loading, and no measure is required.
Alarm
indicator
Yellow Off No alarm is generated. The rectifier runs properly, and no
measure is required.
Steady on The rectifier generates a prewarning for power
limiting due to overtemperature.
The rectifier generates an alarm for shutdown due
to ambient overtemperature protection.
Check that the air vent is not blocked
and the ambient temperature is within a
normal range.
The rectifier generates an alarm due to AC input
overvoltage or undervoltage protection. Check that the electrical grid voltage is within a normal range.
The rectifier is hibernated. No measure is required.
Blinking at
0.5 Hz The rectifier communication is interrupted. Replace the rectifier or monitoring module.
Fault
indicator Red Off The rectifier is not faulty. No measure is required.
Steady on The rectifier is locked due to output overvoltage. Pull out the rectifier and reinsert it after
1 minute.
There is no output because the rectifier is faulty. Replace the rectifier.
•The high -voltage power supply energize equipment. Contacting the high-voltage power supply directly or through a
dampened object may cause you to death.
•Improper operations on the high-voltage power supply may cause accidents such as fire or electric shock.
Maintenance
Suggestions
1.Rectify the faults by referring to Table 2.
2.If you cannot rectify the fault according to Table 2, replace the rectifier.
3.Return the faulty rectifier to Huawei for repairing.
Huawei technical support website:
http://support.huawei.com
Base on following suggestion, Simple fault can be dealt with.
Table 2 Describes the states of LEDs and the causes for abnormal.
DANGER
