Huawei Optix OSN 810 User manual

1
Safety Information
Optix OSN 810
Quick Installation Guide
Issue: 03
Date: 2016-10-20
CAUTION
Following All Safety Precautions
Before any operation, read the instructions and precautions in this document carefully to minimize the possibility
of accidents. The Danger, Caution, and Note items in the documents do not cover all the safety precautions that
must be followed. They only provide the generic safety precautions for operations. When operating Huawei
products and equipment, you must comply with safety precautions and special safety instructions related to
corresponding equipment provided by Huawei. The safety precautions in the document are related to only
Huawei products. Huawei is not liable for any consequence that results from the violation of universal
regulations for safety operations and safety codes on design, production, and equipment use.
Complying with the Local Safety Regulations
When operating the device, comply with the local safety regulations.
Qualified Personnel Only
The personnel in charge of installation and maintenance must be trained and master the correct operating
methods and safety precautions before beginning work.
Symbols
■
Indicates a potentially hazardous situation, which if not avoided, could result in
equipment damage, data loss, performance degradation, or unexpected results.
Provides additional information to emphasize or supplement important points of the
main text.
NOTE
■
■
■
Safety of Personnel
When handling optical fibers, do not stand close to, or look into the optical fiber outlet with unaided eyes.
Protect yourself when drilling holes. Flying dust may hurt your eyes or you may inhale the dust.
When working at a height, be cautious about falling objects.
■
2016
Installation Process
Start
End
Chassis outline
Page3
Installing Chassis
Page3-15
Checking the
Installation
Page21-22
Installing Fibers
and Cables
Page16-20
Appendix
Page23-31
Labels
Page31-32

2
Wire stripper
Marker
Level Phillips screwdriverFlat-head screwdriver
Measuring tape

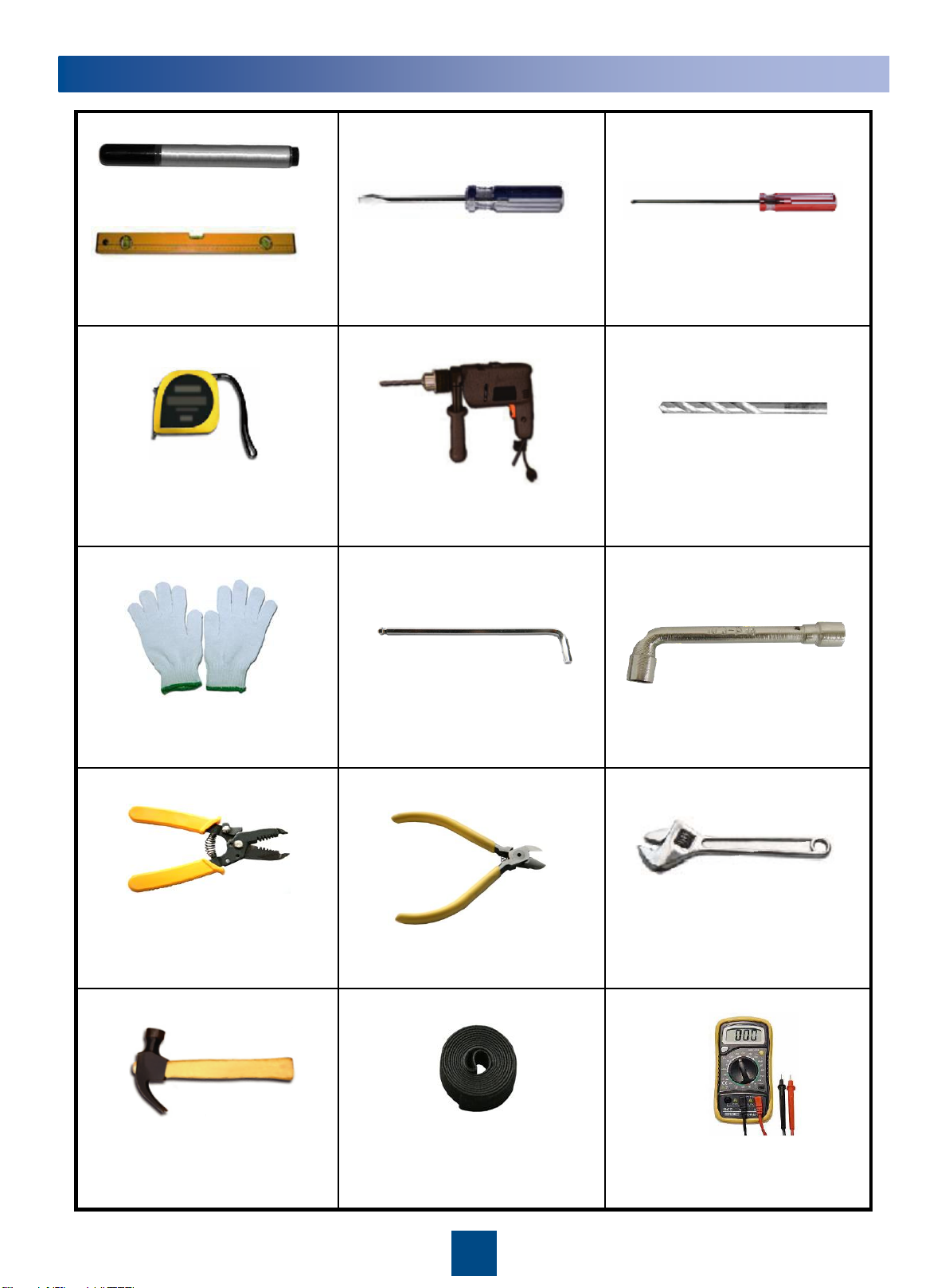

Installation Tools
Adjustable wrench
[aperture ≥ 32 mm (1.26 in.)]
Protective gloves
Claw hammer
Wrench
Hammer drill Φ8 drill bit
Hex key [4 mm (0.16 in.)]
Diagonal pliers
MultimeterFiber binding tape

3

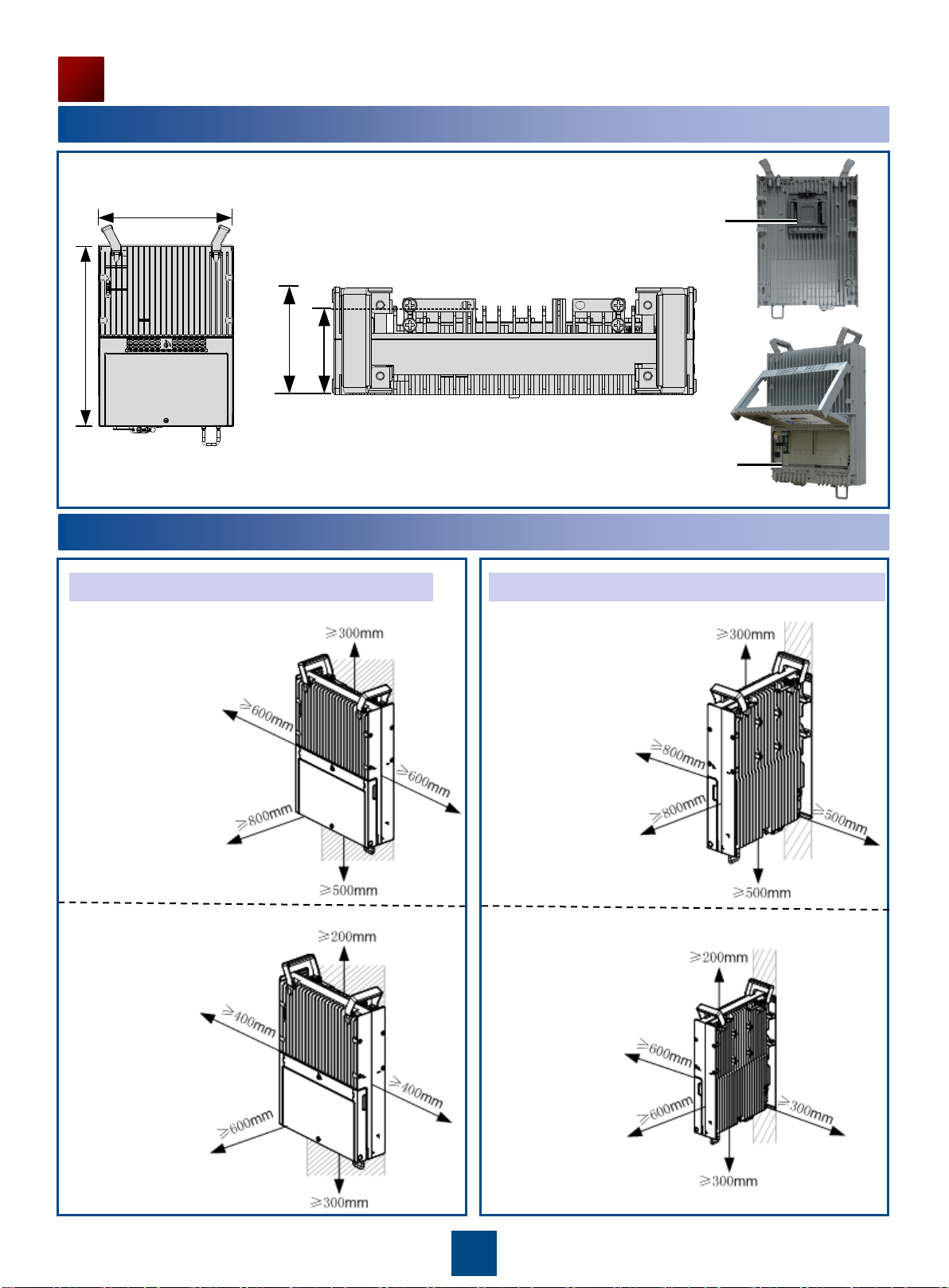

1 Chassis Appearance
Installing Chassis
2 Installing Chassis
conversion bracket
Cabling cavity
70mm
90mm
400mm
300mm
Top
Clearance for a Single OSN 810 in Standard Mode Clearance for a Single OSN 810 in Side-Mounted Mode
Recommended Clearances
Minimum Clearances
Recommended Clearances
Minimum Clearances

4
2 Installing Chassis
Installing the OSN 810 on a Pole
a
Install the OSN 810 mounting brackets
Verify that the arrows on the mounting
brackets are pointing up.
Adjust the position of the nut and remove
one end of the square-neck bolt from the slot
on the auxiliary bracket.
Slide the mounting brackets onto the pole
horizontally and insert the square-neck bolt
into the slot.
Use a 16 mm (0.63 in.) M10 torque wrench to
tighten the nuts to 40 N·m (354.03 lbf·in.) so that
the mounting brackets are secured onto the pole.
Tighten the nuts on the two square-neck
bolts alternatively. After the main and
auxiliary brackets are secured properly,
measure the spacing between the
brackets on both sides and ensure that
the spacing is the same on the two sides.
NOTE
(1) auxiliary bracket (2) square-neck bolt
1
2
Shown in the figure above, it is recommended that the mounting kits be
installed at a position 1200 mm (47.24 in.) to 1600 mm (59.06 in.) high
above the ground.
NOTE

5
2 Installing Chassis
Installing the OSN 810 on a Pole
a
Use an M6 inner hexagon screwdriver to remove
the four inner hexagon screws from the mounting
brackets, and remove the main bracket from the
auxiliary bracket.
Remove the conversion bracket from the rear side of the OSN 810 to the side of the OSN 810.
(1) Main bracket
(2) Pole installation bracket

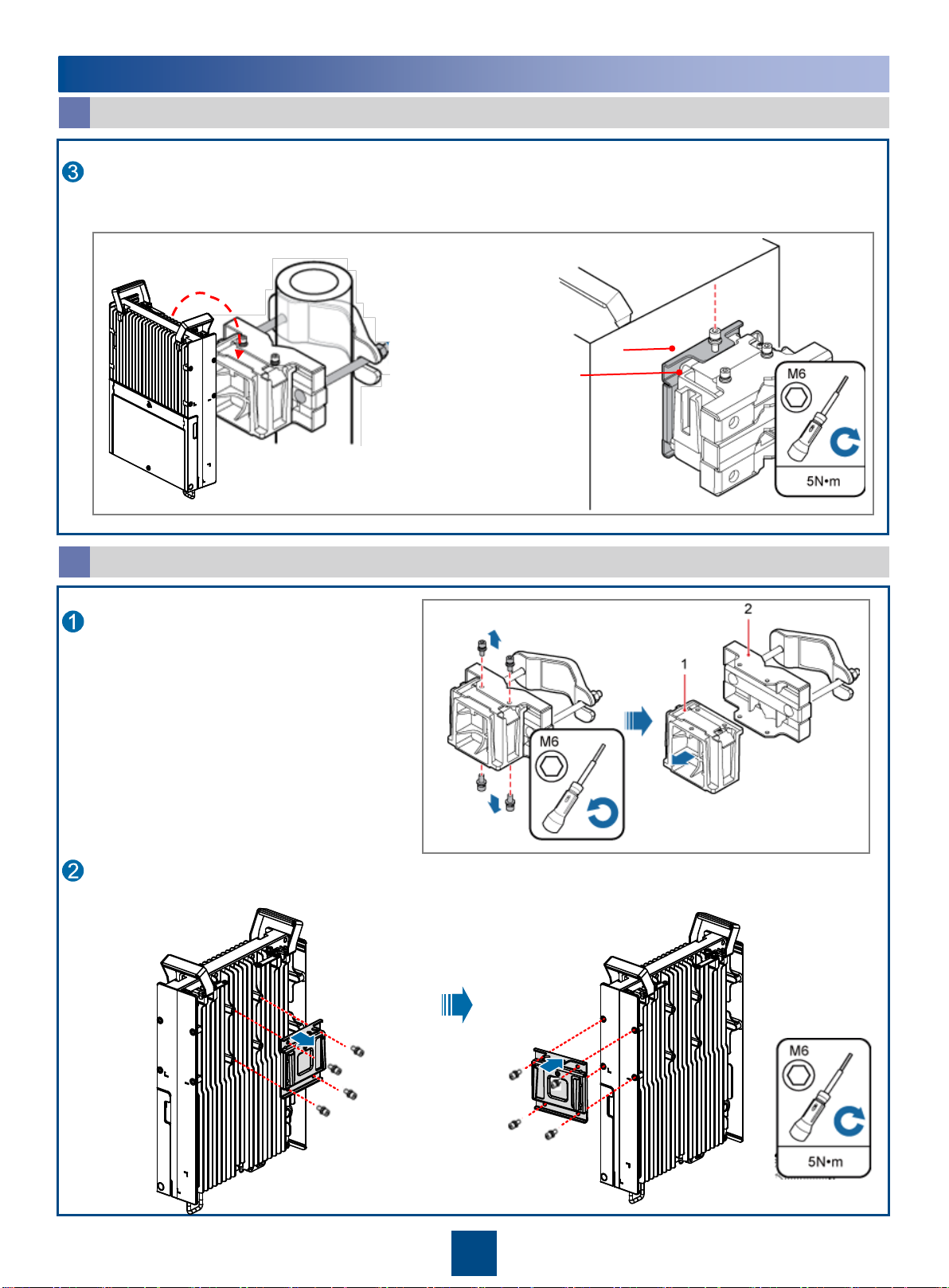

Install the Chassis with RRUs
b
Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the
holes on the top of the conversion bracket and main bracket to 5 N·m (44.25 lbf·in.) so that the conversion bracket and
main bracket are firmly secured.
(1) conversion bracket
2
1
(2) Main bracket

6
2 Installing Chassis
Install the Chassis with RRUs
b
Install the main bracket, and install the OSN 810 on the main bracket. Then use an inner hexagon torque screwdriver to
tighten the captive screw into the connection holes on the top of the conversion bracket and main bracket for the OSN 810,
with a torque of 5 N·m (44.25 lbf·in.).
Install the metal sheet for fixing the RRUs and
OSN 810.
(1) Screw
(2) Metal sheet
Insert the removed screw into the hole on the top of
the neighboring RRU and use an M6 torque
screwdriver to tighten the screw to 5 N·m .
Use an M6 Phillips screwdriver to loosen the
screw on the metal sheet farther from the
handle of the OSN 810 and remove the screw.
Use an M6 Phillips screwdriver to loosen the screw
on the metal sheet closer to handle of the OSN 810.
Then rotate the metal sheet to align the vacant hole
in the metal sheet with a hole on the top of the
neighboringRRU.
NOTE
The OptiX OSN 810 can be installed on the right or left side of an RRU. Ensure that the front side of the OptiX OSN
810 faces outwards and the cabling cavity can be opened.
Cabling cavity
Main bracket

7
Installing the OSN 810 on U-steel
c
•As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24
in.) to 1600 mm (59.06 in.) high above the ground.
•For details about how to install the chassis on U-steel, see the procedure for mounting the chassis on a pole.
Installing the OSN 810 on Angle Steel
d
•As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24
in.) to 1600 mm (59.06 in.) high above the ground.
•For details about how to install the chassis on angle steel, see the procedure for mounting the chassis on a pole.
2 Installing Chassis
NOTE
NOTE

8

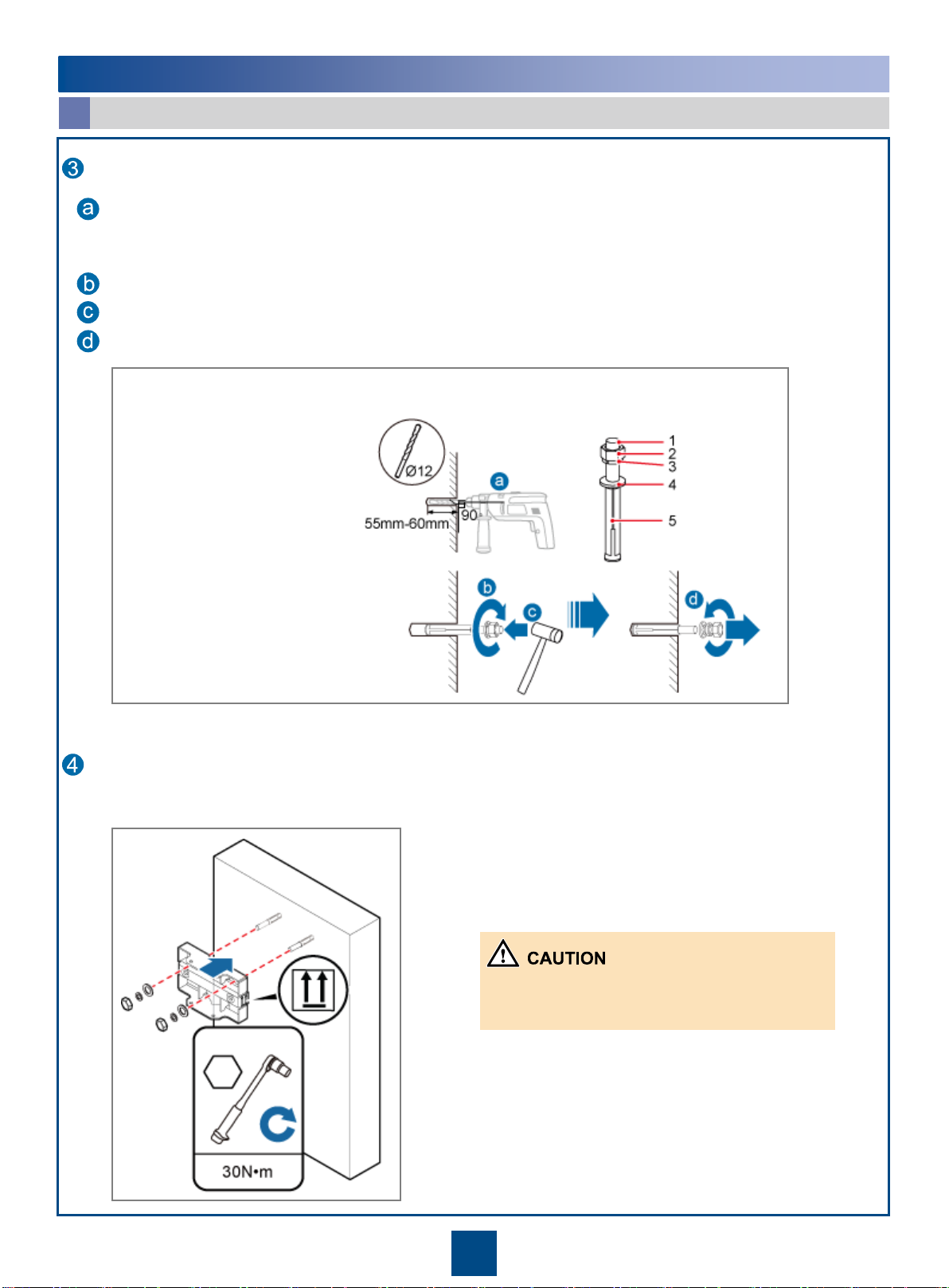

Installing the OSN 810 on a Wall
e
2 Installing Chassis

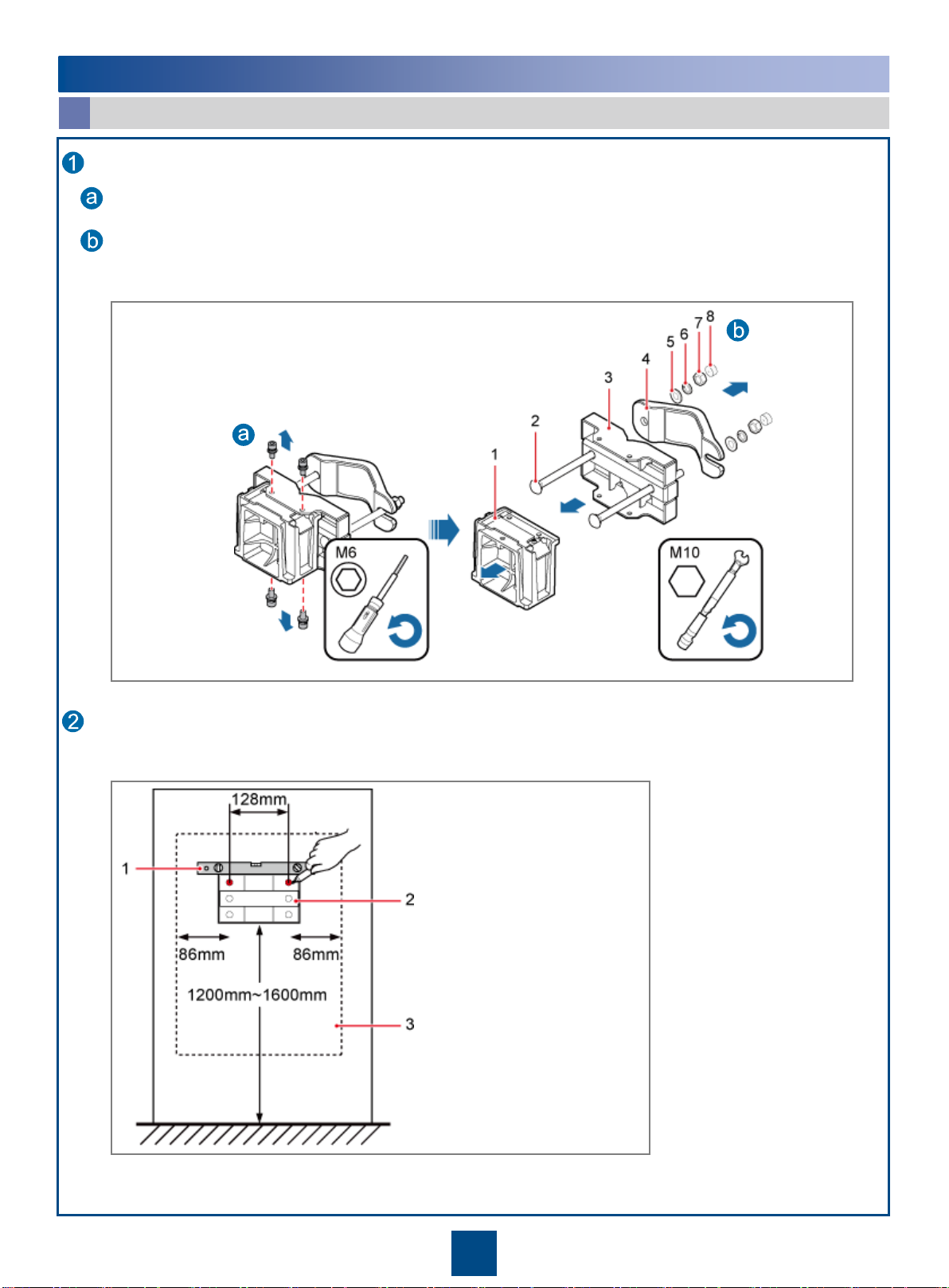

Disassemble the OSN 810 mounting brackets.
(1) Main bracket (2) Square-neck bolt (3) Pole installation bracket
(4) Auxiliary bracket (5) Flat washer (6) Spring washer
(7) Nut (8) Plastic cap
Use an M6 inner hexagon torque screwdriver to remove the four inner hexagon screws on the pole installation bracket,
and remove the main bracket from the pole installation bracket.
Use an M10 torque wrench to loosen the nuts on the two square-neck bolts, and remove the plastic cap, nuts, spring
washers, flat washers, square-neck bolts, and pole installation bracket from the auxiliary bracket.
Place the pole installation bracket against the installation position, use a level to verify that the pole installation bracket is
placed horizontally, and then mark anchor points with a marker.
(1) Level
(2) Pole installation bracket
(3) OSN 810

9
Installing the OSN 810 on a Wall
e
2 Installing Chassis
Drill holes at the anchor points, and then insert expansion anchor bolt assemblies.
Use a hammer drill with a Ф12 bit to drill holes vertically at the marked anchor points with the depth ranging from 55
mm (2.17 in.) to 60 mm (2.36 in.), use a vacuum cleaner to clear the dust out from inside and around the holes, and
measure the distances between holes. If any of the hole is beyond the acceptable range, mark a new anchor point
and drill a new hole.
Tighten the expansion anchor bolts slightly and place one vertically into each hole.
Use a rubber mallet to pound the expansion anchor bolt until it goes all the way into the hole.
Tighten and then loosen the expansion bolt, and remove the M10 bolt, spring washer, and flat washer in sequence.
Install the pole installation bracket on the expansion anchor bolts, place the flat washers, spring washers, and nuts
through the expansion anchor bolts in sequence, and then use a 16 mm (0.63 in.) torque socket to tighten the nuts to 30
N·m (265.52 lbf·in.).
Verify that the arrows on the pole installation
bracket are pointing up.
(1) M10x80 bolt
(2) Nut
(3) Spring washer
(4) Flat washer
(5) Expansion tube

10
Installing the OSN 810 on a Wall
e
2 Installing Chassis
Install the main bracket onto the pole installation bracket, and use an inner hexagon screwdriver to tighten four M6x16
inner hexagon screws to 5 N·m (44.25 lbf·in.) so that the main bracket and pole installation bracket are firmly secured.
Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the
holes on the top of the conversion bracket and main bracket to 5 N·m (44.25 lbf·in.) so that the conversion bracket and
main bracket are firmly secured.
(1) Main bracket
(2) Pole installation bracket

11
Installing the OSN 810 on an IFS06
f
2 Installing Chassis

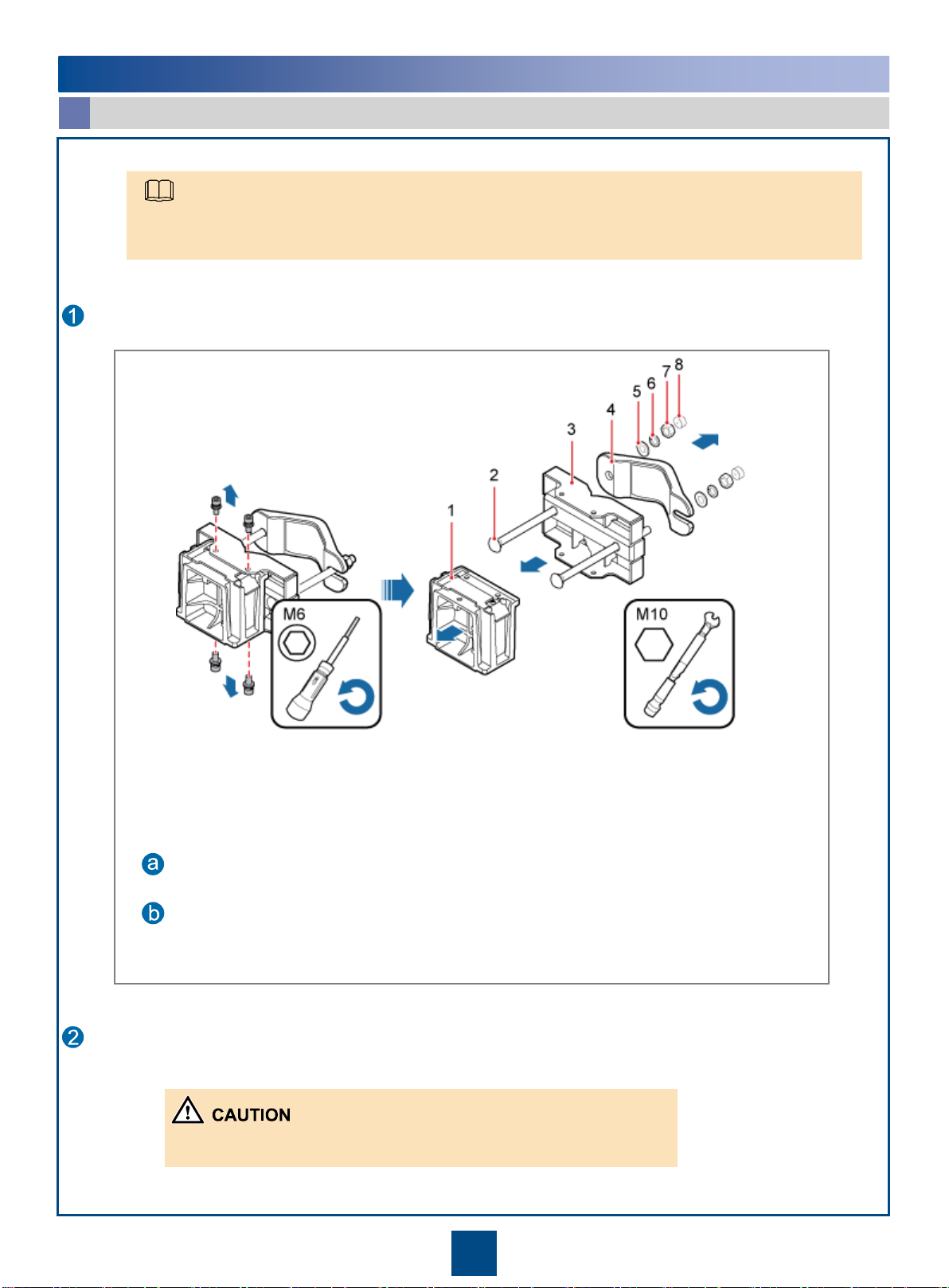

Disassemble the OSN 810 mounting brackets.
(1) Main bracket (2) Square-neck bolt (3) Pole installation bracket (4) Auxiliary bracket
(5) Flat washer (6) Spring washer (7) Nut (8) Plastic cap
Use an M6 inner hexagon torque screwdriver to remove the four inner hexagon screws on
the pole installation bracket, and remove the main bracket from the pole installation bracket.
Use an M10 torque wrench to loosen the nuts on the two square-neck bolts, and remove
the plastic cap, nuts, spring washers, flat washers, square-neck bolts, and pole installation
bracket from the auxiliary bracket.
Use the M10x50 bolts delivered with the IFS06 to secure the pole installation bracket to the IFS06, and then use an M10
torque socket wrench to secure the bolts to 30 N·m (265.52 lbf·in.).
Ensure that the arrows on the pole installation bracket are pointing up.
An Indoor Floor Installation Support (IFS06) is used for installing indoor RRUs. It is an accessory of RRUs.
If the OSN 810 is applied indoors and works with RRUs, you can install the OSN 810 on an IFS06 rack.
NOTE

12
Installing the OSN 810 on an IFS06
f
2 Installing Chassis
(1) Spring washer (2) Rubber washer
Attach the main bracket to the pole installation bracket, and use an inner hexagon screw driver to tighten four M6x16
screws to 5 N·m (44.25 lbf·in.) so that the main bracket and pole installation bracket are firmly secured.
(1) Main bracket (2) Pole installation bracket

13
Installing the OSN 810 on an IFS06
f
2 Installing Chassis

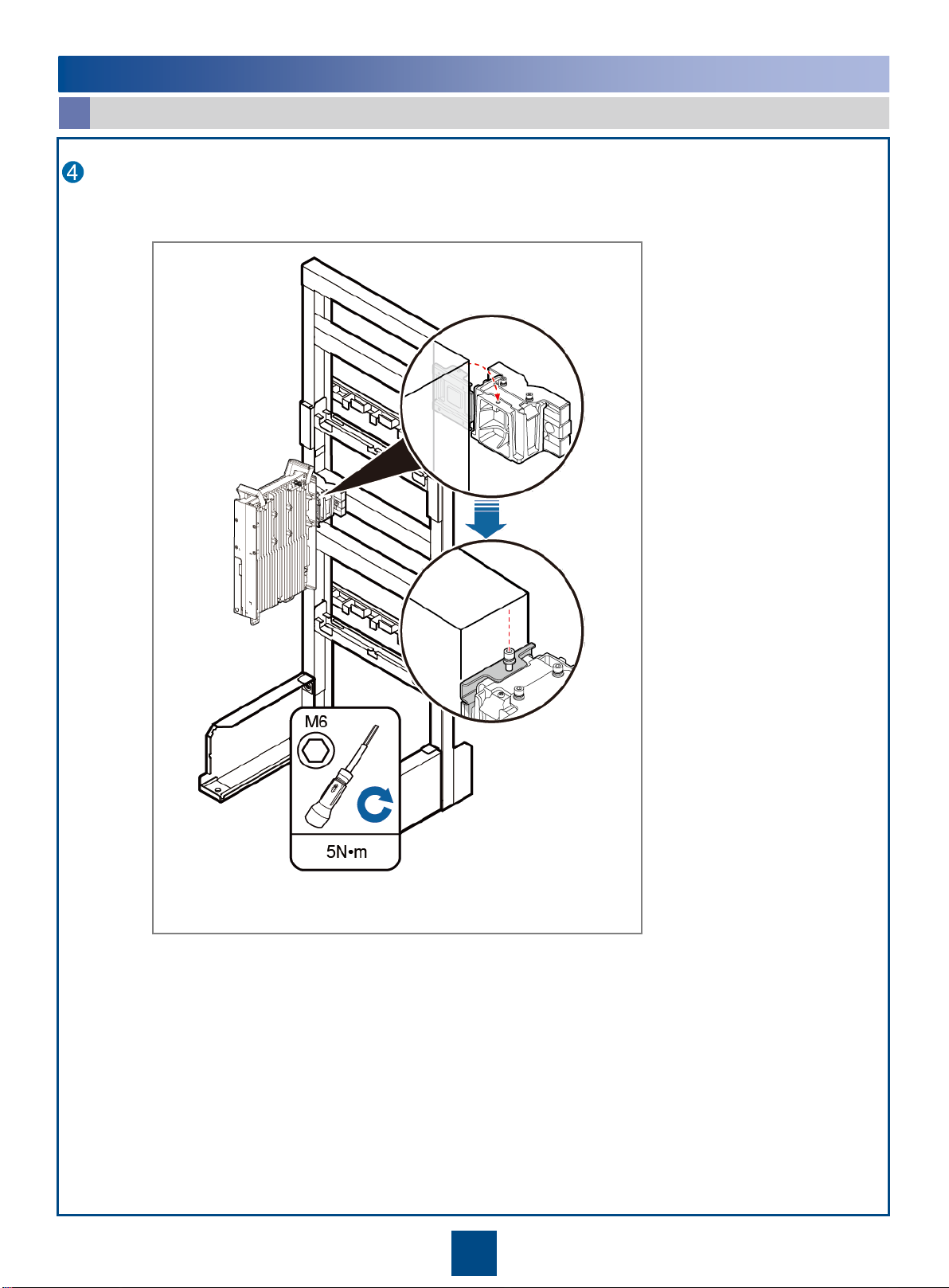

Attach the OSN 810 to the main bracket, and then use an inner hexagon screwdriver to tighten thecaptive screw into
the holes of the attachment plate and main bracket to 5 N·m (44.25 lbf·in.) sothat the attachment plate and main
bracket are firmly secured.

14
Installing the OSN 810 on an IFS06
f
2 Installing Chassis

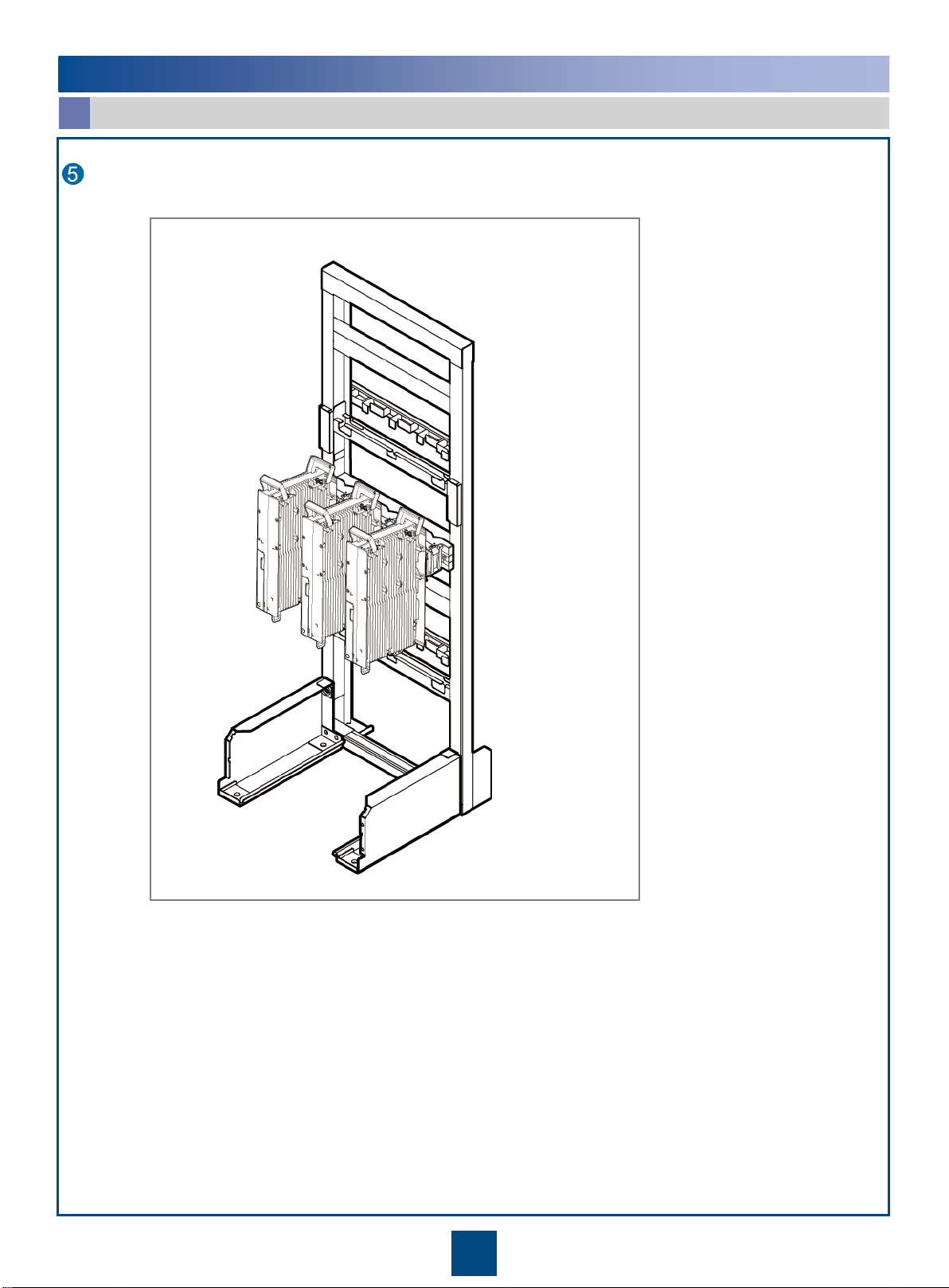

Install the OSN 810 on the lower level from left to right.

15
Installing the OSN 810 on an IFS06
f
2 Installing Chassis
Optional: When the ambient temperature is equal to or higher than the lowest operating temperature of the OSN 810
and at least 10°C (10°F) lower than the highest operating temperature of the OSN 810, repeat the preceding steps
to install the OSN 810 on the higher level.

16

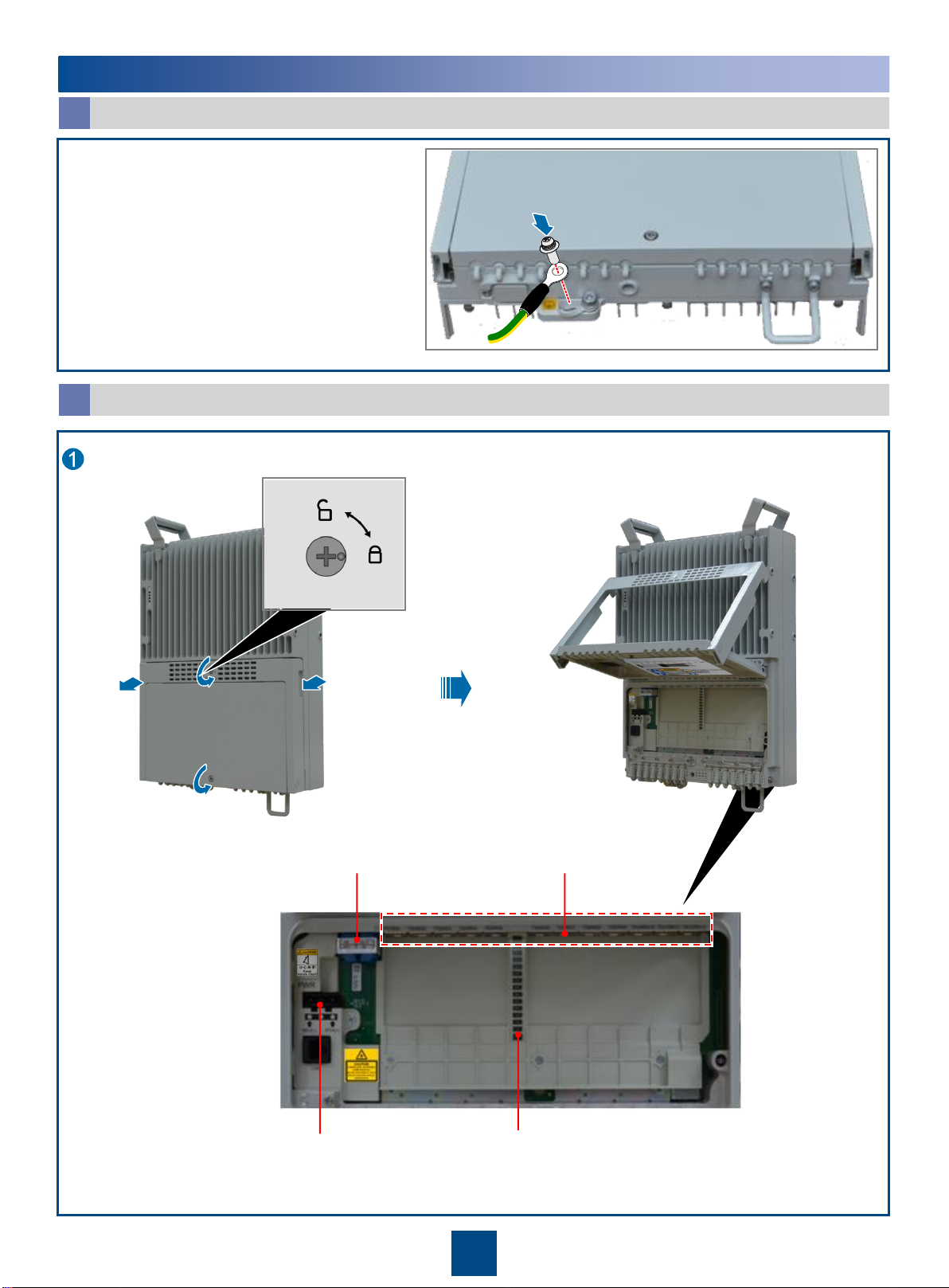

3 Installing Cables

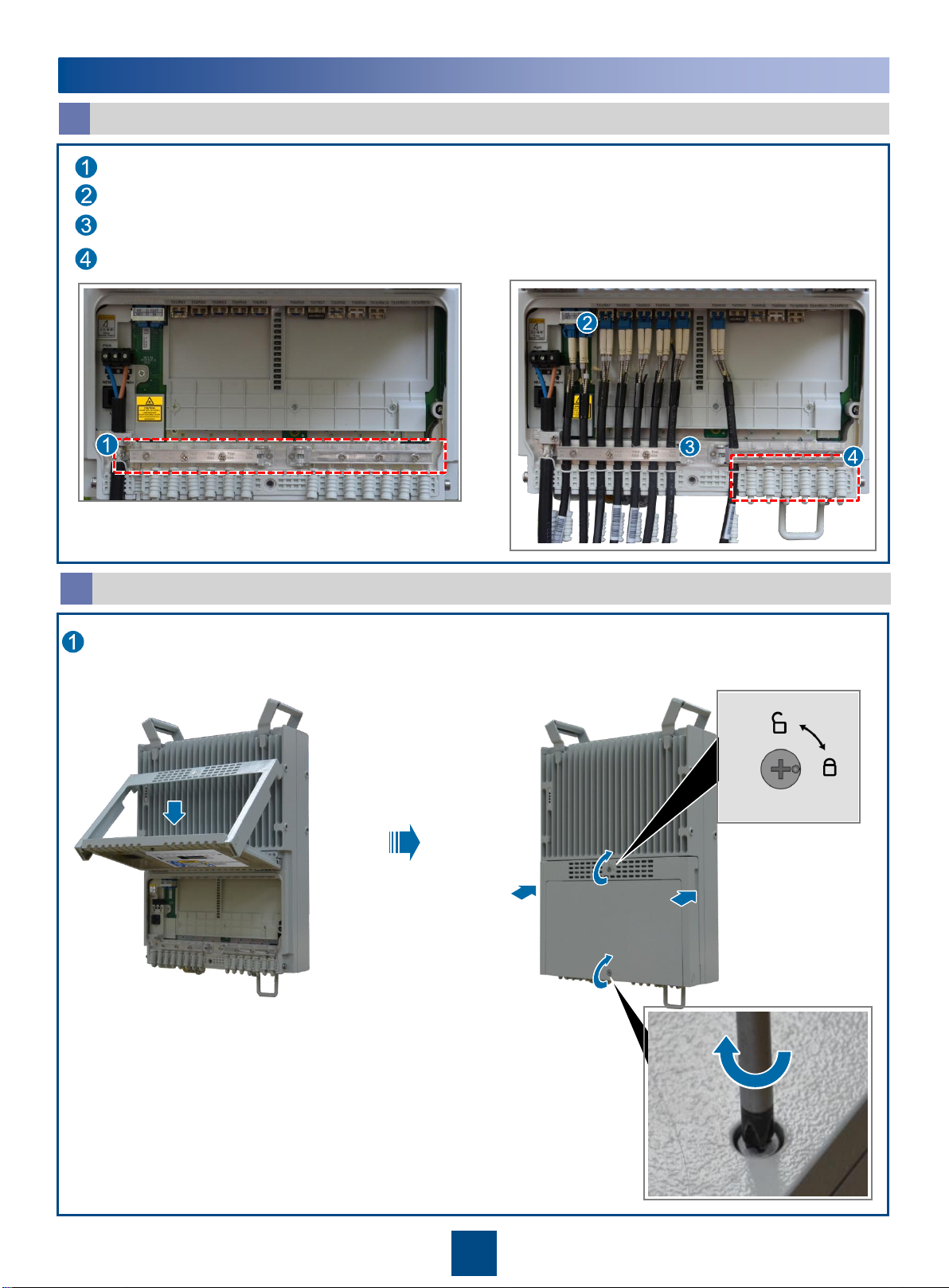

Install the PGND cable
a
Open the chassis
b
Unlock and loosen the screws from the chassis, and pull the levers outwards and lift them upwards.
Connect the OT terminal at one end of the PGND
cable to the ground terminal at the OSN 810
bottom and the OT terminal at the other end to the
external ground bar.
Indicator
WDM-side port
power port
Client-side port

17
3 Installing Cables
Prepare power cables
c
Cable
Color
Power connector
A cable with a black jacket and two wires inside
North American standards: The RTN(+) wire is black and the
RNEG(-) wire is blue.
European standards: The RTN(+) wire is brown and the RNEG(-) wire is blue.
Strip the specified length of the sheath off the power cable.
Strip the sheath of each core wire. Ensure that
the length of the stripped sheath matches with
the length of the power connector.
Strip the specified length of the sheath off the power cable to
expose the intact shield layer.
mm030 40 70 80
mm030 40 70 80
mm030 40 70 80
mm030 40 70 80
Use the cable diagram label in the cover plate of the
cabling cavity of the OSN 810 to measure and
determine the length of jacket to be stripped off each
wire of the power cable.
C
A
B
A Cord end terminal
B Insulation layer
C Conductor
Insert the conductors of the peeled cable into the cord end terminal A and make the conductors of the cable to be flushed
with the end face of the cord end terminal.
Select a proper cross-sectional area and use crimping pliers to clamp the head of the cord end terminal and the conductor
of the power cable.
After the cable is inserted to the cord end terminal, the
conductor of the cable outside the cord end terminal
should not be longer than 1 mm.

18
Tighten the screws using a Phillips screwdriver
After the core wires are installed, ensure that each core wire is securely installed after being dragged with a torque of
30 N•m and all copper wires are inserted in the connector terminal socket.
Connect the NEG(–) terminal of the blue core wire to the
negative electrode (–) of the connector, and the RTN(+)
terminal of the black or brown core wire to the positive
electrode (+) of the connector. Then, use a Phillips
screwdriver to tighten the screws.
Prepare power cables
c
Installing Power Cables
d
Use the Phillips screwdriver to loosen the
screws of the cable clip, and open the cable clip.
Remove the waterproof block.
Insert the power cables through the silica gel
ring to the power cable troughs.
Close the cable clip of power cables, and use
the Phillips screwdriver to tighten the screws of
the cable clip.
Installing the Optical Module
e
Pull the ring of the optical module downwards, insert the optical module into the port of the OSN 810, and pull the ring of the
optical module upwards.
3 Installing Cables

19
Introduction to Outdoor Fibers
f
The following figure shows the structure of an outdoor fiber.
Cable diameter (mm):
Outer Diameter of the Junction Part
Color
/
Black
Material
/
Metal
Diameter
mm
8.5±0.5
Length
mm
20±0.5
7.00
-0.2
1. DLC connector
2. 2.0 mm stuffing
3. Identifier
4. Break out cable (A)
5. Break out cable (B)
6. Junction part
7. Optical cable
Outer diameter of the break out cable
Outline
drawing
/
A
mm
0.20±0.05
L1
mm
0.05-0.1
L2
mm
0.8±0.1
D
mm
2.8±0.1
Material
/
Stainless steel
•Only the junction part and break out cable have metal parts. The lengths of the break out cables on the two
sides of the equipment are different. On the OptiX OSN 810, the length of the break out cable is 30 mm.
•If the customized fibers are different from the fibers provided by Huawei, contact Huawei for confirmation.
NOTE
f
3 Installing Cables

20
Closing the Chassis
h
Press down the levers to close the cabling cavity, lock the buckle, and tighten the screws at the bottom.
Installing Outdoor Fibers
Use the Phillips screwdriver to loosen the screws of the cable clip, and open the cable clip.
Close the cable clip of the installed cables, and use the Phillips screwdriver to tighten the screws of the cable clip.
Insert waterproof blocks into vacant cable troughs in the cabling cavity.
Insert the fibers through the silica gel ring into the optical module.
g
f
3 Installing Cables
