Huawei OptiX OSN 8800 T64 User manual

HUAWEI TECHNOLOGIES CO., LTD.
OptiX OSN 8800 Intelligent Optical Transport
Platform
Quick Installation Guide
Issue: 15
Date: 2017-09-30

Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [email protected]
Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.

End
Engineering Labels
Page 135
to 136
Installing and
Routing Fibers (in a
Fiber Management
Frame)
Page 128
to 131
Installing and
Routing Fibers
Page 122
to 127
Installing and
Routing Alarm
Cables to Cabinet
Indicators
Page 107
to 109
Installing/Routing
Power Cables
Page 45 to
93
Installation Flow
Before
You
Start Installation
Precautions
Page 1
to 2
Start
Introduction to
Installation
Features of the
8800 T64
Page 3
Required Tools
and Equipment
Page 5
Page 22 to
24
Checking SCC/XCH
Board Battery
Jumper Settings
Installing Subracks
Page 20 to
21
Page 19 Installing Subrack
Handles
Installation Holes for
the Subrack
Page 10 to
18
PDF Circuit Breaker
Page 46 to
47
Selecting Power CablesPage 48
Installing Power Cables
Between the DPD63-8-8
PDU and PDF
Page 50 to
54
Installing Power Cables
Between the TN16PDU
and PDF
Page 55 to
56
Subrack Power Cable
Connections
Page 59 to
74
Routing Ground and
Power Cables
Page 57 to
58
Installing Boards
Page 25 to
27
Appearance of the
Subrack
Page 6 to
9
Installing and
Routing NM
Cables
Page 94 to
100
Installing and
Routing Cables to
the CRPC/ROP
Page 118
to 121
Installing and Routing
External Alarm
Cables
Page 101
to 106
Installing Ground
Cables
Page 40 to
44
Installing and
Routing Clock
Cables
Page 110
to 117
Installing
Components
Page 10 to
39
Cable Holes on
Cabinets
Page 49
Reference information
Operation
Requirements and
Precautions for
Operating Boards
Page 4
Page 29 Setting Board
Jumpers
Page 30 Installing
CRPC/ROP Frames
Page 30 to
31 Installing DCM
Frames
Page 34 Installing Optical
Attenuators
Configuring
Master/Slave
Subracks
Page 35 to
39
Power Redundancy
Page 75 to
78
Installing and Routing
Subrack Power Cables
Page 79 to
93
Checking the
Installation
Page 132
to 133
Setting Up Optical
Paths
Page 134
Page 122 Precautions
Open Corrugated
Pipe
Page 122
Page 123 Installing and
Routing External
Fibers
Page 124 Installing and
Routing Fibers to a
DCM Frame
Page 125
to 126 Installing and
Routing Fibers
Between Subracks
Page 126 Installing and
Routing Fibers to a
CRPC Frame
Installing and
Routing Fibers
Between Cabinets
Page 127
Page 32 to
33 Installing the Y-
cable
Page 124 Installing and
Routing Fibers of
the Y-Cable
Installing/Routing
Power Cables-AC
Page 45

1
CAUTION
ESD Protection
Always wear ESD gloves or an ESD wrist strap prior to contact with the equipment or before handling devices, boards, or IC chips
to prevent damage to sensitive components due to electrostatic discharge from the human body. Ensure that the ESD wrist strap is
properly grounded.
Safety Information
Always wear protective gloves when lifting or transporting a cabinet to prevent hand injuries or damage to the cabinet surface.
The equipment is heavy. To prevent human injuries or equipment damage, always use a lifting device to transport or position the
equipment. Use a pallet truck or heavy-duty bogie wagon to transport the equipment on even ground, and use a cargo lift to transport
the equipment between different floors. If the equipment room does not have a cargo lift, a stair-climbing truck is recommended to
transport the equipment between different floors.
CAUTION
This document provides guidelines for quick hardware installation. It describes procedures for onsite installation, but does
not describe pre-delivery assembly.
NOTE
Installation Precautions
ESD jacks on the T32 subrack
ESD jacks on the T64 subrack
CAUTION
In different subracks, the minimum distance (L) between the board ejector lever and the cabinet door must meet
the following requirements:
•8800 T64/T32/T16 subracks, 8800 Universal platform subrack (DC power supply): L ≥ 50mm.
•8800 Universal platform subrack (AC power supply): L ≥ 75 mm.

2
CAUTION
Pre-Installation Check
Ensure that the equipment room, cabinets, power supplies, ground cables, optical cables, and associated devices are ready for
installation. Start the installation according to the engineering design documents after confirming that all conditions are met.
Bundling Cables
Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed 250 mm. (Binding intervals
cannot exceed 200 mm for user cables.)
Binding intervals between cable ties for all cables and corrugated pipes outside the cabinet are determined based on the distance
between the two horizontal beams. If the cable trough does not contain any beams, the binding intervals between cable ties cannot
exceed 250 mm.
CAUTION
Installation Precautions
ESD jacks on the universal platform subrack
ESD jacks on the T16 subrack

3
Precautions for Installing the OptiX OSN 8800 T64:
1. Transportation
Move an N66B cabinet with a tool but not hands to avoid bodily injuries or damages to equipment. To move an
N66 cabinet on a flat ground, use a fork truck or heavy-duty flat car; to move the cabinet from one floor to
another, use a goods elevator. In a telecommunications room without a goods elevator, use auxiliary devices
such as a transportation vehicle applicable to transportation along stairs to move the cabinet.
2. Cabinet installation
There is no space for you to use a tool to install screws on the feet of a cabinet because the
equipment is highly integrated. Therefore you need to remove the DCM frame before installing the
cabinet.
3. Installation of cables and fibers
If there are subracks delivered separately on site, after you install them in a cabinet, connect power cables to
PIU boards, and ground cables, cascading network cables, and cascading fibers to the subracks.
4. Installation of clock cables
Clock cables must be installed on site according to configuration requirements.
5. Installation of fibers
If there are subracks delivered separately on site, after you install them in a cabinet, connect internal cascading
fibers between subracks and external fibers. When connecting fibers between the front side and rear side of the
OptiX OSN 8800 T64 subrack, route fibers through the bottom of the subrack. In this case, the fibers must be
protected in winding pipes at throughholes.
6. Power supply
The maximum power consumption of a fully-configured N66B cabinet is 9600 W and the cabinet requires 16
power supplies.
For more details, see the following parts of this document.
Introduction to Installation Features of the OptiX OSN 8800 T64

Requirements and Precautions for Operating Boards
44

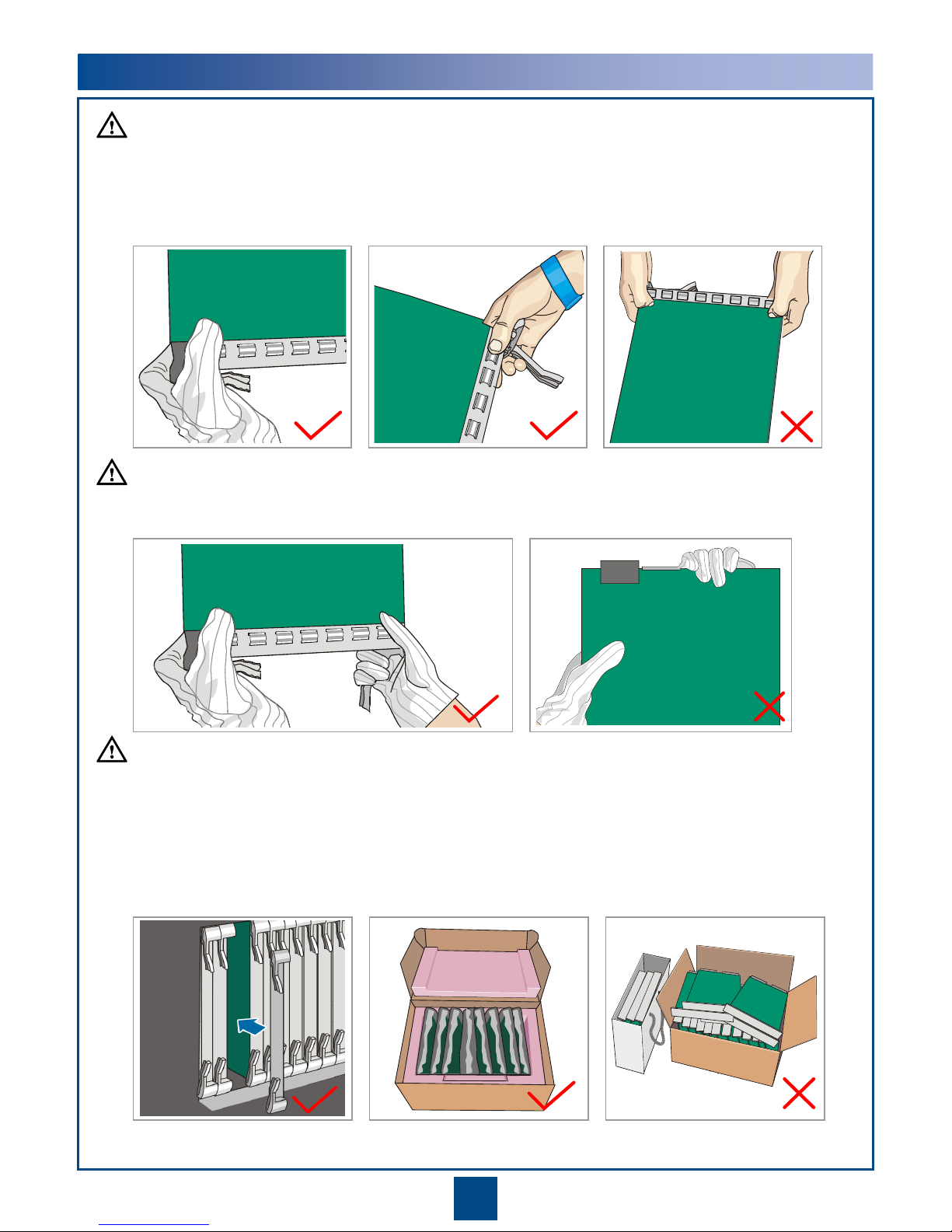

Always wear ESD gloves or an ESD wrist strap prior to operating a board to prevent damage to sensitive
components.
Any vacant slot must be covered by a filler panel to prevent foreign objects from entering the subrack or system
ventilation ducts. Foreign objects may cause an NE failure.
Boards are fragile and vulnerable. When transporting or placing a board, exercise caution and ensure that the
board is packed in a dedicated box to protect the board against damage.
Boards must be packed with original packaging materials during transportation. If the original packaging
materials are lost, contact Huawei.
Operating a board without ESD
protection
Wearing ESD gloves Wearing an ESD wrist strap
Hold the front panel of a board with both hands.
CAUTION
CAUTION
CAUTION

5

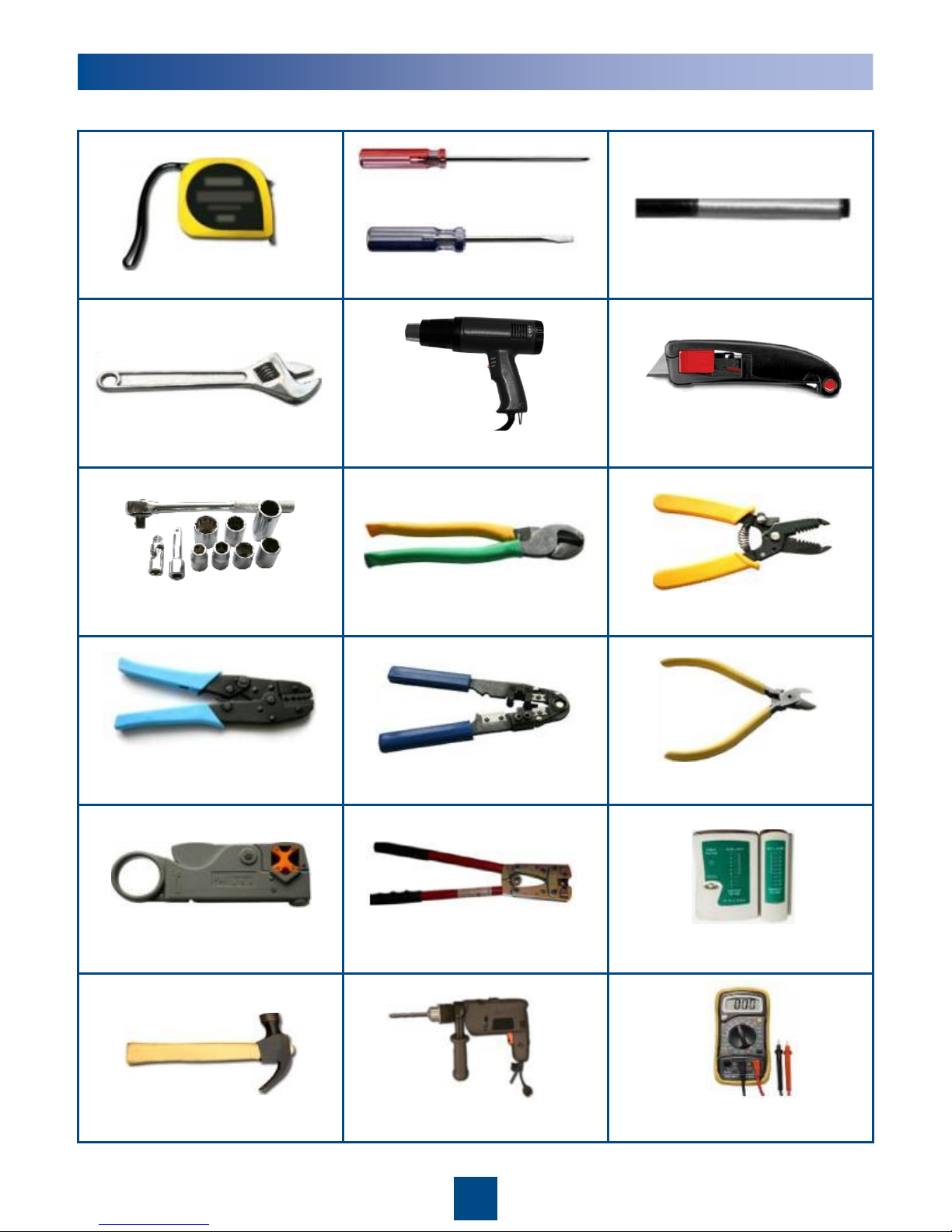

Measuring tape
Phillips screwdriver
Flat-head screwdriver
Adjustable wrench Heat gun Segmented blade utility knife
COAX crimping tool
Cable cutter Wire stripper
Power cable crimping tool Network cable
tester
COAX stripper
RJ45 crimping tool Diagonal pliers
Multimeter
Claw hammer Hammer drill
Socket wrench
Marker
Required Tools and Equipment

Board
area
Fiber
cabling
area
Air filter
Fiber
spool
Fan tray
assembly
Mounting
ear
Fan tray
assembly
6
Appearance of the Subrack

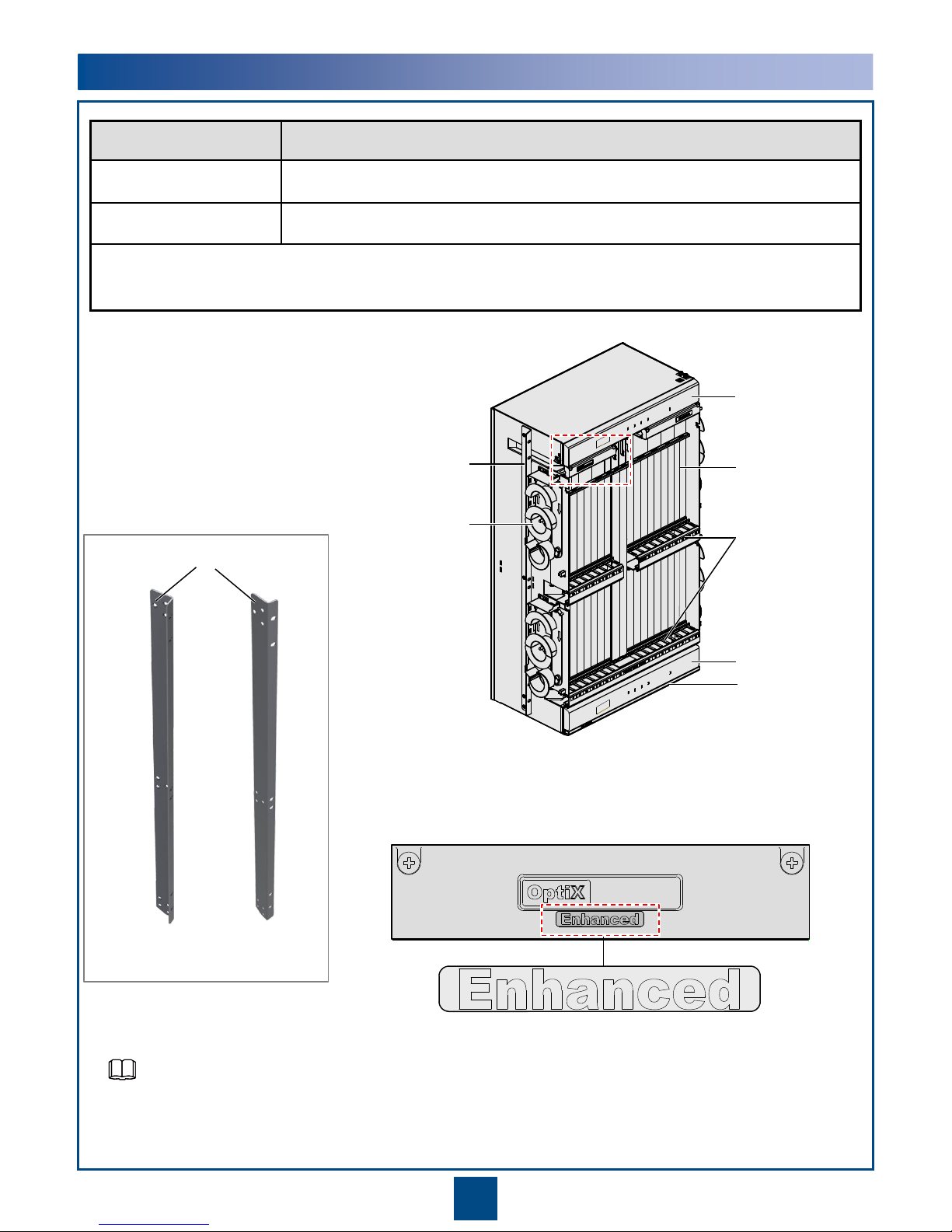

2 OptiX OSN 8800 T64 Subrack
OSN8800T64
A subrack identified by "Enhanced" is an enhanced OptiX OSN 8800 T64 subrack. If the subrack is not identified by
"Enhanced", it is a general OptiX OSN 8800 T64.
NOTE
1 Product Access
Product Initial Supportive Product Version
OptiX OSN 8800 T64 subrack V100R002C00
OptiX OSN 8800 T32 subrack V100R002C00
OptiX OSN 8800 T16 subrack V100R006C00
OptiX OSN 8800 Universal Platform Subrack V100R008C00
Item Specification
Dimensions 498 mm (W) x 580 mm (D) x 900 mm (H) (19.6 in. (W)x 22.8 in. (D) x 35.4 in. (H))
Weight (empty subracka) 65 kg (143 lb.)
a: An empty subrack means no boards are installed in the board area, and no fan tray assembly or air filter is installed.
This end is secured to
the subrack.
Mounting ear
for the left side
of the subrack
Mounting ear for
the right side of
the subrack

7

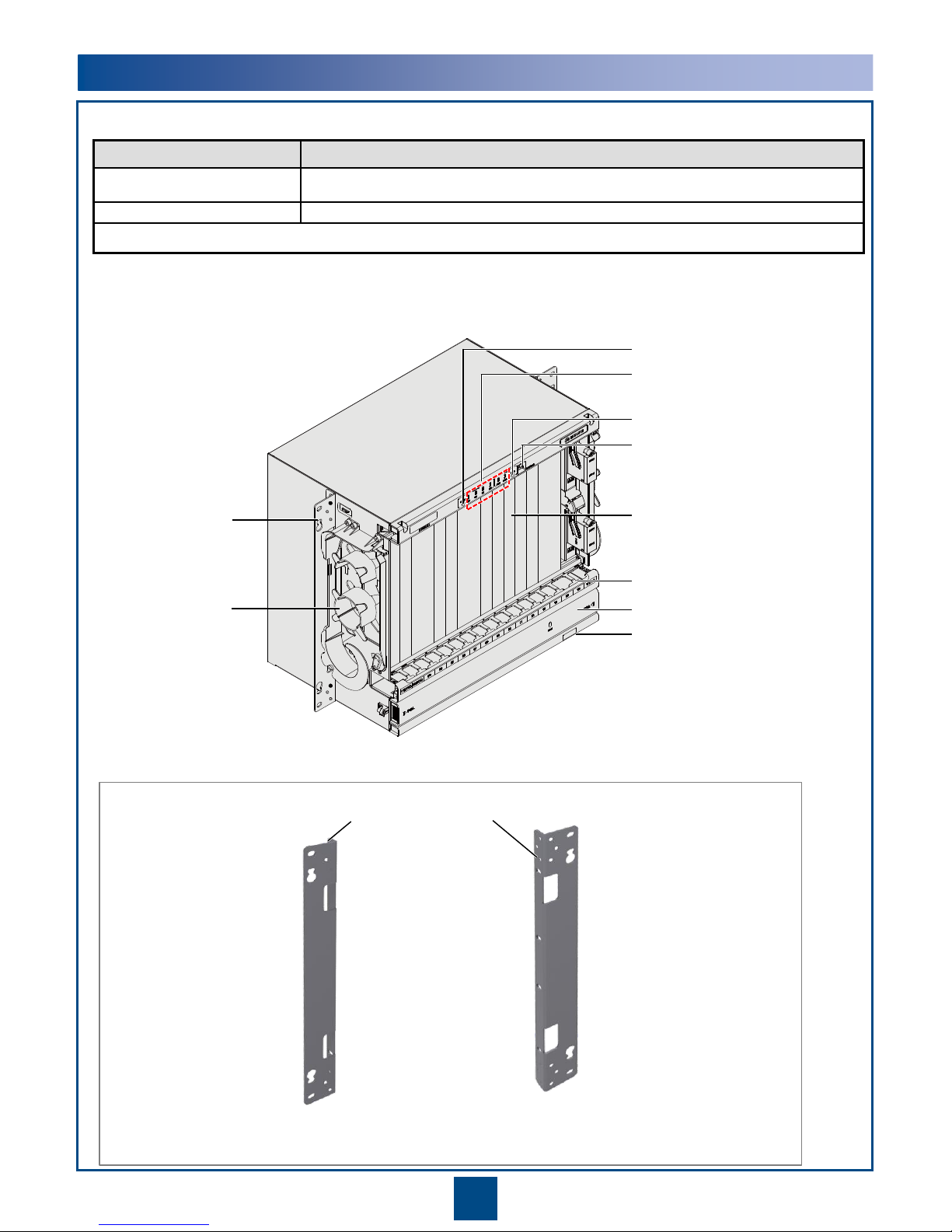

3 OptiX OSN 8800 T32 Subrack
OSN8800T32
A subrack identified by "Enhanced" is an enhanced OptiX OSN 8800 T32 subrack. If the subrack is not
identified by "Enhanced", it is a general OptiX OSN 8800 T32.
NOTE
Board area
Fiber cabling area
Air filter
Fiber spool
Fan tray assembly
Mounting ear
Fan tray assembly
Item Specification
Dimensions 498 mm (W) x 295 mm (D) x 900 mm (H) (19.6 in. (W)x 11.6 in. (D) x 35.4 in. (H))
Weight (empty subracka) 35 kg (77.1 lb.)
a: An empty subrack means no boards are installed in the board area, and no fan tray assembly or air filter is installed.
This end is secured to the subrack.
Mounting ear
for the left side
of the subrack
Mounting ear for
the right side of
the subrack

8
4 OptiX OSN 8800 T16 Subrack
Item Specification
Dimensions 498 mm (W) x 295 mm (D) x 450 mm (H) (19.6 in. (W) x 11.6 in. (D) x 17.7 in. (H))
Weight (empty subracka) 18 kg (39.69 lb.)
a: An empty subrack means no boards are installed in the board area, and no fan tray assembly or air filter is installed.
Board area
Fiber cabling
area
Air filter
Fiber spool
Mounting ear
Fan tray assembly
This end is secured to the subrack.
Mounting ear for the left
side of the subrack Mounting ear for the right
side of the subrack

9
Item Specification
Dimensions 442 mm (W) x 295 mm (D) x 397 mm (H) (17.4 in. (W) x 11.6 in. (D) x 15.6 in. (H))
Weight (empty subracka) 8 kg (17.6 lb.)
a: An empty subrack means no boards are installed in the board area, and no fan tray assembly or air filter is installed.
5 OptiX OSN 8800 Universal Platform Subrack
LAMP TEST Button
Indicator/Interface area
RESET Button
SubRACK_ID LED indicator
Fiber spool
Mounting ear
Fiber cabling area
Air filter
Fan tray assembly
Board area
This end is secured to the subrack.
Mounting ear for the left
side of the subrack Mounting ear for the right side of the subrack

10
1
2
82
83

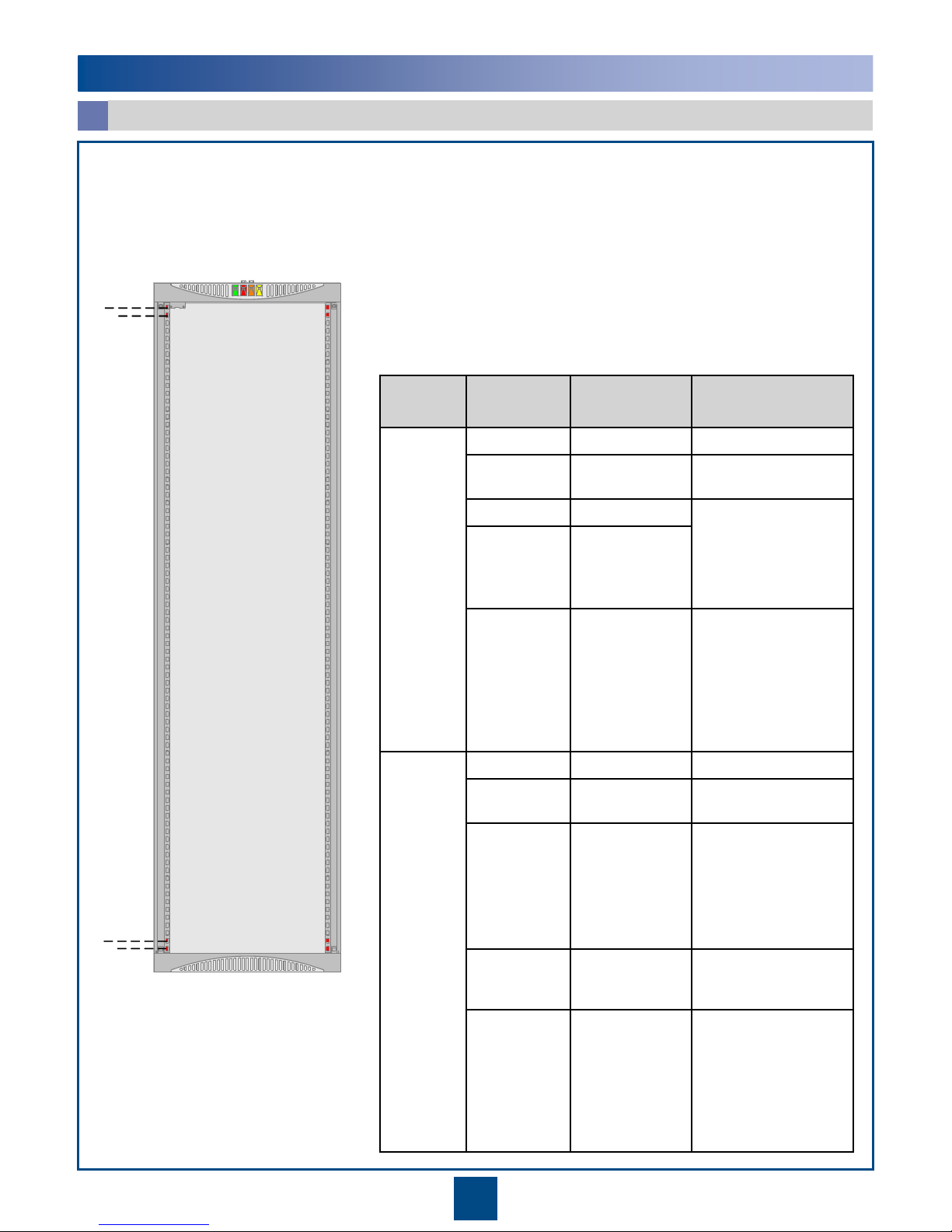

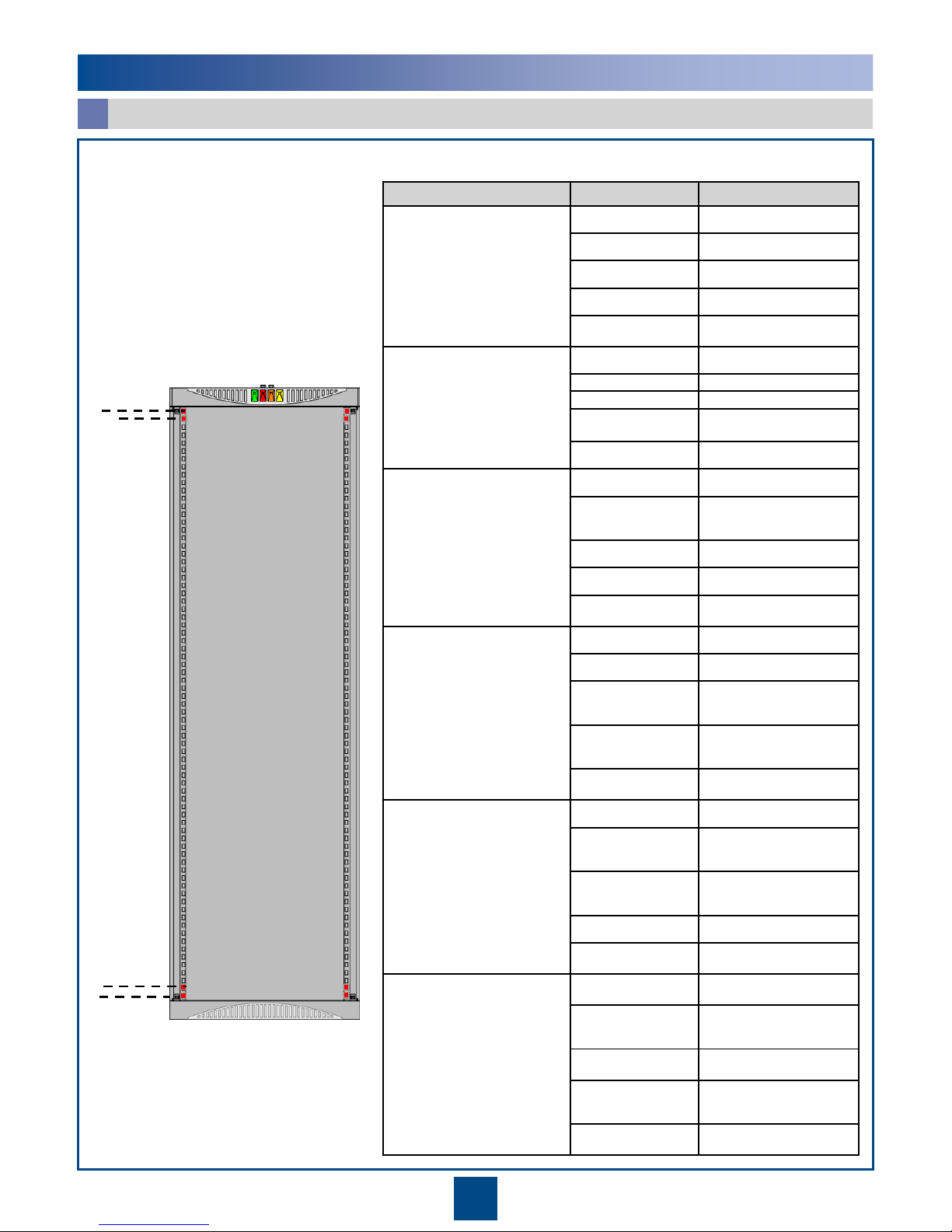

The installation holes on the front/rear
side of an N66B cabinet are numbered
1 to 83 from bottom to top.
Scenario Component InstallationHoles Remarks
1 x T64
subrack +
2 x T32
subracks
PDU 81,83 -
T64 44,46,58,59,74,76 -
T32 7,9,21,22,37,39
The same numbered
installation holes are
used to install T32
subracks on the front
and rear sides of the
cabinet.
DCM 1,2
Two DCM frames
need to be installed.
The same numbered
installation holes are
used to install the
DCM frames on the
front and rear sides of
the cabinet.
1 x T64
subrack +
4 x 6800
subracks
PDU 81, 83 -
T64 44, 46, 58, 59,
74, 76 -
6800 subrack 24, 25, 38, 39 The same numbered
installation holes are
used to install 6800
subracks on the front
and rear sides of the
cabinet.
6800 subrack 8, 9, 22, 23
DCM 1, 2, and 3, 4
Four DCM frames
need to be installed.
The same numbered
installation holes are
used to install the
DCM frames on the
front and rear sides of
the cabinet.
1 Installation Holes for the Subrack
Deploying T64 and Other Subracks in the Same N66B Cabinet
a
Installing Components
Installation holes on the front/rear side of an N66B cabinet
Front side of an N66B cabinet

11
1
2
82
83
The installation holes on the front/rear side of an N66B
cabinet are numbered 1 to 83 from bottom to top.
Scenario Component InstallationHoles Remarks
1 x T64
subrack +
4 x T16
subracks
PDU 81, 83 -
T64 44, 46, 58, 59,
74, 76 -
T16 24, 25, 38, 40 The same numbered
installation holes are
used to install T16
subracks on the front
and rear sides of the
cabinet.
T16 6, 7, 20, 22
DCM 1, 2
Two DCM frames
need to be installed.
The same numbered
installation holes are
used to install the
DCM frames on the
front and rear sides of
the cabinet.
1 x T64
subrack +
4 x
universal
platform
subracks
PDU 81, 83
T64 44,46,58,59,74,
76
universal
platform
subracks 24,25,38,39
The same numbered
installation holes are
used to install
universal platform
subracks on the front
and rear sides of the
cabinet.
universal
platform
subracks 8,9,22,23
DCM 1, 2, and 3, 4
Four DCM frames
need to be installed.
The same numbered
installation holes are
used to install the
DCM frames on the
front and rear sides of
the cabinet.
1 Installation Holes for the Subrack
Deploying T64 and Other Subracks in the Same N66B Cabinet
a
Installation holes on the front/rear side of an N66B cabinet
Front side of an N66B cabinet

12
1 Installation Holes for the Subrack
1
2
82
83
Scenario Component InstallationHoles Remarks
2 x T32
subracks
(One
electrical
subrack at
most)
PDU 81,83 -
T32 44,46,58,59,74,76 If only one T32
subrack needs to
be installed,
install the subrack
in the top-most
area of the
cabinet. Note that
the cabinet must
stand vertically
after the subrack
is installed.
T32 7,9,21,22,37,39
DCM 1,2 -
2 x T32
electrical
subracks
PDU 81,83 -
T32 77,75,60,59,47,45 -
Air deflector 40,39 -
T32 37,35,20,19,7,5 -
1 x T32
subrack +
2 x 6800
subracks
PDU 81, 83 -
T32 44,46,58,59,74,
76 -
6800 subrack 24, 25, 38, 39 -
6800 subrack 8, 9, 22, 23 -
DCM 1, 2, and 3, 4 -
1 x T32
subrack +
2 x T16
subracks
PDU 81, 83 -
T32 45, 47, 59, 60, 75,
77 -
T16 subrack 24, 25, 38, 40 -
T16 subrack 6, 7, 20, 22 -
DCM 1, 2 -
1 x T32
subrack +
2 x
universal
platform
subracks
PDU 81, 83 -
T32 44, 46, 58, 59, 75,
76 -
Universal
platform
subrack 24,25,38,39 -
Universal
platform
subrack 8,9,22,23 -
DCM 1, 2, and 3, 4 -
Deploying T32 Subracks or T32 and Other Subracks in the Same N63B Cabinet
b
The installation holes on an N63B cabinet are numbered 1 to 83 from bottom to top.
Installation holes on an N63B cabinet
Front side of an N63B cabinet

13
1 Installation Holes for the Subrack
Scenario Component InstallationHoles Remarks
1 x T32
subrack +
1 x
Universal
platform
subrack
PDU 73, 75 -
T32 36,38,50,51,66,
68 -
Universal
platform
subrack 14, 15, 28, 29 -
DCM 1, 2, and 3, 4 -
1 x T32
subrack +
1 x T16
subrack
PDU 73, 75 -
T32 36,38,50,51,66,
68 -
T16 subrack 12, 13, 26, 28 -
DCM 1, 2, and 3, 4 -
Deploying T32 Subracks or T32 and Other Subracks in the Same N63B-2m Cabinet
b
The installation holes on an N63B-2m cabinet are numbered 1 to 75 from bottom to top.
Installation holes on an N63B-2m cabinet
Front side of an N63B-2m cabinet
1
2
74
75

Scenario Component InstallationHoles
4 x T16
subracks
PDU 81,83
T16 subrack 61, 62, 75, 77
T16 subrack 43, 44, 57, 59
T16 subrack 24, 25, 38, 40
T16 subrack 6, 7, 20, 22
DCM 1,2
3 x T16
subracks +
1 x 6800
subrack
PDU 81, 83
T16 subrack 62, 63, 76, 78
T16 subrack 44, 45, 58, 60
T16 subrack 24, 25, 38, 40
6800 subrack 7, 8, 21, 22
DCM 1, 2, and 3, 4
2 x T16
subracks +
2 x 6800
subracks
PDU 81, 83
T16 subrack 61, 62, 75, 77
T16 subrack 43, 44, 57, 59
6800 subrack 24, 25, 38, 39
6800 subrack 8, 9, 22, 23
DCM 1, 2, and 3, 4
1 x T16
subrack + 3
x 6800
subracks
PDU 81, 83
T16 subrack 61, 62, 75, 77
6800 subrack 42, 43, 56, 57
6800 subrack 24, 25, 38, 39
6800 subrack 8, 9, 22, 23
DCM 1, 2, and 3, 4
14
1
2
82
83
Deploying T16 Subracks or T16 and Other Subracks in the Same N63B Cabinet
c
1 Installation Holes for the Subrack
The installation holes on an N63B cabinet are numbered 1 to 83 from bottom to top.
Installation holes on an N63B cabinet
Front side of an N63B cabinet

Scenario Component InstallationHoles
3 x T16
subracks +
1 x
universal
platform
subrack
PDU 81, 83
T16 subrack 61, 62, 75, 77
T16 subrack 43, 44, 57, 59
T16 subrack 24, 25, 38, 40
Universal platform
subrack 7, 8, 21, 22
DCM 1, 2, and 3, 4
2 x T16
subracks +
2 x
universal
platform
subracks
PDU 81, 83
T16 subrack 61, 62, 75, 77
T16 subrack 43, 44, 57, 59
Universal platform
subrack 25, 26, 39, 40
Universal platform
subrack 7, 8, 21, 22
DCM 1, 2, and 3, 4
1 x T16
subrack + 3
x universal
platform
subracks
PDU 81, 83
T16 subrack 61, 62, 75, 77
Universal platform
subrack 43, 44, 57, 58
Universal platform
subrack 25, 26, 39, 40
Universal platform
subrack 7, 8, 21, 22
DCM 1, 2, and 3, 4
15
1
2
82
83
Deploying T16 Subracks or T16 and Other Subracks in the Same N63B Cabinet
c
1 Installation Holes for the Subrack
The installation holes on an N63B cabinet are numbered 1 to 83 from bottom to top.
Installation holes on an N63B cabinet
Front side of an N63B cabinet

16
Scenario Component InstallationHoles
3 x T16 subracks
PDU 73, 75
T16 subrack 53, 54, 67, 69
T16 subrack 35, 36, 49, 51
T16 subrack 12, 13, 26, 28
DCM 1,2 and 3,4
2 x T16 subracks + 1 x
universal platform subrack
(with the universal platform
subrack at the bottom)
PDU 73, 75
T16 subrack 53, 54, 67, 69
T16 subrack 35, 36, 49, 51
Universal platform
subrack 14, 15, 28, 29
DCM 1, 2 and 3, 4
2 x T16 subracks + 1 x
universal platform subrack
(with the universal platform
subrack at the top)
PDU 73, 75
Universal
platform subrack 54, 55, 68, 69
T16 subrack 35, 36, 49, 51
T16 subrack 12, 13, 26, 28
DCM 1,2 and 3,4
1 x T16 subrack + 2 x
universal platform
subracks
(with the universal platform
subracks at the bottom)
PDU 73, 75
T16 subrack 53, 54, 67, 69
Universal
platform subrack 36,37,50,51
Universal
platform subrack 14,15,28,29
DCM 1,2 and 3,4
1 x T16 subrack + 2 x
universal platform
subracks
(with the universal platform
subracks at the top)
PDU 73, 75
Universal
platform subrack 54, 55, 68, 69
Universal
platform subrack 36,37,50,51
T16 subrack 12, 13, 26, 28
DCM 1,2 and 3,4
1 x T16 subrack + 2 x
universal platform
subracks
(with the T16 subrack in
the middle of the cabinet)
PDU 73, 75
Universal
platform subrack 54, 55, 68, 69
T16 subrack 35, 36, 49, 51
Universal
platform subrack 14, 15, 28, 29
DCM 1,2 and 3,4
1
2
74
75
Deploying T16 Subracks or T16 and Other Subracks in the Same N63B-2m Cabinet
c
1 Installation Holes for the Subrack
The installation holes on an
N63B-2m cabinet are numbered
1 to 75 from bottom to top.
Front side of an N63B-2m cabinet
Installation holes on an N63B-2m cabinet

Scenario Component InstallationHoles
4 x
universal
platform
subrack
PDU 81, 83
Universal platform
subrack 62, 63, 76, 77
Universal platform
subrack 46, 47, 60, 61
Air deflector 40,41
Universal platform
subrack 23, 24, 37, 38
Universal platform
subrack 7, 8, 21, 22
DCM 1, 2, and 3, 4
17
1
2
82
83
Deploying universal platform Subracks in the N63B Cabinet
d
1 Installation Holes for the Subrack
The installation holes on an N63B cabinet are numbered 1 to 83 from bottom to top.
Installation holes on an N63B cabinet
Front side of an N63B cabinet
