OceanStor V5 Series V500R007
Quick Configuration Guide for File
(Windows)
Issue: 04
Release date: 2018-07-30
Copyright ©Huawei Technologies Co., Ltd. 2018.
All rights reserved
Overview
Where to get help
a
b
Feedback
c
This document helps you quickly configure file services for OceanStor V5 series storage systems. For more
information, see the OceanStor V5 Series V500R007 Basic Storage Service Configuration Guide for File.
You can register for a Huawei support account at http://e.huawei.com to browse and download valuable
information and sign up for product updates.
Your feedback is important to us. If you have any comments about this document, please go to Huawei enterprise
technical support website at http://support.huawei.com/enterprise/, and send us your feedback and suggestions.
Before You Start
Introduction to OceanStor V5 Series Storage Systems
Applicable Product Models
•OceanStor 5000 V5 Series:
OceanStor 5300 V5/5500 V5/5600 V5/5800 V5
•OceanStor 5000F V5 Series:
OceanStor 5300F V5/5500F V5/5600F V5/5800F V5
•OceanStor 6000 V5 Series:
OceanStor 6800 V5
•OceanStor 6000F V5 Series:
OceanStor 6800F V5
•OceanStor 18000 V5 Series: OceanStor 18500 V5/18800 V5
•OceanStor 18000F V5 Series: OceanStor 18500F V5/18800F V5

2

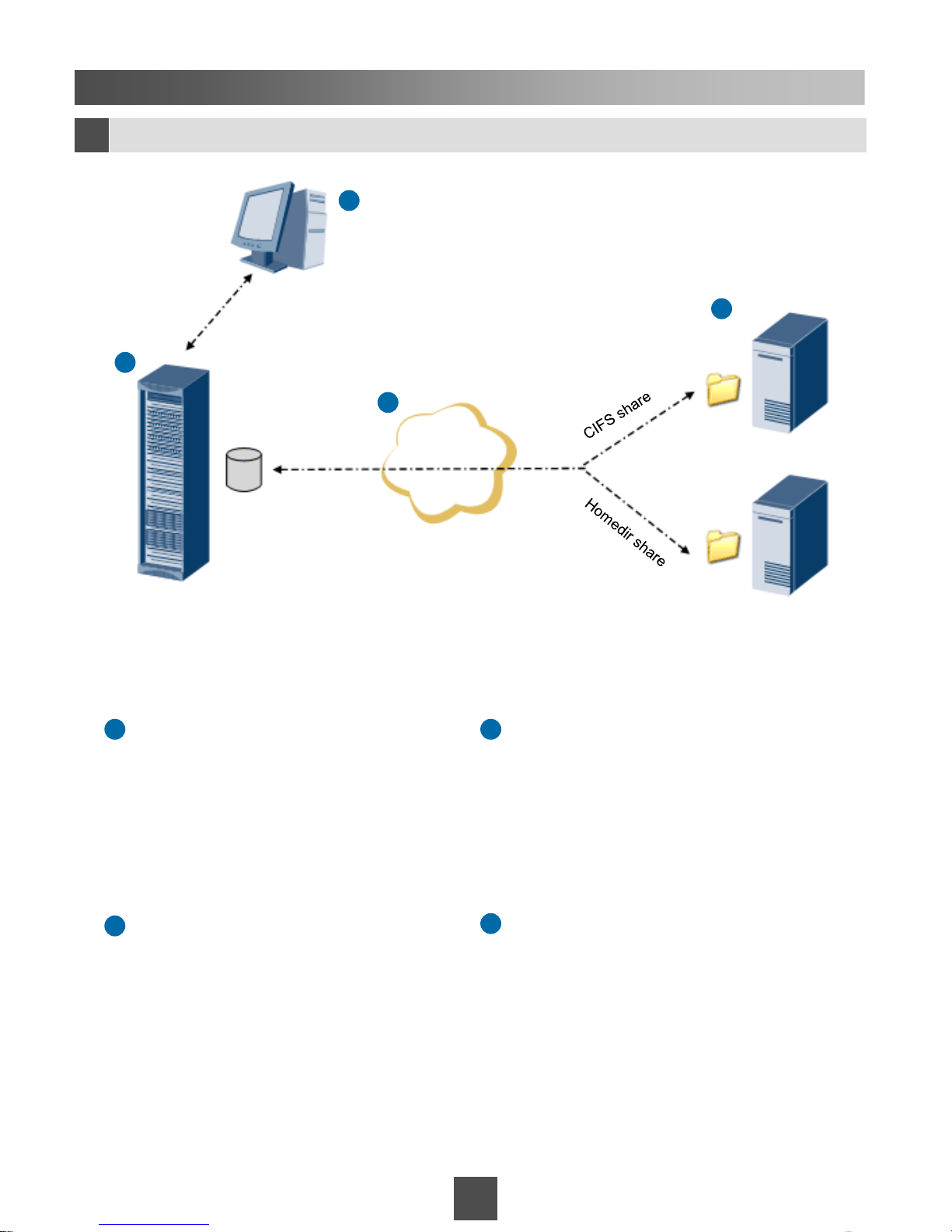

Maintenance terminal
Run DeviceManager
CIFS protocol Windows client
A maintenance terminal is connected to
storage system through a management
network port or the management network
port of SVP (18000, 18000F series storage
systems). You can manage and maintain the
storage system on the maintenance terminal
running the DeviceManager program
developed by Huawei.
1
2
3
4
1
The file system of a storage system provides
file-level data storage services featuring high
performance and enhanced security.
2
CIFS is a file system sharing protocol
developed by Microsoft and intended for
Windows. Through CIFS, files can be
transferred and shared between Windows
clients.
3
Generally, CIFS shares provided by storage
systems are public directories and can be
accessed by all authorized users. If you
want to set a private directory, enable
Homedir so that each user can only access
the directory that shares the same user
name with the user.
4
Windows client
File system
Shared
directory
Private
directory
1 Introduction
Basic Application Scenario
1a
Storage system

3

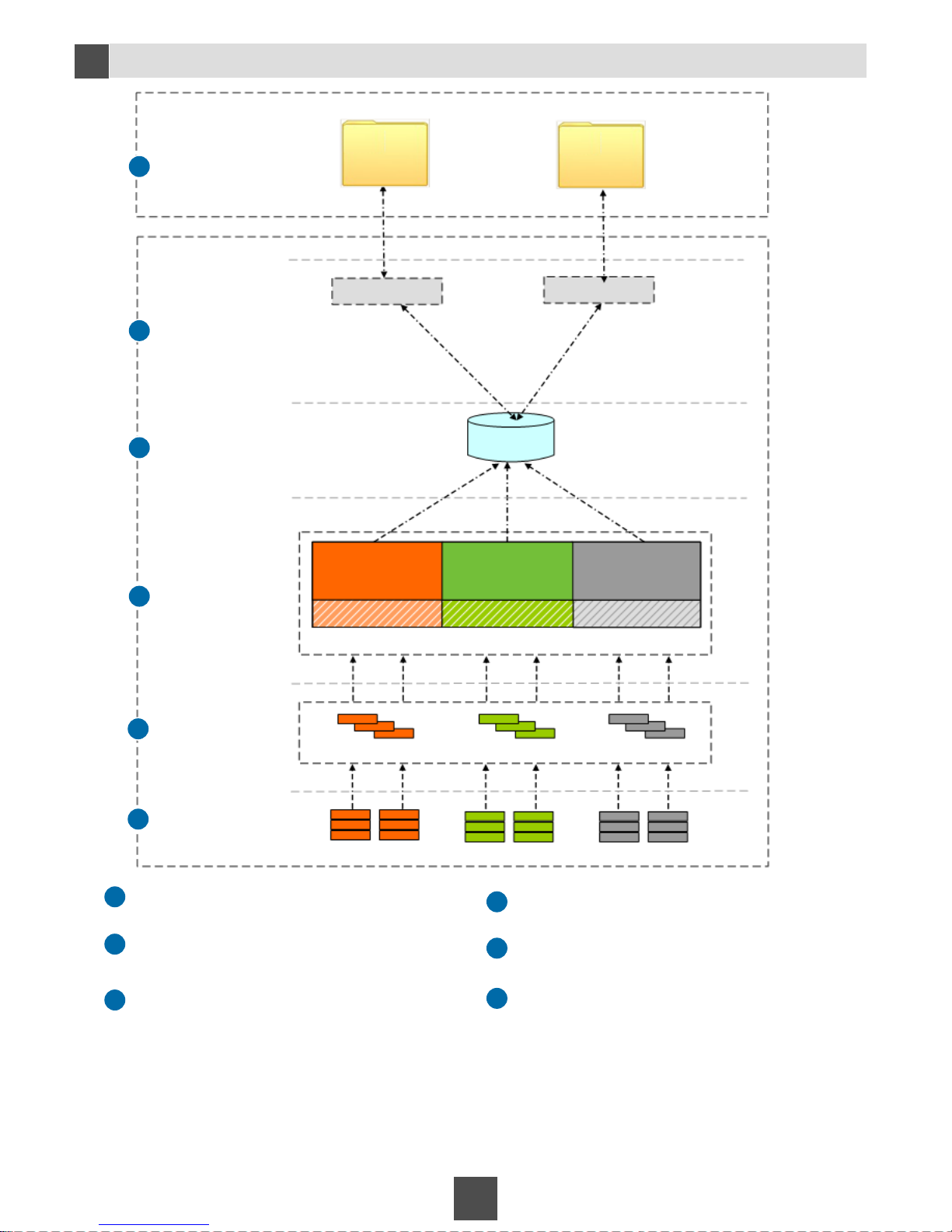

The storage system automatically identifies all
disks.
1
Disk domains are comprised of the same or
different types of disks. Services of different
disk domains are isolated from each other.
2
Storage pools are created in disk domains and
comprised of RAID groups formed by disks of
different performance. For OceanStor 5000,
6000, and 18000 series storage systems, a
storage pool can be divided into three storage
tiers based on storage media: high-performance
tier, performance tier, and capacity tier. For
OceanStor 5000F, 6000F, and 18000F series
storage systems, a storage pool contains the
high-performance tier only.
3
A file system can be created in a storage pool to
provide storage space for a CIFS share.
4
1b
After creating a CIFS share, you can set different
access permissions for users.
5
A shared file system appears as a directory on a
Windows-based client when the client accesses the
CIFS share provided by a storage system.
A storage system shares its file system with a user
in CIFS Homedir mode. The shared file system
appears as a directory. The directory name is the
same as the user name. The Homedir directory can
be accessed only by this user.
6
SSD SAS NL-SAS
share
File system
Storage pool
Disk domain
Disks
High-performance tier Performance tier
Capacity tier
High-performance tier Performance tier Capacity tier
Data area Data area Data area
Hot spare area
CIFS share
1
2
3
4
5
6
Hot spare area Hot spare area
Storage system
File system
Share directories
Homedir share
Sharename Username

4
Preparation Item Source Example Value
Maintenance terminal: Logging in to DeviceManager
Management network port IP addressesaNetwork
administrator Default value: 192.168.128.101 A1
IP address of a management network port on
the SVPbNetwork administrator Default value: 192.168.0.136 A1
User name and password for logging in to
DeviceManager
System
administrator
Default user name:
admin
Default password:
Admin@storage
A2
Maintenance terminal: Creating a disk domain
Disk domain name User-defined DiskDomain000 B1
Disk encryption type Service
provider Non-Encrypting Disk B2
Number of disks forming disk domains
Service
provider
Performance tier
(SAS): 8
Capacity tier
(NL-SAS): 24
B3 Multi-choice
□High-performance
tier
SSDs:
□Performance tier
SAS disks:
□Capacity tier
NL-SAS disks:
Maintenance terminal: Creating a storage pool
Storage pool name User-defined StoragePool000 C1
Usage Service
provider File Storage Services C2
Owning disk domain Service
provider DiskDomain000 C3
2 Data Preparation and Operation instructions
The CIFS is a value-added feature that requires a license. For details about how to apply for and import a license,
see the Installation Guide of the corresponding model. Before operations, follow instructions in the following table
to prepare data and enter actual values in the Value column.
Data Preparation
2a
This document uses example values to describe the configuration.
Replace example values with actual values during actual configuration.
The figure in the right shows the mappings of example values and actual values in the following table.
A1
Example Value
You are advised to change the default
password immediately after you have logged
in to the storage system for the first time and
periodically change your password in the
future. This reduces the password leakage
risks. For details about how to modify the
password, see Administrator Guide of the
corresponding model.
High-performance tier uses SSDs.
Performance tier uses SAS disks.
Capacity tier uses NL-SAS disks.
For 5000F, 6000F, 18000F series storage
systems, only support the high
performance tier.

Preparation Item Source Value Value
Storage tier and capacity
Service provider
Performance tier
RAID Policy:
RAID 5(4D+1P)
Capacity: 1 TB
Capacity tier
RAID Policy:
RAID 6(4D+2P)
Capacity: 1 TB
Total Storage Pool
Capacity: 2 TB
C4 Multi-choice
□High-
performance tier
RAID Policy:
Capacity:
□Performance
tier
RAID Policy:
Capacity:
□Capacity tier
RAID Policy:
Capacity:
Maintenance Terminal: Creating a File System
File system service Service provider Enable D1
Maintenance Terminal: Creating a File System
File system name Customized FileSystem000 D2
Thin Provisioning
Service provider Enable D3
Owning storage pool Service provider StoragePool000 D4
Capacity Service provider 200 GB D5
Snapshot Space Ratio Service provider 20 D6
Application Scenario Service provider User-defined D7
File System Block Size Service provider 64 KB D8
Quantity Service provider 1 D9
Maintenance Terminal: Setting CIFS Service Parameters
CIFS Services Service provider Enable E1
Authentication Mode
Service provider Global authentication E2
Performance Settings
Service provider Notify: Enable
Oplock: Enable E3
Security Settings
Service provider Disable E4
After thin provisioning is enabled, the storage system
will dynamically allocate storage resources on demand.
Notify: If a directory has some changes, clients that
access this directory or its parent directory can sense
the changes.
Oplock: a mechanism that improves client access
efficiency. After this mechanism is enabled, files are
cached locally before being sent to shared storage.
5
Local authentication: Applies to scenarios where a local
authentication user or user group accesses a CIFS
share in a non-domain environment.
Domain authentication: Applies to scenarios where a
domain user or user group accesses a CIFS share in
an AD domain.
Global authentication: Local authentication is used first.
If local authentication fails, domain authentication is
used.
Guest: After the guest service is enabled, users can
access shared directories without providing
usernames or password. Besides, users have the
same permission as the Everyone group.
For 5000F, 6000F, 18000F series
storage systems, only support
setting RAID policy and capacity.

6
Preparation Item Source Example Value
Access Settings
Service provider
Disable E4
Signature Settings
Service provider
Signature: Disable
Signature
enforcement:
Disable
E4
Maintenance Terminal: Creating a CIFS Share
File system
Service provider FileSystem000 E5
CIFS share name Service provider share01 E6
CA
Service provider Disable E7
Maintenance Terminal: Creating a CIFS Homedir Share
Share Name
Service provider share_for_user1 F1
Relative Directory
Service provider home_%d/%w F2
CA
Service provider Disable F3
Maintenance Terminal: Adding a Storage System to an AD Domain
Active DNS IP Address System administrator 192.168.128.102 G1
Domain Administrator Username and Password System administrator User name: admin Password:
Admin@123456 G2
Full Domain Name System administrator domain.cn G3
Organization Unit System administrator ou=xxx,dc=abc,dc=
com G4
System Name System administrator storage1 G5
Overwrite System Name System administrator Disable G6
Maintenance Terminal: Creating a Local Authentication User Group
User group name Service provider Usergroup H1
Maintenance Terminal: Creating a Local Authentication User
Used for SMB3.0 continuous availability, only applied to the share for
Hyper-V.
Signature: This function is available when clients adopt SMB1.0. After
this option is selected, the system supports the signature function.
Signature enforcement: After this option is selected, client must adopt the
signature function.
In CIFS Homedir share mode, a file system is shared to a specific user
as an exclusive directory. The user can only view and access the
exclusive directory
named after its user name.
After ABSE (access based share enumeration) has been enabled, only
the CIFS shares that a user has permission to access are displayed
when the user views the CIFS share information.
If the signature function is disabled, the storage system may encounter
man-in-the-middle (MITM) attacks, resulting in security risks.
When global root directory /is selected for File System, you can create a
CIFS GNS share.
Used for SMB3.0 continuous availability, only applied to the share for
Hyper-V.

7
Preparation Item Source Example Value
User name and password used for logging in to a
CIFS share
Service provider User name: cifsuser Password:
Admin@123456 H2
Primary group Service provider Usergroup H3
Maintenance Terminal: Adding a User (User Group) That Can Be Accessed by a CIFS / CIFS Homedir Share
User/User group Service provider a Local Authentication
User I1
User Service provider cifsuser I2
Permission level Service provider Read-only I3
Maintenance Terminal: Creating a Logic Port
Name Service provider logic J1
IP Address Type Service provider IPv4 Address J2
IPv4 Address Service provider 192.168.29.30 J3
Subnet Mask Service provider 255.255.255.0 J4
Primary Port Service provider CTE0.B.IOM0.P1 J5
Failover Group Service provider Not specified J6
IP Address Floating Service provider Enable J7
Failback Mode Service provider Automatic J8
Active Now Service provider Enable J9
Dynamic DNS Service provider Enable J10
Listen DNS Query Request Service provider Disable J11
DNS Zone
Service provider Blank J12
a: This parameter is applicable to OceanStor 5000, 5000F, 6000, 6000F series storage systems.
b: This parameter is applicable to OceanStor 18000, 18000F series storage systems.
Operation instructions
2b
Before operations, learn about the meaning of icons involved in the
configuration, as shown in the following table.
Icon Meaning
Double-click
Click
Right-click
Input or Set
Step
Substep
1 2
Example
2
1
Step1:
Substep1: Enter the user name and
password.
Substep2: Click Log In.
The screenshots in this manual may differ
from the actual pages. The actual
environment prevails.
User group to which a user belongs. Users must belong
to a primary group.
The password validity period of a file system's
local authentication user is 180 days by
default. Change the password in time. If a
password expires, the password may not be
used and services may be interrupted.
If the value of DNS zone is blank, the logical port is not
used for DNS-based load balancing.

8
3 Allocating Storage Space

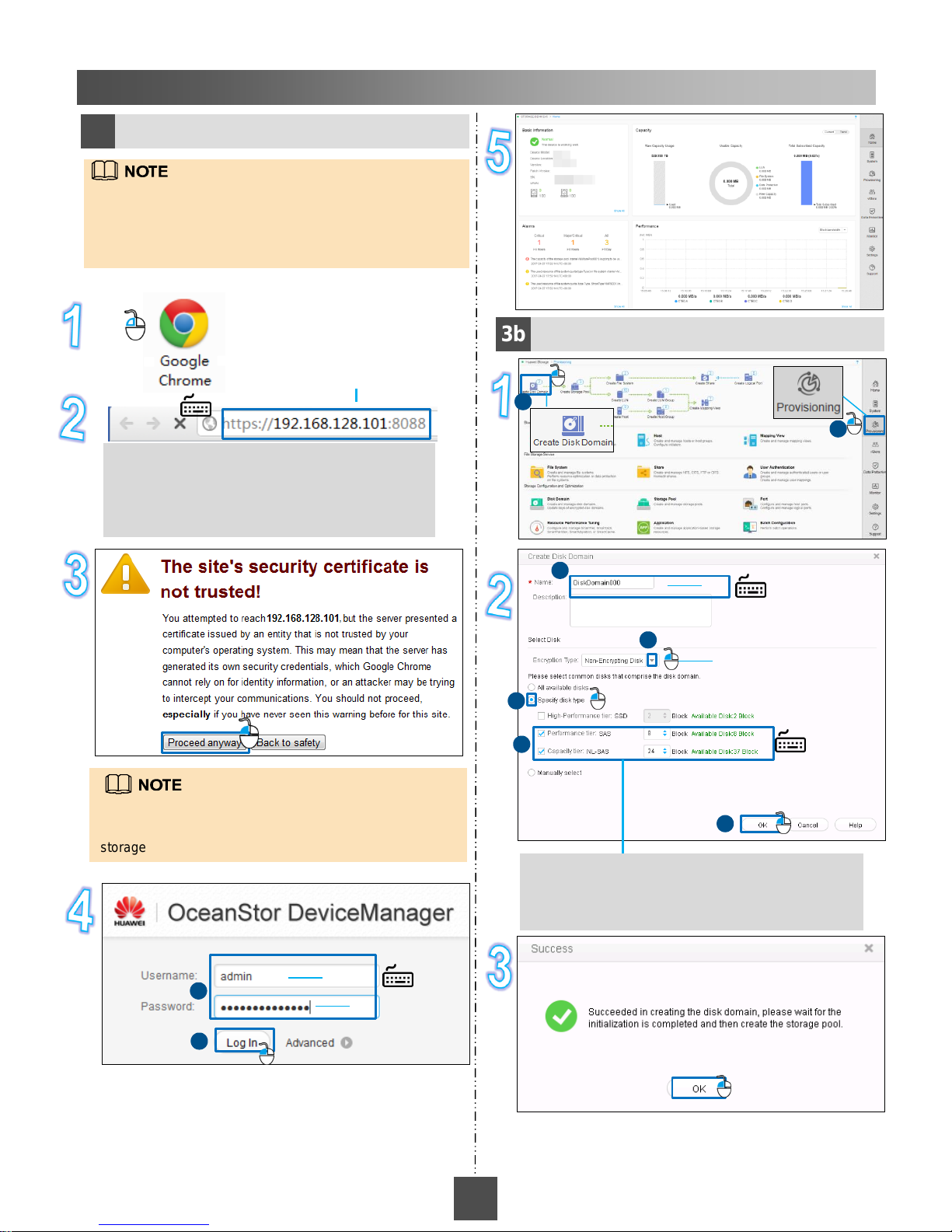

Logging in to DeviceManager
3a
The security certificate prompt message varies with
operating systems and browser versions of maintenance
terminals. Ignore the message and continue accessing
storage devices.
A2
A2
1
2
A1
This section describes how to log in to DeviceManager
using the web. For 18000, 18000F series storage systems,
you can log in to DeviceManager using the SVP. For details,
see the OceanStor 18000 and 18000F V5 Series
V500R007 Administrator Guide.
1. Enter https://XXX.XXX.XXX.XXX:8088, where
XXX.XXX.XXX.XXX indicates the IP address of the
management network port on the SVP.
192.168.128.101 is used as an example.
2. Click Enter.
Creating a disk domain
3b
B1
For the actual disk numbers, see B3 in your data
preparation table. The figure above takes
performance tier and capacity tier creations as an
example.
4
3
1
5
2
B2
1
2

9
Creating a storage pool
3c
Keep the default values for RAID Policy.
To create storage tiers, see the actual value from C4
in your data preparation table. The figure above takes
performance tier and capacity tier creation as an
example.
Enabling the file system function
3d
1
23
4
D1
C1
C2
C3
3
2
1
5
4
1
2

10
Creating a file system
3e Setting CIFS service parameters
3f
1
2E3
3
4
5
E2
6
E4
7
E1
D5
D2
D6
D4
D3
1
2
4
7
3
D7
D8
D9
5
6
1
2
If creating a CIFS Share 3g Creating a CIFS
Share
If creating a CIFS Homedir Share 3h
Creating a CIFS Homedir Share

11
Creating a CIFS Share
3g
1
2
E5
E6
E7
1
2
3

12

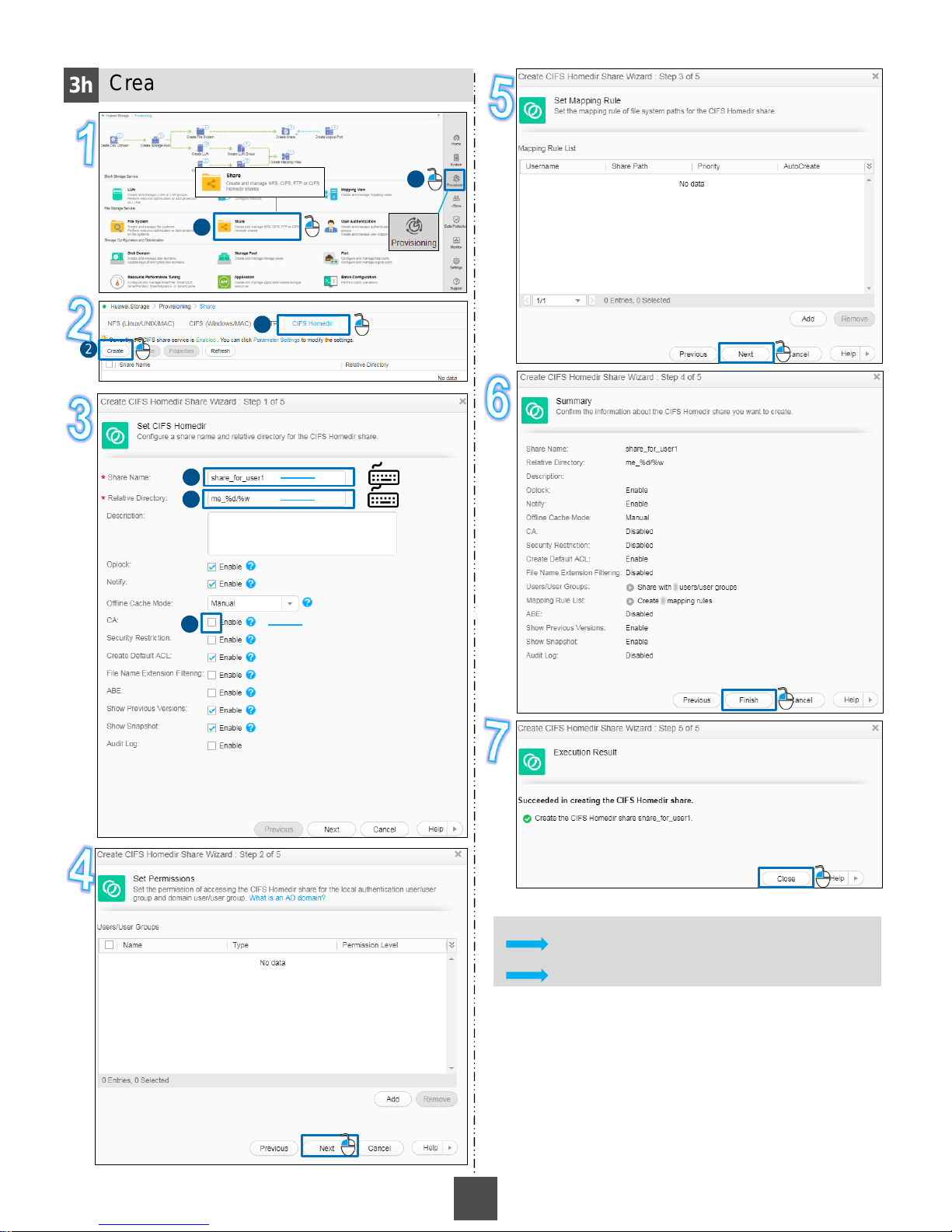

Creating a CIFS Homedir Share
3h
1
2
1
2
F1
1F2
2
F3
3
If the CIFS / CIFS Homedir is applied to a domain environment

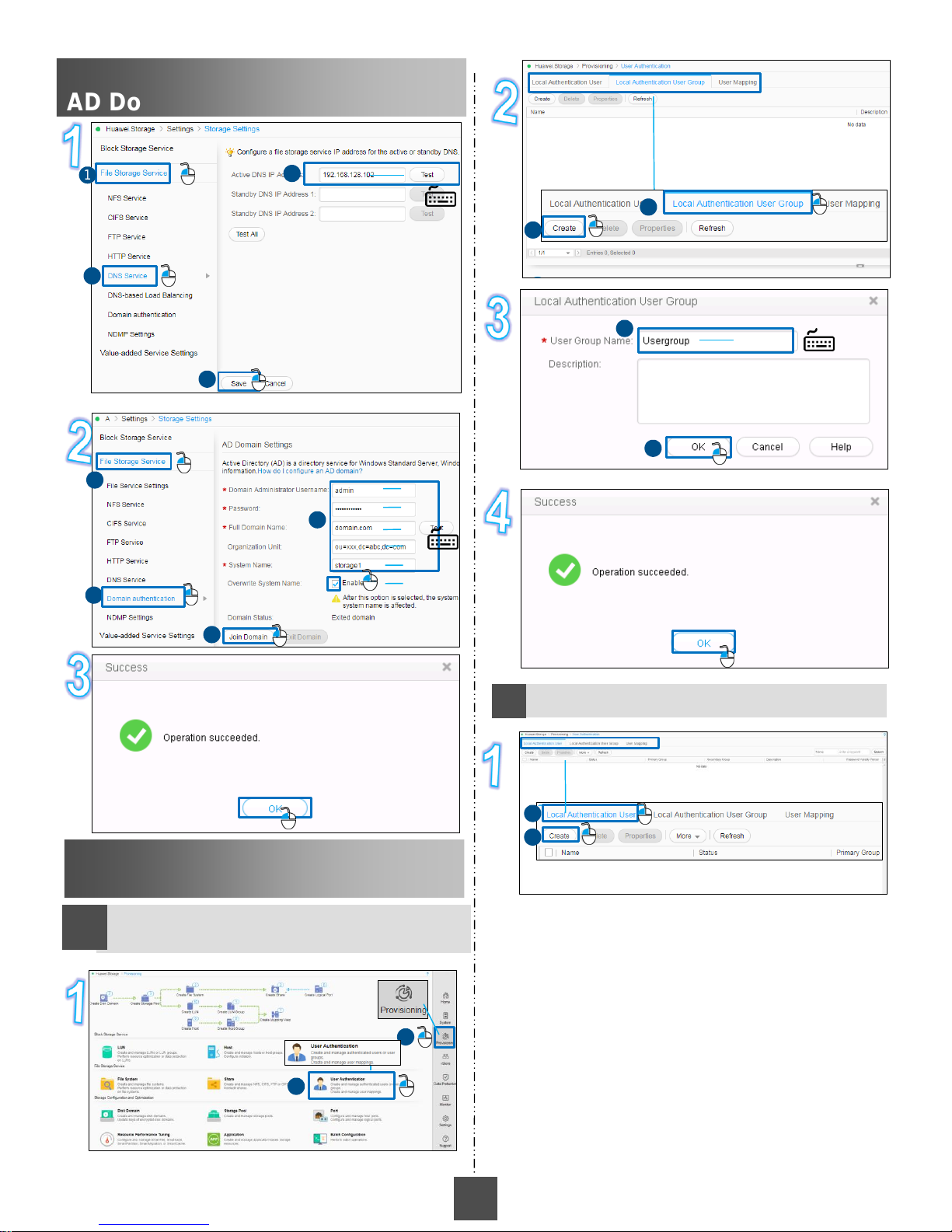

4 Adding a Storage System to an AD Domain
If the CIFS / CIFS Homedir is applied to a non-domain environment
5 Creating a Local Authentication User (Group)

13
4 Adding a Storage System to an
AD Domain
5 Creating a Local
Authentication User (Group)
Creating a LocalAuthentication
User Group
5a
1
2
G2
G2
G3
G5
1
2
3
4
G4
G6
G1
3
1
2
4
1
2
H1
2
1
Creating a LocalAuthentication User
5b
1
2

14
H2
H2
H2
H3
1
2
3
6 Adding a User (User Group) That
Can Be Accessed by a CIFS Share
I1
1
2
The password validity period of a file system's local
authentication user is 180 days by default. Change
the password in time. If a password expires, the
password may not be used and services may be
interrupted.
3
1
2
I2
1
2
I3
In a domain, select a domain user or domain user
group in User/User Group.
1
2
1
2

15
7 Creating a Logical port
J5
1
2
1
2
J1
J3
J4
J2
1
2
1
2
J7
J8
J9
3
2
4
8
5J10
6J11
7J12
1J6

16
Operation Instruction Windows Server 2008
Go to the Map
Network Drive dialog
box.
1. Right-click Computer.
2. Choose Map Network Drive.
Mount the CIFS share
path.
1. Set Folder to \\192.168.29.30\share01.
2. Click Finish.
Authenticate the CIFS
share.
1. Enter the name and password of the authorized user.
2. Click OK.
Check the CIFS Share 1. Double-click Computer.
2. In the Network Drive area, view the mapped network drives.
Change parameter values based on the actual values of J3 and E6 in your data preparation table.
Optional:Accessing a CIFS Share
8a
Operation Instruction Windows Server 2008
Go to the Map
Network Drive dialog
box.
1. Right-click Computer.
2. Choose Map Network Drive.
Mount the Homedir
share path.
1. Set Folder to \\192.168.29.30\sharename.
2. Click Finish.
Authenticate the
Homedir share.
1. Enter the user name and password.
2. Click OK.
Check the Homedir
Share. 1. Double-click Computer.
2. In the Network Drive area, view the mapped network drives.
Change parameter values based on the actual values of J3 and F1 in your data preparation table.
Optional:Accessing a CIFS Homedir Share
8b
8 Accessing the Share
If it is a non-domain environment, enter the name and password of the local
authentication user.
If it is an AD domain environment, enter the name and password of the AD domain
user, and the domain user name must be entered in the format of domain
name\user name.
sharename is the user name of the CIFS Homedir share.
If autohome shares are created, the path of the mapped folder can be in the format
of \\logical ip address\username, \\logical ip address\~domain name~domain
user name, \\logical ip address\domain user name@domain name, \\logical ip
address\~, or \\logical ip address\autohome.
If it is a non-domain environment, enter the name and password of the local
authentication user.
If it is an AD domain environment, enter the name and password of the AD domain
user, and the domain user name must be entered in the format of domain
name\user name.

17
If You Want to... Refer to... DeviceManager Icon
Know the theory of CIFS and the
application scenario.
OceanStor V5 Series V500R007
Basic Storage Service Configuration
Guide for File
9 How to Contact Huawei
Huawei customer service center
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Website: http://e.huawei.com
Local Huawei technical support personnel
Obtain contact information for local Huawei offices at http://support.huawei.com/enterprise.
10 Next
