Huawei OceanStor Dorado5100 User manual

1
OceanStor Dorado5100
Storage System
Quick Installation Guide
V100R001

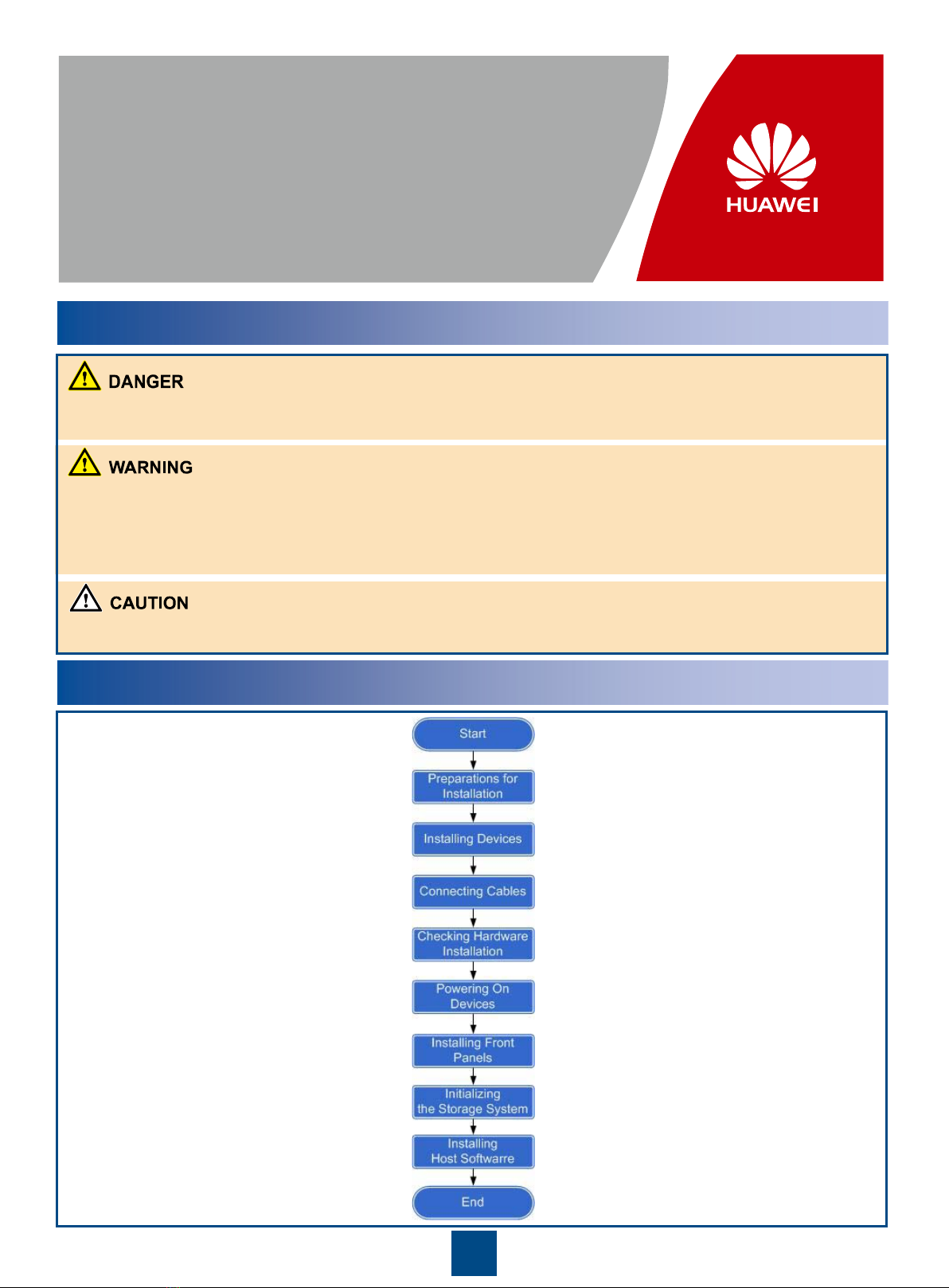

Installation Flow
Issue: 04
Part Number: 3150G2CT
Date: 2013-11-30
Do not operate devices or handle cables on a stormy day.
To avoid injuries to eyes, do not stare into the optical outlets.
To avoid data loss, do not insert or remove disks, controllers, expansion modules, or cables during power-on.
To avoid device damage, ensure that the devices are properly grounded before power-on.
Copyright Huawei Technologies Co., Ltd. 2012. All rights reserved.
Safety Information
To avoid personal injuries, it is recommended to carry one fully configured controller enclosure or disk enclosure
by three persons.
Before handling devices, wear ESD clothes, ESD gloves or ESD wrist strap, and take off conductive objects such
as ornaments and watches.
Do not wear an ESD wrist strap during the power-on process to avoid electric shocks.

2
Preparations for Installation
Controller enclosure (4U) Disk enclosure (2U) Adjustable guide rails
Floating nut and M6 screw Cable rack (2U)
Front panel of controller enclosure (4U)
Front panel of disk enclosure (2U)
The installation tools that the
customer needs to prepare include:
Phillips screwdriver (M3-M6)
Flat-head screwdriver (M3-M6)
Diagonal pliers
Floating nut mount bar
Multi-mode optical fibre
mini SAS cable
Network cable Installation template (for 4U devices) Installation template (for 2U devices)
The above table only includes part of the materials to be used during the installation. For information about all the
materials, see the Packing List.
To prevent other devices connected to the circuit breakers from being
incorrectly powered off due to a power supply failure of the storage device,
you are advised to ensure that the electric current of the circuit breakers of the
external power supplies to which the storage device is connected complies
with the following specifications:
Controller enclosure:
16 A (for AC power supplies)
Disk enclosure:
16 A (for AC power supplies)
1 Verifying Installation Tools 2 Verifying Circuit Breakers
3 Verifying Materials

3
Figure 1 Figure 2
Installing Devices
Before the planning, you need to calculate the required cabinet space, as listed in the following table.
Installation Item Controller enclosure Disk enclosure Cable rack
Required Space 4U 2U (for the 2U SSD disk enclosure) 2U
Remarks: The total of the required cabinet space can be calculated through the following formula: 4U + 2U
x (number of 2U disk enclosures) + 2U.
Based on the calculated cabinet space, you can plan the installation positions of the controller enclosure, disk
enclosures, and cable rack for the convenience of the installation and expansion.
If the planned device installation positions
are occupied by filler panels, remove them in
the method shown in Figure 1.
After removing the filler panels, remove
floating nuts in the method shown in Figure 2.
If you do not have a floating nut mount bar,
you can use a flat-head screwdriver instead.
When using a flat-head screwdriver to
remove the floating nuts, handle it gently;
otherwise, the flat-head screwdriver may skid,
and thus injure the hands or storage devices.
Scenario 1
Installation position of a 4U device (shown
as the shade)
Scenario 2
Installation position of a 2U device (shown
as the shade)
1 Planning Device Installation Positions
2 Removing Filler Panels
3 Determining Device Installation Positions with Installation Templates

4
Positioning pins Positioning pins
Scenario 1
Installing adjustable guide rails for a 4U device Scenario 2
Installing adjustable guide rails for a 2U device
The length of the adjustable guide rail ranges from 600 mm (23.64 inches) to 900 mm (35.46 inches), and
it can be installed in the cabinet with a depth from 800 mm (31.50 inches) to 1100 mm (43.34 inches).
The adjustable guide rails are initially equipped with positioning pins applicable to square installation holes
only. For round installation holes, replace the positioning pins.
After the left adjustable guide rail is installed, install the right adjustable guide rail in the same method.
If you do not have a floating nut mount bar, you can use a flat-head screwdriver instead. When using a
flat-head screwdriver to install the floating nuts, handle it gently; otherwise, the flat-head screwdriver
may skid, and thus injure the hands or storage devices.
For the 4U device, the adjustable guide rails provide installation holes for only the two lower M6 fixing
screws, and thus, the floating nuts for the two upper M6 fixing screws need to be installed.
For the 2U device, the adjustable guide rails provide installation holes for all the four M6 fixing screws,
and thus, no floating nut needs to be installed.
4 Installing Adjustable Guide Rails
5 Installing Floating Nuts (for 4U Devices Only)

5
To avoid device damage, do not directly pile up
the devices but install the devices onto the guide
rails.
Install the disk enclosure onto the adjustable guide rails in the method of installing the controller enclosure.
Scenario 1
Installing the cable rack onto the rear channels
For the cabinet in the depth of 1 m or more, if the controller enclosure rear is more than 70 mm distant
away from the rear channels or if the rear channels are more than 150 mm distant away from the rear
cabinet door, the cable rack must be installed onto the rear channels of the cabinet.
For the cabinet in the depth of 1 m or more, if the controller enclosure rear is 70 mm or less distant away
from the rear channels or if the rear channels are 150 mm or less distant away from the rear cabinet
door, the cable rack must be installed onto the controller enclosure.
For the cabinet in the depth of 800 mm, the cable rack must be installed onto the controller enclosure.
6 Installing the Controller Enclosure into the Cabinet
7 Installing the Disk Enclosure into the Cabinet
8 Installing the Cable Rack

6
Scenario 2
Installing the cable rack onto the controller enclosure
To ensure good ventilation, it is recommended to cover the unoccupied slots with filler panels. Before
installing the filler panels, check that required floating nuts are installed at the installation holes of the
M6 fixing screws.
9 Installing Filler Panels

7
Connecting Cables
Scenario 1
Connecting the ground cable to the controller
enclosure
Scenario 2
Connecting the ground cable to the disk enclosure
After connecting one end of the ground cable to the ground terminal of the storage device, connect the other
end of the ground cable to the ground terminal of the cabinet in the same method.

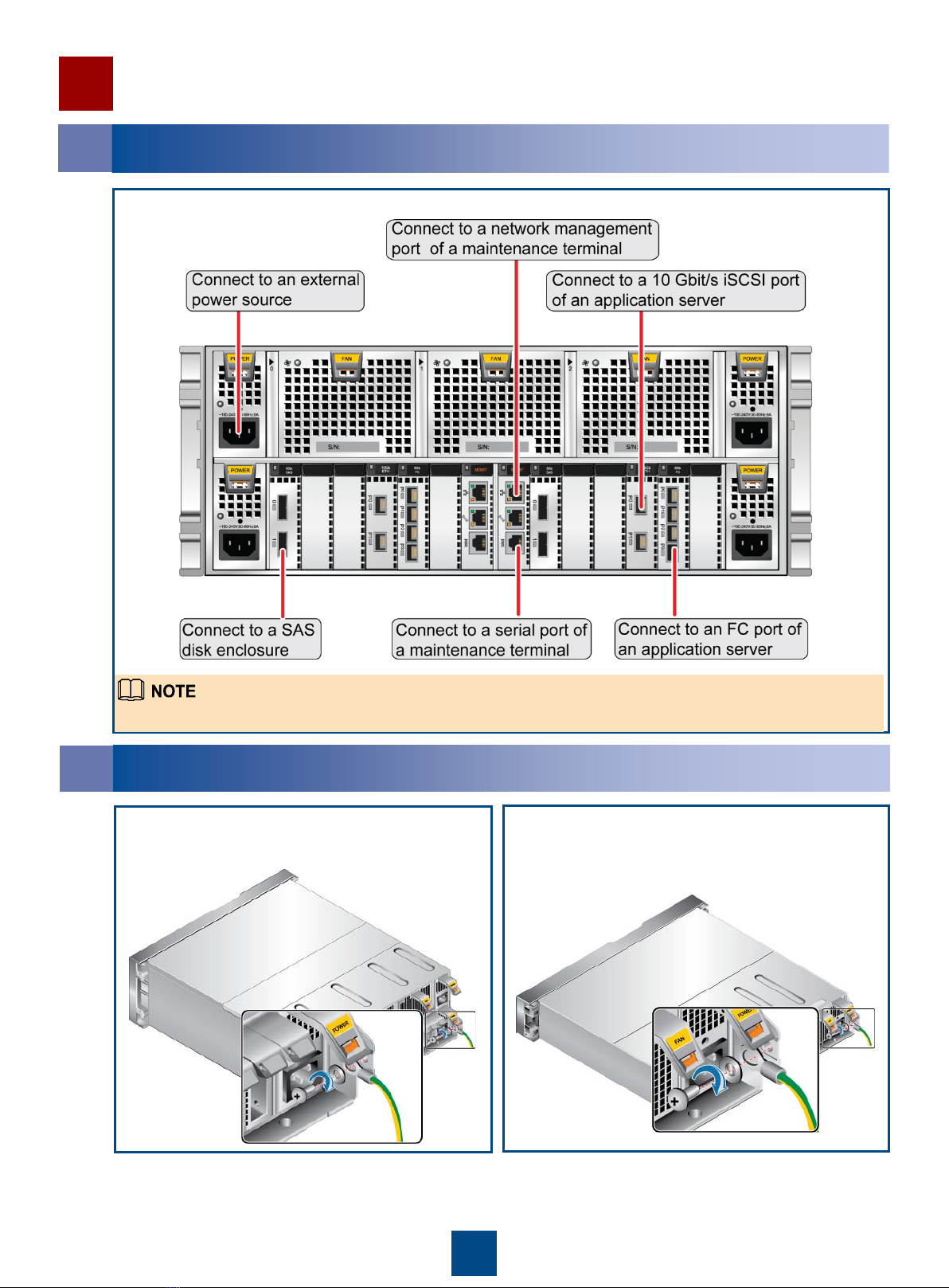

The figure below shows the general view of cable connecting ports.
The interface modules in Slot A0 and B0 of the controller enclosure connect to the disk enclosures only.
1 General View of Cable Connecting Ports
2 Connecting Ground Cables

8

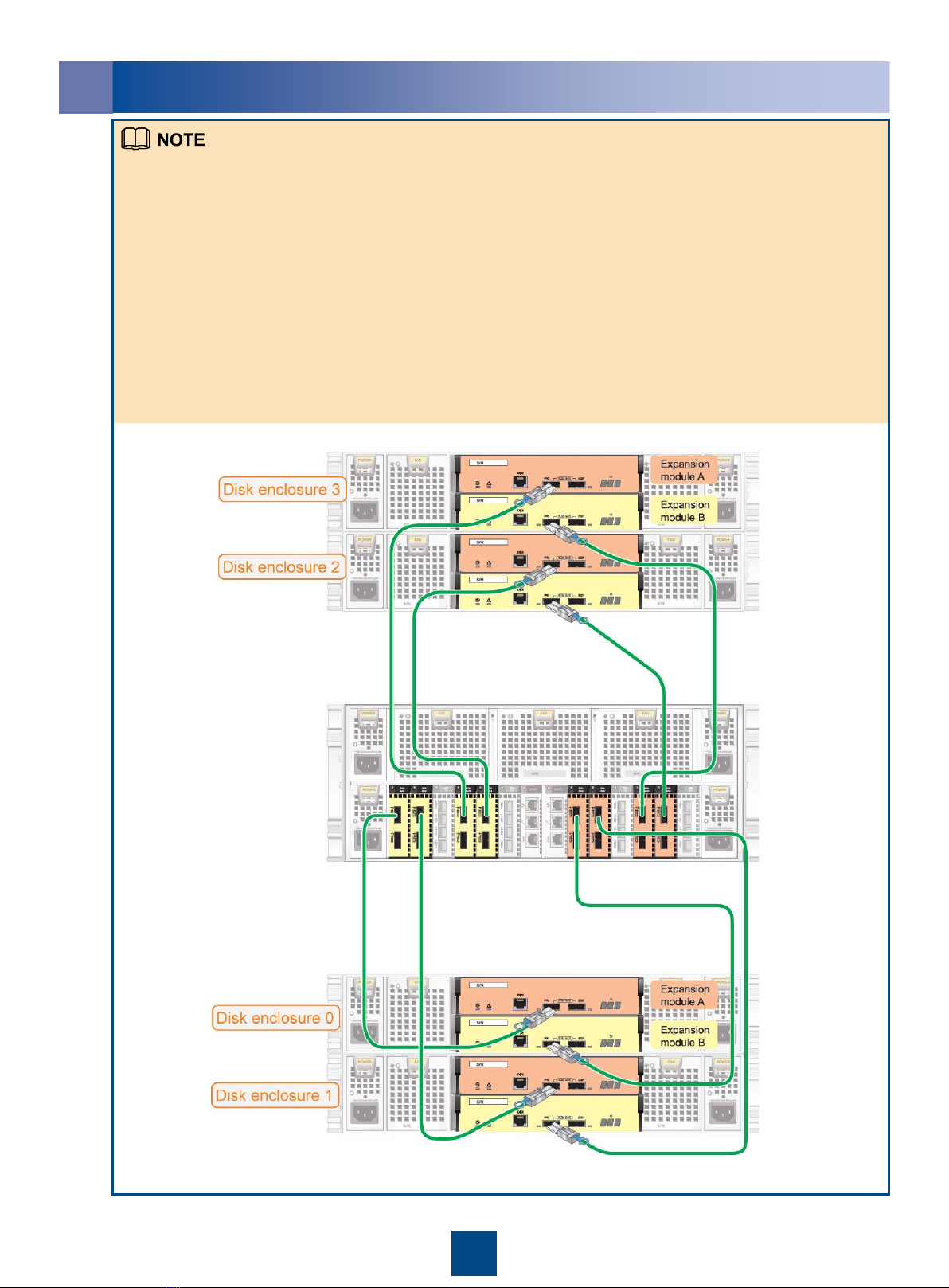

3 Connecting Disk Enclosures(SLC)
The expansion ports on the controller enclosure must connect to the PRI expansion ports on the disk
enclosures.
The expansion ports on controller A must connect to the PRI expansion ports on expansion module A of
the disk enclosure; the expansion ports on controller B must connect to the PRI expansion ports on
expansion module B of the disk enclosure.
Only one port on each 6 Gb SAS interface module of a controller enclosure is used to connect to a disk
enclosure.
Use the interface modules that reside in the slots corresponding to controllers A and B to connect to two
expansion modules of the same disk enclosure. For example, if port P0 on slot B1 of a controller
enclosure is connected to disk enclosure 1, then port P0 on slot A1 of the controller enclosure must also
be connected to disk enclosure 1. (One P0 port is connected to expansion module A and the other P0
port is connected to expansion module B.)
The EXP ports on expansion modules of each disk enclosure are idle.

9

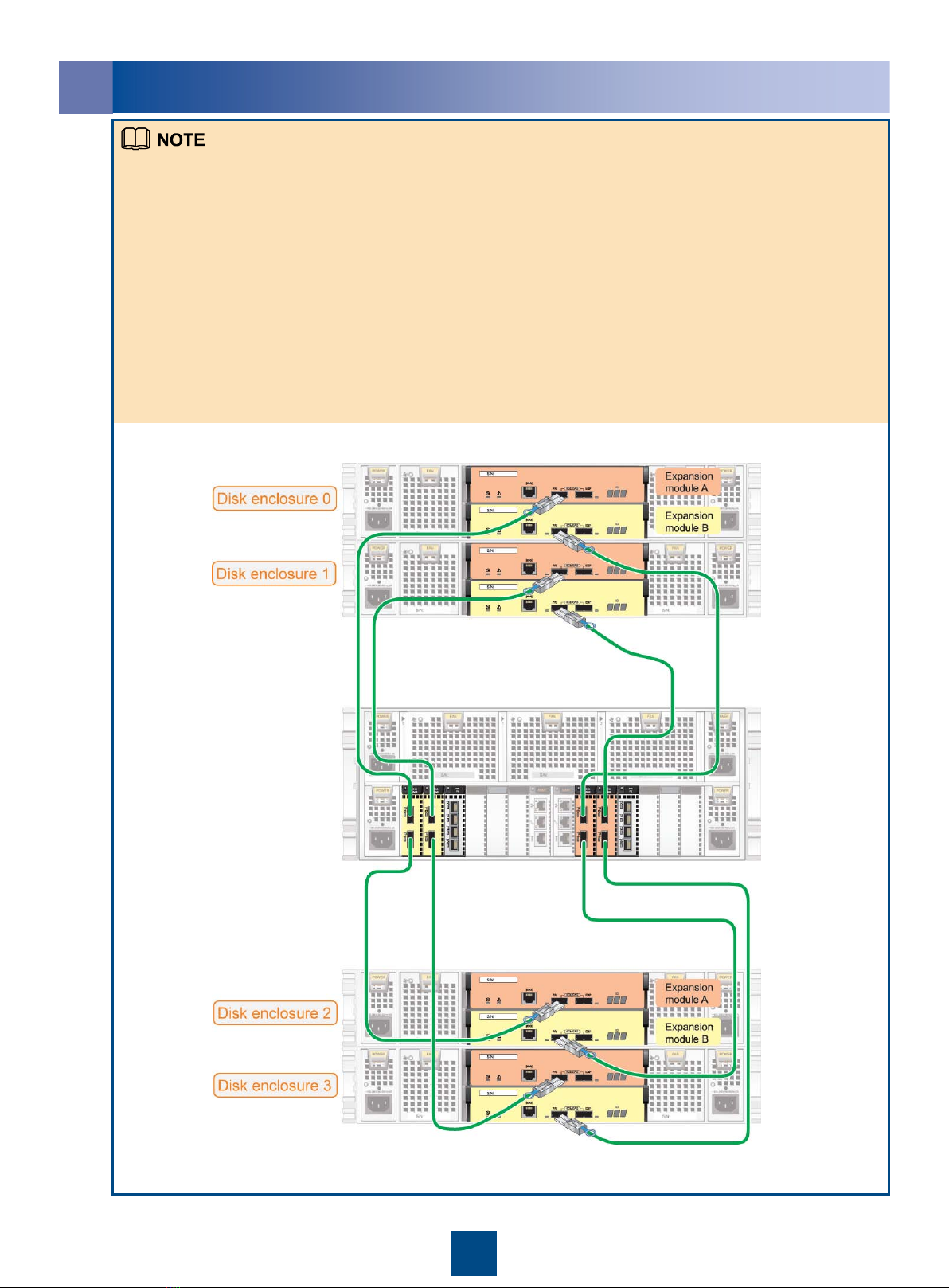

4 Connecting Disk Enclosures(MLC)
The expansion ports on the controller enclosure must connect to the PRI expansion ports on the disk
enclosures.
The expansion ports on controller A must connect to the PRI expansion ports on expansion module A of
the disk enclosure; the expansion ports on controller B must connect to the PRI expansion ports on
expansion module B of the disk enclosure.
Both ports on each 6 Gb SAS interface module of a controller enclosure can be used to connect to disk
enclosures.
Use the interface modules that reside in the slots corresponding to controllers A and B to connect to two
expansion modules of the same disk enclosure. For example, if port P1 on slot B1 of a controller
enclosure is connected to disk enclosure 1, then port P1 on slot A1 of the controller enclosure must also
be connected to disk enclosure 1. (One P1 port is connected to expansion module A and the other P1
port is connected to expansion module B.)
The EXP ports on expansion modules of each disk enclosure are idle.

10
Scenario 1
Directly connecting host ports to the application
server
Scenario 2
Connecting host ports to the application server
through FC switches
Scenario 1
Directly connecting the management network port to
the maintenance terminal
Scenario 2
Connecting the management network port to the
maintenance terminal through an Ethernet switch
5 Connecting Host Ports to the Application Server(Using the 8Gb FC Port as an
Example)
6 Connecting the Management Network Port to the Maintenance Terminal

11

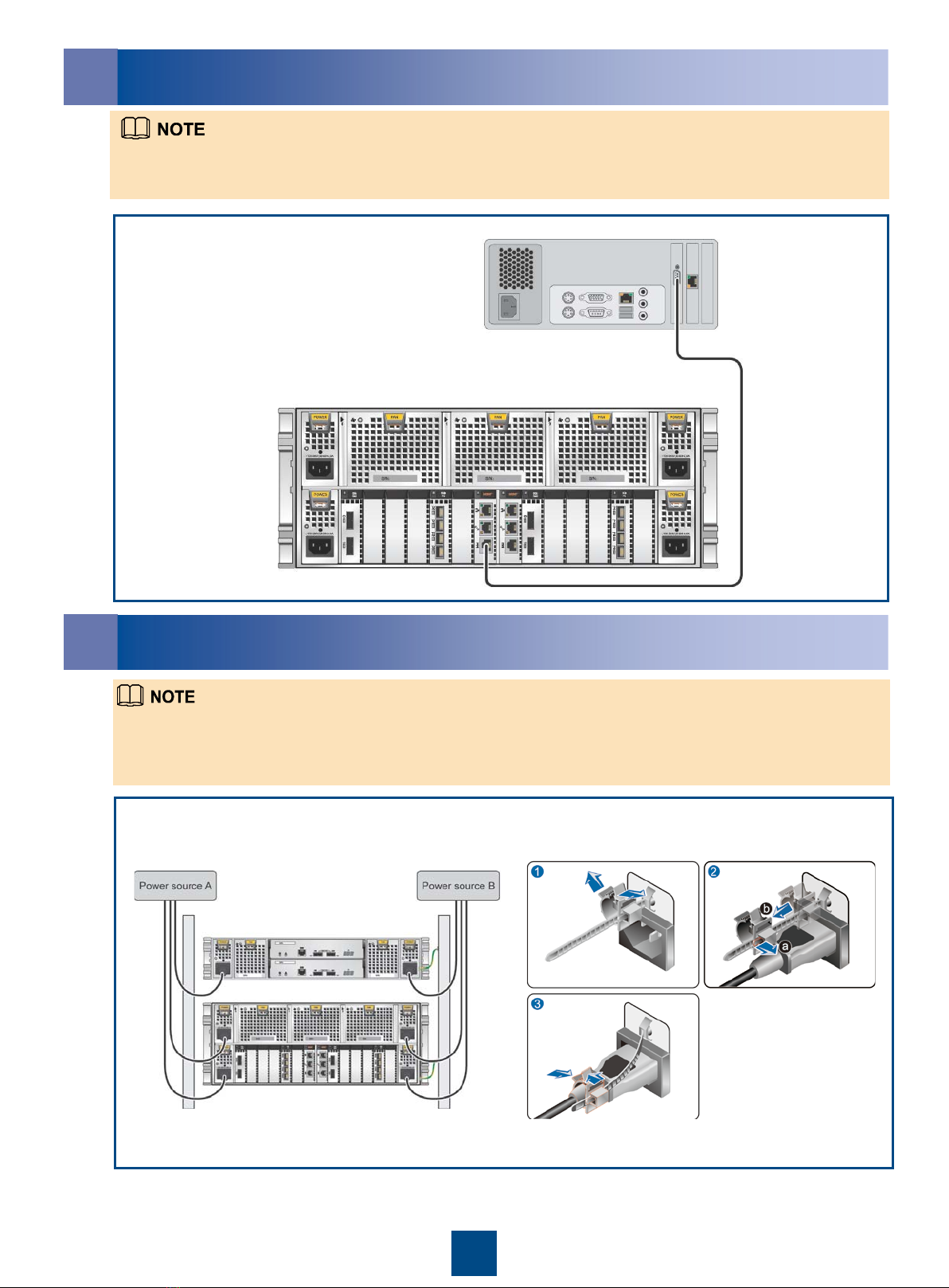

Two types of serial ports can be used to connect the serial port to the maintenance terminal: RJ-45 to
DB9 serial cable and RJ-45 to RJ-45 serial cable. Generally, the RJ-45 to DB9 serial cable is used, as
shown in the figure below.
Connecting AC power cables
The power modules of the storage system can connect to two routes of power supplies. To ensure the
high availability of the storage system and avoid unexpected power-down of the storage system caused
by the failure of the power supplies, connect the storage system to two routes of power supplies.
Complete view of the connected AC power cables Fix the power cables
7 Connecting the Serial Port to the Maintenance Terminal
8 Connecting Power Cables

12
Checking Hardware Installation
Check Item Normal Abnormal
Controller enclosure The device sits stably on the guide rails
without any displacement.
Screws are fixed properly.
The device slants.
Screws are loose or fall off.
Disk enclosure
Check Item Normal Abnormal
Ground cable The ground cable is properly fixed to the
ground terminal. The ground cable is loose or falls off.
Optical transceiver The optical transceiver is fully inserted
into the FC port.
The buckle is locked.
The optical transceiver is loose in the FC
port.
The buckle is loose.
Optical fibre The optical fibre is fully inserted into the
optical transceiver.
The buckle of optical fibre connector
tightly locks the optical transceiver.
The optical fibre is loose in the optical
transceiver.
The buckle of optical fibre connector does
not properly lock the optical transceiver.
mini SAS cable Each mini SAS cable connects to an
EXP expansion port and a PRI expansion
port.
Each mini SAS cable is fully inserted in
the expansion ports that it connects.
The mini SAS cable connects to two EXP
expansion ports or two PRI expansion
ports.
The mini SAS cable is loose in the
expansion ports that it connects.
Network cable The network cable is fully inserted into the
management network port. The network cable is loose in the management network port.
AC power cable The AC power cables for each controller
enclosure or disk enclosure are connected
to two separate power sources redundantly.
The AC power cables for each controller
enclosure or disk enclosure are connected to
the same power source.
1 Checking Device Installation
2 Checking Cable Connections

13

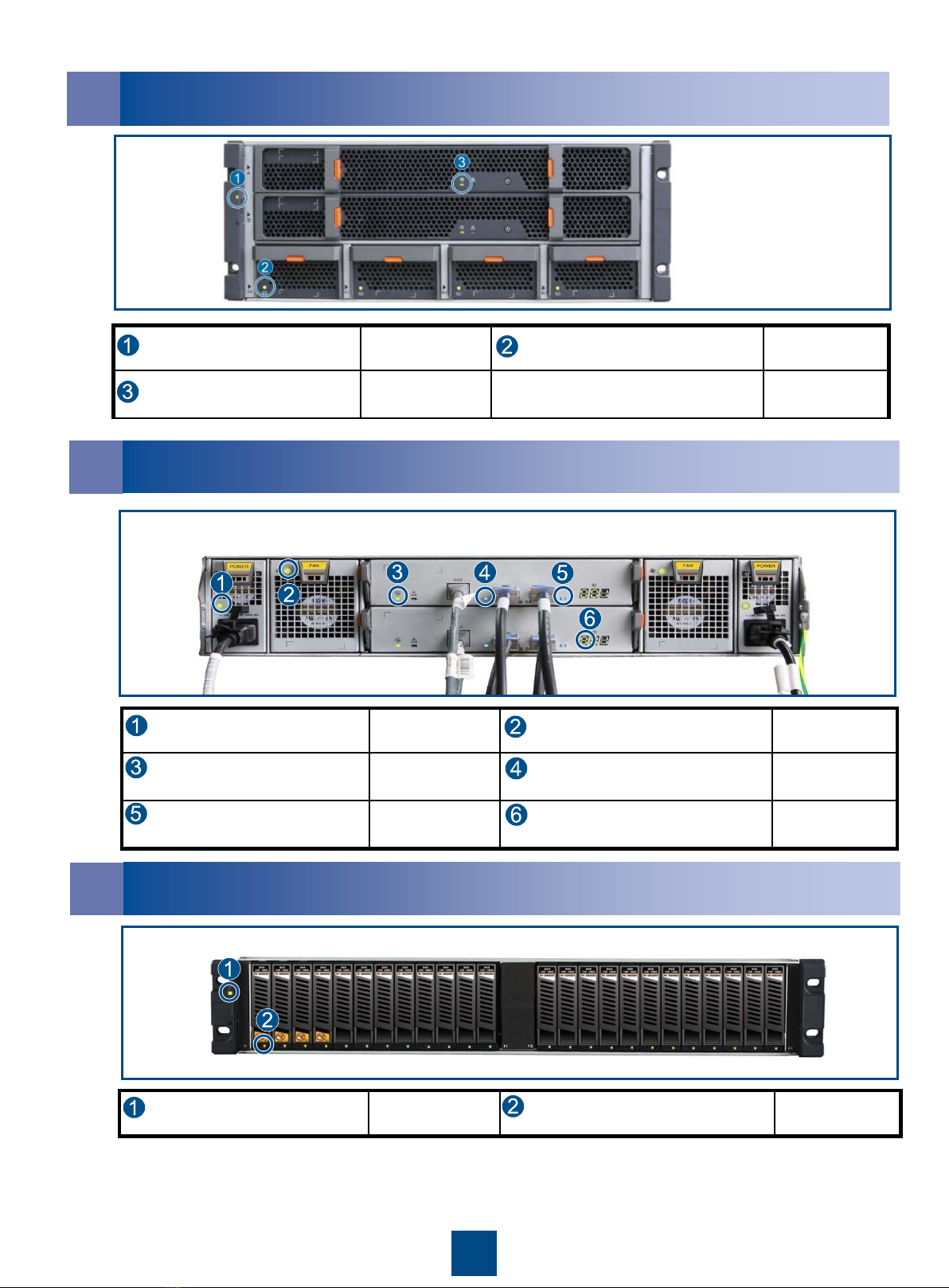

Power On Devices
Switching on the external power sources of the devices in the following sequence: disk enclosures →
controller enclosure → switch (for SAN) → application server.
- - - -
Power running/alarm
indicator Green on Fan running/alarm
indicator Green on Running indicator of the
interface module
Green on
Link indicator of the
management network
port
Link/speed indicator
of the 6 Gb SAS
expansion port
Link/speed indicator
of the 8 Gb FC port Blue on
Before powering on the device, ensure that the disk enclosures are properly connected to the
controller enclosure.
The power-on process takes about three to five minutes. The startup of the controller enclosure is
followed by the startup of the disk enclosures.
Check the status indicators on the controller enclosure and disk enclosures after the devices are
powered on.
When the storage system is powered on, the colors of the indicators vary with the port speeds.
For details, see the OceanStor Dorado5100 Storage System Installation Guide.
Green on
Blue on
1 Switching On the External Power Sources
2 Pressing the Power Button on Either Controller Enclosure
3 Checking the Status Indicators on the Controller Enclosure (Rear View)
Link indicator of the 10
Gb iSCSI port Green on

14
Power running/alarm indicator Green on Fan running/alarm indicator
Power indicator of the expansion
module
Green on
Link indicator of the PRI expansion
port
Green on Blue on
Link indicator of the EXP
expansion port Blue on Disk enclosure ID indicator Show digital
Power indicator of the disk
enclosure Green on Disk running indicator Green on
4 Checking the Status Indicators on the Controller Enclosure (Front View)
5 Checking the Status Indicators on the Disk Enclosure (Rear View)
6 Checking the Status Indicators on the Disk Enclosure (Front View)
- -
Power indicator of the enclosure Green on BBU running/alarm indicator
Power indicator of the controller
Green on
Green on

15
Scenario 1
Installing the front panel for the 4U devices Scenario 2
Installing the front panel for the 2U devices
After the storage system is powered on, do the following to initialize it.
1. Modify the IP address of the management network port through CLI (before this operation, you need to
connect the serial port on the controller enclosure to a maintenance terminal).
2. Install the ISM (on the maintenance terminal).
3. Modify the password of the administrator.
4. Import a license file.
After the storage system is initialized, you are recommended to install the following host software on the
application server.
1. Initiator (optional and applicable to iSCSI host ports only): for how to install the initiator, see the
OceanStor Dorado5100 Storage System Installation Guide.
2. UltraAPM (optional): for details on how to install the UltraAPM, see the OceanStor UltraAPM User Guide.
3. UltraPath: for how to install the UltraPath, see the OceanStor UltraPath for Windows User Guide,
OceanStor UltraPath for Linux User Guide , and OceanStor UltraPath for AIX User Guide.
After checking that the storage system is powered on normally, install front panels for a neat appearance.
For details on how to initialize the storage system, see the OceanStor Dorado5100 Storage System
Installation Guide.
The default name of the storage system is "admin", and the password is "Admin@storage". You are
advised to change the default login password immediately after you have logged in to the storage
system for the first time, and to periodically change your login password in the future. This reduces
the password leakage risks.
If faults occur during power-on, seek help from the OceanStor Dorado5100 Storage System Troubleshooting.
For questions about technical support and service, contact your service provider.
For questions about upgrades, contact your local sales office.
Installing Front Panels
Initializing the Storage System
Installing Host Software
How to Obtain Help
Obtain the documentation for the UltraAPM and UltraPath from the delivery-attached CD-ROM.
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Industrial Base Bantian Longgang Shenzhen
518129
People’s Republic of China
http://enterprise.huawei.com
