Huawei OceanStor VIS6300 User manual

HUAWEI TECHNOLOGIES Co., Ltd.
OceanStor VIS6000 Series
Virtual Intelligent Storage System V100R001
Quick Installation Guide
Issue: 03
Part Number: 3150G070
Date: 2010-05-10

1
Contents
Installation Environment 1
Material List 2
Installation Procedure 6
Taking Antistatic Measures 7
Installing the VIS6000 in the Cabinet 8
Connecting Grounding Cable 13
Connecting Storage Array and Application Server to
the VIS6000 14
Connecting the Production Center to the Disaster
Recovery Center 25
Connecting the VIS6000 to the Maintenance Terminal 28
Connecting Power Cable 33
Power on 35
Appendixes 38

2
Before installation, check whether the external environmental conditions, such as power supply and heat
dissipation, satisfy the requirements for normal running of the VIS6000.
Rated voltage: 220 V(AC); -48 V(DC)
Maximum AC input power: 900 W
Operating temperature: 5°C to 40°C (altitude: < 1800 m)
5°C to 35°C (altitude: 1800 m to 3000 m)
Operating altitude: ≤3000 m
Relative humidity: 5% RH to 85% RH
Installation Environment
The OceanStor virtual intelligent storage 6000 series virtual intelligent storage system (hereinafter
referred to as the VIS6000 ) includes two products: VIS6300 and VIS6600. The VIS6600 is superior to the
VIS6300 in hardware configuration and has more powerful capability of processing services. Unless
otherwise specified, this document takes the VIS6000 with the AC power as an example.
This document takes the VIS6000 that is installed to the N610E-22 cabinet as an example.
This document is based on the prerequisite that the N610E-22 cabinet is well installed and grounded.
Reserve the space of at least 100 cm between the cabinet and the wall and 120 cm between the cabinets
for the convenience of maintenance, ventilation, and heat dissipation.
Before installing the device into the cabinet, ensure that air in the cabinet exchanges with air in the
machine room. It is suggested to reserve the space of 1 U above the device and below the device.

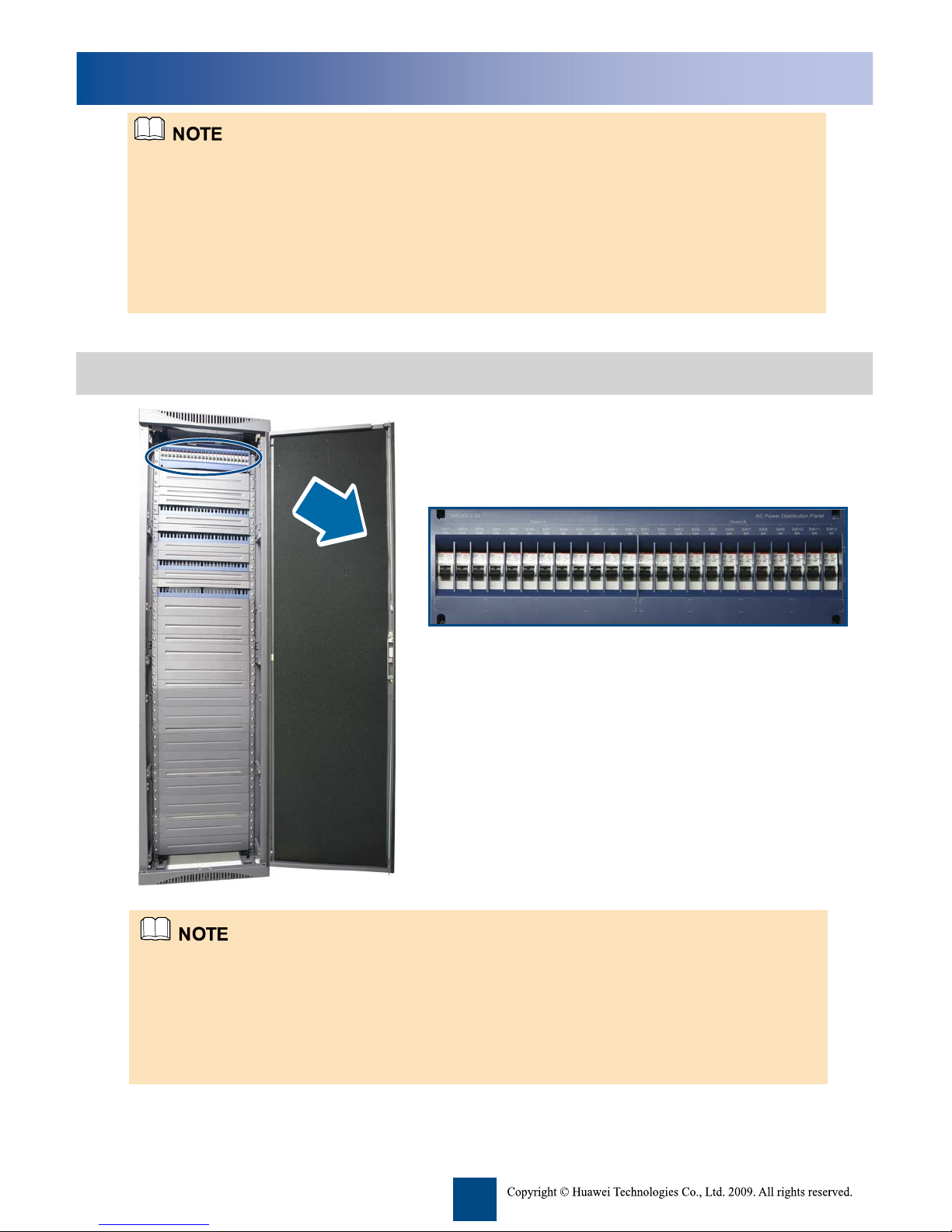

N610E-22 Cabinet

3
The N610E-22 cabinet is equipped with a captive nut mount bar.
The material list includes grounding cables and power cables.
Material List

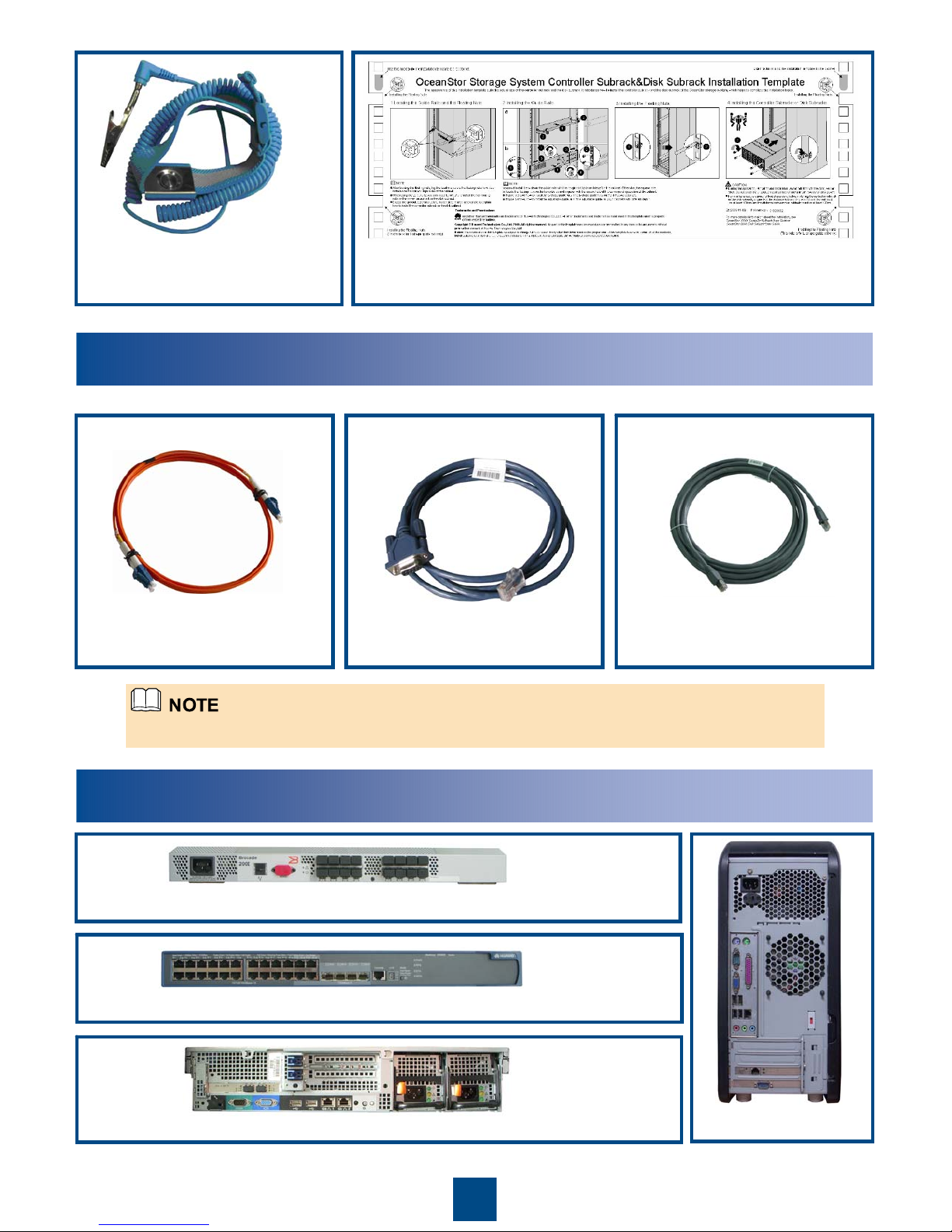

1 Tools
Cross screwdriver Flathead screwdriver Cutter
Captive nut mount bar
Antistatic gloves
Antistatic clothes
Cable tie Fiber binding strap
The plugged ESD-preventive
wrist strap for the grounding
terminal

4
The ESD-preventive wrist strap
with metallic clip for the
grounding terminal Installation template
Paste labels on the connected cables to fill in related information.
2 Cables
Network cable
Serial port cable (converting
RJ-45 to DB-9)
Optical fiber
3 Other Devices
FC switch (take the Brocade 200E fiber channel switch as an example)
Ethernet switch (take the HUAWEI Quidway S5600 series as an example)
Application server (take DELL PowerEdge 2950 as an example) Maintenance terminal

5
The VIS6000 supports Gigabit Ethernet (GE) port modules and Fiber Channel (FC) port modules.
With full configuration, the VIS6000 can be configured with six port modules:
●Two FC port modules + four GE port modules
●Four FC port modules + two GE port modules
●Six GE port modules
The VIS6000 provides ten interface cards with five on each side. The interface cards are numbered. The
numbers are 0, 1, 2, 3, and 4 from top to bottom. The interface cards that are numbered 0, 1, and 2 are
used for carrying port modules. The interface cards that are numbered 3 and 4 are used for carrying
system disks.
The FC port module and GE port module can be installed in the slots of the interface card without
restriction. The FC port module or the GE port module can be installed in slot 0,1, or 2.
According to the actual application environment choose the types and numbers of port modules. If the
interface card does not carry port modules, use a filler panel to hide the interface card. The controller A
and B must carry port modules in the same mode. The sequence of port modules on each side in the
VIS6000 must be consistent. In this way, the 1+1 redundant backup can be achieved.

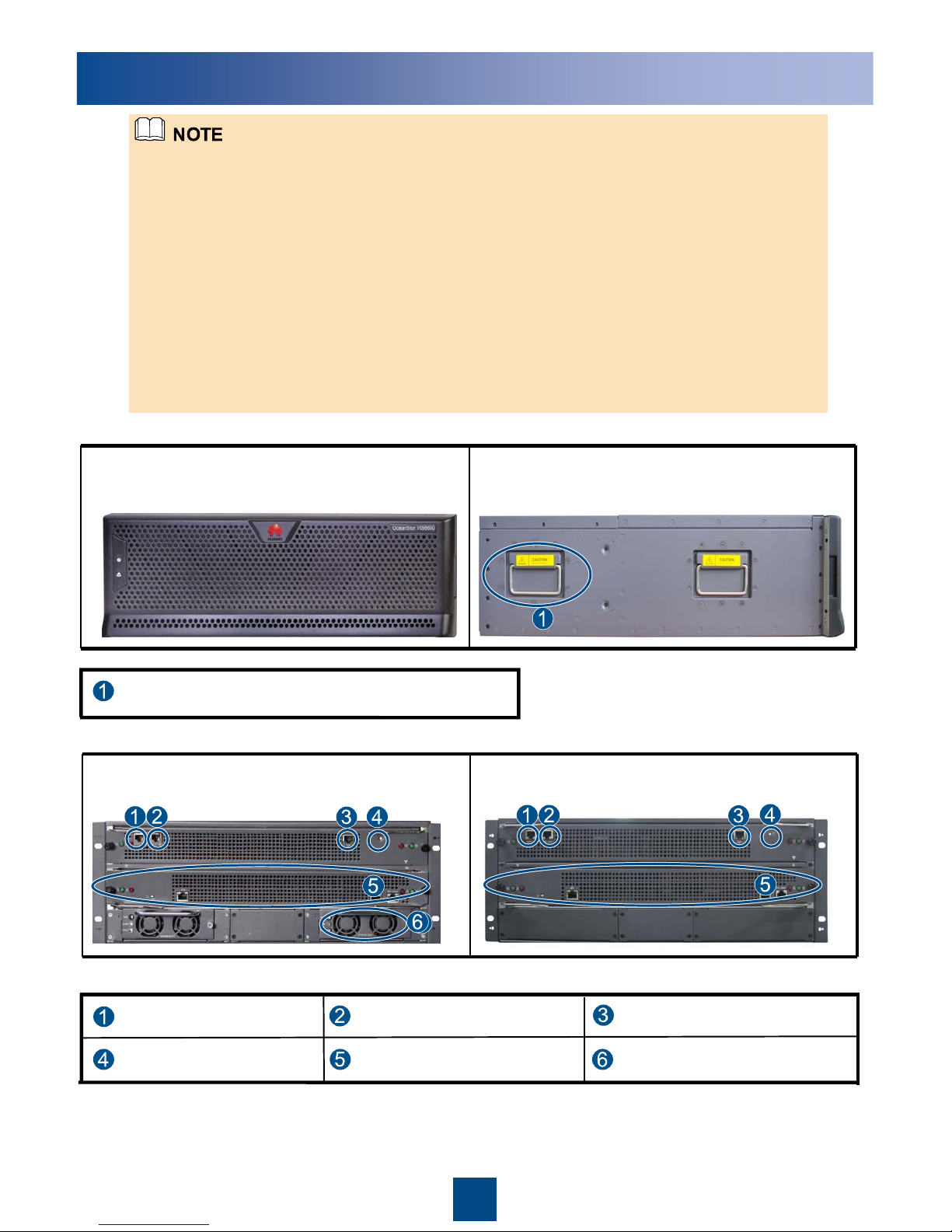

4 VIS6000
Front view of the VIS6000 (take the front view of the
VIS6600 with a baffle as an example)
Side view of the VIS6000 (without the baffle)
Controller reset button Controller b
System debugging serial port BMC adebugging serial port
Power module
Configuration network port
a: baseboard management controller (BMC)
b: In the front view of the VIS6000, the upper controller is controller A and the lower controller is controller B.
System subrack handle
Front view of the VIS6000 (AC, without the baffle) Front view of the VIS6000 (DC, without the baffle)

6
Rear view of the VIS6000 (AC，four FC port modules+two
GE port modules)
Rear view of the VIS6000 (AC，two FC port modules+four
GE port modules)
Rear view of the VIS6000 (DC，two FC port modules+four
GE port modules)
Rear view of the VIS6000 (AC，six GE port modules)
System disk box
Fan module API cmodule
FC port module
GE port module
FC service port
Management port module b
GE service port
System disk
Hot-swap control button a
a：The hot-swap control buttons on the GE port module and the FC port module are reserved. The current version does not
support the use of the button. Do not perform any operation on the button; otherwise, system services might be disrupted.
b：The management port module provides two management network ports and one mute alarm button. The left network port
on the management port module belongs to controller A, and the right network port belongs to controller B.
c：AC power interface (API).
d：DC power interface (DPI).
DPI dmodule

7
The following section takes the installation of the VIS6000 ( two FC port modules + four GE port modules)
in the N610E-22 cabinet as an example.
Installation Procedure
Start
Take antistatic measures
Install the VIS6000 in the cabinet
Install the VIS6000 in the cabinet
Connect the grounding cable
Connect the storage array and application server to the VIS6000
Connect the production center to the disaster recovery center
Connect the VIS6000 to the maintenance terminal
Connect power cable
Power on the devices
End

8

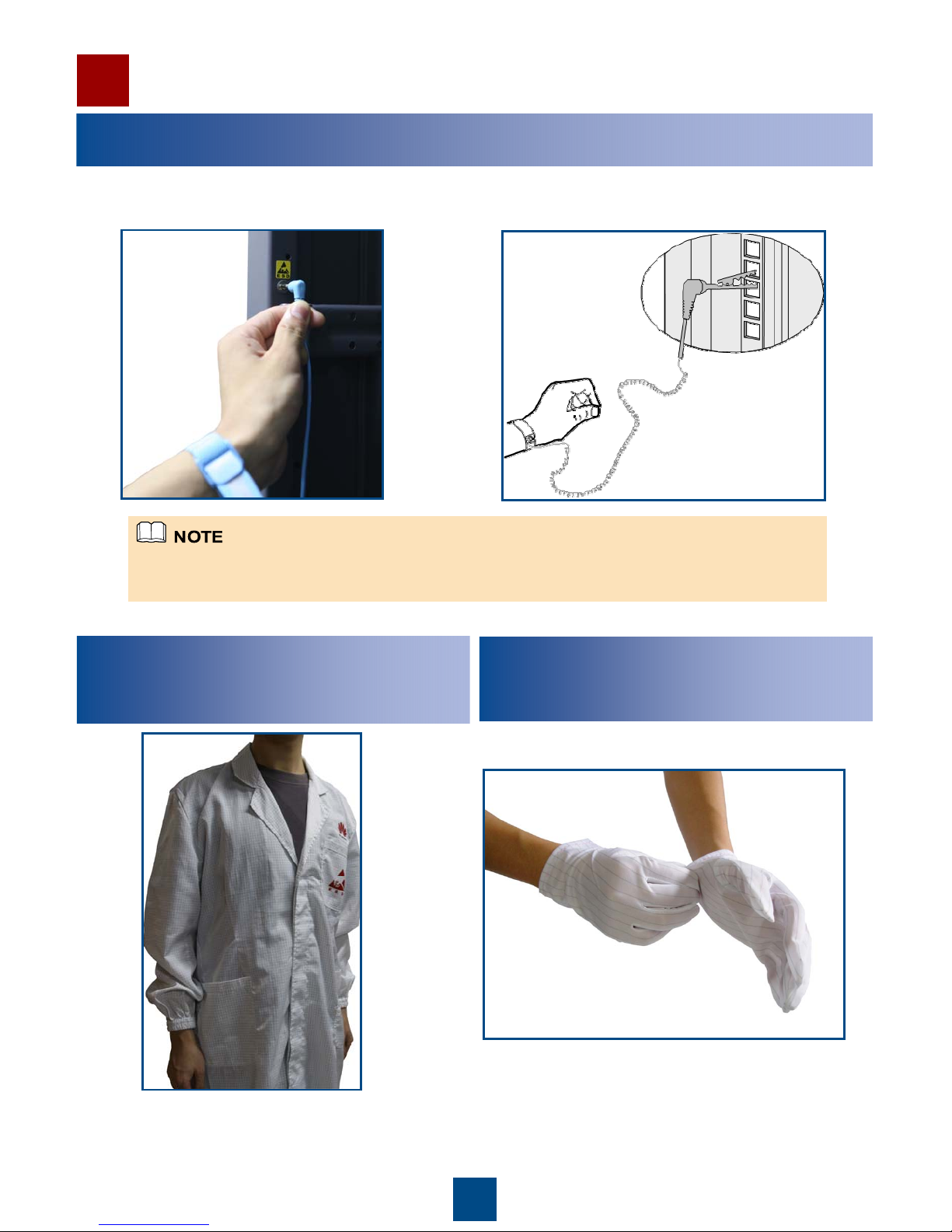

When wearing an ESD-preventive wrist strap, for the plugged ESD-preventive wrist strap, insert the wrist
strap into the ESD plug of the cabinet. For the ESD-preventive wrist strap with metallic clip, you can clip
the ESD-preventive wrist strap with metallic clip to the cabinet directly.
1 Wearing an Antistatic Wrist Strap
2 Wearing Antistatic
Clothes 3 Wearing Antistatic
Gloves
Scenario 1: Wearing an
Antistatic Wrist Strap (Plugged) Scenario 2: Wearing an Antistatic
Wrist Strap (With Metallic Clip)
Taking Antistatic Measures

9
a
If not specified, the VIS6000 in this document refers to the
VIS6000 in the production center.
The table lists the device positions in the cabinet. Install
the VIS6000 and other devices based on the actual
environment.
Install the VIS6000 at the bottom of the cabinet for the
convenience of ventilation and heat dissipation of VIS6000
components.
1 Specifying the Position of
the VIS6000 in the Cabinet
aLocate the VIS6000
Installing the VIS6000 in the Cabinet
▲
Filler panel (2U)
■
▲
●
■
▲
●
■
▲
●
■
▲
AC power distribution box (3U)
VIS6000 (4U)
▲
▲
▲
▲
▲
▲:Filler panel (1U)
■:Other devices (1U)
●:Cabling subrack (1U)
Storage devices (4U)
Storage devices (4U)
Storage devices (4U)
Storage devices (4U)
Filler panel (4U)
Filler panel (4U)

10
b
c
Loosen the Screws on the Filler Panels Using a Cross
Screwdriver
Remove the Filler Panels
aSpecify the Installation Positions of Guide Rail by Using the
Installation Template
2 Locating and Installing Guide Rail

11
bInstall the Guide Rail
The two parts of an adjustable guide rail are bound together with a binding strap. When you unfasten the
binding strap, the two parts can slide freely. Be careful when you install the adjustable guide rail.
Scenario 1: Installing the L-Shape Guide Rail
Scenario 2: Installing the Adjustable Guide Rail
Place the guide rail to be installed in the corresponding position, see step ①in the figure. Ensure that the
direction of the adjustable guide rail is right. Align the positioning pins of the guide rail with the mounting
holes of the slide rail on the inner side of the cabinet, see step ②. Fix the adjustable guide rail on the slide
rail of the cabinet with screws. On the front side of the slide rail, the screw is installed in the third hole of
the adjustable guide rail. On the rear side of the slide rail, the screws are installed in the second and forth
holes of the adjustable guide rail, see step ③. Install another adjustable guide rail on the other side of the
cabinet with the same method.

12
3 Locating and Installing Captive Nuts
aSpecifying the Installation Positions of Captive Nuts by Using
the Installation Template
bInstalling the Captive Nuts
1. Insert One Foot of the
Captive Nut into the Square
Hole and Make it Stuck to
the Pane of the Square Hole
2. Insert the Other Foot of
the Captive Nut into the
Square Hole and Make it
Stuck to the Pane of the
Square Hole with a Captive
Nut Mount Bar
3. Status After Installation

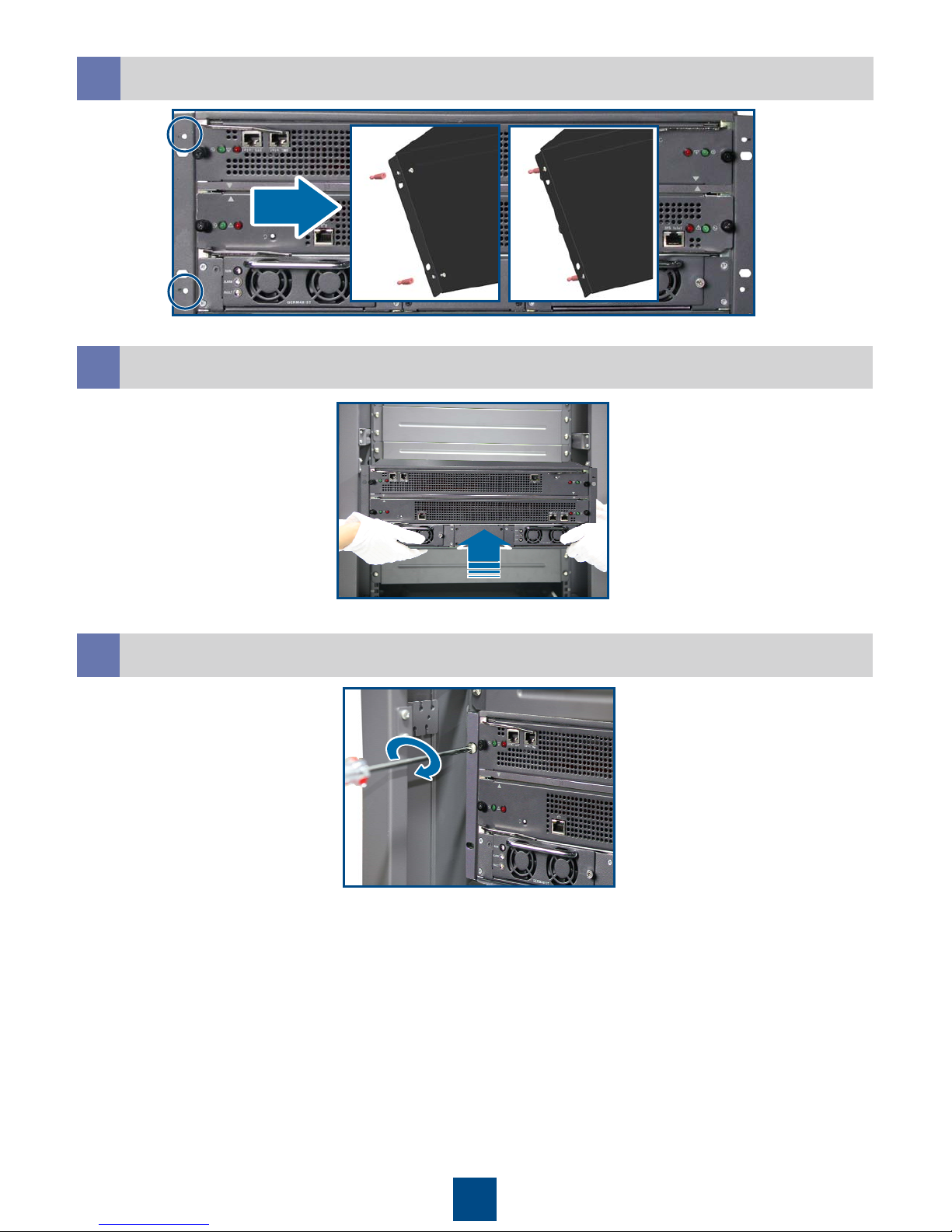

4 Fixing the VIS6000 to the Cabinet
If the VIS6000 is fully configured, arrange more than three persons to carry them and take cares to
avoid injury to any person.
Carry the VIS600 by using the system subrack handle.

13
aInstalling Fixed Bolt to the System Subrack
cFix the VIS6000 in the Cabinet
bPush the VIS6000 into the Cabinet

14

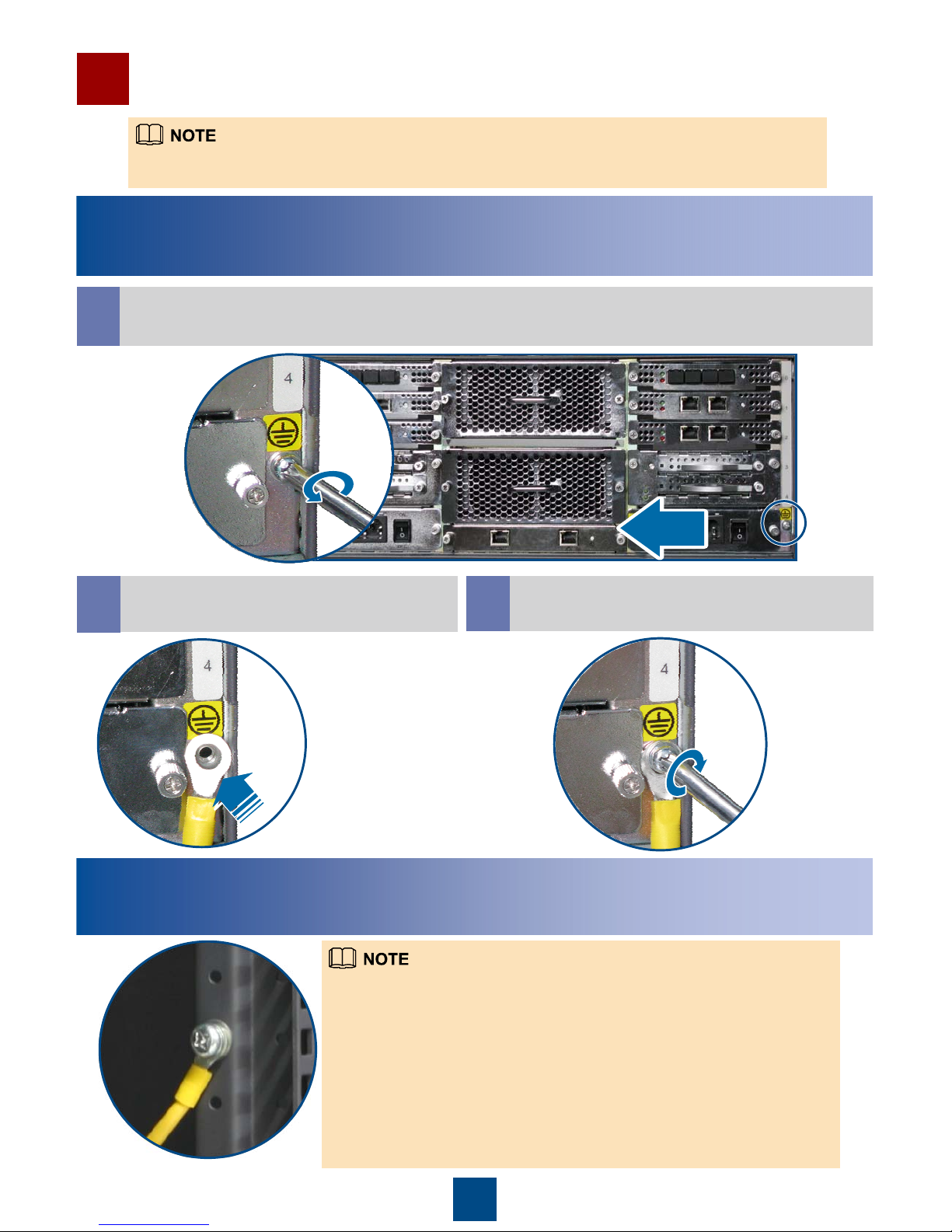

Please connect the the cabinet to the grounding terminals of the VIS6000 with the grounding cable in the
material list of the VIS6000. The grounding cables are wired on the right of the rear of the cabinet.
bFix the Grounding Cable to
the VIS6000 cFasten the Grounding Cable
aUse a Cross Screwdriver to Loosen the Nut of the Grounding
Clip
2 Connecting the Other End of the Grounding Cable
to the Grounding Terminal of the Cabinet
The N610E-22 cabinet is installed with grounding cables. You can remove
the grounding cables and then install the grounding cables in the material list
of the VIS6000 to the cabinet.
Before connecting the grounding cable to the cabinet grounding end, check
whether the cabinet grounding end is covered by insulation paint. If the
cabinet grounding end is covered by insulation paint, scrape the paint off,
and then connect the grounding cable to the cabinet grounding end. If the
grounding end is not covered by insulation paint, connect the grounding
cable directly to the cabinet grounding end. After connecting the grounding
cable to the cabinet, use a multimeter to check whether the device is
grounded correctly. If the device is grounded correctly, execute the
operations in the following sections.
Connecting Grounding Cable
1 Connecting One End of the Grounding Cables to
the Grounding Terminal of the VIS6000

15

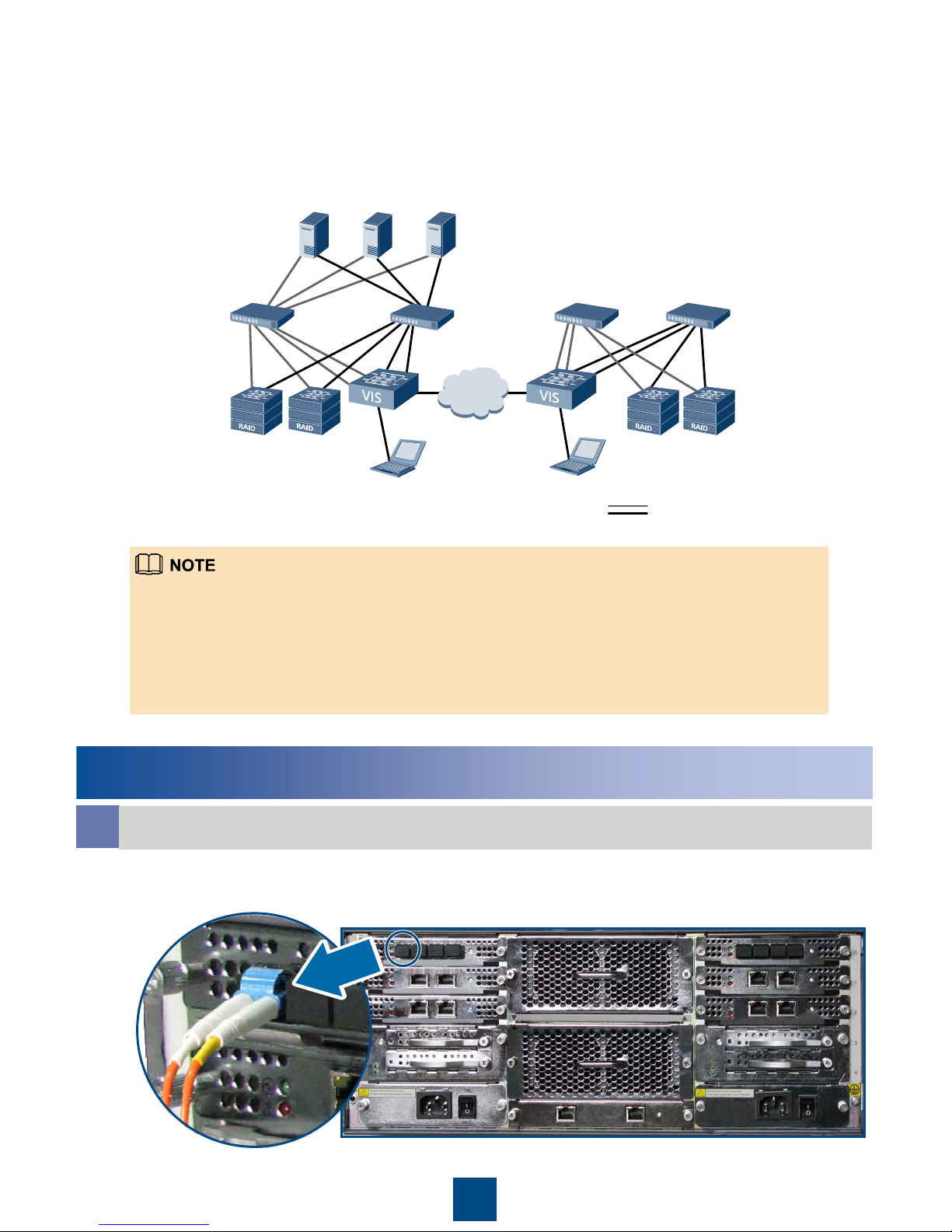

Scenario 1: Networking for Connection of the Production
Center and the Disaster Recovery Center (Only the FC Switch
Is Used in the Networking of the Production Center and the
Disaster Recovery Center)
Connecting Storage Array and
Application Server to the VIS6000
1 Confirming Connection Modes
The networking modes in the production center or the disaster recovery center can both use the FC
switch and the Ethernet switch. Please choose the networking mode according to the actual environment.
This section takes the networking mode that uses only the FC switch or the Ethernet switch in the
production center or the disaster recovery center as an example.
You can the choose FC network (within 60 KM) or Ethernet to connect the production center to the
disaster recovery center. Please choose the networking mode according to the actual environment. The
following figures take the Ethernet on which the production center and the disaster recovery center are
connected as an example.
Linux AIXWindows
VIS6000 VIS6000
WAN
Network cable Optical fiber
Storage arrays
Maintenance terminal
FC switch
FC switch
Maintenance terminal
Storage arrays
FC switch
FC switch

16

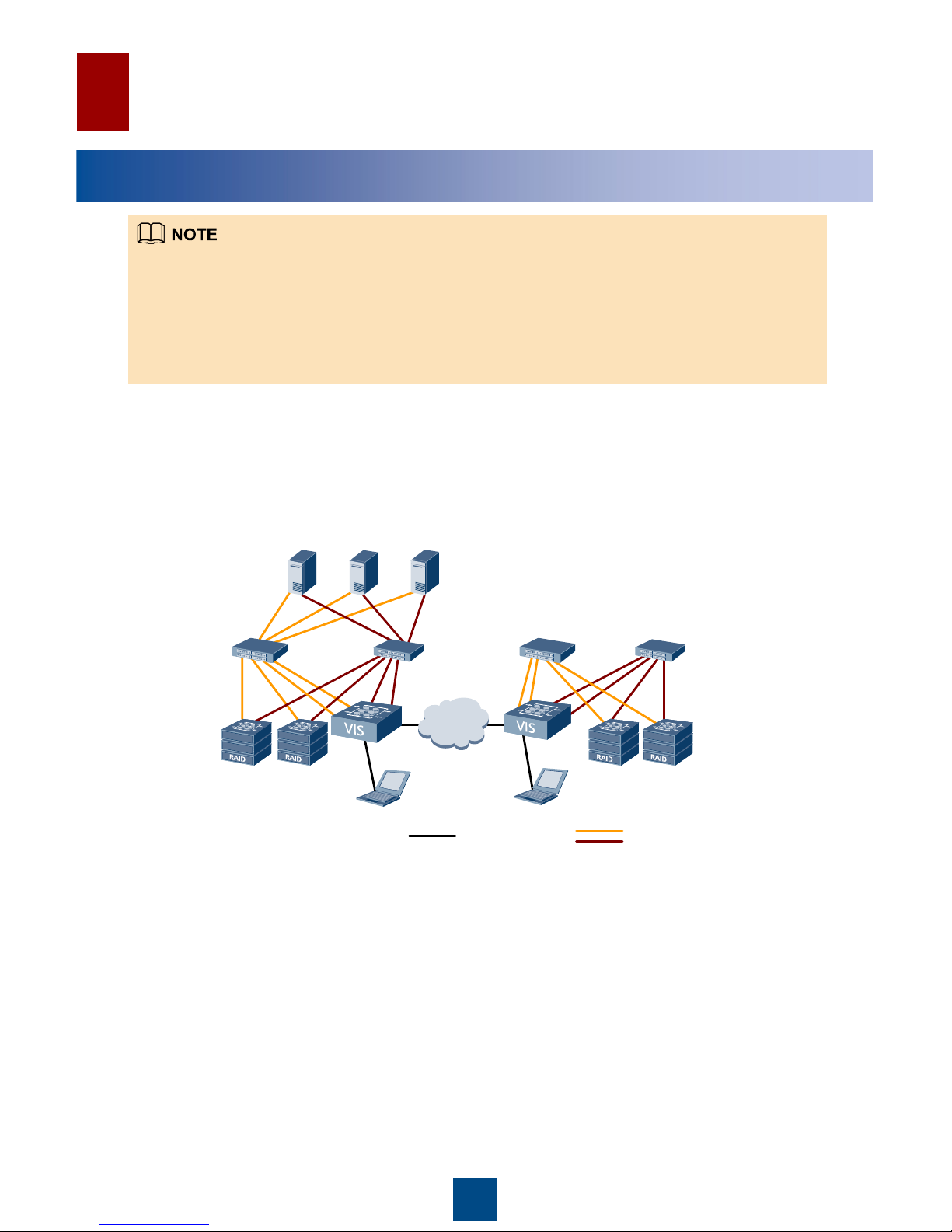

Scenario 2: Networking for Connection of the Production
Center and the Disaster Recovery Center (Only the Ethernet
Switch Is Used in the Networking of the Production Center and
the Disaster Recovery Center)

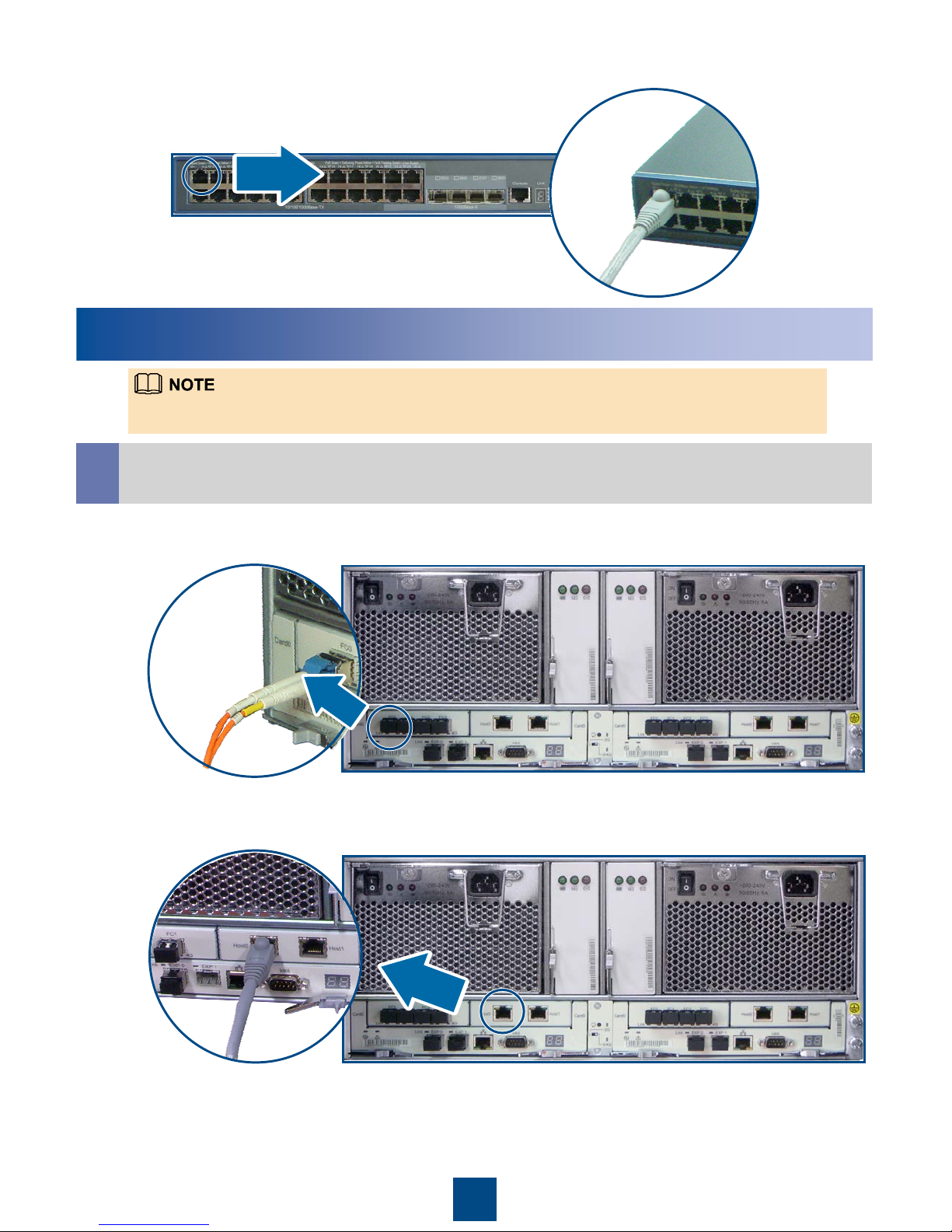

The connection of port modules on the left and right of the rear of the VIS6000 is symmetrical. The
following operation takes port modules on the left of the rear of the VIS6000 as an example. For the
connection of port modules on the right, see the following installation procedure to perform similar
operations.

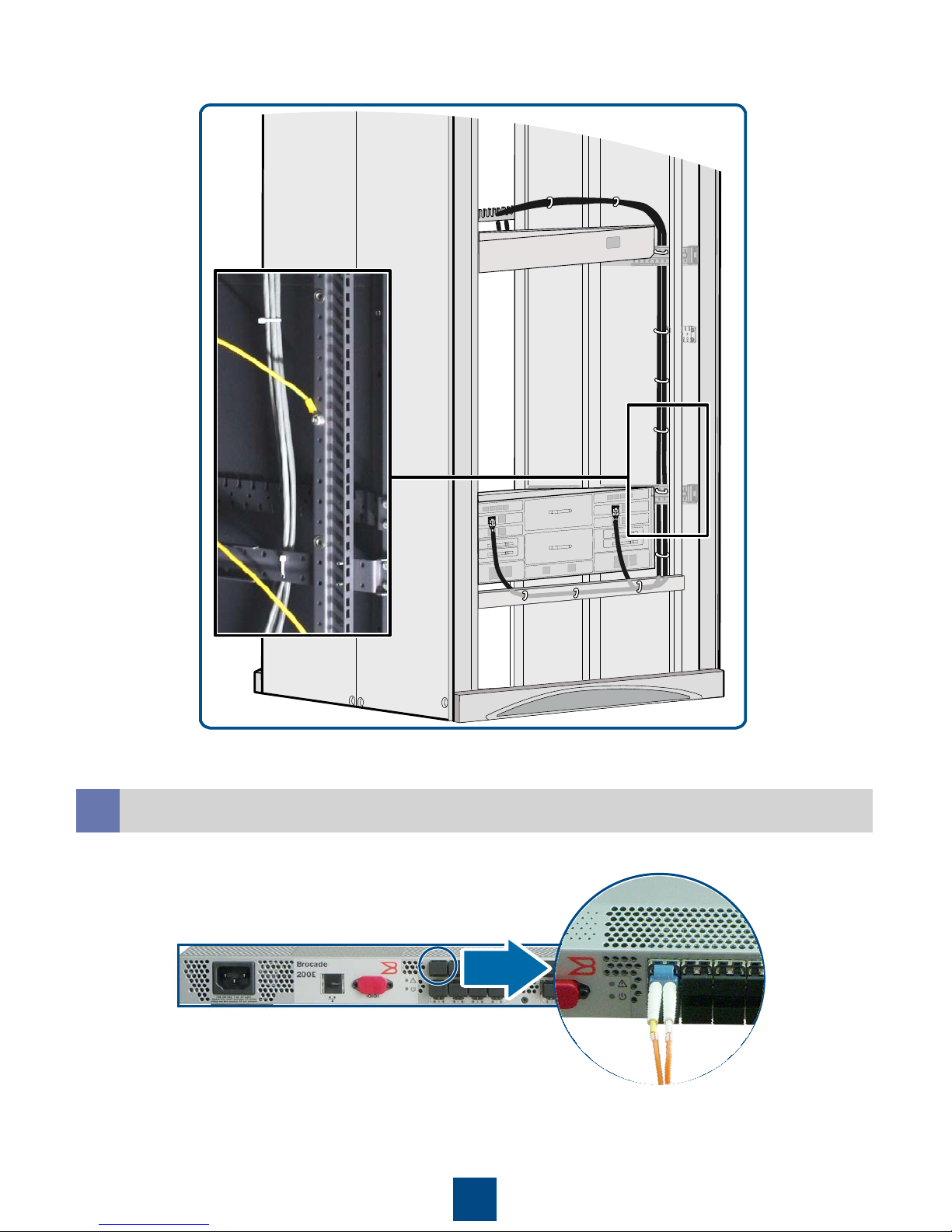

The signal cables are wired on the right of the rear of the cabinet (you can lead signal cables connected
to the left port modules to the right of the cabinet by using the cable tray). When cabinets are connected,
wire the connecting cables inside the cabinet support bridges.
For the FC service ports to which FC cables are not connected, use protective caps.
Scenario 1: Connecting One End of the Optical Fiber to the FC Service Port of the
VIS6000
2 Connecting the VIS6000 to the Switch
aConnect One End of the Cable to the Service Port of the VIS6000
Linux AIXWindows
VIS6000 VIS6000
WAN
Network cable
Storage arrays
Maintenance terminal
Ethernet
switch
Ethernet switch
Storage arrays
Maintenance terminal
Ethernet switch
Ethernet switch

17
Scenario 2: Connecting One End of the Network Cable to the GE Service Port of
the VIS6000
Scenario 1: Laying Optical Fibers
bLaying Cables
The figures take the wiring inside the cabinet as an example. For the wiring outside the cabinet
(overhead wiring and underfloor wiring) , see the appendixes.

18
Scenario 2: Laying Network Cables
Scenario 1: Connecting the Other End of the Optical Fiber to the Port of the FC
Switch
CConnect the Other End of the Cable to the Switch

19
Scenario 2: Connect the Other End of the Network Cable to the Port of the Ethernet
Switch
Scenario 1: Connecting One End of the Optical Fiber to the FC Host Port
The following section takes the OceanStor S5600 with FC and iSCSI host ports (hereinafter referred to
as the S5600) as an example.
Scenario 2: Connecting One End of the Network Cable to the iSCSI Host Port
3 Connecting the Storage Array to the Switch
aConnect One End of the Cable to the Front-end Host Port of
the Storage Array
