Huck BobTail SF32 User manual

April 28, 2015
HK1180
Makers of Huck®, Marson®, Recoil®
Brand Fasteners, Tools & Accessories
InstructIon Manual
BoBtaIl®InstallatIon systeM
sF32 & sF32l
hydraulIc InstallatIon tools

SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
2

3
SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
Safety .................................4-5
SpecificationS ..............................6
principle of operation .......................7
preparation for USe ........................7
tool to powerig Set-Up ......................8
preSSUre SettingS ..........................8
aSSembly of nptf threaded componentS . . . . . . . .9
operating inStrUctionS.......................9
maintenance ..............................10

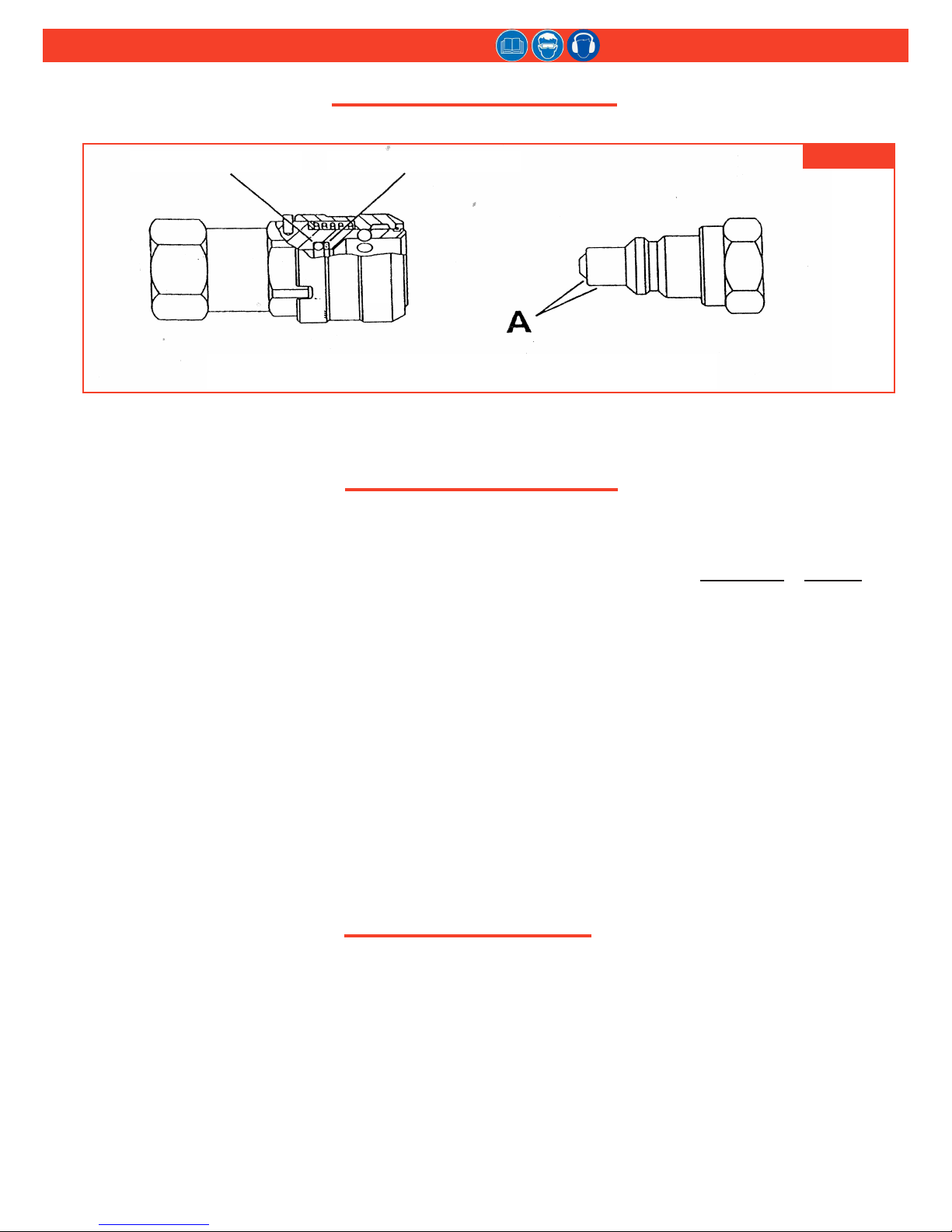

hydraUlic coUplingS . . . . . . . . . . . . . . . . . . . . . . .11
optional eqUipment . . . . . . . . . . . . . . . . . . . . . . . .11
Sticker locationS..........................11

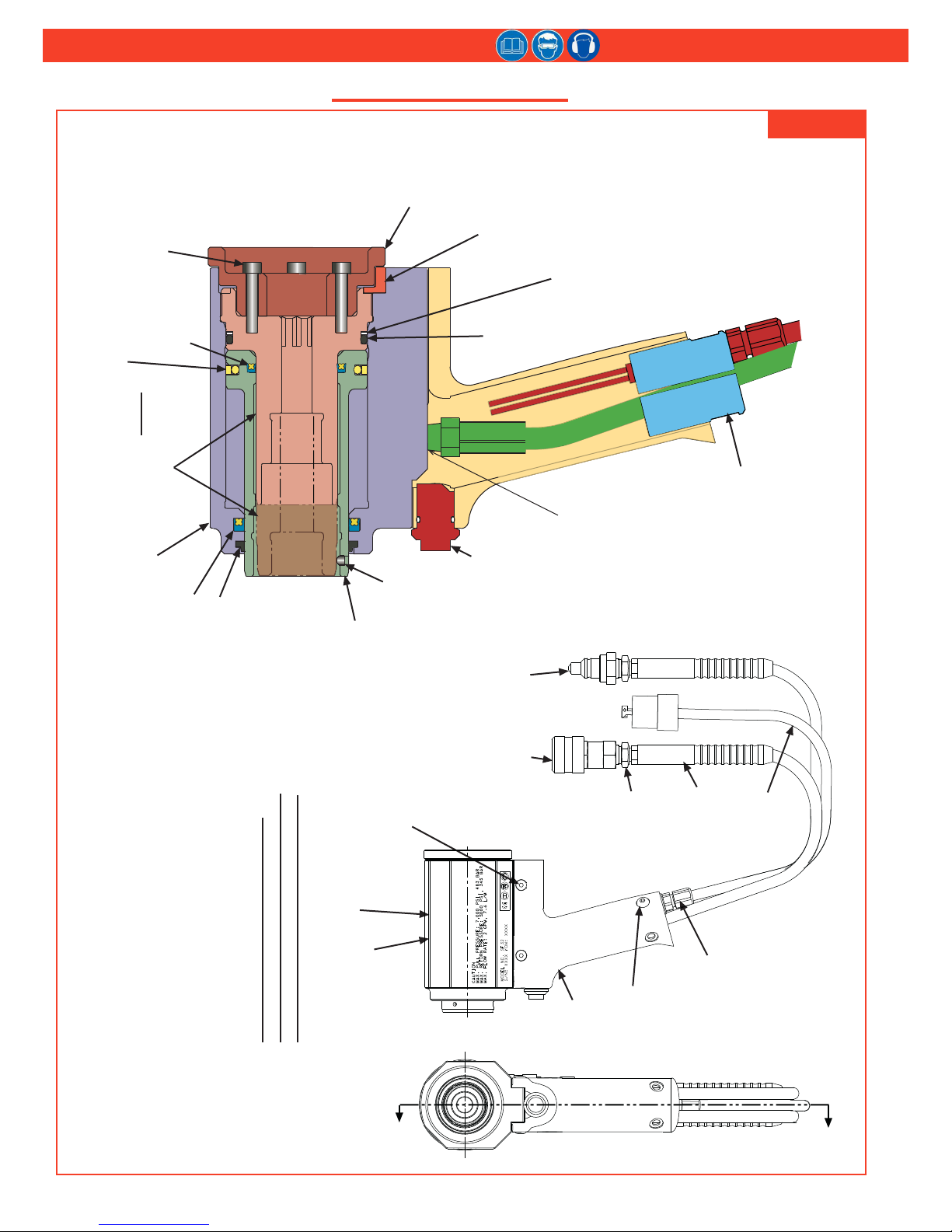

tool componentS drawing ...................12
tool diSaSSembly ..........................13
tool aSSembly ............................14
Contents

SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
4
I. GENERAL SAFETY RULES:
1. A half hour long hands-on training session with qualied
personnel is recommended before using Huck equipment.
2. Huck equipment must be maintained in a safe working
condition at all times. Tools and hoses should be inspected
at the beginning of each shift/day for damage or wear. Any
repairshouldbedonebyaqualiedrepairmantrainedon
Huck procedures.
3. For multiple hazards, read and understand the safety
instructions before installing, operating, repairing,
maintaining, changing accessories on, or working near the
assembly power tool. Failure to do so can result in serious
bodily injury.
4. Onlyqualiedandtrainedoperatorsshouldinstall,adjustor
use the assembly power tool.
5. Do not modify this assembly power tool. This can reduce
effectiveness of safety measures and increase operator risk.
6. Do not discard safety instructions; give them to the operator.
7. Do not use assembly power tool if it has been damaged.
8. Tools shall be inspected periodically to verify all ratings
and markings required, and listed in the manual, are legibly
marked on the tool. The employer/operator shall contact the
manufacturer to obtain replacement marking labels when
necessary. Refer to assembly drawing and parts list for
replacement.
9. Tool is only to be used as stated in this manual. Any other
use is prohibited.
10.ReadMSDSSpecicationsbeforeservicingthetool.MSDS
specicationsareavailablefromtheproductmanufacturer
or your Huck representative.
11. Only genuine Huck parts shall be used for replacements or
spares. Use of any other parts can result in tooling damage
or personal injury.
12.Neverremoveanysafetyguardsorpintaildeectors.
13. Never install a fastener in free air. Personal injury from
fastener ejecting may occur.
14. Where applicable, always clear spent pintail out of nose
assembly before installing the next fastener.
15. Check clearance between trigger and work piece to ensure
there is no pinch point when tool is activated. Remote
triggers are available for hydraulic tooling if pinch point is
unavoidable.
16. Do not abuse tool by dropping or using it as a hammer.
Never use hydraulic or air lines as a handle or to bend or pry
the tool. Reasonable care of installation tools by operators
is an important factor in maintaining tool efciency,
eliminating downtime, and preventing an accident which
may cause severe personal injury.
17. Never place hands between nose assembly and work piece.
Keep hands clear from front of tool.
18. Tools with ejector rods should never be cycled with out
nose assembly installed.
19. When two piece lock bolts are being used always make sure
the collar orientation is correct. See fastener data sheet for
correct positioning.
II. PROJECTILE HAZARDS:
1. Risk of whipping compressed air hose if tool is pneudraulic
or pneumatic.
2. Disconnect the assembly power tool from energy source
when changing inserted tools or accessories.
3. Be aware that failure of the workpiece, accessories, or the
inserted tool itself can generate high velocity projectiles.
4. Always wear impact resistant eye protection during tool
operation. The grade of protection required should be
assessed for each use.
5. The risk of others should also be assessed at this time.
6. Ensurethattheworkpieceissecurelyxed.
7. Check that the means of protection from ejection of fastener
or pintail is in place and operative.
8. There is possibility of forcible ejection of pintails or spent
mandrels from front of tool.
III. OPERATING HAZARDS:
1. Use of tool can expose the operator’s hands to hazards
including: crushing, impacts, cuts, abrasions and heat.
Wear suitable gloves to protect hands.
2. Operators and maintenance personnel shall be physically
able to handle the bulk, weight and power of the tool.
3. Hold the tool correctly and be ready to counteract normal or
sudden movements with both hands available.
4. Maintain a balanced body position and secure footing.
5. Release trigger or stop start device in case of interruption of
energy supply.
6. Use only uids and lubricants recommended by the
manufacturer.
7. Avoid unsuitable postures, as it is likely for these not
to allow counteracting of normal or unexpected tool
movement.
8. Iftheassemblypowertoolisxedtoasuspensiondevice,
makesurethatxationissecure.
9. Beware of the risk of crushing or pinching if nose equipment
isnottted.
Continued on next page...
safety InstruCtIons
GLOSSARY OF TERMS AND SYMBOLS:
- Product complies with requirements set forth by the
relevant European directives.
- READ MANUAL prior to using this equipment.
- EYE PROTECTION IS REQUIRED while using this
equipment.
- HEARING PROTECTION IS REQUIRED while using this
equipment.
Notes: are reminders of required procedures.
Bold, Italic type and underlining: emphasizes a specic instruction.
WARNINGS: Must be understood to avoid
severe personal injury.
CAUTIONS: show conditions that will
damage equipment and or structure.

5
SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
IV. REPETITIVE MOTION HAZARDS:
1. When using assembly power tool, the operator can
experience discomfort in the hands, arms, shoulders, neck
or other parts of the body.
2. When using tool, the operator should adopt a comfortable
posture while maintaining a secure footing and avoid
awkward or off balanced postures.
3. The operator should change posture during extended tasks
to help avoid discomfort and fatigue.
4. If the operator experiences symptoms such as persistent
or recurring discomfort, pain, throbbing, aching, tingling,
numbness, burning sensations or stiffness, these warnings
should not be ignored. The operator should tell the
employerandconsultaqualiedhealthprofessional.
V. ACCESSORIES HAZARDS:
1. Disconnect tool from energy supply before changing
inserted tool or accessory.
2. Use only sizes and types of accessories and consumables
that are recommended. Do not use other types or sizes of
accessories or consumables.
VI. WORKPLACE HAZARDS:
1. Be aware of slippery surfaces caused by use of the tool and
of trip hazards caused by the air line or hydraulic hose.
2. Proceed with caution while in unfamiliar surroundings;
there could be hidden hazards such as electricity or other
utility lines.
3. The assembly power tool is not intended for use in
potentially explosive environments.
4. Tool is not insulated against contact with electrical power.
5. Ensure there are no electrical cables, gas pipes, etc., which
can cause a hazard if damaged by use of the tool.
VII. NOISE HAZARDS:
1. Exposure to high noise levels can cause permanent,
disabling hearing loss and other problems such as tinnitus,
therefore risk assessment and the implementation of proper
controls is essential.
2. Appropriate controls to reduce the risk may include actions
such as damping materials to prevent workpiece from
‘ringing’.
3. Use hearing protection in accordance with employer’s
instructions and as required by occupational health and
safety regulations.
4. Operate and maintain tool as recommended in the
instruction handbook to prevent an unnecessary increase in
the noise level.
5. Select, maintain and replace the consumable / inserted tool
as recommended to prevent an unnecessary increase in
noise.
6. If the power tool has a silencer, always ensure that it is in
place and in good working order when the tool is being
operated.
VIII. VIBRATION HAZARDS:
1. Exposure to vibration can cause disabling damage to the
nerves and blood supply to the hands and arms.
2. Wear warm clothing when working in cold conditions and
keep hands warm and dry.
3. If numbness, tingling, pain or whitening of the skin in the
ngersorhands,stopusingthetool,tellyouremployerand
consult a physician.
4. Support the weight of the tool in a stand, tensioner or
balancer in order to have a lighter grip on the tool.
X. HYDRAULIC TOOL SAFETY INSTRUCTIONS:
1. Carry out a daily check for damaged or worn hoses or
hydraulic connections and replace if necessary.
2. Wipe all couplers clean before connecting. Failure to do
so can result in damage to the quick couplers and cause
overheating.
3. Ensure that couplings are clean and correctly engaged
before operation.
4. Useonlycleanoilandllingequipment.
5. Powerunitsrequireafreeowofairforcoolingpurposes
and should therefore be positioned in a well ventilated area
free from hazardous fumes.
6. Do not inspect or clean the tool while the hydraulic power
source is connected. Accidental engagement of the tool
can cause serious injury.
7. Be sure all hose connections are tight.
8. Wipe all couplers clean before connecting. Failure to do
so can result in damage to the quick couplers and cause
overheating.
safety InstruCtIons (continued)
WARNING: Do not exceed maximum pull or
return settings on tool.
WARNING: Be sure all hose connections are
tight. All tool hoses must be connected.

SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
6
speCIfICatIons
Power Source: Huck POWERIG Hydraulic Unit
Hose Kits: Use only genuine HUCK Hose Kits rated at
10,000 psi working pressure.
Hydraulic Fluid: Hydraulic uid shall meet DEXRON
III, DEXRON VI, MERCON, Allison C-4 or equivalent
ATF specications.
Fire resistant uid may be used if it is an ester based
uid such as Quintolubric HFD or equivalent. Water
based uid shall NOT be used as serious damage to
equipment will occur.
Max Operating Temp: 125 ° F (51.7 ° C)
Max Flow Rate: 2gpm (7.57 l/m)
Max Inlet Pull Pressure: 8000 psi, (550 bar)
Max Inlet Return Pressure: 7000 psi, (483 bar)
Pull Capacity: 33,100 lbf (147.2 kN)
Return Capacity: 18,700 lbf (83.2 kN)
Stroke: 2.00 inches (5.08 cm)
Weight: Approximately 14.5 lbs (6.58 kg)
DEXRON is a registered trademark of General Motors Corporaon.












DIMENSION A B C D E F G
Inches
(cm)
5.58
(14.2)
5.22
(13.3)
4.66
(11.8)
3.40
(8.6)
3.00
(7.6)
1.70
(4.3)
3.40
(8.6)

7
SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
The operator pushes the tool with attached nose
assembly over the end of the fastener until the tool
puller bottoms on the fastener. When the trigger is
pressed, the Powerig®receives a signal to swage
the fastener. The piston moves forward to start the
swaging process.
After the fastener is fully swaged, the operator must
release the trigger, at which point the nose assembly
anvil is ejected off of the collar and the tool is
released from the fastener.
POWER SOURCE CONNECTIONS
1. Coat hose tting threads with a non-hardening TEFLON®
thread compound such as Threadmate™, available from
Huck in a 4oz. tube as p/n 508517.
2. Attach proper Nose Components to Tool as applicable.
3. Use Huck Powerig®Hydraulic Unit, or equivalent, that
has been prepared for operation per instruction manual.
Check PULL and RETURN pressures and, if required,
adjust to pressures given in Pressure settIngs section of
this manual.
4. First, turn hydraulic unit to OFF. Then disconnect power
supply from hydraulic unit. Disconnect trigger control
system from hydraulic unit.
5. Connect PULL pressure hose, with coupler nipple, into
port “P” of tool. Use only with HUCK supplied hoses
rated at 10,000 psi or greater. Check trigger assembly for
apparent damage or wear. If required, adjust position of
trigger assembly on hose. Connect trigger control system
to hydraulic unit.
6. Connect hydraulic unit to power supply (air or electric).
Turn hydraulic unit to ON. Depress trigger a few times to
cycle tool and to circulate hydraulic uid. Observe action
of Tool and check for leaks.
preparatIon for use
WARNINGS:
Read full manual before using tool.
A half-hour training session with qualied
personnel is recommended before using
Huck equipment.
When operating Huck installation
equipment, always wear approved eye
protection.
Be sure there is adequate clearance for
the operator’s hands before proceeding.
CAUTION: Do not use TEFLON®tape on
pipe threads. Pipe threads may cause tape
to shred resulting in tool malfunction.
(Threadmate™ is available from Huck in a
4oz. tube as part number 508517.)
WARNING: Correct PULL and RETURN
pressures are required for operator’s
safety and for Installation TooI’s function.
Gauge T-124833CE is available for
checking pressures. See Pressure settIngs
and Gauge Instruction Manual. Failure
to verify pressures may result in severe
personal injury.
WARNING: Be sure to connect Tool’s
hydraulic hoses to Powerig Hydraulic Unit
before connecting Tool’s switch control
cord to unit. If not connected in this
order, severe personal Injury may occur.
WARNING: Huck recommends that only
Huck Powerig Hydraulic Units be used
as a power source for Huck installation
equipment. Hydraulic power units that
deliver high pressure for both PULL and
RETURN, AND ARE NOT EQUIPPED WITH
RELIEF VALVES ARE SPECIFICALLY
NOT RECOMMENDED AND MAY BE
DANGEROUS.
prInCIple of operatIon
Threadmate is a registered trademark of Parker Intangibles LLC.
TEFLON is a registered trademark of E. I. du Pont de Nemours and Company
Powerig is a registered trademark of Alcoa
CAUTION: Do not let disconnected hoses
and couplers contact a dirty oor. Keep
harmful material out of hydraulic uid. Dirt
in hydraulic uid causes valve failure In Tool
and In Powerig Hydraulic Unit.
CAUTION: Hose couplers must be completely
joined together to insure that ball checks in
both nipple and body are completely open.
Improperly assembled couplers will cause
overheating and malfunctions in both tool
and Powerig. Hand tighten couplers. Do NOT
use a pipe wrench.

SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
8
















 
 


 
 
 
 
 

Figure 1
tool to powerIg setup
1. Set Pull and Return pressures on Powerig using
Huck Gage P/N: T-124833CE and Table 1.
2. First connect the Hydraulic Hoses to the Powerig.
3. Connect the other end of the Hose Assembly to the
installation tool.
4. Connect the Trigger/Control Cord from the Tool to
the Hose Assembly.
5. Connect the Trigger/Control Cord from the Hose
Assembly to the Powerig.
6. Once the system is set up, turn on Powerig
and install test fastener. Check to be sure that
the fastener is installed correctly. This can be
checked by using the appropriate swage gauge.
WARNING: To prevent tripping hazard,
suspend tools and route hoses off of
oors.
WARNING: Only use compatible
equipment with this tool.
pressure settIngs
Table 1
Fastener
Size
Grade 5
Pull (psi)
Grade 5
Return
(psi)
Grade 8
Pull (psi)
Grade 8
Return
(psi)
Class 8.8
Pull (psi)
Class 8.8
Return
(psi)
Class 10.9
Pull (psi)
Class 10.9
Return
(psi)
-24 (3/4”) 5100 2700 7700 3800 - - - -
20mm - - - - 5100 2700 7700 3800

9
SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
GENERAL
■ Operators should receive training from qualied
personnel.
■ Do not bend tool to free if stuck.
■ Tool should only be used to install fasteners.
■ NEVER use as a jack/spreader or hammer.
TO INSTALL A BobTail®FASTENER:
1. Check work and remove excessive gap. (Gap is
the space between sheets. Gap is excessive if not
enough pintail sticks through the collar for the nose
assembly puller to grab onto).
2. Put BobTail pin in hole.
3. Slide BobTail collar over pin. (The anged end of the
collar must be towards the pieces being fastened.)
4. Push nose assembly onto the pin until the nose
assembly puller stops against the pin. Tool and nose
assembly must be held at right angles (90 degrees)
to the work.
5. Depress tool trigger to start installation cycle.
6. When forward motion of nose assembly anvil stops,
release trigger. Tool will go into its return stroke and
push off the installed fastener.
7. The tool and nose assembly are ready for the
next installation cycle.
operatIng InstruCtIons
For safe operation. Please read completely
CAUTION: Remove excess gap from between
the sheets. This permits enough pintail
to emerge from collar for ALL puller teeth
to engage with pintail. If ALL teeth do not
engage properly, jaws will be damaged.
assembly of nptf threaded Components
AIR FITTINGS
1) Apply TEFLON®stick to male threads which do
not have pre-applied sealant per manufacturer’s
recommendations. (Proceed to All Fittings step 2)
HYDRAULIC FITTINGS
1) Apply Threadmate™to male and female threads
which do not have pre-applied sealant per
manufacturer’s recommendations. (Proceed to All
Fittings step 2)
ALL FITTINGS:
2) Tighten to nger-tight condition.
3) Wrench tighten to 2-3 turns past nger-tight condition.
4) Final thread engagement can be checked (optional)
by measuring the dimension from the ange of male
tting to the end of the thread before assembly
and subtracting the distance under the ange after
assembly. See Table 2.
Thread size Final thread engagement
at full make-up (inches)
Number of turns from
nger-tight condition
1/8-27 NPTF .235 2-3
1/4-18 NPTF .339 2-3
3/8-18 NPTF .351 2-3
Table 2
WARNINGS:
To avoid severe personal injury: Wear
approved eye and ear protection. Be sure
of adequate clearance for Operator’s hands
before proceeding with fastener installation.
Do not pull on a pin without placing fastener/
collar in a workpiece. This condition can
cause pin to eject with great velocity and
force if the pintail breaks off or teeth/grooves
strip. This may cause severe personal injury.
To avoid pinch point, never place hand
between nose assembly and work piece.
Only use compatible equipment with this
tool.

SF32 BobTail®Installation Tooling (HK1180) Alcoa Fastening Systems & Rings
10
maIntenanCe
• The eciency and life of your tool depends on proper
maintenance. Please read this secon completely
before proceeding with maintenance and repair. Use
proper hand tools in a clean and well-lighted area.
Only standard hand tools are required in most cases.
Where a special tool is required, the descripon and
part number are given.
• While clamping tool or parts in a vise, and when
parts require force, use suitable so materials to
cushion impact. For example, using a half-inch brass
dri, wood block and vise with so jaws greatly
reduces possibility of damaging tool. Remove
components in a straight line without bending,
cocking or undue force. Reassemble tool with the
same care..
Sealants, Lubricants, Service Kits
•See sPecIFIcatIons for uid type. Dispose of uid in
accordance with local environmental regulations.
Recycle steel, aluminum, and plastic parts in
accordance with local lawful and safe practices.
• Rub pipe plug threads and quick connect ttings
with PTFE thread compound.
• Smear LUBRIPLATE®13OAA*, or equivalent
lubricant, on O-Rings and mating surfaces to aid
assembly and to prevent damage to O-Rings.
(LUBRIPLATE 13O-AA is available in a tube as
Huck P/N 502723.)
•Each Service Kit contains perishable parts for your
specic tool. As foreseeable use may indicate,
keep extra kits (O-rings, Back-up Rings, other
standard items) and tool parts in stock. When stock
is depleted, you can get kit items from any regular
retailer of these items. See kit parts list for: O-ring
size (AS568- number); material; durometer.
PreventIve MaIntenance
System Inspection
Operang eciency of the tool is directly related to
the performance of the complete system, including the
tool with nose assembly, hydraulic hoses, trigger and
control cord, and POWERIG. Therefore, an eecve
prevenve maintenance program includes scheduled
inspecons of the system to detect and correct minor
troubles. At the beginning of each shi/day:
• Inspect tool and nose assembly for external damage.
• Verify that hydraulic hose ttings, couplings, and
electrical connections are secure.
• Inspect hydraulic hoses for damage and deterioration.
Do not use hoses to carry tool. Replace hoses if
damaged.
• Observe tool, hoses, and hydraulic unit during
operation to detect abnormal heating, leaks, or
vibration.
• Max hydraulic uid contamination level: NAS 1638
class 9, or ISO CODE 18/15, or SAE level 6.
Powerig Maintenance
Maintenance instructions and repair procedures are
in the appropriate POWERIG Instruction Manual.
Tool Maintenance
Whenever disassembled and also at regular intervals
(depending on severity and length of use), replace
all seals, wipers, and back-up rings in tool. Service
Kits, hoses, and extra parts should be kept in stock.
Inspect cylinder bore, pistons, and piston rods for
scored surfaces and excessive wear or damage.
Replace as necessary.
Nose Assembly Maintenance
Clean nose assembly often. Dip in mineral spirits or
similar solvent to clean puller and wash away metal
chips and debris. At regular intervals, as experience
shows, disassemble nose and use a sharp “pick” to
remove imbedded particles from grooves of puller.
*DEXRON is a registered trademark of General Motors Corp.
Quintolubric is a registered trademark of Quaker Chemical Corp.
Threadmate is a registered trademark of Parker Intangibles LLC..
TEFLON is a registered trademark of DuPont Corp.
LUBRIPLATE is a registered trademark of Fiske Brothers Rening Co.
CAUTIONS:
- Consult MSDS before servicing tool.
- Keep dirt and other material out of
hydraulic system.
- Separated parts most be kept away from
dirty work surfaces.
- Dirt/debrisinhydraulicuidcausesfailure
in Powerig® Hydraulic Unit valves.
CAUTION: Do not use TEFLON®* tape on pipe
threads. Pipe threads may cause tape to shred
resulting in tool malfunction. (Threadmate™
is available from Huck in a 4oz. tube as part
number 508517.)
CAUTION: Always replace seals,
wipers, and back-up rings when tool is
disassembled for any reason.
WARNING: Inspect tool for damage or
wear before each use. Do not operate
if damaged or worn, as severe personal
injury may occur.
