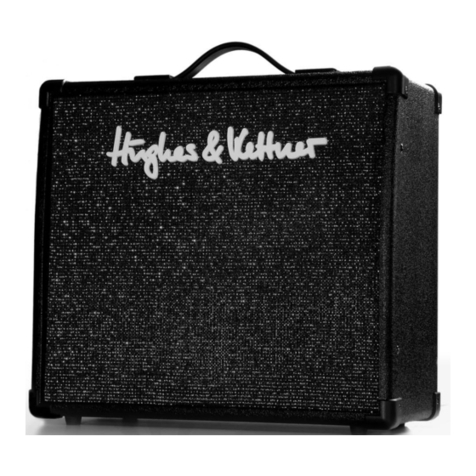

Hughes & Kettner Matrix 100 Combo User manual

deutsch english español français italiano
Head & Combo
Manual 1.0

You want more?
Here it is!
MATRIX™ 100 Manual
Wichtig:
Bitte lies vor der Inbetriebnahme unbedingt die
Sicherheitshinweise auf Seite 28-30!
Important:
Before powering up please read the Important Safety
Instructions on page 28-30!
Importante:
¡Por favor antes de la puesta en servicio debes leer neces-
ariamente las instrucciones de seguridad en la página 28-30!
Attention:
Avant la mise en fonction de l’appareil, il est fortement
recommandé de prendre connaissance des mesures de
prudence présentées aux pages 28 à 30 !
Importante:
Prima di utilizzare lo strumento leggete attentamente gli avvisi
di sicurezza su pagina 28-30!
2

MATRIX™ 100 Manual
Foreword
Thank you for choosing a Hughes & Kettner®
product. With the MATRIX™ 100, you now
own a unique guitar-driven sound system that
offers everything you need to have a blast at
rehearsals and on stage. We factored the wishes
and suggestions of many guitarists into the
design of the MATRIX™ 100, aiming to turn
up a modern guitar amp that would stand as a
benchmark DFX amp. We accomplished what
we set out to achieve. No comparable amp
comes close to matching the MATRIX™’s sound
quality, flexibility, performance and handling
convenience.
Your MATRIX™ 100’s nerve center is the inno-
vative Autostore FX MATRIX™. For the first time,
an amp in this class is able to store individual
effect settings separately for every channel. And
it does this automatically, without requiring
additional programming steps. Finally, an
ingenious function has arrived that makes the
DFX amp a true gigging rig!
The MATRIX™ 100 is equipped with a digital
multi FX processor offering popular effects
such as REVERB, DELAY, CHORUS, FLANGER
and TREMOLO in remarkably high quality. Four
channels, a Current Feedback power amp and
12" RockDriver Ultra speakers, developed in a
joint effort with Celestion®, deliver the goods
– soul-stirring tone. When you power up and
plug in, you’ll hear 20 years of Hughes &
Kettner®amp engineering experience reflected
in that tone.
Whether you opted for the combo or the head,
rest assured that the MATRIX™ delivers the kind
of inspiring response that is sure to supercharge
your playing while practicing and performing
on the big stage. You wanted it all – powerful
and G-force sound pressure, crystal-clear clean
sounds, creamy CRUNCH and lead tones, fire-
breathing WARP sounds, and authentic effects.
Now you got it, in a great, easily handled
gigging amp to boot.
Here’s wishing you tons of fun with your new
MATRIX™ 100!
Table of Content
1Overview of Control Features
and Connectors 9
1.1 Selecting Channels and Effect Parameters 9
1.2 Instrument Inputs, Channels and Mater Volume 9
1.3 Mains Switch and Mains Socket 9
1.4 Speaker out 10
1.5 Headphones out 10
1.6 LINE OUT 10
1.7 CD/LINE INPUT 10
1.8 FX SEND/RETURN 10
1.9 FOOTSWITCH 10
1.9.1 FX ON/OFF 10
2
The MATRIX™ 100’S four Channels 10
2.1 CLEAN 10
2.1.1 CLEAN VOL 10
2.1.2 CLEAN Voicing Section 10
2.2 CRUNCH 10
2.2.1 CRUNCH GAIN 10
2. 2.2 CRUNCH VOL 10
2.3 LEAD 10
2.3.1 LEAD/WARP-GAIN 11
2.3.2 LEAD VOL 11
2.4 WARP 11
2.4.1 WARP VOL 11
2.5 CRUNCH, LEAD, WARP Voicing Section 11
3
The MATRIX™ 100’s Effects 11
3.1 MOD FX 11
3.1.1 CHORUS 11
3.1.2 FLANGER 11
3.1.3 TREMOLO 11
3.2 DELAY 11
3.3 REVERB 11
4
Technical Specifications 12
8

MATRIX™ 100 Manual
english
1
Overview of Control Features and
Connectors
1.1 Selecting channels and effect parameters
Use buttons 1 to 4 to select the MATRIX™ 100’s four channels,
CLEAN, CRUNCH, LEAD and WARP. These buttons correspond
to the buttons on the included footswitch. When the footswitch
is connected, buttons 1 to 4 serve display purposes only, and
the footswitch switches channels.
Use knobs 5 to 8 to adjust the effect for the given channel. The
FX MATRIX’s Autostore function automatically saves the edited
effect settings for every channel. You do not need to store
settings separately. Even if the amp is suddenly switched off or
power fails, the FX MATRIX™ will recall your settings.
1.2 Instrument inputs, channels and master volume
Connect your guitar to input 9. Please use high-quality shielded
cords only.
Use knobs 10 to 21 to shape the sound and determine the
volume of individual channels. You’ll find a detailed description
of the channels in section 2. Knob 22 determines the amp’s
overall volume level. Always turn the MASTER knob all the way
down – that is, counterclockwise as far as it will go - before
powering your amp up.
Knobs 10 to 22 work in the same tried-and-true manner as
the controls on a classic amp. These settings are not stored.
This means that the actual position of the knob determines the
amp’s sounds.
1.3 Mains switch and mains socket
Use switch 23 to turn the MATRIX™ 100 on and off. Make a
habit of checking to make sure that the switch is set to the OFF
position before you connect the power cable to a mains power
supply. The MATRIX™ 100 ships with a separate power cord
that connects to socket 24. Please ensure that the mains
voltage matches the value indicated on the back panel of the
MATRIX™ 100. Get in touch with your Hughes & Kettner®
dealer immediately if this is not the case or the included mains
cord’s plug does not fit into the wall outlet.
1.4 Speaker out
Use jack or jack pair 25, EXTERNAL SPEAKER or SPEAKERS,
to connect speakers. All speakers are connected in parallel for
both the combo and the head.
MATRIX™ 100 COMBO
EXTERNAL SPEAKER: Connect cabinets with 8 ohms minimum
impedance to this jack. The impedance of connected speakers
must never be lower than 8 ohms!
MATRIX™ 100 HEAD
SPEAKERS: You can connect two cabinets to the head. The
minimum impedance is 4 ohms; ensure your rig’s impedance
never drops below 4 ohms! If you plug cabs into both jacks,
each cabinet’s impedance must be 8 ohms or higher. If you
24 25 26 27 28 29 30 31
910 20191817161514
1
1211 23222113
234 5678
MATRIX™100
Combo/Head
Front
MATRIX™100
Combo
Rear
MATRIX™100 Head Rear
32
9

MATRIX™ 100 Manual
plug a cab into just one jack, its impedance must be 4 ohms or
higher.
1.5 Headphones out
Connect standard stereo headphones to jack 26, HEADPHONES.
Adjust the volume via the MASTER knob. Always plug in a
stereo 1/4" jack when connecting headphones. The headphones
output may be damaged if you insert a mono plug into the jack.
The MATRIX™ 100 speaker output is deactivated when a plug
is inserted into this jack.
1.6 LINE OUT
Use jack 27, LINE OUT, (mono 1/4" jack) to patch out the amp’s
signal, including all effects, to another power amp or a DI box
(for example, the Hughes & Kettner®RED BOX).
1.7 CD/LINE INPUT
Use jack 28, CD/LINE INPUT, to patch in any type of line signal.
For example, you could plug in a CD player to play along with
a recorded track. Use a cord equipped with stereo 1/4" jack
plugs to do this. Adjust the level using knob 22, MASTER
VOLUME.
1.8 FX SEND/RETURN
Connect an effect device’s output to jack 29, FX RETURN;
connect an effect device’s input to jack 30, FX SEND. The
effects loop is a serial circuit, so adjust the effect amount (or
wet-to-dry balance) at the effect device. The entire preamp
signal is routed through the inserted effector and processed
there. Please note that your rig’s sound quality depends to
a considerable extent on the quality of the employed effect
device. A poor-quality signal processor can have an adverse
effect on the MATRIX™ 100’s sound quality.
•Use high-quality patch cords only to prevent signal loss,
background noise and drop-outs.
•Ensure that the effect device is not being overdriven. Be sure
to keep an eye on whatever type of level meter, gain indicator
or overload lamp the effects device is equipped with, and
adjust its input and output controls accordingly.
•Fuzz boxes, overdrives and distortion units don’t belong in an
FX loop. Plug them into the amp’s input.
1.9 FOOTSWITCH
Your MATRIX™ 100 comes with a four-way footswitch that
plugs into jack 31. The buttons on the footswitch correspond
to buttons 1 to 4 on the MATRIX™ 100’s front panel. When
the footswitch is plugged into the amp, buttons 1 to 4 serve
display purposes only, and the footswitch switches channels.
1.9.1 FX ON/OFF
Especially for live performances, the Matrix™ 100 enables you
to turn the internal effects on and off individually, in addition
to the 4 switchable channels. To do this, you need to con-
nect a footswitch to the stereo 32 FX ON/OFF jack. Using a
simple footswitch (such as the Hughes & Kettner®FS-1) will
enable you to switch the modulation effects and DELAY at the
same time, leaving REVERB unaffected. You can use a double
footswitch (such as the Hughes & Kettner®FS-2) to switch the
modulation effects and DELAY, and REVERB seperately.
2The MATRIX™ 100’s four Channels
2.1 CLEAN
The Clean is channel is tweaked to sound sweet when driven by
single-coil as well as humbucking pickups.
2.1.1 CLEAN VOL
Adjusts the CLEAN channel’s volume level. Players who opt for
this class of amp demand a clean channel with enough head-
room to ensure it remains clean. This amp certainly does that.
Depending on the pickups’ output power, you may also be able
to dial in a touch of grit. For single-coils, we recommend that
you turn the knob well up. Do this, and the amp will reward
you with tight &punchy midrange response that is both crisp
and fat. If your axe sports humbuckers, set this knob some-
where around the 12 o’clock position for crystal-clear clean
tone.
2.1.2 Clean Voicing Section: BASS, MID and TREBLE
knobs. MID and TREBLE controls influence each other, as is
standard and desirable in the tube amps that this voicing
section is patterned on. If you boost the high end, mids are cut
and vice versa. This sound-shaping feature lets you to dial in a
wide variety of subtle tonal variations. We recommend that you
go easy on the bass for the CLEAN channel. Generally, the more
mids you dial in, the more assertive your clean tone in the
band’s soundscape. Note that the TREBLE knob shapes your
guitar signal’s bell-like overtones.
2.2 CRUNCH
Overdriven sounds à la carte! This channel covers a diverse
tonal spectrum ranging from squeaky clean to gritty overdrive.
It responds to every nuance in your picking attack, granting you
precise control over the amount of overdrive via your guitar‘s
volume knob. Higher CRUNCH knob settings elicit warm
sustain that is ideal for singing leads with breathy dynamics.
2.2.1 CRUNCH GAIN
Controls the CRUNCH channel’s input sensitivity and thus the
amount of saturation. You can dial in anything from tone that
is just sweet enough to pass for clean to throaty tones that are
distinctly rough around the edges. Again, crank the knob for
single-coils; back it off a bit for humbuckers.
2.2.2 CRUNCH VOL
Controls the CRUNCH channel’s level; use it to determine the
balance between it and the other channels.
10

MATRIX™ 100 Manual
english
2.3 LEAD
Yields hard-hitting, snarling British rock tone.
2.3.1 LEAD/WARP GAIN
Controls the LEAD and WARP channel’s input sensitivity and
thus the amount of saturation, with distortion option ranges
from creamy smooth to British grit and chunky NuMetal
thunder.
2.3.2 LEAD Vol
Controls the LEAD channel’s level; use it to determine the
balance between it and the other channels.
2.4 WARP
Beware! The MATRIX™ 100’s heart of darkness, this channel
offers fierce high-gain sounds of a flavor favored by popular
NuMetal bands. This brand of distortion is best described as an
angry roar. Depending on this channel’s settings, you can dial
monster NuMetal tone, grinding post-grunge and alternative
sounds, and thunderous death and Gothic metal noise.
2.4.1 WARP VOL
Controls the WARP channel’s level; use it to determine the
balance between it and the other channels.
2.5 CRUNCH, LEAD, WARP Voicing Section
For handling ease, the MATRIX™ 100’s three overdrive
channels share common voicing controls. However, behind
these tone controls are three different EQ circuits that are
automatically switched along with the channel. This is why an
EQ setting that you have dialed in for the LEAD channel works
so well with the CRUNCH and WARP channels.
3The MATRIX™ 100’s Effects
The MATRIX™ 100 features three independent effects -
modula-tion, DELAY and REVERB. All three effect models
may be used simultaneously and adjusted independently. The
MATRIX™ FX automatically stores settings for each channel.
3.1 MOD FX
The MATRIX™ 100 puts at your disposal the three most sought-
after modulation effects: A CHORUS, FLANGER and TREMOLO
are all assigned to one knob. CHORUS is assigned to the first
third of the knob’s control range, FLANGER to the second, and
TREMOLO to the final third. You can sweep the knob within
each third to adjust the effect’s characteristics. We staked out
the parameters so that you can swiftly and easily dial in settings
that elicit good-sounding, useful variations of the desired effect.
To switch off modulation effects, simply twist the knob to the
far left. Twisting the knob clockwise adjust the modulation
effect’s rate. Modulation depth is adjusted automatically
according to the rate setting so that every knob position yields
a hip effect sound offering real-world utility.
3.1.1 CHORUS
Low CHORUS settings yield a slow throb for thick, underwater
sounds that work great with ballads. Courtesy of automatic
effect depth adjustment, higher CHORUS settings do not evoke
that dreaded “seasick” tone.
3.1.2 FLANGER
Slow FLANGER settings yield a stately sweeping whoosh effect,
while faster settings give you swirly effects often heard in con-
temporary rock and pop tunes.
3.1.3 TREMOLO
Though the classic TREMOLO effect is great for recreating the
sounds of ‘60s, it also serves up some hip effects that work
wonders for contemporary tunes.
3.2 DELAY
DELAY is controlled via two knobs: TIME is an infinitely variable
knob that sweeps smoothly to the next repetition from 80 ms
to 1400 ms. Feedback is adjusted accordingly and automatically.
Short DELAYs with minimal feedback conjure great slap-back
rockabilly sounds, while medium-length DELAYs are perfect for
U2-style jangle. Long DELAY times let you come up with cas-
cading, Queen-style licks. The VOLUME knob determines the
level of repetitions, with a control range sweeping from off to
as loud as the original signal.
3.3 REVERB
The REVERB is an authentic-sounding emulation of a classic
springreverb. It handles and responds just like the original:
Simply twist the REVERB knob to adjust the spring REVERB’s
volume.
11

MATRIX™ 100 Manual
4
Technical Specifications
Safety-related Data
Primary fuses: 220 – 230V T 1.25 A
117V T 2.5 A
100V T 3.15 A
Secondary fuses: T 2.5 A (2 each)
Max. power consumption: 300 watts
Continuous power: 100 watts
Minimum impedance: 4 ohms
Inputs
INPUT: Jack type: 1/4"
Input impedance: 1 MΩ
Sensitivity: - 16 dBV
Max. input level: + 4 dBV
FX Return: Jack type: 1/4"
Input impedance: 6 KΩ
Sensitivity: + 3 dBV
Max. input level: + 14 dBV
CD INPUT: Jack type: 1/4“
Input impedance 22 KΩ
Sensitivity: - 2 dBV
Max. input level: + 14 dBV
Outputs
FX Send: Jack type: 1/4"
Output impedance: 500 Ω
Output level: 3 dBV
Max. output level: + 10 dBV
LINE Output: Jack type: 1/4"
Output impedance: 220 Ω
Output level: 6 dBV
Max. output level: + 20 dBV
External Speaker: Jack type: 1/4"
Circuit: parallel
Impedance: 8 to 16 ohms
Speakers: (HEAD only) Jack type: Two 1/4"
Circuit: parallel
Impedance: 1x4 to 2x16 ohms
Headphones: Jack type: 1/4" stereo
Output impedance: 550 Ω
Output level: 100 mW an 4 - 600 Ω
12

IMPORTANT SAFETY INSTRUCTIONS
BEFORE CONNECTING, READ INSTRUCTIONS
• Read all of these instructions!
• Save these instructions for later use!
• Follow all warnings and instructions marked on the product!
• Do not use this product near water, i.e. bathtub, sink, swimming pool, wet basement, etc.
• Do not place this product on an unstable cart, stand or table. The product may fall, causing
serious damage to the product or to persons!
• Slots and openings in the cabinet and the back or bottom are provided for ventilation; to
ensure reliable operation of the product and to protect it from overheating, these openings
must not be blocked or covered. This product should not be placed in a built-in installation
unless proper ventilation is provided.
• This product should not be placed near a source of heat such as a stove, radiator, or another
heat producing amplifier.
• Use only the supplied power supply or power cord. If you are not sure of the type of power
available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where persons
will walk on the cord.
• Never break off the ground pin on the power supply cord.
• Power supply cords should always be handled carefully. Periodically check cords for cuts or
sign of stress, especially at the plug and the point where the cord exits the unit.
• The power supply cord should be unplugged when the unit is to be unused for long periods
of time.
• If this product is to be mounted in an equipment rack, rear support should be provided.
• This product should be used only with a cart or stand that is recommended by
Hughes & Kettner.
• Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in risk of fire or electric shock.
Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to qualified service
personnel.
• Clean only with dry cloth.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for the safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
• Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
• When the power cord or plug is damaged or frayed.
• If liquid has been spilled into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.
• If the product exhibits a distinct change in performance, indicating a need of service!
• Adjust only these controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work by
a qualified technician to restore the product to normal operation.
• Exposure to extremely high noise levels may cause a permanent hearing loss.
• Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly
everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.
The U.S. Government´s Occupational Safety and Health Administration (OSHA) has specified
the following permissible noise level exposures:
Duration Per Day In Hours Sound Level dBA, Slow Response
8 90
6 92
4 95
3 97
2 100
1½102
1 105
1½ 110
1¼or less 115
• According to OSHA, any exposure in excess of the above permissible limits could result in
some hearing loss.
• Ear plug protectors in the ear canals or over the ears must be worn when operating this
amplification system in order to prevent a permanent hearing loss if exposure is in excess of
the limits as set forth above. To ensure against potentially dangerous exposure to high
sound pressure levels, it is recommended that all persons exposed to equipment capable
of producing high sound pressure levels such as this amplification system be protected by
hearing protectors while this unit is in operation.
• Fuses: Replace with IEC 127 (5 x 20 mms) type and rated fuse for best performance only
TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
MOISTURE OR RAIN. DO NOT OPEN CASE; NO USER SERVICE-ABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WICHTIGE SICHERHEITSHINWEISE!
BITTE VOR GEBRAUCH LESEN UND FÜR SPÄTEREN GEBRAUCH
AUFBEWAHREN!
• Das Gerät wurde von Hughes & Kettner gemäss IEC 60065 gebaut und hat das Werk in
sicherheitstechnisch einwandfreiem Zustand verlassen. Um diesen Zustand zu erhalten
und einen gefahrlosen Betrieb sicherzustellen, muss der Anwender die Hinweise und die
Warnvermerke beachten, die in der Bedienungsanleitung enthalten sind. Das Gerät entspricht
der Schutzklasse I (schutzgeerdet).
• DIE SICHERHEIT, ZUVERLÄSSIGKEIT UND LEISTUNG DES GERÄTES WIRD VON
HUGHES & KETTNER NUR DANN GEWÄHRLEISTET, WENN:
• Montage, Erweiterung, Neueinstellung, Änderungen oder Reparaturen von Hughes & Kettner
oder von dazu ermächtigten Personen ausgeführt werden.
• die elektrische Installation des betreffenden Raumes den Anforderungen von IEC (ANSI)-
Festlegungen entspricht.
• das Gerät in Übereinstimmung mit der Gebrauchsanweisung verwendet wird.
WARNUNG:
• Wenn Abdeckungen geöffnet oder Gehäuseteile entfernt werden, ausser wenn dies von
Hand möglich ist, können Teile freigelegt werden, die Spannung führen.
• Wenn ein Öffnen des Gerätes erforderlich ist, muss das Gerät von allen Spannungsquellen
getrennt sein. Berücksichtigen Sie dies vor dem Abgleich, vor einer Wartung, vor einer
Instandsetzung und vor einem Austausch von Teilen.
• Ein Abgleich, eine Wartung oder eine Reparatur am geöffneten Gerät unter Spannung darf
nur durch eine vom Hersteller autorisierte Fachkraft (nach VBG 4) geschehen, die mit den
verbundenen Gefahren vertraut ist.
• Lautsprecher-Ausgänge, die mit dem IEC 417/5036-Zeichen (Abb.1, s.unten) versehen sind
können berührungsgefährliche Spannungen führen. Deshalb vor dem Einschalten des Gerätes
Verbindung nur mit dem vom Hersteller empfohlenen Anschlusskabel zum Lautsprecher
herstellen.
• Alle Stecker an Verbindungskabeln müssen mit dem Gehäuse verschraubt oder verriegelt
sein, sofern möglich.
• Es dürfen nur Sicherungen vom Typ IEC 127 und der angegebenen Nennstromstärke
als Ersatz verwendet werden.
• Eine Verwendung von geflickten Sicherungen oder Kurzschliessen des Halters ist unzulässig.
• Niemals die Schutzleiterverbindung unterbrechen.
• Oberflächen, die mit dem „HOT“-Zeichen (Abb.2, s.unten) versehen sind, Rückwände oder
Abdeckungen mit Kühlschlitzen, Kühlkörper und deren Abdeckungen, sowie Röhren und
deren Abdeckungen können im Betrieb erhöhte Temperaturen annehmen und sollten deshalb
nicht berührt werden.
• Hohe Lautstärkepegel können dauernde Gehörschäden verursachen. Vermeiden Sie deshalb
die direkte Nähe von Lautsprechern, die mit hohen Pegeln betrieben werden. Verwenden Sie
einen Gehörschutz bei dauernder Einwirkung hoher Pegel.
NETZANSCHLUSS:
• Das Gerät ist für Dauerbetrieb ausgelegt.
• Die eingestellte Betriebsspannung muss mit der örtlichen Netzspannung übereinstimmen.
• Achtung: Der Netzschalter des Gerätes muss in OFF-Position stehen, wenn das Netzkabel
angeschlossen wird.
• Der Anschluss an das Stromnetz erfolgt mit dem mitgelieferten Netzteil oder Netzkabel.
• Netzteil: Eine beschädigte Anschlussleitung kann nicht ersetzt werden. Das Netzteil darf nicht
mehr betrieben werden.
• Vermeiden Sie einen Anschluss an das Stromnetz in Verteilerdosen zusammen mit vielen
anderen Stromverbrauchern.
• Die Steckdose für die Stromversorgung muss nahe am Gerät angebracht und leicht
zugänglich sein.
AUFSTELLUNGSORT:
• Das Gerät sollte nur auf einer sauberen, waagerechten Arbeitsfläche stehen.
• Das Gerät darf während des Betriebs keinen Erschütterungen ausgesetzt sein.
• Feuchtigkeit und Staub sind nach Möglichkeit fernzuhalten.
• Das Gerät darf nicht in der Nähe von Wasser, Badewanne, Waschbecken, Küchenspüle,
Nassraum, Swimmingpool oder feuchten Räumen betrieben werden. Keine mit Flüssigkeit
gefüllten Gegenstände -Vase, Gläser, Flaschen etc. auf das Gerät stellen.
• Sorgen Sie für ausreichende Belüftung der Geräte.
• Eventuelle Ventilationsöffnungen dürfen niemals blockiert oder abgedeckt werden. Das
Gerät muss mindestens 20 cm von Wänden entfernt aufgestellt werden. Das Gerät darf nur
dann in ein Rack eingebaut werden, wenn für ausreichende Ventilation gesorgt ist und die
Einbauanweisungen des Herstellers eingehalten werden.
• Vermeiden Sie direkte Sonneneinstrahlung sowie die unmittelbare Nähe von Heizkörpern
und Heizstrahlern oder ähnlicher Geräte.
• Wenn das Gerät plötzlich von einem kalten an einen warmen Ort gebracht wird, kann sich im
Geräteinnern Kondensfeuchtigkeit bilden. Dies ist insbesondere bei Röhrengeräten zu beachten.
Vor dem Einschalten solange warten bis das Gerät Raumtemperatur angenommen hat.
• Zubehör: Das Gerät nicht auf einen instabilen Wagen, Ständer, Dreifuß, Untersatz oder Tisch
stellen. Wenn das Gerät herunterfällt, kann es Personenschäden verursachen und selbst
beschädigt werden. Verwenden Sie das Gerät nur mit einem vom Hersteller empfohlenen
oder zusammen mit dem Gerät verkauften Wagen, Rack, Ständer, Dreifuß oder Untersatz.
Bei der Aufstellung des Gerätes müssen die Anweisungen des Herstellers befolgt und
muss das vom Hersteller empfohlene Aufstellzubehör verwendet werden. Eine Kombination
aus Gerät und Gestell muss vorsichtigt bewegt werden. Plötzliches Anhalten, übermässige
Kraftanwendung und ungleichmässige Böden können das Umkippen der Kombination aus
Gerät und Gestell bewirken.
• Zusatzvorrichtungen: Verwenden Sie niemals Zusatzvorrichtungen, die nicht vom Hersteller
empfohlen wurden, weil dadurch Unfälle verursacht werden können
• Zum Schutz des Gerätes bei Gewitter oder wenn es längere Zeit nicht beaufsichtigt oder
benutzt wird, sollte der Netzstecker gezogen werden. Dies verhindert Schäden am Gerät
aufgrund von Blitzschlag und Spannungsstössen im Wechselstromnetz.
Abb.1 Abb.2
deutschunited states
28

IMPORTANT ADVICE ON SAFETY!
PLEASE READ BEFORE USE AND KEEP FOR LATER USE!
• The unit has been built by Hughes & Kettner in accordance with IEC 60065 and left the
factory in safe working order. To maintain this condition and ensure non-risk operation, the
user must follow the advice and warning comments found in the operating instructions. The
unit conforms to Protection Class 1 (protectively earthed).
• HUGHES & KETTNER ONLY GUARANTEE THE SAFETY, RELIABILITY AND EFFICIENCY
OF THE UNIT IF:
• Assembly, extension, re-adjustment, modifications or repairs are carried out by
Hughes & Kettner or by persons authorized to do so.
• The electrical installation of the relevant area complies with the requirements of IEC
(ANSI) specifications.
• The unit is used in accordance with the operating instructions.
• The unit is regularly checked and tested for electrical safety by a competent technician.
WARNING:
• If covers are opened or sections of casing are removed, except where this can be done
manually, live parts can become exposed.
• If it is necessary to open the unit this must be isolated from all power sources. Please take
this into account before carrying out adjustments, maintenance, repairs and before replacing
parts.
• The appliance can only be insulated from all power sources if the mains connection is
unplugged.
• Adjustment, maintenance and repairs carried out when the unit has been opened and is still
live may only be performed by specialist personnel who are authorized by the manufacturer
(in accordance with VBG 4) and who are aware of the associated hazards.
• Loudspeaker outputs which have the IEC 417/5036 symbol (Diagram 1, below) can carry
voltages which are hazardous if they are made contact with. Before the unit is switched on,
the loudspeaker should therefore only be connected using the lead recommended by the
manufacturer.
• Where possible, all plugs on connection cables must be screwed or locked onto the casing.
• Replace fuses only with IEC 127 type and specified rating.
• It is not permitted to use repaired fuses or to short-circuit the fuse holder.
• Never interrupt the protective conductor connection.
• Surfaces which are equipped with the „HOT“ mark (Diagram 2, below), rear panels or covers
with cooling slits, cooling bodies and their covers, as well as tubes and their covers are
purposely designed to dissipate high temperatures and should therefore not be touched.
• High loudspeaker levels can cause permanent hearing damage. You should therefore avoid
the direct vicinity of loudspeakers operating at high levels. Wear hearing protection if
continuously exposed to high levels.
MAINS CONNECTION:
• The unit is designed for continuous operation.
• The set operating voltage must match the local mains supply voltage.
• Caution: The unit mains switch must be in position OFF before the mains cable is connected.
• The unit is connected to the mains via the supplied power unit or power cable.
• Power unit: Never use a damaged connection lead. Any damage must be rectified by a
competent technician.
• Avoid connection to the mains supply in distributor boxes together with several other power
consumers.
• The plug socket for the power supply must be positioned near the unit and must be easily
accessible.
PLACE OF INSTALLATION:
• The unit should stand only on a clean, horizontal working surface.
• The unit must not be exposed to vibrations during operation.
• Keep away from moisture and dust where possible.
• Do not place the unit near water, baths, wash basins, kitchen sinks, wet areas, swimming
pools or damp rooms. Do not place objects containing liquid on the unit - vases, glasses,
bottles etc.
• Ensure that the unit is well ventilated.
• Any ventilation openings must never be blocked or covered. The unit must be positioned at
least 20 cm away from walls. The unit may only be fitted in a rack if adequate ventilation is
ensured and if the manufacturer’s installation instructions are followed.
• Keep away from direct sunlight and the immediate vicinity of heating elements and radiant
heaters or similar devices.
• If the unit is suddenly moved from a cold to a warm location, condensation can form inside
it. This must be taken into account particularly in the case of tube units. Before switching on,
wait until the unit has reached room temperature.
• Accessories: Do not place the unit on an unsteady trolley, stand, tripod, base or table. If the
unit falls down, it can cause personal injury and itself become damaged. Use the unit only
with the trolley, rack stand, tripod or base recommended by the manufacturer or purchased
together with the unit. When setting the unit up, all the manufacturer’s instructions must be
followed and the setup accessories recommended by the manufacturer must be used. Any
combination of unit and stand must be moved carefully. A sudden stop, excessive use of
force and uneven floors can cause the combination of unit and stand to tip over.
• Additional equipment: Never use additional equipment which has not been recommended
by the manufacturer as this can cause accidents.
• To protect the unit during bad weather or when left unattended for prolonged periods, the
mains plug should be disconnected. This prevents the unit being damaged by lightning and
power surges in the AC mains supply.
Diagram 1 Diagram 2
english español
¡INDICACIONES DE SEGURIDAD IMPORTANTES!
¡LÉANSE ANTES DE UTILIZAR EL APARATO Y GUARDENSE
PARA SU USO POSTERIOR!
• El aparato ha sido producido por Hughes & Kettner según el IEC 60065 y salió de la
fábrica en un estado técnicamente perfecto. Para conservar este estado y asegurar un
funcionamiento sin peligros el usuario debe tener en cuenta las indicaciones y advertencias
contenidas en las instrucciones de manejo. El aparato corresponde a la clase de protección l
(toma de tierra protegida).
• LA SEGURIDAD, LA FIABILIDAD Y EL RENDIMIENTO DEL APARATO SOLO ESTAN
GARANTIZADOS POR HUGHES & KETTNER CUANDO:
• el montaje, la ampliación, el reajuste, los cambios o las reparaciones se realicen por Hughes
& Kettner o por personas autorizadas para ello;
• la instalación eléctrica del recinto en cuestión corresponda a los requisitos de la
determinación del IEC (ANSI);
• el aparato se use de acuerdo con las indicaciones de uso.
ADVERTENCIA:
• Si se destapan protecciones o se retiran piezas de la carcasa, exceptuando si se puede hacer
manualmente, se pueden dejar piezas al descubierto que sean conductoras de tensión.
• Si es necesario abrir el aparato, éste tiene que estar aislado de todas las fuentes de
alimentación. Esto se debe tener en cuenta antes del ajuste, de un entretenimiento, de una
reparación y de una sustitución de las piezas.
• Un ajuste, un entretenimiento o una reparación en el aparato abierto y bajo tensión sólo
puede ser llevado a cabo por un especialista autorizado por el productor (según VBG 4) que
conozca a fondo los peligros que ello conlleva.
• Las salidas de altavoces que estén provistas de la característica IEC 417/5036 (figura 1, véase
abajo) pueden conducir tensiones peligrosas al contacto. Por ello es indispensable que antes
de poner en marcha el aparato; la conexión se haya realizado únicamente con el cable de
empalmes recomendado por el productor.
• Las clavijas de contacto al final de los cables conectores tienen que estar atornilladas o
enclavadas a la carcasa, en tanto que sea posible.
• Sólo se pueden utilizar del tipo IEC 127 con la intensidad de corriente nomianl indicada.
• El empalme del conductor de protección no se puede interrumpir en ningún caso.
• Las superficies provistas de la característica „HOT“ (figura 2, véase abajo), los paneles de
fondo trasero o las protecciones con ranuras de ventilación, los cuerpos de ventilación y
sus protecciones, así como las válvulas electrónicas y sus protecciones pueden alcanzar
temperaturas muy altas durante el funcionamiento y por ello no se deberían tocar.
• Niveles elevados de la intensidad de sonido pueden causar continuos daños auditivos; por
ello debe evitar acercarse demasiado a altavoces que funcionen a altos niveles. En tales casos
utilice protecciones auditivas.
ACOMETIDA A LA RED:
• El aparato está proyectado para un funcionamiento continuo.
• La tensión de funcionamiento ajustada tiene que coincidir con la tensión de la red del lugar.
• Advertencia: el interruptor de la red del aparato tiene que estar en la posición OFF cuando se
conecte el cable de red.
• La conexión a la red eléctrica se efectuará con la fuente de alimentación o con el cable de
red que se entreguen con el aparato.
• Fuente de alimentación: una linea de conexión dañada no se puede sustituir. La fuente de
alimentación no puede volver a ponerse en funcionamiento.
• Evite una conexión de la red eléctrica a distribuidores con muchas tomas de corriente.
• El enchufe para el suministro de corriente tiene que estar cerca del aparato y ser de fácil
acceso.
SITUACION:
• El aparato debería estar situado en una superficie limpia y totalmente horizontal.
• El aparato no puede estar expuesto a ningún tipo de sacudidas durante su funcionamiento.
• Se deben evitar la humedad y el polvo.
• El aparato no puede ponerse en funcionamiento cerca del agua, la bañera, el lavamanos,
la pila de la cocina, un recinto con tuberías de agua, la piscina o en habitaciones húmedas.
Tampoco se pueden poner objetos llenos de líquido - jarrones, vasos, botellas, etc. - encima
de él.
• Procure que el aparato tenga suficiente ventilación.
• Las aberturas de ventilación existentes no se deben bloquear ni tapar nunca. El aparato debe
estar situado como mínimo a 20 cm de la pared. El aparato sólo se puede montar en un rack,
si se ha procurado la suficiente ventilación y se han cumplido las indicaciones de montaje del
productor.
• Evite los rayos del sol directos así como la proximidad a radiadores, electro-radiadores o
aparatos similares.
• Si el aparato pasa repentinamente de un lugar frío a otro caliente, se puede condensar
humedad en su interior. Esto se debe tener en cuenta sobretodo en los aparatos con válvulas
electrónicas. Antes de poner en marcha el aparato se debe esperar hasta que éste haya
adquirido la temperatura ambiental.
• Accesorios: el aparato no se puede colocar encima de carros, estantes, trípodes, soportes o
mesas inestables. Si el aparato se cae puede causar daños personales y se puede estropear.
Coloque el aparato sólo en un carro, rack, estante, trípode o soporte recomendado por el
productor o que se le haya vendido junto con el aparato. En la instalación se deben seguir
las indicaciones del productor así como utilizar los accesorios recomendados por el mismo
para colocarlo encima. El conjunto del aparato con el pedestal se debe mover con mucho
cuidado. Un paro brusco, la aplicación de una fuerza desmesurada o un suelo irregular puede
ocasionar la caida de todo el conjunto.
• Piezas adicionales: no utilice nunca piezas adicionales que no estén recomendadas por el
productor, ya que se podrían provocar accidentes.
• Para protejer el aparato de una tormenta o si no se supervisa ni utiliza durante algún tiempo,
se debería desconectar la clavija de la red. Así se evitan daños en el aparato a causa de un
rayo y golpes de tensión en la red de corriente alterna.
Figura 1 Figura 2
29

HUGHES & KETTNER MATRIX™ 100 HUGHES & KETTNER MATRIX™ 100
31

® 2004 by Music & Sales GmbH
MS D -1118 07/04
AUSTRALIA
CMI, Brooklyn, Vic 3025
AUSTRIA
EXACT Vertriebs-GmbH, 8020 Graz
BENELUX
WILS MUZIEKIMPORT, 4706 NJ Roosendaal
BOSNIA and HERZEGOVINA
Allied Music Exports GmbH, Munich/Germany
CANADA
EFKAY MUSIC, Lachine, Quebec H8T 2P1
CROATIA
Allied Music Exports GmbH, Munich/Germany
CZECH REPUBLIC
MUSICDATA, 59401 Velké
DENMARK
REHOLM MUSIK EN-GROS, 7000 Fredericia
ESTONIA
STANFORD TRADING, Tallinn
FINLAND
F-MUSIIKKI INC., 00100 Helsinki
FRANCE
CAMAC S.A., 44470 Thouaré
GERMANY
‘MUSIC & SALES’ GmbH, 66606 St. Wendel
HUNGARY
LAHA K.F.T., 9400 Sopron
INDONESIA
WIJAYA MUSIC, Jakarta 10710
ITALY
SISME SPA, 60028 Osimo Scalo
JAPAN
Y&P Corp., Yachiyo Chiba 2760034
LETTLAND
MUSIC SERVICE Ltd., Riga
MACEDONIA
Allied Music Exports GmbH, Munich/Germany
MALAYSIA
GUITAR COLLECTION, 60000 Kuala Lumpur
NEW ZEALAND
MUSIC WORKS, Onehunga, Aukland
NORWAY
BELCO A/S, 3921 Porsgrunn
POLAND
AMTEC, 51-663 Wroclaw
PORTUGAL
ALRICA, 1100 Lisboa
RUSSIA
Bayland Music House, 119146 Moscow
SLOVAK REPUBLIC
GB Music spol. s.r.o., 8111 06 Bratislava
SOUTH KOREA
Firtra Trading Co., Ltd., Seoul
SPAIN
ADAGIO, 08110 Montcada I Reixach
SWEDEN
ILT AB, 84100 Ånge
SWITZERLAND
SDS Music Factory AG, 8048 Zürich
TAIWAN
OMEGA MUSIC, Taichung
TURKEY
Lay Lay Lom A.S., Istanbul
UNITED KINGDOM & EIRE
SENNHEISER, Highwycombe, Bucks HP12 3SL
USA
HUGHES & KETTNER Inc., Mt Prospect, IL 60056
YUGOSLAVIA
Allied Music Exports GmbH, Munich/Germany
HUGHES & KETTNER • Postfach 1509 • 66595 St. Wendel • Tel. [phone] - 905 0 • Fax. [phone] - 905 103
INTERNATIONAL INQUIRIES: Fax +49 - 68 51 - 905 200 • E-Mail: [e-mail]
www.hughes-and-kettner.com • www.warp-amps.com
Worldwide
