Human MT128V User manual

ULTRASOUND EQUIPMENT USER MANUAL
1
HUMAN FULL DIGITAL
ULTRASONIC DIAGNOSTIC INSTRUMENT (LED)
USER MANUAL MT128V

ULTRASOUND EQUIPMENT USER MANUAL
2
Contents
Foreword-------------------------------------------------------------------------------------------------------------5
Thank you for purchasing the B-type Ultrasonic Diagnostic Apparatus------------------------5
Manufacturer Statement-------------------------------------------------------------------------------5
Manufacturer Ensure---------------------------------------------------------------------------------- 5
Safety Symbol-------------------------------------------------------------------------------------------5
Graphics, Symbols, Abbreviations-------------------------------------------------------------------6
Package Indicative Mark------------------------------------------------------------------------------7
Safety Precautions--------------------------------------------------------------------------------------8
Chapter 1 Outline---------------------------------------------------------------------------------------------------10
1.1 Functional Characteristics---------------------------------------------------------------------------------------10

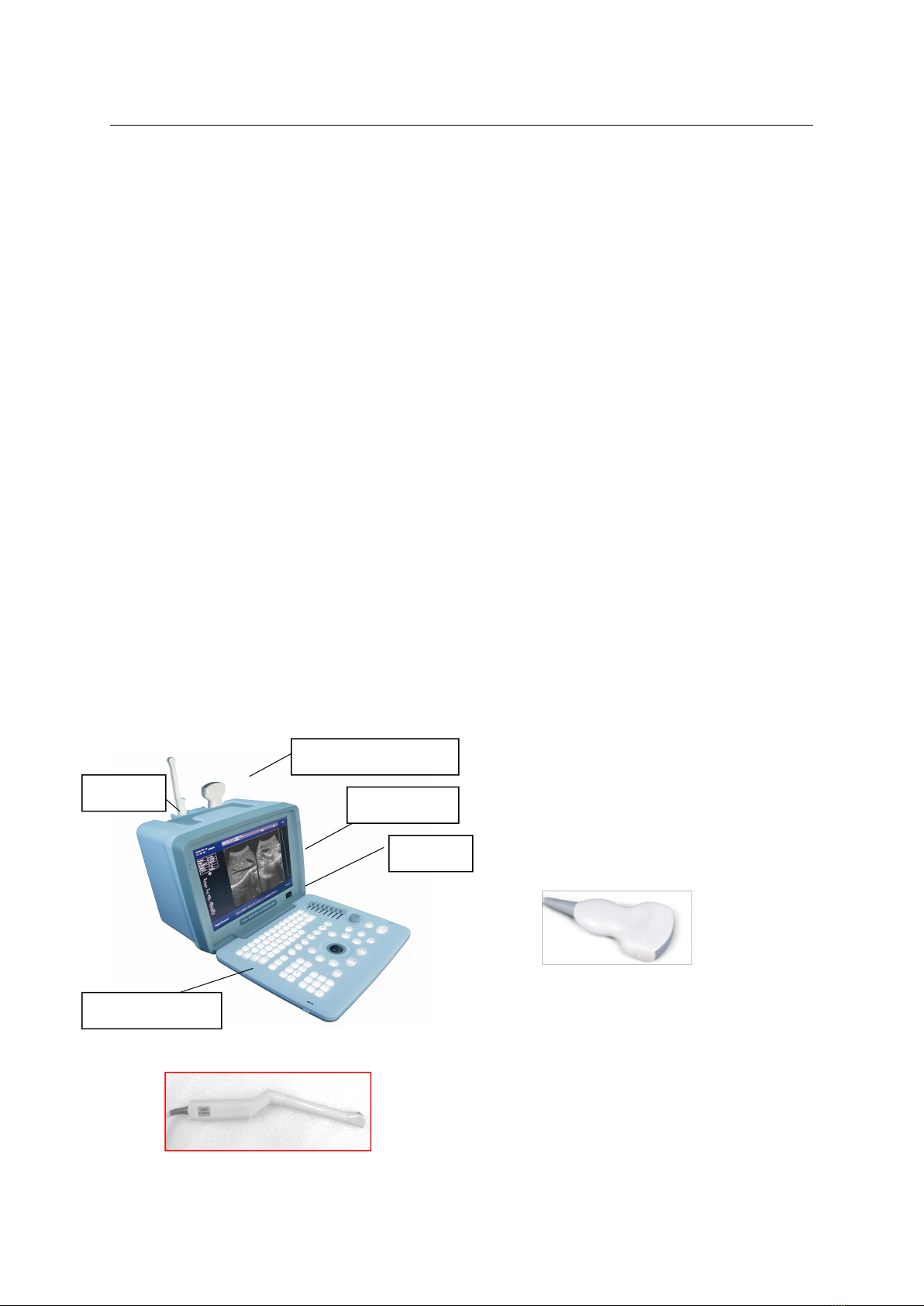

1.2 Structural Feature-------------------------------------------------------------------------------------------------10

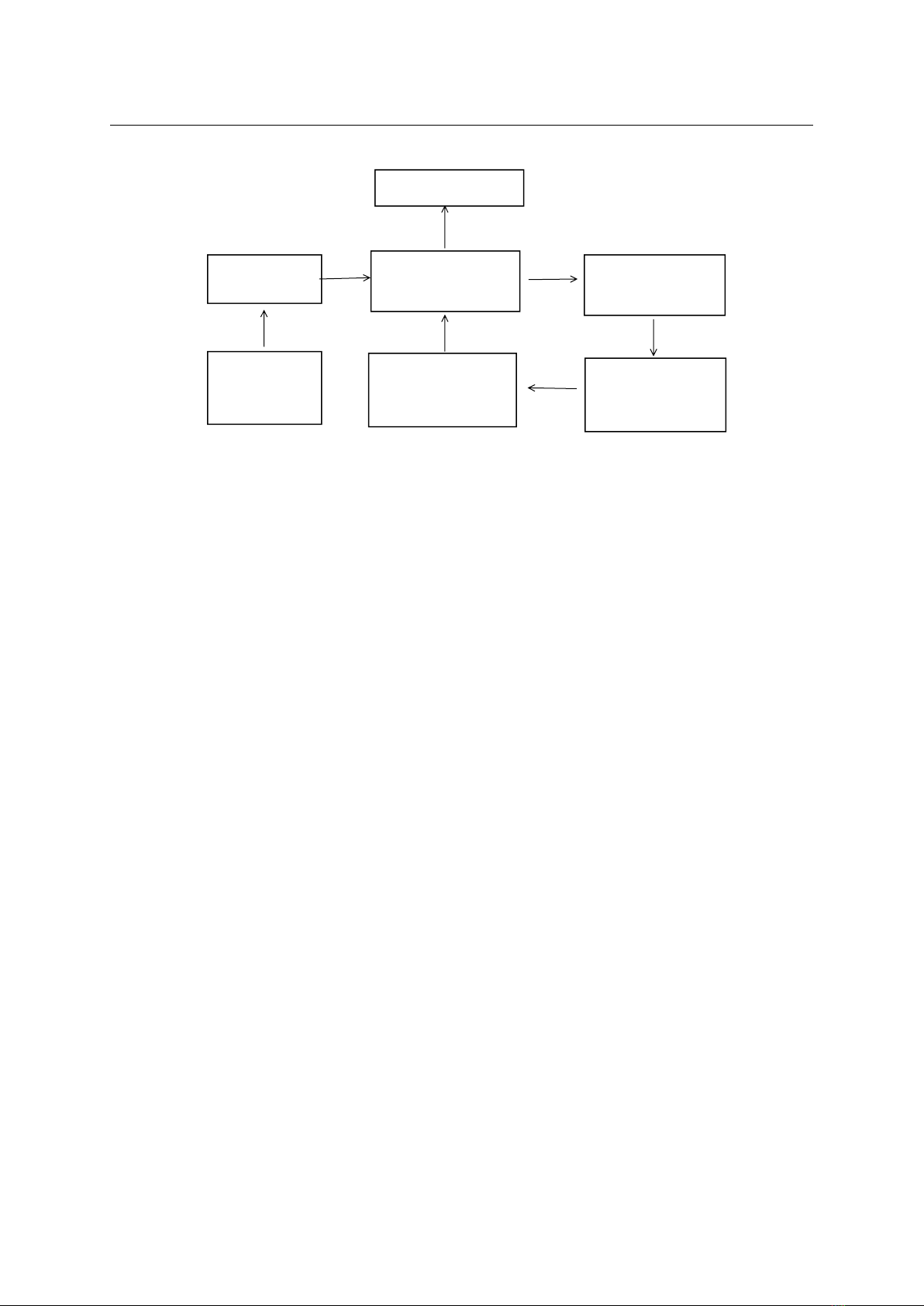

1.3 Operating Principle-----------------------------------------------------------------------------------------------11
1.4 Field of Application and Contraindication----------------------------------------------------------------12
1.5 Security Features------------------------------------------------------------------------------------------------ -12
Chapter 2 Functions, Technical Indexes and Configuration----------------------------------------------13
2.1 Operating Environment----------------------------------------------------------------------------------------- 13
2.2 Main Functions ---------------------------------------------------------------------------------------------13
2.3 Main Technical Indexes -----------------------------------------------------------------------------------------14
2.4 Configuration----------------------------------------------------------------------------------------------------- 14
Chapter 3 Operation Panel------------------------ ---------------------------------------------------------------15
3.1 Operation Panel Figure-------------------------------------------------------------------------- --------------- 15
3.2 Keyboard Text/Graphics-----------------------------------------------------------------------------------------15
Chapter 4 Instrument Installation-------------------------------------------------------------------------------19
4.1 Open packing box--------------------------------------------------------------------------- -------------------- 19
4.2 Check---------------------------------------------------------------------------------------------------------------19
4.3 Install Caution---------------------------------------------------------------------------------------------------- 19
4.4 Install --------------------------------------------------------------------------------------------------------------19
4.5 Use of electromagnetic environment---------------------------------------------------------- ----------------21
Chapter 5 Method of Application------------------------------------------------------------------------22
5.1 Caution-------------------------------------------------------------------------------------------------------------22
5.2 Starting Up --------------------------------------------------------------------------------------------------------23
5.3 Mode Selection---------------------------------------------------------------------------------------------------23
5.4 Image Magnification Selection---------------------------------------------------------------------------------23
5.5 Depths Penetration -----------------------------------------------------------------------------------------------24
5.6 Distance Measurement (include volume measurement)--- ------------------------------------------------24

ULTRASOUND EQUIPMENT USER MANUAL
3
5.7 Circumference/ Area Measurement (oval and trajectory measurement) ---------------------------------24
5.8 Heart Rates Measurement --------------------------------------------------------------------------------------25
5.9 Gestational Weeks Measurement ------------------------------------------------------------------------------26
5.9.1 (BPD) Double top diameter measuring gestational age------------------------------------------------26
5.9.2 (GS) Measuring gestational weeks gestational sac-----------------------------------------------------27
5.9.3 (CRL) Top hip diameter measuring gestational age----------------------------------------------------28
5.9.4 (FL) The femur length measuring gestational age------------------------------------------------------28
5.9.5 (HC) Head circumference measurement gestational age----------------------------------------------29
5.9.6 (OFD) Occipital frontal diameter measuring gestational age-----------------------------------------30
5.9.7 (TTD) Abdominal transverse diameter measuring gestational age-----------------------------------30
5.9.8 (AC) Abdominal long measuring gestational age-------------------------------------------------------31
5.9.9 Gestational age data report page--------------------------------------------------------------------------32
5.10 Notes-----------------------------------------------------------------------------------------------------------32
5.11 Gender Notes----------------------------------------------------------------------------------------------------33
5.12 Body Mark Notes-----------------------------------------------------------------------------------------------33
5.13 Setting the Time-------------------------------------------------------------------------------------------------33
5.14 Setting of Focus Point------------------------------------------------------------------------------------------34
5.15 Image Polarity---------------------------------------------------------------------------------------------------34
5.16 Images Freeze---------------------------------------------------------------------------------------------------35
5.17 Menu Function Selection--------------------------------------------------------------------------------------35
5.18 Puncture Guide Lines-------------------------------------------------------------------------------------------36
5.19 Transformation of Cursor Speed------------------------------------------------------------------------------36
5.20 Review of Images-----------------------------------------------------------------------------------------------36
5.21 Image Memory and Display-----------------------------------------------------------------------------------36
5.22 Partial Image Magnification-----------------------------------------------------------------------------------36
5.23 Frequency Conversion Selection------------------------------------------------------------------------------37
5.24 Dynamic Range Adjustment-----------------------------------------------------------------------------------37
5.25 Gain Adjustment------------------------------------------------------------------------------------------------37
5.26 Probe Selection--------------------------------------------------------------------------------------------------37
5.27 Chinese and English Transformation-------------------------------------------------------------------------38
5.28 Resetting---------------------------------------------------------------------------------------------------------38
5.29 Brightness Control and Contrast Control -------------------------------------------------------------------38
5.30 Turning off------------------------------------------------------------------------------------------------------38
Chapter 6 Simple Maintenance --------------------------------------------------------------------------------39
6.1 Attention-----------------------------------------------------------------------------------------------------------39

ULTRASOUND EQUIPMENT USER MANUAL
4
6.2 Host Machine Maintenance-------------------------------------------------------------------------------------39
6.3 Probe Maintenance-----------------------------------------------------------------------------------------------39
6.4 Probe Cleaning and Disinfection-------------------------------------------------------------------------------39
6.5 Insurance Tube Replaced----------------------------------------------------------------------------------------39
Chapter 7 Fault Checking and Ruled Out ---------------------------------------------------------------------40
7.1 Fault Checking Need Attention-------------------------------------------------------------------------------- 40
7.2 Fault Checking and Ruled Out----------------------------------------------------------------------------------40
Chapter 8 Transportation and Storage--------------------------------------------------------------------------41
8.1 Transportation and Storage Attention--------------------------------------------------------------------------41
8.2 Transportation and Storage environment----------------------------------------------------------------------41
8.3 Transportation-----------------------------------------------------------------------------------------------------41
8.4 Storage-------------------------------------------------------------------------------------------------------------41

ULTRASOUND EQUIPMENT USER MANUAL
5
Foreword
Thank you for purchasing The -type ultrasonic diagnostic apparatus
In order to make sure that you can be a safe and effective use of the instrument, please read this manual
carefully.
After reading, please keep this manual, so that can check at any time when you needed.
This manual contains the product user manual and technical specifications.
Manufacturer statement
This manual is only for operation and maintenance of the instrument.
The schematic diagram in this instruction manual is only for reference.
In reading this manual instruction should be paid attention to such words "warning", "careful" and
"attention" particularly.
Manufacturer ensure
The manufacturer ensure, the instrument effectively guarantee since 1 year from the date of purchase(not
including attachments),under normal use, when it break down, without repairing, the manufacturer can
provide for a period of one year free warranty service. Other artificial damage, like user tear up the seals,
faulty operation, etc, the manufacture do not provide free maintenance service.
This guarantee applies only in accordance with the instructions specified conditions of operation
instrument of fault, to ensure the using range specified in the instrument can only be used for random
manual.
This warranty does not include the damage caused by the external causes, such as lightning, earthquake,
theft, misuse, or modified equipment damage.
The manufacturer is not responsible for by other equipment or other devices to connect damage caused.
The manufacturer is not responsible for by delay service request is responsible for the loss, damage or
injury.
Safety symbol
In this manual, safety precautions are classified into "warning", "careful" and "attention" at three levels.
Used to represent important about safety, Specific meaning are shown in form 1. Before reading this
manual, please carefully to understand and remember the meaning of these symbols and words.

ULTRASOUND EQUIPMENT USER MANUAL
6
Form 1 Safety symbol table
NO. Graphics, Symbols, Words Name Meaning
1
Warning
Warning Used to indicate if you ignore it will result in serious
personal injury, death or actual damage to property.
2
Careful
Careful Used to indicate if you ignore it will produce slight
personal injury or property damage.
3Attention Attention
Used to prompt the user installation, operation and
maintenance information, this information is
important, however, there is no danger, danger
warning not included in the note content.
Graphics, symbols, abbreviations
In the instrument(or in the manual), used in the graphics, symbols, abbreviations listed instructions are
shown in form 2, They are used to indicate when transportation, loading and unloading, and storage in
the assignments need to pay attention to, to ensure the safety of the instrument
Form 2 the Description of Graphics, symbols, abbreviations
NO. Graphics, Symbols, Abbreviations Name Meaning Identification of
Position
1Power Ready Connected (main power) On the power
button
2 Power off Off（main power）On the power
button
3Power switch Power switch position By the power
switch
4Intensity control Adjust image brightness Beside the display
5Contrast control Adjust image contrast Beside the display
6 Driving direction Open the control panel lock
hook
Before the box at
the top of the
7 B-type Type B applied part Operation panel
8 Adjust direction
Brightness, contrast, the
total gain, the direction in
which the focal point
Adjust knob
on/near
9GAIN Total gain The total gain adjustment
knob
Beside the total
gain adjustment
knob
10 FOCUS Focus point The focus knob Beside the focus
knob
11 +Enlargement Increasing/to increase On the panel

ULTRASOUND EQUIPMENT USER MANUAL
7
NO. Graphics, Symbols, Abbreviations Name Meaning Identification of
Position
12 -Reduce Reduce/decrease On the panel
13 TGC Time gain Time gain control On the panel
14 VIDEO OUT Output interface PAL video output At the back of the
panel
15 VGA OUT Output interface SVGA video output At the back of the
panel
16 Protective grounding Protective grounding At the back of the
panel
17 F1.5L250V Φ5×20 Protective tube Insurance tube type and
specification
At the back of the
panel
18 AC110V～240V Power input 110V～240V AC input At the back of the
panel
19 IPX7 Shell protection class In a short time, prevent
water into the instrument
Outside of the
probe
Package indicative mark
On the packing cases are listed in form 3 packaging storage and transportation, it is used to indicate
when transportation, loading and unloading, and storage in the assignments need to pay attention, to
ensure the safety of the instrument.
Form 3 Packaging symbol table
NO. Mark name Mark Meaning Identification of
Position
1 Upward
Indicates that the transportation
package transportation should be
vertical
Outside surface
2 Fragile
Means the package within a fragile
goods, to handle with care when
handling
Outside surface
3 No rain Indicates that the transport packing
room was afraid of the rain Outside surface
4 No sun Means that the transport package is
can not direct sun Outside surface
5Stacking layer
limit
Show that the maximum number of
layers can be stacking the same
transport package is 4 layers
Outside surface

ULTRASOUND EQUIPMENT USER MANUAL
8
Safety precautions
In order to prevent the damage caused by improper use, please observe the following safety
precautions.
Safety precautions
Warning
1. The user should according to the provisions in this manual operation, the manufacturer does not
assume in violation of the instructions may cause a variety of security risks.
2. The medical device is not for family using, it can be used by a qualified physician only.
3. Do not use the probe to scan the patient’s eyes or cause the beam through the eyes in any way.
4. Ultrasound under the condition of low power is safe, in the case of high power or irradiation for a
long time, its security has not been fully confirmed. So, Use the instrument physicians should use the
lowest possible sound power, reasonable choose detection parts and controls the scanning time, only to
make a diagnosis required time is limited, to avoid damaging on the patients.
5. In the embryo or fetus examine, scanning should pay special attention to reduce the radiation
sound power and irradiation time. Avoid heat generated by the potential harm on embryo or fetus.
6. The probe can not be fixed in the same part of patients to scan for a long time.
7. The instrument can't use with cardiac defibrillator and high-frequency surgery or treatment
equipment, to prevent electric shock or damage to the instrument on patients.
8. The instrument is forbidden to use under the follows environment such as the air mixture
flammable gas, mixed with oxygen or nitrous oxide of flammable gas and other combustible gas to
prevent the risk of explosion.
9. The instrument cannot be used for patients with heart.
10. If it can detect the hot ultrasonic probe in the naturally air, it cannot be used for the vagina examine.
11. The instrument is not applicable to gas organs such as the stomach, intestine, lung and other
organs; Can't have wounds or acute inflammation to detect, in order to avoid cross infection.
12. Power supply must comply with the provisions of the safe electricity, if the power protection
grounding terminals is not conforming to the rules, using instrument is strictly prohibited. Otherwise it
will cause personal injury accidents.
13. Should check the power cord of the instrument frequently, if found damage such as fracture
should be replaced immediately.
14. Should inspect the probe frequently, if found there is any breakage, crack on the surface of cable
or probe, should be immediately shut down and stop using.
15. Before cleaning host and probe appearance, in order to avoid the accident, should unplug the
power cord and cut off power supply net completely.

ULTRASOUND EQUIPMENT USER MANUAL
9
Safety precautions
Careful
1. Should prevent the probe far away from the sharp, hard object, it is forbidden to collision probe
acoustic window, otherwise it will cause damage of the probe.
2. Probe for a long time can cause fever, during the suspension diagnosis, should press the "frozen"
button to make the probe to stop working.
3. The probe’s waterproof grade is IPX7,and the part of the probe which is soaked in the water
can not surpass 5mm than the acoustic window.
4. Use unqualified coupling agent can make the probe acoustic window from corrosion and damage
should be used for medical ultrasonic coupling agent.
5. Only used in the probe head coupling agent, carefully clean after use.
6. Probe is forbidden to be heated. If the probe temperature is lower than the room temperature, it
can be heated naturally before use.
7. Do not insert or take down the probe in the electric situation.
8. In using process, it is strictly prohibited to cover the heat emission hole of the instrument.
9. Please do not open the instrument shell by oneself, in order to avoid possible electric shock risk.
Any instrument maintenance and upgrade must be authorized by the manufacturer, training and service
personnel.
10. Sundry, water cup, etc. are not permitted on the operation panel.
11. The instrument can only use the probe of manufacturer configuration; otherwise it will cause
damage of equipment.
12. In using process, if an exception occurs, please shut down immediately.
Attention
1. Power supply circuit of the instrument and the bearing capacity of the power supply socket range
is 110V~240 V / 1.5 A. If use extended patch panel, please choose a product which with the safety
certification.
2. When using should be far away from the strong electric field, strong magnetic field devices and
high voltage equipment.
3. If the instruments used in conjunction with other medical equipment, please consult manufacturer,
shall be carried out under the guidance of manufacturer.
4. Do not use the unspecified accessories (such as insurance and protect the earth wire, etc.), in order
to avoid adverse impact on performance and security in the device.
5. After shutdown the instrument every time, should wait for at least 2 ~ 3 minutes to start up again,
so as not to damage the instrument.
6. The screen is fragile, please do not hit, in order to avoid break.

ULTRASOUND EQUIPMENT USER MANUAL
10
Chapter 1 Outline
1.1 Functional Characteristics
This Ultrasonic diagnostic instrument (here in after referred as instrument) using 3.5 MHz electronic
convex array probe, adopts full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full
digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering;
dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear
interpolation and many other image processing technology, etc.; display modes as B, B/B, 4B, B+M and M,
image multiplying factors of ×0.8, ×1.0, ×1.2, ×1.5，×1 .8, ×2.0 under the B mode; with 128 a large
memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of
real-time playback or by image viewer, has measurements of distance, area, circumference, heart rate,
gestational weeks(BPD、GS、CRL、FL、HC、OFD、TTD、AC 8 measurement kinds) and so on; Chinese
and English transformation; pseudo color processing; real-time clock; serial number of medical record;
many note functions as full-screen character noting; adopts large scale integrated circuit FPGA, MSF,
mass memory, surface mounting technology and so on.
1.2 Structural Feature
The instrument is made up of host (including the LED displayer) and probe, portable structure, electron
scanning way. Standard configuration of 80 elements, R60mm, nominal frequency 3.5 MHz electronic
convex array probe; Optional 80 elements, R13mm, electronic cavity of the nominal frequency 6.5 MHz
probes.
Host and probe appearance is shown in figure 1-1.
80 elements R60, frequency of 3.5 MHz,
T35R60B convex array probe (standard)
80 elements R13, frequency of 6.5 MHz,
T65R13B type cavity probe (optional)
Handle
Probe box and probe
LED Display
POWER
Operation panel

ULTRASOUND EQUIPMENT USER MANUAL
11
Figure 1-1The host and probe appearance figure
(Note: The picture is only for reference)
1.3 Operating principle
1.3.1 The instrument working principle as shown in figure 1-2
1.3.2 Briefly principle
1) The digital scanning conversion controls the scanning transmission and receiving of ultrasonic wave.
Image storage and display, user interface management, display mode conversion, annotation
measurement, etc.; Press the key on the control panel and the digital scanning conversion can respond
and send out kinds of control commands.
2) Send command emission circuit to receive the digital conversion, produce the high voltage pulse
probe emission need.
3) The probe driven by the high voltage will change the electric signal into ultrasonic vibration, and
the ultrasonic wave is transmitted into human body.
4) The ultrasonic wave produces the reflection signal in the body, then the probe will change it into
electric signal and send to ultrasonic receiver.
5) The ultrasonic receiver will magnify compression detection the electrical signal.
6) The digital scanning converter transforms the simulated signal into digital signal and memorizes the
received signal in the image memory synchronized with the ultrasonic wave scanning. And the
synchronized signal reads the signal in the image memory and transforms the simulated signal to
displayer and makes the ultrasonic wave image display on the screen.
Probe box
Insurance tube seat
Power socket
Protective ground
Fan heat emission hole
PAL video output
SVGA video output
USB interface

ULTRASOUND EQUIPMENT USER MANUAL
12
Figure 1-2 Functional Block Diagram
1.4 Field of Application and Contraindication
1.4.1 Field of Application
The instrument mainly applies in the dynamic image diagnosis of liver, gallbladder, spleen, kidney,
urinary bladder, pancreatic gland, as well as gynecology, obstetrics examinations, pregnancy and
contraception examination.
1.4.2 Contraindication
The instrument can not be used in the internal organs examinations like stomach, intestines and lungs
which contain the gas. Patients with body burn, scalds or other trauma, cannot be used in the injured
part.
1.5 Security features
Safety features of the instruments are as follows:
1.5.1 Prevent electric shock type: type I.
1.5.2 Shock proof of degree: type B applied part.
1.5.3 Application of into the liquid level of protection: IPX7.
1.5.4 Not in mixture with air of flammable gas and oxygen or nitrous oxide mixture of flammable gas.
1.5.5 Operation mode: run continuously.
1.5.6 The rated voltage and frequency: 110V~240 V, 50 Hz ±1 Hz.
1.5.7 The input power: 110 VA or less.
1.5.8 The instrument does not have to control fibrillation effect of discharge protection application of
parts.
1.5.9 Instrument has signal output part, there is no signal input part.
Digital scanning
conversion
Monitor
Control
panel
Probe
Ultrasonic
reception
Ultrasonic
emission
CPU

ULTRASOUND EQUIPMENT USER MANUAL
13
1.5.10 The instrument is non-permanent installation equipment.
Chapter 2 Functions, Technical Indexes and Configuration
2.1 Operating environment
Operating ambient temperature：+5℃―+40℃
Relative humidity：≤80%
Atmospheric pressure：700hPa—1060hPa
Power supply：AC 110V~240V 50Hz±1Hz
Plug seat shall have independent power supply.
Be far away from strong electric field, strong magnetic field equipment and high voltage equipment.
2.2Main Functions
Scanning mode: electron scanning
Probe configuration: T35R60B convex array probe (standard); T65R13B type cavity probe (user
selected)
Display modes: 3T35R60B convex array probe: B, B/B, 4B, B+M, M;
T65R13B type cavity probe: B;
Image multiplying factor:
T35R60B convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5，×1 .8, ×2.0;
×0.8, ×2.0 (display penetration depth);
T65R13B type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.
M type speed: M type scanning has eight kinds of speed can be selected.
Chinese and English translation: Transformation in both English and Chinese in interface.
Zoom: Local x 2.0 magnification rate
Dynamic range: 0~120dB adjustable.
Frequency:T35R60B convex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz
five periods of frequency conversion;
T65R13B type cavity probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0
MHz/7.5MHz five periods of frequency conversion.
Focus position: Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1、2-segments focus,
and the focus can be moved.
Receive: receive real-time dynamic focus by focus
Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart
rate, gestational weeks (BPD, GS, CRL, FL, HC 、AC), expected date of
confinement and fetus weight, etc.
Annotation function: hospital name, patient’s name, age and gender;
Human body marks (with probe’s position); Full-screen character annotation;
Real-time clock display;
Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
Image polarity: left and right flip, black and white flip, up and down flip.

ULTRASOUND EQUIPMENT USER MANUAL
14
Permanent storage: ≧128 images(Pseudo color display: External monitor 16 kinds of color display)
Image playback: series playback or check one by one.
Image processing: γ correction, frame correlation, point correlation, line correlation, digital filtering,
digital edge enhancement and pseudo color processing, etc.
Output interface: SVGA video output offers connection to SVGA color display; workstation, etc.
PAL video output offers connection to PAL display, video image recorder and image
USB interface: Only for U disk storage image, image format is ***.BMP.
Probe options: when inserted with two probes, the starting up or reset’s default mode is T35R60B
convex array probe.
2.3 Main Technical Indexes
Standard probe:T35R60B convex array probe: 80 elements, R60, frequency of 3.5 MHz
Optional probe: T65R13B type cavity probe: 80 elements, R13, frequency of 6.5 MHz
Basic performance as below:
NO.
Name of technical indexes
Type T35R60B convex array probe
Type T65R13B cavity probe
1
Nominal frequency of
probe MHz
f=3.5 MHz
f=6.5 MHz
2
Type of probe
R=60，Convex array
R=13 ，Micro-convex
array
3
Scan depth mm
≥170 mm
≥60 mm
4
Lateral resolution mm
≤3mm（depth≤80 mm）
≤2mm（depth≤30 mm）
≤4mm（80 mm＜depth≤130 mm）
5
Axial resolution mm
≤2mm（depth≤80 mm）
≤1mm（depth≤40 mm）
≤3mm（80 mm＜depth≤130 mm）
6
Blind area
≤5 mm
≤4 mm
7
Transverse geometry
precision
≤10 %
≤10 %
8
Longitudinal geometric
location accuracy
≤8 %
≤5 %
Monitor: 12.1 inch LED display.
Grey scale: 256 levels.
The perimeter area measurement deviation: 20% or less.
Running hours: ≥8h.
Input power: ≤110VA.
Host weight: about 6 kg.
Host appearance size: 240 ×310 ×280 (length ×width ×height) (mm3).
2.4 Configuration
Standard configuration: 1 host; 1 T35R60B convex array probe.
Optional configuration: T65R13B type cavity probe.

ULTRASOUND EQUIPMENT USER MANUAL
15
Chapter 3 Operation Panel
3.1 Operation Panel Figure
The operation panel is as follows:
Figure 3-1 Control Panel
3.2 Key text/graphics
～: enter numbers or marks
～: enter characters or marks
: Space
: Make notes including hospital name, name and age of patient with full-screen character
: Menu selection
: Enter body mark
TGC
Gain
Trace ball

ULTRASOUND EQUIPMENT USER MANUAL
16
: Select focus point
: Freeze image
: Enter, confirm
: Distance measurement
: Circumference/ area measurement
: Heart rate measurement
: Gestational weeks (gestation) measurement mode
: Escape from the measurement and note
: Time set
：click arrow keys to
move the cursor
: Speed conversion of the cursor
: Under B mode
: Under B/B mode
: Under 4B mode
: Under M mode

ULTRASOUND EQUIPMENT USER MANUAL
17
: Under BM mode
: Move scanning beam to the left under M mode
: Move scanning beam to the right under M mode
: Magnifies image
: Partial image magnification
: Puncture guidance function
: Image memory
: Up
: Down
: Clear the measurement and the note
: Positive and negative image selection
: Chinese/English transformation
: Frequency conversion
: Left and right flip under B mode
: Real-time image review
: Capital letter transformation

ULTRASOUND EQUIPMENT USER MANUAL
18
: Upper character conversion
: Select probe
: Up and down flip
: Reset the unit
GAIN : Adjust the overall gain
TGC : Adjust the gain applied to the near field of the image
TGC : Adjust the gain applied to the far field of the image
Brightness: Brightness control
Contrast: Contrast control

ULTRASOUND EQUIPMENT USER MANUAL
19
Chapter 4 Instrument Installation
4.1 Open packing box
Should take the instrument from the top of the packing box, after open the plastic bags, take the top
handle of the instrument at upward direction.
4.2 check
Should check whether there is any shipping damage on instrument or not.
43 Install Caution
In equipment installation, please observe the following precautions：
Install Caution
Warning
1. Unpacking inspection if there is problem with the instrument or the probe; it is prohibited to
use to ensure safety.
2. Instruments shall be installed in a place where can avoid direct light display, also maintain
indoor ventilation and dust prevention.
3. The power supply circuit and the bearing capacity of the power supply socket range is
110V~240 V / 1.5 A.
4. If the power needs to use extended patch panel, please choose a product with the safety
certification.
Attention
1. When unpacking and installation instrument to should take put down gently.
2. Instruments used to 110 ~ 240V single-phase ac power supply, such as power grid voltage is
not stable, please add ac voltage stabilizer.
4.4 Install
4.4.1 Install Host Machine
Place the host in countertops or dedicated instrument cart, push in the direction shown by the arrow on
the box before the lock hook cap, open the front panel cover flat, then probe box installed on the host
is read from the packing foam.
4.4.2 Installation of the Probe
When installation, put the probe’s plug of the lock handle according to the figure 4-1 turns to a locking
state, the probe plug pins on the connector socket positioning hole, and then insert the plug of the
probe into the host of the connector socket, and lock the handle gently turning to lock state, then insert
the probe into the host on the back of the probe box.

ULTRASOUND EQUIPMENT USER MANUAL
20
Before use new probe, should tear down the protective tape gently.
When take off the probe from the host, should rotate the locked handle gently to the loosen state, to
pull out the probe plug.
4.4.3 External Video Equipment
The video output socket may connect with the video output equipment recommended by the company.
Install the instrument according to the operating instructions, and connect the video plug to the video
output socket.
4.4.4 Protective Grounding
In order to guarantee the security while using, user must use the ground wire provide by the
manufacturer which is in the packing box. Make sure one end of the wire is connected with ground
pole, and the other end is connected with the ground (The connection must be safe, effective and
reliable.).
If the ground wire is not long enough, it can be replaced by a metal wire whose sectional area is not
less than 1.00mm2.
4.4.5 Power Supply Connection
According to the requirements of power supply of the instrument (AC 110V~240V/1.5A 50Hz) should
to prepare plug seat. Make sure that the power supply is in the range of application. Insert one end of
the power line into the plug seat of the instrument; insert the other end of the line into the plug seat of
the power supply after confirming the power is off.

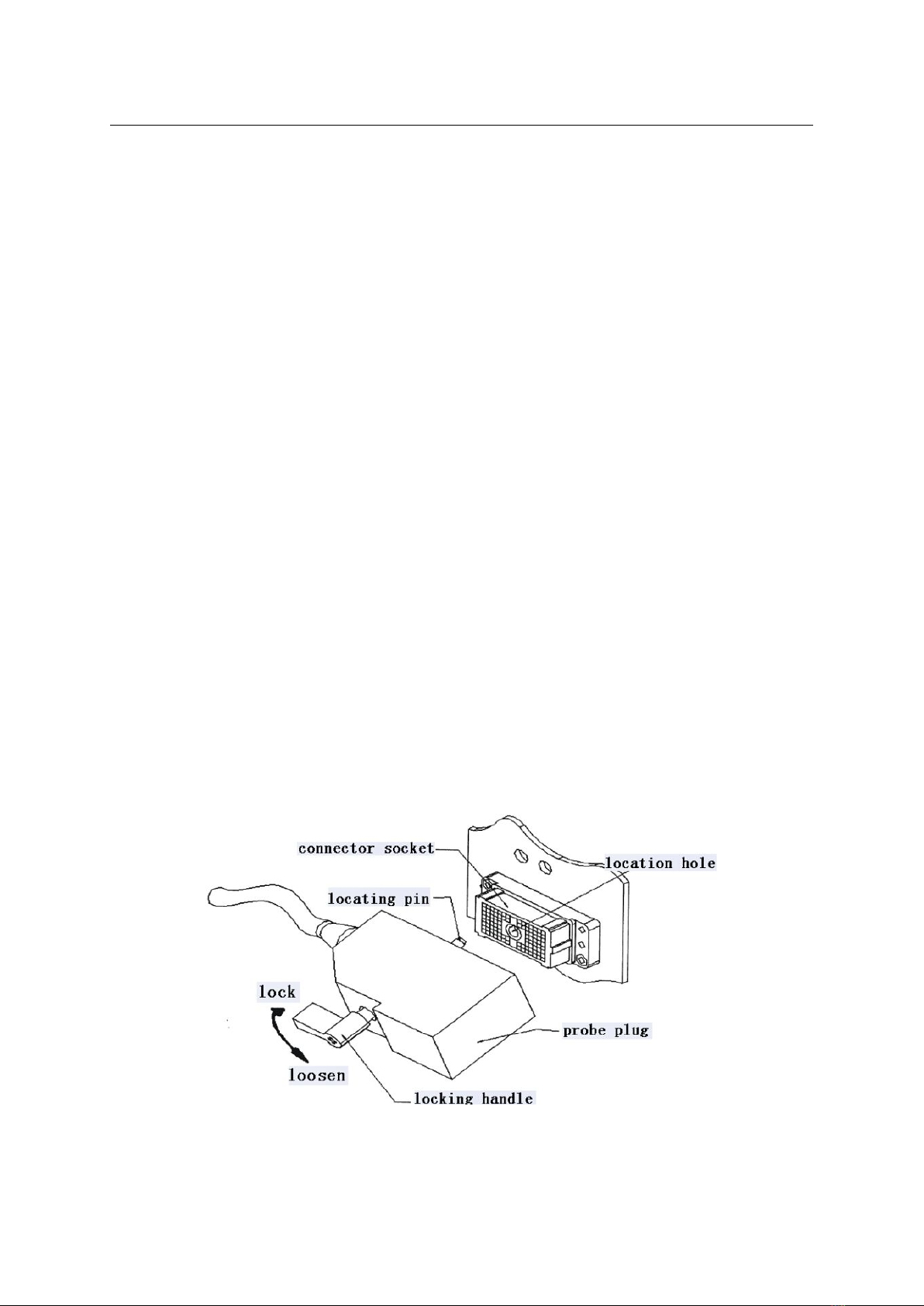

Figure 4-1 the probe connection diagram
