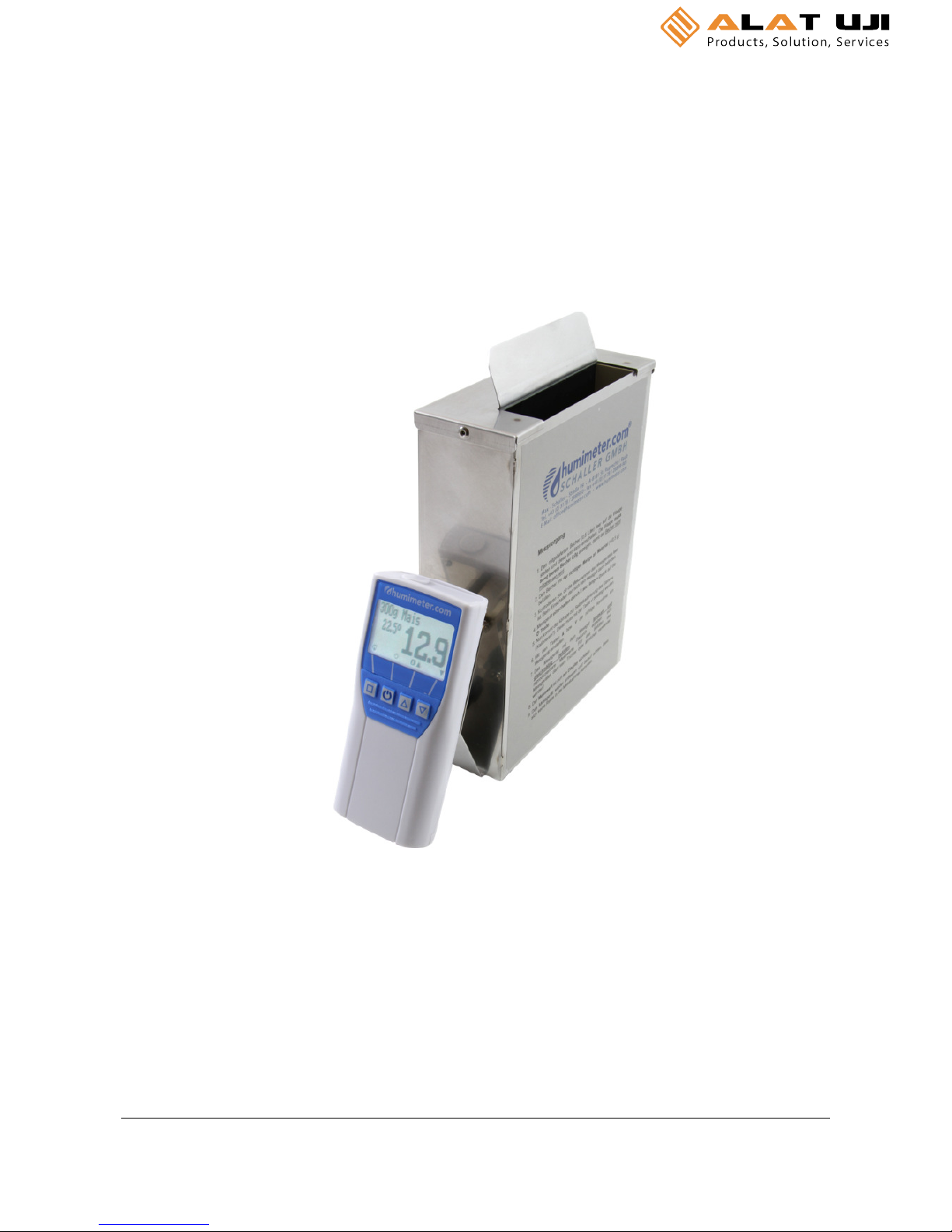

Humimeter FS2 User manual

User manual
grain moisture meter
humimeter FS2
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

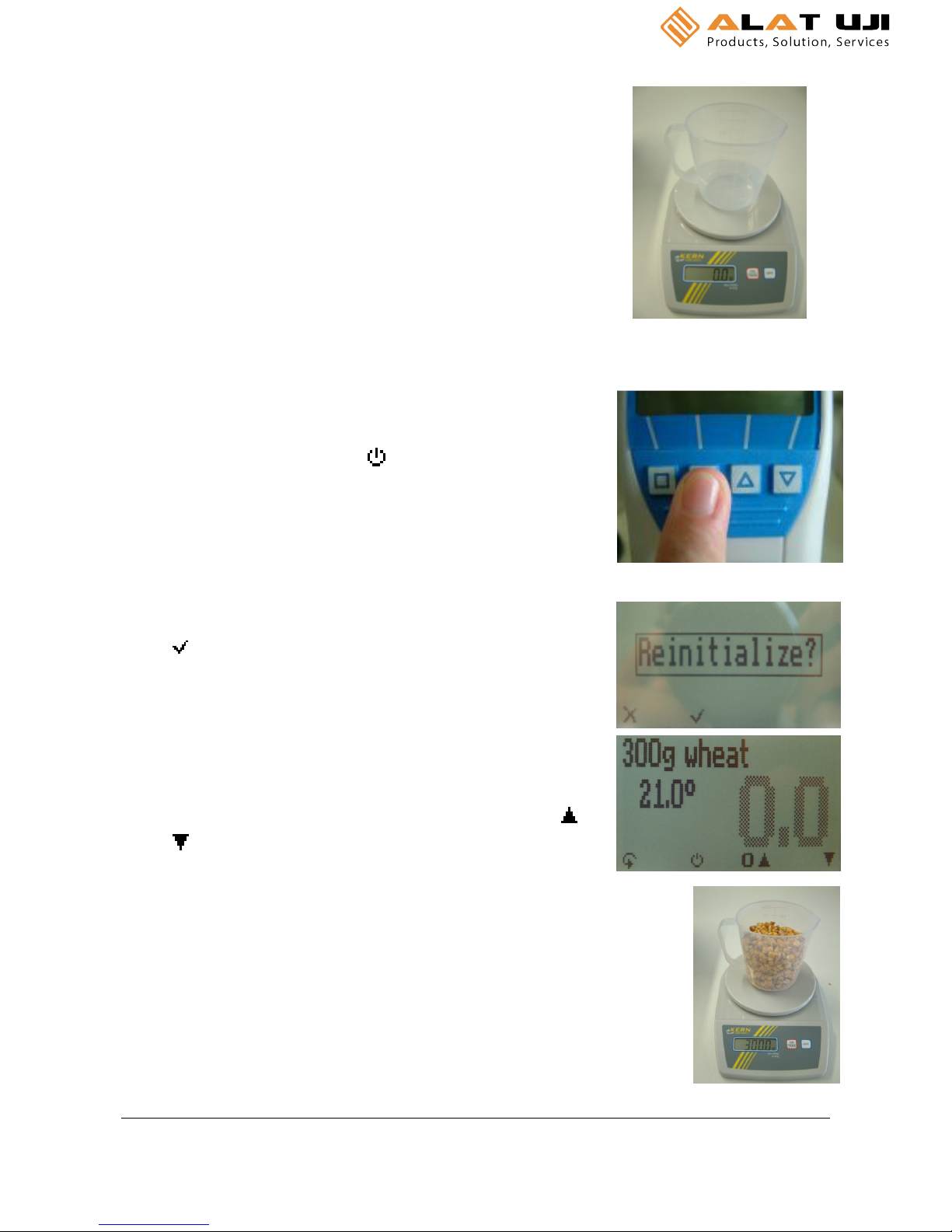

1. Place the empty provided cup (0.5 litre)
on the scale and turn the scale on. It
shows 0.0 gram.
2. Make sure that the measuring chamber is
completely empty. It is important that no
material is left in the measuring chamber
when you turn on the device.
3. Switch on the humimeter FS2 by pressing
the power button ( ) for 3 sec.
4. The next step is a self calibration. The
word “reinitialize” will show up on your
display. Accept by pressing the
button.
5. Select the right calibration curve for your
material under test using the buttons or
.
6. Fill up the cup with the sample material
(+/- 1.0g). The filling quantity needed is
shown on the upper left corner of the
display of the device.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

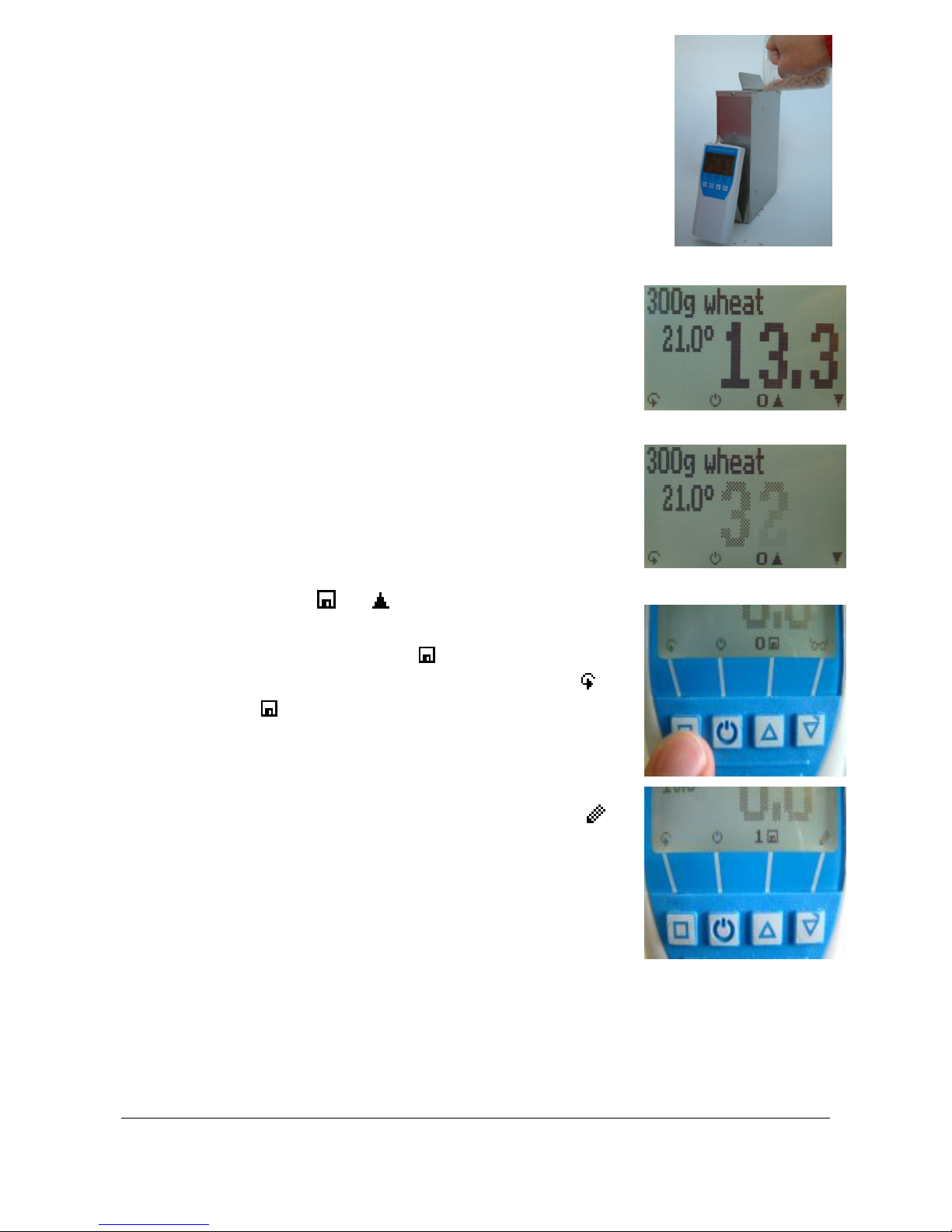

7. Fill up the measuring device with the
sample material. The filling needs to be
done slowly and constantly to ensure
reproducible results.
8. The display shows the measuring result.
9. If the measuring value is blinking, the
valid measuring range has been
exceeded (limits see list on page 5). In
this case the accuracy decreases.
10. To save the results in the store menu
press the ( button). Storage
was successful when the number in
front of the symbol increases. To
reach the store menu please press ( )
until the appears.
11. To name the saved results press the
button.
12. Empty the humimeter and ensure that no
grain rests are accumulated in the
measuring chamber.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Changing batteries
If the batteries are empty, please proceed as follows:
1.) Press with your finger onto the arrow of
the battery cap und pull it back.
2.) Remove the empty batteries.
3.) Put four new batteries in the device.
Check the right position of the battery
poles.
4.) Press down the batteries and close the
cap.
If the battery symbol appears in the measuring
window resp. if a critical charge of battery is
shown in the status, the batteries have to be
changed IMMEDIATELY.
Also remove the batteries if you do not use your
humimeter device for a longer period. For
eventual resulting damages we cannot provide
any warranty.
List of calibration curves
Press the or key in the measuring window
for at least 3 seconds and a list with all
available sorts will appear. Select your sort by
pressing or and confirm with the key.
The measurement will continue automatically.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

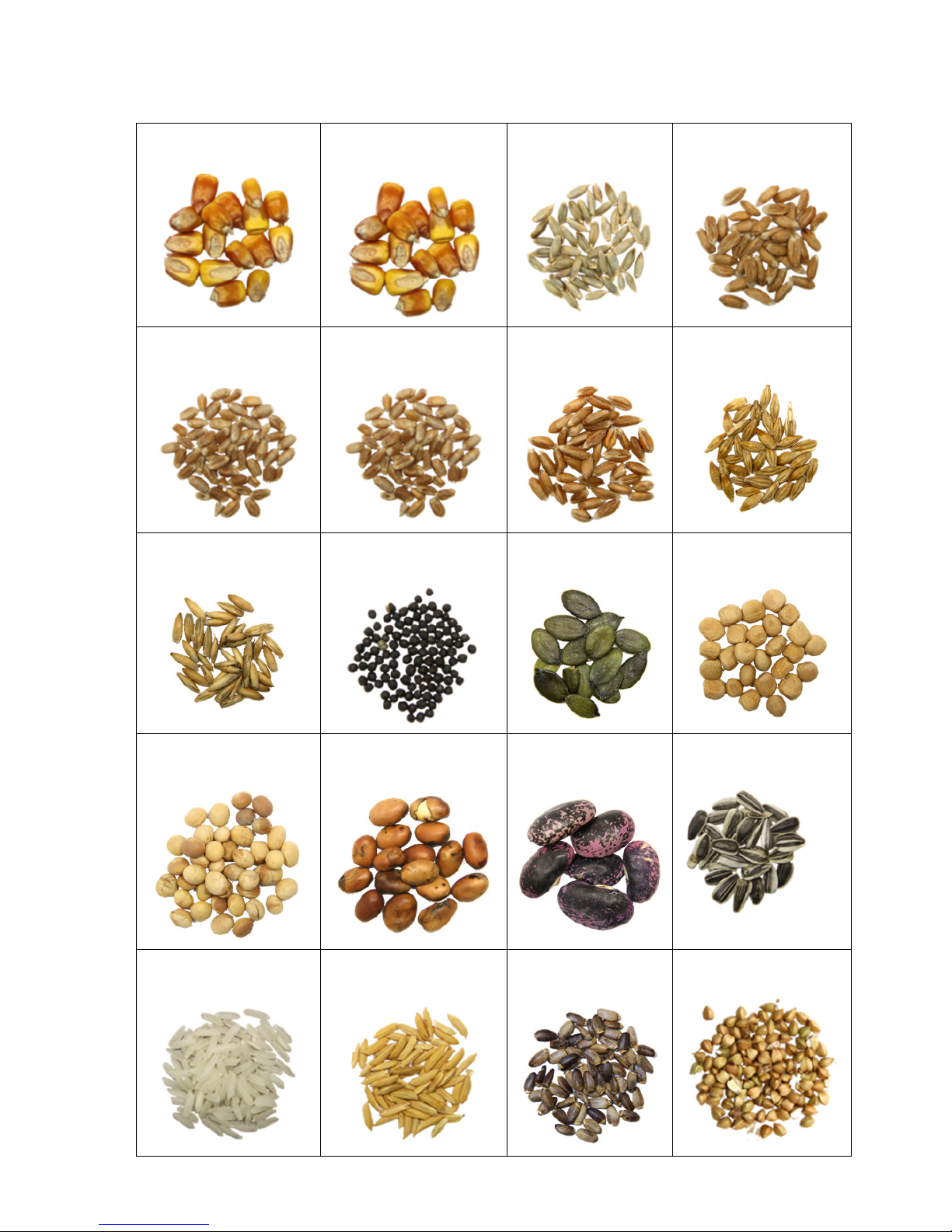

Calibration curves
300g corn
5..40%
300g hand
corn
5..40%
300g rye
5..28%
300g triticale
5..28%
300g wheat
5..28%
300g durum
5..28%
300g spelt peeled
5..28%
300g barley
5..28%
190g oats
5..25%
300g rape
5..18%
230g pumpkin seed
2..20%
310g peas
5..25%
300g soybeans
9..18%
295g horse beans
10..20%
277g scarlet runner
8..25%
180g sunflower
5..18%
300g rice peeled
9..25%
250g rice unpeeled
4..30%
300g rice brown
4..26%
300g buckwheat
5..18%

300g millet
5..15%
300g sorghum millet
5..25%
200g jatropha
5..18%
reference
only for internal
use!
Additional calibration curves:
On request Schaller GmbH can develop customized calibration curves
for your specific product. Schaller GmbH can also enter already existing
calibration curves subsequently.
Design of the device
measuring
chamber
name of
calibration
curve
water content
batteries slot
(flipside)
POWER button
filler assistance
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Options
Date / Time
Log Time
Language
Unlock
°C / °F
o Userlevel
Materialcalib.
Password
Reset
Next calibration curve
Previous calibration curve
Power off (3 sec.)
Watch saved data (logs)
Save new value (log)
Power off (3 sec.)
Switch upper
Switch lower
Open this menu / Enter
ype selection
menu
Store menu
Main menu
Edit Logs
Manual Logs
Clear Logs
Options
Status
Keypad symbols
Measuring window:
Rolling Menu
Power ON / OFF
Switch upper
Switch lower
Save
Hold
Watch saved data
Add suppliers data
Menu:
Enter
Switch upper
Switch lower
Exit
Enter numbers
Enter letters
Next or right
Left
Yes
No
Shift
OK
Menu level overview
Overview main menu
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Determination of the material reference moisture
The principle is a comparison measurement with the dehydration
method according to EN ISO712. Take the measured sample and
weigh it. Dry it out in an oven and weigh it again.
Notes
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Mn: Mass with average moisture content
Mt: Mass of the dried sample
%F: Calculated moisture content
100% ×
−
=
Mn
MtMn
F
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Notes
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Exemption from liability
For miss-readings and wrong measurements and of this resulting
damages we refuse any liability. This is a device for the quick
determination of moisture. The moisture depends on multiple
conditions and multiple materials. Therefore we recommend a
plausibility check of the measuring results. Each device includes a
serial number and the guarantee stamp. If those are broken, no
claims for guarantee can be made. In case of a faul
Activation of the “super user” function
2 times - Options – Unlock
Enter the 4-digit password using the button (standard is the
4-digit serial number) and confirm by pressing the button.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

Technical data
Resolution of the display 0.1% water content
0.5°C temperature
Measuring range 5up to 40% depending on the
material
Operation temperature 0 up to +40°C (32 up to 104°F)
Storage temperature -20°C to +60°C
Temperature compensation automatically
Power supply 4 pcs. 1.5 Volt AA Alkaline
batteries (900 measurements)
Auto Switch OFF After approx. 6 minutes
Current consumption 60mA (with light)
Display 128x64 matrix display, lighted
Dimensions 260 x 70 x 250 mm
Weight approx. 1.3 kg (with batteries)
Degree of protection IP 40
Scope of supply FS2 incl. plastic case
digital scale (max. 500g; 0.1g)
measuring cup 0.5 liter
4 pcs. 1,5Volt AA Alkaline
Batteries
Device maintenance instructions
To provide a long life of your device please do not expose it to
strong mechanical loads or heat e.g. dropping it or direct sunlight
exposure. Clean your device using a dry cloth. The measuring
chamber needs to be cleaned with a dry and soft brush.
Any kind of wet cleaning damages the device. The instrument is
not rainproof. Keep it in dry areas. When the device is not used for
a longer period (6 months) or when the batteries are empty, they
should be removed to prevent a leakage of the battery acid.
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]

! IMPORTANT ! please read
Most common reasons for miss readings
•Product temperature out of application range
Material of a temperature below 0°C resp. above +40°C (32
to 104 °F) may cause faulty measurements. The storage of
cold material in a warm storage area usually creates
condensed water which may lead to major measuring errors.
•Not adjusted material under test
Let your humimeter adjust to the surrounding temperature of
the material for approx. half an hour.
A very high temperature difference has a negative effect on
the stability of the measurement results.
•Wrong calibration curve
Before measuring your sample, please double-check the
correct selection of the calibration curve.
•Wrong filling quantity
Fill in exactly the right weight (± 1.0g) of material in the
measuring chamber.
•Wet or mouldy material
•Stored and fermented corn silage from whole grains may
lead to higher value
•Frozen measuring material
•Polluted measuring material
Polluted material e.g. barley spikes or other material mixed
with the sample has a negative effect on the measurement
