Hunter Products MOTORIZED Volkswagen Beetle W486AL Assembly instructions

The 21st Century Beetle is of cially licensed by Volkswagen. Manufactured and distributed by
or for Paragon Child Products Co., Ltd. (Goodbaby Group).
Trademark “VW-in-circle logo”, associated design patents and copyrights are used with the
approval of the owner Volkswagen AG.
Owner’s Manual and Assembly Instructions
Model W486AL
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Save this manual with your sales receipt.
Volkswagen Beetle

Introduction
Thank you for purchasing this vehicle. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle.
Please contact Customer Service with any questions.
Web: www.electricrideon.com.au
or call 1800224094
Specifications:
BATTERY 6V 7AH
MOTOR 6V 20W
AGE 3 Years and Up
MAX WEIGHT 35 kg (77 lbs.)
PRODUCT SIZE 1.05 m x 59 cm x 53 cm (41.34 x 23.23 x 20.87
in.)
SPEED 2.0MPH
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V0.8A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
at www.electricrideon.com.au
or call 1800224094
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Windshield and Spoiler.........13
Attach the Steering Wheel......................14
Attach the Mirrors ...................................15
Attach the Seat ........................................16
Battery Removal ......................................17
Operating Instructions............................18
Maintenance ............................................19
General Care............................................20
Troubleshooting Guide............................21
FCC Information ......................................23
Service and Repairs ...............................24
Warranty ...................................................25
Product Registration...............................27

complies with Australian Standard AS/NZS 2063:2008.
6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 77 lbs.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
•
•
•
•
•
•
•
Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS
keep child in view when child
is in vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
RISK OF FIRE. Do not bypass.
NEVER allow more than (1) rider in the vehicle.

7
Safety (Continued)
WARNING: BATTERY SAFETY
r Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
r Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
r Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
r Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
r It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
r An adult must ALWAYS directly supervise the use of this vehicle.
r NEVER leave a child unsupervised in the vehicle.

8Parts
1. Manual
2. Steering wheel assembly
3. Battery charger
4. Mirrors (2)
5. Windshield
6. Seat
7. Front wheels (2)
8. Rear wheels (2)
9. Front thick washer
(10 x 2 mm) (2)
10. Rear thick washer
(12 x 2 mm) (1)
11. Front thin washer
(10 x 1 mm) (2)
12. Rear thin washer
(12 x 1 mm) (2)
13. Snap pins (4)
14. Rims (4)
15. Rear wheel orientation
sleeve
16. Car body
17. Battery
18. Rear spoiler (pre-installed)
19. Hardware bag
20. MP3 Cable
Phillips screwdriver
Pliers
Remote controller
Not Included:
22

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 17.
AC
Battery
AB
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!

10 Assemble the Front Wheels
1. Slide the front thick washer (9) onto the front axle.
2. Slide the front wheel (7) onto the front axle.
3. Slide the front thin washer (11) onto the front axle.
4. Slide the snap pin (13) into the hole on the front axle until rmly
attached.
5. Snap the rim (14) onto the completed wheel assembly.
6. Repeat steps 1-5 for the remaining front wheel.
9
7 11
13
14

11
Assemble the Left Rear Wheel
Left Rear Wheel:
1. Slide the rear thick washer (10) onto the left rear axle.
2. Slide the rear wheel orientation sleeve (15) onto the left rear
wheel axle.
3. Slide the left rear wheel (8) onto the left rear axle. The side with
the gear teeth faces inward.
4. Slide the rear thin washer (12) onto the left rear axle.
5. Slide the snap pin (13) into the hole on the left rear axle until
rmly attached.
6. Snap the rim (14) onto the completed left wheel assembly.

12
Right Rear Wheel:
1. Slide the right rear wheel (8) onto right rear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
2. Slide the rear thin washer (12) onto the right rear axle.
3. Slide the snap pin (13) into the hole on the right rear axle until
rmly attached.
4. Snap the rim (14) onto the completed right wheel assembly.
Assemble the Right Rear Wheel
Helpful Tip:
1. If you encounter trouble tting both wheels onto the rear axle,
then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.

13
Attach the Windshield
1. Align the windshield (5) with the two side slots between the
dashboard and the body.
2. When evenly aligned, push lightly on the windshield while holding
at each end until it clicks. (Note: the two sides of the windshield
must be pushed in evenly.)
3. Push down lightly on the middle of the windshield until it clicks.
5

Horn Engine sound
14 Attach the Steering Wheel
1. Remove the screw and nut from the steering wheel assembly before
attaching.
2. Plug the black steering wheel connector (A) into the black dashboard
connector (B).
3. Insert the steering wheel (2) into the steering rod, and match the
screw holes of the steering wheel with the screw holes on the
steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
Press the left and right buttons on the steering wheel to make sounds.
Note: The steering wheel connector must be attached to the dashboard
connector to make sounds.

15
Attach the Mirrors
1. Remove the screw and nut from the mirror (4) before attaching.
2. Insert the left side mirror into the slot on the side of the body. Push
it into the slot.
3. Insert the screw and fasten the nut to secure the mirror.
4. Repeat steps 1-3 for the right side mirror.
4

16 Attach the Seat
1. Position the seat (6) over the battery compartment.
2. Slide the seat onto the guides located in front of the rear spoiler.
3. Turn the thumb screw clockwise on the seat to lock it properly in
position.
6

17
Battery Removal
1. Disconnect the red battery connecvtor (A) from the red engine
connector (B) .
2. Loosen and remove the screw.
3. Unfasten the battery from the strap.
4. Remove the battery.
Note: It is not necessary to remove the battery for charging. However, if
the battery does not reach the outlet, it can be removed for charging.
Battery strap
Battery
Screw
AB
Open the battery cover. Take out the old
batteries and replace with new one.
Then close the battery cover. Please
change the battery following step above
when the red light off on R/C found.
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc),
or rechargeable (nickel-cadmium) batteries.
WARNING!
Battery cover
R/C

18 Operating Instructions
To turn on the vehicle, turn the power switch to “I.” To turn off the
vehicle, turn the power switch to “O.”
Press Remote/manual control switch to manual; Push the shifter forward
to move forward. Pull the shifter backward to go in reverse.
Press Remote/manual control switch to Remote; Use the remote control
to move forward or backward and turn left or right.
When turn on the power switch and radio, user can tune in radio
programs and can back to the original state by pressing reset.
Connect MP3 cable with the MP3 jack, the radio can play music in the
MP3 device.
Turn on the power switch, pressing the battery indicator button, the red,
yellow and green lights will be lighted at the same time if the battery full
charged; when volt less than 6V, the green light will be extinguished,
indicating low battery power; when volt less than 5.5V, yellow light will
also extinguished, indicating a serious shortage of battery power, should
stop using the E-car to charge the battery.
Manual / rc
Power switchForward and reverse shifter
Foot pedal
MP3 jack Turning/Reset
on/off
indicator button
battery indicator

Coding switch
Forward/Reverse lever
Left/Right lever
19
Remote Control Operation

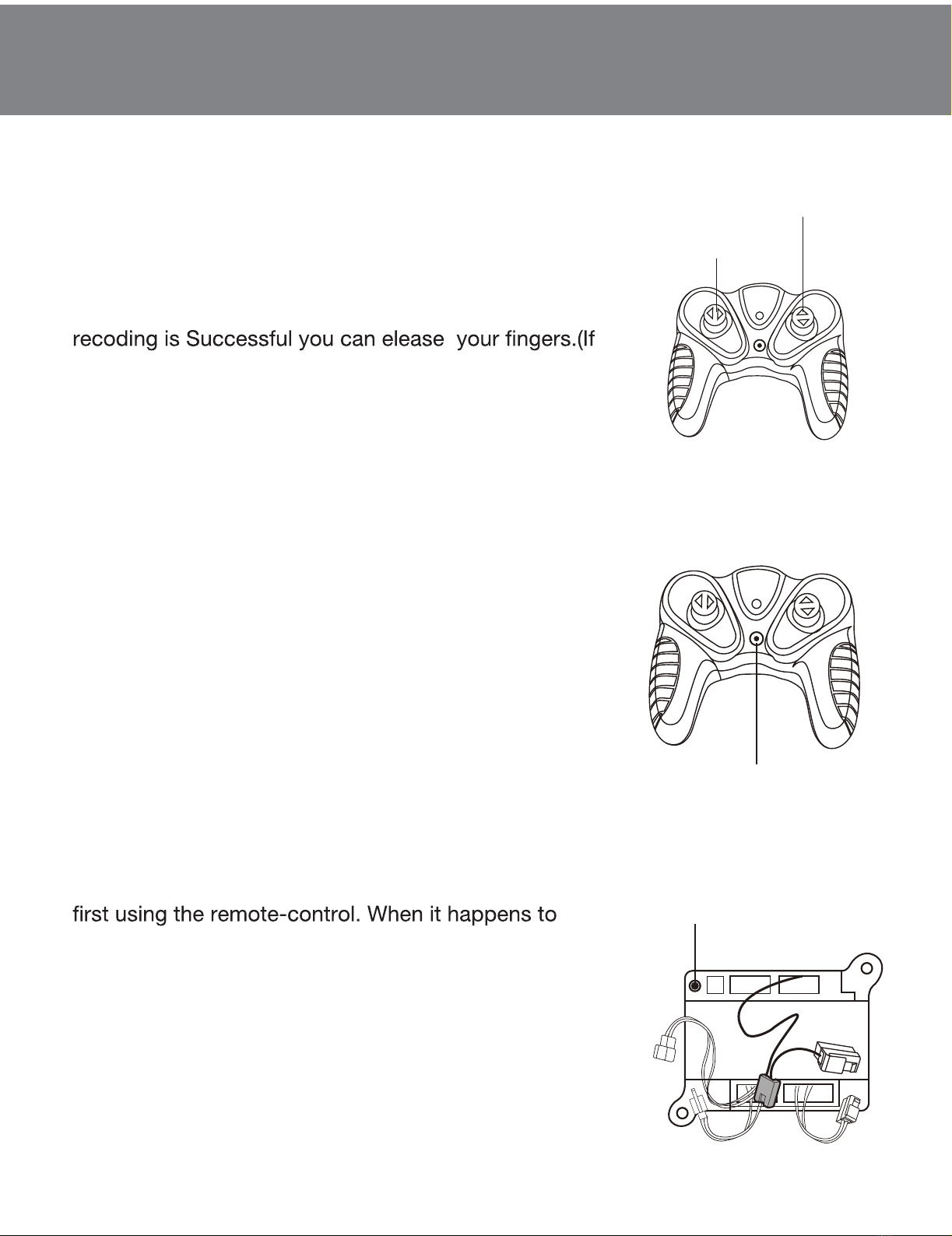

Matching the code :
Press the match code button until the LED is
blinking, then release the code button and press only
the match code button on the drive
board until the Led stops blinking and keeps in
light on status in just 1 seconds then it will be off, the
the LED keeps blinking over than 10 seconds , the
recoding is fail and will at last be off automatically ,
the reason may be that there is no electricity on the
drive board or the time interval between you press
the button on the remote control and on the drive
board is too long. To match the code again, please
release the code buttons and repeat above steps.
If the recode is fail, please turn off the power and then
turn on to recode. If it still couldn’t work, please
change a new remote –control and a new drive board.
Remote –control mode :Rider sits in the car, turns on
the power switch, set the manual / remote-control
switch at remote-control mode. Move the lever on the
2.4G remote-control to forward or reverse position,
the car will go forward or reverse accordingly, when
move the lever to left or right position, the car will go
to the left or right. The car will stop if the lever
released. The headlightwill on when the car moves
forward. There is no need to match the code when
replace the remotecontrol, motor control board or
mal-function of the remote-control, please match the
code again as Matching code steps.
Sleep mode:If you don’t operate the car in 8 hours
after you turn on the power switch, the car will shift to
sleep mode automatically. If you want to use the unit,
please turn the power switch off and restart it to acti-
vate.
Coding switch

20 Maintenance
Important Battery and Charger Information
Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
Charge the battery for 24 hours before using the vehicle for the rst
time.
Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
Charge the battery at least once a month, even if the vehicle is not used
or stored.
Never leave the battery in a discharged condition.
Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
Keep the charger away from water or excessive moisture to prevent
short-circuiting.
Only use the charger speci ed with the original item. Do not charge the
battery with any other charger.
Do not attempt to recharge non-rechargeable batteries with the original
charger.
Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24 for
replacement information.
Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
Do not short circuit the supply terminals.
Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.
