Hunter Products ZPV118A User manual

Important Warning!
Age: 3+Years
Maximum user
weight :20Kg
1. Not Suitable for children under 36 months
Choking hazard due to small parts2.
For family and domestic use only3.
Not to be used in traffic4.
Adult assembly required
5.
Protective equipment should be worn
6.
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 8-12 hours under adults surpervision,
but no more than 20 hours.
Model No.: ZPV
Item No.: HUN0336
118A
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
ELECTRIC TOY CAR

(A) BEFORE USE
(B) SPECIFICATION
DIRECTORY
External dimensions
Age Grade
Loading limitation
Speed
Battery Spec
Power Mode
Charging Spec
Charging Time
Power life
Fuse Spec
62*38*45cm
3+years
20 KG
3 km/hr
6V, 4.5AH
Rechargeable
DC8V 500MA
8-12 hours
280 times charging
Self-resetting fuse
Please read the product manual carefully before use. Please follow the
detailed installation guide and follow the correct procedures to avoid potential
damage or injury which may be caused due to improper use. It is particularly
important that you read and follow the safety instructions and precautions.
Please keep this manual in a safe place for future reference.
BEFORE USE
SPECIFICATION
PRECAUTIONS
EXPLODED DIAGRAM
PARTS
ASSEMBLY DIAGRAM
FUSE
CHARGING AND BATTERY SAFETY
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
OPERATION AND FUNCTION
1
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
P1
P1
P2
P3
P4
P5-P6
P7
P8
P8
P9
P9

(C) PRECAUTIONS
2
WARNING:
ADULT ASSEMBLY REQUIRED.
Read all instructions carefully before assembling this product.
WARNING: ASSEMBLY
· Keep these instructions for future reference.
· Prior to assembly, this package contains small parts: hardware which is a
choking hazard and may contain sharp edges and sharp points. Keep product
away from children until assembled.
·
·
Ensure working area is free of danger, always dispose packaging material in
such a way that it may not cause any harm.
Plastic bags can be dangerous. To avoid suffocation, Please keep
plastic bags away from babies and children.
· To prevent serious injury, children must not use the equipment until completely
assembled.
· Changing of spare parts should only be done by an adult. The battery is very
heavy and the internal contents has acidic electrolytes. If battery leaking occurs,
avoid contact with eyes. If there is accidental direct contact with battery leakage,
it is imperative that the skin area is rinsed under cold water for at least 15 minutes.
Please seek immediate medical attention.
IMPORTANT - MUST READ CAREFULLY
WARNING: USE
TO AVOID SERIOUS INJURY: Continuous adult supervision is required while this
vehicle is in operation.
· To reduce the risk of injury, adult supervision is required. DO NOT leave the
child play vehicle alone to avoid accidents.
· NEVER use in or near roadways, near motor vehicles, on or near steep inclines
or steps, swimming pools or other bodies of water and dangerous place, always
wear shoes, and NEVER allow more than 1 rider.
· NEVER allow children to ride at night.
· Instruct children on proper use of this product and to sit properly when driving.
DO NOT RIDE VEHICLE STANDING UP.
· It is recommended that the rider always wears safety equipment such as fitted
helmet when riding the vehicle.
· Ride-on toys should be used with caution since skill is required to avoid falls or
collisions which may cause injury to the user.
· The vehicle is intended for use on flat, level surfaces.
· DO NOT ride the vehicle indoors. It is intended for outside use ONLY. Interior
floors can be damaged by riding the vehicle indoors.
·
· This toy contains batteries that are non-replaceable.
· WARNING: Not to be used in traffic, it has potential hazards of using the ride-on
electric toy in areas other than private grounds.
· The charger is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction.
DO NOT tow objects behind the vehicle or overload the vehicle as doing so will
cause damage.

3
(D) PARTS
M4*35
bolt M4 Nut
M8 Nut
In the
hardware
bag
In the
hardware
bag
Already
placed
on the
steering
wheel
Already
placed
on the
steering
wheel
Wheel
cap
3
4
7
ST4*12
Screw
The
screw is
already
on the
seat
Wheel
Charger
Spanner
(included)
Instruction
manual
Important Warning!
Age:3+Years
Maximumuser
weight:20Kg
1.Not Suitable for children under 36 months
Chokinghazard due to small parts
2. Forfamily and domestic use only
3. Not to be used in traffic
4. Adultassembly required
5.
Protectiveequipmentshould be worn
6. This toy has no brake
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 8-12 hours under a dults surpervi sion,
but no more than 20 hours.
Model No.: ZPV118A
Item No.:
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS
AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.
2
1
Gear box

1
3
6
6
6
6
6
6
6
25
8
9
9
8
7
4
4
4
11
14 10
9
12
12
4
2
2
2
1
2
6
5
7
10
3
4
11
8
9
Wheel x3 Driving Wheel x1 Wheel cap x4 Seat x1
M10 washer x7 Steering wheel x1
M4*35 bolt x1
M4 Nut x1
M8 Nut x4
Charger x1
4
12
13
14
Spanner x2 Gear box x1
Instruction manual x1
(E) EXPLODED DIAGRAM
Vehicle body x1
13
Important Warning!
Age:3+Years Maximum user
weight :30Kg
1. Not Suitable for children under36 months
Choking hazard due to small parts
2. For family and domestic use only
3. Not to be used in traffic
4. Adult assembly required 5.
Protectiveequipment should be worn
6. This toy has no brake
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 8-12 hours und er adu lts surp ervisi on,
but no more than 20 hours.
Model No.: ZPV118A Item No.:
FOR ANY PRODUCT ENQUIRIES OR ISSUES PLEASE CONTACT HUNTER PRODUCTS AT WWW.ELECTRICRIDEON.COM.AU OR TOLL FREE HELP LINE 1800 224 094.

1
1
4
14
8
8
8
8
8
8
89
9
9
9
7
7
7
7
3
3
3

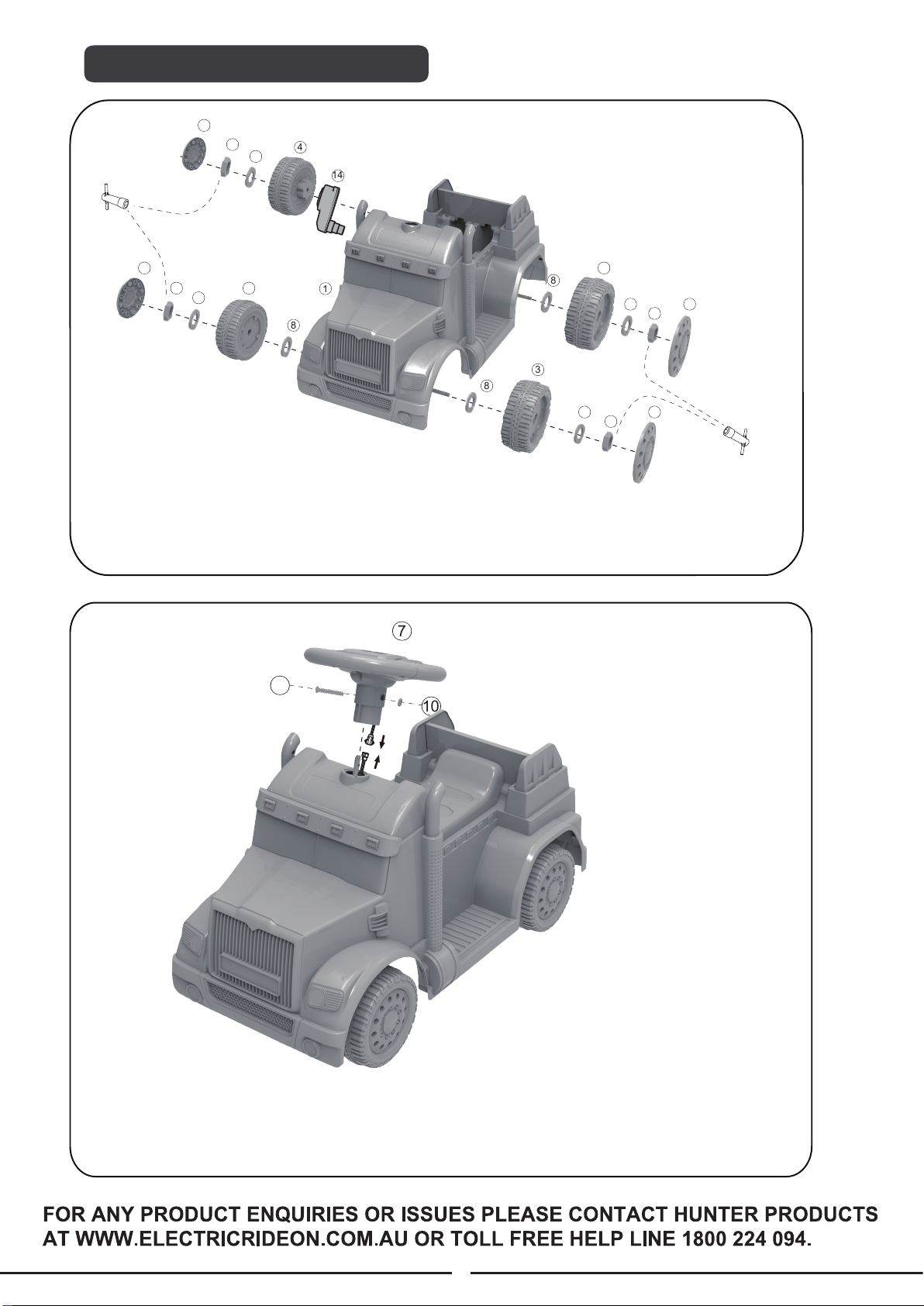

1.Install each part in sequence on the front and rear axles
as shown in the drawing, then tighten the nuts with a wrench,
and finally attach the hub card.
7
10
9
2
2.Remove the bolt & nut from the steering wheel, insert steering
wheel into the steering rod and fix the bolt & nut back through
steering wheel to fasten it.
(F) ASSEMBLY DIAGRAM
5

3
3.As shown in the picture, first remove the seat cushion, connect
the motor plug and the motor connector. insert the black plug-in on
the battery inside the car body into the battery, and then install the
seat cushion.
6

(G) OPERATION AND FUNCTION
Foot switch
ON/OFF
Forward/Backward
（1）The vehicle has a horn.
（2）When the normal driving speed of the vehicle is obviously slow,
it should be charging in time, charging for 8-12 hours.No continuously
charging over 20 hours, the charger has a slight heat phenomenon,
which is normal.
（3）Function description: as shown in figure.
Function: 1. this vehicle has pedal driving function, when using first turn on
the power switch, then step on the foot switch.
2. this vehicle has forward/backward function, forward press is
forward, backward press is back.
3. the vehicle has a power switch, turn on the power when starting,
and turn off the power switch when not in use.
Horn Horn
Charging hole
7
Important Note
The vehicle will not work while connected to the charger.
Disconnect the charger from the car before trying to operate.

(H) FUSE
(I) CHARGING AND BATTERY SAFETY
The vehicle use self-tapping fuse.When overloading or improper use,
the fuse will be automatically cut off in 10-20 seconds.and then will
automatically connect the power.
To avoid the cutting off,please pay attention:
(1). The maximum weight limited of the motorcycle is 20KG.
(2). Not stall the car running or heavy trailer behind.
(3). May not liquid immersion,it may cause the short circuit.
(4). Do not revise the vehicle’s circuit or the structure.
(1). Like the below picture,put the charger into the vechile’s charing hole.
(2). Like the picture, the power plug into the matched stable AC power.
Attention when charging:
1. To assure the safety, adults should do the battery charging,
2. First using , fully charged,need to charge another 8-12 hours.
3. Charge the battery if the vehicle runs slower, can charge 8-12 hours.But
cannot charge over 20 hours.
4. Can not open or decompose the battery and charger, should use the
matched charger and battery.
5. When charging,cannot upside down the battery.
6. Before charging, check the charger ,battery and the plug is ok or not.If
broken,no use. After repaired,then can use.
7. Charge the battery fully if you will store it for a long time, then charge it
every 3 month, in this way you can extent the lifetime of the battery.
charing hole
8
WARNING:
DO NOT allow children to
play with the battery and
charger. IT IS NOT A TOY.

(J) CARE AND MAINTENANCE
(K) TROUBLESHOOTING GUIDE
(1) An adult should regularly check things such as plugs, electrical, housing and steering
systems. If fastenings are in normal working order, It is suggested these checks are
done every two weeks. If there are any problems, STOP use immediately until
the issues are resolved and the unit is back in working order.
(2) Clean vehicle with soft and dry cloth, do not use water directly or chemicals as this
may lead to corrosions and cause switch failure.
DO NOT wash with soapy water or spray vehicle with a hose.
DO NOT wipe vehicle with car wax or other wax-based polish.
(5)
(6)
(4)
(3)
(8)
DO NOT drive vehicle during wet or snowy weather as moisture can cause
corrosion in the motor or electrical switches.
DO NOT drive vehicle on gravel or sand as doing so may cause motor to jam.
(7) Store vehicle indoors or cover with a protective tarp during inclement weather.
DO NOT store the vehicle in high-temperature places, near fire, or in moist places.
(9) When vehicle is not used on a regular basis, please pull out the battery, the switch
must be in the "off" position to ensure circuit safety. Charge the battery once every
three months to extend the lifetime of the battery.
(10) DO NOT make modifications to this vehicle.
When maintaining, do not revise the vehicle's circuit and structure.
(11) ONLY use the battery charger which comes with this vehicle. Not doing so may
cause irreparable damage, including fire or explosion which may result in injury to
the user.
(12) In the unstable supply voltage region, we recommended to install voltage stabilizer
to protect the battery.
9
Problem
The vehicle does not move
The vehicle begins to run slow
The vehicle runs erratically
The charger feels warm when in
use
The gears sound very loud and/or
are making a grinding noise.
Possible Solutions
· Charge the battery. (Charge battery after each use.)
NOTE: vehicle will be cut off electrically during charging.
· Check all electrical connections.
· Check that all switches are in the "on" position
· Check that the foot switch or manual button is not stuck
· The fuse may have been activated due to excessive
weight or rough driving conditions. Wait at least 10~20
seconds, and the vehicle will reset itself.
· Check is whether there is debris stuck wheels.
· Charge the battery. (Charge battery after each use.)
· Only allow one rider at a time.
DO NOT exceed child weight limit: 20kg
· Drive on level ground.
· Battery may be old or not accepting a full charge.
The battery will last from 1 to 3 years depending on
care, use and environment.
Replace with 6Volt 4.5 Ah battery only.
· Check is whether there is debris stuck wheels.
· There may be a problem with the fuse, or you may
have a damaged battery.
· This is normal.
· The gears may be broken.

10

11
Our goods come with guarantees that cannot b
For New Zealand customers, this warranty is in addition to statutory rights observed under New
Zealand legislation.
e excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Where a failure does not amount to a major failure, we are entitled to choose between providing
you with a repair, replacement or refund. To obtain compensation, you would need to provide
documentary evidence of the loss or damage suffered, and documentary evidence that such loss
or damage was a reasonably foreseeable consequence of a failure by us to comply with a
consumer guarantee under the Australian Consumer Law. Such evidence may include
photographs, statutory declarations, receipts or reports (e.g. from your doctor), depending on the
loss or damage.
In addition to all rights and remedies to which you may be entitled under the Competition and
Consumer Act 2010 (Commonwealth) and any other relevant legislation, the manufacturer
warrants this product to be free from defects in materials or workmanship for a period as stated
on the packaging from the date of purchase.
In order to claim under this warranty, you will need to bring the product to the store of purchase,
along with proof of purchase (typically this will be a receipt). Any cost incurred by you in bringing
the product to the service desk will be borne by you. We will then, at our option, either repair or
replace the product, or refund your money and take back the product.
Our liability under this manufacturer’s warranty is subject to us being satisfied that a defect was
caused by defective workmanship or materials, and was not caused by or substantially
contributed to by other factors, or circumstances beyond our control, including (but not limited to)
defective installation, maintenance or repair, alteration or modification of the product in any
manner not recommended by the manufacturer or any neglect, misuse or excessive use.
The benefits conferred by this manufacturer’s warranty are in addition to all rights and remedies
conveyed by the Competition and Consumer Act 2010 (Commonwealth), and any other statutory
rights to which you may already be entitled, and this warranty does not exclude, restrict or modify
any such rights or remedies that are implied by law.
HUNTER PRODUCTS
233 Bay Street, Brighton, Victoria 3186
Ph: 1800 224 094
Email: [e-mail]
122820
