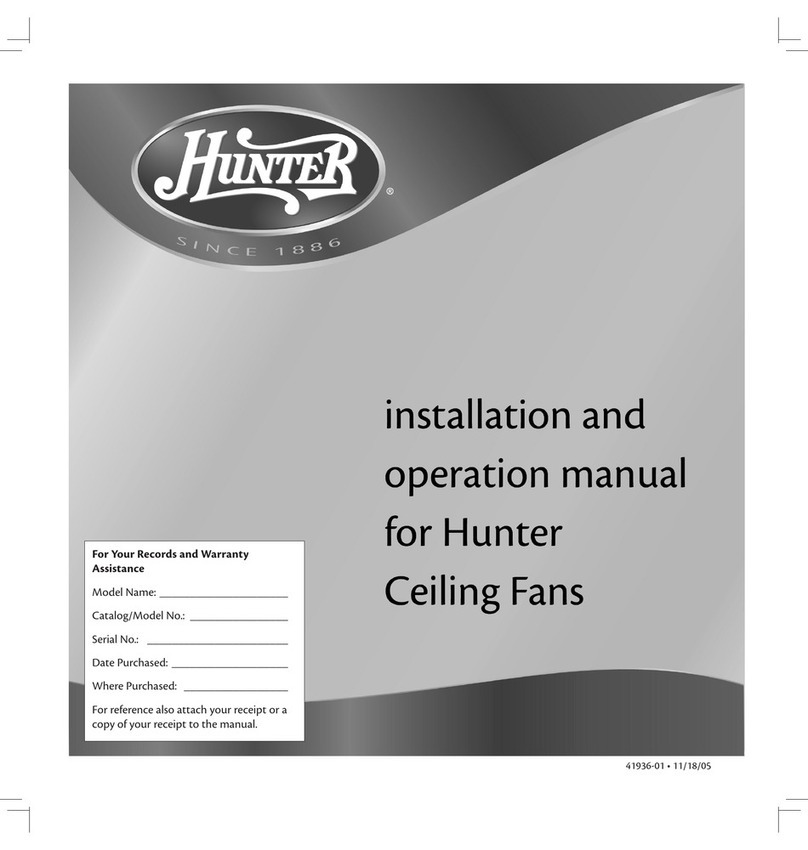

Hunter Hunter Ceiling Fan User manual

For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.
42741-01 • 1/25/07

2
Welcome
Your new Hunter®ceiling fan is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Hanger Bracket...................5
3 • Assembling and Hanging the Fan..........6
4 • Wiring the Fan..................................................7
5 • Installing the Canopy and Trim Ring ..8
6 • Assembling the Blades.................................9
7 • Completing Assembly with or without a
Light Kit.............................................................. 10
8 • Operating and Cleaning
Your Ceiling Fan.............................................14
9 • Troubleshooting ........................................... 14
Hunter Fan Company 42741-01 • 1/25/07
© 2007 Hunter Fan Company

3
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation flexibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Profile, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angle Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
Low Profile Mounting fits close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Profile
Mounting
Style
Ceiling
Outlet Box
8
12
42741-01 • 1/25/07 Hunter Fan Company

4
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
Hunter Fan Company 42741-01 • 1/25/07

5
2 • Installing the Ceiling Plate
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the off position, securely fasten a prominent warning device, such as a
tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
For Angled Ceilings: Be sure to orient the ceiling plate so that the
two tabs are pointing towards the ceiling peak.
2-2. Your fan comes with four preinstalled noise isolators. Check to
make sure all four isolators are in place and were not removed
during shipment.
2-3. Place a flat washer on each of the two 3” wood screws.
2-4. read the supply wires from the outlet box in the ceiling through
the hole in the center of the ceiling plate.
2-5. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be flush against the ceiling.
2-6. Pass the screws through the slotted holes in the ceiling plate into
the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood
Screw Steps 2-3 – 2-6
Ceiling
Plate
For Angled Ceilings: Be sure to orient
the ceiling plate so that the two tabs
are pointing towards the ceiling peak.
Towards
Ceiling Peak
42741-01 • 1/25/07 Hunter Fan Company

6
3 • Assembling and Hanging the Fan
Steps 3-2 – 3-3
Low Profile
Washer
Downrod
Canopy
Set Screw
Low Profile Screw
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
For Standard or Angle mounting:
3-2. Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to step 3-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
For Low Profile mounting:
Note: For low profile mounting, the downrod is replaced with the
low profile washer.
3-4. Remove the set screw from the adapter.
3-5. Place the low profile washer into the canopy with the lip down.
3-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low profile screws.
Hanging the Fan:
Note: To hang the fan, you must tilt the canopy to an almost vertical
position so that the canopy slots sit on the ceiling plate hooks.
3-7. Raise the fan and align the slots in the canopy with the hooks on
the ceiling plate.
3-8. Place the slots over the hooks to hang the fan.
Canopy
Trim Ring
Green
Ground
Wire
Standard or Angle Mounting
Low Profile Mounting
Low Profile Screws
Canopy
Canopy
Trim Ring
Adapter
Low Profile
Washer
Low Profile Screw
Steps 3-5 – 3-6
Step 3-6 (Detail)
Hunter Fan Company 42741-01 • 1/25/07

7
fsdfsdf
4 • Wiring the Fan
Wire Nut
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70-1999. If you are unfamiliar with wiring,
use a qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still off.
4-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the wire nuts provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Dual Switch Wiring
Single Switch Wiring
42741-01 • 1/25/07 Hunter Fan Company

8
5 • Installing the Canopy and Canopy Trim Ring
WARNING: Failure to complete the following steps could cause the fan
to fall.
Note: It is recommended you use a magnetic tip screwdriver for the
following steps.
5-1. Rotate the hanger ball so the tab in the canopy is secure in the
hanger ball groove. Note: Your fan may have multiple tabs and
grooves that must be aligned.
5-2. Swing the fan up to align the canopy screw holes with the
mounting holes on the ceiling plate.
WARNING: e slots in the canopy must remain engaged while
swinging the canopy for alignment.
5-3. Holding the canopy up with the screw holes aligned, partially
install two canopy screws into the holes opposite the ceiling plate
tabs.
5-4. Partially install a canopy screw between the slots in the canopy.
When all the holes are properly aligned, securely tighten all three
canopy screws.
5-5. Verify that the tabs in the canopy are still in the grooves of the
hanger ball.
5-6. Align the tabs on the trim ring opposite the grooves in the hanger
ball. Using both hands, push the canopy trim ring up to the top of
the canopy. e canopy trim ring will snap and lock into place.
Note: Should you need to remove the trim ring, press firmly on
opposite sides of the trim ring directly above the groove in the
hanger ball. e tabs will flex out releasing the canopy trim ring.
Step 5-1
Step 5-2
Groove
Tab
Step 5-3
Canopy Screw
Canopy
Trim
Ring
Canopy
Hunter Fan Company 42741-01 • 1/25/07

9
6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
42741-01 • 1/25/07 Hunter Fan Company

10
7 • Completing Your Installation With or Without a Light Fixture
Your Hunter fan comes with an integrated light fixture assembly and an
optional switch housing cap and plug button. is feature gives you the
option of installing the fan with OR without the included light fixture.
e steps below direct you whether or not you are installing a light
fixture.
WARNING: Use only the light fixture supplied with this fan model.
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling.
7-5. If you want to install the light fixture, proceed with step 7-6
now.
If you do not want to install the light fixture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on page 12.
Once you have uninstalled the light fixture, continue with step
7-6.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Hunter Fan Company 42741-01 • 1/25/07

11
7-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-7. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing
7-8. To install each shade, first loosen the three thumbscrews.
7-9. Raise the shade to the light fixture. Tighten the thumbscrews
securely.
7-10.Install four candelabra base light bulbs (60 Watt maximum each).
Note: Glass shade style may vary.
Steps 7-6 – 7-7
umbscrews
Shade
Bulb
Steps 7-8 – 7-10
Plug
Connector
Lower
Switch
Housing
Plug
Connector
Detail Housing
Assembly Screw
42741-01 • 1/25/07 Hunter Fan Company

12
7 • Completing Your Installation With or Without a Light Fixture (Continued)
Uninstalling the Light Fixture
1. You must remove the wiring harness and its components
from the integrated light fixture. You must then install the
wiring harness into the empty switch housing included
with the fan.
2. Locate the reversing switch and carefully remove the two
screws holding the reversing switch to the lower switch
housing. Now, remove the reversing switch from the housing.
3. Remove the patented breakaway connector from the end
of the fan pull chain. Carefully loosen the bellmouth nut
from the pull chain and remove the pull chain switch from
the light fixture housing.
4. Locate and carefully remove the two capacitors.
5. In the light fixture housing there are the following plug
connectors: one multi-wire connector and two two-wire
connectors. Unplug the two-wire connectors; one connector
will have a black with white striped wire and a white wire
coming from the multi-wire connector.
6. You have now disconnected the wiring harness and its
components and are ready to install them into the empty switch
housing. (e light switch remains in the light assembly housing.)
7. Insert the pull chain and fan pull chain switch through the
round opening on the side of the empty switch housing. read
the bellmouth nut over the pull chain and hand tighten the
bellmouth nut.
8. Reattach the breakaway connector to the pull chain.
9. Insert the reversing switch into the square hole on the side
of the switch housing. Install and tighten the two screws you
removed previously from the other switch housing.
10. Carefully place the capacitors in the switch housing.
11. Install the switch housing cap and plug button to the lower
switch housing
12. Continue with Step 7-6 on page 11.
Fan
Speed
Switch
Steps 1 – 6
Steps 7 – 9
Reversing
Switch
Light
Switch
Light
Assembly
Housing
Switch
Housing
Capacitors
Bellmouth Nuts
Fan
Speed
Switch
Step 11
Cap
Plug Button
Hunter Fan Company 42741-01 • 1/25/07

13
8 • Operating and Cleaning Your Ceiling Fan
In warm weather, use
downward air flow pattern
In cold weather, use upward
air flow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low and Off.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-4. For cleaning finishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the finish.
8-5. Clean wood finish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan finish.
To Change Airflow Direction
Turn the fan off and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
42741-01 • 1/25/07 Hunter Fan Company

14
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch firmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power off, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
9 • Troubleshooting
Hunter Fan Company 42741-01 • 1/25/07
