Hunter 42762-01 User manual

For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual. TYPE 2 Models
installation and
operation manual
for Hunter
Ceiling Fans
 42762-01•07/19/07

2
42762-01•07/19/07•HunterFanCompany
© 2007 Hunter Fan Company
YournewHunter®ceiling fan is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
recordinformationfromthecartonandHunternameplatelabel
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
•UseonlyHunterreplacementparts.
•Toreducetheriskofpersonalinjury,attachthefandirectlytothe
support structure of the building according to these instructions,
and use only the hardware supplied.
•Toavoidpossibleelectricalshock,beforeinstallingyourfan,
disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
•Allwiringmustbeinaccordancewithnationalandlocalelectrical
codesandANSI/NFPA70.Ifyouareunfamiliarwithwiring,usea
qualified electrician.
•Toreducetheriskofpersonalinjury,donotbendtheblade
attachment system when installing, balancing, or cleaning the fan.
Neverinsertforeignobjectsbetweenrotatingfanblades.
•Toreducetheriskofre,electricalshock,ormotordamage,donot
useasolid-statespeedcontrolwiththisfan.UseonlyHunterspeed
controls.
Welcome
Table Of Contents
1•GettingReady......................4
2•InstallingtheCeilingPlate . . . . . . . . . . 5
3•AssemblingandHangingtheFan ...6
4•WiringtheFan......................7
5•InstallingtheCanopy...............8
6•AssemblingtheBlades .............9
7•CompletingYourInstallationWithor
Without a Bowl Light Fixture ......10
8•OperatingandCleaningYourCeiling
Fan ...............................13
9•Troubleshooting ...................14

3
42762-01•07/19/07•HunterFanCompany
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’spatented2-positionmountingsystemprovidesyoumaximum
installationexibilityandease.YoucaninstallyourHunterfanin
one of two ways, depending on ceiling height and your preference:
LowProleorAngledmounting.estepsinthismanualinclude
instructionsforalltwoInstaller’sChoicemountingmethods.
Considering Optional Accessories
ConsiderusingHunter’soptionalaccessories,includingawall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performanceofyourHunterfan,useonlyHunterspeedcontrols.
For ceilings higher than 8 feet, you can purchase
Hunterextensiondownrods.AllHunterfansuse
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angled Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
OutletBox
Support Brace
Ceiling
OutletBox
Angle
Mounting
Style
8
12
CAUTION: To reduce the risk of personal
injury,attachthefandirectlytothesupport
structure of the building according to these
instructions, and use only the hardware
supplied.

4
42762-01•07/19/07•HunterFanCompany
To install a ceiling fan, be sure you can do the following:
•Locatetheceilingjoistorothersuitablesupportinceiling.
•Drillholesforandinstallwoodscrews.
•Identifyandconnectelectricalwires.
•Lift40pounds.
Ifyouneedhelpinstallingthefan,yourHunterfandealercandirect
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
•Electricdrillwith9/64”bit
•Standardscrewdriver(magnetictiprecommended)
•Phillips-headscrewdriver(magnetictiprecommended)
•Wrenchorpliers
•Ladder(heightdependentuponinstallationsite)
Checking Your Fan Parts

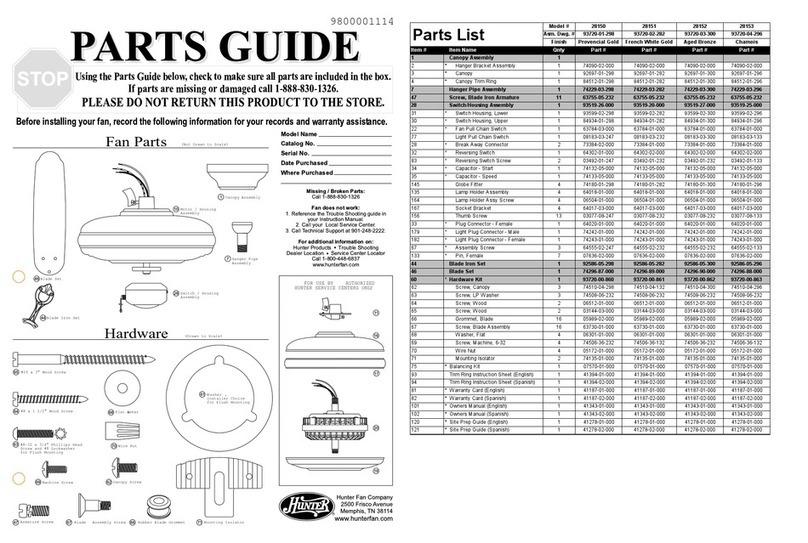

Carefullyunpackyourfantoavoiddamagetothefanparts.Referto
theincludedPartsGuide.Checkforanyshippingdamagetothemotor
orfanblades.Ifanypartsaremissingordamaged,contactyourHunter
dealerorcallHunterTechnicalSupportDepartmentat888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
42762-01•07/19/07•HunterFanCompany
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the off position, securely fasten a prominent warning device, such as a
tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through the
outermostholesintheoutletbox.epilotholesshouldbe9/64”
in diameter.
2-2. Place the ceiling gasket over the ceiling plate so that the slots and
the raised surfaces on the ceiling gasket align with the slots and
holes on the ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Aligntheslottedholesintheceilingplatewiththepilotholesyou
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be flush against the ceiling.
2-5. Place a flat washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
  Tightenthescrewsintothe9/64”pilotholes;donotuselubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood Screw
Steps 2-3 – 2-5
For Angled Ceilings: Be sure to orient
the ceiling plate so that the hook and
one of the threaded screw holes in the
ceiling plate are on the lower side.
2 • Installing the Ceiling Plate

6
42762-01•07/19/07•HunterFanCompany
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1.Unbundlethewiresfromthefan.
For Standard or Angle mounting:
3-2. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy. Feed the wires from the fan
through the downrod.
3-3. Loosen the square head set screw on the adapter to install the
downrod. Note: When the downrod is fully installed, 2-3 threads
onthepipewillstillbevisible;thisisnormal.Securelyretighten
the set screw with a wrench or pliers. Skip to Step 5-7.
CAUTION: e adapter has a special coating on the threads. Do
notremovethiscoating;thecoatingpreventsthedownrodfrom
unscrewing.Onceassembled,donotremovethedownrod.
For Low Profile mounting:
Note:For low profile mounting, the downrod is replaced with the
low profile washer.
3-4. Removethesetscrewfromtheadapter.
3-5. Place the low profile washer (lip down) into the canopy. Be sure
the green ground wire is pointing up toward the ceiling.
3-6.Aligntheholesinthewasherwiththeholesintheadapter.
Assemblesecurelywiththreelowprolescrews.
3-7.Raisethefanandplacethehookontheceilingplatethroughthe
round hole in the rim.
Steps 3-4 – 3-5
Low Profile Screw
Low Profile Washer
Steps 3-1 – 3-2
Downrod
Canopy
Step 3-6
Round
Hole
Set Screw
3 • Assembling and Hanging the Fan

7
42762-01•07/19/07•HunterFanCompany
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still off.
4-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the wire nuts provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
•eblackwire(ungrounded)fromtheceilingtotheblackwire
(ungrounded) from the fan
•eblack/whitewire(ungrounded)fromthefantothewire
(ungrounded) for the wall switch
Single Switch Wiring:
•eblackwire(ungrounded)fromtheceilingtotheblack
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Wire
Connector
4 •Wiring the Fan

8
42762-01•07/19/07•HunterFanCompany
5-1. Holdingthecanopy,raisethefanothehook.
5-2.Aligntheholesinthecanopywiththemountingholesonthe
ceiling plate.
5-3. Insert and tighten the mounting screws securely.
Steps 5-1– 5-3
Mounting Screw
Canopy
5 • Installing the Canopy

9
42762-01•07/19/07•HunterFanCompany
Hunterfansuseseveralstylesoffanbladeirons(bracketsthatholdthe
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attacheachbladetoabladeironusingthreebladeassembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Removetheblademountingscrewsandrubbershippingbumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
BladeAssembly
Screws
Usewithgrommet
Usewithoutgrommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
6 • Assembling the Blades

10
42762-01•07/19/07•HunterFanCompany
YourHunterfancomeswithanintegratedlightxtureassemblyand
an optional switch housing cap and plug button. is feature gives
youtheoptionofinstallingthefanwithORwithouttheincludedlight
fixture. e steps below direct you whether or not you are installing a
light fixture.
WARNING:Useonlythelightxturesuppliedwiththisfanmodel.
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Alignthekeyholeslotsinthehousingwiththehousingassembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling.
7-5. If you want to install the light fixture, proceed with step 7-6
now.
If you do not want to install the light fixture, you need to
uninstallitnow.See“UninstallingtheLightFixture”onstep7-15.
Onceyouhaveuninstalledthelightxture,continuewithstep7-6.
Steps 7-1 – 7-3
Housing
Assembly
Screw Upper
Switch
Housing
Gasket
7 • Completing Your Installation With or Without a Bowl Light Fixture

11
42762-01•07/19/07•HunterFanCompany
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Light Fixture
M
ounting Scre
w
L
ight Fixture
M
ounting Screw
s
7-6. Removetheswitchhousingcapandplugbutton.
7-7. Insert the black and white wire from the light fixture through the
holeinthebottomofthelowerswitchhousing.Usetheincluded
nut and washer to attach the light fixture to the lower switch
housing. Securely tighten the nut and washer onto the end of the
light fixture.
7-8. Insert and tighten two light fixture mounting screws.
7-9. Removethewireconnectorsfromthetwowiresfromthelower
switchhousing.Useonewireconnectortoconnecttheblack
wire from the light fixture to the black/white wire from the lower
switchhousing.Usetheothertoconnectthewhitewirefromthe
light fixture to the white wire from the lower switch housing.
CAUTION:Be sure no bare wire or wire strands are visible after
making connections. Nut
Washer
Gasket
Lower Switch
Housing
Light Fixture
Assembly
Steps 7-7

12
42762-01•07/19/07•HunterFanCompany
7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Lower Switch
Housing
Plug
Connector
Housing
AssemblyScrew
Plug
Connector
Detail
Steps 7-6 – 7-7
7-10.To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-11.Place the lower switch housing assembly over the upper switch
housing.Alignthesidescrewholesintheupperandlowerswitch
housings.Attachthelowerswitchhousingtotheupperswitch
housing with three housing assembly screws.
If you are not installing the light fixture, your installation is
complete. Otherwise,proceedwithstep7-12.
7-12.Installonescrew-inCFL(compactourescent)bulb(19Watt
Maximum). Do Not use incandescent bulbs in this fixture.
7-13 Insert the globe into the fixture. Install and tighten the
thumbscrews manually. Do not overtighten.
Note: If thumbscrews are pre-threaded, loosen the screws before
inserting the globe, then retighten securely.
CFL bulb
(max19W)
Steps 7-12 – 7-13
Globe

13
42762-01•07/19/07•HunterFanCompany
In warm weather, use
downward air flow pattern
In cold weather, use upward
air flow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
foursettingsinsequence:High,Medium,LowandO.
• Pullthechainslowlytochangesettings.
• Releaseslowlytopreventthechainfromrecoilingintothe
blades.
• echainusesabreakawayconnectorthatseparatesifthe
chainisjerked.Ifthishappens,simplyreinsertthechaininto
the connector.
8-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-4. For cleaning finishes, use a soft brush or lint-free cloth to prevent
scratching.Avacuumcleanerbrushnozzlecanremoveheavier
dust.Removesurfacesmudgesoraccumulateddirtanddustusing
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the finish.
8-5. Clean wood finish blades with a furniture polishing cloth.
Occasionally,applyalightcoatoffurniturepolishforadded
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan finish.
To Change Airflow Direction
Turn the fan off and let it come to a complete
stop. Slide the reversing switch on the fan to the
oppositeposition.Restartfan.
Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

14
42762-01•07/19/07•HunterFanCompany
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch firmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6.Removetheshippingbumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power off, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
HunterFanCompany
2500FriscoAvenue
Memphis, Tennessee 38114
9 • Troubleshooting
