Hunter 45057-01 Instruction manual

Form# 45057-01
20090624
©2009 Hunter Fan Co.
English Español

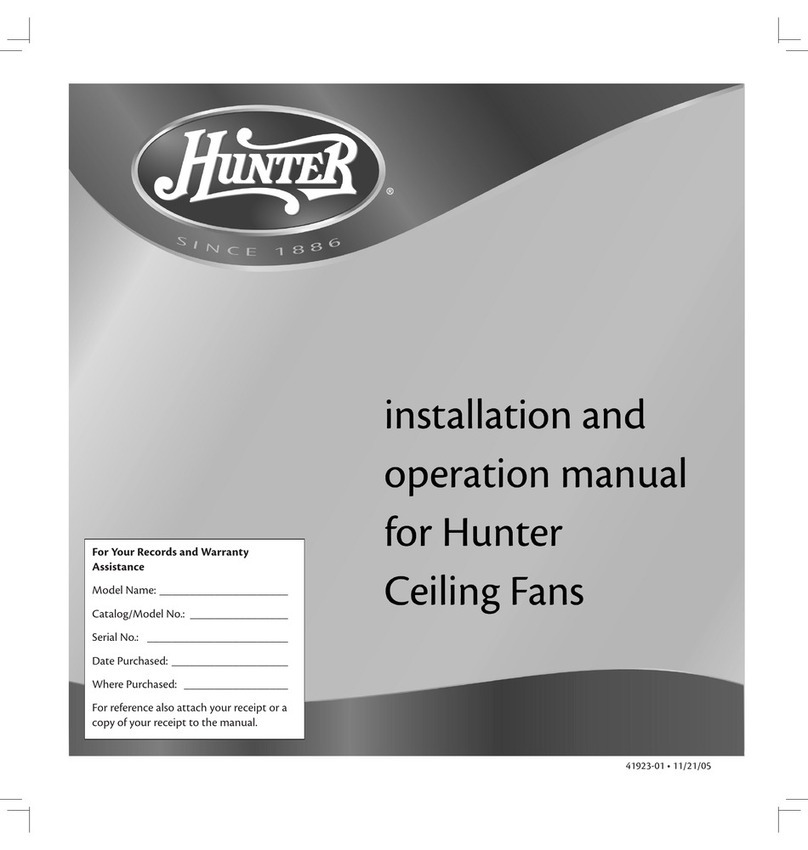

Owner’s Guide and Installation Manual
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Type 2 ModelsType 2 ModelsType 2 Models

2
45057-01 • 06/24/09 • Hunter Fan Company
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Ceiling Plate ..........5
3 • Assembling and Hanging the Fan . . . 6
4 • Wiring the Fan .....................7
5 • Installing the Canopy and Canopy
Trim Ring .........................8
6 • Assembling the Blades..............9
7 • Completing Your Installation With a
Light Fixture ......................10
8 • Operating and Cleaning Your Ceiling
Fan ...............................13
9 • Troubleshooting....................14
© 2009 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome

3
45057-01 • 06/24/09 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angled mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angled Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Prole
Mounting
Style
Ceiling
Outlet Box
8
12
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.

4
45057-01 • 06/24/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326
(In Canada, call 1-866-268-1936).
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
45057-01 • 06/24/09 • Hunter Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
For Angled Ceilings: Be sure to orient the ceiling plate so that the
two tabs are pointing toward the ceiling peak.
2-2. Your fan comes with four preinstalled noise isolators. Check to
make sure all four isolators are in place and were not removed
during shipment.
2-3. Place a at washer on each of the two 3” wood screws.
2-4. read the supply wires from the outlet box in the ceiling through
the hole in the center of the ceiling plate.
2-5. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-6. Pass the screws through the slotted holes in the ceiling plate into
the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood
Screw Steps 2-3 – 2-6
Ceiling
Plate
For Angled Ceilings: Be sure to orient
the ceiling plate so that the two tabs
are pointing toward the ceiling peak.
Toward
Ceiling Peak
2 • Installing the Ceiling Plate

6
45057-01 • 06/24/09 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan and remove the paper caution
tag. Do not discard the tag until your installation is complete.
For Standard or Angled mounting:
3-2. To assemble fan to hang down from a at or angled ceiling,
insert the downrod through the canopy, adapter cover grommet,
adapter cover, and canopy trim ring. (e adapter cover and
adapter cover grommet may already be attached to make one
piece.) Feed the wires from the fan through the downrod.
3-3. Using the provided Allen wrench, loosen the setscrew on the
adapter to install the pipe and ball assembly. Note: When the
pipe and ball assembly is fully installed, 2-3 threads on the pipe
will still be visible; this is normal. Use the Allen wrench to securely
retighten the setscrew. Skip to Step 3-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
For Low Profile mounting:
Note: For low prole mounting, the downrod is replaced with the low
prole washer. e adapter cover and adapter cover grommet are not
used for low prole mounting.
3-4. Remove the set screw from the adapter.
3-5. Place the low prole washer into the canopy with the lip down.
3-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low prole screws.
Hanging the Fan:
Note: To hang the fan, you must tilt the canopy to an almost vertical
position so that the canopy slots sit on the ceiling plate hooks.
3-7. Raise the fan and align the slots in the canopy with the hooks on
the ceiling plate.
3-8. Place the slots over the hooks to hang the fan.
Steps 3-2 – 3-3
Downrod
Canopy
Canopy
Trim Ring
Adapter
Cover
Adapter
Cover
Grommet
Setscrew
Allen Wrench
Low Prole
Washer
Low Prole Screw
Green
Ground
Wire
Low Profile Mounting
Low Prole Screws
Canopy
Canopy
Trim Ring
Adapter
Low Prole
Washer
Low Prole Screw
Steps 3-5 – 3-6
Step 3-6 (Detail)
3 • Assembling and Hanging the Fan

7
45057-01 • 06/24/09 • Hunter Fan Company
fsdfsdf
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounding) from the
ceiling to the green ground wire (grounding) from the ceiling plate
and the green ground wire (grounding) from the fan.
4-4. Connect the white wire (grounded) from the ceiling to the white
wire (grounded) from the fan.
4-5. Connect the remaining wires as follows:
Dual Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the fan to the wire
(ungrounded) for the wall switch
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the splices upward and push them carefully back through the
ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Dual Switch Wiring
Single Switch Wiring
Wire
Connector
4 • Wiring the Fan

8
45057-01 • 06/24/09 • Hunter Fan Company
WARNING: Failure to complete the following steps could cause the fan
to fall.
Note: It is recommended you use a magnetic tip screwdriver for the
following steps.
5-1. Rotate the hanger ball so the tab in the canopy is secure in the
hanger ball groove. Note: Your fan may have multiple tabs and
grooves that must be aligned.
5-2. Swing the fan up to align the canopy screw holes with the
mounting holes on the ceiling plate.
WARNING: e slots in the canopy must remain engaged while
swinging the canopy for alignment.
5-3. Holding the canopy up with the screw holes aligned, partially
install two canopy screws into the holes opposite the ceiling plate
tabs.
5-4. Partially install a canopy screw into the hole between the two
ceiling plate tabs.When all the holes are properly aligned, securely
tighten all three canopy screws.
5-5. Verify that the tabs in the canopy are still in the grooves of the
hanger ball.
5-6. Align the tabs on the trim ring opposite the grooves in the hanger
ball. Using both hands, push the canopy trim ring up to the top of
the canopy. e canopy trim ring will snap and lock into place.
Note: Should you need to remove the trim ring, press rmly on
opposite sides of the trim ring directly above the groove in the
hanger ball. e tabs will ex out releasing the canopy trim ring.
Step 5-1
Step 5-2
Groove
Tab
Step 5-3
Canopy Screw
Canopy
Trim
Ring
Canopy
5 • Installing the Canopy and Canopy Trim Ring

9
45057-01 • 06/24/09 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Attach each blade to a blade iron using three blade washers and
three blade assembly screws.
6-2. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade
Mounting
Screw
Steps 6-1 – 6-3
Blade Washer
Blade Assembly
Screw
6 • Assembling the Blades

10
45057-01 • 06/24/09 • Hunter Fan Company
Your Hunter fan comes with an integrated light xture assembly.
WARNING: Use only the light xture supplied with this fan model.
7-1. To attach the light kit top housing, partially install two housing
assembly screws into the light kit mounting plate.
7-2. Feed the upper plug connector through the center opening of the
light kit top housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the light kit top housing counterclockwise until the housing
assembly screws are rmly situated in the narrow ends of the
keyhole slots. Install the remaining screw into the housing. Tighten
all three screws rmly.
CAUTION: Make sure the light kit top housing is securely
attached to the light kit mounting plate. Failure to properly attach
and tighten all three assembly screws could result in the light kit top
housing and light xture falling.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Light
Kit Top
Housing
Light Kit
Mounting
Plate
Upper Plug
Connector
7 • Completing Your Installation With a Light Fixture

11
45057-01 • 06/24/09 • Hunter Fan Company
7 • Completing Your Installation With a Light Fixture (Continued)
7-5. To attach the light kit, connect the upper plug connector from the
motor to the lower plug connector in the light kit.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. Partially install two housing assembly screws into the light kit
top housing.
7-7. Align the keyhole slots in the housing with the housing assembly
screws.
7-8. Turn the light kit counterclockwise until the housing assembly
screws are rmly situated in the narrow ends of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
Steps 7-5
Steps 7-6-7-8
Housing
Assembly
Screw
Light
Kit Top
Housing
Light Kit
Housing
Assembly
Screw
Keyhole
Slots
Light Kit
Plug
Connector
Detail
Note: In compliance with US federal energy
regulations, this ceiling fan contains
a device that restricts the light kit to
a maximum of 190 Watts. Exceeding
that limit or the marked limit on this
product may result in re hazard or
improper operation.

12
45057-01 • 06/24/09 • Hunter Fan Company
7 • Completing Your Installation With a Light Fixture (Continued)
Installing the Glass Bowl
7-9. First install B10 candelabra bulbs (40 Watt Maximum) into the
sockets.
7-10. Attach the extra pull chain (included) to the fan pull chain using
the plastic breakaway connector. (You may nd the plastic
breakaway connector on the end of the extra chain.)
7-11. read the fan pull chain through the hole in the metal disk. en,
thread the fan pull chain through the hole in the center of the glass
bowl.
7-12. read the light pull chain through the hole in the center of the
glass bowl. en, read the light pull chain throught the hole in
the center of the cover plate.
7-13. read the fan pull chain through the
grommet hole in the side of the cover
plate.
7-14. Place the cover plate up against the
glass bowl. Align the holes in the cover
plate and glass bowl.
7-15. read the light pull chain through
the nial and screw the nial onto the
threaded rod end until tight.
Breakaway
Connector
Light Bulbs
(B10
Candelabra
Base 40 Watt
Maximum)
Metal Rod
Metal Disk
Glass Bowl
Cover Plate
Finial Steps 7-9-7-15

13
45057-01 • 06/24/09 • Hunter Fan Company
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low, and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls the power to the light xture. e
chain has two settings: ON and OFF.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan. Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

14
45057-01 • 06/24/09 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure the wattage and type of light bulbs installed
match the specications on the light socket.
Problem: If the light on this fan shuts off suddenly
1. Turn the power to the fan o at the wall switch. Wait 30 seconds,
then resume power to the fan. If you need parts or service assistance, please call
888-830-1326 (In Canada, call 1-866-268-1936) or
visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
9 • Troubleshooting
