Hunter Anorak User manual

Installation Manual
©2021 Hunter Fan Co.
Model: 50290 Quartz Grey
50292 Matte Black
Fan weight ±2 lbs: 20.3 lbs (9.2 kg)
Anorak
PG3893 r062121
Pull Chain w/LIGHT or Remote not button w/ NO LIGHT or Remote no button w/ LIGHT

1886
Ladder
9/64” Drill BitDrill
Screwdriver
Pliers Wire Strippers
OPTIONAL
If mounting to a support structure, you will also need these tools.
Congratulations on purchasing your new Hunter®ceiling fan!
Here are the tools you’ll need to complete your installation:
1
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual contains
complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the
best ceiling fan available anywhere in the world.
We are here to help!
This Instruction Manual is designed to make installation as simple as possible. While working through this Instruction Manual, keep
your smartphone or tablet nearby. We have added video links to help you through the more technical sections. If you are unfamiliar or
uncomfortable with wiring, contact a qualied electrician. We also provide telephone support at 1.888.830.1326 or visit us
at HunterFan.com.
WARNING
READ and SAVE These Instructions
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the
mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you
cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This product conforms to UL Standard 507.
© 2021 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016

PB 2
1886
1886
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
x4
x4
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
Downrod
Canopy
Flange Nut
Canopy
Screw
Ceiling Plate
Screw
Ceiling Bracket
Ceiling Gasket
Ceiling Plate
Wood Screw
Wire Nut
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Here is what comes in your box:
bag
bag
M3808-01 r062221
Glass
Gasket
Motor
x3
bag Light Kit Screw
x3
Short Light Kit
Screw
Spare Parts
For your convenience,
you may receive extra fasteners.
bag
Adapter Cover
x10 x10
Blade
Screw
Blade Washer
bag bag
x5
Blade
x2
Bulb
For installing the light xture
Fan style may vary.
Note:
Wall Control and Extra Downrod
Remote Receiver
Upper Switch Housing
Light Kit

34
1886
1886
Preparing the Ceiling Bracket
Installing the Ceiling Bracket
To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box associated with the wall switch location.
OFF
Turn Power
Do this rst!
1
STEP
2
STEP
3
STEP
Remove all four
mounting isolators. Install the ceiling plate gasket onto
the ceiling plate. The four holes in
the ceiling plate should lineup with
the four posts in the gasket.
Align the tapered mounting holes in the ceiling plate
with the holes in the ceiling bracket. Install the four
ceiling plate screws found in the hardware bag and
secure with the ange nuts using an 9/32” wrench.
Hold the ceiling bracket assembly up to the outlet box
and mark the screw locations. To mount to support
structure, also mark the ceiling for drilling pilot holes.
x4
x4
bag
Canopy Plate Screw
Flange Nuts
Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
30 inches
from blade tip to
nearest wall or
obstruction 7 feet
from bottom edge
of blade to the
oor
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

34
1886
1886
Preparing the Ceiling Bracket
Installing the Ceiling Bracket
Use wood screws (included)
when securing to support
structure with approved
electrical outlet box. Drill
9/64” pilot holes in support
structure to aid in securing
ceiling bracket with
hardware found in the
hardware bag.
Use machine screws (pro-
vided with outlet box) when
securing to existing ceiling
fan-rated outlet box. Make
sure it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
Use the wood screw to poke holes
through the rubber gasket in
order to install the ceiling bracket
assembly to your support structure
or ceiling fan-rated outlet box.
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Check the outlet box:
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

56
1886
1886
Hanging the Fan
S
l
i
d
e
c
a
n
o
p
y
o
v
e
r
d
o
w
n
r
o
d
a
n
d
w
i
r
e
s
.
Place the downrod ball into
the slot in the ceiling bracket.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
1
STEP
Slide the adapter cover onto
the downrod until it rests
against the hanger ball.
K
E
E
P
!
2
STEP
Remove the pre-installed
setscrew so that the
downrod can be inserted.
3
STEP
Pass all wires to one side of horizontal bar
in downrod assembly. Hand tighten the
downrod (at least 4–5 full turns) until it
stops. Trim the wires coming from the fan
so that 8-inches remain coming from the
top of the downrod.
Hunter Pro Tip:
Hunter Pro Tip:
The ground wire attached to the
downrod is approximately 8 inches.
The adapter cover is not used for
low-prole mounting.
Installing the Downrod
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
4
STEP
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT hand tighten setscrew.
• CHECK the setscrew is tight using pliers
each time you change fan direction.
5
STEP
Lower the adapter cover until it rests ush
against the motor housing.
Fan style may vary.
Note:

56
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
WARNING
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.
We know wiring is hard. Let’s make it easier.
Follow these steps to get your fan wired quickly and safely. If you are unfamiliar with wiring or uncomfortable doing it your-
self, please contact a qualied electrician.
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire
nut over them. Then, twist the wire nut clockwise until tight.
Give it a gentle pull to make sure none of the wires are loose.
Wiring the Fan
Blue
Blue
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
Green/Yellow Stripe
Black
Black
Ungrounded
x4
bag
Wire Nut
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Connect the yellow
wire from the
receiver to the black
wire from the fan.
Yellow
Connect the blue wire
from the receiver to the
blue wire from the fan.
Connect the white (grounded)
wire from the ceiling to both
the white wire from the
receiver and the white wire
from the fan.
White
White
Grounded
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the receiver.
Slide the remote
receiver onto the
top of the bracket.
WARNING
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.
Blue
Blue
Have extra wiring?
Turn the wires upward and push them carefully back
through the hanger bracket into the outlet box. Spread
the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other
side of the outlet box. Make sure that the wires are still
attached to the wire nuts.
Hunter Pro Tip:
WETDR19-01 r091420
Fan style may vary.
Note:

78
1886
1886
Assembling the Light
Fan style may vary.
Note:
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
Installing the Bulbs and Glass
Installing the Blades:
Repeat x5 x10
bag Blade Screw
x10
bag Blade Washer
Put the blade washers found in the
hardware bag onto the blade
screws found in the hardware
bag. Then install the blade screws
to secure each blade to the fan.
Installing the Canopy
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag Canopy Screw

78
1886
1886
Assembling the Light
Fan style may vary.
Note:
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass
ON
Turn Power
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Installing the Bulbs and Glass
Install the included bulbs into the
sockets. When necessary, replace
with bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Notch
Tab
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
3 of 3
Short Housing
Screw
bag
Partially install two switch housing screws, found
in the hardware bag, through the gasket
halfway into the motor housing as shown. It does
not matter which two screw holes you choose.
Using the three short housing
screws found in the hardware
bag, mount the lower switch
housing to the upper switch housing.
2 of 3 1 of 3
Switch Housing
Screw
Switch Housing
Screw
bag bag
Feed the wire plug through the center hole of the uppers
switch housing. Align the keyhole slots in the upper
switch housing with the two screws you just installed.
Lift the upper switch housing so that the keyhole slots
engage the two screws, and twist counterclockwise to
lock the upper switch housning into place.
Lift the the lower switch housing and
connect the plugs. Make sure to line up the
colored markings on the connectors and
that the connectors latch.
Insert the third screw found in the
hardware bag, into place and then tighten all
three screws.

910
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light ControlGlass

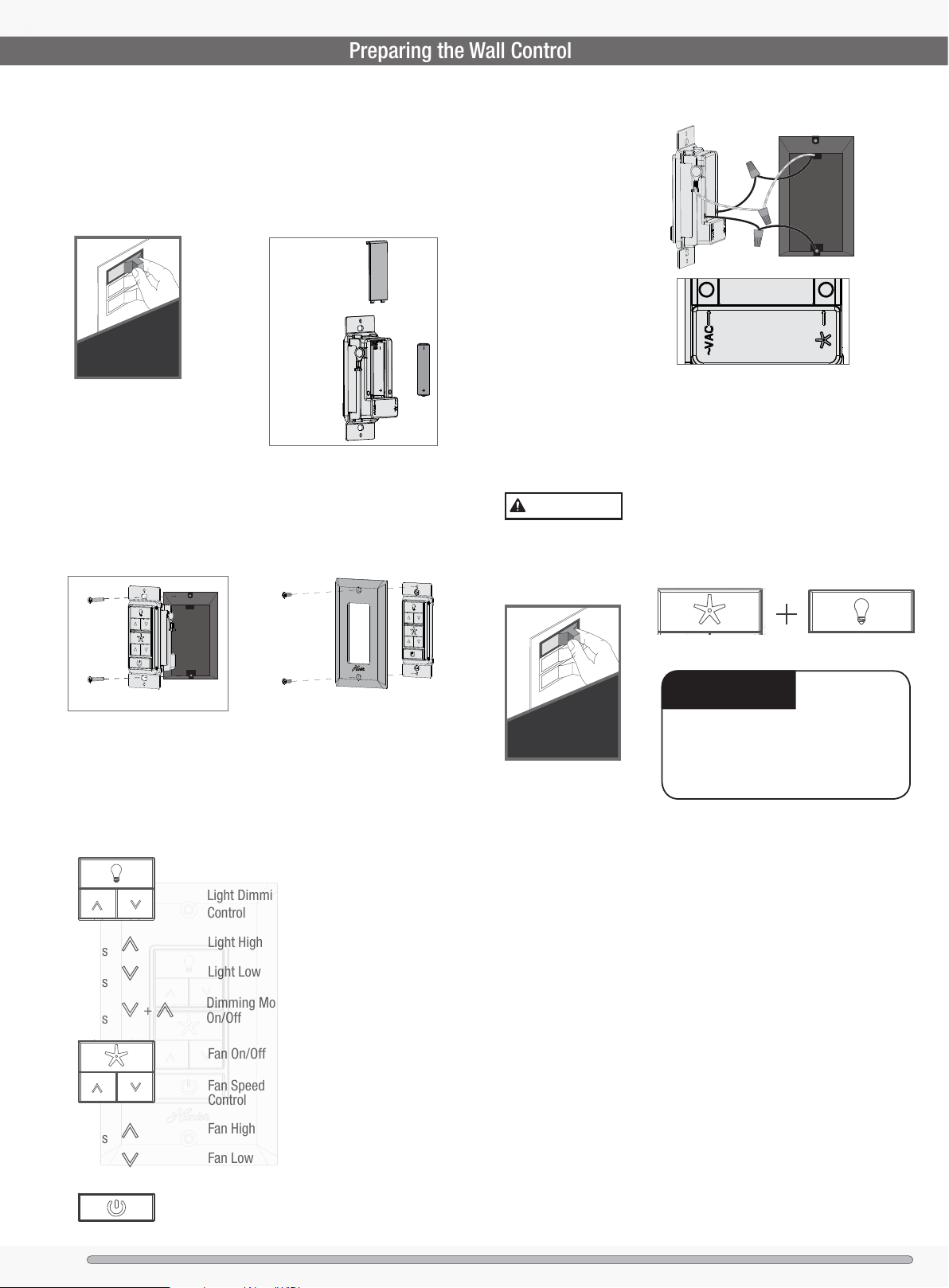

Preparing the Wall Control
Ensure the power
is OFF at the outlet
box and wall switch
location before
proceeding with
installation.
Turn Power
OFF
OFF
1Turning off the power 2Installing the battery
To access the battery
compartment, slide the battery
door up.
Replace the used battery with
two AAA batteries when needed.
3Wiring the Wall Control
Connect the grounding wire
from the wall control to the
ground control from the switch
box using the provided wire
nuts.
Connect the “LIVE IN” from
the switch box to the “~VAC”
from the wall control using the
provided wire nuts.
Connect the “LIVE OUT” from
the switch box to the “FAN” out
from the wall control using the
provided wire nuts.
Push all wires into the switch
box.
4Installing the Wall Control
Install the longer screws
through the slots in the wall
control into the switch box
screw holes.
Use the pull-chain
switch on the fan to set
the fan speed to the
HIGH position before
operation.
Turning on the power
ON
ON
Turn Power
IMPORTANT
6
5Installing the Wall Plate
Install the shorter screws
through the wall control
plate and into the screw
holes in the wall control.
The remote transmitter is already paired to
the receiver and ready to use. If you need
to pair your remote, cycle power to the fan
by turning power off and back on at the
wall switch (or circuit breaker if necessary).
Within three minutes, do the following:
Reference the included remote function card for
information on how to use your wall control!
7
8
NOTICE
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Battery
Door
Remote Function Guide
Fan On/Off
Light Dimming
Control
Dimming Mode
On/Off
+
Light On/Off
Light High
Fan High
Light Low
Fan Low
Power On/Off
Long
Press
Long
Press
Long
Press
Long
Press
Long
Press
Fan Speed
Control
Key Press Function
Remote Function Guide
Fan On/Off
Light Dimming
Control
Dimming Mode
On/Off
+
Light On/Off
Light High
Fan High
Light Low
Fan Low
Power On/Off
Long
Press
Long
Press
Long
Press
Long
Press
Long
Press
Fan Speed
Control
Key Press Function
Remote Function Guide
Fan On/Off
Light Dimming
Control
Dimming Mode
On/Off
+
Light On/Off
Light High
Fan High
Light Low
Fan Low
Power On/Off
Long
Press
Long
Press
Long
Press
Long
Press
Long
Press
Fan Speed
Control
Key Press Function

910
1886
1886
Troubleshooting
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the nishes.
Hunter Pro Tip:
Reversing the Fan
Reverse
Switch Updraft (clockwise rotation)
creates a more indirect airow.
Updraft airow is great for
moving warm air downward.
Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.
Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft (clockwise rotation).
To change the direction of air ow, turn the fan off and let
it come to a complete stop. The reversing switch is located
inside the light xture. It can only be accessed when the
glass is removed. Slide the reversing switch to the opposite
position. Restart the fan.
Fan style may vary.
Note:
Fan Doesn’t Work
• Make sure power switch is on.
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Check the plug connection in the switch housing.
Excessive Wobbling
• Make sure the blades are properly installed on the blade iron posts.
• Turn the power off, support the fan carefully, and check that the hanger
ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.
Remote Control of Fan is Erratic
• Make sure the battery is installed correctly.
• Install a fresh battery.
Noisy Operation
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of the
blades.
Multiple Remote Issues
• If you have multiple remotes or multiple remote-controlled fans installed
on the same circuit breaker and you are experiencing interference or
faulty operation of your remote controls, please go to
www.HunterFan.com/FAQs and click “How do I properly install multiple
remote-controlled fans?” for information on how to correct this issue.

11 PB
1886
1886
Downrod
If you need a different downrod length follow these steps:
Follow steps 1-5 to remove standard downrod pipe
Follow steps 6-10 to reassemble with new downrod
1 2 3 4 5
678910
1
10
9
2
7
4
8365
Here is another view of
the downrod assembly
unassembled.
Pin
Assembled downrod
should look like this
Pin
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS follow the
downrod assembly
instructions exactly.
• VERIFY the downrod
is assembled correctly
by rmly pulling on the
hanger ball.
• Pin must be reinserted
to secure downrod
assembly.
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. ood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specic legal rights. You may also have other rights which vary
from state to state.
Limited Lifetime Warranty
