Hunter Hunter Ceiling Fan User manual

www.HunterFan.com 1.888.830.1326
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or ofce for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan please visit:
www.HunterFan.com/register
30 inches
7 feet
PAGE
2
What to Expect with
Your Installation Ceiling Bracket
Ladder
PAGE
3
Tools Needed
PAGE
6
Hanging the Fan
PAGE
8
Motor Housing

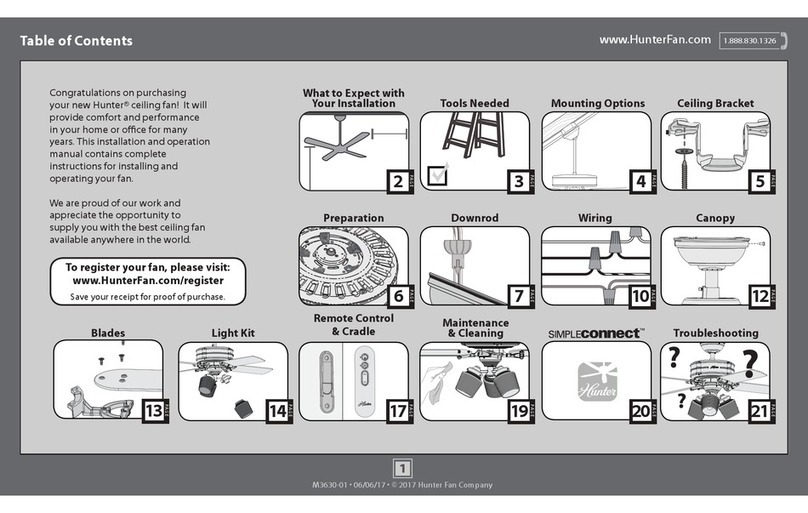

Table of Contents
PAGE
7
PAGE
11
PAGE
14
Maintenance,
Operation & Cleaning TroubleshootingLight Kit
?
?
?
PAGE
13
PAGE
5
Preparation
PAGE
4
Wiring
PAGE
10
Switch Housing
Blades
PAGE
9
1
M0028-01 • 10/19/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
M0028-01 • 10/19/12 • © Hunter Fan Company
1.888.830.13261.888.830.1326
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip
to nearest wall
or obstruction 7 feet
from bottom
edge of blade
to the oor
w.1 - To reduce the risk of re, electrical shock, or
personal injury, mount fan directly from building
structure and/or an outlet box marked acceptable for
fan support of 70 lbs (31.8 kg) and use the mounting
screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing
or servicing your fan, disconnect the power by turning
off the circuit breakers to the outlet box and associated
wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor
damage, use only Hunter Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the
blade brackets when installing the blade brackets, balancing
the blades, or cleaning the fan. Do not insert foreign objects
in between rotating fan blades.
c.1 - All wiring must be in accordance with national and
local electrical codes ANSI/NFPA 70. If you are unfamiliar
with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
2

www.HunterFan.com 1.888.830.1326
Tools Needed
Ladder
Power Drill
(optional)
9/64” Drill Bit
(optional)
Screwdrivers
If mounting to a support structure, you will also need these tools.
3
M0028-01 • 10/19/12 • © Hunter Fan Company

1.888.830.1326
www.HunterFan.com
Ceiling Bracket
OFF
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box associated with the wall switch location.
Turn Power
4
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Make sure all four (4) bumpers are still attached.
Bumper
M0028-01 • 10/19/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Ceiling Bracket (continued) Preparation 1.888.830.1326
www.HunterFan.com
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
5
M0028-01 • 10/19/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
6
M0028-01 • 10/19/12 • © Hunter Fan Company
Hanging the Fan
While holding the wires out of the way, lift
the motor assembly and place the square
hanger into the opening in the ceiling
bracket. Be sure the ground wire attached
to the hanger faces out of the large
opening in the ceiling bracket.
Ground
Wire
Note: Fan style may vary.
Locking
Screw
Once the motor is in the ceiling
bracket, use the two locking screws
found in the hardware bag to secure
the motor to the ceiling bracket.
Screw
Hole

www.HunterFan.com 1.888.830.1326
Wiring
F
R
O
M
F
A
N
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
F
R
O
M
F
A
N
Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling, downrod, and
hanging bracket.
(Grounding) Green/Yellow
Stripe
Green/Yellow
Stripe
White
Black
(Grounded)
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
Using the orange wire
connectors from
the hardware bag, connect
the black wire (ungrounded)
from the ceiling to the black
and the blue wires from the
fan. Connect the white wire
(grounded) from the ceiling to
the white wire from the fan.
Using orange wire
connectors from
the hardware bag,
connect the white wire
(grounded) from the
ceiling to the white wire
from the fan.
Connect the black wire
(ungrounded) from the
ceiling to the black wire
from the fan. Connect the
second (ungrounded) wire
from the ceiling to the blue
wire from the fan.
F
R
O
M
F
A
N
White
(Ungrounded)
Black
Blue
(Grounded)
F
R
O
M
C
E
I
L
I
N
G
(Ungrounded)
Blue
For Dual Switches
For a Single Switch
F
R
O
M
C
E
I
L
I
N
G
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
F
R
O
M
C
E
I
L
I
N
G
7
M0028-01 • 10/19/12 • © Hunter Fan Company
(Ungrounded)

www.HunterFan.com 1.888.830.1326
With a Phillips head screwdriver, install
the four motor housing screws found
in the hardware bag. Tighten all four
screws securely.
Motor Housing
Screw
Holes
Motor
Housing
Screw
Indentation
Notch
Raise the motor housing up over the motor
and ceiling bracket. Turn the motor housing
so the screw holes align and the indentation
in the housing locks into place with the notch
in the ceiling bracket. The motor housing is
not secured until the next step is complete.
Do not leave unattended.
8
M0028-01 • 10/19/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
M0028-01 • 10/19/12 • © Hunter Fan Company
Blades
9
Insert grommets found in the hardware
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
Lightly attach the blade irons to the
motor with screws found in
the hardware bag, then securely
tighten after both screws are attached.
Your blades are shielded with Dust Armor® which
is a nanotechnology coating that repels dust. For
cleaning the fan, use soft brushes or cloths to prevent
scratching. Cleaning agents may damage the nishes.

www.HunterFan.com 1.888.830.1326
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Screw two (2) housing assembly screws
from the hardware bag halfway into
the motor housing. It does not matter
which two screw holes you choose.
Insert the third screw, found in
the hardware bag, into place and then
tighten all three (3) screws.
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all three assembly screws could result in the
switch housing xture falling.
Switch Housing
10
M0028-01 • 10/19/12 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326
Light Kit
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all three
assembly screws could result in the light xture falling.
Partially install two of the switch housing
screws found in the bag. Connect
the plugs from the upper and lower
switch housings. Make sure to line up the
colored markings on the connectors.
Align the notches in the sides of the lower
switch housing with the upper switch
housing screws. Lift the lower switch housing.
Twist the lower switch housing clockwise
to lock into place. Then thread the fan
pull chain through the hole in the light kit.
Install the third switch housing screw.
Tighten all three screws securely.
Switch
Housing
Screw
Notch
Switch
Housing
Screw
M0028-01 • 10/19/12 • © Hunter Fan Company
11
Want to install your fan without a light kit?
Go to www.HunterFan.com/FAQs and click
“How do I install my fan without the light kit?”

www.HunterFan.com 1.888.830.1326
Light Kit (continued)
CONGRATULATIONS!
YOU’RE DONE!
Note: Glass shade style and number of lights may vary.
See next page for fan
operation instructions.
Connect the appropriate pull
chain pendant to each of the
short chains coming from the
nial and nial cap. The fan pull
chain controls the speed: high,
medium, low, and off. The light
pull chain controls the light
xture: on and off.
Press the globe and globe keeper
ush against the metal plate. Thread
the light pull chain through the hole
in the center of the nial cap and
thread the fan pull chain through the
hole in the side of the cap. Finally,
thread only the light pull chain
through the hole in the nial and
screw the nial onto the threaded rod.
Install a light bulb in each socket.
Finial
Finial
Cap
Light
Pull
Chain
Fan
Pull
Chain
Globe
Keeper
Metal
Plate
Globe
M0028-01 • 10/19/12 • © Hunter Fan Company
12

www.HunterFan.com 1.888.830.1326
M0028-01 • 10/19/12 • © Hunter Fan Company
13
Maintenance, Operation & Cleaning
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
Changing the bulbs - unscrew
the nial and remove it from the
threaded rod. Remove the nial cap
and unscrew the globe keeper while
supporting the globe with your other
hand. Carefully remove the globe.
Unscrew bulbs and replace with
bulbs of same type and wattage.
Reinstall the globe assembly.
Changing the direction of air
ow - move the reverse switch
to the opposite position.
ON
Turn Power
Reverse
Switch
Finial
Finial
Cap
Globe
Keeper
Metal
Plate
Globe
For questions regarding removing a light kit, call
customer service 1-888-830-1326.

www.HunterFan.com 1.888.830.1326
M0028-01 • 10/19/12 • © Hunter Fan Company
14
Troubleshooting
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Fan doesn’t work
• Make sure power switch is on.
• Pull the pull chain to make sure
it is on.
• Push the motor reversing switch
rmly left or right to ensure that
it is engaged.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 7.
• Check the plug connection in
the switch housing.
