HUROM GH Series Operating and maintenance manual

GH Series
Precautions for safe use Terms of parts Drum set composition by
function
How to Assemble Making noodles Cautions during operation
Before contacting technical
support for repair
Warranty / Specifications Juicing process steps by
ingredients
02 04 05
06 10 12
13 14 15
Hurom
Instructional
Manual
Household use
(Included
warranty)
1 Read “Precautions for safe use”(P2) carefully and use the appliance properly.
2 Save the manual and keep it in a convenient location for future reference.
3 Check if the voltage indicated on the base of the appliance corresponds to the local
voltage before you connect the appliance.
4 Any quality improvements are subject to change without notice.
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 1 2015-05-12 오전 11:31:06

1. You should read <Precautions for safe use>
2. You should follow <Precautions for safe use>
3. Precautions are classified as follows.
Warning When violating the labeling requirement, it may cause serious injury or death.
DO NOT PLUG IN NOR UNPLUG WITH WET HANDS. It may cause electric shock or injury.
DO NOT USE OTHER THAN 230 V. It may cause electric shock, fire or abnormal performance. If the voltage
is different, it may shorten the life of the motor or cause a failure.
PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET.
It may cause an electric shock or a fire.
IF UNUSUAL SOUND, SMELL, SMOKE, EXCESSIVE HEAT AND OTHER ABNORMAL SITU-
ATION OCCURS WHILE OPERATING, PLEASE TURN OFF THE POWER IMMEDIATELY AND
CONTACT THE LOCAL CUSTOMER CARE CENTER. It may cause an injury or a failure.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF.
DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO
GAPS OR HOLES IN THE BODY. It may cause a fire, electric shock or failure. For any technical support, con-
tact the authorized local Customer Care Center.
WHEN THE POWER CORD AND WIRE ARE BROKEN OR DAMAGED AND THE PLUG-IN PART
BECOMES LOOSE, DO NOT OPERATE THE MACHINE. It may cause electric shock, fire or injury.
DO NOT MOISTEN THE BODY OR SPLASH WATER ON THE BODY.
Be careful not to let any liquids or other substances get into the switch on the appliance.
DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause an electric shock or fire.
FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO GROUNDING ON
GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause electric shock, fire, mal-
function or explosion. Be sure to use the electrical outlet with ground connection.
NEVER DISASSEMBLE THE DRUM SET DURING OPERATION NOR INSERT FINGERS, FOR-
EIGN OBJECTS SUCH AS FORKS, SPOONS, ETC. INTO HOPPER CHUTE OR JUICE OUTLET.
It may cause injury, accident or failure.
KEEP THE APPLIANCE OUT OF REACH OF CHILDREN. APPLIANCES CAN BE USED BY PER-
SONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EX-
PERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION
CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE
HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND
USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION. THIS
APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD
AWAY FROM CHILDREN. This appliance is not intended for use by persons lack of experience and knowledge
including children. Use of the appliance by the children concerning cause of injury, accident or failure.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER ITS
SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR BY YOURSELF.
WHEN THE POWER CORD, WIRE WAS BROKEN OR DAMAGED OR THE PLUG-IN PART BE-
CAME LOOSE, DO NOT OPERATE IT.
Precautions for safe use
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 2 2015-05-12 오전 11:31:06

Warning When violating the labeling requirement, it may cause serious injury or death.
Caution When violating the labeling requirement, it may cause serious injury or damage to the appliance.
DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS
OR HOLES IN THE BODY. If using other object, it may cause a part damage, an injury, or a failure
WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN
THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY. It may cause injury or failure. It may cause an
injury or a failure.
IF ROTATION OF AUGER IS STOPPED FROM NORMAL OPERATION, PRESS [REVERSE/REV]
BUTTON AND HOLD FOR 2~3 SECONDS AND THEN AFTER REVERSE OPERATION IS COM-
PLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If such a stop event continues during the operation,
the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem
continues, immediately stop the appliance and contact the local Customer Care Center,.
IF THE INGREDIENTS ARE STUCK IN THE DRUM IN NORMAL OPERATION, PLEASE STOP
RUNNING AND PUSH THEM DOWN WITH THE PUSHER PROVIDED 3~4 TIMES TO AVOID
PART BREAKAGE. It may cause a part damage or slow down the performance of juicing.
DURING THE OPERATION, DO NOT ATTEMPT TO DISASSEMBLE OR ASSEMBLE THE DRUM
SET OR OTHER ATTACHMENTS. It may cause an injury or a failure. Make sure to disassemble or assemble parts
under stop mode after unplugging the power cord. Any act of event needed, switch off the power first and unplug the
power cord.
WATCH OUT FOR A NECKTIE, NECKLACE, SCARVES, AND ETC SHOULD BE PUT INTO THE
HOPPER. It may cause an injury or a failure.
PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE TO AVOID PART BREAKAGE OR
APPLIANCE DAMAGE. Otherwise, it may cause an injury or a failure.
DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.
It may cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes and operate it again.
DO NOT USE YOUR FINGER, KNIFE, FORK OR OTHER OBJECT TO PUSH THE INGREDIENTS
DOWN. ONLY USE THE PUSHER PROVIDED. It may cause serious injury for user or damage and a failure to
the product.
DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause an electric shock,
a fire or damage.
ALWAYS UNPLUG THE APPLIANCE AFTER EACH USE. WHEN UNPLUGGING THE POWER
CORD, MAKE SURE TO HOLD THE POWER CORD. If holding the wire to unplug, it may cause an electric
shock or a fire.
DO NOT WASH AT HIGH TEMPERATURE OF 800C(1760F) OR HIGHER. DO NOT PUT THE
APPLIANCE IN A DISHWASHER, A DRYER OR A MICROWAVE ETC. It may cause damage or a failure
of parts.
THE APPLIANCE WEIGHS ABOUT 6kg. WHEN MOVING THE APPLIANCE, MAKE SURE NOT
TO DROP IT. If attempting to hold drum or the edge of the base, the base falls causing an injury, malfunction or a failure.
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 3 2015-05-12 오전 11:31:06

04 |
Drum release button
ON/OFF
Main body
Food
processing
stem
Pulp container Juice container
Pusher
Cleaning
brush
Thin
noodle
nozzle
Thick
noodle
nozzle
Flat
noodle
nozzle
Cylindrical
nozzle
Assembly Instructions
Terms of parts
Adjustable
pressure
cap
Pulp
outlet
cover
Drum
cap
Juicing
stem
Auger Drum
Hopper
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 4 2015-05-12 오전 11:31:07

| 05
Drum capAdjustable
pressure
cap
Pulp
outlet
cover
Juicing
stem
Food
processing
stem
Drum capNozzle
Drum
Drum
Hopper
Hopper
Auger
Auger
For Juicing
For Food Processing
Thin
noodle
nozzle
Thick
noodle
nozzle
Flat
noodle
nozzle
Cylindrical
nozzle

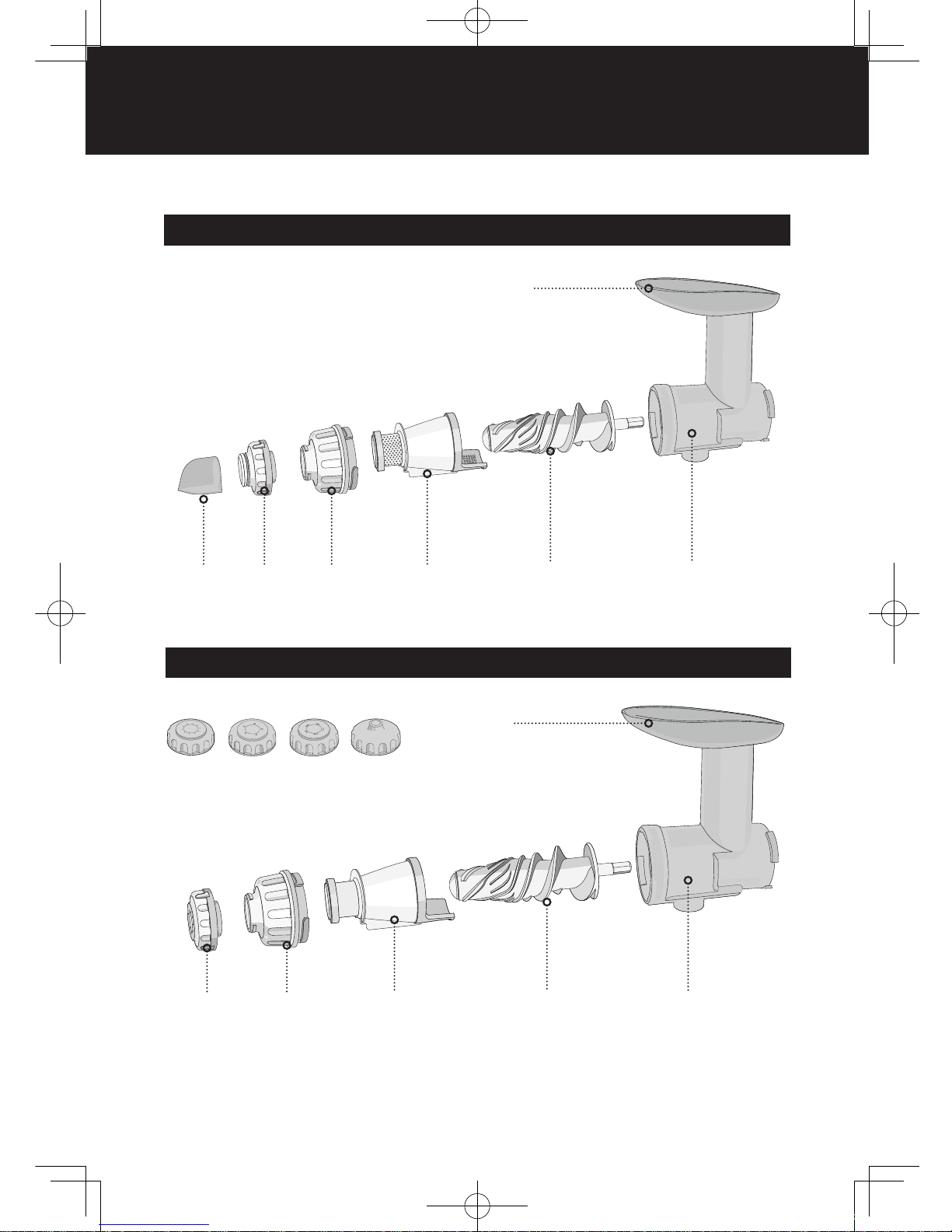

Drum set composition by function
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 5 2015-05-12 오전 11:31:08

06 |

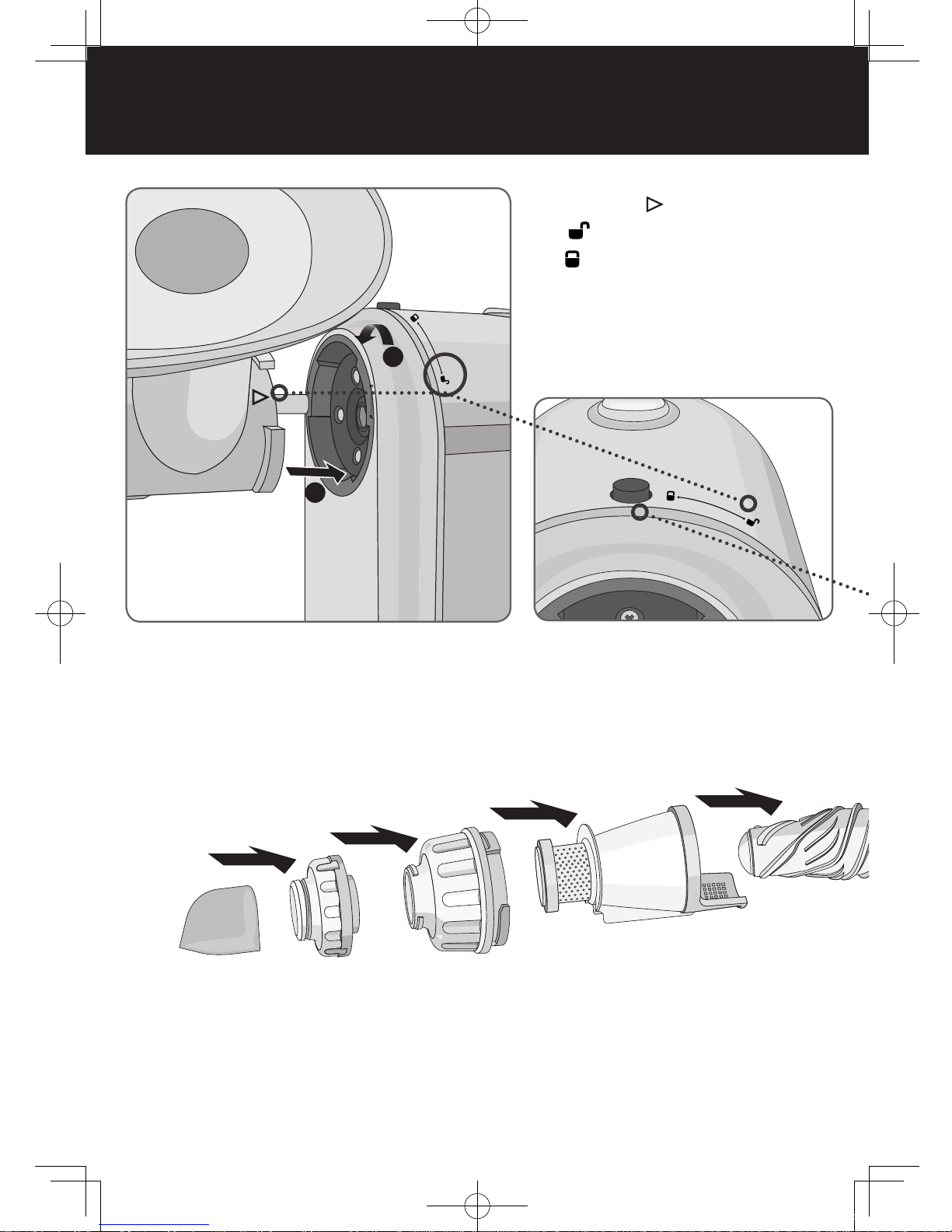

Assembly Instructions
1
2
How to Assemble
1
* When separating the drum set with the body,
press the drum release button which is next to
“1” and turn it clockwise and release it..
After aligning from the drum with
() from the body, turn it clockwise until
mark. (Appr. 60 degree)
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 6 2015-05-12 오전 11:31:08

| 07

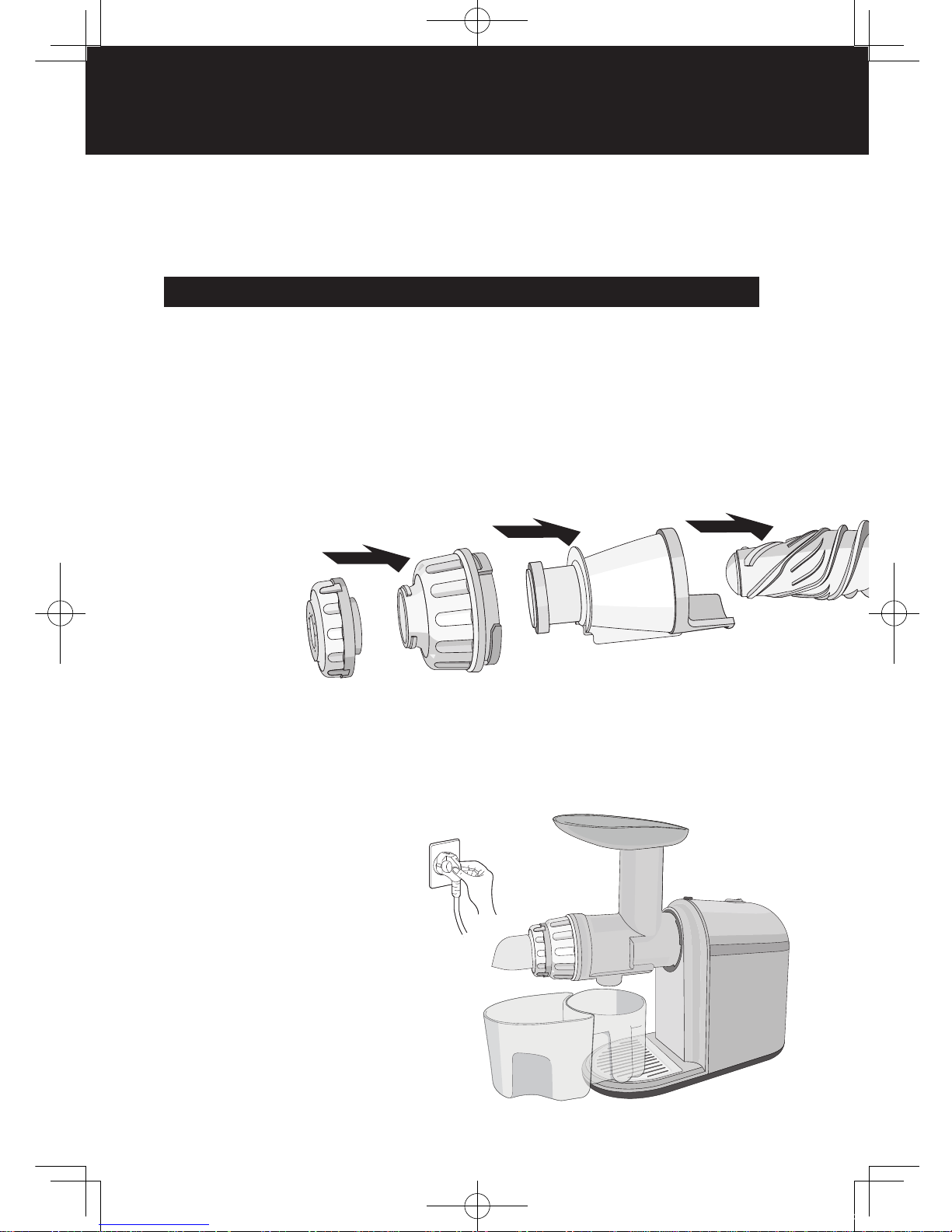

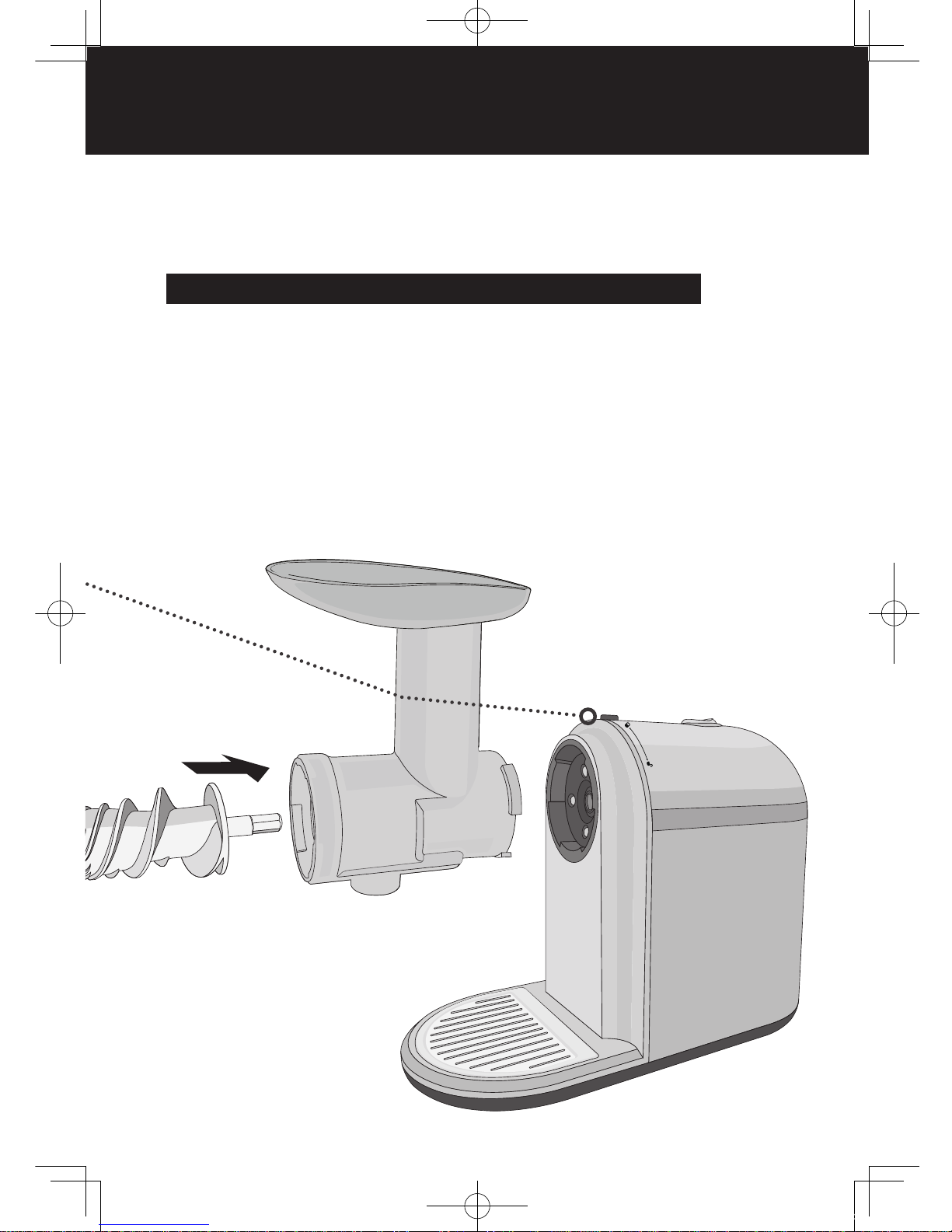

2-A
Assemble the drum and main body as image 1,
then assemble auger > juicing stem > drum cap > adjustable pressure cap.
Attach adjustable pressure cap to the drum cap end. Place the stem part side down when you
assemble the juicing stem as shown in the below image.
Place the drum cap onto the drum end and turn it counter clockwise until it clicks firmly into place. Turn
and fix the pressure adjustment cap ahead of the drum cap.
Turn the pressure adjustment cap to level “1” or level “2” for soft fruits like orange, strawberry etc.
Turn the pressure adjustment cap to level “5” on the adjustable pressure cap for maximum pressure.
This is best for carrot, beetroot and the leafy greens. <See p15>
How to assemble drum for juicing function
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 7 2015-05-12 오전 11:31:09

08 |
Assemble the drum and main body as image 1,
then assemble auger >food processing stem> drum cap > nozzle
When assembling the food processing stem, place the bump downward first as shown in the picture and
then you may do the assembly.
Place the drum cap onto the drum end and turn it counter-clock-wise until it clicks firmly into place.
(Change the nozzle depends on the type of noddle.)
Do not use nozzles and use only drum cap for grinding function.
1) Place juice and pulp container under the drum.
Juice cup does not need for food processor function.
2) Plug the power cord.
How to assemble
For food processor function
2-B
3
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 8 2015-05-12 오전 11:31:09

| 09
1) Press [ON] button to operate.
2) Put the properly cut fruits, vegetables,
or the dough into the hopper.
3) Place them and push down with
the pusher provided as necessary.
4
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 9 2015-05-12 오전 11:31:09

10 |
Making noodles
Place auger > food processing stem > nozzles into the drum.
When assembling the food processing stem, place the bump downward first as shown
in the picture and then you may do the assembly. When assembling the drum cap, turn it
anti-clockwise until the drum cap stays still. Place the nozzle according to noodle type you
have chosen in front of the drum cap and turn it until clicks.
1
2
Sprinkle a small amount of wheat flour on the holding dish placed under the spout.
Press [ON] button to start making noodles.
Push down the dough with the pusher provided.
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 10 2015-05-12 오전 11:31:10

| 11
If noodles come out, cut them with scissors to the length size you want.
3
4
After making the noodles, stop the appliance and then separated the drum and rinse the parts
in cold water.
Ingredients and Food Stem
Fruits like apple, orange, pear, grapes, strawberry,
kiwi, etc. Vegetables like tomato, avocado, aloe, kale,
spinach, carrot, sweet porato, wheatgrass, etc.
Red/green pepper, garlic, ginger, herbs, soaked rice
and beans, etc.
Pasta, thick noodle, noodle breadstick, ice cream, nut
butter, etc.
Juicing Stem
Choosing the Right Stem by ingredients and Food
Food Processing Stem
Food Processing Stem
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 11 2015-05-12 오전 11:31:10

12 |
Cautions during operation
Use fresh fruits and vegetables for juicing as they contain more juice
themselves like kale, wheatgrass, cabbage, etc.
Ingredients stored in the refrigerator for a long time should be soaked in cold water
for around 10 minutes before use.
Pine needles should be soaked in cold water for an hour before use.
When juicing kudzu, please cut kudzu roots into small pieces and put them into the
hopper little by little.
Drink the fruit juice or green vegetable juice immediately after you have extracted.
If it is exposed to air sometime, the juice will lose its taste and natural value.
Unrecommended ingredients
- Seasoning, black pepper, cinnamon sticks
- Grains such as various cereals, non-soaked rice, barley, beans, and others.
- Non-dried kelp, dried ginseng, dried mushrooms, dried Chinese herbal medicines, shells,
chestnut shells, etc.
- Fruits with pits, hard seeds
It may cause an injury or a failure of drum, auger, stem.
Do not use it for more than 30 minutes continuously.
It may cause a failure due to overheating in a motor.
But, when using continuously, stop and cool it down about 5 minutes for each use.
Do not put excessive amount of ingredients at a time.
Excessive amount with pusher usage does not operate fast juicing
Check whether pulps come out well from the outlet and put small amount for use
Excessive amount of use will cause a part damage, an injury, or a failure.
Only use the pusher to press down the ingredients.
If using other object, it will get stuck in the drum and will cause a part damage, an injury, or a
failure.
Turn off the switch while changing nozzle.
It may cause abnormal performances or a failure.
Please check the details below before
contacting Technical Support for repair.
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 12 2015-05-12 오전 11:31:10

| 13
Cautions during operation
Please check the details below before
contacting Technical Support for repair.
It makes noise while operating.
-While processing hard ingredients, it could make a sound.
It is normal when the auger is rotating. Please note that it is not malfunction.
-Please place the appliance on a stable surface.
Extracted juice amount is less than before.
-Check if stem net of the juice stem is blocked. If using withered and chilled ingredients, it may
cause blocking the stem net.
If the materials stuck on the stem net, please clean first and then use again.
Frozen or refrigerated ingredients for long time are extracted into less amount of juice.
It stops during normal operation.
-Have you put heavy loads of ingredient or thick/big ingredient?
Press reverse button for 3~5 seconds and release it. Repeat this process 2~3 times.
*Read the manual Page 9 and follow Reverse/REV button guideline.
If the auger does not work even after the above process, unplug the power cord from the
socket, disassemble the drum set, wash and use it again.
A large amount of juice residue in squeezing screw does not discharge.
-Large amount of soft ingredients such as tomatoes, kiwis, strawberries, etc. can be
accumulated around the auger or feeding chute and cause a difficulty to be discharged.
At this time, place some of fiber ingredients and push them down with pusher for 3~4 times.
Still the problem has not been solved, unplug the power cord from the socket and disassemble
the drum set, wash and use it again.
* Regarding the Disassembly, cleaning and care, please refer to Page 10 or contact the local
Customer Care Center.
Check the details below before contacting Technical Support for repair or service.
When applying for after sales service, check the manufacturer’s serial number or bar code.
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 13 2015-05-12 오전 11:31:10

14 |
Product Specications
Product Name
Model Name
Rated Voltage
Rated Frequency
Rated Power
Consumption
RPM
Juice extractor
GH Series
230 V
50 Hz
200 W
70 RPM
Product name
1. This appliance has passed a rigorous quality inspection, and is in full compliance with Korea
Standard CE.
2. Within warranted years this product is free from defects in material construction and workman-
ship.
This warranty does not apply to damages caused by accident, misuse, abuse, commercial use,
alteration, failure to follow operating instructions, or damage caused by parts or service.
• Performance or malfunction occurred after warranty period.
• Troubles caused by intentional or negligent failure of the consumer.
• Troubles due to unauthorized repairs in the sales and service center or dealer that is not designat-
ed by manufacturer.
• Troubles due to the use of unqualied power or power plug.
• Troubles or defect due to natural disasters.
3. if you need after sales service, please contact the local Customer Care Center.
Warranty
Manufacture
Supplier
Manufacture’s serial numberAddress
Model name
Date of purchase
Customer name
Product
Guarantee period of quality
Holding period parts
Motor for 10 years and other parts
for 2 years (Household use only)
10 years
Warranty
Cord Length
Motor
Fuse
Weight
Outward
Dimension
Rated
Operating Hour
1.4 m
Single-phase induction motor
250 V 5 A
6 kg
Width 424 mm
Length 163 mm
Height 345 mm
Less than 30 minutes
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 14 2015-05-12 오전 11:31:11

| 15
Manufacture
Tomato
Kiwi
Grapes
Apple
Orange(Mandarin)
Watermelon
Cucmber
Carrot
Kale
Celery
Angelica Utilis Makino
Cabbage
Water parsley
Wheatgrass
Pine needles
Juicing process steps by ingredients
Ingredient
1 2 3 4 5
This table is recommeneded Juicing process step.
Use nozzle by ingrednets and by amount of pulp produce.
(ex. When there is too much juice comes out with pulp move the number of adjustable nozzle cap
to higher number, when pulp does not comes out easily move the number of adjustable nozzle cap
to lower number.
Soft Ingredients Hard Ingredients and Leafy greens
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 15 2015-05-12 오전 11:31:11

16 |
www.hurom.com
Copyright© All Rights Reserved by HUROM 4DB010055_V.01
4DB010055 사용설명서 GH SERIES (DT) 230V EN(CE)_V.01.indd 16 2015-05-12 오전 11:31:11
