Huskie Tools IL-MK7ND User manual

WARNING To reduce the risk of injury, user must read and understand manual
completely before first using this product and save this manual for future use.
OPERATOR MANUAL FOR MODEL: IL-MK7ND
6 Ton Battery Operated Inline Compression Tool

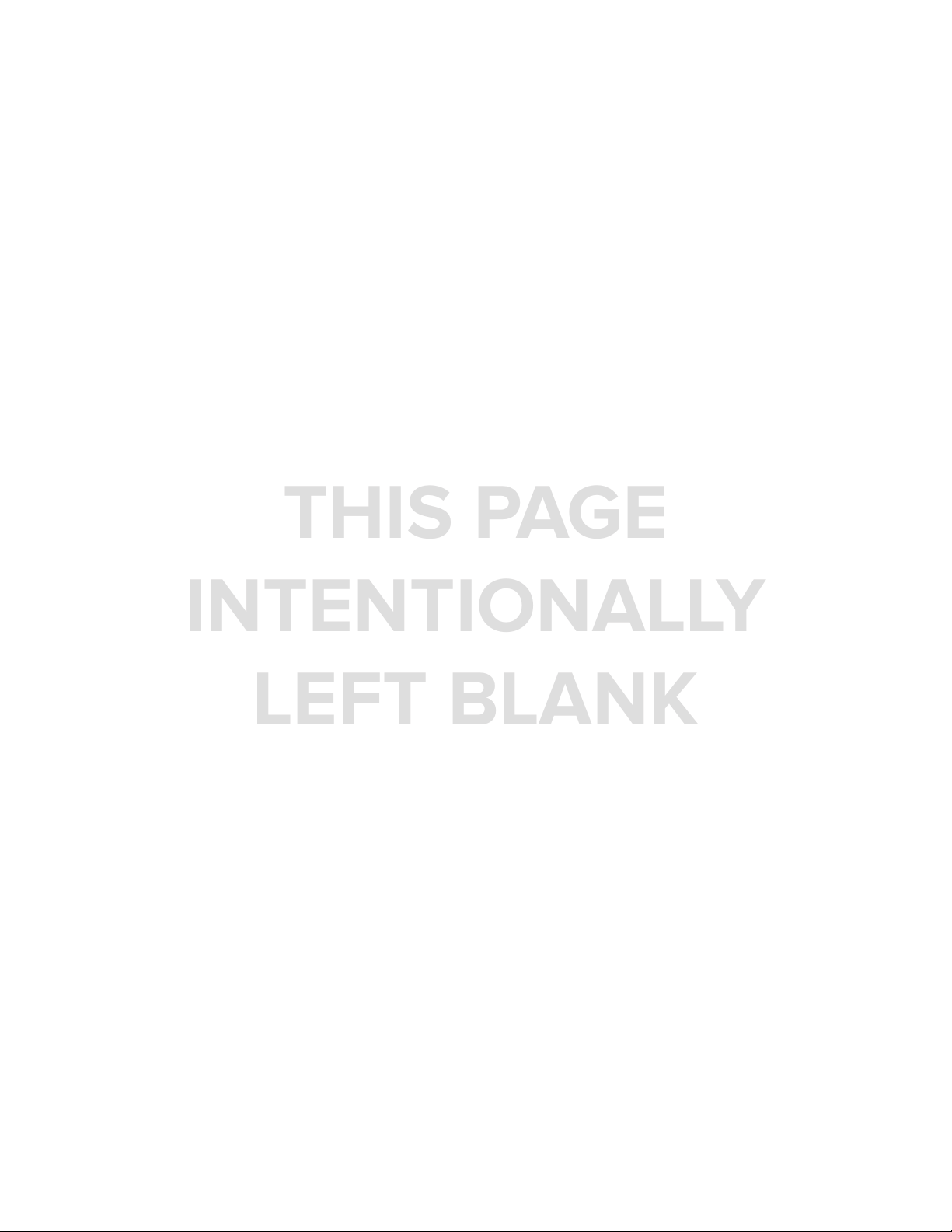

THIS PAGE
INTENTIONALLY
LEFT BLANK

3IL-MK7ND - OPERATOR MANUAL
MODEL: IL-MK7ND
TABLE OF CONTENTS
Description ....................................................................................................................................................... 4
Safety Symbols............................................................................................................................................... 5
Safety Information................................................................................................................................... 6 & 7
Operating Instructions .................................................................................................................................. 8
Troubleshooting Guide ................................................................................................................................. 9
Maintenance Notes ...................................................................................................................................... 10
Warranty Information..................................................................................................................................... 11
THANK YOU for purchasing a Huskie Tools product. Our mission is to supply the
finest cable connecting and cutting tools and cable-related products to the transmission
and distribution markets. Huskie Tools products will represent state-of-the-art tools and be
dependable and safe.

IL-MK7ND - OPERATOR MANUAL4Copyright ©Huskie Tools 2019
MODEL: IL-MK7ND
SPECIFICATIONS
Specifications
Length................................................ 4.5” (114 mm)
Width...................................................... 3” (76 mm)
Height................................................ 18” (457 mm)
Weight ............................................. 7.3 lb (3.31 kg)
Output/Force .................................6 tons (53 kN)
Connector Range
Copper lugs/splices ...................... #8-500 MCM
Aluminum lugs/splices ................. #8-300 MCM
H-Taps ......................................................... 4/0-4/0
Cutting Capacities
ACSR.................................................................... 4/0
Standard guy wire ...........................................3/8”
Soft locks ...........................................................3/8”
Soft Steel ...........................................................3/8”

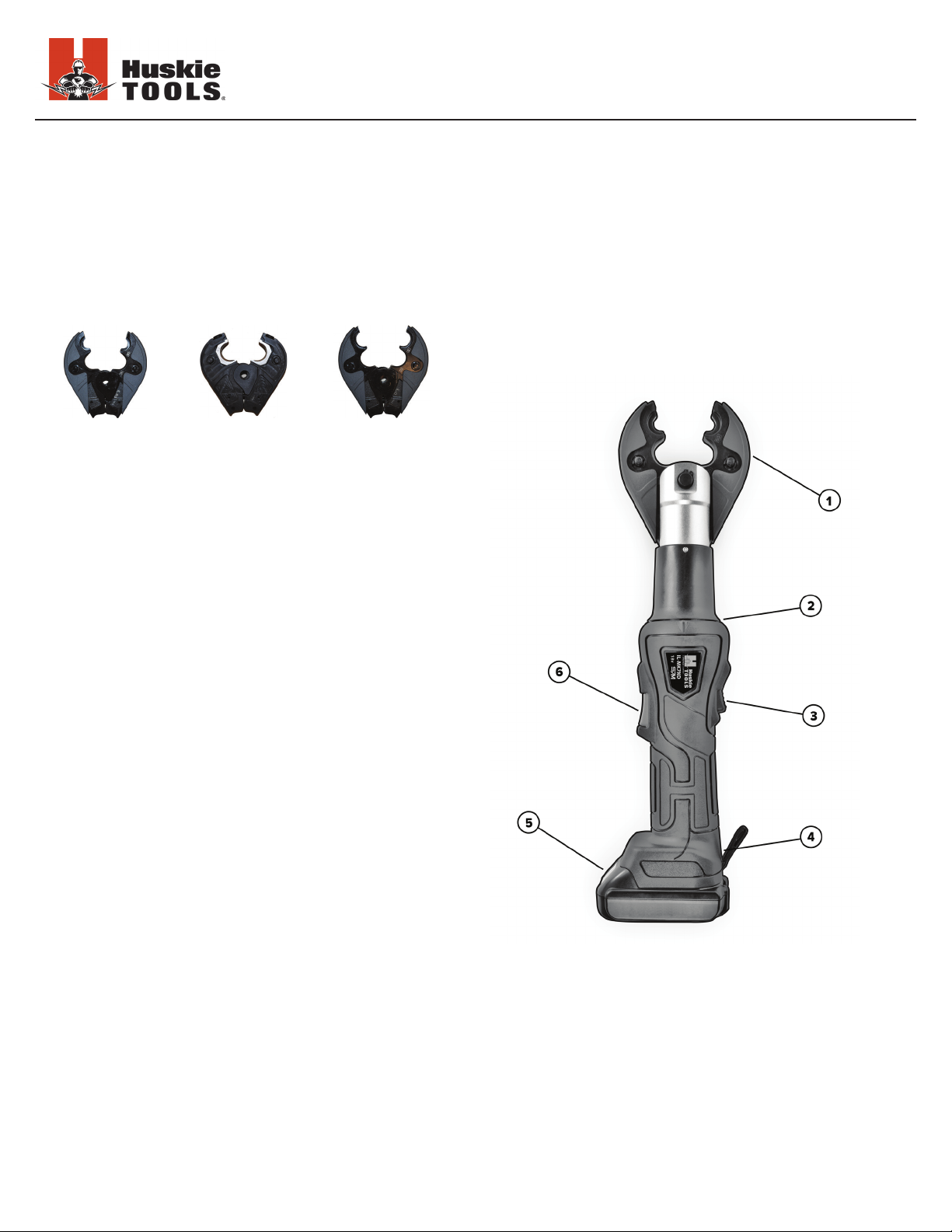

1. Compression jaw (BG shown)
2. Integrated LED work light
3. Release trigger
4. Low battery indicator
5. 18V-2.0Ah Li-Ion Battery
6. Advance Trigger
COMPONENTS
WHAT’S INCLUDEDDESCRIPTION
EACH TOOL KIT INCLUDES THE FOLLOWING:
ɨTool with jaw
ɨ18V-2.0Ah battery pack (x2)
ɨBattery charger
ɨTool bag
The IL-MK7ND is a Streamline Battery-Powered
Compression tool with a 6-ton output. There are
three interchangeable heads available*.
ILBG-Jaw ILND-Jaw ILO-Jaw
*sold separately

5IL-MK7ND - OPERATOR MANUAL
MODEL: IL-MK7ND
SAFETY SYMBOLS












Do not discard this product or throw away!
For recycling information, contact 800-822-8837





















Read all instructions and
safety information detailed
in this operator manual prior
to operating or servicing
this tool. Failure to observe
this warning could result
in severe injury or death.








You will see this symbol throughout this manual.
This purpose of this symbol is to call your attention
to hazards and/or unsafe practices that have the
potential to cause injury or property damage. The
severity of each hazard is further explained in detail
below. Failure to follow all instructions may result in
electric shock, fire and/or serious injury. The term
“power tool” in all warnings refers to your battery
operated (cordless) power tool.

IL-MK7ND - OPERATOR MANUAL6Copyright ©Huskie Tools 2019
MODEL: IL-MK7ND

Work Area Safety
ɨKeep work area clean and well lit. Cluttered or dark areas invite accidents.
ɨDo not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
ɨKeep bystanders away while operating a power tool. Distractions can cause you to lose control.

Personal Safety
ɨStay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of distraction while operating power tools may result in personal injury.
ɨUse personal protection equipment. Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
ɨDo not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.

Tool Use and Care
ɨTo prevent leakage, overheating, smoke generation, fire, and rupturing from occurring, follow these instructions when handling our
rechargeable power tools (tool main body/battery pack/charger).
ɨDo not force the tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it
was designed.
ɨDo not use the tool if the switch does not turn it on and o. Any tool that cannot be controlled with the switch is dangerous and must
be repaired.
ɨDisconnect the battery pack from the tool before making any adjustments, changing accessories, or storing. Such preventive safety
measures reduce the risk of starting the tool accidentally.
ɨStore idle tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate the tool.
These tools can be dangerous in the hands of untrained users.
ɨMaintain tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the tools
operation. If damaged, have the tool repaired before use.
ɨUse power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
ɨUnder abusive conditions, liquid may be ejected from battery; avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SAFETY INFORMATION

7IL-MK7ND - OPERATOR MANUAL
MODEL: IL-MK7ND
Battery and Charger Use and Care
ɨBefore using battery charger, read all instructions and cautionary markings on battery charger,
battery pack, and product using battery pack.
ɨTo reduce the risk of injury, charge only Huskie Tools battery pack model BP-185. Other types of
batteries may burst causing personal injury and damage.
ɨDo not leave charger and battery pack exposed to rain or snow, submerge in water, or stored in
damp or wet locations.
ɨTo reduce risk of damaging the electric plug and cord, pull by plug rather than cord when
disconnecting charger.
ɨMake sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to
damage or stress.
ɨDo not disassemble charger or battery pack, contact Huskie Tools service dept. at 800-860-6170
when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
ɨDo not store the tool and battery pack in locations where the temperature may reach or exceed 50°C
(122°F) (such as a metal tool shed, or a car in the summer), which can lead to deterioration of the
storage battery.
ɨDo not charge battery pack when the temperature is below 0°C (32°F) or above 40°C (104°F). This is
very important to maintain optimal condition of the battery pack.
ɨThe charger is designed to operate on standard 120V AC electrical power only. Do not attempt to use
it on any other voltage.
ɨCharge the battery pack in a well-ventilated place, do not cover the charger and battery pack with a
cloth, etc., while charging.
ɨUse of an attachment not recommended may result in a risk of fire, electric shock, or personal injury.
ɨDo not short the battery pack or allow metal objects to touch the terminals. A battery short can cause
a large current flow, overheating and create the risk of fire or personal injury.
ɨHuskie Tools is not responsible for any damage or accident caused by the use of recycled or
counterfeit battery pack.
ɨDo not incinerate the battery pack or dispose of the battery pack in a fire or expose it to excessive
heat.
ɨDo not charge the battery pack in a high-temperature location, such as next to a fire or in direct
sunlight. Otherwise, the battery may overheat, catch fire, or explode.
ɨAfter removing the battery pack from the tool or the charger, always re-attach the pack cover.
Otherwise, the battery contacts could be shorted, leading to a risk of fire.
ɨWhen the battery pack has deteriorated, replace it with a new one. Continued use of a damaged
battery pack may result in heat generation, ignition or battery rupture.
ɨWhen storing, remove any material cuttings and dust from the battery pack, and place the battery
pack separately from metal objects (screws, nails, etc.) when storing in the tool case.

IL-MK7ND - OPERATOR MANUAL8Copyright ©Huskie Tools 2019
MODEL: IL-MK7ND
OPERATING INSTRUCTIONS
Compression
1. Select an appropriate size of die for the connector.
2. Insert the dies into the jaw by pressing the push pins. When released, they will hold the die in place.
See Figure 8A.
3. Place the connector between the dies and press the trigger to advance the ram so the connector is
held between the dies and insert the conductor into the terminal.
4. Press and hold trigger until the compression is complete. See Figure 8B. The ram will advance to
close the tool jaws and once the cycle is complete, the tool will continue to run while trigger is de-
pressed.
5. Press the release trigger to open the tool jaw and remove the connector. See Figure 8B.
6. Low battery LED indicator will illuminate orange when battery has 3-5 compression cycles remain-
ing. See Figure 8C.
Figure 8A. Figure 8B. Figure 8C.
Advance
Trigger
Release
Trigger
Push
Pins Low
Battery
Indicator

9IL-MK7ND - OPERATOR MANUAL
MODEL: IL-MK7ND
TROUBLESHOOTING GUIDE
Before You Begin
1. Make sure that the battery is charged. Recheck the battery after several minutes to make sure the
battery is holding its charge.
2. Use a nonflammable contact cleaner or pencil eraser to clean the electrical contacts on the battery
and tool.
3. Reinstall the battery and check the tool again.
PROBLEM CAUSE SOLUTION
Motor runs but the tool
jaws will not advance
Insucient hydraulic oil Consult factory for repair service
Air block in hydraulic system Invert tool to allow air to rise to-
wards the top of the oil bladder
Defective hydraulic circuit Consult factory for repair service
Motor runs, tool jaws
advance, but will not build
pressure
Insucient hydraulic oil Consult factory for repair service
Defective suction valve or by-
pass cartridge
Consult factory for repair service
Motor will not run at all Defective battery Charge or replace battery
Bad contact or loose battery
connections
Check all connections and wires
Misaligned switch Check to make sure that switch is
properly aligned with trigger
Consult factory for repair service
Tool jaws will not release Tool did not complete a full
cycle and bypass
Press trigger and allow tool to by-
pass, then release tool jaws
Connector is jammed in tool
jaws
Press and hold release trigger
while prying tool jaws apart
Release trigger is bent or mis-
aligned
Consult factory for repair service

IL-MK7ND - OPERATOR MANUAL10 Copyright ©Huskie Tools 2019
MODEL: IL-MK7ND
MAINTENANCE NOTES

11IL-MK7ND - OPERATOR MANUAL
MODEL: IL-MK7ND
WARRANTY INFORMATION
The warranty does not cover any damages incurred from a Huskie tool including damages to property,
bodily injuries and lost wages resulting from such injuries. This warranty solely covers the repair or
replacement of tools supplied by Huskie. These remedies are exclusive, and the total liability of Huskie
Tools, LLC whether based on contract, warranty, negligence, indemnification, strict liability or otherwise,
shall not exceed the purchase price of the tool. In no event, shall Huskie Tools, LLC be liable for
consequential, incidental or special damages.
HUSKIE TOOLS, LLC MAKES NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND
ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED.
Huskie reserves the right to determine all warranty claims. Huskie will not warranty tools containing
parts or batteries not originally supplied by Huskie. Failure due to misuse, improper maintenance,
misapplication, not following instructions or warnings, abuse or repairs attempted by anyone other
than Huskie Tools, LLC, or an authorized service center renders this warranty null and void.
REPAIR AND WARRANTY CLAIMS
All claims must be sent to Huskie for inspection and authorization. A Return Goods Authorization
(RGA) is required before shipping tools to Huskie. Secure the authorization by telephoning or writing
to Huskie’s main oce with details of the claim. Non-warranty repairs are handled using the same
procedure. Repairs exceeding 50 percent of the cost of a new tool will be advised before repairs are
made.
SL-Series Battery Operated Products 5 Years
REC-Series Battery Operated Products 5 Years
IL-Series Battery Operated Products 3 Years
ECO-Series Battery Operated Products 1 Year
Batteries
BL1820B, BL1850B 3 Years
Chargers
DC18SE, DC18RC 3 Years

Huskie Tools reserves the right to change this information without further notice and holds no liability for printing errors in this content.
Copyright © 2019 Huskie Tools, Inc. All Rights Reserved.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone [phone]
Fax [phone]
HuskieTools.com
