Husky 690111 User manual

THANK YOU
Steel Wheelbarrow
USER GUIDE
ITEM # 1006 459 456
Model # 690111
Questions, problems, missing parts? Before returning to store call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
We appreciate the trust and condence you have placed in Husky through the purchase of this wheelbarrow. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Husky!
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 am - 7 pm, EST Monday-Friday
9 am - 6 pm, EST Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
NOTE:
A - Handle x 2
690111-A
AA- 4 1/2 in. Bolt x 2
690111-AA
EE- 3/4 in. Bolt x 4
690111-EE
FF- 3/4 in. Bolt x 2
690111-FF
GG- Nut x 16
690111-GG
HH- EVA washer x 4
690111-HH
BB - 2 1/2 in. Bolt x 2
690111-BB
CC - 2 1/8 in. Bolt x 4
690111-CC
DD - 2 in. Bolt x 2
690111-DD
F - Axle x 1
690111-F
G - Wheel x 1
690111-G
H - Leg Brace x 1
690111-H
B - Riser x 2
690111-B
C - Wheel Guard x 1
690111-C
D - Tray x 1
690111-D
I - Tray Brace x 2
690111-I
J - Leg x 2
690111-J
E - Axle Bracket x 2
690111-E
Package Contents
Hardware Content
Tools for Assembly (Not included)

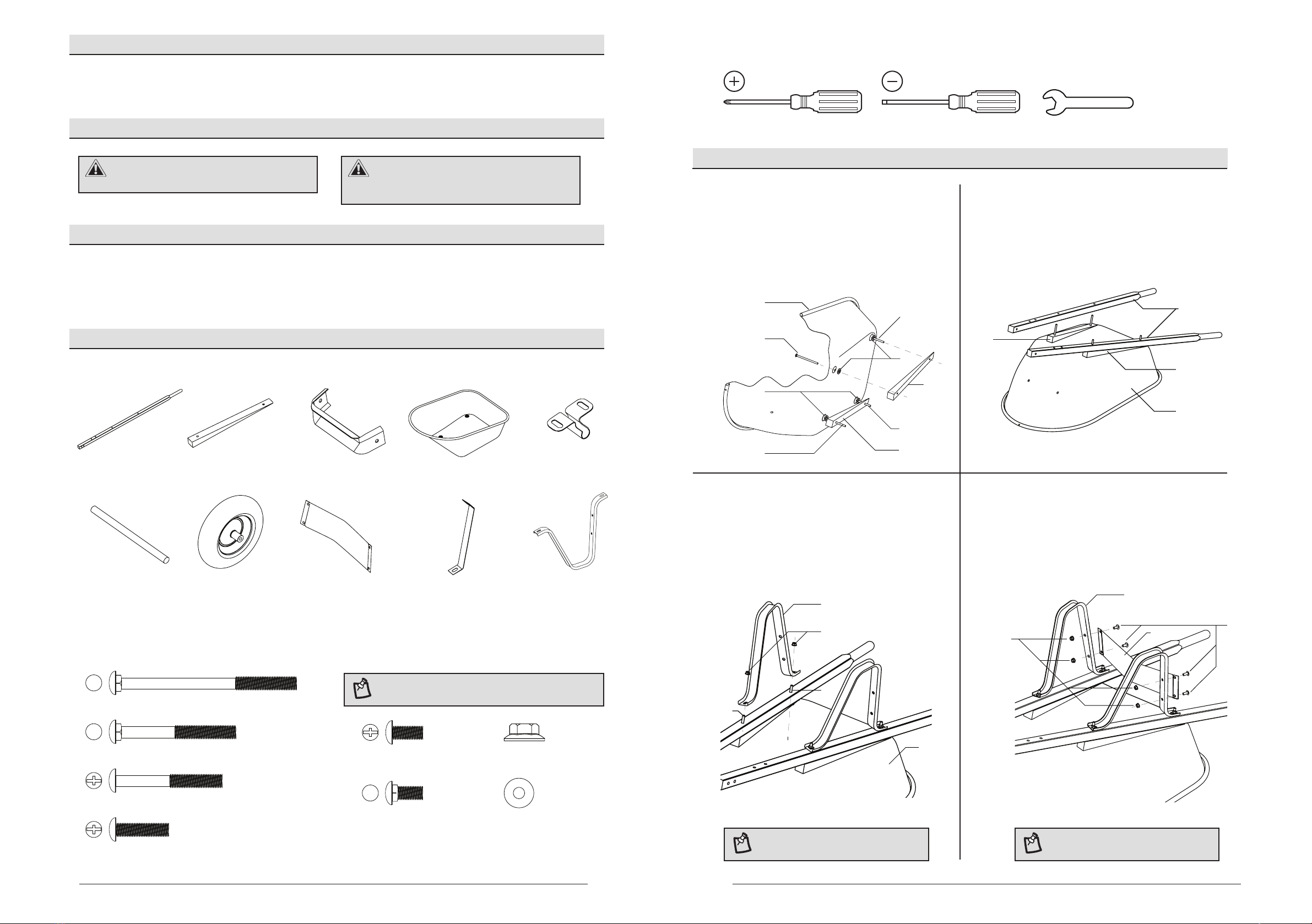

Assembly
2 3
Table of contents...................................................
Safety information.................................................
Warranty.................................................................
Pre-Installation......................................................
Assembly.............................................................
Replacement Parts ............................................
2
2
2
2-3
3-4
5
Table of Contents
Safety Information
Tire is not for highway service.
Warranty
If within two (2) years from date of purchase, this Husky product fails due to a defect in materials or workmanship, return the product to any Home Depot
retail store with a receipt indicating proof of purchase for replacement with an item of equal or greater value. This warranty excludes incidental/
inconsequential damages and failures due to misuse, abuse or normal wear and tear. This warranty gives you specific rights, and you may also have
other rights, which vary from state to state.
Please see store or call 1-888-HD-HUSKY.
WARNING: Tire changing and/or inflation can
be dangerous and should be done by trained
personnel using proper tools.
WARNING:
#2 Phillips head screwdriver 1/2 in. wrenchFlat-head screwdriver
D
AA
AA
AA
HH
B
A
B
B
D
Attaching risers Attaching handles
Installing legs Installing leg brace
Push bolts (AA & BB) through bottom of tray (D).
Place EVA washer (HH) between tray (D)
and riser (B).
Push riser (B) over bolts.
Repeat for second riser.
1 2
Make sure the 2 vertical holes in leg (J) are
facing the back of the tray (D).
Place leg (J) over bolts (AA & BB) and loosely
attach with nuts (GG).
Repeat for other leg.
3
Place leg brace (H) across back of leg (J) and
loosely attach using bolts (EE) and nuts (GG).
Repeat on other leg.
4
J
GG
BB
BB
BB
D
HH
B
GG
J
H
EE
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
Pre-Installation
Hardware not shown to scale.
NOTE: Don’t tighten the nuts at this time. NOTE: Don’t tighten the nuts at this time.
□
□
□ □
□□
□
Turn tray (D) over.
Place handles (A) over bolts and lower
onto risers (B).
□
□
□
□
4
Replacement PartsAssembly
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
HUSKYTOOLS.COM
Please contact 1-888-HD-HUSKY for further assistance.
5
GG
E
Handle690111-A
Riser690111-B
690111-C Wheel Guard
Axle Bracket690111-E
690111-F Axle
690111-G Wheel
690111-H Leg Brace
690111-I Tray Brace
Leg690111-J
690111-AA
2 1/2 in. Bolt690111-BB
2 1/8 in. Bolt690111-CC
2 in. Bolt690111-DD
3/4 in. Bolt690111-EE
3/4 in. Bolt690111-FF
Nut690111-GG
EVA washer690111-HH
4 1/2 in. Bolt
CC
NOTE: Make sure axle bracket (E) and
tray brace (I) align with front hole.
NOTE:
Don’t tighten the nuts at this time.
Installing wheelguard
Use bolts (DD) and nuts (GG) to attach
wheelguard (C) to front of handles (A).
5
□
Installing axle bracket and
tray brace
Use bolts (CC) and nuts (GG) to attach
axle bracket (E) and tray brace (I) to the
handle (A).
6
□
A
NOTE:
Bolts should point to the inside of
the handles. Use a ½ in. wrench or socket
to fully tighten wheelguard. Leave the rest
of the nuts and bolts loosely fastened.
NOTE:
To keep wheel from sliding side
to side after assembly, push axle brackets
toward each other prior to tightening.
Installing wheel
Position wheel (G) between handles (A).
Slide axle (F) through wheel (G) and then into attached axle bracket (E).
Slide second axle bracket (E) over other end of axle.
Loosely attach second axle bracket (E) and second tray brace (I) to handle (A) using bolts (CC) and nuts (GG) .
Use bolts (FF) and nuts (GG) to attach tops of tray braces (I) to tray (D).
Fully tighten all hardware.
7
□
□
□
□
□
□
E
E
F
CC
I
G
FF
GG
GG
A
A
D
GG
A
A
DD
DD
C
CC
I
