Husky 32215 User manual

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

32215: CENTERLINE TS, 400-600 LBS. W/2” BALL

32216: CENTERLINE TS, 400-600 LBS. W/2-5/16” BALL

32217: CENTERLINE TS, 600-800 LBS. W/2-5/16” BALL

32218: CENTERLINE TS, 800-1200 LBS. W/2-5/16” BALL

33039: CENTERLINE TS, 1000-1400 LBS. W/2-5/16” BALL

33092: CENTERLINE TS, 800-1200 LBS. W/2-5/16” BALL W/O SHANK

Dealer / Installer: Provide a copy of these instructions to the end user of this product. These

instructions provide important operating and safety information for proper usage of

this product. Demonstrate the proper use of the product with the end user. Have the

end user demonstrate that they understand the proper use of the product.

End User: Read and follow all instructions included in this manual. Ask your Dealer / Installer for

assistance if you do not understand the proper use of the product. Never remove any

decals from the product. Failure to follow these instructions can result in injury or

death.

DO NOT EXCEED Recommended towing limits. SEE VEHICLE’S OWNER’S MANUAL.

Assembly, Installation, Operation and

Maintenance Instructions 90-120 minutes

WARNING: This product only fits trailer frames that are 4”, 5”, 6”, 7” & 8” tall.

Part Number Max. Tongue Weight Max. Gross Trailer Weight

32215 / 32216 400-600 lbs. 6,000 lbs.

32217 600-800 lbs. 8,000 lbs.

32218 / 33092 800-1200 lbs. 12,000 lbs.

33039 1000-1400 lbs. 14,000 lbs.

Rating when used as a weight distribution hitch with spring bars

Use only the supplied bolts, nuts, and washers to

install this kit. All nuts and bolts are Grade 5 unless

specified otherwise

CAUTION: The tongue weight rating of spring bars represents the capacity of a pair of bars, NOT an individual bar

Part Number Max. Tongue Weight Max. Gross Trailer Weight

32215, 32216, 32217, 32218, 33039 & 33092 600 lbs. 6,000 lbs.

Always use a pair of spring bars and be sure they are of the same weight rating and size for your trailer.

READ ALL INSTRUCTIONS AND CHECK PACKAGE CONTENTS BEFORE BEGINNING

INSTALLATION.

Note: This system can be used on any angle tongue trailer.

Rating when used as a weight carry hitch without spring bars

WARNING

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Tools Required for Installation

The following list of tools will be needed for proper installation of all components:

•Safety Glasses

•15/16" Open End Wrench (5/8” HEX NUT)

•1-1/8” Box End Wrench (3/4” HEX HEAD BOLTS & NUTS)

•15/16” Socket (5/8” HEX HEAD BOLT)

•3/4” Socket (1/2” HEX NUTS)

•Measuring Tape

•Torque Wrench capable of 380 ft-lbs. of torque

Recommended tools for installing the Hitch Ball:

None are required as the hitch ball comes from the factory pre-installed. It is recommended that

you check the tightness of the hitch ball nut periodically using a 1-1/2” or 1-7/8” Thin walled socket

depending on hitch ball size.

Torque Wrench capable of 360 ft-lbs of torque (always check ball manufacturer’s specifications for

proper torque rating)

Definitions of terms: When a statement like “LEFT SIDE or RIGHT SIDE OF VEHICLE” is made,

this always refers to the driver’s point of view, in other words, when the driver is sitting in the

driver’s seat of the vehicle. Other terms used are DS which means DRIVERS SIDE and PS which

means PASSENGER SIDE; this is regardless of where you are positioned inside or outside of the

vehicle.

Important!

Before installing or towing with this Bolt Together Weight Distributing Hitch please read

and follow all instructions and warnings in the tow vehicle owner’s manual and trailer

owner's manual.

Have gross trailer weight and tongue weight checked before selecting and installing any

weight distributing system.

Weigh trailer again after fully loaded and check loaded tongue and gross weight to ensure

proper weight distribution hitch is being used.

CAUTION!

This kit is to ONLY be used with Husky weight distribution spring bars only that are

designed for this particular system. Do not substitute with any other spring bars.

Warning!

Do not use a separate friction sway control on this unit!

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Measure Trailer Coupler & Frame Height

NOTE: Changing the weight of the trailer and/or tow vehicle by adding, moving or unloading

cargo may require the need to adjust how the weight distribution system is set up.

IMPORTANT! Set parking brake of tow vehicle and chock

the wheels of the trailer before lifting or lowering!

1. Line up the tow vehicle and trailer on level pavement, in a straight position.

2. Use the trailer tongue jack to level the trailer. Measure the distance from pavement to the inside

of the coupler socket, and record here:_______________

3. Mark a spot on the side of the frame on the trailer as close to the coupler as you can, measure

from this mark to the ground/pavement, and record here: ______________. This measurement

will be used later to determine if a proper setup has been achieved.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Measure the Tow Vehicle

For vehicles with air springs, air shocks or automatic leveling systems only: Check vehicle owner's

manual or other instructions on these items. Unless otherwise indicated, air springs and air shocks

should be deflated to their minimum recommended pressure BEFORE assembling and adjusting

the weight distribution hitch. Pick reference points at the top center of the front and rear fender

well of towing vehicle. Measure and record the height to pavement here:

FRONT FENDER TO PAVEMENT:

REAR FENDER TO PAVEMENT:

ILLUSTRATION 3

Installation and Setup

NOTE: To obtain proper ball height on low ground clearance tow vehicles, shank may be oriented

in the “UP POSTION” as shown in Illustration 4. If shank is used in the “DOWN POSITION, check

shank for adequate ground clearance. Accessory shanks with greater height and length are

available from your dealer. IMPORTANT! Proper adjustment requires the use of the proper

length shank; proper head height and proper head tilt adjustment.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

4. Un-screw the 5/8-11 hex bolt until the bottom of the bolt threads are flush to the inside of the

channel.

5. Insert the shank into the receiver box. Hold CL TS head assembly onto shank as shown and

align the Centerline TS head so that the hitch ball is 1” above the coupler socket.

In this example, the shank will be mounted in the

Inverted position (as shown). And the bottom 3/4”

hex bolt will pass through the 2nd hole from the

bottom on the shank. If the bottom 3/4” hex bolt

lined up with the 2nd hole from the top of the shank,

then you would need to flip the shank over to the

Upright Position.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

6. Align the bottom hole on the channel to the hole on the shank and insert a 3/4” hex head bolt.

Remember the hole and orientation in these instructions are an example only, yours

may be different.

7. Add hardened washers marked with “F436” on to the large head pin, and then insert into the

welded bushing on the inside top of the channel. Start with 2 hardened washers if trailer frame

is 4” or 5”. Use 3 hardened washers if the trailer frame is 6”, 7” or 8”

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

8. The use of shims may be required to fill up the gap between the ears of the bottom plate

weldment and the U channel. It is NOT necessary to have equal shims on either side.

9. Place a conical toothed washer onto a 3/4” hex bolt and then insert it through the slot in

the channel

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

10. The use of shims may be required to fill up the gap between the ears of the bottom plate

weldment and the U channel. It is NOT necessary to have equal shims on either side.

11.Tighten 5/8” hex jam nut securely

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

12. Put a conical tooth washer on the top 3/4” hex bolt followed by a 3/4” nylon lock nut. Put a

3/4” flat washer on the bottom 3/4” hex bolt followed by a 3/4” nylon lock nut. Torque the 3/4”

nylon lock nuts to 380 ft-lbs.

3/4” nylon

lock nut

3/4" flat

washer

13. Insert a spring bar with the rating stamp facing up into the trunnion. Secure with the “D”

retaining pin.

BE SURE THAT THE “D” RETAINING PIN GOES THROUGH HOLE IN THE SPRING BAR.

Spring bar

“D” retaining pin

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

14. Swing wire “D” under trunnion, and over the end of the pin. Repeat steps 9 and 10 for the

other side.

15. Your CL TS system should look like this now.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Installing Frame Brackets

16.Install frame bracket 28.5”-30.5” away from the center of ball socket on coupler

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

The frame and lift brackets can be

mounted on either the driver side or

passenger side of the trailer and MUST be

mounted to the trailer frame as shown. DO

NOT mount the frame brackets on the

inside of the frame!

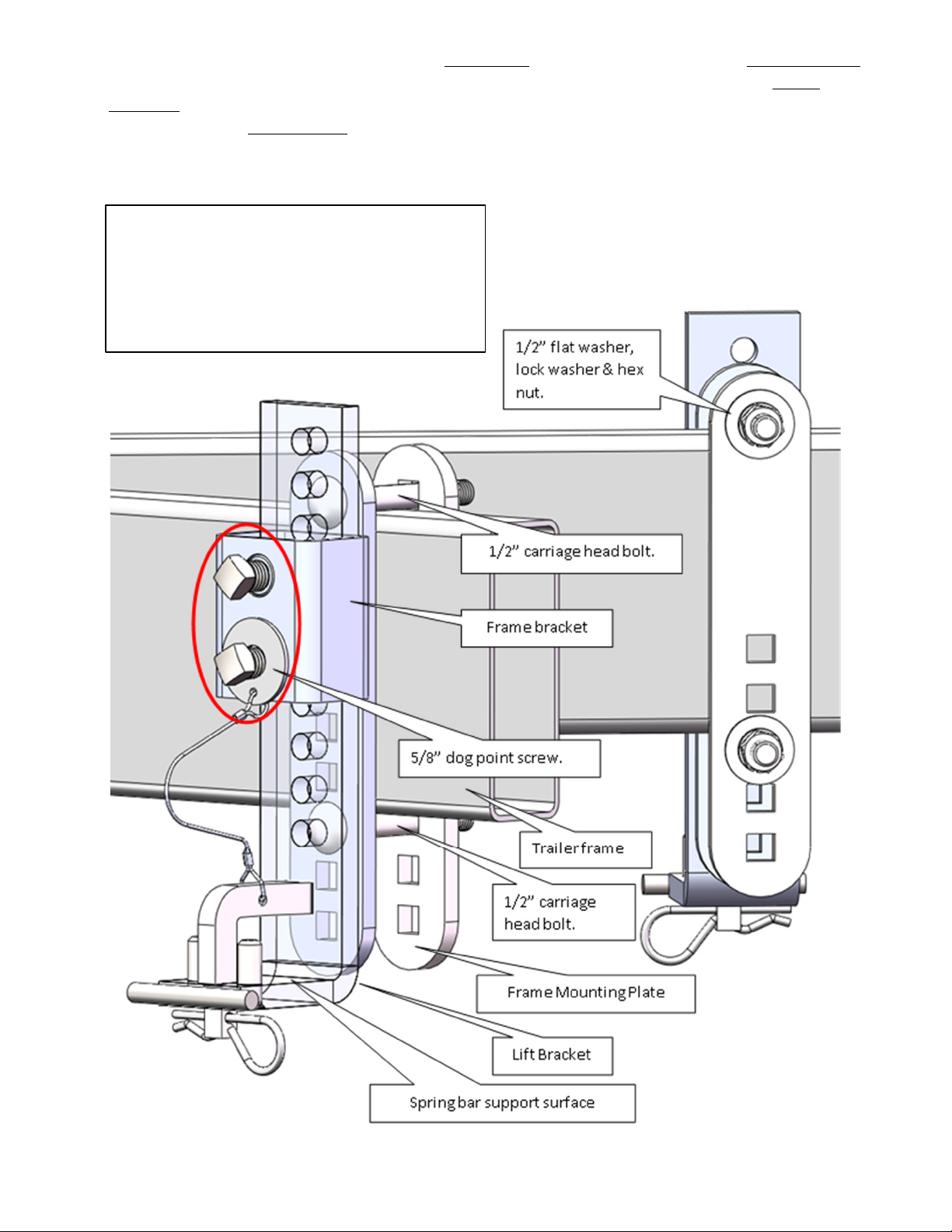

17. Loosen the 5/8” dog point screws so the lift bracket can be removed from the frame bracket.

Use the 1/2” carriage head bolt, flat washer, lock washer and hex nut to hold the frame

brackets in place. The bottom carriage head bolt should be in the hole closest to the

underside of the trailer frame. Tighten all (4) ½” carriage bolts to 45-55 ft.-lbs.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

18. Before hooking up the trailer to the hitch ball, adjust the height of the lift bracket so that the

measured distance from the ground to the bottom of the trunnion is the same (approximately)

from the ground to the top surface of the lift bracket.(Dimension “A” = Dimension “B” ±1 hole)

this is a starting point and you may need to make adjustments later. Using a 12-point 3/4”

socket, tighten the (4) dog point set screws 45-55 ft.-lbs.

GROUND/PAVEMENT

Attaching Trailer to Ball

Make sure the wheels on the trailer are chocked before connecting coupler to ball.

IMPORTANT! Ensure the tow vehicle and trailer is on level ground and in-line with each other.

Set parking brake of tow vehicle and chock the wheels of the trailer before lifting or lowering!

19. Back up the tow vehicle and align the hitch ball so that it is directly under the coupler socket

(use a spotter if you have one. CAUTION! Spotter should never stand between trailer and

tow vehicle during connecting). Then, lower the trailer until the hitch is supporting some of

the trailer tongue weight. The tow vehicle and trailer must be as straight and inline as

possible.

20. Ensure the hitch ball is completely inside the coupler socket and close the coupler ball latch if

it is not yet closed. Install coupler lock or pin for safety.

21. Raise the front of the trailer and rear of the tow vehicle until the tips of the spring bars are

about level/even with the support surface of the loading brackets.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Spring bar loading on lift brackets

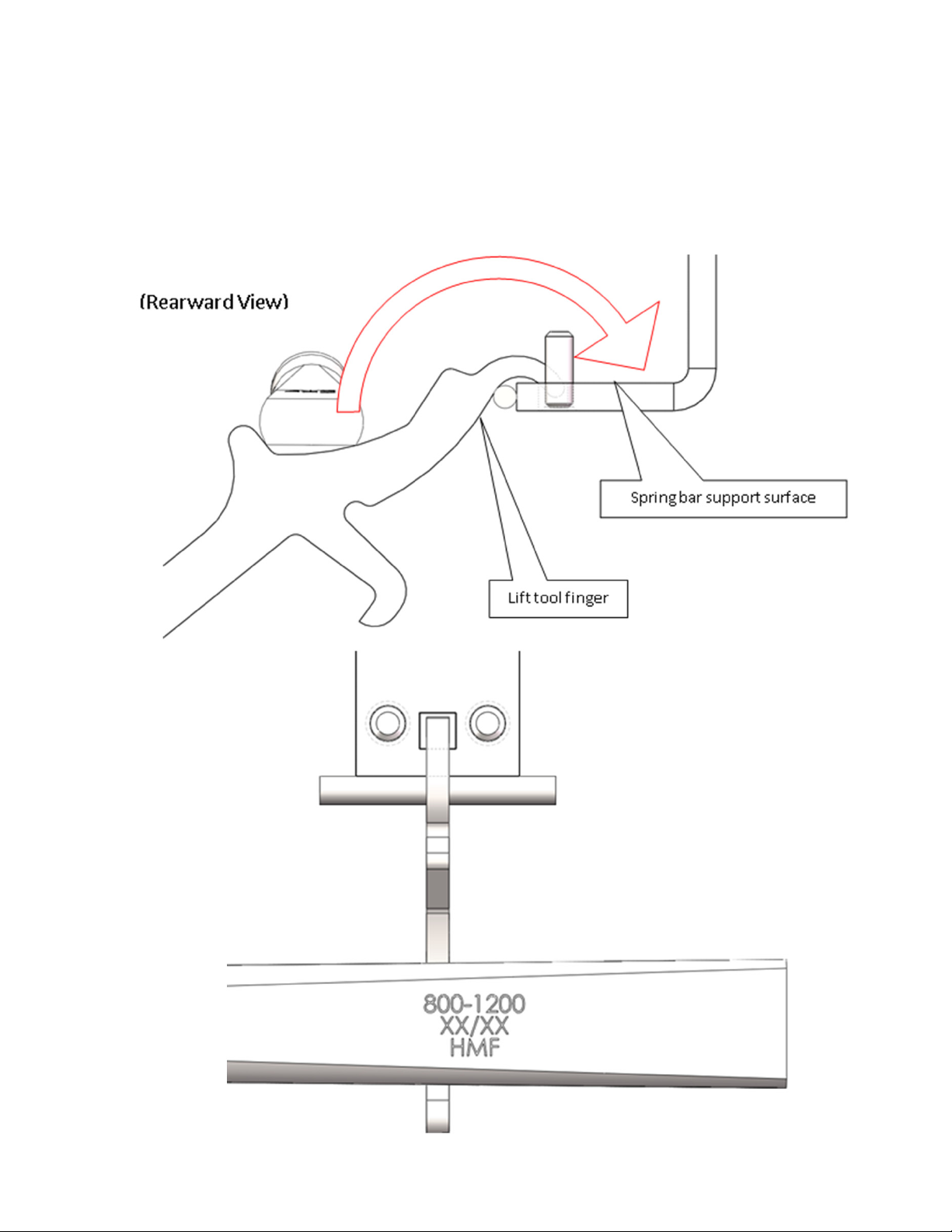

22. To load the spring bar onto the lift bracket, orient the lift tool as shown below and come under

the spring bar. Then, put the “finger” of the lift tool into the square hole on the lift bracket and

using BOTH hands on the lift tool lift up firmly and the rotate and push the lift tool towards the

trailer until the spring bar is resting completely on the lift bracket and off of the 2 pins. If it is

too difficult to lift the spring bar, then raise the height of the trailer until the spring bar is closer

or vertically to the spring bar support surface of the lift bracket.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

23.Once the spring bar is resting securely on the lift bracket insert the “L” retaining pin into the

square hole and secure with the hair pin clip.

WARNING: Keep clear of the pivot path of all moving parts when there is tension on the spring

bar. Maintain control of the lift handle at all times when raising or lowering the spring bar. Be sure

that the “L” pin and hair pin is in place before driving.

Check Vehicle Height and Adjust

Spring Bars If Necessary

24. Retract the tongue jack completely so the hitch is supporting the weight of the trailer.

Measure the same 3 places as done on pages 5 & 6 and compare. The tow vehicle should

settle evenly front to back. The rear fender should not settle lower than the front fender, if it

has then you will need to either raise the lift brackets 1 hole or add a hardened washer under

the large head tilt pin on the head assembly. The frame mark should be ¼”-1” max higher

than the original measurement noted on page 5, section 3.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Properly Adjusted System

Over Adjusted System

Under Adjusted System

Removing the spring bar from the lift bracket

25.Make sure the tow vehicle and the trailer are on level ground and are straight. Chock the trailer

wheels and engage the emergency brake on the tow vehicle.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

26. Raise the trailer tongue sufficient to ease the force required to lift the spring bar ends off of the

lift brackets. Place the lift tool on the round peg on the forward side of the lift bracket and

under the end of the spring bar as shown. And start pushing down on the lift tool.

27. Continue pushing down on the lift tool until it starts to come up and towards you.

IMPORTANT: Do not be in a rush here, stay in control of the tool.

28. There will be a point where the spring bar will stop and come to a rest on top of the 2 round

pins on the lift bracket. Stop there and keep your hands away from the spring bar.

Looking from the rearward side

of the frame bracket.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

29. Remove the lift tool from under the spring bar and position it as shown below. Place the tip of

the tool against the side of the frame, somewhere on the frame bracket or even on the lift

bracket is fine. Then pull out on the handle (keeping hands away from the spring bar) until the

spring bar falls off the lift bracket completely.

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

Parts Listing

All Products limited to Vehicle Tow Rating, see Vehicle Owners Manual. Visit www.huskytow.com for Warranty Information / Tech Support /

CENTERLINE TS, 400-600 LBS. W/2" BALL

CENTERLINE TS, 400-600 LBS. W/2-5/16" BALL

CENTERLINE TS, 600-800 LBS. W/2-5/16" BALL

CENTERLINE TS, 800-1200 LBS. W/2-5/16" BALL

CENTERLINE TS, 1000-1400 LBS. W/2-5/16" BALL

CENTERLINE TS, 800-1200 LBS. W/2-5/16" BALL W/O SHANK

1200 LBS. HEAD KIT

1400 LBS. HEAD KIT

1000-1400 LBS. SPRING BAR KIT

800-1200 LBS. SPRING BAR KIT

600-800 LBS. SPRING BAR KIT

400-600 LBS. SPRING BAR KIT

1200 LBS. DS & PS TRUNNION, BOLT HARDWARE & D PIN KIT

1400 LBS. DS & PS TRUNNION, BOLT HARDWARE & D PIN KIT

FRAME BRACKET KIT

LIFT TOOL KIT

1200 LBS. SPRING BAR RETAINING PIN KIT

1400 LBS. SPRING BAR RETAINING PIN KIT

BALL PLATFORM KIT

LANYARD ASSY KIT

SHIM KIT

DOG POINT SCREW KIT

HARDWARE KIT

5/8 BOLT, NUT AND WASHER KIT

LIFT BRACKET KIT

FRAME BRACKET KIT

32215

32216

32217

32218

33039

33092

32328

33049

33050

32329

32330

32331

32332

33051

32333

32334

32335

33052

32336

32337

32338

32339

32340

32342

33119

33120

ITEM DESCRIPTION

QTY

NO.

1 TOP PLATE AND CHANNEL WELDMENT 11111111- - ----------------

2 LOWER PLATE WELDMENT 11111111- - ----------------

3 1200 LBS. MACHINED TRUNNION 2222- 22- - - - -2- - -----------

3 1400 LBS. MACHINED TRUNNION ----2--2-----2------------

4 3/4-10 X 4.5" HEX BOLT 22222222- - - - 22- -----------

5 3/4" ID FLAT WASHER 222222----------------2---

6 5/8-11 X 2.75" HEX BOLT 11111111- - -------------1--

7 5/8" ID FLAT WASHER 11111111- - -------------1--

8 5/8 -11 HEX NUT 11111111- - -------------1--

9 1200 LBS. 3/8" "D" LOCK PIN ASSEMBLY 2222-2 ------2---2---------

9 1400 LBS. 3/8" "D" LOCK PIN ASSEMBLY ----2--------2---2--------

10 2-5/16" HITCH BALL ASSEMBLY -11111--------------------

10 2" HITCH BALL ASSEMBLY 1-------------------------

11 BALL PLATFORM BUSHING FOR 1-1/4" O.D. SHANK ONLY 111111------------1-------

12 LIFT TOOL ASSEMBLY 111111---------1----------

13 SHANK, 5-1/2" RISE, 1-1/4" DROP, 7-3/4" LONG, 2" SQ. 11111- - - - -----------------

14 STUD, LARGE HEAD 111111----------------1---

15 3/4-10 X 5" GRADE 8 HEX BOLT 222222----------------2---

16 3/4" ID CONICAL TOOTH WASHER 44444422- - - - 22- -------2---

17 3/4-10 NYLON LOCK NUT 44444422- - - -22- -------2---

18 FRAME MOUNTING PLATE 222222--------2----------1

19 1/2-13 HEX NUT 444444--------4----------2

20 1/2" ID FLAT WASHER 444444--------4----------2

21 1/2" ID LOCK WASHER 444444--------4----------2

22 1/2-13 X 4" CARRIAGE HEAD BOLT 444444--------4----------2

23 FRAME MOUNTING BRACKET 222222--------2----------1

24 DS/PS WDS LIFT BRACKET WELDMENT 222222--------2---------1-

25 "L" PIN & WASHER LANYARD ASSY 222222--------2----2-----1

26 5/8" HAIR PIN 333333 --------2-------3--1

27 5/8-11 X 2.00" SQ. HD SET SCREW W/FULL DOG POINT 444444--------4------4---2

28 1000-1400 STRAIGHT ROUND SPRING BAR W/LABELS ----2---1-----------------

28 800-1200 STRAIGHT ROUND SPRING BAR W/LABELS - - - 2 - 2 - - - 1 ----------------

28 600-800 STRAIGHT ROUND SPRING BAR W/LABELS - - 2 - - - ----1---------------

28 400-600 STRAIGHT ROUND SPRING BAR W/LABELS 2 2 ---------1--------------

29 1/2" ID HARDENED FLAT WASHER 444444----------------4---

30 5/8" HITCH PIN 111111----------------1---

31 HOOK SHIM 666666--------------6-6---

32 3/4" ID HARDENED FLAT WASHER 22222222- - - - 22- -----------

This manual suits for next models

Table of contents

Languages:

Other Husky Tools manuals

Husky

Husky MWC41-16B User manual

Husky

Husky HDT103 User manual

Husky

Husky H61CH6TR12R User manual

Husky

Husky 024-0375H User manual

Husky

Husky H36CH6TR6LER User manual

Husky

Husky 102100-9-01 User manual

Husky

Husky 39103 User manual

Husky

Husky H4510 User manual

Popular Tools manuals by other brands

Sumake

Sumake ST-NH620 manual

HOZAN

HOZAN C-402 instruction manual

MetalMaster

MetalMaster SHST-1.2HO Operation manual

Milwaukee

Milwaukee M-Spector 360 Operator's manual

Costway

Costway NP10216 user manual

Forest-Master

Forest-Master Bulk Log Stand 2 user manual

Zhermack

Zhermack dune 2 Maintenance and use manual

BorMann

BorMann BRT1200 manual

Berner

Berner S.F.2C manual

Rothenberger

Rothenberger ROMAX Compact TT Instructions for use

AGI

AGI W13 Operator's manual

Alemlube

Alemlube 630A Owner technical manual

Orbitalum

Orbitalum BRB 2 operating instructions

Fein

Fein RS17-70E Series Repair instructions

JST

JST YRS SERIES instruction manual

Honeywell

Honeywell r7284 Technicianís quick reference guide

SNOWJOE

SNOWJOE SUNJOE 24V-X2-TLR14-CT Operator's manual

Rockler

Rockler 22.5 Miter Sled instructions
