Please read the operator’s manual carefully and ensure you understand the instructions. The instructions
will enable you to assemble and maintain your tractor properly. Always observe the “SAFETY RULES”.

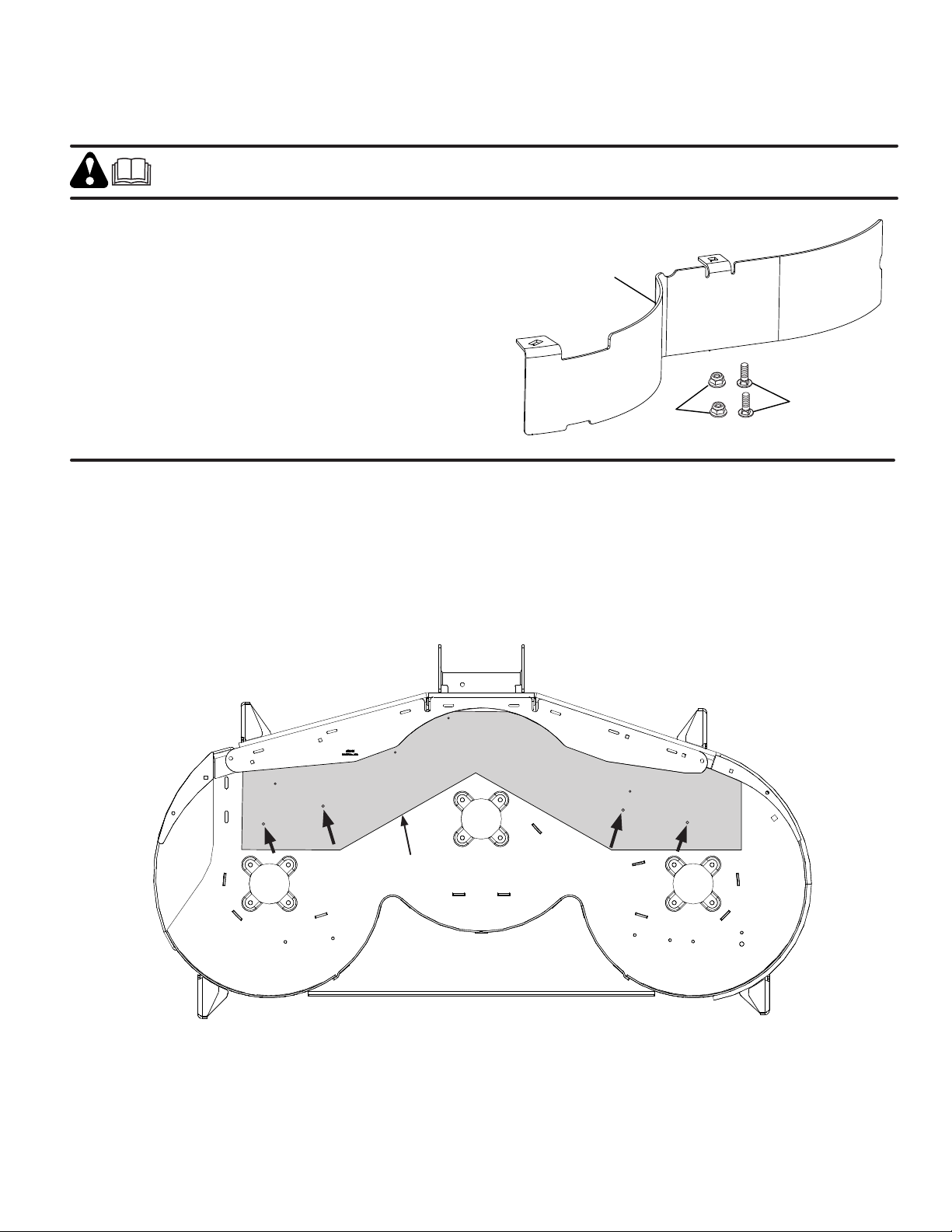

599484201 54 CC BOLT ON LEFT HAND BAFFLE
KIT INSTRUCTIONS
599 48 45-01
KIT CONTENTS:
KEY PART
NO. NO. DESCRIPTION QTY. 1
23
1 596644502 LH Ba󰀪e Bolt On 1
2 873900600 Nut 2
3 596136001 Bolt 2
4 599484501 Ba󰀪e Service Kit Instruction Sheet 1
- - 599483401 Ba󰀪e Kit Drill Template (Not Shown) 1
1. Remove mower deck from unit.
2. Remove all blades, it is not necessary to remove other components.
NOTE: If mower deck already has ba󰀪e attachment holes skip to step 6.
3. Flip mower deck over so bottom of deck is facing up.
4. Push template over mandrel cover bolts to align template as shown in gure 1.
Figure 1
TEMPLATE

01.29.20 CL
Printed in the U.S.A.
SHOWN FOR
REFERENCE ONLY
5. Center punch and drill left hand ba󰀪e attachment holes 0.406 (13/32) as shown in gure 2.
Figure 2
Figure 3
DRILL 0.406
(13/32) HOLES
6. Bolt ba󰀪e into specied holes using the two nuts and two bolts provided in the kit as shown in
gure 3. Torque to 25-35 ft-lbs.
7. Reinstall blades (torque bolts to 45-55 ft-lbs.) and spin by hand to ensure blades do not contact
ba󰀪e.
8. Reinstall mower deck to unit.
