Husqvarna GTH264T/96041025001 Setup guide

ILLUSTRATED PARTS LIST
MFG. ID NO. 96041025001
CUSTOMER CATALOG NO. GTH264T
PRODUCT NO. 960 41 02-50
47
47
580 65 80-20 Rev. 4

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17
16 16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 18 18-39 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Service Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 10 55-88 Tire, Rear
10 532 00 71-54 Tube, Rear (Service Item Only)
11 532 14 45-10 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 17 83-02 Decal, Drive Pedals
3 532 19 63-57 Decal, Warning
4 532 19 68-41 Decal, Engine Warning Symbols
5 532 15 97-37 Decal, Brake Pedal
7 532 40 03-89 Decal, Warning Symbols
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dan./Poi.
10 532 18 04-33 Decal, Fender DB/CE
11 532 18 21-66 Decal, Hand/Foot Sym.
14 532 44 65-46 Decal, Panel Side
15 532 43 79-63 Decal, Replacement Parts
1
16 581 62 73-01 Decal, Hood Logo
17 532 14 08-37 Decal, Park Brake
18 532 15 97-36 Decal, Chassis Hot Muffler
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 43 98-82 Pad, Footrest, LH
- - 532 43 98-81 Pad, Footrest, RH
- - 532 44 65-90 Manual, Operator's (Euro)
- - 532 44 65-91 Manual, Operator's (Scan)
- - 532 44 65-92 Manual, Operator's (E-Bloc)
- - 532 44 65-93 Manual, Operator's (Baltic)
14
93
11
15
7
18
8
5
10
4
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
DECALS
27
27

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
GL
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
SCHEMATIC
38
38

4
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30 33
22
79 21
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S
102
105
29
With Charge Indicator Option
142
(+) (-)
143
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
ELECTRICAL
32
32

5
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd. 1/4-20 unc x 3/4
8 532 18 64-91 Battery Box
16 532 17 61-38 Switch Interlock
21 532 40 02-52 Harness Socket Light
22 532 00 41-52 Bulb, Light # 1156
24 532 40 02-53 Cable Battery
25 532 41 28-95 Cable Start Red
26 532 17 51-58 Fuse
27 873 51 04 00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 21" Blk. 6 Ga.
29 532 40 15-45 Switch Seat
30 532 19 33-50 Switch Ign.
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 11-04 Harness Dash/Lift
41 817 72 04-08 Screw 1/4-20 x 1/2
42 532 13 15-63 Cover Terminal
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Hourmeter
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw 5/16-18 x 3/4
71 532 19 42-76 Harness Chassis/Lift
79 532 17 52-42 Socket Asm. Bulb
90 532 43 53-95 Cover Terminal Battery
91 532 19 02-70 Strap Battery
99 817 67 04-12 Screw Hex Wsh. Thdrol. 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
102 532 40 44-54 Harness Pigtail Tex Ros Tuff Torq.
105 532 40 75-68 Switch Reverse
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
ELECTRICAL
32
32

6
Chassis-tex_GT HUSQ_ll_150
182
176
176
175
165
180
199
162
177
196
221
68
68
68
68
183
183
236
236 34
235
235
161
37
194
194
36
36
162
58
189
189
52
217
228
228
194
68
68
213
218
14
203
205
151
206
137
137
214
204
208
15
25
207
3
297
191
18
130
130
130
202
176
5
176
176
234
189
189
152
178
350
335
350
336
195
150
130
306
125
146
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
CHASSIS AND ENCLOSURES
39
39

7
KEY PART
NO. NO. DESCRIPTION
3 532 43 97-52 Applique Sub Asm.
5 532 43 74-72 Dash
14 532 44 11-77 Hood
15 532 43 97-33 Lens LH
18 532 44 06-53 Grille
25 532 44 33-85 Lens RH
34 532 44 72-53 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-08 Fender
52 873 68 05-00 Nut Crownlock 5/16-18
58 532 19 43-14 Bracket Fender
68 817 49 05-08 Screw 5/16-18 x 1/2
125 581 68 48-01 Clip Fuel Line
130 532 41 63-58 Screw #10 x 0.750
137 532 40 75 90 Bumper Dash
146 581 85 79-01 Bolt
150 532 43 97-74 Duct Heat Hood
151 532 43 66-70 Pivot Bracket
152 532 43 98-70 Shield Browning/Debris
161 532 43 99-29 Console Fuel Window
162 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4 x 1/2
165 532 19 68-26 Bracket Support Tank
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw #10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Asm. Net
180 532 19 54-77 Chassis
182 532 40 68-59 Dash Lower
183 874 52 05-20 Bolt 5/16-18 unc x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 43 74-55 Insert Reflective RH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug 12 V Adapter
196 532 43 97-16 Console Asm. Deck Lift
199 532 19 82-59 Plate Deck Lift
202 532 43 97-28 Vent Side Hood RH
203 532 43 97-27 Vent Side Hood LH
204 532 43 57-14 Vent Asm. Hood Top
205 532 43 97-30 Skirt Hood Side RH
206 532 43 97-29 Skirt Hood Side LH
207 532 43 97-34 Bezel RH
208 532 43 97-35 Bezel LH
213 874 76 05-12 Bolt Hex Hd. 5/16-18 unc x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot
218 532 19 63-95 Hood Stop
221 532 19 89-09 Reflector LH
228 532 19 51-61 Stud Fastener
234 532 40 47 42 Bumper Hood
235 532 40 61 29 Spacer Fender
236 873 93 05-00 Nut 5/16-18 unc
297 532 43 74 56 Insert Reflective LH
306 873 90 06-00 Nut Lock
335 532 44 82-04 Lower Dash Cover RH
336 532 44 53-09 Lower Dash Cover LH
350 532 44 51-43 Clip X-mas Tree
- - 532 42 49-18 Kit Bumper
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
CHASSIS AND ENCLOSURES
39
39

8
64
188
17
161
35
184
167
160
42
221
29
159
159
15
Drive-tex_K66_pedal_10_r2
69
116
73
69
99
2
3
33
183
116
73
2
7
9
33
183
169
69
3
208
210
163
214
125
215
153
153
166
211
211
222
79
186
189
49
187
50
51
52
51
185
52
51
170
171
56
213
221
160
206
26
207
209
92 125
116
125
226
196
125
80
125
216
143
197
196
70
74
220
74
225
125
190
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
DRIVE
40
40

9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
DRIVE
40
40
1 – – – – – – Transaxle, TuffTorq K66Y(426118)
(Order parts from transaxle
manufacturer.)
2 532 00 70-70 Key
3 532 00 75-63 Hardened Washer
7 532 19 98-37 Hub Asm. Wheel
9 532 14 00-80 Bolt Hub Wheel
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 40 10-72 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 72-45 Rod, Brake
33 812 00 00-53 Ring E
35 583 86 45-01 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 12 59-07 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
69 532 12 38-00 Washer 1 1/32 x 1 5/8 x 16 Ga.
70 532 43 96-61 Console Asm.
73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
74 532 14 24-32 Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc
80 532 40 71-82 Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-44 Rod Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 40 72-46 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan
171 872 11 06-16 Bolt
183 532 19 73-57 Spacer Axle
184 532 44 14-55 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 97-69 Bracket Clutch Anti-Rotation
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 95-92 Rod Control Cruise
210 532 19 78-60 Rocker Asm Cruise
211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Handle Parking Brake
214 532 42 12-63 Pedal Forward Pad
215 532 40 17-23 Pedal Reverse Pad
216 532 19 61-31 Bracket Pulley Idler
220 532 19 89-08 Reflector RH
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 73-11 Keeper Belt Trans.
226 532 40 71-09 Bracket Mount Torque
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
1
92
12
11
41
42
85
9
29
SPARK ARRESTER KIT
92
45
90
37
28
37
21
20
22
62
70
71
86
69
87
2
engine-tex_Kawa-2cyl_8
81
18
15
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Kawasaki FS730V-AS50 (437952)
(Order parts from engine
manufacturer.)
2 532 44 59-62 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 17 93-35 Clutch Electric
12 532 19 43-43 Pulley Engine
15 532 19 34-99 Tank Fuel 4.0
18 532 43 96-45 Cap Fuel
20 532 18 29-37 Control Throttle
21 532 41 63-58 Screw #10 x 0.750
22 532 19 15-96 Control Choke
28 532 14 21-58 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 532 17 81-51 Gasket
70 532 42 47-65 Tube Exhaust LH
71 532 42 47-66 Tube Exhaust RH
81 532 14 84-56 Tube Drain Oil Easy
85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5
86 532 18 43-62 Nut
87 532 17 18-77 Bolt 5/16-18 unc x 1 w/Sems.
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8-16 x 1
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
ENGINE
24
24

12
19
60
59
58
70
68
69
16
28
28
13
22
64
35
67
63
57
63
1
21
6
15
14
5
81
13 13
8
53
62
81
61
82
15
14
14
14
15
80
85
14
15
80
82
80
6
4
15
14
86
9
8
9
8
67
66
7
7
118
2
80
45
26
51
steering-tex_TTR_9
118
118
122
122
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering Husq SR
2 532 41 35-91 Axle Asm., Front
4 532 43 68-73 Spindle Asm., LH
5 532 43 68-74 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy. Hlcl. Spr. 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 44 42-12 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 43 77-47 Adapter, Wheel Steering
22 532 19 48-45 Bushing
26 532 43 97-43 Insert, Wheel Steering Husq SR
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 44 07-70 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 WasherHardened.793x1.637x.060
57 532 19 72-46 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 43 68-84 Draglink, LH
62 532 43 68-85 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd. 7/16-14 x 3 Serr.
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
80 532 00 13-70 Washer Thrust
81 532 43 68-87 Subasm Link Cross RH
82 532 43 68-77 Pivot Bolt
85 532 44 18-73 Pivot RH NZTR
86 532 44 18-72 Pivot LH NZTR
118 532 40 60-13 Bushing
122 532 44 49-62 Cap Gear Sector Tex
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
STEERING ASSEMBLY
41
41

14
mower_deck 54-tex_23_r3
47
7
49
32
33
31
30
133
52
52
43
196
97
33
192
49
34
39
6
21
122
114
98
31
32
25 26
24
27
58
60
59
197
21
18
18
21
21
21
21
113
49
187
190
188
190
187
50
120
117
116
21
197
197
197
189
21
197
13
14
15
11
8
29
12 16
19
194
185
241
242

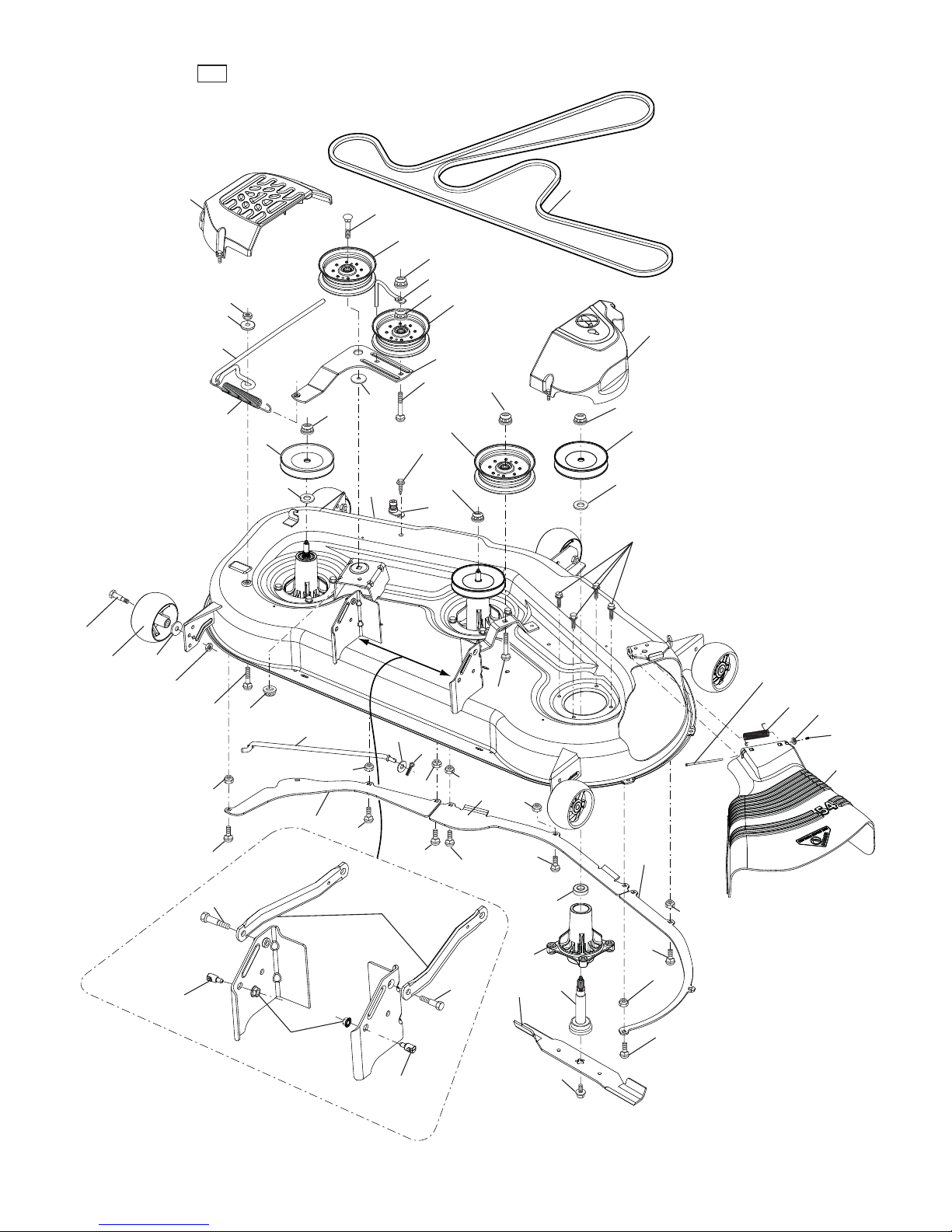

TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
MOWER DECK
44
44

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 14-92 Deck Weldment Mower
6 532 19 60-66 Cover Mandrel LH
7 532 19 71-81 Cover Mandrel RH
8 532 19 30-03 Bolt 7/16 Asm. Blade
11 532 18 72-56 Blade
12 532 40 03-37 Rod Anti-Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
18 872 14 05-05 Bolt RDHD Sqnk. 5/16-18
19 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 89-38 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdrol. Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 15 35-35 Pulley, Mandrel
33 532 40 02-34 Nut, Flg. Top Lock
34 873 68 06-00 Nut Crownlock 3/8-16 unc
39 532 19 73-80 Pulley, Idler, Stationary LH
43 532 19 60-65 Arm, Idler
47 532 19 61-03 Belt Deck Drive
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 872 11 06-16 Bolt Rdhd. Sqnk. 3/8-16 unc x 2
52 532 19 73-79 Pulley Idler
58 532 18 73-42 Baffle Right
59 532 18 73-44 Baffle Left
60 532 18 76-07 Baffle Center
97 532 17 85-15 Washer Hardened
98 532 19 61-05 Spring Drive
113 872 11 05-08 Bolt Rdhd. Sqnk. 5/16-18 x 3/4
114 532 18 75-56 Rod Tension Relief
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Gauge Wheel
120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 18 75-57 Bushing Tension Relief
185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation
188 873 90 05-00 Nut Lock Hex Flange
189 532 19 51-85 Arm Susp. Mower Rear
190 532 19 65-39 Bolt Shoulder
192 532 19 84-68 Keeper Belt Idler
194 874 49 07-36 Bolt Hex Washer Head
196 872 14 06-20 Bolt 3/8-16 x 2-1/2 Gr. 5
197 872 14 05-08 Bolt 5/16-18 unc x 1
241 532 15 29-27 Screw TT #10-32.5 3/8 Flange
242 532 41 55-98 Port Washout
- - 532 18 72-92 Mandrel Assembly (Includes hou-
sing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 44 66-53 Replacement Mower, Complete
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
MOWER DECK
44
44

16
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-30 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 19 53-04 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 40 34-07 Lift Link Asm. Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml. Tap/R.Z
98 532 19 52-64 Link Asm. Susp. Front Mower
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
MOWER LIFT
45
45

17
1 532 42 40-73 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm. Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn.
8 532 17 18-77 Bolt 5/16-18 x 3/4 unc w/Sems.
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt 3/8-16 x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_1_r1
44
43
TRACTOR - - MODEL NO. GTH264T (96041025001), PRODUCT NO. 960 41 02-50
SEAT ASSEMBLY
42
42

12.13.13 JM
