HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The
illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble
or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number. The model number for your tractor can be found on the fender under the seat.
Support / Help
If you require assistance or have questions concerning the application, operation, maintenance or parts for your product:
• Visit our website: www.husqvarna.com
• Call Us Toll Free: 1-800-487-5951
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “YTH1942" (96043024900)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC .......................................................................................................................................................................3
ELECTRICAL.................................................................................................................................................................. 4-5
CHASSIS ........................................................................................................................................................................ 6-7
DRIVE.............................................................................................................................................................................. 8-9
ENGINE....................................................................................................................................................................... 10-11
STEERING .................................................................................................................................................................. 12-13
MOWER DECK ........................................................................................................................................................... 14-15
MOWER LIFT....................................................................................................................................................................16
SEAT .................................................................................................................................................................................17
DECALS............................................................................................................................................................................18
ENGINE BREAKDOWN.............................................................................................................................................. 19-20
COMO UTILIZAR ESTE MANUAL
Este manual está diseñado para brindarle al comprador un medio para identificar las piezas del tractor para cuando necesite hacer el
pedido de un repuesto. Las ilustraciones pueden o no representar los ensambles reales; por lo tanto, no se recomienda utilizar este
manual como una guía para ensamblar o desarmar el tractor. Algunos accesorios y piezas están dibujados en tamaños más grandes
para identificarlos con mayor facilidad.
Cada tractor tiene su propio número de modelo. El número de modelo del tractor se encuentra en el guardabarros debajo del asiento.
Soporte / Ayuda
Si necesita asistencia o tiene alguna pregunta acerca de la aplicación, operación, mantenimiento o piezas de su producto:
• Visite nuestro sitio web: www.husqvarna.com
• Llámenos de manera gratuita al: 1-800-487-5951
Cuando haga el pedido de una pieza, siempre brinde la siguiente información:
• Producto: ”TRACTOR”
• NÚMERO DE MODELO: “YTH1942" (96043024900)”
• Número de pieza
• Descripción de la pieza
ÍNDICE
DIAGRAMA.......................................................................................................................................................................21
DIAGRAMA ELÉCTRICO........................................................................................................................................... 22-23
CHASIS....................................................................................................................................................................... 24-25
TRANSMISIÓN ........................................................................................................................................................... 26-27
MOTOR ....................................................................................................................................................................... 28-29
DIRECCIÓN ................................................................................................................................................................ 30-31
PLATAFORMA DE LA CORTADORA DE CÉSPED.................................................................................................. 32-33
ELEVACIÓN DE LA CORTADORA DE CÉSPED............................................................................................................34
ASIENTO...........................................................................................................................................................................35
CALCOMANÍAS................................................................................................................................................................36
MOTOR DESCOMPOSTURA..................................................................................................................................... 38-39

3
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49

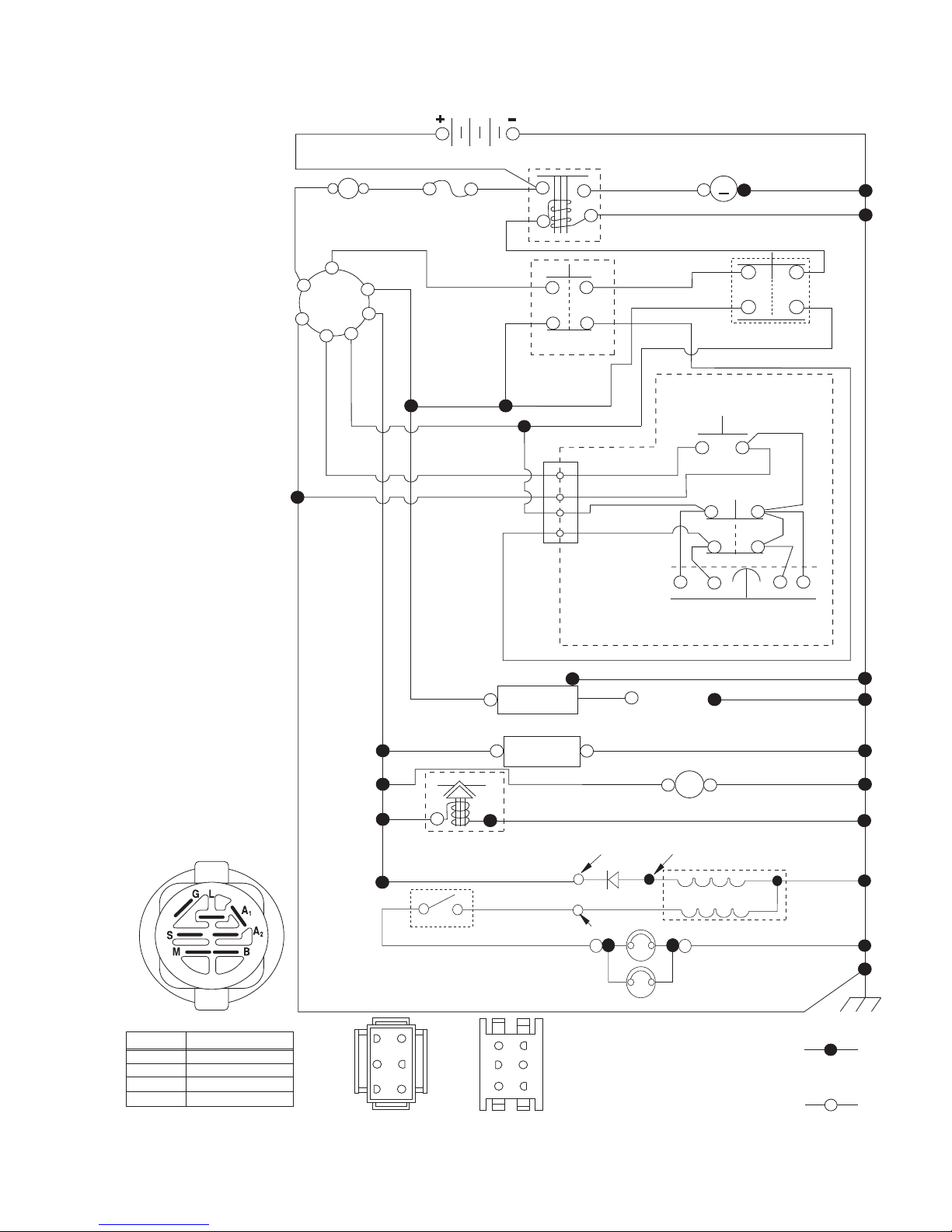

SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49

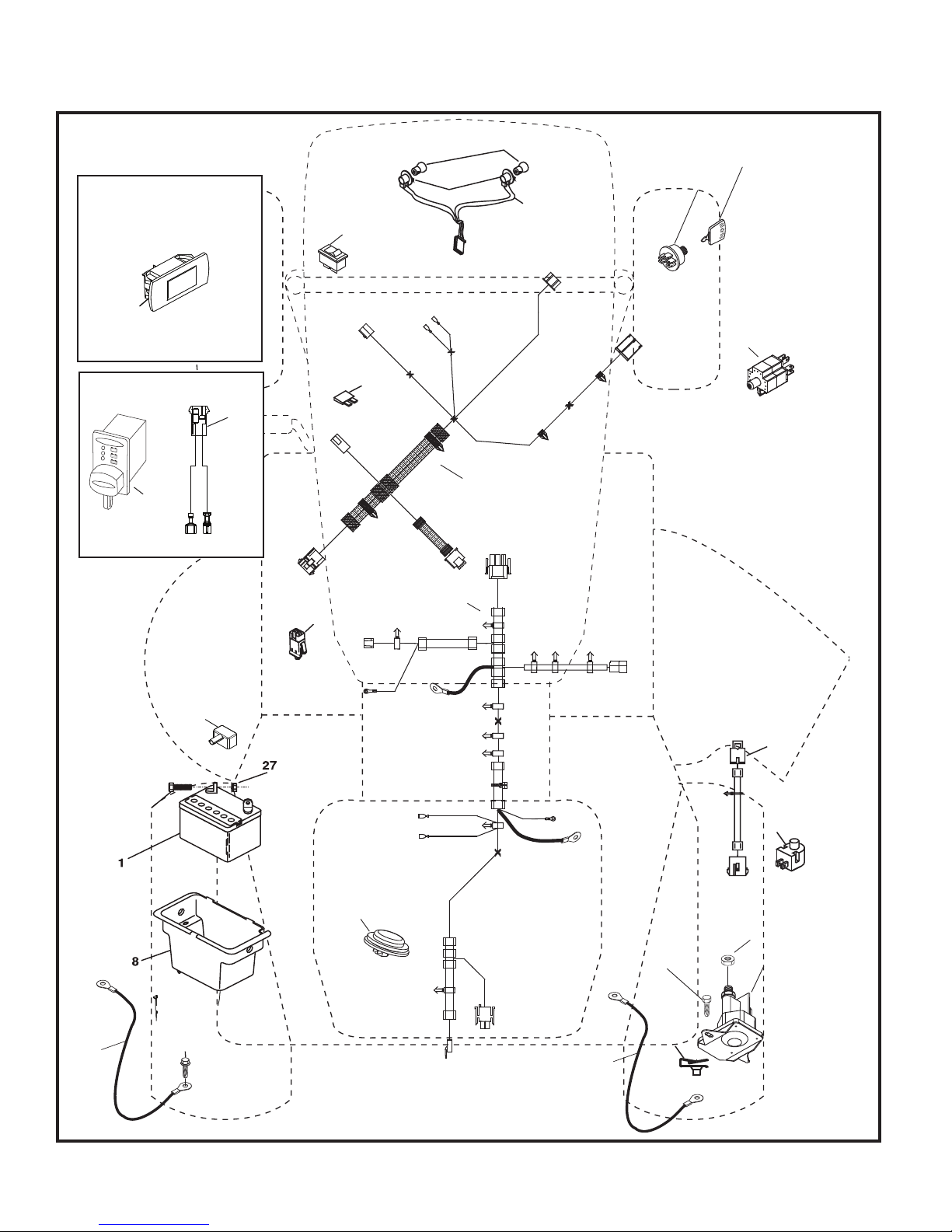

ELECTRICAL
30
33
34
22
79 21
26
40
71
16
TR02S
90
28
55
4646
2
43
27
99
25
87
106
29
102
105
142
(+) (-)
143
Service Minder (If Equipped)
Charge Indicator (If Equipped)

5
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 581 49 80-01 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 42 16-86 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 581 02 31-01 Harness Ign. Dash
43 582 04 28-01 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 501 13 37-01 Harness Chassis
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 43 53-95 Cover, Terminal Battery
99 817 67 04-12 Screw
102 532 40 44-54 Harness Pigtail
105 532 40 75-68 Switch Reverse
106 532 17 48-14 Pal nut
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
CHASSIS
14
202
203
205 151
206
137
137
214
204
208
15
25
207
3
297
191
18
130
130
130
182
68
68
176 176
175
228
228
183
194
236
150
180
68
68
213
52
218
34
130
130
177
189
189
152
217
235
159
159
37
194
194
162
282
282
36
36
285
286 283 284
287
chassis-tex_GT HUSQ II_209
306
125
146
375
375
195
5
176
176 176
199

7
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
CHASSIS
3 532 44 44-81 Applique
5 681 46 68-01 Dash
14 532 44 11-77 Hood
15 532 43 97-33 Lens LH
18 532 44 06-53 Grille
25 532 44 33-85 Lens RH
34 580 91 08-01 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-66 Fender
52 873 68 05-00 Nut Crown Lock
68 539 99 08-58 Screw Thdrol 5/16-18 x 1/2
125 581 68 48-01 Clip Fuel Line
130 532 41 63-58 Screw 10 x 0.750 BOS Thread
137 532 40 75-90 Bumper Dash
146 581 85 79-01 Bolt
150 532 43 99-21 Air Duct
151 532 43 66-70 Bracket Pivot Hood
152 532 43 98-70 Shield Browning
159 817 00 06-12 Screw 3/8-16 x 3/4
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 19 54-57 Chassis
182 586 73 86-02 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 43 74-55 Insert Reflective RH
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Dash NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
199 532 41 34-85 Plate Deck Lift
202 532 43 97-28 Vent Side Hood RH
203 532 43 97-27 Vent Side Hood LH
204 532 43 57-14 Vent Top Hood
205 532 43 97-30 Side Trim RH
206 532 43 97-29 Side Trim LH
207 532 43 97-34 Bezel RH
208 532 43 97-35 Bezel LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer Tinner
217 532 40 91-67 Rod Pivot
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
282 532 41 41-10 Clip Retainer Console
283 532 44 20-39 Console Deck Lift
284 532 43 98-23 Console Shift
285 532 41 63-15 Console Insert RH
286 532 41 63-17 Console Insert LH
287 817 60 04-06 Screw 1/4-20 X 3/8
297 532 43 74-56 Insert Reflective LH
306 873 90 06-00 Nut Lock
375 586 90 82-01 Dash Clip-On Bumper
- - 532 43 99-76 Dash Plug reminder
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION

8
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
DRIVE
52
51
170
216
143
225
125
drive-tex_K46_pedal_173_r1
2
2
73
73 33
205
1
116
33
37
37
183
183
205
116
56
64
188
161
35
184
167
160
42
29
15
159
159
221
210
214
153
166
211
222
17
163
211
153
171
325
326
336
125
125
227
116
99
69
215
186
189
49
187
50
51
52
51
185
190

9
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, Tufftorq K46BT
(426120) (Order parts from
transaxle manufacturer)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 590 60 59-02 Rod, Brake, Park
37 532 18 89-67 Washer .793 x 1.637 x 060
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
69 532 42 33-03 Hairpin Soft Zinc
73 874 49 05-40 Bolt Hex 5/16-18 x 2 1/2 G.5
99 582 40 45-01 Rod Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 539 99 08-58 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 44 82-75 Rod Control
166 532 42 91-64 Nut Push
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper V-Idler
171 872 11 06-16 Bolt 3/8-16 unc x 2
183 532 13 70-57 Spacer Axle
184 587 65 37-01 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 582 21 70-01 Link Clutch Ground Drive, Long
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
210 532 40 09-80 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 40 31-19 Knob Control Cruise
214 532 42 12-63 Pedal Forward
215 586 60 65-02 Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 33-19 Keeper Belt Transaxle
227 817 49 05-12 Screw 5/16-18 x 3/4
325 585 66 85-02 Torque Strap K46 LT RH
326 585 67 08-02 Bracket TRQ STP 46 20" Tire RH
336 587 25 96-01 Bolt 5/16 - 18 x 1-3/4 Flanged

10
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
ENGINE
OPTIONAL EQUIPMENT
SPARK ARRESTER
29
engine-tex_loncin_5
94
69
2
87
79
12
42
85
9
90
90
92
1
81
82
21
20
28
37
37
15
97
96
18

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Husqvarna Model No. LC1P96F
(5928222701)
2 532 44 67-60 Muffler
9 501 83 26-02 Keeper Belt Engine
12 586 47 85-01 Pulley Engine
15 532 43 30-04 Tank Fuel
18 581 17 61-01 Cap Fuel
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 40 11-37 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 539 99 02-47 Washer SLW STD 7/16
69 590 86 36-01 Gasket
79 532 18 39-06 Screw 5/16-18 x 1
81 532 14 84-56 Tube Drain Oil Easy
82 532 42 82-87 Valve Drain Oil
85 501 60 65-01 Bolt Hex 7/16-20 x 4 Gr. 5
87 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/sems
90 817 00 06-16 Screw 3/8-16 x 1
92 817 12 06-16 Screw 3/8 x 1
94 590 86 48-01 Exhaust Tube
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
ENGINE

12
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49

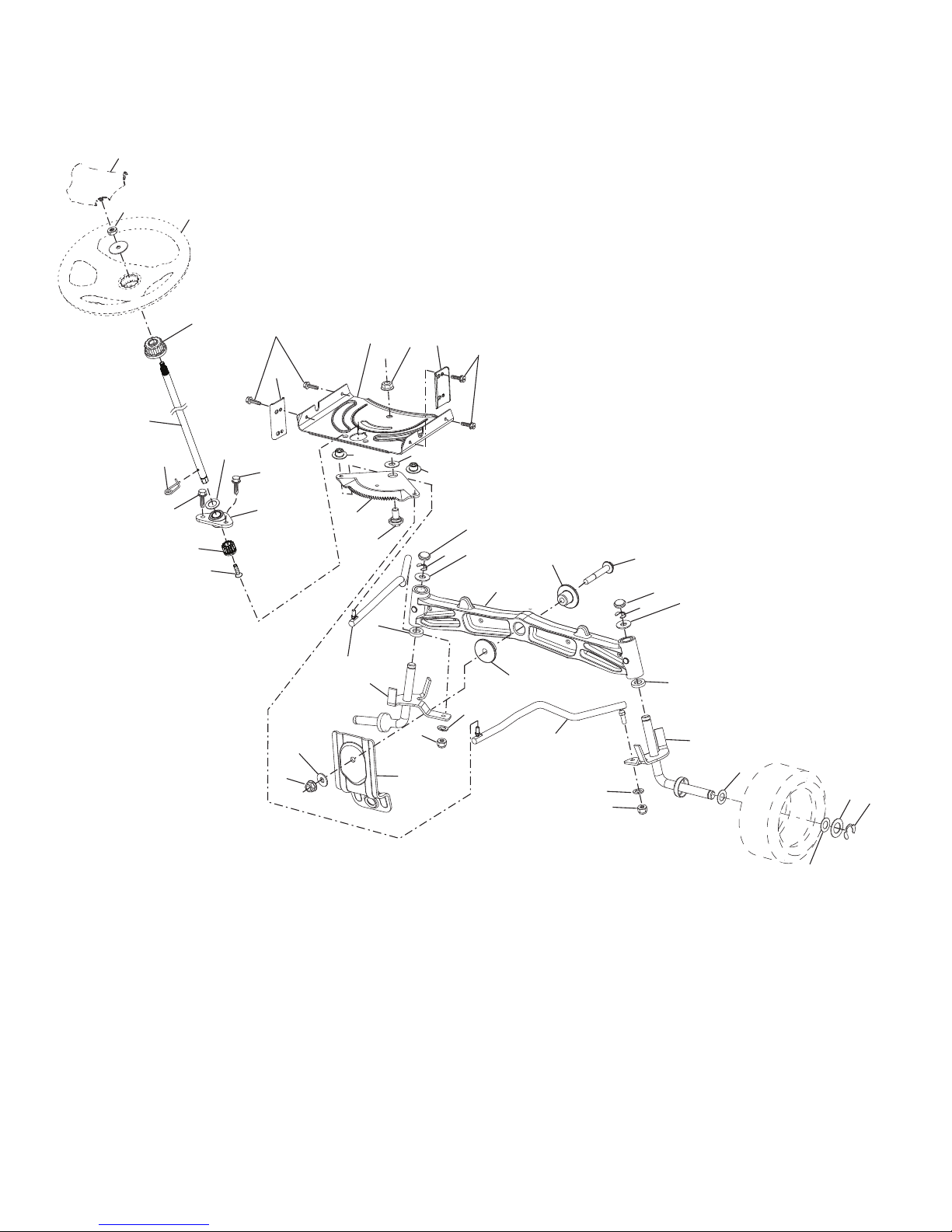

STEERING ASSEMBLY
steering-tex_HUSQHR_7
6
5
13
13
53 8
9
87
9
87
62
4
70
68
69
67
67 66
15
15
14
14
61
2
6
35
59
58
19 60 63
57
57
63
122
122
21
50
26
1
45
16
28
28
27
22
64
75
76

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 539 99 01-18 Washer, 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 587 01 60-02 Shaft Steering
19 532 19 47-29 Plate Steering
21 586 84 02-01 Adapter Wheel Steering
22 585 02 98-02 Bearing
26 532 43 97-43 Insert, Wheel Steering
27 819 21 16-16 Washer
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 587 01 64-01 Washer 3/8 ID 2-3/8 OD 12 Ga. PLTD
50 873 90 06-00 Nut Lock Flg 3/8-16 unc
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 588 79 44-02 Draglink, LH
62 588 79 45-02 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 585 33 88-01 Bracket Deck Susp. Front
75 580 68 37-01 Pinion
76 580 68 36-01 Screw Head Sock
122 532 44 49-62 Cap Gear Sector
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
STEERING ASSEMBLY

14
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
MOWER DECK
41
42
43
60
38
63
46
147
55
64
47
41
41
32
38
33
34
56
56 57
59
62
188
189
1
69
21
21
69
69
20
40
145
42_D_man-tex_LT_89
15
14
13
11
12
189
188
144
36
113
113
40
57
19
19
6
6
68
195
122
123
195
21
24
25
26
27
29
23
192
257
257 255
256
256
257
257
254
117
116
40
119
117
119
116
40 242
241
70
7
7
37
67
152

15
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 12-75 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x .750 BOS Thread
11 532 13 89-71 Blade, 42" Hi-Lift
(For bagging or discharge)
12 584 30 93-01 Screw
13 587 25 65-01 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 585 32 39-01 Bearing, Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle, Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
37 819 13 13-16 Washer
38 532 43 25-20 Keeper Belt Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
41 584 95 39-01 Bolt Hex Wshrhd 313-18 x 1.19
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
47 532 19 72-50 Bracket Clutch Cable
55 532 43 71-10 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sq Nk 3/8-16 unc x 2
63 532 19 94-77 Arm Brake Mower
64 532 19 99-18 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 42 96-36 V-Belt
69 872 14 05-05 Bolt
70 532 19 99-72 Clutch Asm Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt, Shoulder
117 589 52 74-01 Wheel, Gauge
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler
147 532 40 19-71 Spring Return
152 584 24 35-01 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-60 Bracket Brake Stand LH
195 817 00 06-12 Screw 3/8-16 x 3/4
241 532 15 29-27 Screw TT #10-32 5 3/8 Flange
242 532 41 55-98 Port Washout
254 585 31 68-05 Plate Reinforcement Front
255 585 31 70-05 Plate Reinforcement 42"
256 539 10 98-00 Carriage Bolt 1/4-20 x 1
257 873 90 04-00 Nut Hex Flange 1/4-20 x 1
- - 532 41 64-05 Coupling Quick connect
- - 587 25 33-01 Mandrel Assembly (Includes hous-
ing(Key#14),shaftassembly(Key#
13), and bearing (Key# 15) and nut
(Key# 33) only - pulley/washer and
blade bolt/washers not included.)
- - 532 44 78-93 Replacement Mower, Complete

16
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49

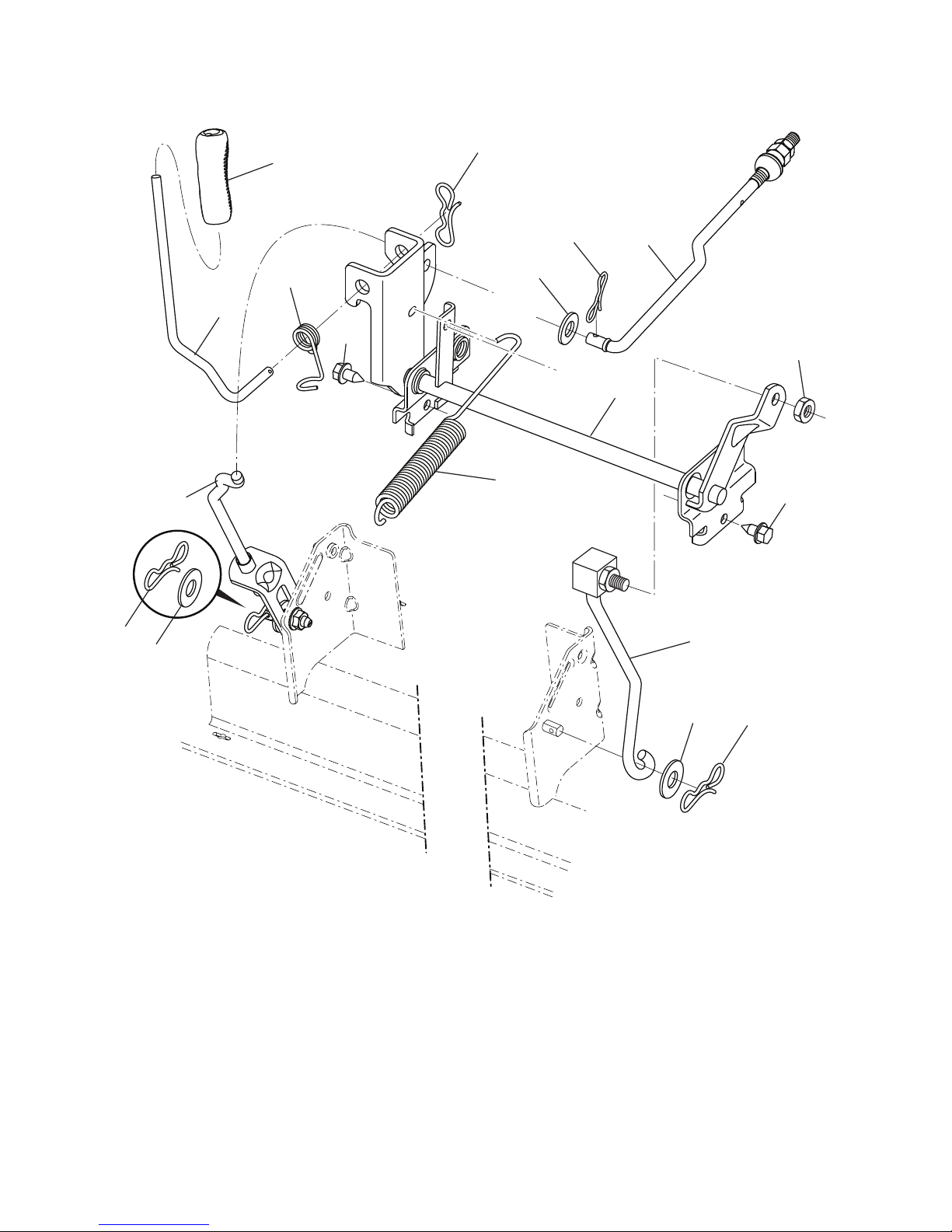

MOWER LIFT
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
17 819 15 15-16 Washer 15/32 x 15/16 x 16 Ga.
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Asm Lift Rear
97 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm. Fixed
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
17
90 98
97
97
lift-tex_37 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87

17
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
SEAT ASSEMBLY
1 532 43 98-19 Seat
2 532 18 01-66 Bracket Pivot Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 589 48 55-01 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 587 23 20-02 Pan, Seat
21 587 90 78-01 Bolt, Shoulder 5/16-18 x 5/8
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 501 05 18-01 Washer Winged
46 588 09 04-01 Bolt 3/8-16 x 1, 1.25
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
7
8
7
8
seat-tex_6.5SL_15
8
8
1
40
10
41
44
43
44
43 2
6
6
37
37
21
21
46
KEY PART
NO. NO. DESCRIPTION

18
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle
9 532 13 84-68 Tire Rear 20 x 8-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 581 57 89-01 Decal, Fender Warn./Instructions
2 581 62 73-01 Decal, Hood Logo
4 592 88 89-01 Decal, Panel Side
5 532 42 38-29 Decal, Customer Respons.
6 592 87 71-01 Decal, Replacement
7 584 90 46-01 Decal, Deflect. Warning
12 581 58 00-01 Decal, Mower V-Belt Schematic
- - 581 72 48-01 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 115 93 31-27 Manual, Operator's
(English/Spanish)
- - 115 93 32-27 Manual, Parts (English/Spanish)
- - 587 71 00-26 Manual, Quick Start Guide
(English/Spanish)
TRACTOR - - MODEL NUMBER YTH1942 (96043024900), PRODUCT NO. 960 43 02-49
DECALS
1
12
2 5 62
4
7

19
TRACTOR - - MODELO NO. YTH1942 (96043024900), PRODUCTO NO. 960 43 02-49
HUSQVARNA ENGINE (608 CC)
2 3 4 5
6
7
8910
12
13
17
15 16 19
20
22 23
25
26
31
28 29
34 35 36
37
38
39
30
33
24
27
21
1
1A

20
TRACTOR - - MODELO NO. YTH1942 (96043024900), PRODUCTO NO. 960 43 02-49
HUSQVARNA ENGINE (608 CC)
Item PART
NO. NO. DESCRIPTION QTY.
1 591166101 CYLINDER HEAD COMP KIT 1
1A 591166001 SPARK PLUG 1
2 590901901 SOLENOID KIT 1
3 590902001 CARBURETOR KIT 1
4 590902101 AIR CLEANER KIT 1
5 590902201 GASKET AND SEAL KIT 1
6 590903001 PISTON AND RING SET,PISTON KIT 1
7 590903101 FAN COOLING ANDFAN COOLING COVER KIT 1
8 590903201 REED VALVE KIT 1
9 590903301 VALVE, BREATHER KIT 1
10 590903401 START COVER KIT 1
12 591042401 VALVE KIT 1
13 591042501 CYLINDER HEAD KIT 1
15 591042701 AIR DEFLECTOR KIT 1
16 591042801 CRANKCASE BODY KIT 1
17 591042901 AIR FILTER 1
19 591043101 BREATHER TUBE KIT 1
20 591043201 CRANKCASE COVER KIT 1
21 591043301 OIL FILTER 1
22 591043401 CAMSHAFT/BALANCING SHAFT KIT 1
23 591043501 THROTTLE LEVER KIT 1
24 591043701 EXHAUST PIPE KIT 1
25 591043801 FILLER TUBE KIT 1
26 591043901 SPEED REGULATING ARM KIT 1
27 591044001 IGNITION COIL ASSY 1
28 591044101 VOLTAGE RECTIFIER KIT 1
29 591044201 SIDE PLATE KIT 1
30 591044301 BOLT KIT 1
31 591044501 GOVENOR GEAR 1
33 591044701 STARTER MOTOR KIT 1
34 592950701 CRANK SHAFT KIT 1
35 592950801 CHARGING ARMATURE KIT 1
36 592950901 FLYWHEEL KIT 1
37 592951001 OIL STRAIN KIT 1
38 591044601 CAM SHAFT KIT 1
39 592964601 COOLING FAN COVER KIT 1
