Husqvarna YTH2042 User manual

YTH2042
Owner's Manual
532 43 56-85

26
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

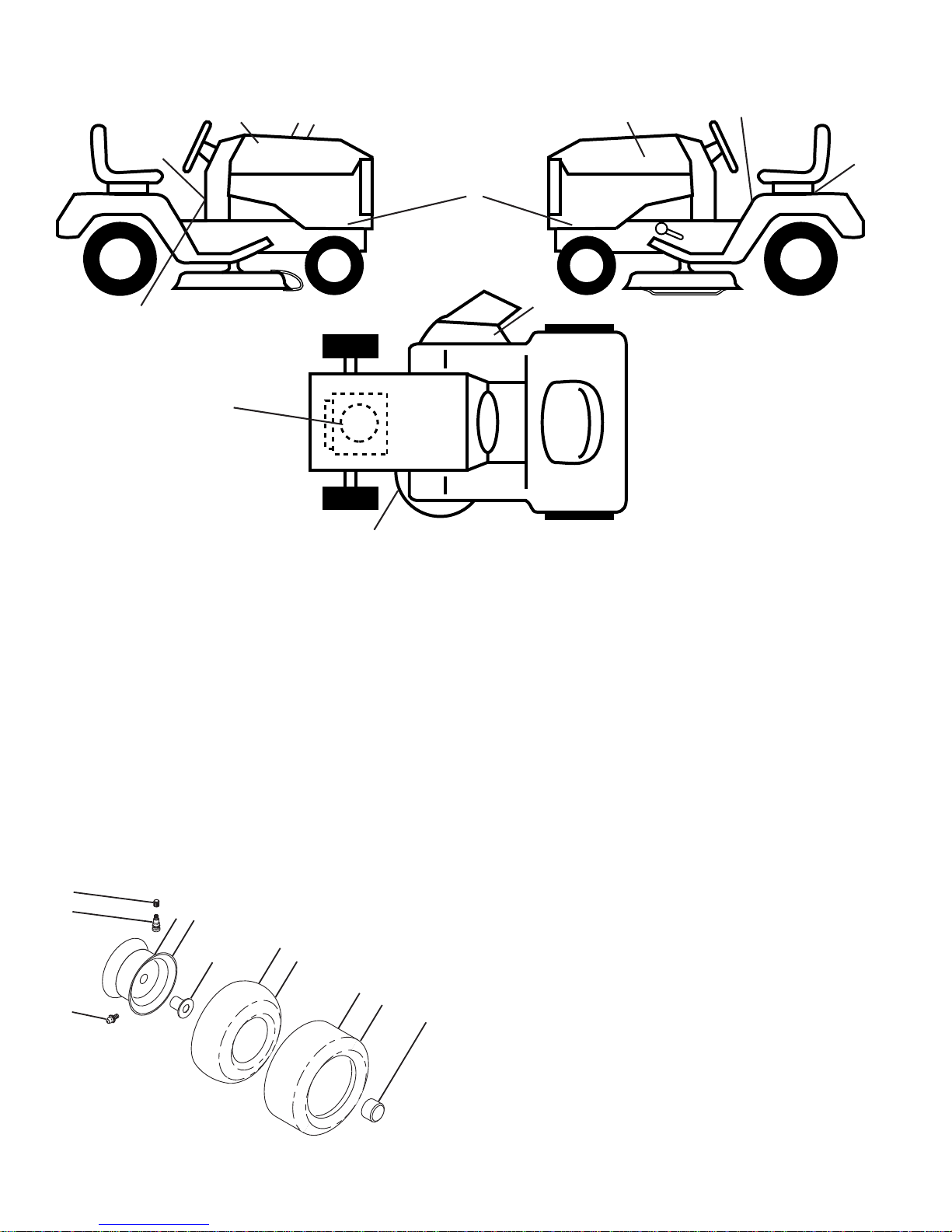

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire Rear 18 x 9.5-8 "Turf Saver LT"
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-58 Decal, Fender Warn./Instructions
2 532 42 91-96 Decal, Badge Logo
3 532 42 41-02 Decal, Warning Spark Arrestor
4 532 41 06-42 Decal, Hood Panel
5 532 42 38-29 Decal, Customer Respons.
6 532 43 33-90 Decal, Replacement
7 532 43 06-26 Label Emiss. CA.
8 532 42 95-51 Decal, Engine
9 532 14 50-05 Decal, Battery Dnge/Poi
11 532 17 05-63 Decal, Warning
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 10-56 Pad, Footrest, RH
- - 532 43 56-85 Manual, Owner's (English)
- - 532 43 56-86 Manual, Owner's (French)
11
1
12
7
2 5 6
8
2
9
3
4
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
DECALS

27
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
D
E
R
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

28
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

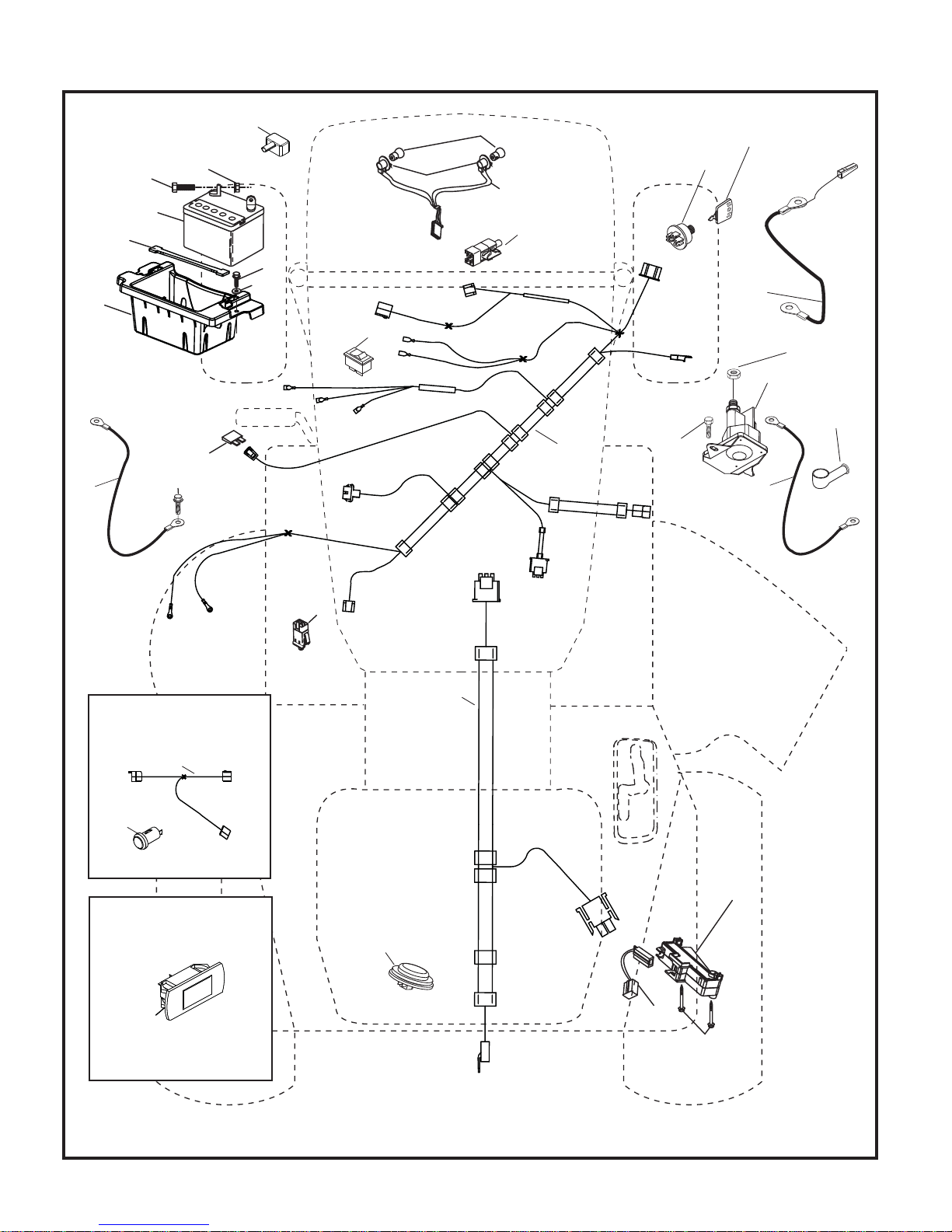

ELECTRICAL
30 33
34
90
22
79 21
41
42
26
8
1
99
100
91
227
43 27
24
40
71
28
55
16
87
With 12V Outlet Option
59
103
With Service Minder Option
4646
25
T01S
94
92
29
93

29
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 41 41-25 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
24 532 40 02-53 Cable Battery
25 532 41 28-95 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 532 19 42-76 Harness Chassis
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 40 07-24 Cover, Terminal Battery
91 532 19 02-70 Strap Battery Mount Front
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

30
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

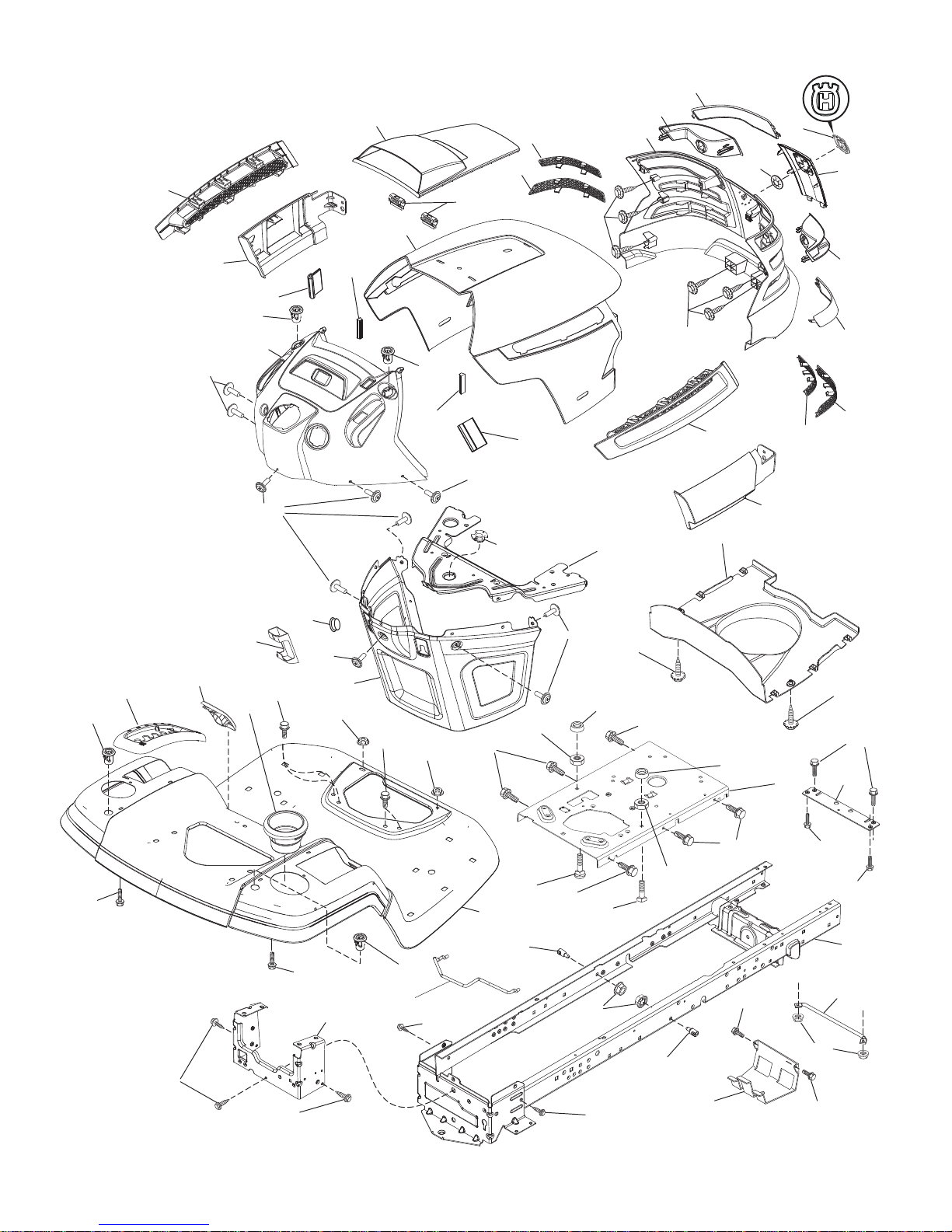

CHASSIS
chassis-tex_TEX GT HUSQ_90
150
130
130
37
194
194
181
181
162
196
287
138 36
36
182
176 176
175
177
195
14
214
130
130
176
202
203
204 210
208
18
15
25
207
211
209
212
5
176
176
205
206
181
181
137
137
234
234
298 238
3
52
217
189
189
152
68
68
213
218
228
228
194
180
58
189
189
159
159
68
68
68
68
183
183
236
236
34
235
235
289
165
161

31
3 532 40 50-12 Logo
5 532 40 87-04 Dash
14 532 41 10-46 Hood
15 532 19 89-07 Lens LH
18 532 40 86-07 Grille
25 532 19 89-06 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 42 36-94 Fender
52 873 68 05-00 Nut Crown Lock 5/16
58 532 41 22-80 Drawbar Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
137 532 40 75-90 Bumper Dash
138 532 40 29-54 Cupholder
150 532 19 85-14 Air Duct
152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw Hexwash Thor 3/8-16 x 3/4
161 532 40 49-41 Window Fuel
162 532 14 24-32 Screw
165 532 19 68-26 Support Tank Rear
175 532 19 63-04 Crossmember Plate
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
180 532 41 50-63 Chassis
181 532 40 30-25 Bushing Mtg. Fender Crgo
182 532 40 68-59 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4 Full Thd
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Dash
196 532 41 45-80 Console Asm. Deck Lift
202 532 40 30-48 Vent Side Hood RH
203 532 40 30-76 Vent Side Hood LH
204 532 41 66-13 Vent Top Hood
205 532 40 17-09 Skirt Side RH
206 532 40 17-11 Skirt Side LH
207 532 19 71-98 Bezel RH
208 532 19 71-99 Bezel LH
209 532 19 91-30 Insert Hex Top RH
210 532 19 91-31 Insert Hex Top LH
211 532 19 91-32 Insert Hex Bottom RH
212 532 19 91-33 Insert Hex Bottom LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
238 532 40 86-06 Trim
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
289 532 40 35-71 Plug Cruise/Phone
298 532 11 04-52 Nut Push
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION

32
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

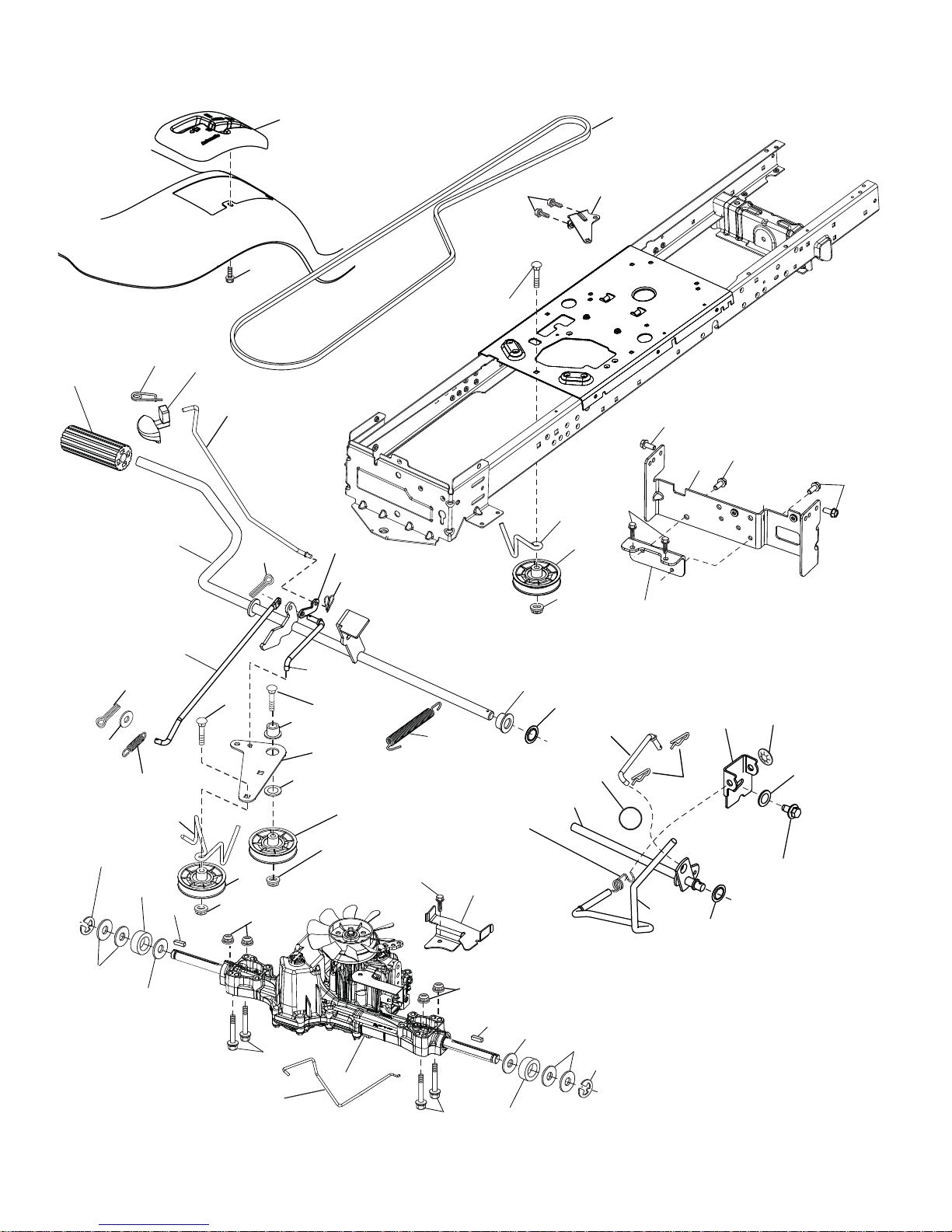

DRIVE
56
185
51
231
170
64
161
184
42
216
143
125
226
125
125
80 125
221
211
175
279 176
178
174
22
23
166
232
153 233
166
159
15
35
167
160
188
186
189
49
29
187
50
51
52
51
190
185
159
116
116
drive-tex_K46_fender_18
225
125
2
2
73
73
33
205
1
33
230
230
183
183
205
99
70
74
17

33
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
DRIVE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle, Tufftorq K46BA
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 14 08-45 Knob
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 95-91 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 41 14-74 Console
73 874 49 05-44 Bolt Hex 5/16-18 Gr. 5
74 532 14 24-32 Screw 1/4 x 1/2
80 532 41 00-24 Strap Torque
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw THDROL 5/16-18
153 532 12 47-88 Retainer Spring 1"
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
174 532 19 72-89 Nut Push
175 532 40 85-39 Shaft Asm Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer Axle
184 532 40 31-18 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
211 532 19 62-12 Bushing Shaft
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
225 532 40 33-19 Keeper Belt Transaxle
226 532 40 15-64 Bracket Mount Torque
230 532 18 89-67 Washer Harden .793 x 1.637 x 060
231 532 40 72-87 Idler V-Groove 1.688" Offset
232 874 78 07-16 Bolt 7/16-14 x 1 Gr 5
233 532 40 52-96 Washer Serrated
279 532 41 31-50 Link Shift

34
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

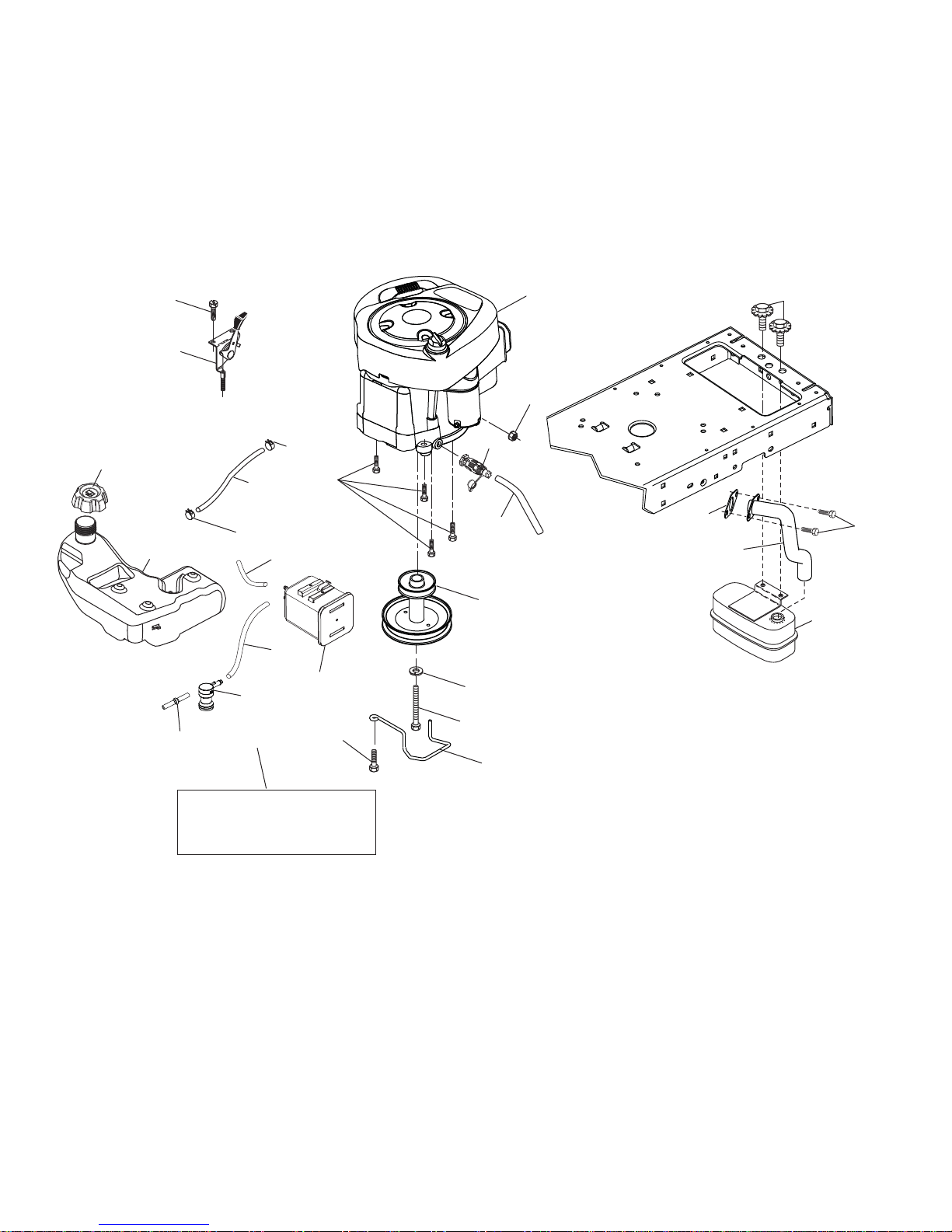

ENGINE
21
20
OPTIONAL EQUIPMENT
SPARK ARRESTER
29
engine-tex_BS_48
12
42
85
9
90
84
45
1
81
82
94
69
2
87
79
37
28
37
18
15
28
113
110
109
111

35
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
1 - - - - - - Engine Briggs Model No. 331777-
1457-G1
2 532 18 86-55 Muffler
9 532 19 43-20 Keeper Belt Engine
12 532 40 54-71 Pulley Engine
15 532 41 41-51 Tank Fuel
18 532 43 02-13 Cap Asm
20 532 40 15-08 Control Throttle/Choke
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x 3/4
81 532 14 84-56 Tube Drain Oil Easy
82 532 42 82-87 Valve Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
87 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/sems
90 817 00 06-16 Screw 3/8-16 x 1
94 532 40 54-50 Exhaust Tube
109 532 41 41-14 Canister Carbon Filter Asm
110 532 41 41-18 Valve Anti Slosh
111 532 41 41-19 Purge Line
113 532 41 41-27 Valve Slant Cartrdg
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En-
gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values
are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat-
ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and
the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross
power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety
of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.

36
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

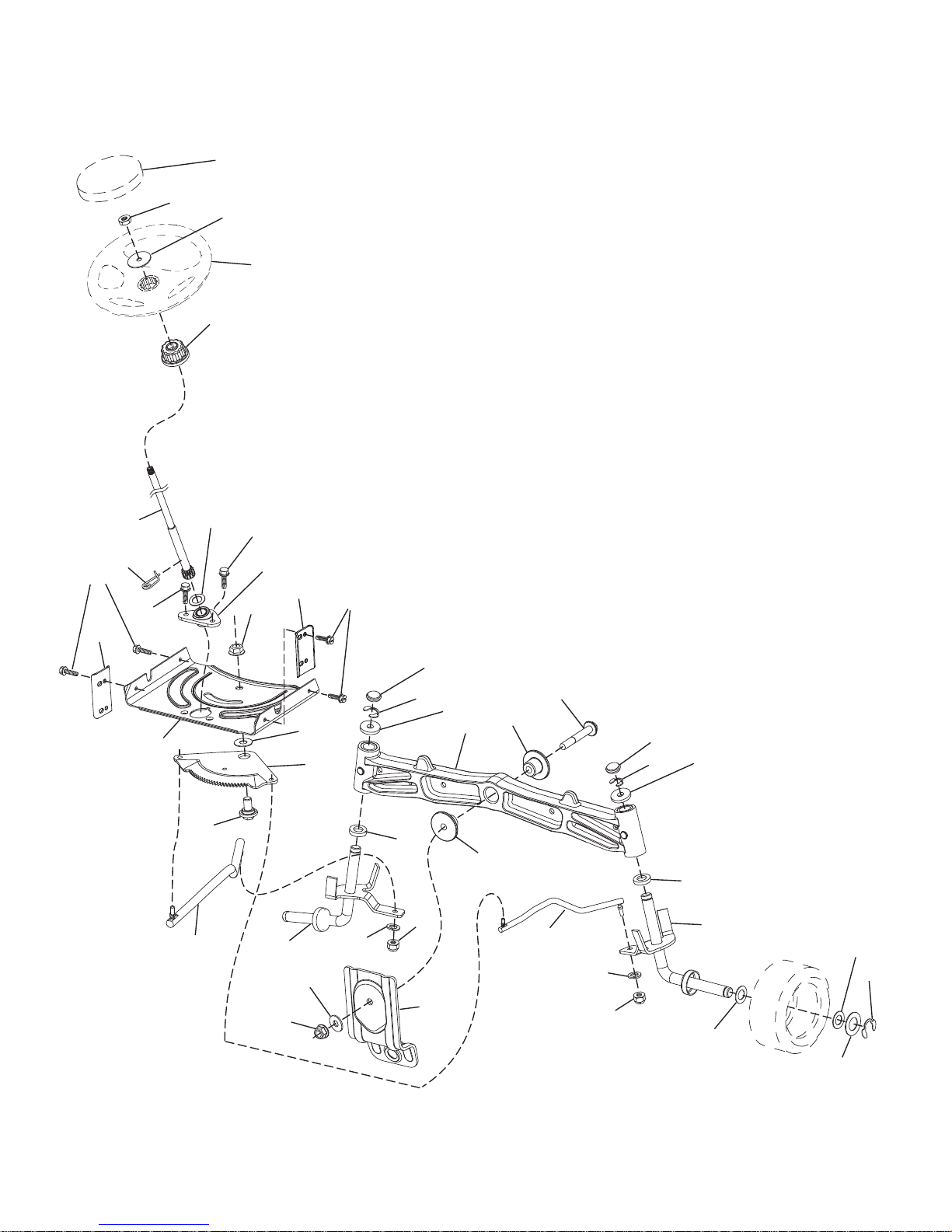

STEERING ASSEMBLY
62
35
19
60
59
70
68
69
15
14
61
steering-tex_HUSQHR_3
16
28
28
13
22
64
21
45
415
14
1
26
58
5
13
13
53
8
67
67
66
6
6
2
9
87
9
87
63
57
57
63
51

37
KEY PART
NO. NO. DESCRIPTION
1 532 42 34-69 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Strg. Supt. Lower
26 532 41 59-87 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 GZIN
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
STEERING ASSEMBLY

38
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
MOWER DECK
68
30
42
43
60
38
63
46
147
55
64
47
30
30
32
38
195
122
123
195
31
33
34
56
56 57
59
62
188
189
1
69
21
21
69
69
20
40
145
42_D_man-tex_LT_33_r3
15
14
13
11
8
21
24
25
26
27
29
23
189
188
144
36
113
113
40
57
19
19
6
6
242
192
241
70
7
7
37
67
152
117 119
116
118
117
116
118
119

39
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 40 29-99 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 41 63-58 Screw #10 x .750 BOS Thread
8 532 19 30-03 Bolt/Washer Asm 7/16-20 unf
11 532 13 89-71 Blade, 42" Hi-Lift
(For bagging or discharge)
- - 532 13 41-49 Blade, 42" Mulching Std
(For mulching mowers only)
- - 532 13 97-75 Blade, 42" Mulching Premium
(For better wear when mulching)
- - 532 42 47-52 Blade 42SP" 3N1
- - 532 42 27-19 Blade 42SP" 3N1 Premium
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
20 532 15 97-70 Baffle, Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 30-04 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
37 819 13 13-16 Washer
38 532 43 25-20 Keeper Belt Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
47 532 19 72-50 Bracket Clutch Cable
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 72-61 Arm Brake Mower
62 872 11 06-16 Bolt Rd Hd Sq Nk 3/8-16 unc x 2
63 532 19 94-77 Arm Brake Mower
64 532 19 99-18 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 42 96-36 V-Belt
69 872 14 05-05 Bolt
70 532 40 65-63 Clutch Asm Manual
113 817 00 05-10 Screw 5/16-18
116 532 12 48-42 Bolt, Shoulder
117 532 18 86-06 Wheel, Gauge
118 873 93 06-00 Nut, Crownlock 3/8-1
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 92-04 Keeper Belt
145 532 19 31-97 Pulley Idler
147 532 40 19-71 Spring Return
152 532 40 83-19 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
192 532 19 72-60 Bracket Brake Stand LH
195 817 00 06-12 Screw 3/8-16 x 3/4
241 532 15 29-27 Screw TT #10-32 5 3/8 Flange
242 532 41 55-98 Port Washout
- - 532 41 64-05 Coupling Quick connect
- - 532 19 28-70 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 43 29-37 Replacement Mower, Complete

40
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06
MOWER LIFT
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Asm Lift LH Rear
97 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm. Lift FXD
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
89
90
87
98
97
97
lift-tex_22
91
101*
89 87
100
*Key 91 may be substituted for Key 101

41
TRACTOR - - MODEL NUMBER YTH2042 (96043010602), PRODUCT NO. 960 43 01-06

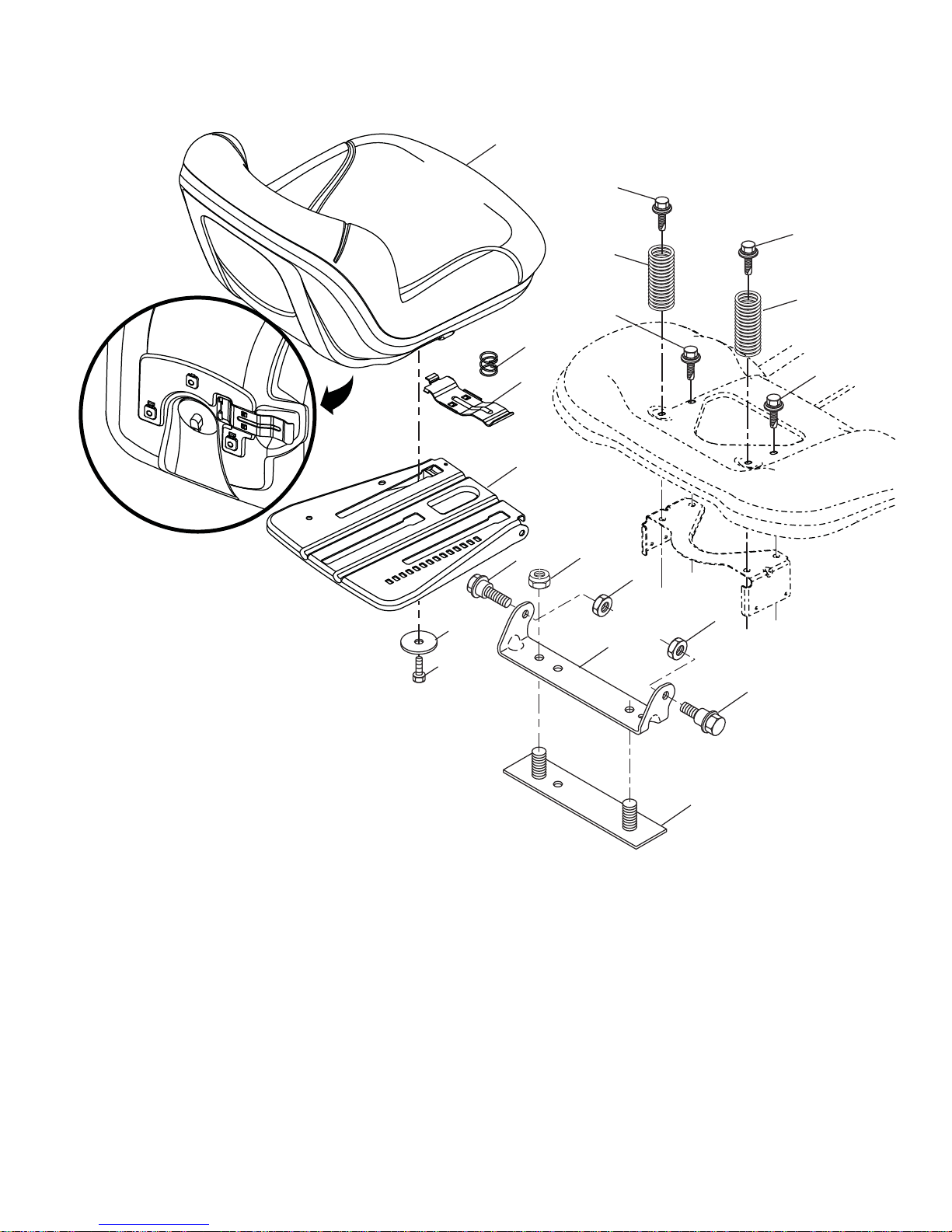

SEAT ASSEMBLY
1 532 42 40-67 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6-tex LT
44
43
KEY PART
NO. NO. DESCRIPTION

42
SERVICE NOTES

43
15DEGREESMAX.
FOLD ALONGDOTTED LINE
THISISA 15DEGREE SLOPE
ONLY RIDE UP AND DOWN HILL,
NOT ACROSS HILL
SUGGESTED GUIDE FOR SIGHTINGSLOPESFOR SAFE OPERATION
WARNING: To avoid serious injury, operate your tractor up and
down the face of slopes, never across the face.Do not mow
slopesgreater than 15degrees. Make turnsgradually to prevent
tipping or loss of control.Exercise extreme caution when
changing direction on slopes.
1.Fold this page along dotted line indicated above.
2.Hold page before youso that itsleft edge is vertically parallel to a tree
trunk or other upright structure.
3. Sight across the fold in the direction of hill slope youwant to measure.
4.Compare the angle of the fold with the slope of the hill.

03.15.10 JA Printed in the U.S.A.
