Hussmann Insight User manual

Installaon & Operaon Manual
P/N 3032067_E
April 2023
Spanish P/N 3032068
Shipped With Case Data Sheets
MANUAL - IO Insight Low Temperature
Keep in store for future reference!
IMPORTANT
LOW TEMPERATURE

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
ii
This warning does not mean that Hussmann products
will cause cancer or reproductive harm, or is in
violation of any product-safety standards or
requirements. As clarified by the California State
government, Proposition 65 can be considered more of
a‘right to know’ law than a pure product safetylaw.
When used as designed, Hussmann believes that our
products are notharmful. We provide the Proposition
65 warning to stay in compliance with California State
law. It is your responsibility to provide accurate
Proposition 65 warning labels to your customers when
necessary. For more information on Proposition 65,
please visit the California State government website.
August 31, 2018
BEFORE YOU BEGIN
Read these instructions completely and carefully.
This manual was written in accordance with originally prescribed equipment that is
subject to change. Hussmann reserves the right to change or revise specifications
and product design in connection with any feature of our products.
PERSONAL PROTECTION EQUIPMENT (PPE)
Only qualied personnel should install and service this equipment. Personal
Protection Equipment (PPE) is required whenever servicing this equipment.
Wear safety glasses, gloves, protective boots or shoes, long pants, and a long-
sleeve shirt when working with this equipment and handling glass. Observe all
precautions on tags, stickers, labels and literature attached to this equipment.
This warning does not mean that Hussmann products
will cause cancer or reproductive harm, or is in
violation of any product-safety standards or
requirements. As clarified by the California State
government, Proposition 65 can be considered more of
a‘right to know’ law than a pure product safetylaw.
When used as designed, Hussmann believes that our
products are notharmful. We provide the Proposition
65 warning to stay in compliance with California State
law. It is your responsibility to provide accurate
Proposition 65 warning labels to your customers when
necessary. For more information on Proposition 65,
please visit the California State government website.
August 31, 2018

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E iii
Low Temperature Merchandisers
ANSI Z535.5 DEFINITIONS ...................iv
INSTALLATION TOOL LIST .................iv
INSTALLATION
UL Listing .................................1-1
Fed State Regs ..............................1-1
Location ...................................1-1
Product Temperatures ........................1-1
Shipping Damage ...........................1-2
Unloading..................................1-2
Exterior Loading ............................1-2
Unloading Using a Pallet Jack..................1-3
Optional Casters and Dollies ..................1-3
Serial Plate Location .........................1-3
QR Code ..................................1-3
Merchandisers Shipped with End Installed ........1-4
End Shipping Braces .........................1-4
Shipping Rider ..............................1-4
Merchandiser Leveling ........................1-4
Joining Cases in a Lineup......................1-6
Applying Gaskets ...........................1-7
Sealing Lineup Joint ........................1-11
Installing End Assemblies ....................1-12
Installing Bumpers ..........................1-14
REFRIGERATION / ELECTRICAL
Refrigerant .................................2-1
Refrigerant Piping ...........................2-1
Back Wall Piping Penetrations ................2-2
Multiplexing ..............................2-2
Line Sizing ...............................2-3
Oil Traps .................................2-3
Pressure Drop .............................2-3
Insulation ..................................2-3
Suction Line ................................2-3
Liquid Line ................................2-3
Refrigeration Thermostat .....................2-3
Defrost Sequences ...........................2-4
Merchandiser Electrical Data ..................2-4
Electrical Connections ........................2-4
Field Wiring ................................2-4
Identication of Wiring .......................2-4
Handling Electrostatic Sensitive Devices
(Fan Selector) ..............................2-5
Installing Type II Fan Speed Selector Kit .........2-7
DRIP PIPING / SPLASHGUARDS
Waste Outlet and Water Seal ...................3-1
Installing Drip Piping.........................3-1
Installing End Splashguards ...................3-3
Installing Splashguard Brackets ................3-4
Installing Splashguards .......................3-5
Splashguard Alignment .......................3-6
START UP / OPERATION
Start Up / Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Load Limits ................................4-1
Stocking ...................................4-1
Installing FDA/NSF Required Thermometer ......4-2
MAINTENANCE
Care and Cleaning ...........................5-1
Fan Plenum ...............................5-1
Removable Return Air Grilles ................5-1
Fascia Panels ..............................5-2
Exterior Surfaces ...........................5-2
Interior Surfaces ...........................5-2
Recommended Cleaning Instructions ............5-3
Weekly or Monthly .........................5-3
Quarterly or Semiannually ...................5-3
Cleaning Honeycomb Assemblies ...............5-4
Cleaning Mirrors ............................5-5
Removing Interior Back Panels .................5-5
Bottom Liner Repair .........................5-6
Cleaning Coils ..............................5-7
Cleaning Stainless Steel Front Rails .............5-7
Removing Scratches from Bumper ..............5-7
Cleaning Under Merchandisers ................5-7
SERVICE
Replacing Fan Motors ........................6-1
Repairing Aluminum Coil .....................6-3
Warranty Information .............................6-4
TABLE OF CONTENTS

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
iv
MANUAL REVISION HISTORY
REVISION E
1. Removed Page 5-4; Revised fan motor service
instructions, Page 6-1, 6-2. Updated cleaning procedures,
Page 5-1. Updated warning colors
REVISION D
1. Revised procedures for fan motor harness connector,
Section 5 & 6.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury.
NOTICE is used to address practices not
related to personal injury.
SAFETY INSTRUCTIONS (or equivalent)
signs indicate specic safety-related
instructions or procedures.
ANSI Z535.5 DEFINITIONS
The denitions below are used to clarify the magnitude and urgency of harm and damage, considering
problems arising from misuse. Relative to their potential danger, the definitions are divided
into four parts according to ANSI Z535 Series.
INSIGHT INSTALLATION
TOOL LIST
(recommended)
—¦—
Unloading From Trailer:
Lever Bar (also known as a Mule,
Johnson Bar, J-bar, Lever Dolly, and pry lever)
Moving Dolly
—¦—
Setting Case Line-Up:
Level, 4 ft (suggested)
Ratchet
¼in. Socket Drill Bit
5/16 in. Socket Drill Bit
½in. Socket - Deep Drill Bit
½in. Open End Wrench
Cordless Impact Drill
Caulking Gun
10 in. Adjustable Crescent Wrench
Pallet Jack

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-1
Low Temperature Merchandisers
UL LISTING
These merchandisers are manufactured to
meet ANSI/ UL 471 standard requirements for
safety. Proper installation is required to main-
tain the listing.
FEDERAL / STATE REGULATION
These merchandisers at the time they are man-
ufactured, meet all federal and state/ provincial
regulations. Proper installation is required to
ensure these standards are maintained. Near
the serial plate, each merchandiser carries a
label identifying the environment for which the
merchandiser was designed for use. A Type II
fan speed control kit is required for each mer-
chandiser to operate at Type II conditions.
ANSI/NSF-7 Type I – Display Refrigerator / Freezer
Intended for 75°F (24°C) / 55%RH Ambient Application
ANSI/NSF-7 Type II – Display Refrigerator / Freezer
Intended for 80°F / 55%RH Ambient Application
ANSI/NSF-7 – Display Refrigerator
Intended for Bulk Produce
LOCATION
These merchandisers are designed for displaying
products in air conditioned stores where
temperature is maintained at or below the
ANSI/ NSF-7 specied level and relative
humidity is maintained at or below 55%.
Placing refrigerated merchandisers in direct
sunlight, near hot tables or near other heat
sources could impair their efciency. Like
other merchandisers, these are sensitive to air
disturbances. Air currents passing around
merchandisers will seriously impair their
operation. Do NOT allow air conditioning,
electric fans, open doors or windows, etc. to
create air currents around the merchandisers.
PRODUCT TEMPERATURE
Product should always be maintained at proper
temperature. This means that from the time the
product is received, through storage, preparation
and display, the temperature of the product
must be controlled to maximize product life.
INSTALLATION
Merchandiser must operate for 24 hours
before loading product!
Regularly check merchandiser temperatures.
Do not break the cold chain. Keep products in
cooler or freezer before loading into merchandiser.
Medium temperature merchandisers are designed
for loading ONLY pre-chilled products.
Low temperature merchandisers are designed
for loading ONLY frozen products.
A 1.5inch (38 mm) space between the rear
of the merchandiser and wall must be main-
tained for air circulation. However, in high
ambient conditions, sweating may still occur.
If this happens install a method of forced
ventilation such as a fan ventilation kit.
»Use caution when working around refrigeration
lines or water lines. Damage to equipment and/
or personal injury could occur.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-2
SHIPPING DAMAGE
All equipment should be thoroughly examined
for shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must
be made to the carrier. The carrier will provide
any necessary inspection reports and/or claim
forms.
Apparent Loss or Damage
If there is an obvious loss or damage, it must be
noted on the freight bill or express receipt and
signed by the carrier’s agent; otherwise, carrier
may refuse claim.
Concealed Loss or Damage
When loss or damage is not apparent until after
equipment is uncrated, retain all packing materials
and submit a written request to the carrier for
inspection, within 15 days.
UNLOADING
Improper handling may cause damage to the
merchandiser when unloading. Use the shipping
brace and arched pod locations to lift when
unloading cases.
1. Do not drag the merchandiser out of the
trailer. Use a Johnson bar (mule).
2. Do not lift the case by the liner. Lift with
the metal case base, arched plastic pods or the
shipping brace.
3. Do not lift from the bottom edge of the end
cap.
EXTERIOR LOADING
Do NOT walk on top or inside of merchandisers
or damage to the merchandisers and serious
personal injury could occur. They are noT
sTrucTurally designed To supporT excessive
exTernal loading such as the weight of a person.
Use caution when working around refrigera-
tion lines or water lines, damage to equipment
and personal injury could occur.
»If the case is to be moved using a fork lift,
position the forks of the lift directly under the
arched pods or shipping rails. Use extreme
caution when transporting cases. Personal injury
or death could result if a case falls on personnel.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
»Do not walk on case. Do not store items or
ammable materials atop the case.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-3
Low Temperature Merchandisers

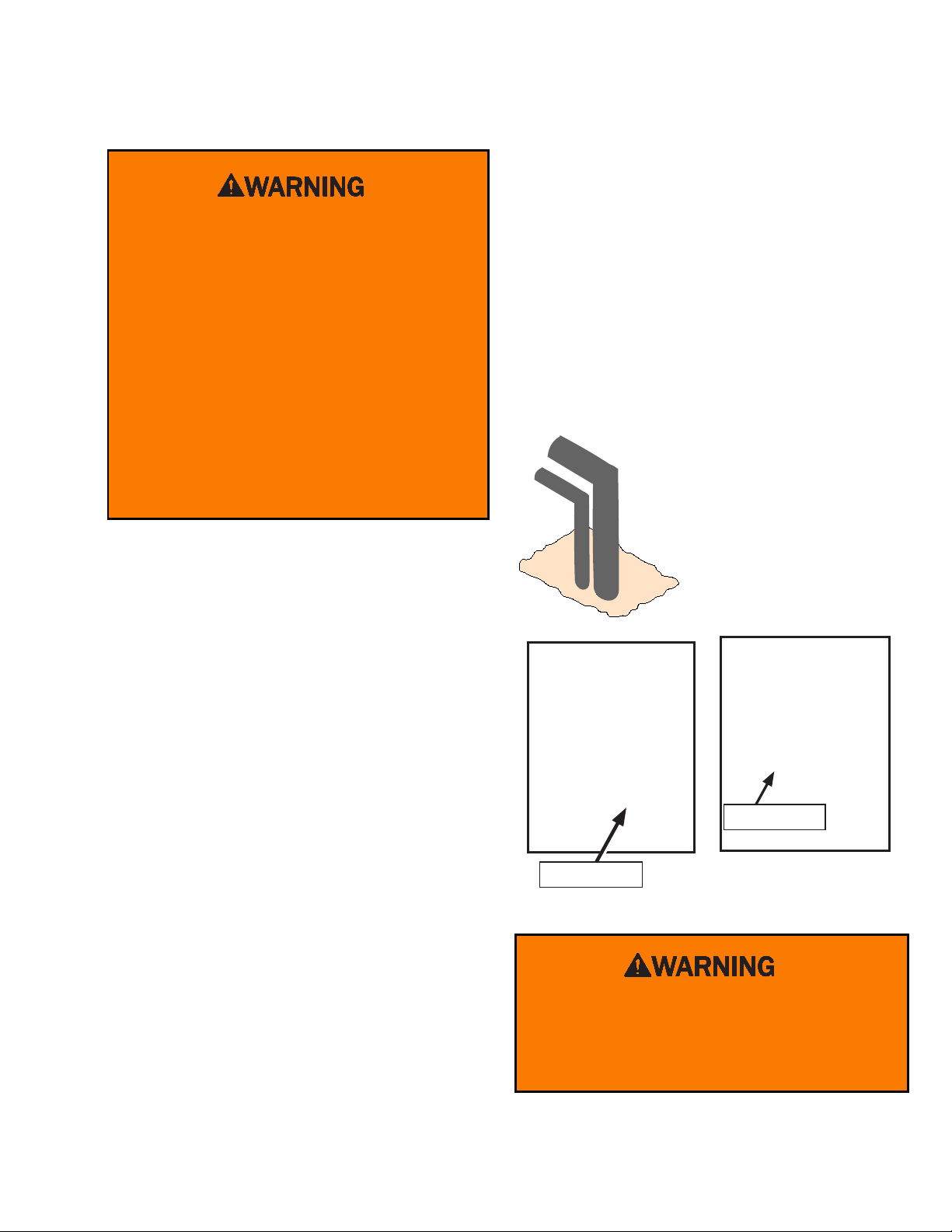

UNLOADING USING A PALLET JACK
A pallet jack is also very helpful in moving a
merchandiser to its permanent location. It can
also be used to remove optional casters or to
shim the case.
OPTIONAL CASTERS AND DOLLIES
Cases may be equipped with factory installed
casters or dollies. Instructions for removing
the casters or dollies are included in a separate
document, shipped with the case. Use caution
when transporting cases from the truck to the
store location.
SERIAL PLATE LOCATION
Serial plates are located on the left side, facing
the case. The serial plate contains information
about the specic model and its operating
parameters.
QR CODE
Insight cases have a QR code located on the
serial plate. Once you scan the QR code with a
smart phone, all of the information about that
case will be at your ngertips. Links to installation
videos, data sheets with case specications, the
installation and operation manual, as well as a
link to replacement parts from Hussmann’s
Performance Parts Website.
»Use caution when moving cases with casters
or dollies. Damage to equipment and personal
injury could occur from improper handling.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
Case Caster
Serial Plate behind
return air grille
(single-deck)

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-4
MERCHANDISERS SHIPPED
WITH END INSTALLED
If the merchandiser was shipped with the end
installed, two long bolts were used to hold the
shipping brace to the end. If the shipping bolts
are reinserted after removing the brace, they
will extend into the product area. Therefore, be
sure To replace These bolTs wiTh The shorTer
bolTs provided.NSF requires any bolt or screw
in the product area be capped or cut off if it
has more than three exposed threads.
Be careful not to damage the factory
installed end while moving the
merchandiser.
END SHIPPING BRACES
Move the merchandiser as close as possible to
its permanent location, then remove all packaging.
Check for damage before discarding packaging.
Remove all separately packed accessories such
as kits and shelves.
Do not remove end braces until joining begins.
Recycle wooden braces and hardware.
SHIPPING RIDER
Some merchandisers are shipped on a rider to
protect the factory installed front legs, and to
make positioning the merchandiser easier. To
remove the rider, remove bolts attaching rider to
each leg.
MERCHANDISER LEVELING
Merchandisers must be installed level to ensure
proper operation of the refrigeration system
and to ensure proper drainage of defrost water.
Pay close attention to case position during all
steps of setting, joining and leveling.
NOTE: Begin lineup leveling from the highest
point of the store floor.
Preparation
1. Using store blueprints, measure off and
mark on oor the exact dimensions/locations
of the merchandiser footprint. A 1½ inch space
is required behind each merchandiser to prevent
condensation.
2. Snap a chalk line for the front and rear
positions of the base pods.
3. Mark the location of each joint from front
to back lines.
4. use supplied shims To level case.Shims are to
be inserted under the black, plastic base pods.
»Do not remove shipping braces
until the merchandisers are
positioned for installation.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
»Tipping Hazard! Case tipping may occur if cases are
not properly leveled and secured, or if cases are not
properly loaded.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
Shim
Shim
Shim Case

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-5
Low Temperature Merchandisers
Case Lineup Leveling
1. FLOORS ARE NOT LEVEL! The
whole lineup must be leveled on the same
plane, left to right and front to back. This
means that the entire lineup must be brought
up to the level of the highest case in the lineup.
Along the lines previously marked, nd the
highest point of the oor by:
• Walking the oor and noticing any dips or
mounds;
• Using a string level; and
• Using a transit.
2. Position the rst merchandiser at the highest
point on the oor. Work outward from that
point to create the merchandiser lineup.
3. Use a 48 inch (1220mm) or longer level for
end-to-end leveling. The rear edge of the top
foam panel of the merchandiser is a good location
for the level at the rear of the case.
4. For leveling the merchandiser front-to-rear,
a 24 inch (610 mm) level should be placed on
the lower ange of the merchandiser end frame.
If the merchandiser has a factory installed end,
the level should be placed on the canopy support
brackets on top of the merchandiser. Suggested
level locations are shown in the illustration.
Pallett Jack
Shim
Shim
Pallett Jack

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-6
Bolt-5/16 x 4 1/2
Bolt-5/16 x 7
Washer Flat-5/16
Nut Hex-3/8 Serr Flange
Nut Hex-5/16
Bolt-5/16 x 2 3/4
Bolt-5/16 x 3/4
Pin-Alignment
Cone-Alignment
Washer Lock-5/16
Cover-Handrail Joint
Washer Lock-1/4
Nut Hex-1/4
Screw-Cap 1/4 x 3/4
Plate-Bottom Door Rail Alignment
Bracket-Case Joining
Bracket-Fascia Alignment IC2 & IC3
Screw-Sheet Metal #8 x 5/8
JOINING CASES IN A LINEUP
JOINING AND SEALING HARDWARE
Description
Multi Deck
Qty/Each
Convertible
Qty/Each
Single Deck
Qty/Each
Door Multi
Deck Qty/Each
SEALER SILICONE ADHESIVE
1 1 1 1
GASKET 1/2 X 1/2 X 180
2 1 1 2
SCREW-SHEET METAL #8 X 5/8 PHIL HX HD
N/A 1N/A N/A
SCREW-CAP 1/4 x 3/4 HEX
N/A N/A N/A 2
BOLT HEX CAP 5/16 x 3/4
1 1 1 1
BOLT 5/16 x 2 3/4 GRADE 5 ZINC PLATED TAP
2N/A N/A 2
BOLT- TAP, 5/16 x 4 1/2, STEEL, ZINC FINISH, GR5 (Qty Varies)
5 2 1 5
BOLT- TAP, 5/16 x 7, STEEL, ZINC FINISH, GR5
1 1 1 1
WASHER-FLAT 5/16" ZINC (Qty Varies)
13 5 3 13
LOCKWSHR 1/4 SPLT STL
N/A N/A N/A 2
LOCKWSHR 5/16 SPLT STL
1 1 1 1
NUT-HEX 1/4
N/A N/A N/A 2
NUT-HEX 5/16 STEEL ZINC FINISH GRADE 8 (Qty Varies)
9 4 3 9
NUT-HEX 3/8-24 SERRATED FLANGE
4N/A N/A 4
PIN-ALIGNMENT
1 1 1 N/A
CONE-CASE ALIGNMENT (Qty Varies)
4 2 2 4
PLATE-BOTT DOOR RAIL ALIGNMENT
N/A N/A N/A 1
BRACKET-CASE JOINING
4N/A N/A 4
BRACKET-FASCIA ALIGNMENT IC2 & IC3
N/A 1N/A N/A
COVER-HAND RAIL JOINT
1 1 1 N/A
TAPE-BUTYL 1/16 x 2" X 49"
1 1 1 1
Description Multi Deck
Qty/Each
Convertible
Qty/Each
Single Deck
Qty/Each
Door Multi
Deck Qty/Each
SEALER SILICONE ADHESIVE 1 1
1
1
GASKET 1/2 X 1/2 X 180 2 1
1
2
SCREW-SHEET METAL #8 X 5/8 PHIL HX HD N/A 1
N/A
N/A
SCREW-CAP 1/4 x 3/4 HEX N/A N/A
N/A
2
BOLT HEX CAP 5/16 x 3/4 1 1
1
1
BOLT 5/16 x 2 3/4 GRADE 5 ZINC PLATED TAP 2N/A
N/A
2
BOLT- TAP, 5/16 x 4 1/2, STEEL, ZINC FINISH, GR5 (Qty Varies) 5 2
1
5
BOLT- TAP, 5/16 x 7, STEEL, ZINC FINISH, GR5 1 1
1
1
WASHER-FLAT 5/16" ZINC (Qty Varies) 13 5
3
13
LOCKWSHR 1/4 SPLT STL N/A N/A
N/A
2
LOCKWSHR 5/16 SPLT STL 1 1
1
1
NUT-HEX 1/4 N/A N/A
N/A
2
NUT-HEX 5/16 STEEL ZINC FINISH GRADE 8 (Qty Varies) 9 4
3
9
NUT-HEX 3/8-24 SERRATED FLANGE 4N/A
N/A
4
PIN-ALIGNMENT 1 1
1
N/A
CONE-CASE ALIGNMENT (Qty Varies) 4 2
2
4
PLATE-BOTT DOOR RAIL ALIGNMENT N/A N/A
N/A
1
BRACKET-CASE JOINING 4N/A
N/A
4
BRACKET-FASCIA ALIGNMENT IC2 & IC3 N/A 1
N/A
N/A
COVER-HAND RAIL JOINT 1 1
1
N/A
TAPE-BUTYL 1/16 x 2" X 49" 1 1
1
1

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-7
Low Temperature Merchandisers
& ALIGNMENT CONE
& ALIGNMENT CONE
LEGEND:
A = 1/2 x 1/2 INCH GASKET
B = NEUTRAL CURING SILICONE SEALANT
C = PIN-ALIGNMENT
D = COVER-HAND RAIL JOINT
IMPORTANT:
Do not pull cases together with bolts. Cases must be moved
together as close as possible Follow sequence balloons to
tighten bolts.
Merchandiser case joint & end gasket to be applied on only one
side of joint.
Merchandiser partition gasket to be applied on both sides of
joint.
Remove end shipping braces as described on Page 1-4
Cases must be leveled as described on Page 1-5
Removed any casters - if installed
Install case lineup from left to right
Remove shelves, display racks, pans & interior back panels at
the joining area
Insert gasket into case channels the entire length with no gaps
Do not stretch gasket, especially around corners
Do not butt gaskets, always overlap them
Remove paper backing after gasket has been applied
Perimeter gasket is required by NSF
Apply a continuous bead of neutral curing silicone sealant
Joints must be air tight to prevent formation of ice or condensation.
APPLY GASKETS
(SINGLE-DECK)
IM1
Case bolting details begin on the
next page.

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-8
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRAC KE T
TO COMPLETE
JOINT
PUSH C OVER
IN THIS
DIRECTION
TO SNAP FIT
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C
55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRAC KE T
TO COMPLETE
JOINT
PUSH C OVER
IN THIS
DIRECTION
TO SNAP FIT
LEGEND:
C = PIN-ALIGNMENT
CASE JOINING (SINGLE DECK)
IM1
Refer to detail views
Do not pull cases together with bolts. Cases
must be moved together as close as possible.
Follow sequence balloons to tighten bolts.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-9
Low Temperature Merchandisers
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C
55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRAC KE T
TO COMPLETE
JOINT
PUSH C OVE R
IN THIS
DIRECTION
TO SNAP FIT
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRACKE T
TO COMPLETE
JOINT
PUSH C OVER
IN THIS
DIRECTION
TO SNAP FIT
CASE JOINING (SINGLE DECK)
IM1 / IP1
Refer to detail views
Slide Bracket to
complete Joint

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-10
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRACKE T
TO COMPLETE
JOINT
PUSH C OVER
IN THIS
DIRECTION
TO SNAP FIT
Cover-Hand
Rail Joint
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
&ALIGNMENT CONE
&ALIGNMENT CONE
C55/16 X 3/4 BOLT
C OVER-HAND RAIL JOINT
D
SLIDE BRACKE T
TO COMPLETE
JOINT
PUSH C OVER
IN THIS
DIRECTION
TO SNAP FIT
LEGEND:
D = COVER-HAND RAIL JOINT
CASE JOINING (SINGLE DECK)
IM1
25/16 X 4 1/2 BOLT
15/16 X 4 1/2 BOLT
35/16 X 7 BOLT
& ALIGNMENT CONE
& ALIGNMENT CONE
E
C
55/16 X 3/4 BOLT
COVER-HAND RAIL JOINT
D
SLIDE BRACKET
TO COMPLETE
JOINT
FACETED FASCIA
RIG HT SIDE VIE W
ELLIPSE FASCIA
RIGHT SIDE VIEW
F LAT F ASCIA
RIG HT SIDE VIE W
E
PUSH C O VE R
IN THIS
DIRE CTIO N
TO SNAP F IT
Push Cover
in this direction
to snap fit

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-11
Low Temperature Merchandisers
Seal Lineup Joints (all cases)
The joint between the two joined case must be
sealed for sanitation. Apply Butyl tape across
the case joint. Apply a long, continuous bead
of silicone to ll any gaps between the cases.
Be sure to start from the back and go all
the way to the air return as shown in the
illustration below.
Fill any gaps between cases with silicone.
Apply Neutral Curing Silicone Sealant
in any gaps between the Case Joints.
Apply Butyl Tape Apply Neutral Curing
Silicone Sealant
»Use caution when working around refrigeration
lines or water lines, damage to equipment and
personal injury could occur.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-12
Bolt-5/16 x 4 1/2
Washer Flat-5/16
Nut-Push 5/16
Nut Hex-5/16
Bolt-5/16 x 2 3/4
Nut-J Retainer
Button-Plug
Screw-sm #10 x 3/4 Hex Washer
IMPORTANT:
Do not pull cases together with bolts. Cases must be moved together
as close as possible. Follow sequence balloons to tighten bolts.
Apply case end gasket to only one side of case joint.
Remove end shipping braces as described on Page 1-4.
Cases must be leveled as described on Page 1-5.
Removed any casters - if installed.
Install case lineup from left to right.
Remove shelves, display racks, pans & interior
back panels at the joining area.
Insert gasket into case channels the entire length with no gaps.
Do not stretch gasket, especially around corners.
Do not butt gaskets, always overlap them.
Remove paper backing after gasket has been applied.
Perimeter gasket is required by NSF.
Apply a continuous bead of neutral curing silicone sealant.
Joints must be air tight to prevent formation of ice or condensation.
INSTALLING END ASSEMBLIES
Remove shipping brace. Brace screws will be replaced with shorter screws found in packout kit.
Ensure Nut Retainers are in place. Apply Gaskets and Silicone to End Frame.
Apply ½x ½in. (12.7mm) x (12.7 mm) gaskets into the case channels. Check that the gasket is
properly inserted into the entire length of the channels with no gaps. Apply silicone between case
end cap and end.
*Quantities may vary depending on which type of end is to be placed on case.
FIELD INSTALLED HARDWARE
Description
Multi Deck
Qty/Each
Convertible
Qty/Each
Single Deck
Qty/Each
View End
Multi Deck
Qty/Each
SEALER SILICONE ADHESIVE 1 1 1 1
GASKET 1/2 X 1/2 X 180 1 1 1 1
SCREW SM 10-16X3/4 HX WASHER 1 1 1 N/A
BOLT 5/16 x 2 3/4 GRADE 5 ZINC PLATED TAP* 4 2 1 5
BOLT- TAP, 5/16 x 4 1/2, STEEL, ZINC FINISH, GR5 1 1 1 1
WASHER-FLAT 5/16” ZINC* 7 4 2 8
NUT-HEX 5/16 STEEL ZINC FINISH GRADE 8* 3 2 2 4
NUT-PUSH 5/16” RETAINER STEEL ZINC* 2 1 1 2
NUT-J RETAINER 5/16* 2 1 N/A 2
BUTTON-PLUG 7/8 DIA* 5 3 2 6
Screw-sm #10 x 3/4 Hex Washer
Bolt-5/16 x 2 3/4
Bolt-5/16 x 4 1/2
Washer Flat-5/16
Nut Hex-5/16
Nut-Push 5/16
Nut-J Retainer
Button-Plug

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 1-13
Low Temperature Merchandisers
PLUG-BUTTON
2 PLACE S
PUSH NUT
15/16 X 2 3/4 BOLT
55/16 X 4 1/2 BOLT
6#10 X 3/4 SCREW
& PUSH NUT
Smooth
Surface
Smooth
Surface
B
A
A
A
A
PLUG-BUTTON
2 PLACES
PUSH NUT
15/16 X 2 3/4 BOLT
55/16 X 4 1/2 BOLT
6#10 X 3/4 SCREW
& PUSH NUT
Smooth
Surface
Smooth
Surface
B
A
A
A
A
PLUG-BUTTON
2 PLACE S
PUSH NUT
15/16 X 2 3/4 BOLT
55/16 X 4 1/2 BOLT
6#10 X 3/4 SCREW
& PUSH NUT
Smooth
Surface
Smooth
Surface
B
A
A
A
A
SINGLE DECK
CASE END INSTALLATION
LEGEND:
A = 1/2 x 1/2 INCH GASKET
B = NEUTRAL CURING SILICONE SEALANT

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
1-14
INSTALLING BUMPERS
1. Bumpers are packed out with the case and
snap onto the bumper retainer. Gaskets are
factory installed in the bumper retainers to provide
support for the bumpers. Do not remove the
gaskets.
2. Bumper joint inserts are provided with the
case to disguise joints for a lineup of cases.
3. Start at the left end of the lineup. Install 3ft
starter bumper rst. Refer to bumper side view
illustration to ensure the bumper is orientated
correctly. Place top of bumper over bumper
retainer, then snap bottom of bumper into place
at bottom of retainer. Position internal joint trim
between the starter bumper and full-length
bumper.
4. Continue installing bumper(s) until the
lineup is complete. The last piece of bumper
will need to be cut so that it is ush with the
right end cap. Use a ne tooth saw to cut the
bumper vertically at a 90° angle.
5. Ensure joint trim is positioned behind
bumper at all joints to close any gaps in the
lineup. Remove protective lm from bumper
once installation is complete.
Ellipse Bumper Faceted Bumper
Bumpers come in two styles —
Ellipse and Faceted.
Bumper Side View
SIDE VIEW
SCALE 1:1.6
Item
Number
Document
Number
Title Quantity
1 0547413 SUPPORT FRT MULTI LO 4
2 0534121 SCREW SM 8 18X5/8 PHIL HX HD 29
3 0536846 RAIL BOTT GL DR CTUR 8FT INSIGHT 1
4 0535702 GRILL RETURN AIR LOW 4FT 2
5 0535153 PANEL FRONT FACETED UL/LO 8FT 1
6* 0546932 GASKET 7/8 X 1.00 X 144IN 95.5 INCHES
7* 0137316002 GASKET 1/2 X 1/2 X 180 0.5 EACH
D
* INDICATES ITEM NOT SHOWN
D
D
5
12
29
3
1
D
BUMPER SHOWN
FOR CLARITY
REF
OPEN TAB ON BUMPER
D
TOP
BOTTOM
SIDE VIEW
SCALE 1:1.6
Item
Number
Document
Number
Title Quantity
1 0547413 SUPPORT FRT MULTI LO 4
2 0534121 SCREW SM 8 18X5/8 PHIL HX HD 29
3 0536846 RAIL BOTT GL DR CTUR 8FT INSIGHT 1
4 0535702 GRILL RETURN AIR LOW 4FT 2
5 0535153 PANEL FRONT FACETED UL/LO 8FT 1
6* 0546932 GASKET 7/8 X 1.00 X 144IN 95.5 INCHES
7* 0137316002 GASKET 1/2 X 1/2 X 180 0.5 EACH
D
* INDICATES ITEM NOT SHOWN
D
D
5
12
29
3
1
D
BUMPER SHOWN
FOR CLARITY
REF
OPEN TAB ON BUMPER
D
TOP
BOTTOM
Door Case
Bumper
Orientation
All other Cases
Bumper
Orientation
SIDE VIEW
SCALE 1:1.6
Item
Number
Document
Number
Title Quantity
1 0547413 SUPPORT FRT MULTI LO 4
2 0534121 SCREW SM 8 18X5/8 PHIL HX HD 29
3 0536846 RAIL BOTT GL DR CTUR 8FT INSIGHT 1
4 0535702 GRILL RETURN AIR LOW 4FT 2
5 0535153 PANEL FRONT FACETED UL/LO 8FT 1
6* 0546932 GASKET 7/8 X 1.00 X 144IN 95.5 INCHES
7* 0137316002 GASKET 1/2 X 1/2 X 180 0.5 EACH
D
* INDICATES ITEM NOT SHOWN
D
D
5
12
29
3
1
D
BUMPER SHOWN
FOR CLARITY
REF
OPEN TAB ON BUMPER
D
Bumper
Installed
on Case
A
STARTER &
F ULL LENG TH
BUMPER SEAM
MUST ATTACH
TO MULTI
SUPPORT
BUMPER
SEAM
3 FOOT
STARTER
BUMPER
F ULL
LENGTH
BUMPER
END ASM
JOINT TRIM
GOE S BEHIND
THIS SEAM
End
Assembly
3-ft Starter
Bumper
Full-Length
Bumper
Starter &
Full-Length
Bumper Seam
must attach to
Multi-support
Bumper
Seam
Joint Trim
goes behind
this Seam

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 3032067_E 2-1
Low Temperature Merchandisers
REFRIGERANT
The correct type of refrigerant will be stamped
on each merchandiser’s serial plate. The
merchandiser refrigeration piping is leak tested,
factory sealed and pressurized. Before making
refrigeration hookups, depress the universal
line valve to ensure that coils have maintained
pressure during shipment. When using high
glide refrigerants (e.g., R-407A, R-448A), if su-
perheat needs to be adjusted, use the evaporator
pressure and subtract the dew point from the coil
outlet refrigerant temperature to measure the su-
perheat level.
REFRIGERANT PIPING
Standard Case Connection Location
The refrigerant line connections are at the right
end of the merchandiser (as viewed from the
front) beneath the display pans. The installer
must saw a hole to exit the case. After connec-
tions have been made, thoroughly seal this
outlet. Seal both the inside and the outside.
It is recommended to use an expanding polyure-
thane foam insulation. Cover foam with silicone
to prevent water from entering foam.
Refrigerant lines must not interfere with the drain
covers. Drain covers must be removed to provide
access for cleaning.
REFRIGERATION / ELECTRICAL
Drain Cover
Piping Outlet
Foam
Cover Foam
with Silicone
When Dry
»Refrigeration lines are under pressure and should be de-
pressurized before attempting to make any connections.
»Refrigerant vapor is hazardous to your health and can
cause death.
»Avoid breathing refrigerant and lubrication vapor or mist.
Exposure may irritate eyes, nose and throat. If accidental
system discharge occurs, ventilate work area before
resuming service.
»Always wear safety goggles and protective gloves when
working with refrigerants. Contact with refrigerant may
cause injury. Disconnect hoses with extreme caution! All
hoses may contain liquid refrigerant under pressure.
»Be sure that any room where you are working is
thoroughly ventilated, especially if a leak is suspected.
»Read all safety information regarding the safe handling
of refrigerant and refrigerant oil, including the Material
Safety Data Sheet. MSDS sheets can be obtained from your
refrigerant supplier.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
»Hussmann does not recommend using spray hoses or
misting systems due to risk of serious injury or death from
electrical shock.
»Do not use spray hoses or misting systems on cases with
shelf or rail lighting.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---

P/N 3032067_E U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
2-2
Back Wall Piping Penetrations
Cases that are to be piped from the back have
a factory installed ¼ pilot hole in the exterior
liner. Use the pilot hole to locate the hole saw
to drill out a hole 2½ in. diameter hole to run
the coil piping.
After connections have been made, thoroughly
seal this outlet. Seal both the inside and the
outside.
It is recommended to use an expanding polyure-
thane foam insulation. Cover foam with silicone
to prevent water from entering foam.
INSTRUCTION
-COIL PIPING
ACCESS
BACK VIEW
(4FT CASE
SHOWN)
O .250 PILOT HOLE (ON
LINER-EXT BOT) DRILL
O 2.50
FOR PIPING ACCESS
A
2.50
4.50
Drill ¼ in. Pilot Hole
(On Liner) Drill ½in.
liner for piping access
Detail A
Multiplexing
Piping of merchandisers operating on the same
refrigeration system may be run from mer-
chandiser to case. Do not run refrigerant lines
through merchandisers that are not on the
same refrigeration system branch as this may
result in poor refrigeration control and compressor
failure.
»When brazing pipes be sure to use the
insulation blanket shipped with the
merchandiser to prevent damage to the
foam bottom.
ANSI Z535.6-2011 (R2017)
Page 18
©2017 National Electrical Manufacturers Association
Annex A
Providing Information About Safety Messages in Collateral Materials and Product
Safety Signs and Labels
(Informative)
A1 Explanation of Signal Words and Symbols
Signal words and safety symbols that are used in a product’s collateral materials or on the product may
be defined in collateral materials if space is available.
A1.1 Safety Alert Symbol
The meaning of the safety alert symbol may be provided in collateral materials. The following artwork may
be used for this purpose.
This is the safety alert symbol. It is used to alert you
to potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
A1.2 Signal Words
The meaning of the different signal words as defined by the ANSI Z535.6 and ANSI Z535.4 standards
may be explained in collateral materials. The following artwork may be used for this purpose.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to
physical injury.
Safety instructions (or equivalent) signs indicate specific
safety-related instructions or procedures.
A1.3 Other Highlighting Conventions
The meaning of any other highlighting conventions used to differentiate safety messages (e.g., text
manipulations, indention, etc.) may be explained in collateral materials.
A1.4 Safety Symbols
The meaning of any safety symbols used on safety labels or collateral materials may be explained in
collateral materials.
Copyright National Electrical Manufacturers Association
Provided by IHS Markit under license with NEMA
Licensee=Hussmann Corp/8160899001, User=Trevett, Jason
Not for Resale, 02/16/2021 11:49:55 MST
No reproduction or networking permitted without license from IHS
--`,,,``,,,``,``,``,`````,`,``,-`-`,,`,,`,`,,`---
