Hussmann EGP MERCHANDISERS User manual

EGP MERCHANDISERS
Installaon & Operaon Manual
P/N 3143044_C
October 2021
Spanish P/N 3143045
Shipped With Case Data Sheets
MANUAL - IO EGP
Keep in store for future reference!
IMPORTANT
Medium Temperature
E-Commerce Grocery Program

ii
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
BEFORE YOU BEGIN
Read these instructions completely and carefully.
This manual was written in accordance with originally prescribed equipment that is subject
to change. Hussmann reserves the right to change or revise specifications and product
design in connection with any feature of our products.
PERSONAL PROTECTION EQUIPMENT (PPE)
Only qualied personnel should install and service this equipment. Servicing is only to be
done by factory authorized personnel. Personal Protecon Equipment (PPE) is required.
Wear safety glasses, gloves, protecve boots or shoes, long pants, and a long-sleeve shirt
when working with this equipment and while handling glass. Observe all precauons on
tags, sckers, labels and literature aached to this equipment. Component parts shall be replaced
with like components. Service is to be performed by factory authroized service personnel,
so as to minimize the risk of possible ignion due to incorrect parts or improper service.
Contact your Hussmann representave to arrange servicing.
ANSI Z535.5 DEFINITIONS
• DANGER – Indicate[s] a hazardous
situation which, if not avoided, will
result in death or serious injury.
• WARNING – Indicate[s] a
hazardous situation which, if not
avoided, could result in death or
serious injury.
• CAUTION – Indicate[s] a
hazardous situation which, if not
avoided, could result in minor or
moderate injury.
• NOTICE – Not related to personal
injury – Indicates[s] situations, which
if not avoided, could result in damage
to equipment.
!
The safety of our customers and
employees is paramount. The
precautions and procedures described
in this manual are intended as
general methods for safe use of this
equipment. Please be sure to comply
with the precautions described in this
manual to protect you and others
from possible harm.
The definitions at right are used to
clarify the magnitude and urgency
of harm and damage, considering
problems arising from misuse.
Relative to their potential danger,
the definitions are divided into four
parts according to ANSI Z535 Series.
DANGER
!
DANGER
!
CAUTION
!
WARNING
!
NOTE
NOTE
STOP STOP
IMPORTANT
ATTENTION
INSTALLER
NOTICE
DANGER
!
DANGER
!
CAUTION
!
WARNING
!
NOTE
NOTE
STOP STOP
IMPORTANT
ATTENTION
INSTALLER
NOTICE
!
!

EGP Merchandisers
P/N 3143044_C iii
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
TABLE OF CONTENTS
Personal Protecon Equipment (PPE) ii
ANSI Z535.5 Denions ii
Installaon Tool List iv
Installaon 1
UL Lisng 1-1
Federal / State Regulaons 1-1
About These Cases 1-1
Locaon 1-1
Shipping Damage 1-2
Exterior Loading 1-2
Liing and Moving the Case 1-2
Remove Shipping Riders and Brackets 1-2
Remove Protecve Shipping Trim 1-3
Remove Sheet Metal Liing Brackets 1-3
Leveling 1-4
Case-to-Case Joining 1-5
Align End Frames and Join Case Ends Together 1-6
Securing Case to Floor 1-7
Base Upright Insulaon & Cover Installaon 1-7
Installing Pump & Collecon Pan Kit 1-8
Install Interior Back Panel 1-10
Shelf Frame Installaon 1-11
Shelf Installaon 1-13
Door Installaon 1-14
Door Installaon Steps 1-15
Adjusng Doors 1-21
EcoVision Door Alignment -
Modular Boom Hinge Plate 1-21
Refrigeraon/Electrical 2
Refrigerant 2-1
Electrical Connecons 2-2
Merchandiser Electrical Data 2-2
Field Wiring 2-2
Idencaon of Wiring 2-2
Wiring Color Code 2-2
Sensor Locaon 2-3
Fan Wiring Route 2-3
Startup / Operaon 3
Prior to Start-up Check List 3-1
Startup and Operaon 3-1
12 Hours Aer Startup Checklist 3-1
Stocking 3-2
Installing FDA/NSF Required Thermometer 3-2
Maintenance 4
Care and Cleaning 4-1
Fan Plenum 4-1
Glass Doors 4-1
Interior Surfaces 4-1
Exterior Surfaces 4-1
Cleaning Honeycomb Assemblies 4-2
Cleaning Stainless Steel Surfaces 4-2
Cleaning Coils 4-2
Service 5
Replacing Fan Motors and Blades 5-1
Replacing Aluminum Coil 5-2
Warranty 6
Warranty Informaon 6-1

iv
INSTALLATION TOOL LIST
IMPORTANT
KEEP IN STORE FOR FUTURE REFERENCE
Quality that sets industry standards!
This merchandiser is NSF®certified.
12999 St. Charles Rock Road • Bridgeton, MO 63044-2483
U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900
www.hussmann.com
© 2021 Hussmann Corporation
This warning does not mean that Hussmann products
will cause cancer or reproductive harm, or is in
violation of any product-safety standards or
requirements. As clarified by the California State
government, Proposition 65 can be considered more of
a‘right to know’ law than a pure product safetylaw.
When used as designed, Hussmann believes that our
products are notharmful. We provide the Proposition
65 warning to stay in compliance with California State
law. It is your responsibility to provide accurate
Proposition 65 warning labels to your customers when
necessary. For more information on Proposition 65,
please visit the California State government website.
August 31, 2018
Unloading From Trailer:
Lever Bar (also known as a Mule,
Johnson Bar (J-bar) / Moving Dolly(s)
Setting Case Line-Up:
Level, 4 ft suggested
Ratchet
/in. Socket
5/ in. Socket
/in. Socket
Battery Drill/Screw Gun
Caulking Gun
10 in. Adjustable Crescent Wrench
Excessive ambient conditions may
cause condensation and therefore
sweating of doors. Facility operators
should monitor doors and oor
conditions to ensure safety of
persons.
Case ventilation openings must be
clear of any obstructions. Do not
damage the refrigerant circuit.
Always disconnect the electrical
power at the main disconnect when
servicing or replacing any electrical
component. This includes, but is
not limited to, such items as fans,
heaters, thermostats and lights.
Do not use mechanical devices
or other means to accelerate the
defrosting process.
Do not use electrical appliances
inside the food storage
compartments of the case(s).
REVISION HISTORY
REVISION C - Protective shipping trim needs to
removed before the case is installed.
REVISION B - Updated door install instructions
REVISION A - ORIGINAL ISSUE

EGP Merchandisers
P/N 3143044_C 1-1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
UL LISTING
These merchandisers are manufactured to
meet ANSI/ UL 471 standard requirements
for safety. Proper installation is required to
maintain the listing.
FEDERAL / STATE REGULATION
These merchandisers at the time they are
manufactured, meet all federal and state/
provincial regulations. Proper installation
is required to ensure these standards are
maintained.
Near the serial plate, each case carries a
label identifying the environment for which
the case was designed for use. For example:
ANSI/NSF-7 Type I
Display Refrigerator / Freezer intended
for 75° F (24° C) / 55% RH Ambient
Application
ANSI/NSF-7 Type II
Display Refrigerator / Freezer Intended for
80° F / 55% RH Ambient Application
ANSI/NSF-7
Display Refrigerator Intended for Bulk
Produce
ABOUT THESE CASES
These merchandisers are designed to be
ready for remote installation. The case
is programmed for medium temperature
use and settings can be adjusted using the
controller keypad. Lighting is not standard
but offered as an option.
LOCATION
These merchandisers are designed for
displaying products in air conditioned
stores where temperature is maintained at
or below the ANSI/NSF-7 specified level
and relative humidity is maintained at or
below 55%.
Placing refrigerated merchandisers in direct
sunlight, near hot tables or near other heat
sources could impair their efficiency.
Like other display cases, these are sensitive
to air disturbances. Air currents passing
around cases will seriously impair their
operation. Do NOT allow air conditioning,
electric fans, open doors or windows, etc. to
create air currents around the cases.
Excessive ambient conditions may cause
condensation and therefore sweating of
doors. Facility operators should monitor
doors and oor conditions to ensure safety
of persons.
To prevent sweating on the exterior surfaces
of merchandisers, there must be aminimum
clearance of 4 inches (102 mm)between
the merchandisers and other fixtures or
walls. Product should always be maintained
at proper temperature. This means that
from the time the product is received,
through storage, preparation and display,
the temperature of the product must be
controlled to maximize the life of the
product.
INSTALLATION

1-2 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
SHIPPING DAMAGE
All equipment should be thoroughly
examined for shipping damage before and
during unloading. This equipment has
been carefully inspected at our factory. Any
claim for loss or damage must be made to
the carrier. The carrier will provide any
necessary inspection reports and/or claim
forms.
Apparent Loss or Damage
If there is an obvious loss or damage, it
must be noted on the freight bill or express
receipt and signed by the carrier’s agent;
otherwise, carrier may refuse claim. The
carrier will supply necessary forms.
Concealed Loss or Damage
When loss or damage is not apparent
until after equipment is uncrated, a claim
for concealed damage is made. Upon
discovering damage, make request in writing
to carrier for inspection within 15 days and
retain all packing. The carrier will supply
inspection report and required claim forms.
EXTERIOR LOADING
Do NOT walk on top of case(s) or damage
to the case(s) and serious personal injury
could occur. They are not structurally
designed to support excessive external
loading such as the weight of a person.
LIFTING AND MOVING THE CASE
The case can be moved with pallet jacks
and/or j-bars. Use the sheet metal lifting
brackets as shown below. The brackets are
at each end of the case. Position the jacks or
j-bars underneath these lifting brackets for
transit to the final location.
Be careful not to damage the ends of the
case when positioning and moving. The edge
guard can be removed if needed.
REMOVE SHIPPING RIDERS AND
BRACKETS
There are two 2"x 8"shipping riders that lift
the case about a ¼" off of the floor. They
are installed in the front and rear bottom
interior. The riders are bolted to the case
with sheet metal brackets. Remove the riders
and brackets.
Do not store items or ammable materials
atop the unit. Do not walk on case.
Front Shipping Rider
(rear brace not shown)
Lifting Bracket at each end of case
Rider Brackets

EGP Merchandisers
P/N 3143044_C 1-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
REMOVE SHEET METAL LIFTING BRACKETS
The brackets that were used as lifting points to move the case can now be removed from
the case ends.
Remove Bolts
Protective Shipping Trim (LH)
Protective Shipping
Trim (RH)
Screws
Protective
Shipping Trim
(LH)
Screw
Lower Back
Foam Panel
A
REMOVE PROTECTIVE SHIPPING TRIM
The protective shipping trim needs to be removed before the case is installed. Remove the
screws and trim as shown in the illustrations below.
Protective Shipping Trim (LH)
Protective Shipping
Trim (RH)
Screws
Protective
Shipping Trim
(LH)
Screw
Lower Back
Foam Panel
A

1-4 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM

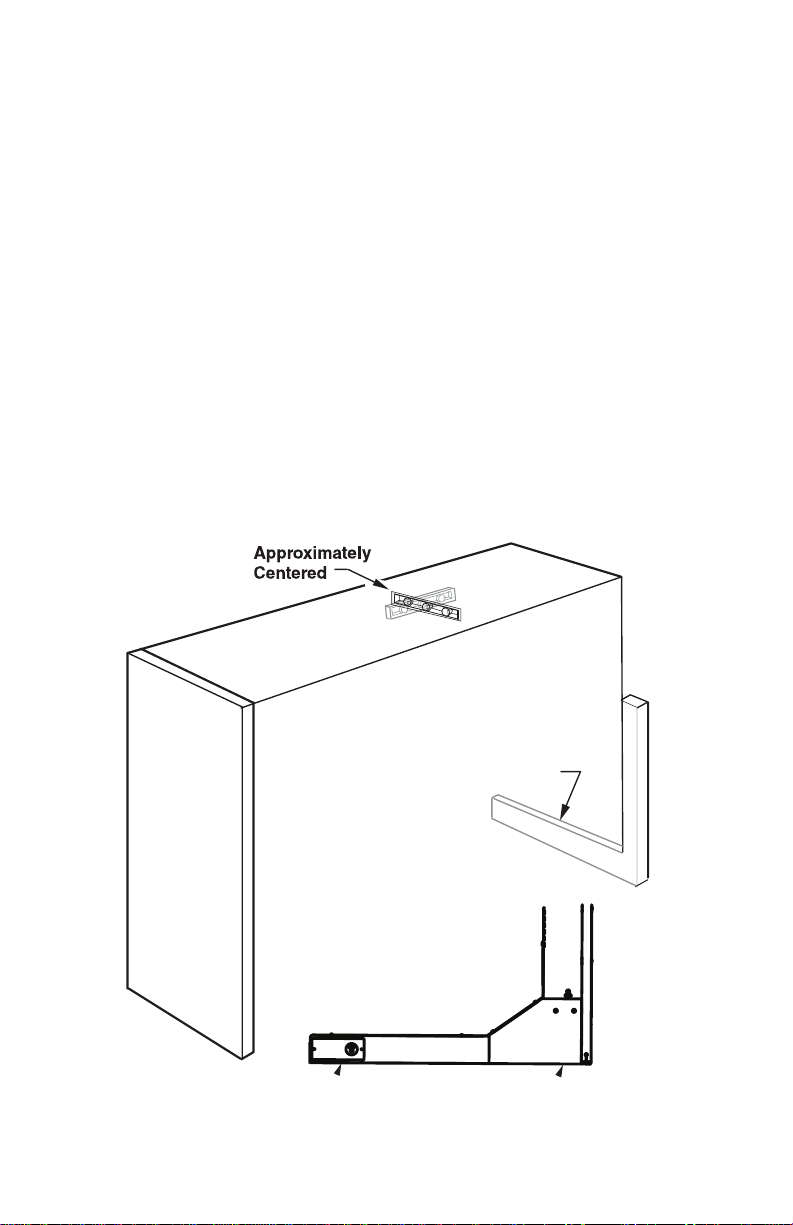

LEVELING
Merchandisers must be installed level to ensure proper operation of the refrigeration
system and to ensure proper drainage of defrost water. When leveling merchandisers, use a
carpenter’s level. Leveling shims or wedges are provided with each merchandiser for use if
needed.
NOTE: BEGIN LINEUP LEVELING FROM THE HIGHEST POINT OF THE STORE FLOOR.


Shim Here Shim Here
Rear of Case
Base Component
The front shipping rider can be positioned at the front of the two end base uprights in
order to help square and align the base for drilling to floor.
Place shims under the end bases if the floor is not level. Use a 4-ft level to make sure the
case is level. Placing shims at other locations will cause uneven distribution of weight
leading to piping leaks, as well as sagging or wracked doors.
Supports must be shimmed if not in full contact with the floor.

EGP Merchandisers
P/N 3143044_C 1-5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
CASE-TO-CASE JOINING
Sectional construction means that two
or more merchandisers may be joined in
line yielding one long continuous display
requiring only one pair of ends. Joining
kits and instructions are shipped with each
merchandiser. Use the packaged hardware in
the hardware joining kit.
1 ½ x ½ inch
Gasket
1 ½ x ½ inch Gasket
1 ½ x ½ inch Gasket
Apply a bead of silicone
sealant along joining surface
SIDE VIEW
IMPORTANT:
Before installing the cases together at the
end base uprights, install the EPS insulation
with the cover onto the end base uprights.
Install Gaskets and apply silicone sealant as
shown below.
Gasket and Silicone
Locations
It is the installing contractor’s
responsibility to consult
local agencies for local code
requirements.

1-6 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
ALIGN END FRAMES AND JOIN CASE ENDS TOGETHER
Cases are joined from left to right. Move the second case (case on right side facing the
front) as close to the first as possible by using a j-bar or pallet jack.
Case joining covers must be removed. Use the joining locations as shown in the illustration
below. Loosely fasten cap screws, washer and nut retainers at all locations. Tighten the rear
and bottom locations first. Note there is a joining bracket on top of the case canopy as
shown in the detail below. Tighten that locations last.
ALL JOINTS MUST BE AIR-TIGHT TO PREVENT
FORMATION OF ICE OR CONDENSATION.
SIDE VIEW
JOINING LOCATIONS =
3136323 B
3
2
FASCIA-CANOPY CTR DD5X5FRW
SCREW-SM 8-18X1/2 HX HD TEK2
4
4
2
1
1
1
CASE CANOPY FRONT
Joining
Bracket

EGP Merchandisers
P/N 3143044_C 1-7
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
SECURING CASE TO FLOOR
The case must be secured to the floor using anchors that are fastened to the two end base
uprights.
1. Use a square. It is important to make sure the end base uprights are 90° from the back-
foam assemblies before installing the 6 anchor bolts in the concrete.
2. Use a hammer drill to drill ½" diameter holes 2¾" inches deep in the concrete. (3 on
each end of the case.) Clean out concrete dust from holes.
3. Install the ½" diameter anchor bolts. Tighten nuts to secure case to the floor.
Anchor Locations
Insulation
Cover
Upper Cover Base Cover
BASE UPRIGHT INSULATION &
COVER INSTALLATION
1. Install the lefthand insulation.
2. Install the lefthand lower cover using
supplied painted screws.
3. Install the lefthand upper cover. Repeat
for righthand side of case base upright.
4. Apply silicone sealant to gap.
Gap

1-8 DrIp pIpIng
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
INSTALLING PUMP & COLLECTION PAN KIT
The bottom drain for defrost water from the evaporator coil of the case is connected to an
evacuation pump, which uses plastic drain tubing to pump the water to the condensate pan
on top of the case. See next page for part list assembly.
Evaporation pan must be installed level and plugged into electrical receptacle. The tubing
should be inspected through its entire length to ensure that it has not been cut, kinked,
obstructed, or damaged during shipping and installation.

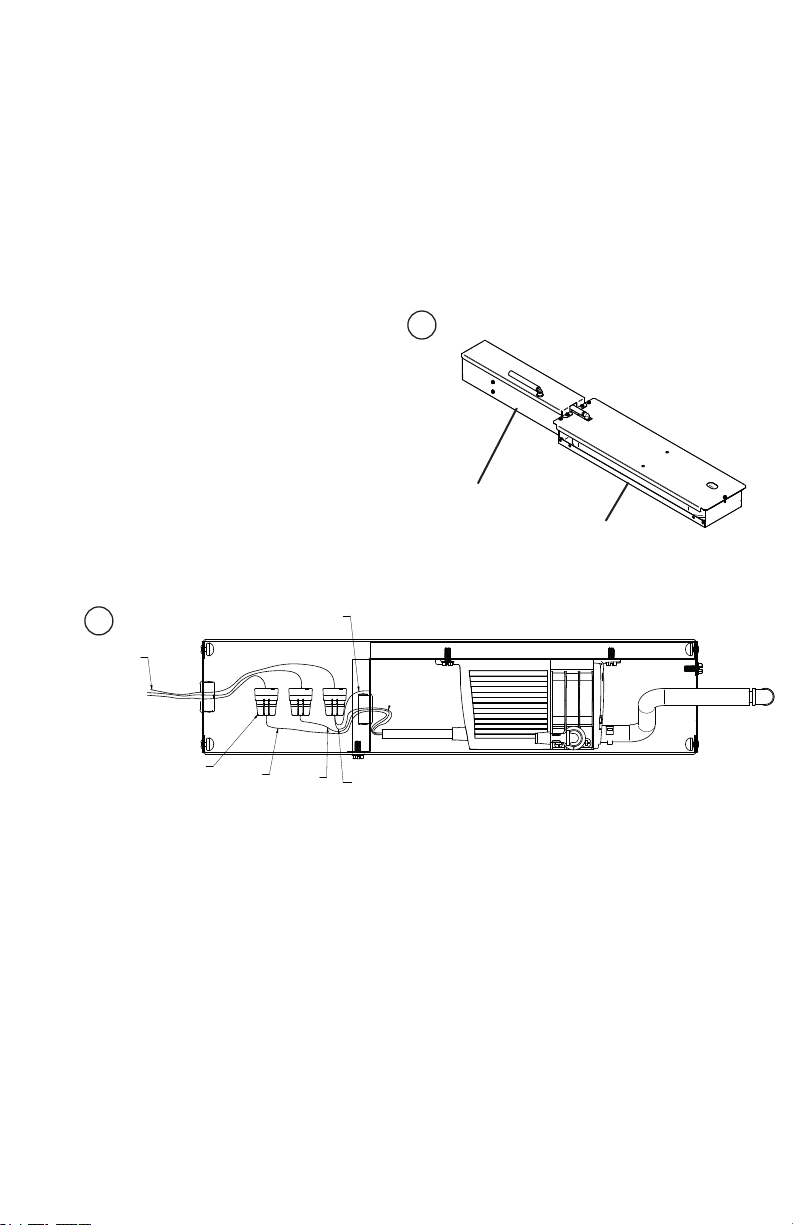

Pump & Collection Pan Kit
(sits underneath case)
1.
2.
Steps:
1. Remove cover plates.
2. Connect case wire whip to pump.
EXPLODED VIEW
6
5
PART LIST - ASSEMBLY
ITEM PART NUMBER TITLE QTY
1 3105147 PAN-STEAM ANTI JAM 2.50 HGT 1
2 3135560 LID ASSY-BLUE DIAMOND EGP-MT 1
3 3135494 SUPPORT-CONDENSATE PAN EGP 1
4 3135561 ENCLOSURE ASSY-BLUE DIAMOND EGP-MT 1
5 0460068 RIVET FLUSH BREAK 1/8 STL 4
6 0534121 SCREW-SM 8-18X5/8 PHIL HX HD 5
7* 0131401 TAPE-ADHESIVE TRANSFER 5 inches
Pump
Pan
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL- N/A
4. REF 3107767
K
SHEET 2 OF 2 3135561 C
ENCLOSURE ASSY-BLUE
DIAMOND EGP-MT
P/N REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
CABLE ROUTING
SCALE 1.35:1
BLACK WHITE GREEN
Cable Routed to
Top Electrical
Enclosure
Ground Cable
FRONT VIEW
SCALE 1.35:1
2.00
TUBE-PVC CLEAR 0.250 ID X 0.500 OD
CUT THE PVC PIPE TO
THE SHOWN LENGTH
2.00
TUBE-PVC CLEAR 0.250 ID X 0.500 OD
CUT THE PVC PIPE TO
THE SHOWN LENGTH
CONNECTOR-3
WIRE
12-18AWG

P/N 3143044_C 1-9
EGP MerchandisersHUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
INSTALLING PUMP & COLLECTION PAN KIT
3
200
8
1
15
2
14
1
10
10
9
10
6
1
15
2
PART LIST - ASSEMBLY
ITEM TITLE QTY
1 PUMP ASSY-BLUE DIAMOND EGP-MT 1
2 HARNESS-SERVICE CORD 14 AWG 120V 1
3 HOSE-REINFORCED 0.31 ID 200 INCHES
4 COUPLING-1.25X1.25 PVC SCH 40 1
5 BUSHING-1-11.5 MPT X 0.75-14 FPT 1
6 ADAPTER-0.50 X 0.75-14 MPT 1
7 HOSE-BRAIDED 0.50 ID 1
8 TRAP - DRAIN LOW TEMP ISL. 1
9 CLIP-JIFFY FOR 3/4 OD 10
10 SCREW-SM 8-18X5/8 PHIL HX HD 10
11* TAPE-ADHESIVE TRANSFER 20.00 INCHES
12 CLAMP-HOSE 1/4 TO 5/8 1
13* TIE-EYELET STRAP 12
14 PLUG- 1 IN THREADED 1
15 BUSHING-REDUCER 1 1/4 X 1 IN 2
16* SEALER-1/2 BEAD 5.0 INCHES
4
1
5
1
12
1
7
1
1
1
2
1
TEE SHOWN FOR CLARITY ONLY
AND IS INCLUDED IN DRAIN MODULE
PUMP ASSEMBLY TO BE INSTALLED IN FIELD
It is the installing contractor’s responsibility to
consult local agencies for local code requirements.
3. Pump Assembly Parts List (for
Reference)

1-10 DrIp pIpIng
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
4. Attach hose to tee. Insert opposite end
of drain hose at least 1 inch onto slot on
pump, located on top of the pump.
Insert Drain Tubing
at least 1” onto slot
on pump.
5. Place pan underneath interior back panel.
4
INSTALL INTERIOR BACK PANEL
The interior back panel is packed separately
with the case. The cutouts in the panel
provide access to the valves, the pump and
reservoir.
TOP VIEW
147.70
3751.7mm
36.75
933.4mm
47.47
1205.7mm
4.75
120.6mm
10.75
273mm
3 IN (77 MM) REQUIRED AIR GAP
TOP ELECTRICAL BOX
20.25
514.3mm
POWER IN
(FIELD SUPPLY)
EVAP PAN HEATER
4.00
101.5mm
15.75
400mm
FRONT SIDE
1.68
42.7mm
BOTTOM VIEW
FRONT SIDE
REAR SIDE
43.60
1107.3mm
7.25
184.1mm
RESERVOIR
PUMP ENCLOSURE ASSEMBLY
5.91
150.142mm
GAP BETWEEN
FOAM PNL AND INTR PNL
7.41
188.242mm
HONEYCOMB
39.95
1014.73mm
PUMP COVER
36.88
936.841mm
PUMP
Secure Pan Tubing
Condensate Pan
Tubing to Pump
Condensate Pan
(Installed on top of case)
6
6. Connect tubing to condensate pan, which is
to be located on top of the case. See Page 2-2
of this manual for location of top-mounted
condensate pan.

EGP Merchandisers
P/N 3143044_C 1-11
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

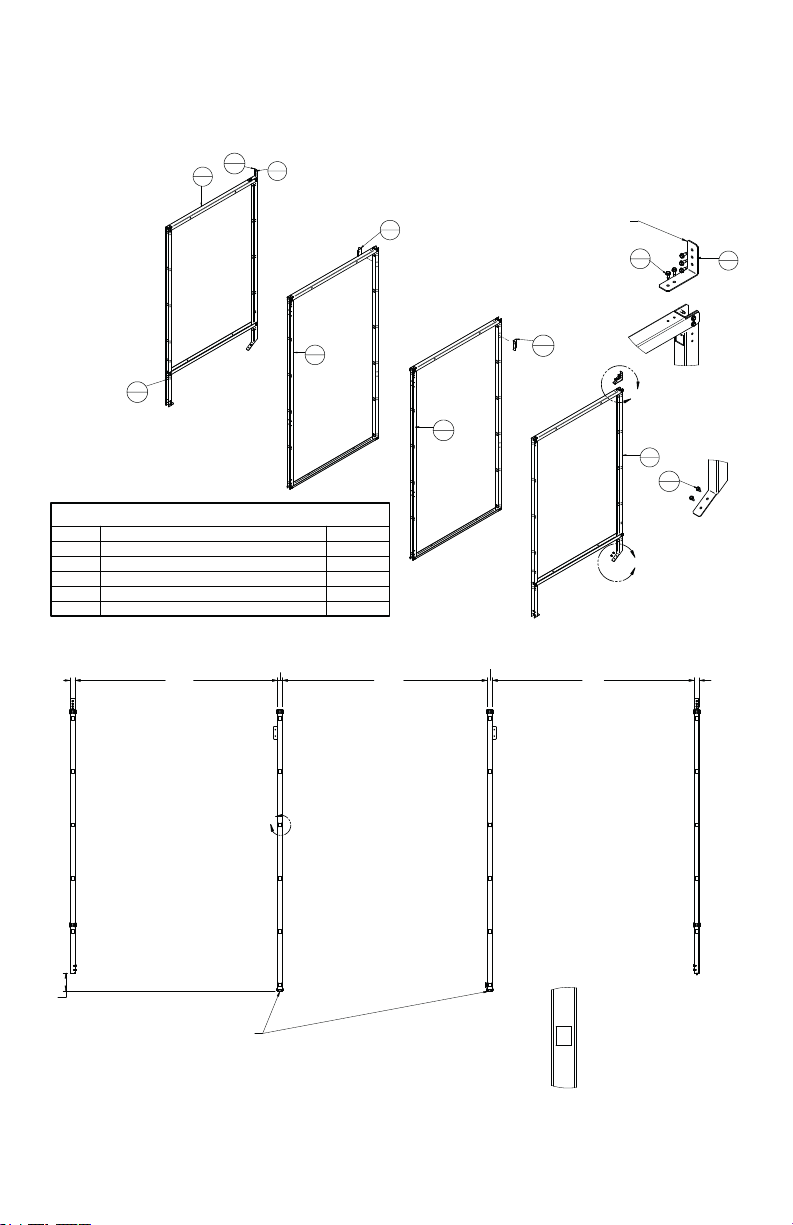

SHELF FRAME INSTALLATION
Frame Assembly Parts
SHELF ASSY
SHOWN TOP AND BOTTOM SHELFS ONLY FOR CLARITY
1
0
3
REF
4
REF
PART LIST - ASSEMBLY
ITEM TITLE QTY
1 FRAME ASSY-MIDDLE SHELF FRAME EGP 2
2* SCREW-8-15 X 0.5 HEX WHT DRILL 22
3* FRAME ASSY-END SHELF FRAME EGP 2
4* BRACKET-END - SHELF FRAME TO CASE 2
5* BRACKET-MIDDLE - SHELF FRAME TO CASE 2
1
0
B2X
DETAIL B
SCALE 1:2
3
0
4
REF
1
REF
2
0
2
REF
USE THESE BRACKETS TO
CONNECT END FRAMES TO
CASE UPRIGHTS
D
2X
DETAIL D
(SEE SHEET-2 AND 3)
4
REF
5
0
5
REF
47.36
1.14
48.03
1.1447.42
1.14
1.14
I
12X DETAIL I
MAKE CENTER FRAME ASSY REST ON
FLOOR AND THEN ASSEMBLE TO CASE
UPRIGHTS USING BRACKETS
4.23
56.83
35.47
4.23
9.20
32.75
61.80
66.03
SHELF ASSY
SHOWN TOP AND BOTTOM SHELVES ONLY FOR CLARITY

1-12 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
147.51
36.00
68.60
11.72
BRACKETS DRILL INTO CASE UPRIGHTS
A
DETAIL A
SCALE 1:1
INSTALL SHELVES INTO BACK STANDARDS
FIRST THEN LIFT UP AND SLIDE INTO FRONT
UPFRIGHT
47.36
1.14
48.03
1.1447.42
1.14
1.14
I
12X DETAIL I
MAKE CENTER FRAME ASSY REST ON
FLOOR AND THEN ASSEMBLE TO CASE
UPRIGHTS USING BRACKETS
4.23
56.83
35.47
4.23
9.20
32.75
61.80
66.03
E
2X
DETAIL E
SCALE 1:2.5
F
2X
DETAIL F
SCALE 1:3.33
USE THESE BRACKETS TO
CONNECT END FRAMES TO
CASE UPRIGHTS AS SHOWN
9
REF
3035366-COVER LWR ANLR UPRIGHT
ASSEMBLE REAR FRAME OF
WOGP002-END FRAME ASSEMBLY TO
3035366-COVER LWR ANLR UPRIGHT
WITH HELP OF TWO SCREWS AS SHOWN
(APPLIES BOTH LH AND RH SIDES)
K
2X
DETAIL K
SCALE 1:2.5
ASSEMBLE FRONT FRAME TO
THE CASE FRAME WITH ONE
SCREW AS SHOWN
E
2X
DETAIL E
SCALE 1:2.5
F
2X
DETAIL F
SCALE 1:3.33
USE THESE BRACKETS TO
CONNECT END FRAMES TO
CASE UPRIGHTS AS SHOWN
9
REF
3035366-COVER LWR ANLR UPRIGHT
ASSEMBLE REAR FRAME OF
WOGP002-END FRAME ASSEMBLY TO
3035366-COVER LWR ANLR UPRIGHT
WITH HELP OF TWO SCREWS AS SHOWN
(APPLIES BOTH LH AND RH SIDES)
K
2X
DETAIL K
SCALE 1:2.5
ASSEMBLE FRONT FRAME TO
THE CASE FRAME WITH ONE
SCREW AS SHOWN
SHELF FRAME INSTALLATION
Frame to Case Installation
E
2X
DETAIL E
SCALE 1:2.5
F
2X
DETAIL F
SCALE 1:3.33
USE THESE BRACKETS TO
CONNECT END FRAMES TO
CASE UPRIGHTS AS SHOWN
9
REF
3035366-COVER LWR ANLR UPRIGHT
ASSEMBLE REAR FRAME OF
WOGP002-END FRAME ASSEMBLY TO
3035366-COVER LWR ANLR UPRIGHT
WITH HELP OF TWO SCREWS AS SHOWN
(APPLIES BOTH LH AND RH SIDES)
K
2X
DETAIL K
SCALE 1:2.5
ASSEMBLE FRONT FRAME TO
THE CASE FRAME WITH ONE
SCREW AS SHOWN
Frame on Right end
Shown for Reference
Install U-Channel
Bracket to rear Shelf
Frames

EGP Merchandisers
P/N 3143044_C 1-13
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
1
1
3
6
PART LIST - ASSEMBLY
ITEM TITLE QTY
1 FRAME ASSY-EGP 54 ASSEMBLY 1
2 SHELF ASSY-EGP SHELF WELDMENT ASSEMBLY 15
3 PAN-BASE PAN 6
USE THESE BRACKETS TO
CONNECT END FRAMES TO
CASE UPRIGHTS AS SHOWN
3035366-COVER LWR ANLR UPRIGHT
ASSEMBLE REAR FRAME OF END FRAME ASSEMBLY TO
3035366-COVER LWR ANLR UPRIGHT
WITH HELP OF TWO SCREWS AS SHOWN
(APPLIES BOTH LH AND RH SIDES)
2
15
147.51
36.00
68.60
11.72
BRACKETS DRILL INTO CASE UPRIGHTS
A
DETAIL A
SCALE 1:1
INSTALL SHELVES INTO BACK STANDARDS
FIRST THEN LIFT UP AND SLIDE INTO FRONT
UPFRIGHT

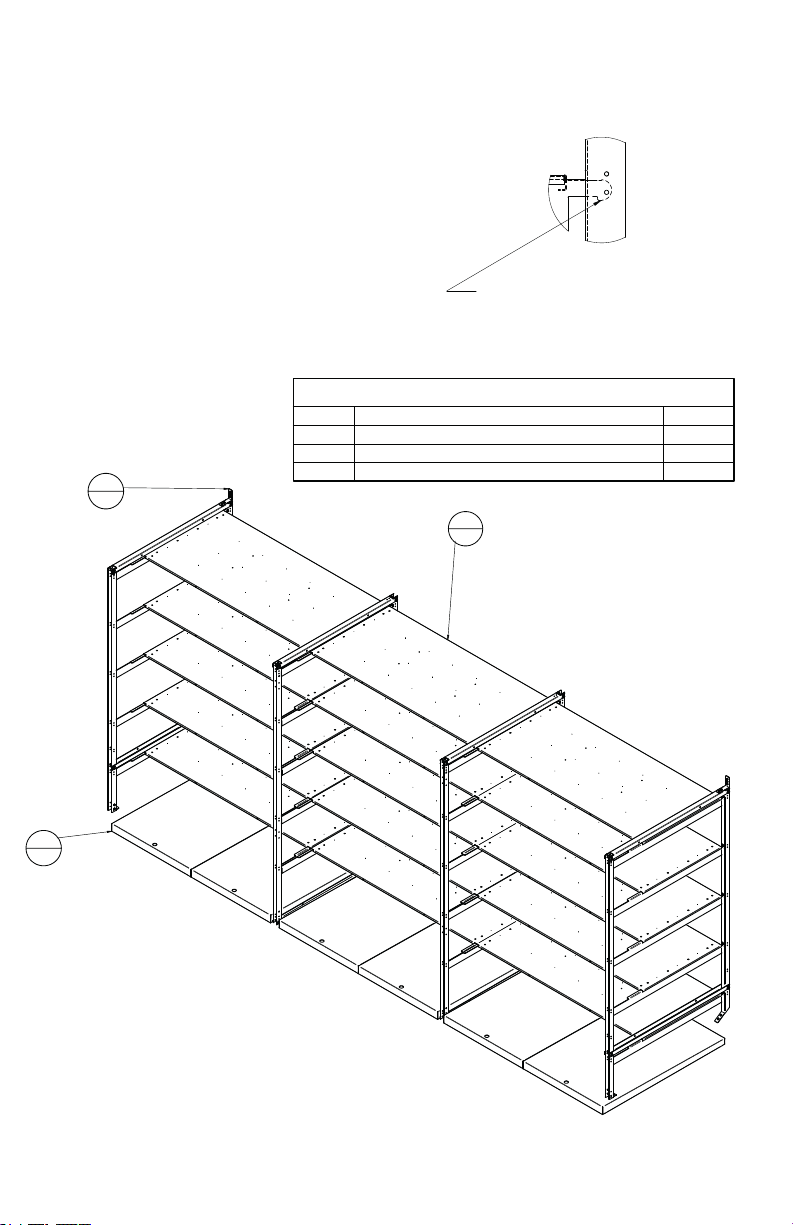

SHELF INSTALLATION
Shelf and Base Pan Installation

1-14 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
DOOR INSTALLATION
Door Assembly Reference Parts
7
3
9
1
10
1
11
2
3
2
8
1
4
6
1
6
13
2
12
17
PART LIST - ASSEMBLY
ITEM TITLE QTY
1 SCREW-HEX WASHER HEAD 10X24X1/2 THREAD CUTTING 6
2 BUMPER-SQUARE 6
3
MULLION 2
4 BUSHING-GRAVITY TOP PIN 6
5 DOOR ASSY-LH GLASS 24X74 WITH SOLID PIN BLACK 3
6 DOOR ASSY-RH GLASS 24X74 WITH SOLID PIN BLACK 3
7
PLATE ASSY-BOTTOM HINGE MODULAR 3
8
RAIL-BOTTOM 1
9
SUPPORT-EXT RAIL 1
10
SUPPORT-BOTTOM RAIL 1
11
BRACKET-BOTTOM SET 2
12 SCREW 8-18 X 1 HEX WASHER HEAD STAINLESS STEEL BLACK #2 17
13
MULLION-CTR BLACK 2
14*
SUPPORT-RAIL 1
15* WIPER-DOOR FRAME 73.5 BLACK 6
16* WIPER-DOOR FRAME 46.3 BLACK 1
17 SCREW-.187 SHOULDER 8-32 LOW PROFILE TORX NYLON LOCK PILOT 6
18* RETAINER-DOOR & WIPER 46.591 BLACK 2
19* RETAINER-DOOR & WIPER 46.300 BLACK 1
20* WIPER-DOOR FRAME 46.591 BLACK 2
21* BUMPER-SQUARE ADHESIVE BACKED BLACK 6
17
6
5
3
6
3
2
6
7
3
9
1
10
1
11
2
3
2
8
1
4
6
1
6
13
2
12
17
PART LIST - ASSEMBLY
ITEM TITLE QTY
1 SCREW-HEX WASHER HEAD 10X24X1/2 THREAD CUTTING 6
2 BUMPER-SQUARE 6
3 MULLION 2
4 BUSHING-GRAVITY TOP PIN 6
5 DOOR ASSY-LH GLASS 24X74 WITH SOLID PIN BLACK 3
6 DOOR ASSY-RH GLASS 24X74 WITH SOLID PIN BLACK 3
7 PLATE ASSY-BOTTOM HINGE MODULAR 3
8 RAIL-BOTTOM 1
9 SUPPORT-EXT RAIL 1
10 SUPPORT-BOTTOM RAIL 1
11 BRACKET-BOTTOM SET 2
12 SCREW 8-18 X 1 HEX WASHER HEAD STAINLESS STEEL BLACK #2 17
13 MULLION-CTR BLACK 2
14* SUPPORT-RAIL 1
15* WIPER-DOOR FRAME 73.5 BLACK 6
16* WIPER-DOOR FRAME 46.3 BLACK 1
17 SCREW-.187 SHOULDER 8-32 LOW PROFILE TORX NYLON LOCK PILOT 6
18* RETAINER-DOOR & WIPER 46.591 BLACK 2
19* RETAINER-DOOR & WIPER 46.300 BLACK 1
20* WIPER-DOOR FRAME 46.591 BLACK 2
21* BUMPER-SQUARE ADHESIVE BACKED BLACK 6
17
6
5
3
6
3
2
6

EGP Merchandisers
P/N 3143044_C 1-15
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Place the bottom Rail support over the retainer
.
Bottom Rail
support
Center the Bottom Rail support between
the two uprights . It should align with
the end frame
DOOR INSTALLATION STEPS
Unpack door parts kit, and remove top of
crate to access doors.
NOTE:
Some parts shown may not be included on
the case(s) to be installed. The illustrations
are only for door installation purposes.
STEPS:
1. Locate the Support Rail, and place it
between the uprights of the case with
flanges facing up.
Center the Support Rail between the
two bottom uprights. It should align
with the end frame.
2. Place Bottom Support over Support Rail
and center with the bottom uprights on
case.
Bottom
Support
Support
Rail

1-16 InstallatIon
P/N 3143044_C U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • WWW.HUSSMANN.COM
3. Remove the Bottom Support Rail. The support rail is now in the correct location and
can be mounted to the floor in 3 locations with masonry screws in the locations shown
by the arrows.
Bottom Rail
Support
4. Reinstall Bottom Support over Support Rail.
Place Exterior Rail Support on top of Bottom Rail Support.
Place Bottom Rail over Exterior Rail Support.
Support
Rail
External Rail
Support
Bottom
Rail
