Hussmann EcoVision EZ Door Upgrade User manual

IMPORTANT
Keep in store for
future reference!
EcoVision EZ Door Upgrade
for Impact Medium Temperature Merchandisers
Spanish 3005584
French 3005586
Installation &
Operation Manual
P/N 0558756_C
Impact Series
May 2018
®
®
MANUAL- I/O IMPACT ECOVISION EZ

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
ii
BEFORE YOU BEGIN
Read these instructions completely and carefully.
PERSONAL PROTECTION EQUIPMENT (PPE)
Personal Protection Equipment (PPE) is required whenever servicing this equipment. Always
wear safety glasses, gloves, protective boots or shoes, long pants, and a long-sleeve shirt when
handling glass.

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. iii
EcoVision EZ Door Upgrade
PREPARATION
Personal Protection Equipment ................. ii
Revision History .............................iv
ANSI Definitions ............................iv
Installation Tool List .........................iv
Shipping Damage ............................ 1
General .................................... 1
Location .................................... 2
Case Leveling ................................ 2
Removing Canopy Fascia ...................... 3
Removing Bumper ........................... 3
Rail Extrusion ............................... 3
INSTALLATION
Parts Identification ........................... 4
Install Insulation Bottom Rail Support ........... 5
Attach Door Bottom Rail Extrusion.............. 6
Flange Direction ............................. 7
Install Canopy Assembly ...................... 8
Install Light Channel ........................ 10
Reinstall Canopy Fascia ...................... 11
End Mullion Joined Together .................. 12
Installing Mullions .......................... 13
Installing Plate Assembly ..................... 14
Installing EcoVision EZ Door(s) and Top
Bushings .................................... 15
Adjusting Doors ............................ 16
Replace Panels, Bumpers, Canopy Fascia, etc. .... 18
OPERATION
Start Up / Stocking .......................... 19
Installing Stability Bracket Kits for
Narrow Excel Cases ......................... 20
Technical Guideline for Case
and Refrigeration System Adjustments ........... 21
Cases ...................................... 21
Line-Ups ................................... 21
Refrigeration System (Dx System) .............. 22
Heating, Ventilation, Air-Conditioning System
(HVAC) ................................... 23
End Filler Installation ........................ 24
Install Trim................................. 26
Table of Contents
IMPORTANT
KEEP IN STORE FOR FUTURE REFERENCE
Quality that sets industry standards!
12999 St. Charles Rock Road • Bridgeton, MO 63044-2483
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900
www.hussmann.com
© 2018 Hussmann Corporation

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
iv
REVISION HISTORY
REVISION C
1. Added Caution, page iv
2. Updated drawing, page 4
3. Updated drawing 8a-1.
4. Updated drawing 8a-2
5. Updated drawing 8b-1
6. Updated drawing 12.1
7. Updated drawing 12-2
8. Updated drawing, page 16
9. Updated Figure 15; 19-2
10. Updated STEP 19-C
11. Updated STEP 19-D
12. Updated STEP 19-E
EcoVision EZ Door Installation Tool List
Level, (minimum of 2 ft long)
Ratchet
1/4in. Socket
7/16 in. Socket
3/8in. Socket
1/2in. Open End Wrench
Battery Drill/Screw Gun
Rubber Mallet
Flat Screw Driver
Phillips Screw Driver
* * * * * * * * * * * * * * * * * * * * * * * * * *
ANSI Z535.5 DEFINITIONS
• DANGER – Indicate[s] a hazardous
situation which, if not avoided, will
result in death or serious injury.
• WARNING –Indicate[s] a hazardous
situation which, if not avoided, could
result in death or serious injury.
• CAUTION –Indicate[s] a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
• NOTICE – Not related to personal injury –
Indicates[s] situations, which if not avoided,
could result in damage to equipment.
Excessive ambient conditions may cause
condensation and therefore sweating of
doors. Facility operators should monitor
doors and floor conditions to ensure safety
of persons.
Caution: Tipping Hazard
Case tipping may occur if cases are
not properly leveled and secured, or
if cases are not properly loaded.

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 1
EcoVision EZ Door Upgrade
SHIPPING DAMAGE
All equipment should be thoroughly examined
for shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must
be made to the carrier. The carrier will provide
any necessary inspection reports and/or claim
forms.
GENERAL
Verify the merchandiser model(s) to be outfitted
with the EcoVision EZ door kit(s) by locating
the merchandiser’s serial plate. The serial plate
is located on the inside of the foam bottom at
the left side of the merchandiser.
EcoVision EZ doors may be installed without
the need to remove product from the merchan-
disers. Check with the store manager, and let
them know how long a door lineup will take to
complete. The average time to install each door
is about 10 minutes.
Note
Narrow Impact cases require additional brackets when
outfitting with doors. See Page 9 for bracket installation
details.
Water Misters and Light raiLs may not be used with
glass doors. Remove any mist equipment from case
before installing doors.
Do NOT lean glass doors against the
merchandiser lineup. Leave them packed in
their protective packaging until they are
ready to be directly installed in the lineup.
Accidental glass breakage can be dangerous.
Always wear protective safety glasses and
gloves when handling glass.
Do NOT stand or walk on top of
merchandiser. Do not store items or
ammable materials atop the unit.

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
2
LOCATION
EcoVision EZ doors are designed for merchandis-
ers that display products in air conditioned stores
where temperature is maintained at or below
75°F (24°C) and relative humidity is maintained
below 55%. Fogging, moisture and corrosion may
occur on the doors if merchandisers are operat-
ed outside these conditions.
Placing refrigerated merchandisers in direct
sunlight, near hot tables or near other heat
sources could impair their efficiency, which may
cause the doors to fog. Refrigerated cases are
sensitive to air disturbances. Air currents passing
around merchandisers will seriously impair
their operation. Do NOT allow air conditioning,
electric fans, open doors or windows, etc. to
create air currents around the merchandisers.
Product should always be maintained at proper
temperature. This means that from the time the
product is received, through storage, preparation
and display, the temperature of the product must
be controlled to maximize product life.
CASE LEVELING
Merchandisers must be installed level to ensure
proper operation of the refrigeration system
and to ensure proper drainage of defrost water.
In order for the gravity hinge self-closing doors
to close properly, the merchandisers must be
leveled correctly. Do not attempt to install
the doors or make glass adjustments prior to
ensuring the cases are level.
Shims are provided with each door kit. Use
provided metal shims.
Prepare Merchandiser(s) for Doors:
1
Carefully unpack EcoVision EZ Door
upgrade kit(s), and examine parts. Do
not carry doors by the handle.
2Carefully remove canopy fascia(s)
from the merchandiser(s).
A. Remove screws from fascia. Unhook the
canopy fascia panel by lifting out from
the center at the bottom as shown in
Figure 2-1.
B. Remove canopy fascia. Canopy fascia
will be reinstalled later
C. Loosen rods in canopy between the
joined cases as shown in Figure 2-2.
Flat Washer
Hex Nut
Threaded
Rod
Loosen Canopies
of Multi-deck Wall Cases
Figure 2-2 — Loosen Canopy Screws
between cases
Fascia
Figure 2-1 — Canopy Fascia

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 3
EcoVision EZ Door Upgrade
Do not leave merchandisers unsupported
or unattended until all parts are
properly secured.
3Remove color panel and bumper as
shown in Figure 3-1.
A. Set bumper aside. Bumper will be rein-
stalled after doors are installed.
Remove Rail
Extrusion
Screws
Figure 4-1 — Remove Front Rail
Impact
Rail Extrusion
(Removed)
Remove
Bumper
Figure 3-1 — Remove Panel and Bumper
Color
Panel
Figure 4-2— Remove Front Rail
Remove Rail
Extrusion
Screws
4Remove the 1/4in. screws from the
Impact front rail extrusion.
A. Remove rail extrusion and discard. New
rail extrusion will be installed later.
e Case(s) are now ready to be outtted
with EcoVision EZ Doors.
Refer to the door part identications on the next page to
become familiar with the standard case parts.

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
4

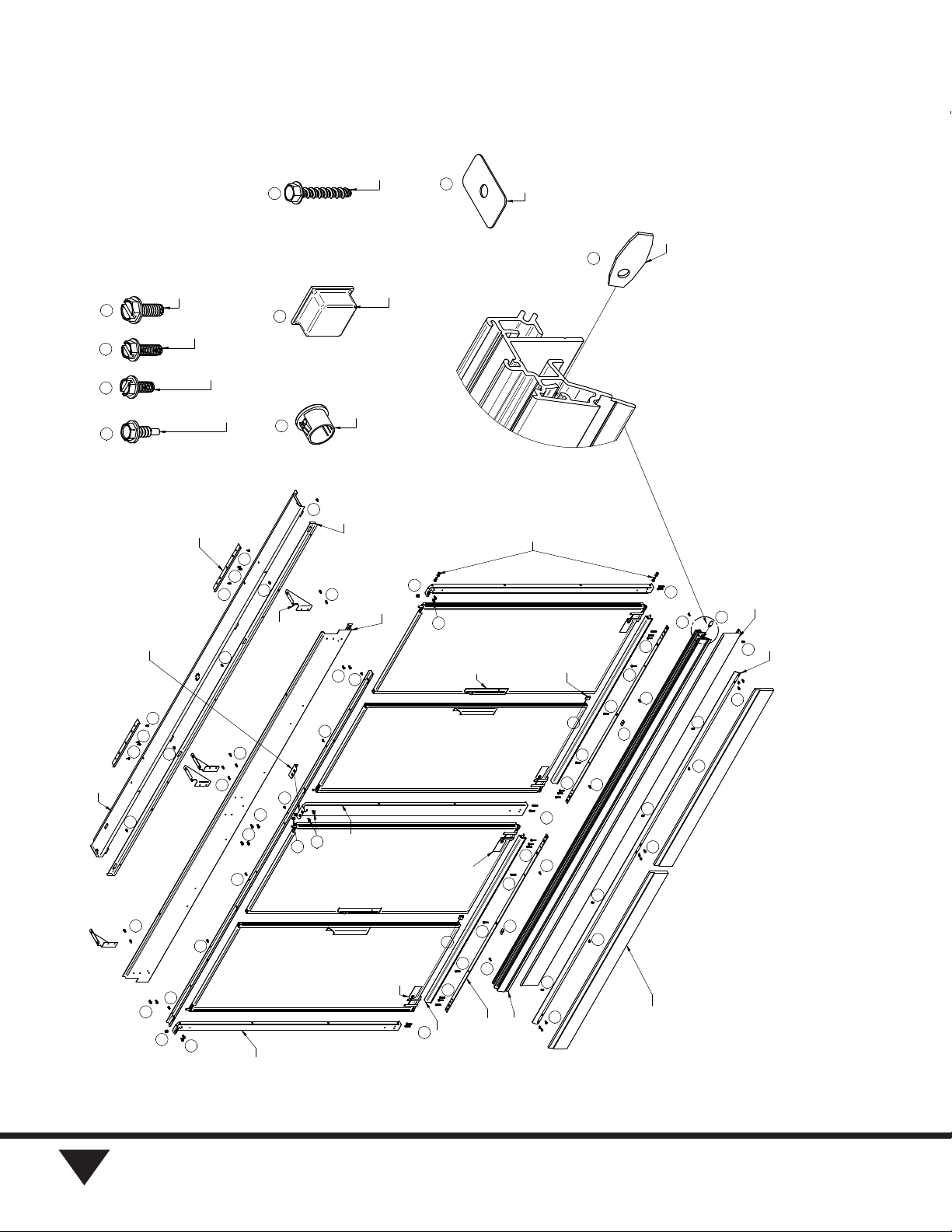

Reference Exploded View of Field-Installed Door Parts (8ft case with center mullion shown) Layout for standard case only — See Step 7-10 for narrow case.
Use small bracket in place of center mullion on "No center mullion" kits
A
A
A
A
AA
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
B
B
C
C
C
D
D
D
D
C
D
D
D
E
E
E
G
G
G
G
G
G
G
G
G
G
G
G
ABCD
F
F
SCREW-SM 8-18X1/2 HX HD TEK2
SCREW-SM 8-18 X 3/8 HW B
SCREW-#8-32 X 1/2 HX HD THREAD CUT TYPE F
SCREW-HEX WASHER HEAD 10X24X1/2 THREAD CUTTING
E
BUSHING-GRAVITY TOP PIN
F
BUMPER-SQUARE
G
SCREW-#10-16 X 1 HIGH LOW THREAD
Gravity Hinge Clip Tag
Remove tag after door is installed on case Discrete handle
doors shown
Adhesive Bumper 1 per 2 doors
MULLION-END (Needed for all door kits)
PLATE-HINGE
SUPPORT-INNER BOTTOM
MULLION-CTR
SUPPORT-CANOPY
SUPPORT-LIGHT CHANNEL
LIGHT CHANNEL
ANGLE-LIGHT CHANNEL ATTACH IMPACT
RAIL-BOTT DOOR
INSULATION-BOTT INT FRT
SUPPORT-OUTER BOTTOM
GUSSET-CANOPY
H
H
I
PLATE-BOTT RAIL ALIGNMENT
I
H
HINGE PLATE SLOT COVER
B
B
B
B
B
G
RETAINER-DOOR
(No center mullion kits
use full length retainer)
Lockwasher, Bolt, Nut See page 13

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 5
EcoVision EZ Door Upgrade
5Install insulation and inner bottom rail
supports.
A. Clean sealers and (or) Perma-gum off
front supports before attaching insulation
or bottom rail support
B. Insert insulation with notched side toward
the outside of the case (3) per 12 ft case,
(2) per 8 ft case as shown in Figure 5-1
and 5-2.
C. Install inner bottom rail support and
attach it to the front supports using #8 x
3/8in. screws.
6Attach the outer bottom rail support
to the front of the case with #8-18 x
1/2in. screws.
Figure 5-1
Insulation
Inner Bottom
Rail Support
Inner Bottom
Rail Support
Insulation
Outer Bottom Rail
Support
Figure 5-2

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
6
6a Attach door bottom rail extrusion
A. Place bottom rail extrusion onto the front of the case as shown in Fig 6-1a
& 6-2a
B. Make sure the rail is properly seated and
there are no gaps between the extrusion
and the inner bottom rail support. (Fig
6-2a)
C. Make sure extrusion is level.
D. Fasten #8 screws as shown in Fig 6-2a .
Space approximately every 12 inches.
Attention!
No Gap Between Parts!
No Gap
Figure 6-1a
Bottom Rail
Extrusion
Figure 6-2a
Level

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 7
EcoVision EZ Door Upgrade
7The design of the Impact Door kits will work on Pre 04/ 1996 cases and Post
04/1996 Impact cases. The difference in the
Canopy is shown below
Impact Canopy 4/96 to
Current — No Retrot
Impact Canopy Pre 4/96
No Retrot
Flange Direction Flange Direction

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
8

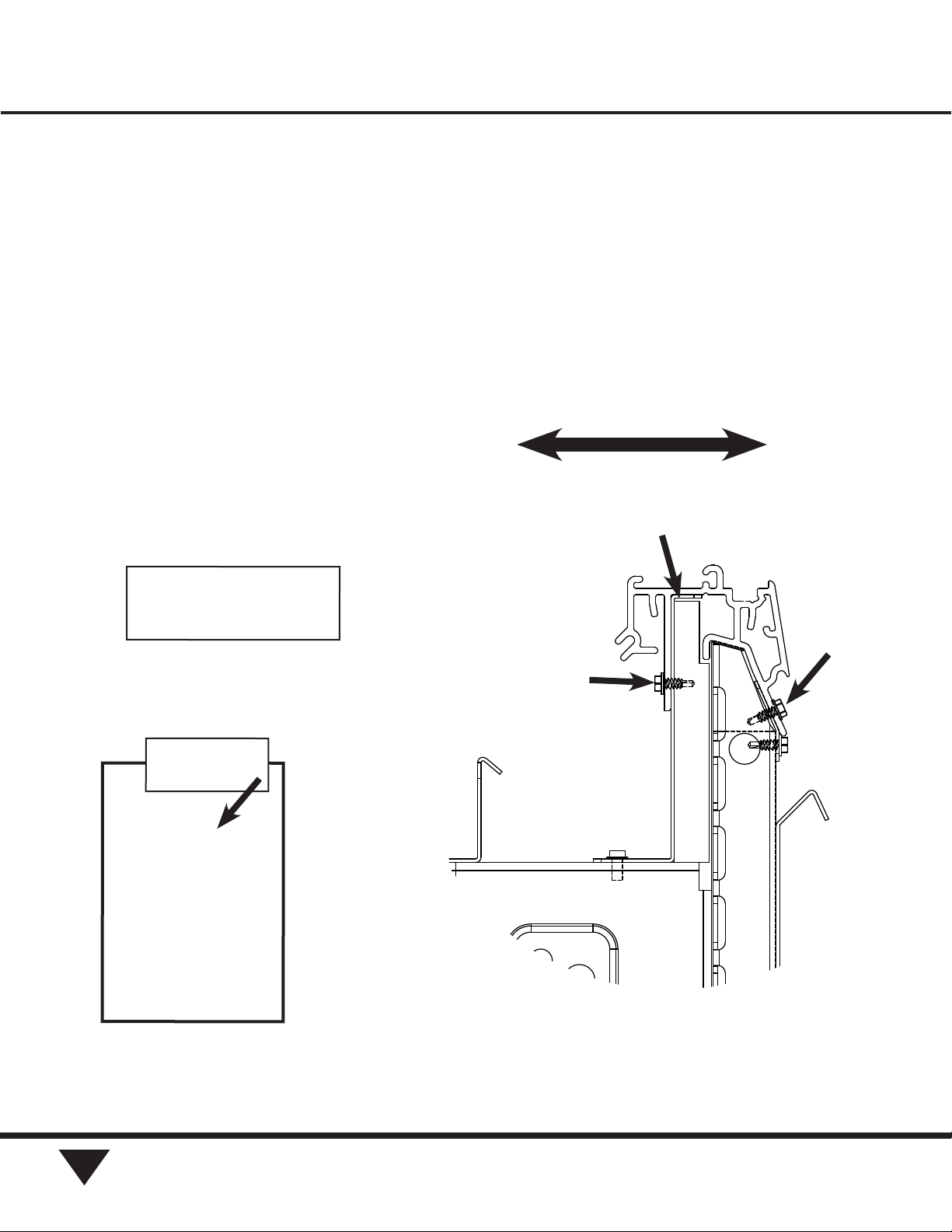

8a
Install Canopy Assembly, Fig 8a-1 to the
inside of the Retainer, Fig 8a-2
Attention!
No Gap Between Parts!
Step 8a is for standard width
cases Step 8b is for Narrow
Width Cases
Canopy Assembly
Figure 8a-1
Figure 8a-2
Install screws as shown by arrows
Gussets
Light Channel
Retainer
#10-24 x 1/2
Fascia Retainer
#8-18 x 3/8
Canopy Support
#8-32 x 1/2
Install screws as shown by arrows

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 9
EcoVision EZ Door Upgrade
8b Install the Narrow width Canopy Assembly (Fig 8B-1) to the inside of
the retainer. Attach the canopy Support
Extension to the top of the case as shown in
Fig 8B-2 to fasten both pieces together.
Canopy Support
Extension
Narrow Width Canopy
Assembly
Figure 8b-1
#8-32 x 1/2
Install screws as shown by arrows
Figure 8b-2
Gussets
Light Channel
Retainer
Fascia
Retainer
(Narrow
Cases)
Canopy
Support
(Narrow
Cases)

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
10

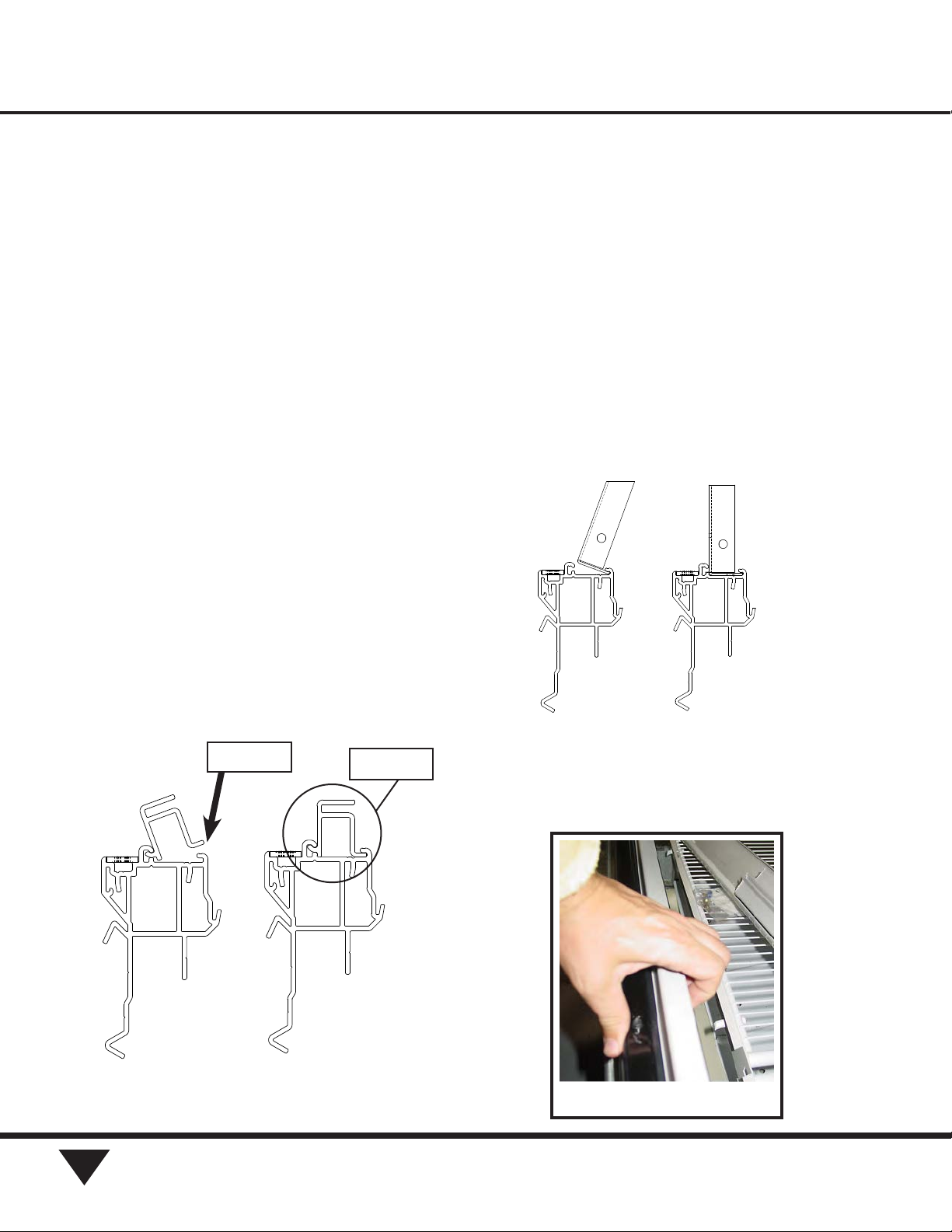

9Install Light Channel attachment ( 12 inch
parts) as shown in Fig. 9-1 using #8 Screw
10 Insert the Tabs on the Canopy Channel Assembly into Light Channel Retainer as
shown in Fig 10-1 and 10-2 and fasten
with #8 screws as shown by arrow.
Light
Channel
Retainer
Canopy Channel Retainer
Light Channel Attachment
Figure 9-1
Figure 10-1 Figure 10-2
#8-18 x 1/2

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 11
EcoVision EZ Door Upgrade
11 Reinstall Canopy Fascia
12 Note difference between narrow width and standard width canopy.
13 Remove four 9/16 in. nuts from top of canopy and set aside. Nuts will be
Reinstalled later in the instruction. This
provides movement of the canopy and
makes the mullions easier to install.
Removing ALL canopy nuts could
cause case parts to become loose and
fall, causing serious personal injury.
Do not leave merchandisers
unsupported or unattended until
all parts are properly secured.
Figure 13-1 — 9/16 in. screws
Front top
of Case
Do not loosen or remove
Rear top
of Case
Remove
Screws
Figure 11-1
It may not be necessary to perform this step
for some lineups. See step 15 for more infor-
mation.
Narrow Width Case
Figure 12-1 Figure 12-2
Standard Width Case
Narrow Width Case
Canopy
Fascia
Standard Width Case

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
12
14 Attach end and center mullions onto the rail extrusion as shown in
Fig. 14-1.
A. Angle the top of the mullion toward the
inside of the case, and engage the lower
flange into bottom extrusion. Straighten
mullion, and engage top into canopy sup-
port as shown in Fig. 14-1
15 Angle the door retainer into the front side (outside the case) of bottom rail
extrusion. Squeeze retainer until it snaps
into bottom extrusion as shown in Fig.
15-1 and 15-2.
Figure 15-2
Figure 14-1
Figure 15-1
2.
1. Squeeze Retainer
1. 2.

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 13
EcoVision EZ Door Upgrade
16
End Mullions must be joined together
at joints between cases, and are only
required at case joint, not required at
partition or end.
Bolts, Washers and Nuts for the end mullions are
pre-installed from the factory.
A. Remove the nut and washer from the end
mullion and insert bolt through end mullion
and end mullion of a joining case and insert
between mullions as shown in Fig. 14-1.
Figure 16-1
DO NOT USE
DO NOT USE
Bolt Location
Bolt Location
End Mullion
(Case 2)
End Mullion
(Case 1)
DO NOT USE
Nut 1/4-20
Lockwasher
Lockwasher
Nut 1/4-20
Bolt 1/4
-20 x 3/4
Bolt 1/4
-20 x 3/4Gasket
1/2 x 1/4

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
14

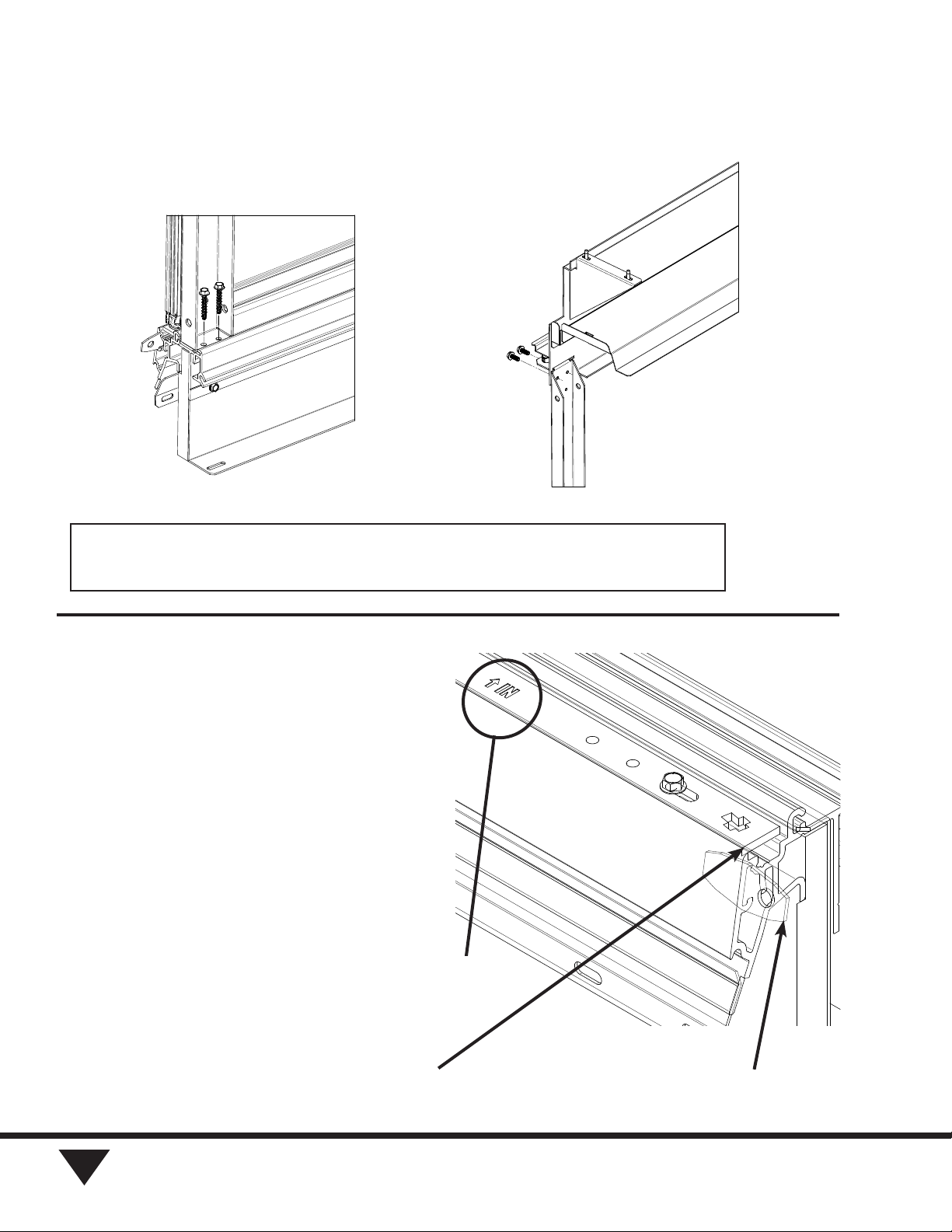

17 Fasten left and right end mullions using #8 and #10 -16 x 1 in. hex head screws.
18 Install bottom hinge plate assembly into the bottom rail extrusion about a 1/4in.
from end of extrusion. (3) plates for
12-ft case, (2) plates for 8 ft. case. There
is a an “L” stamped on the left side and
an “R” on the right side.
A. Insert one screw into the center hole and
only the center hole. Do not tighten com-
pletely. This will allow for leveling of the
doors later.
Move plate in 1/4inch from end
Figure 17-2
Figure 17-1
Figure 18-1
NOTE: End mullions may be used on the left, or the right side of merchandiser. If LEDs are
installed, mullions with LEDs are marked (L) left, (R) right), (C) center.
Bottom Rail Alignment Plate
use on case joints
Arrow on hinge plate must face inside of case as
shown. If the arrow is installed on the outside
the doors will not close.

P/N 558756_C
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. 15
EcoVision EZ Door Upgrade
19
Install EcoVision EZ Door(s) and top
bushings.
A. Insert top of door into bushing hole of door
as shown in Fig. 19-1.
B. Raise door up and position gravity hinge at
the bottom of the door into bottom hinge plate
cross hole as shown in Fig. 19-2.
C. Install remaining doors.
IMPORTANT - AFTER DOORS ARE INSTALLED!
Remove the tag from the door, pulling the C-Clip
from the gravity hinge.
Figure 19-1
Remove the clip by pulling the tag, and
the door will close.
Seating factory supplied door
Downward pressure should
fully seat the door. If not,
the door must be opened or
closed slightly to align the
cross feature.
The cross will align when the
door is opened slightly. The
door will not seat if not
aligned properly. Do not
leave the door unseated.
Do not carry doors by handle.
Personal injury and damage to
the doors may result.
Figure 19-2
Bottom of Gravity Hinge
“L” marked for LEFT
door

P/N 558756_C
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • www.hussmann.com
16

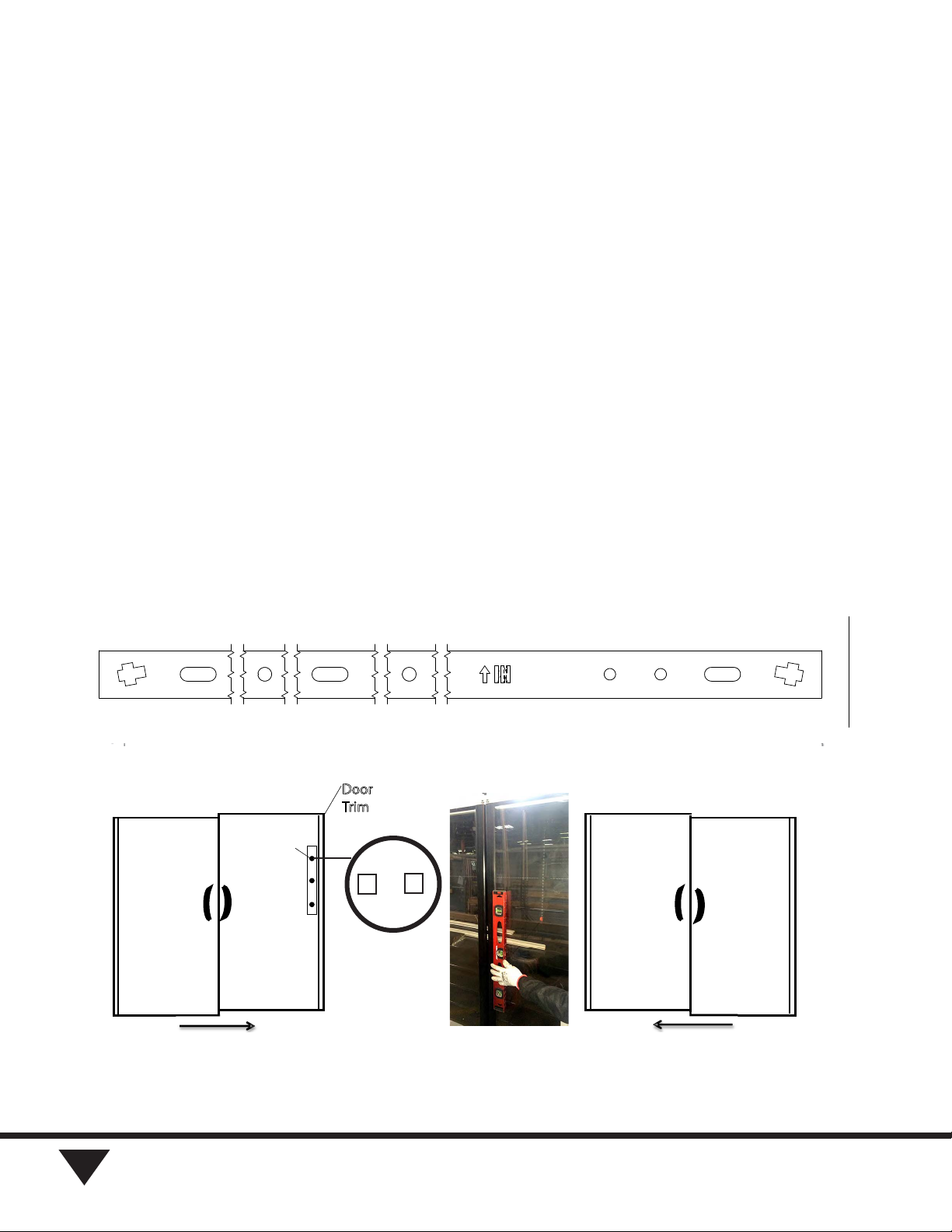

20Adjusting Doors.
A. Leveling — Merchandisers must be installed
level to ensure proper operation of the refrig-
eration system to ensure proper drainage of
defrost water, and to ensure the gravity hinge
self-closing feature operates properly.
Glass alignment is also affected with improp-
er leveling of the merchandisers. All steps of
settting, joining and case leveling attention to
the glass position is critical. Do not attempt to
make glass adjustments prior to case leveling.
Check that door can hold open to 90°.
B. Door Adjustment — Loosen screws in the
screw hole locations as shown on the hinge
plate below. (Do not remove the screws com-
pletely).
Slide the bottom plate left and right until proper
alignment is achieved. Re-tighten screws. Install
fasteners in locations 1 and 2 as shown below.
Door Alignment - Modular Bottom Hinge Plate
To correct shift the bottom plate to the right!
To correct shift the bottom plate to the left!
STEP 1
STEP 2
EcoVision Door Alignment-Modular Bottom Hinge Plate
Door
Trim
Level each door
as shown below
Check for
level here
To Correct Shift the Bottom Plate to the Right To Correct Shift the Bottom Plate to the Left
HUSSMANN_GDF_2.1 SHEET SIZE D
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS .XX
u .03, .XXX u .010
ANGLES
u 2 v
SHEET 1 OF 2
DO NOT SCALE. DIMENSIONS TO OUTSIDE UNLESS OTHERWISE NOTED.
PART TO BE FREE OF BURRS, SHARP EDGES, AND CORNERS
3059734 A
PLATE-HINGE
GRAVITY 10 DEG V2
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
MATERIAL- .126 MIN GALV (G-60U)
MODEL BY / DWG BY- YT / DWGby
DATE DRAWN - 2018/04/12
ECN-987002
REF- 0554036
CHECKED BY- DTZ
APPROVED BY- RML
K
Leveling these doors is very important
to ensure the door’s proper operation!
IMPORTANT! Do this step prior to Step
20a. Do not skip, or leveling step will
not work properly.
☑
xx
