Hussmann IMPACT RLTI Instruction Manual

L
D
E
B
H
M
J
I
K
Front
Serial Plate
A
F
G
F
CG
Merchandisers
®
Warning:
Terminal block NOT for
case-to-case
wire connection!
We reserve the right to change
or revise specifications and
product design in connection
with any feature of our
products. Such changes
do not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.
Note: Revision A moved Items B and D on Page 1, removed cross-linked drip pipe from Page 2 and added Aftermarket
part numbers.
©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

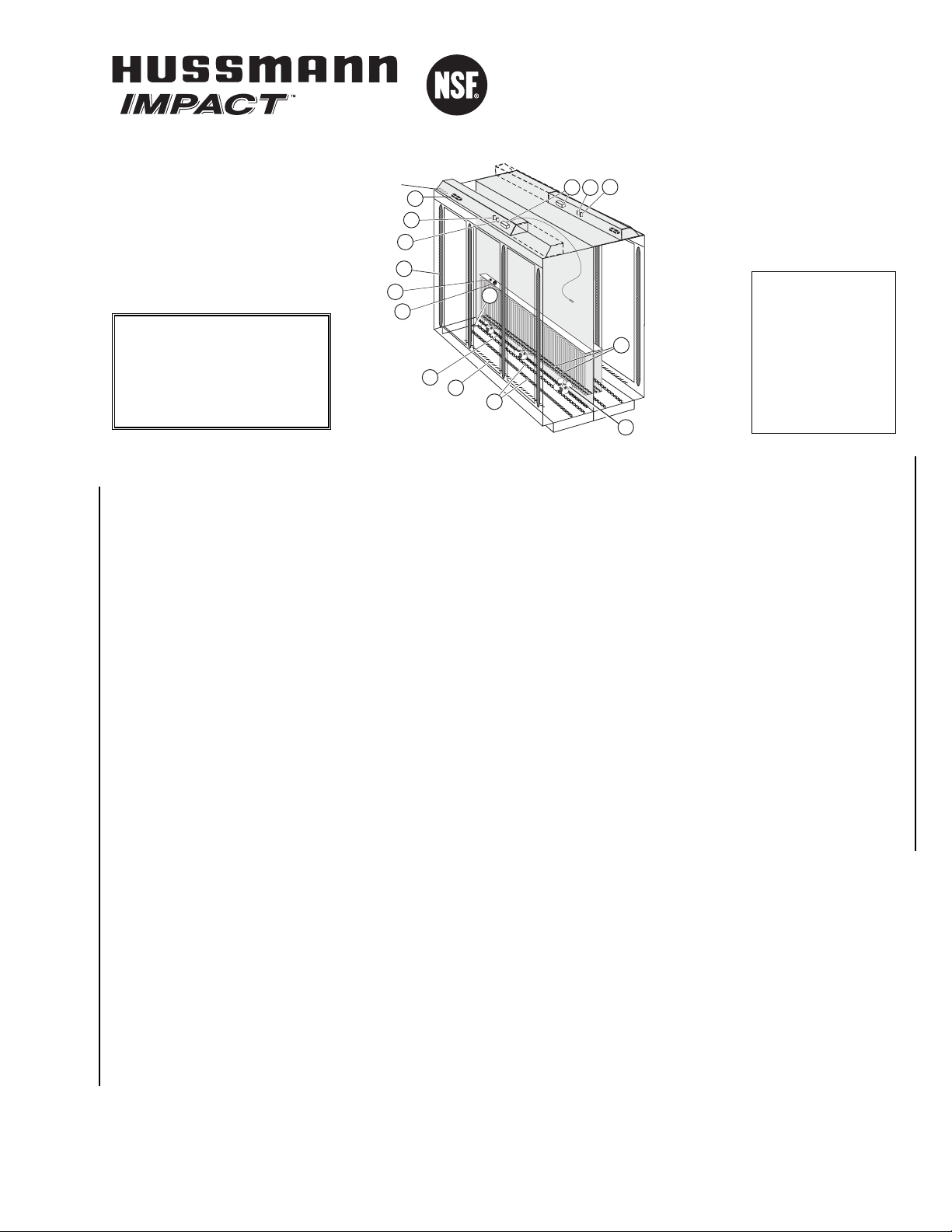

Item Part # Description Wiring Item #
FAN ASSEMBLIES, AND THERMOSTATS
A. Fan Assembly (1)
0435101 Standard Energy Efficient motor
(MO.4410574)
0315470 Fan Blade (FB.0315470)
B. 0331798 Standard Non-adjustable (2)
Defrost Thermostat (CT.4440256)
C. Optional Adjustable
Refrigeration Thermostat (3)
D. 0440423 Defrost Limit Thermostat (4)
(CT.4481089)
E. 0446007 Relay Control Thermostat or (5)
Fan and Anti-sweat Heater
Thermostat (CT.4440353)
RELAYS
F. 0342598 Anti-Sweat Control Relay (6)
(120V) (RL.4480238)
G. 0342599 Fan Control Relay (208V) (7)
(RL.4480237)
Item Part # (Qty) Description Wiring Item #
HEATERS
H. Electric Defrost Heaters (208V) (8)
0461938 (2) 2 Door Models (HE.4850354)
0461939 (2) 3 Door Models (HE.4850355)
0461940 (2) 4 Door Models (HE.4850356)
0461941 (2) 5 Door Models (HE.4850357)
I. Drain Pan Heater
Electric & Kool Gas (120V) (9)
0452974 (2) 2 Door Models (HE.4850575)
0452975 (2) 3 Door Models (HE.4850508)
0452976 (2) 4 Door Models (HE.4850509)
0452977 (2) 5 Door Models (HE.4850351)
Item Part # (Qty) Description Wiring Item #
J. Kool Gas Supplemental Heater
Plenum (120V) (10)
0452980 (2) 2 Door Models (HE.4850576)
0452981 (2) 3 Door Models (HE.4850577)
0452982 (2) 4 Door Models (HE.4850510)
0452983 (2) 5 Door Models (HE.4850578)
K. Kool Gas Supplemental Heater
Bottom (120V) (11)
0452970 (2) 2 Door Models (HE.4850350)
0452971 (2) 3 Door Models (HE.4850506)
0452972 (2) 4 Door Models (HE.4850661)
0452973 (2) 5 Door Models (HE.4850507)
LAMPS AND BALLASTS
Innovator Doors Standard
L. 0430329 1 Lamp Ballast (BA.4480341)
0430330 2 Lamp Ballast (BA.4480342)
0424649 Export Ballast (BA.0424649)
M. Standard Fluorescent Lamp
Replace with like fixtures
Refer to INNOVATOR REACH-INGLASS DOOR
INSTALLATION AND SERVICE manual, P/N 0425683,
for Innovator II door and frame replacement parts.
P/N 0468880_A
RLTI with INNOVATOR Doors
Technical Data Sheet
P/N 0468880_A
NSF®Certified
April 2007

RLTI with Innovator Doors Technical Data Sheet2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Front
5-Door Shown
Tall Reach-in Island
2, 3, 4, & 5 Door
10/2004
Engineering Plan Views
RLTI
Plan View
D
ABC
10 3/8
(264)
6 (152)
(see note *) Water Seal
(see note **)
71 3/8
(1814)
43 1/4
(1099)
78 3/8
(1991)
Refrigeration
Outlet
Bottom Front
Support
Waste Outlet
Front Relay & Terminal
Block Location
Skid/External Base
48
(1219)
68
(1727)
Electrical Wireway
Refrigeration
Outlet
Electrical Wireway
Rear Relay & Terminal
Block Location
74 3/4
(1899)
35 1/8
(892) 81
(2058)
62 (1575)
Dimensions shown as in. & (mm).
Serial Plate attached to top left front of each case. 2 Dr 3 Dr 4 Dr 5 Dr
General
(A) Case Length (without ends or partitions) 62 (1575) 92 1/2 (2350) 122 7/8 (3121) 153 3/8 (3896)
Maximum O/S dimension of case back to front 81 (2068) 81 (2068) 81 (2068) 81 (2068)
(Includes bumpers and handles)
Back of case to rear of splashguard 74 3/4 (1899) 74 3/4 (1899) 74 3/4 (1899) 74 3/4 (1899)
Width of Skidrail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)
Width of Bottom Front Support 6 (152) 6 (152) 6 (152) 6 (152)
Stub-up area between front skidrail and splashguard 6 3/8 (161) 6 3/8 (161) 6 3/8 (161) 6 3/8 (161)
Electrical Service
(B) RH end of case to center of fathest front knockout 56 7/8 (1444) 87 3/8 (2219) 117 3/4 (2991) 148 1/8 (3764)
Back O/S of case to center of front knockout 43 1/4 (1099) 43 1/4 (1099) 43 1/4 (1099) 43 1/4 (1099)
RH end of case to center of nearest rear knockout 2 3/4 (70) 2 3/4 (70) 2 3/4 (70) 2 3/4 (70)
Back O/S of case to center of rear knockout 10 3/8 (264) 10 3/8 (264) 10 3/8 (264) 10 3/8 (264)
* NOTE: Electrical Field Wiring Connection Point is at terminal. Front and rear are wired separately.
Waste Outlet
(C) Right end of case to center of waste outlet 23 3/4 (603) 54 1/4 (1378) 46 1/4 (1175) 76 5/8 (1946)
Back O/S of case to center of waste outlet 71 3/8 (1814) 71 3/8 (1814) 71 3/8 (1814) 71 3/8 (1814)
Water Seal
Edge of water seal to center of waste outlet 11 (279) 11 (279) 11 (279) 11 (279)
Outside diameter of drip piping 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)
** NOTE: Field installed water seal outlets, tees, and connectors are shipped with case
Refrigeration Outlet
(D) RH end of case to center of front refrigeration outlet 7 1/4 (184) 7 1/4 (184) 7 1/4 (184) 7 1/4 (184)
RH end of case to center of rear refrigeration outlet 54 3/4 (1391) 85 1/4 (2166) 115 5/8 (2937) 146 1/8 (3712)
Back O/S of case to center of front refrigeration outlet 43 1/4 (1099) 43 1/4 (1099) 43 1/4 (1099) 43 1/4 (1099)
Back O/S of case to center of rear refrigeration outlet 35 1/8 (892) 35 1/8 (892) 35 1/8 (892) 35 1/8 (892)
Outside bottom front supports from end of case 6 3/4(170) 6 3/4(170) 6 3/4(170) 6 3/4(170)
Center bottom front support from Centerline 24 (610) 24 (610) 24 (610) 24 (610)
Distance between Center and Outside supports will vary
Top piping is standard in the RLTI case.
Approximate Case Weight – lb (kg) (without ends or partitions) 1500 (680) 2300 (1043) 3040 (1379) 3800 (1724)

P/N 0468880_A
REFRIGERATION DATA
Note: This data is based on store
temperature and humidity that does not
exceed 75°F and 55% R.H.
FF IC
Discharge Air (°F) –5 –12
Evaporator (°F) –11 –19
Unit Sizing (°F) –14 –22
Btu/hr/door/side FF IC
Parallel 1230 1298
Conventional 1252 1325
DEFROST DATA
FF IC
Frequency (hr) 24 24
Defrost Water (lb/Dr/side/day) 1.2 1.2
(± 15% based on case configuration and
product loading).
ELECTRIC FF IC
Temp Term (°F) 54°54°
Failsafe (minutes) 48 48
GAS
Duration (minutes) 22 22
OFFTIME Not Recommended
CONVENTIONAL CONTROLS
Low Pressure Backup Control
FF IC
CI/CO (Temp °F)*–18°/ –34° –26°/ –45°
Indoor Unit Only, Pressure Defrost
Termination (Temp °F)*
Not Recommended
*Use a Temperature Pressure Chart to
determine PSIG conversions.
Estimated Charge per Side (lb)**
2Dr 1.8 4Dr 3.6
3Dr 2.7 5Dr 4.6
**This is an average for all refrigerant
types. Actual refrigerant charge may vary
by approximately half a pound.
PHYSICAL DATA
Drip Pipe (in.) 1 1/4
Liquid Line (in.) 3/8
Suction Line (in.) 7/8
Length Added to Lineup by each
Standard End (in.) 2
Optional End with Window (in.) 1 1/2
Optional Partition (in.) 1 1/2
Impact RLTI
With INNOVATOR Doors
Frozen Food & Ice Cream
7(179)
10 3/8(264)
RLTI
FAN
C
O
I
L
67 3/8(1710)
71 3/8(1814)
74 3/4(1899)
78 3/8(1991)
20
(508)
25 7/8
(657)
22
(559)
63 5/8(1618)
89
(2261)
85 1/2
(2172)
72 3/4
(1850)
Frame
68 (1727)
7 1/8
(180)
C
O
I
L
FAN
81 (2058)
43 1/4(1099)
35 1/8(892)
Refrigeration Outlets
6 1/4
(159) 11 1/8(281)
Dimensions shown as in. & (mm).
NSF Certification: These merchandisers are manufactured to meet
ANSI/National Sanitation Foundation (NSF®) Standard #7 requirements.
Tall Reach-in Island 2, 3, 4 and 5 Door Models
INNOVATOR Doors Standard
Refrigeration data is PER SIDE.
Front
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM 3 of 6

Electrical Data
2Dr 3Dr 4Dr 5Dr
Number of Fans 2 3 4 5
Amperes Watts
2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr
Evaporator Fan
120V 60Hz Standard Energy Efficient 1.65 2.5 3.3 4.1 125 188 250 313
220V 60Hz Export Energy Efficient 0.91 1.38 1.82 2.26 125 188 250 313
Anti-Sweat Heaters
120V 50/60Hz Doors 1.35 2.03 2.7 3.38 162 243 324 405
120V 50/60Hz Frames 0.96 1.43 1.92 2.4 115 172 230 288
220V 50/60Hz Doors - Export 0.74 1.10 1.47 1.84 162 243 324 405
220V 50/60Hz Frames - Export 0.52 0.78 1.05 1.31 115 172 230 288
Minimum Circuit Ampacity
120V 60Hz Standard 4.17 6.17 8.13 10.09
220V 60Hz Export 5.37 8.28 11.18 14.08
Maximum Over Current Protection 120V 20 20 20 20
Maximum Over Current Protection 220V 20 20 20 20
Defrost
Drain Heaters (Kool-Gas or Electric)
120V 50/60Hz Standard 1.00 1.50 2.00 2.50 120 180 240 300
220V 50/60Hz Standard 0.50 0.75 1.00 1.25 110 165 220 275
Kool-Gas Supplemental Heaters
120V 50/60Hz Export 4.30 6.78 9.18 11.58 516 814 1102 1390
220V 50/60Hz Export 2.35 3.70 5.01 6.32 472 744 1007 1270
Electric Defrost Heater
120V 50/60Hz Export 7.70 11.50 15.4 19.2 1600 2400 3200 4000
220V 50/60Hz Export 6.7 10 13.3 16.6 1465 2200 2930 3660
Standard Vertical Lighting 2Dr 3Dr 4Dr 5Dr 2Dr 3Dr 4Dr 5Dr
Innovator Doors Innovator or Innovator II
120V 50/60Hz Standard 1.50 2.00 2.5 3.00 180 240 300 360
220V 50/60Hz Export 0.84 1.12 1.40 1.68 185 246 308 370
RLTI with Innovator Doors Technical Data Sheet4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Hussmann recommends against frame heater cycling with
Innovator doors to prevent door seals from freezing to the
frames and tearing.
Impact RLTI
With INNOVATOR Doors
Frozen Food & Ice Cream
ELECTRICAL DATA IS PER SIDE — TWO CIRCUITS REQUIRED PER CASE.

P/N 0468880_A

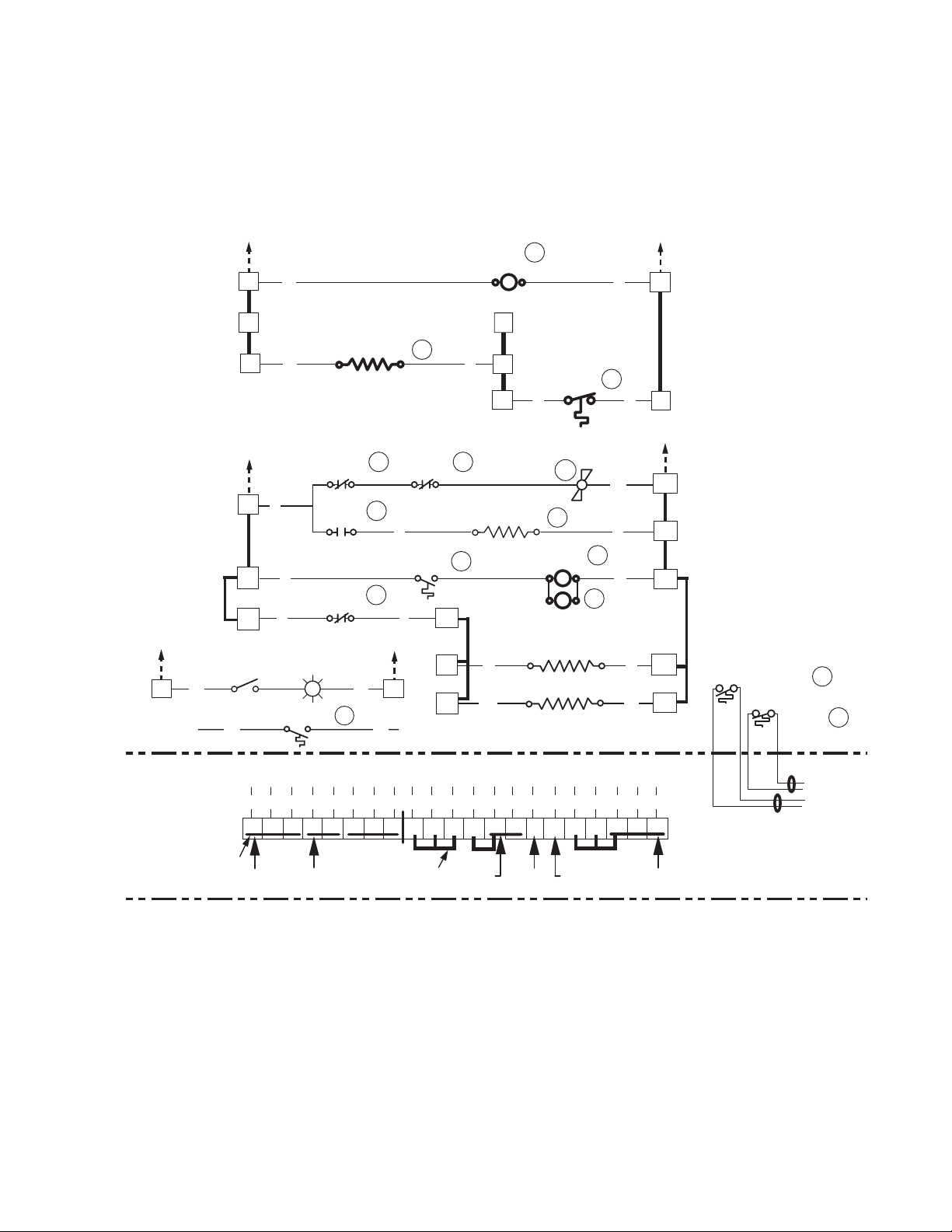

Electric Defrost Sequence - Low Temperature
1. Power from the defrost contactor energizes Defrost Heaters and 208V Evaporator Fan Relay Coil (7). Relay Contacts open the fan
circuit and energizes the Drain Pan Heater.
2. If the Defrost Heater raises internal air temperature above 90°F, the Defrost Limit Thermostat (4) will open.
3. Temperature rise of the evaporator closes the Relay Control Thermostat (5) at about 35°F, energizing 120V A.S. Relay Coils (6).
These relays’ contacts open the Frame and Door Heater Circuits, and prevent the Fan Circuit from energizing upon defrost
termination.
4. When Defrost Termination Thermostat ends defrost period, the defrost contactor opens the Defrost Heater and Evaporator Fan Relay
Coil Circuits. The Drain Pan Heater goes off.
5. Temperature fall of the evaporator opens the Relay Control Thermostat (5) at about 20°F, de-energizing 120V A.S. Relay Coils (6).
A.S. Relay Contacts close the Frame and Door Heater Circuits, and Fan Circuit.
5 of 6
C
C
Defrost Termination
Thermostat
Refrigeration
Thermostat
(Optional)
Pink
2
3
}To
Condensing
Unit
A.S. Relay
Coil
BR
Evaporator Fans 1
Fan Relay
COM
N.O.
Rod Heater (Drain) 9
Y
Y
N.C.
7
7
1
3W
B
Relay Control
25
Fan Relay
B
56
B
BCOM N.C.
6
A.S. Relay
24
Door A.S. Heaters
Frame A.S. Heaters
21
22
2P
P
2P
P
12
11
10
120V POWER
16
13
OR L
120V POWER
OR
Switch
NEUTRAL
17 20
208V
Evaporator Fan
Relay Coil
13
RR
Defrost Heater
R
5
4
BB
7
R
N.C.
7
8
8
Defrost Limit
208V 208V
Terminal Blocks in Raceway
Low Temperature with
Electric Defrost
20 21 22 26 17
12
3456 781011 1413 16
LIGHTS
(120V)
DEFROST HEATERS
(208V)
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
CAUTION: When multiplexing
merchandisers equipped with defrost
heaters, if branch circuit overcurrent
protection is larger than the
individual merchandiser’s defrost
circuit load, then additional
supplemental overcurrent protection
may be required per NEC Articles
210 and 240.
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black
BR =Brown Y =Yellow OR = Orange W = White
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral)
FANS & A.S. (Neutral)
Permanent Internal
Jumpers
R P WBRORRRRBBRRBP
2P BB ORB2PY
14
26
C.O.R.
1
2
3
4
6O.O.R.
Removable External
Jumpers
DB C.O.R.
2
Defrost Termination
Thermostat
FIELD WIRED
DB
NEUTRAL
Dark Blue
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
C
6
120V
Fan Relay
N.C.
120V Fan
Relay Coil
6
Fan and Heater Circuits — Electric Defrost (standard)
Low Temperature
Wiring Diagram is per side — two circuits required per case.
Wiring Diagram is per side — two circuits required per case.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

RLTI with Innovator Doors Technical Data Sheet6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Gas Defrost Sequence - Low Temperature
1. Defrost vapor enters evaporator causing a rise in temperature. At about 35°F the Control Relay Thermostat (5) closes the
Fan Relay Coil and Control Relay Coil (6) circuit. The Coil opens the Fan, Door Heater, and Frame Heater circuits,
while energizing the Drain Pan, Bottom, and Plenum Heaters (9), (10) and (11).
2. If the Drain Pan Heater (9) raises internal air temperature above 90°F, the Heater Limit Thermostat (4) will open.
3. When the defrost timer ends a defrost period, the evaporator temperature will start to fall. At about 20°F, the Control
Relay Thermostat will open, de-energizing the Control Relay Coil and Fan Relay Coil (7). Control and Fan Relay’s will
open the Drain Pan Heater circuits, and will close the Fan, Door Heater, and Frame Heater circuits.
Fan and Heater Circuits — Gas Defrost (optional)
Low Temperature
Wiring Diagram is per side — two circuits required per case.
9
Permanent Internal
Jumpers
A.S. Relay
Coil
BR
Evaporator Fans 1
Fan Relay
COM
N.O. Rod Heater (Drain)
Y
Y
N.C.
6
6
1
3W
B
Relay Control
c
25
Fan Relay
F
B
56
B
BCOM N.C.
6
A.S. Relay
24
Door A.S. Heaters
Frame A.S. Heaters
22
2P
2P
P
12
10
120V POWER
13
26
C.O.R.
P
OR L
120V POWER
OR
Switch
NEUTRAL
17 20
Terminal Blocks in Raceway
Low Temperature with
Gas Defrost
20 21 22 26 17
10 11 1413 16
LIGHTS
(120V)
Refrigeration
Thermostat
(Optional)
Pink
3
}To
Condensing
Unit
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
THESE ARE MARKER COLORS (WIRE MAY VARY.)
R = Red P = Purple 2P = Purple (2 Bands) DB = Dark Blue B = Black
BR =Brown Y =Yellow OR = Orange W = White
24 2512
FANS & A.S.
(120V)
LIGHTS
(Neutral) FANS & A.S. (Neutral)
PWBRORBP
2P BB ORB2PY
Removable External
Jumpers
16
6
Fan Relay
Coil
11
c
Defrost Limit 4
O.O.R.
14
21
NEUTRAL
Refer to Innovator Reach-In
Glass Door, Installation and
Service manual, P/N 0425683,
for Innovator door and frame
replacement parts.
10
11
Drain Pan Heaters – Bottom
Koolgas Supplemental
Heater – Plenum
Wiring Diagram is per side — two circuits required per case.
