HUUM HIVE HEAT12 Guide

SAUNA HEATER
HIVE HEAT
[email protected]om www.huumsauna.com
POÊLE DE SAUNA
FRA

Declaration of Performance /Leistungsdeklaration
Producttype /
Produkt
HUUM Sauna OÜ
Intended / Vorgesehen
51014,Estonia
The productconforms to the
following standards /
Das
Produkt steht zu folgenden
Bedingungen
Notifiedbody (identification
number)/
Anmeldung
(Identifikationsnummer)
Performance /
Leistung
Harmonised
technical
specification /
Harmonisierte
technische
Pass 1) / Erfüllt 1)
to ceiling / Decke
1200
to sides /
aufSeiten
170
to front/
Vorderseite
500
to back /
Rückseite
170
Pass/
Erfüllt
Pass /
Erfüllt
NPD
Pass /
Erfüllt
292°C
Pass / Erfüllt
12kW
918 mg/m3
0,074%
22 mg/m3
74%
12Pa
3,6kg x3 (max 30cm)
closed /
zu
Pass /
Erfüllt
13,3g/s
*Stove door closed /Tür geschlossen
NPD=no performance determinated / NPD- keine Leistung
1) installationofthe stove only on noncombustible floor or base
1) die Installationdes Ofens nur aufdem nichtbrennbaren Boden
Tartu, Estonia, 01.10.2019 Siim Nellis
CEO
[email protected]
Release of dangerous substances /
Abgabe gefährliche Stoffe
Safety distances to combustible materials (mm) /
Sicherheitsabstände zu brennbaren Materialien (mm)
Ignition load andrefuelling loads /
Zündlast und Brennstoffaufgabemenge
Ashbox gapafter ignition phase /
DerSpalt derAschebox nach Zündung
Dust emission at 13%O2 (mg/m3)/
Staub 13 %O2
Mechanical resistance / Mechanische Beständigkeit
Thermal output / Thermische Leistung
Carbon monoxide emission at 13%O2 /
CO-Emission 13 %O2
Total efficiency /
Wirkungsgrad
Flue draught * /
Förderdrück*
Declared performance /
Erklärte Leistung
EN 15821:2010
Carbon monoxide emission at 13%O2 /
CO-Emission 13 %O2
HEAT 12
Emission of combustible products /
Emission vonunbrennbaren Stoffen
Fire safety (initiation, risk to adjacent) /
Brandsicherheit (Brandgefahrder angrenzenden Bauteile)
Products are tested in accordance to the methods
describedinthe standard EN 15821:2010 /
Die Produkte
sind mitMethoden vomStandard EN 15821:2010 getestet
worden.
Multi-firingsauna stovefiredby natural wood logs
Mehrfach befeuerbarerOfen (Scheitholz)
TÜV SÜDIndustrie Service GmbH; Ridlestrasse 65, 80339
Munich, Germany (0036)
Essential Characteristic /
Grundlegende Eigenschaften
Durability / Dauerhaftigkeit
Flue gas mass flow* / Rauchgasmassenstrom*
Surface temperature / Oberflächentemperatur
Cleanability /
Reinigungsmöglichkeit
Flue gas average temperature* / Abgastemperatur*

3
HIVE HEAT
SAUNA STOVE
Installation and user instructions
Important! These instructions provide simultaneously the installation
instructions for models 12kW and 12kWLS. Follow the instructions for
your model carefully.
Important! The sauna stove described in these instructions should only
be connected to the chimney by a specialist.
The Hive Heat sauna stove delivery package includes:
• a sauna stove
• installation and user instructions for the sauna stove
Important! The sauna stove requires sauna stones.

4
Congratulations, you’ve made an excellent choice!
The HUUM sauna stove is the best of its kind and will serve you for a
very long time with the correct use and maintenance.
• Read the instructions carefully before installation and use.
• Keep these instructions for future reference.
Important! Read the instructions carefully before using the sauna
heater!
GENERAL
The Hive Heat sauna stove is intended for dry or wet sauna steam.
Our product range includes various modifications for the Hive Heat
sauna stoves. Consumers can choose between stoves with dierent
nominal power. The stove can be equipped with a hot water produc-
tion accessory and a wall furnace aperture, which is marked with
leers LS in these instructions.
• Weight of the sauna stove 56 kg / 123.5 lb;
• Minimal diameter of ventilation openings 78.5 cm2/ 0.8 ft2;
• Size of the steam room 6 m3– 13 m3/ 211.9 ft3– 459.1 ft3;
• Minimal diameter of the chimney flue 102 cm2/ 0.1 ft2.
INSTALLATION
• Installation of the sauna stove must conform to all local norma-
tive documents.
• Safety distances A, Band 1200 mm / 47.3 in above the stove are
given for combustible materials.
• If the stove is installed in a niche composed of non-combustible
material (stone, concrete), at least 100 mm / 4 in should be left
between the wall and the stove for air movement.
• The safety distance for combustible materials can be reduced
to 1/2 in the case of a single and 1/4 in the case of a double heat
barrier. The heat barrier is considered within the safety distance,
and the dierence between the outer surface and the protected
area must be at least 30 mm / 1.2 in.

5
• The sauna stove must be installed on a non-combustible surface
with the required carrying capacity.
• Electrical equipment and wiring are not permied in the safety
areaf the sauna stove.
Table 1 Power
kW Room AB inches
C
inches
D
inches
E
inches
F
inches
Ø
inches
H
inches
HIVE Heat
12/LS 12 613 m3
211.9 -
459.1 ft3
170 mm
6.7 in
500 mm
19.7 in
240 mm
9.5 in
425 mm
16.8 in
5 mm /
155 mm
0.2 in /
16.1 in
300 mm
450 mm
11.9 in
/17.8 in
450 mm
17.8 in
750 mm
29.6 in
Installing Hive Heat 12 LS to be heated from another room
• The furnace bushing of the sauna stove must be made through a
non-combustible wall (stone, concrete, etc.).
• The furnace bushing of the sauna stove must be made through
a non-combustible wall (stone, concrete, etc.) that extends 600
mm / 23.63 in to the sides of and 1,400 mm / 55.1 in above the
opening.
• It is advisable to leave a 50 mm / 2 in air gap between the bushing
and thestove; therefore, add 100 mm / 4 in to height Dand width
Cgiven in table 1 when calculating the dimensions for the open-
ing.
• If the floor in front of the furnace is made from combustible
material, fire-resistant floor protection must be installed in front

6
of the furnace door. The protection must be 600 mm / 23.6 in
wider than door width C, with a depth of at least 400 mm / 15.8 in.
Connecting the sauna stove with the chimney
• The flue gas outlet of HUUM sauna stoves is at the top of the
sauna stove. The sauna stove is connected to the chimney
using special metal flue pipes, which are optionally sealed with
heat-resistant sealing rope.
• The elbows of the connection tubes must be smooth to keep
draught loss to a minimum.
• The tube is inserted through the wall of the chimney and sealed
with mineral wool.
• The sauna stove can only be connected to the chimney by spe-
cialists.
• The flue gases of the stove must be directed into a separate flue.
Use of a common flue with other furnaces is not permied.
Important! Forced extract ventilation may cause problems with the of
the room and inadequate furnace combustion, therefore, designing and
building such a ventilation system is permied only with the supervi-
sion of a licensed specialist.
APPLICATION INSTRUCTION
Preparation for use
• Any natural granite stones or special sauna stove stones sold at
hardware stores are suitable for the sauna stove. Use of ceramic
stones may shorten the life of the stove.
• Sauna stove stone quantities:
• Hive Heat 12: 6 x 15kg / 6 x 33.1 lb;.
Important! The sauna stove can only be heated with wood logs.

7
Heating the sauna
• Avoid overheating the sauna stove; overheating is indicated
when the furnace case glows red. Overheating causes the metal
to deform, and the manufacturer is not responsible for this
defect.
• In the case of overheating, the ash tray must be completely
closedto stop the furnace combustion process. Keep the furnace
doorclosed. If possible, cut o air flow to the room.
• It is recommended each time you heat the sauna stove that
somequantity of the fuel consists of small and easily flammable
pieces ofmaterial which are more porous and lighter compared to
the rest ofthe fuel quantity.
• The sauna stove can only be heated with wood logs. For Hive
Heat12, 30 cm / 1 ft logs are best suited.
• If necessary, the supply of combustion air can be adjusted
bycontrolling the draught of the air vents in the front side of the-
heater by changing the position of the shuer. It is recommend-
edto keep the ash tray open by up to 2 mm / 0.1 in for ignition.
Duringheating, it is recommended to keep the air vents fully open
at thetop of the front side of the heater.
• Keep the furnace door closed during heating. Open the door only
toadd firewood.
• Avoid splashing water onto the hot glass of sauna stoves with
aglass door. Tempered door glass is not under warranty.
• The heating time of the steam room is dependent on the ther-
malresistance of the wall materials, room size and power of the
saunastove.
• The outer surfaces of the sauna stove are hot during heating.
Contact with exposed body parts can cause burns.
• Do not splash salt water onto the sauna stove.
• It is not advisable to throw hard water or water with a high iron-
content onto the sauna stove.

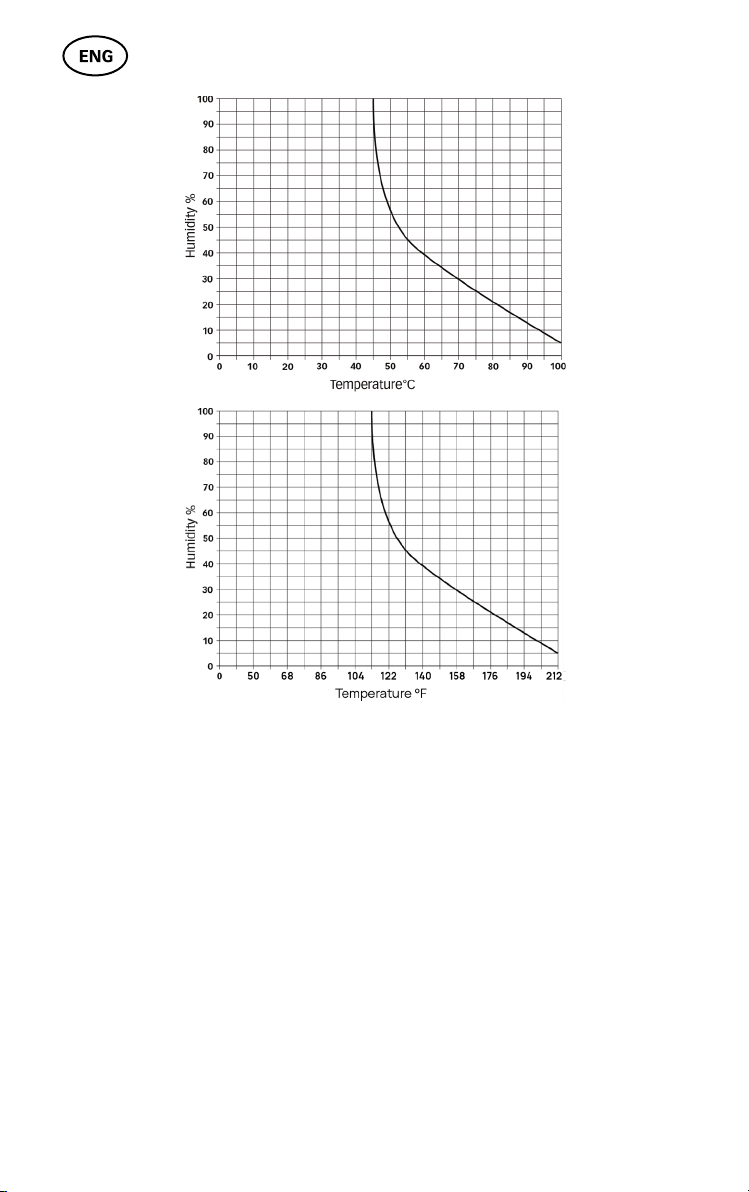

NB! Do not exceed the humidity indicated on the chart when steaming.

8
Maintenance
• For safe operation of the furnace, it is advisable to keep cleaning
accessories (shovel, broom, rake) in the lower temperature (below
104°F / 40°C) part of the steam room.
• Empty the sauna stove’s ash tray before each heating since this is
used to adjust the draught.
• If the sauna has not been used for a long time, have a specialist check
the furnace, grate and ash tray condition before heating the sauna
stove. If necessary, arrange for the condition of the chimney and the
flue to be checked as well. Also, if necessary, allow the specialist to
undertake further cleaning.
• Large temperature fluctuations may, over time, cause the sauna
stove stones to crumble and lose their required properties. It is there-
fore advisable to replace crumbled sauna stones with new ones once

9
a year.
• Clean the heating surfaces of the sauna stove regularly, at least once
every 20 uses.
• At least once a year, it is necessary to clean the chimney and flues.
• Cleaning of the sauna stove must comply with all local normative
documents which provide fire safety regulations for the cleaning of
furnaces.
WARRANTY
Buyer is obligated to read user manual and follow instructions and
requirements presented. Damage to the product caused by not
following instructions and requirements will void warranty.
If any defects are found on the product, where manufacturer can be
blamed, then buyer has the right to demand fixing or replacing the
product. Demands must be made not later than 5 years after buying
the product. Purchase receipt needs to be presented when warranty
demands are made.
Warranty Terms:
• Warranty applies only to heaters that have been used according
to the manual.
• The warranty applies to malfunctions caused by manufacturing
faults. This warranty does not cover the combined eect of high tem-
perature and water on the sauna stove:
• deformation of metal;
• surface coating;
• door glass.
NB! Warranty does not cover heating elements. They are considered as
consumable parts.
• Warranty does not cover wear that occurs from natural usage.
• Warranty does not cover defects or wear caused by planned use.
• Warranty does not imply when:
• damage or defects are caused by transportation or other
actions not controlled by manufacturer.

10
• product has been damaged by carelessness or overload
• product has not been installed correctly
• product has been modified in any way
• warranty period is over
• product is not complete
All demands shall be presented directly to HUUM Sauna OÜ
address: Vinkli tn 2, Tartu, 51014, Estonia
or using e-mail: [email protected]om
www.huumsauna.com
