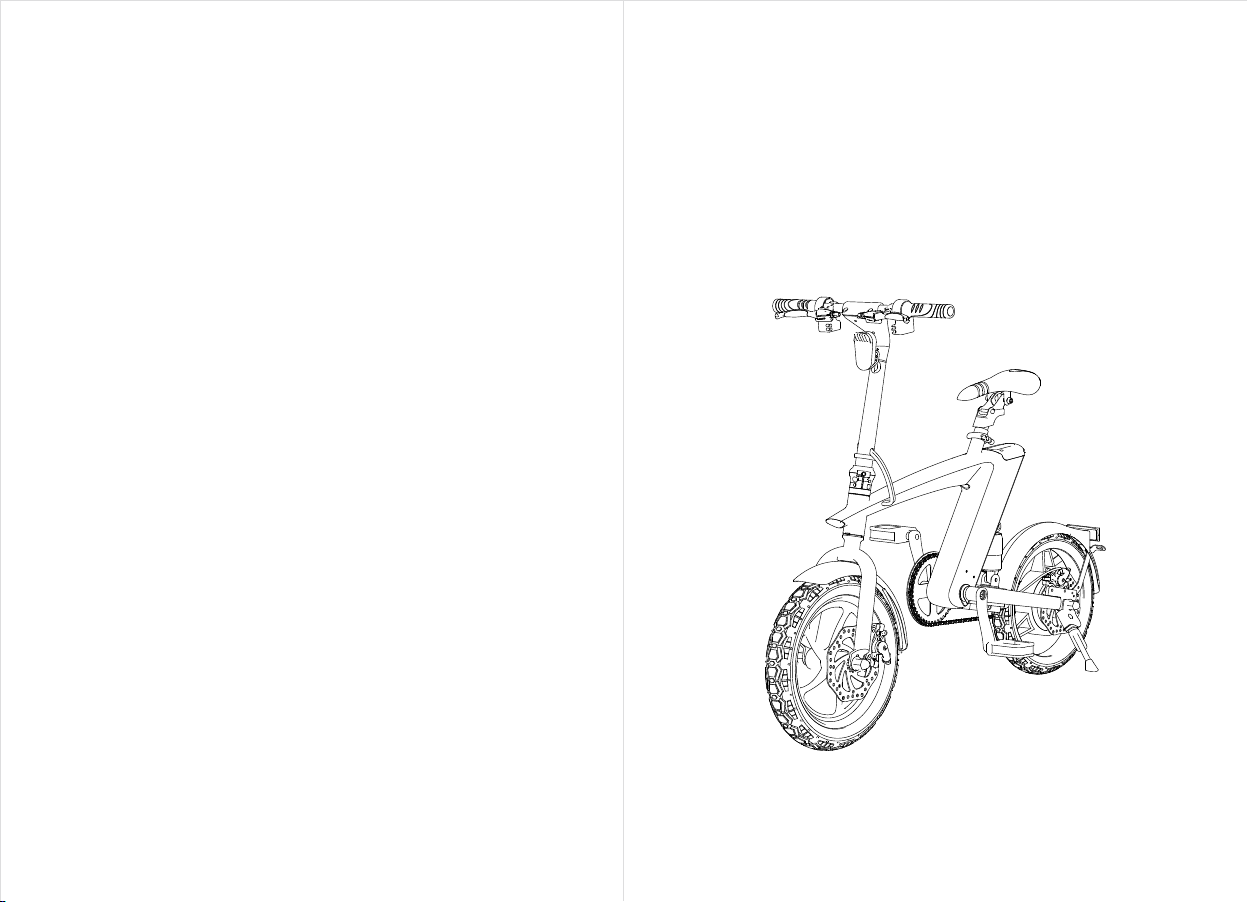

ELECTRIC BICYCLE
User Manual

About the manual
-01-
1. Packing list
2. Function Introduction
3. Product assembly
4. How to ride
5. Safety note s
6. Battery instructions
7. Basic parameters
8. Daily maintenance
9. Warranty card
-02-
INDEX
Thank you for choosing our electric bicycle series products!
The safety instructions and precautions for electric bicycles are
introduced in the user manual, Please read it carefully for the first
using. If it is not used in accordance with the instructions in the
manual, it may cause danger, and the company will not bear any
responsibility for the personal injury or property loss caused by this!
For the safety of you and others, please read the manual carefully
before using to ensure that you can drive correctly and safely!
If you have any questions during use, or cannot get the information
from the manual, please contact your dealer in time!
3
4-5
6-8
9-11
12-16
17-18
19
20
21

Product function introduction
-03- -04-
*If anything is missing, please contact the dealer in time!
M5
M8
Packing list
1. The whole scooter
2. Accessories
Electric bike*1
Seat*1 Pedal*2 Charger*1 Wrench*2 User Manual*1
Chain*1 Left crank*1 Right crank*1 Crank screw*1 Plate holder*1
ELEC TRIC BI CYCLE
User Ma nual
Wheel
Rear wheel brakeFront wheel brake
Front lightFront light
Tube folding buckle
Pedal
Gearwheel
Frame
Seat adjustment wrench
Battery
Rear light
Rear shock absorber
Disc brake
Motor
Foot stand
seat
Headlight switch
Gear shift switch
Horn button
Display
Throttle
Key lock

-05- -06-
2
1 2 3
1.Lift the pole and the front of scooter, Fasten the folding buckle of pole.
2.Turn the fix ring of the folding buckle to fasten the spanner, prevent opening of folding buckle.
3.Align the handle bar of the scooter with the upper end of the pole, and lock the front with the
four screws provided.
1
3
Loose
Horn button: short press the button, the horn will "beep, beep".
Front and rear brakes: hold the brakes, the car will slow down and stop.
①
②
③
④
⑤
⑥
⑦
⑧
Function Description
Low speed mode: without D
Normal model: white D
High-speed mode: Red D
Note: When the brake is active, turning the throttle knob to accelerate is invalid!
Bluetooth
Battery power
Temperature alarm
Gear
Speed
Speed unit
Display content illustration
Product assembly
Display: battery power,speed,gear ect;
Key lock:Insert the key, turn clockwise to the ON position to turn on, and turn
counterclockwise to the OFF position to turn off;
Throttle:Move the throttle to ride in pure electric mode;
Headlight switch: push the switch to the ON position to turn on the front light,
push it to the OFF position to turn off the front light;
Photosensitive switch: When the ambient light becomes dark, the front and rear
lights will automatically turn on when the headlight switch is not turned on;
Gear shift switch: Toggle the switch to switch 1, 2, and 3 gears in sequence from
1. Open and fix the handle bar of the e-bike
Note: Shake the handlebar after installation, if it
becomes loose, pls adjust the screw as shown in the
figure. The screw cannot be adjusted too tightly. If it is
too tight, it will be difficult or impossible to open the
folding buckle wrench.
Tight

4.Install battery pack
5.Install the chain
6.Install the bike seat
-07- -08-
2. Install brake lever
3. Install pedal
Turn the brake lever up to be almost flush with the instrument, and use an
Allen key to tighten the screw.
Left
a. Install the crank without tooth disc on the left shaft of the scooter, and lock it clockwise with
the screws provided
b. Install the pedal marked with "L" on the left crank, and pay attention to the thread direction
of the pedal is counterclockwise assembly
Remove the battery
a. Install the crank with chainring on the shaft on the right side of the car, and lock it clockwise
with the equipped screw;
b. Install the pedal marked "R" on the right crank, and pay attention to the clockwise thread
direction of the pedal during installation;
Install the battery
Align the battery with the guide rail
and insert it, insert it to the end and
turn the key clockwise to lock it.
Remove the silicon cover, turn the
battery lock 90° anticlockwise and
pull the rope to take out the battery.
To install the chain, pass one end of the chain through the chainring and one end through the
flywheel of the motor, buckle the buckle into the chain, add a washer, and then clamp the circlip.
Note: It is better to tighten the chain and lock the buckle just to buckle both ends of the chain.
If it is too tight to buckle or too loose, the screw needs to be adjusted.
The adjustment method is as follows.
a. Use M19 wrenches to loosen the fixing screws on both sides of the motor;
b. Use an M10 wrench to adjust the tightness in the direction shown in the figure;
c. Just tighten the screws that fix the motor.
Loose Tight
Note: Pay attention to the safety line
when adjusting the height of the seat. The
safety line cannot exceed the saddle tube
to prevent danger!
Open the seat tube locking wrench, insert
the seat into the tube, adjust the height of
the seat and tighten the wrench.
Right

How to ride
-09- -10-
1. There is a risk of falling and injury during riding, so please wear
helmets, knee pads, elbow pads and other protective tools.
2. Adjust the seat to a height suitable for your comfortable riding
(appropriate height: when the foot is at the lowest point, the knee angle
is about 25 to 35 degrees, this height is the most suitable).
3. Insert the key, turn the key clockwise to the ON position to
turn on the E-bike and check the battery level.
4. Hold the brake tightly, straddle the bike with your right foot, step on the pedal
and sit down.
Note: When riding an electric bike for the first time, it is best to have
someone help stabilize the bike and keep the bike balanced.
5.Slowly release the brake and press the left foot lightly on the ground to
make the bike start to slide forward slowly. At the same time, use your right
foot to push forward forcefully. Step on the left foot pedal to start pedaling
alternately. Hold the handlebar firmly with both hands. Just like riding a
bicycle.

P
Safety notes
-11- -12-
7. loosen the throttle knob can slow down the speed, vigorously grip the brake handle
to do emergency brake.
Note:
1. When riding in rain and snow, the braking distance will be extended, so
please pay attention to slow down;
2.Use the rear brake during normal driving, and the front and rear brakes
should be used together for emergency braking. Do not use the front brake
for emergency braking during high-speed driving, as the front brake at high
speed may cause the danger of rolling over!
1. Please follow the traffic laws and regulations when using electric bikes.
It is forbidden to ride electric bikes into the motorway
2. Electric bikes should not be parked in the building foyer, evacuation corridor
or safety exit
3. It is prohibited to ride on the road with severe water accumulation.
The road condition of the water accumulation is unknown, which
may easily cause danger.
Note: when used for the first time, the throttle should be slowly turned to
speed up, to prevent the acceleration caused by too fast then out of control!
This electric bicycle provides three cycling modes (fitness mode, electric power mode
and electric mode).
Fitness mode: When the motor power is turned off, full-time manual cycling can reach
the goal of fitness just like riding an ordinary bicycle;
Electric power mode: Turning on the motor power, and the electric bike control system
will automatically output an electric power according to the intensity of pedaling during
cycling, making the riding very easy. Meanwhile, the riding distance can reach the
maximum range.
Electric mode: Switch on the motor power and turn the throttle handle to ride in electric
mode. There is no need for manual pedaling mode, which can save energy and ease
riding.
6.
a.
b.
c.

＞100
kg
＜16 ＞60
4. Do not ride Electric bicycles after drink.
5. Pregnant women and users under the age of 16 or over 60 are prohibited
to ride.
6. The maximum load of electric bikes is 100kg.
-13- -14-
7. It is prohibited to ride electric bicycles up and down stairs or jumping
obstacles.
8. It is forbidden for multiple people to ride the same electric bicycle at the
same time or ride with children in their arms.
9. It is forbidden to leave the handlebar with both hands while riding.

-15- -16-
13. Before riding an electric bicycle, please check the body and tires carefully
to ensure that there are no signs of looseness or damage.
14. When riding, braking, please observe the intersection to avoid
unnecessary damage to yourself or surrounding objects, people
and small animals.
15. Please turn off the electric lock when walking with Electic bicycle
prevent accidental acceleration of the throttle.

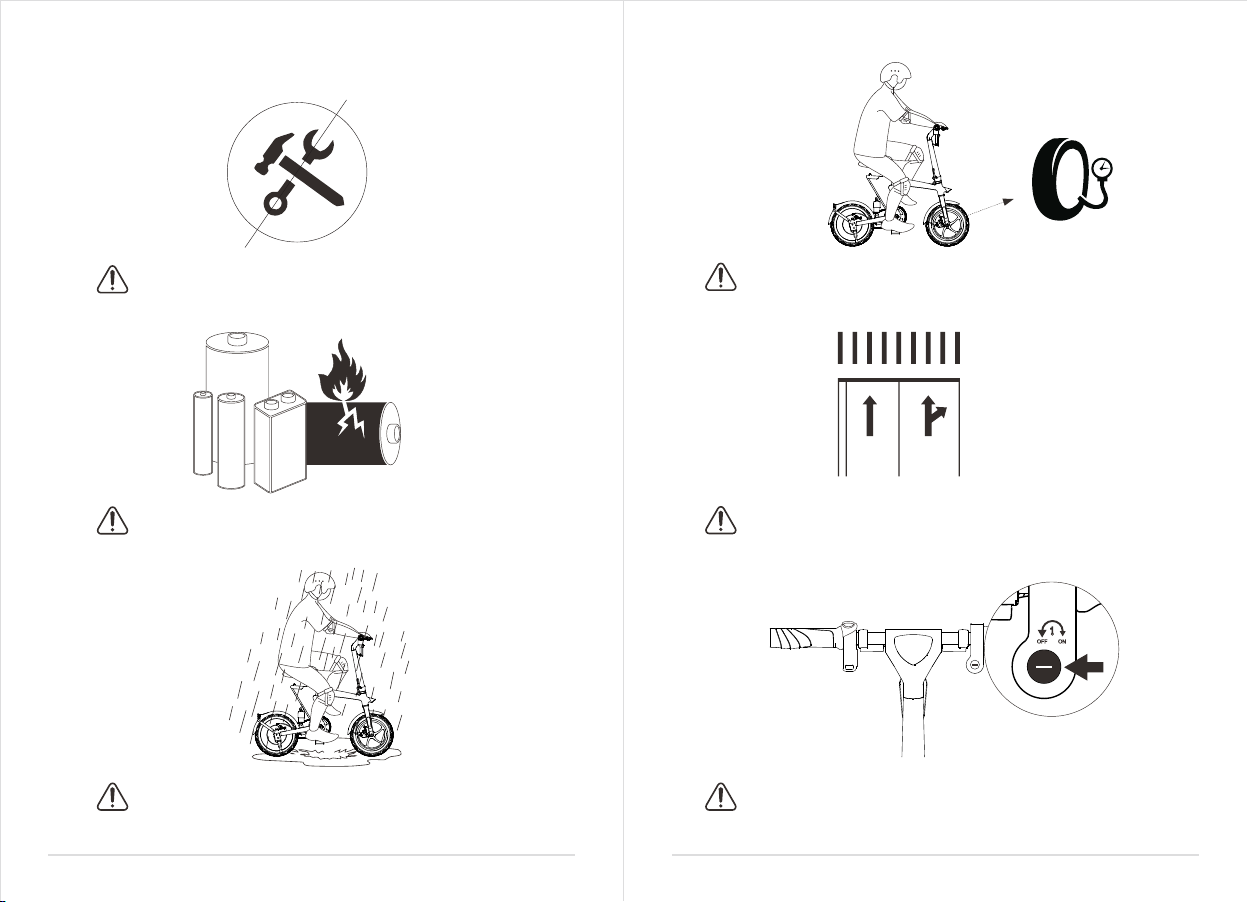

10. It is forbidden to modify the electric bicycle by yourself. It may cause
unstable operation of the electronic system and cause danger when riding.
11. It is forbidden to modify the battery of an electric bicycle without
permission. Modification of the battery is dangerous, and improper
operation may cause the battery to explode or catch fire.
12. Please try to avoid riding in rain or snow. If you need to ride, slow down
and avoid emergency braking.
Turn off the electric lock
Recommended tire pressure
240 Kpa-310 Kpa

-17- -18-
Open the dust cover on the battery, insert the DC plug of the charger into the charging base of the
battery, and then plug the AC plug of the charger into the AC power (100-240V; 50/60Hz) socket,
the indicator is red and charging starts
6.3 Charging steps
Reminder:
Battery Instruction
Name
6.1 Battery Parameters
The instruction shows how to charge and maintain the battery, some safety notices and
the specification. Please use the battery properly according to this instruction to prolong the
battery life and its performance
Type
Temperature
Parameter Name Name
Battery Capacity Rated Voltage
Charging time
Parameter Parameter
36V
5-6h
6.2 Battery Safety
In order for the electric bicycle to work stably and efficiently, the battery must be charged and
used within the temperature range required by the battery specification;
Before installing and using the battery, please unplug the charger. It is dangerous to do
anything related to the electric bicycle during the charging process;
It is forbidden to disassemble or pierce the battery pack shell to avoid short circuit caused by
metal objects contacting the battery contacts, otherwise it may cause battery damage or
personal injury.
It is forbidden to throw the battery into water, fire (including near stove, heater, etc.) or expose
it to high temperature (50°C), otherwise it may cause battery failure, overheating, or even risk
of fire.
Water in the battery may cause damage to the internal circuit and risk of fire or explosion. If
the battery is suspected of being exposed to water, please stop using the battery immediately
and send it to after-sales testing.
Only use the original charger to charge, otherwise there is a danger of damage to the battery
or fire.
If the battery is damaged, emits peculiar smell, smoke or overheating, please do not continue
to use the battery, and avoid other objects in contact with the battery.
Please fully charge the battery before storing after each use, which will help extend the battery
life.
Do not place the battery in a high temperature higher than 50°C or a low temperature
environment lower than -20°C.
When not in use for more than 30 days, please fully charge it first, store it in a cool and dry
place, and fully charge it at least once every 90 days, otherwise the battery may be damaged
and this damage is not covered by the warranty.
Avoid recharging when the battery is completely exhausted, and try to charge as soon as
possible, which can greatly extend the battery life. In addition, when used at room
temperature, the battery pack can exert a higher range and performance; and if used in an
environment below 0°C, the battery life and performance will decrease. Typically, in an
environment of -10°C, the cruising range may be only half or lower than that at room
When charging, you can only use the original
standard power adapter. Do not use any other
to avoid danger caused by power mismatch.
Charging port
Battery lock
Charging method A: Charging method B:
Max Charging
Voltage
Li-ion battery
42V
-10-40°C
Max Charging
Current
Charging
Temperature
Store Time
(-10-40°C) 3 months
(full charge)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12. Improper disposal of used batteries may seriously pollute the environment. Please abide by
local regulations when disposing of this battery pack.
1. When the internal temperature of the battery exceeds 50°C, the battery is in a protected state
and cannot be charged!
A fully charged electric bicycle will be no battery after about 90-120 days of standby.
If it is not charged in time, it may cause damage to the battery due to excessive discharge. This
damage is irreversible and out of free warranty.
2.
10Ah
2A
0-40°C

-19- -20-
If there are stains on the surface of the electric bike, Wipe with a damp soft cloth; if the
plastic parts of the body are scratched, Use sandpaper or other abrasive materials for
polishing.
8.1 Cleaning and storage of electric bikes
8.2 Inflation and maintenance of tires
Parameters
Item
Size
Net weight
Riding
Bike
specification
Battery
specification
Motor
parameter
Charger
parameter
Tire
Product name
Item No.
Unfold size
Folded size
Net weight
Max load
Max speed
Climbing angle
Working temperature
Store temperature
Rated voltage
maximum charging voltage
Capacity
Mode of motor
Motor power
Rated voltage
Input voltage
Input current
Output voltage
Output current
Charging time
Tire size
Recommended tire pressure
Max range with power assistant mode
Electric bicycle
TDT001Z
1180 x 470 x 1090mm
1180 x 350 x 760mm
20Kg
100Kg
25KM/h
60Km
15°
0-40°C
-20-45°C
36V
42V
10Ah / 360Wh
Permanent magnet brushless
250W
36V
100-240Vac 50/60Hz
2A MAX
42V DC
2A
5-6H
14 inch
240 Kpa-310 Kpa
● It is forbidden to use alcohol, gasoline, kerosene or other corrosive and volatile chemical
solvents to clean, otherwise it will seriously damage the appearance and internal structure
of the bike.
● It is forbidden to use high-pressure water guns to spray and flush. When cleaning the
electric bicycle, make sure the bike is turned off, and the charger has been unplugged and
the dust cover of the charging port has been fastened, otherwise it may cause electric
shock or major failure due to the bike was flooded.
● Electric bikes need to be stored in a cool and dry indoor place. Try to avoid storing
outdoors for a long time. Sun exposure, overheating, and cold outdoor environments will
accelerate the appearance of electric bikes and tire aging, and reduce the use of electric
bicycles and their lithium battery life.
Reminder:
The tires of this product are pneumatic tires. When the tire height sinks 20%-30%,
it needs to be inflated. The recommended inflated tire pressure is 240 Kpa-310 Kpa.
The tire is inflated at least once in 2-3 months. Regular inspection of the inflation
can reduce the puncture situation and extend the life of the tire.
Daily maintenance

-21-
9.1 The product has passed the inspection of the quality control
department and allowed to be sold
9.2. Warranty Card
Username
Mailing address
Phone
Price
Dealer signature
Description &
Specification
Purchase
address
Warranty card
Please keep the warranty card and purchase invoice properly, and present the warranty
card and purchase invoice when repairing.
Effective date :
Quality inspection pass seal:
Gender Age
Zip code
Sales order
number
Body number
User signature
Please keep the warranty card and purchase invoice as after-sales proof. This card
must be provided during the warranty. If this card is not provided or the card is
altered privately, the company has the right to do non-warranty treatment!
