HydroMassage Lounge 440 Series User manual
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 1 of 33
Introduction to HydroMassage®
Congratulations on your decision to add HydroMassage to your business. HydroMassage has been trusted by
doctors and industry leaders for over 20 years to provide clients with a convenient way to deliver the benefits of
a 10-15 minute heated massage every day.
JTL Enterprises Inc / HydroMassage®
15395 Roosevelt Blvd
Clearwater FL 33760
727-536-5566 Fax +1-727-536-6633
www.HydroMassage.com [email protected]
Key Departments:
Technical Support: 1-800-699-1008 x 1013
Marketing Support: 1-800-699-1008 x 1027
Admin / Logistics: 1-800-699-1008 x 1010
Accounting: 1-800-699-1008 x 1016
Mission
Our mission is to improve the health and well being of the individual by providing the most effective dry
hydrotherapy systems available. Build value for our stakeholders through the strength of our customers’
satisfaction, a continued focus on innovation, our dedication to operational excellence and the personal and
professional growth of our employees.
Manufacturing
All JTL products are manufactured in the United States, meeting UL / CE / CSA safety standards as well as
being registered as a Class I medical device with the FDA. Each component must first pass a rigorous 5,000
hour life expectancy test before being used in production. During production, each product must pass a 268
inspection checklist, receive approval from four different employees and managers, and undergo a 24 hour
testing process before being considered ready for shipment. All products come with a two year warranty on all
moving components and a three year warranty on major structural elements.
HydroMassage Master Code # 120700
Trademarks
HydroMassage®is a registered trademark of JTL Enterprises, Inc.
Notice of Copyright
HydroMassage®Owner’s Manual © October 2010 JTL Enterprises, Inc. All rights reserved.
Disclaimer
While every precaution has been taken to ensure the accuracy of the contents of this manual, JTL Enterprises,
Inc. assumes no responsibility for errors or omissions. Please note that the information contained herein,
including but not limited to models, specifications, options, accessories, supplies, and prices, is subject to
change without notice.
Please visit http://www.hydromassage.com/Customer-Support.htm for additional marketing, technical support,
and installation resources.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 2 of 33
TableofContents
(Completemanualfoundon‐lineatwww.HydroMassage.com)
1.IntroductiontoHydroMassage................... 1
2.TableofContents........................ 2
3.LimitedWarranty........................ 3
Disclaimers........................4
PrecautionsandContraindications...............5
4.SafetyConsiderations...................... 6
5.ProductSpecifications...................... 7
6.SetupandInstallationInstructions................8
Delivery/UnpackingInstructions...............9‐13
MovingtoDesiredLocation.................12
TouchscreenComponents...................14
TouchscreenInstallation...................15‐17
7.InitialStartUp.......................... 18‐21
FinalAssembly...................... 22
PostInstallation......................23
8.HydroMassageTouchscreenOverview................ 24
TouchscreenFeatures....................25‐27
9.ExternalTimerConnectionInstructions...............28
10.ExternalCoolingSystemVenting................. 29
11.RecommendedMaintenance................... 30
12.RecommendedRebootProcedure................. 28
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 3 of 33
HydroMassage®Limited Warranty
Limited Warranty Period
90 Days Labor
2 Years Parts only
3 Years Tank & Frame only
All parts found to be defective due to workmanship during the Limited Warranty Period will be repaired or
replaced at JTL’s option.
All labor required during the Limited Warranty Period must be authorized in writing by JTL, and must only be
performed by a JTL authorized technician or service contractor. JTL will give written authorization per incident.
The authorization is only valid for the related incident and only if the person doing the repair does so per the
guidance of our technical department. Any repairs or damage done without the guidance of JTL Technical
Department will void the warranty. At NO time should any repair include cutting and or splicing of wires. All
electrical repairs should be limited to making connections.
JTL’s Limited Warranty does not apply if: (I) the product has been repaired by anyone other than a JTL
Authorized Service Representative; (II) the product has been physically moved from its original installed
location by anyone other than a JTL Authorized Service Representative; (III) the product has been damaged by
improper connection or disconnection with any electrical device; (IV) the product has been damaged by an act
of God, accident, misuse, abuse, negligence or any other use other then the product’s intended use as set
forth in the company’s specifications; (V) the product has suffered damage from mishandling of the product;
(VI) external trauma; or (VII) distilled water was not used. (The warranty does not cover cosmetic damage.)
The sole remedy under this warranty is the repair or replacement of the product provided herein. In no
event shall the company be liable or responsible for any incidental, consequential or indirect damages for
breach of any express of implied warranty on this product. In any event, if damages are awarded, they will be
limited to the cost of the product.
Except to the extent prohibited by an applicable state or federal law, all implied warranties, including those
warranties of merchantability and fitness for a particular purpose, are disclaimed.
Some states do not allow the exclusion or limitations of incidental, indirect or consequential damages or allow
limitation to the length of an implied warranty, in which case the foregoing warranty shall be extended to
conform to the minimum requirements of such applicable law.
Specific legal rights: This limited Warranty gives you specific legal rights which may vary from state to state.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 4 of 33
Disclaimers
JTL shall not be liable for loss of use of equipment or other incidental or consequential costs associated with
the installation of equipment. (Any implied warranty shall have duration equal to the duration of the applicable
warranty stated above.) Under no circumstances shall JTL or any of its representatives be held liable for injury
to any person or damage to any property, however arising. This warranty gives you specific legal rights and
you may have other rights, which vary from state to state.
This limited non-transferable warranty is extended from JTL Enterprises, Inc. (herein JTL) to the original
purchaser of Dry-Hydrotherapy Equipment (herein “Equipment”). JTL will administer only the warranty provided
by the original component part or equipment manufacturer. This warranty does not cover damage resulting
from accidents, alteration, misuse, abuse, tampering, improper or unauthorized maintenance or repairs, use
contrary to published instructions, or purchaser’s negligence or neglect. Purchaser must place the equipment
in an area that conforms to JTL specifications, room preparation, installation instructions, electrical, and
environmental requirements.
Remedies and Limitations: The sale and exclusive remedies under this Limited Warranty shall be repair
and/or replacement as set forth above except where prohibited by law. JTL shall not be responsible for any
damages, whether direct, indirect, consequential, incidental or economic in this limited warranty. Some states
may not allow the exclusion or limitation of consequential or incidental damages so the above limitation or
exclusion may not apply to you. This thereby limits the duration of all implied warranties of merchantability and
fitness for a particular purpose to time listed on warranty sheet. Some states may not allow limitations on how
long an implied warranty lasts, so the above limitations may not apply to you.
No Other Warranties Exist: No other warranties, express or implied, exist with respect to the equipment. Oral
statements by salespersons do not constitute warranties. Salespersons are not authorized to make warranties
with respect to the equipment. This entire agreement is embodied in this writing and no other warranties exist.
This writing constitutes the final expression of the parties’ agreement and is the complete and final statement
of the terms of the agreement.
All non-warranty replacement parts are shipped freight prepaid or collect.
Credits will be given on defective or unused parts returned to JTL within 20
days of receipt. Returned opened unused parts will carry 20% restocking fee,
plus a fee for any parts returned that are damaged.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 5 of 33
HydroMassage®Precautions and Contraindications
Please ensure users are aware of the following precautions and contraindications prior to receiving a
HydroMassage treatment.
Anyone suffering from one or more of the following conditions, or with a condition upon which heat or massage
would have an adverse effect should receive physician approval prior to use:
Heart or circulatory problems; inflammatory conditions such as phlebitis; varicose veins or thrombosis;
swollen joints, acute inflammations, severe bruising, skin infections, contagious diseases; a high
temperature or have pain radiating to the arms or legs when the back is massaged.
Before beginning the treatment session, position the user in the middle of the Lounge with legs together
and the feet resting at the pump/foot end. The head should be resting comfortably on the cervical support
pillow with the curve under the neck. The pillow should be removed if treatment will include the cervical (neck
and shoulder) area.
After treatment, it is recommended that the user remain lying down for 45 seconds or until comfortable sitting
and standing. The increased circulation may cause temporary dizziness. It is advisable to drink water after a
session to assist in excreting toxins from the system.
*IMPORTANT: Any person with a specific medical condition upon which heat or massage might have
an adverse effect should consult a physician prior to use.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 6 of 33
HydroMassage®Safety Considerations
This product is not suitable for use in the presence of flammable anesthetics.
This unit uses electricity: to reduce the risk of electrical shock and fire keep clear of electrical components.
Always unplug the unit before attempting service or inspection.
This unit is intended for household or commercial use only, and has met the requirements for electro-magnet
emissions per UL standards. Do not locate equipment that is not agency-approved (such as x-ray or high-
frequency equipment) within the vicinity of the unit, as it will cause interference. If this unit causes interference
or another piece of equipment interferes with this product use only one unit at a time or move the equipment a
safe distance to stop interference.
Always frequently inspect under the Lounge and cooling unit for any signs of water leakage (specifically the
areas under the pump, pressure valve and plumbing).
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a
qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product – if it will not fit the outlet; have a proper outlet installed
by a qualified electrician.
Always disconnect power before draining water. Never connect power unless the unit has the appropriate
amount of water in it.
Always lift your equipment by the metal frame. Never lift your equipment by the plastic tank, as it may
cause cracking.
Do not store, transport or operate your equipment in freezing conditions without completely draining the tank,
pump, radiator or chiller. It is recommended that air be blown through each of these critical parts to ensure
that they are totally free of water.
In order to maintain temperature control and user comfort, make sure there is adequate ventilation in the room
where the equipment is placed. It is recommended that there be an air conditioner vent or fan located in the
room capable of moving 500 cubic feet per minute (500 CFM).
When models 320, 350, 500 & 700 are installed in rooms less than 12’ x 12’, it is recommended that the
External Cooling System be installed in a separate room or vented (See Internal Cooling System Cold Air
Supply Duct).
The supply lines allow the External Cooling System to be up to 20’ away from the equipment. When choosing
a location for the Cooling System that is remote from the machine, ensure the following:
•The temperature remains between 45° -100° degrees Fahrenheit.
•There is at least 2000 cubic feet of air space in the chiller location if the room is sealed, i.e. ceiling or
basement. If it is in another room with a door that is open more than 50% of the time the surrounding
hallways and rooms can be added...
•If the External Cooling System is to be installed anywhere other than on the ground, check to ensure it
is securely mounted.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 7 of 33
HydroMassage Lounge®Specifications
Touchscreen Specifications
Manufacturer ASUS
Monitor Size 15.6”
Display Type Wide Screen All In One PC Touchscreen
Max Resolution 1024x768 pixels at 75 Hz
Temperature Parameters Operating: 41°F to 95°F
Weight 7.82 lb (3.1 kg )
Input Requirements Any object (finger, etc.)
Model Series 440 Series 450
Dimensions 80” (239cm) L, 32” (95cm) W,
43” (69cm) H
80” (239cm) L, 32” (95cm) W,
43” (69cm) H
Weight 285 lbs /130kg without water 285 lbs /130kg without water
460 lbs/ 209kg with water 460 lbs with water
Electrical Requirements
208-230V, single phase,
50 / 60 hertz, 30-amp breaker,
10 gauge / 4mm wire
208-230V, single phase,
50 / 60 hertz, 30-amp breaker,
10 gauge / 4mm wire
Distilled Water
Necessary
20 gallons /60 liter - no water
hookup needed
20 gallons /60 liter - no water
hookup needed
Water Temperature
Range 92°/33° to 105°/ 41° C 92°/33° to 105°/ 41° C
Continuous Cooling
Unit Yes with proper ventilation Yes – External Cooler Unit
External Cooler
Dimensions NA 17"W x 21"L x 14"H / 41cm
W x 61cm L x 36cm H
External Cooler Weight NA 75 lbs / 34kg
Maximum User Weight 400 lbs / 180 kg 400 lbs / 180 kg
Massage Area 66”L x 12” W /
167cm L x 30cm W
66”L x 12” W / 167cm
L x 30cm W
Massage Type Full Body, Deep Tissue &
Effleurage
Full Body, Deep Tissue &
Effleurage
Massage Zones 30 30
Timer Range 1 to 60 Minutes 1 to 60 Minutes
Programmable Yes Yes
Water Release System Water Through Air NavitracTM Water Through Air NavitracTM
Preferred Room Size** 8 x 10 8 x 10
Construction Steel, ABS Plastic On Castors Steel, ABS Plastic On castors
Pressure Applied 2 – 38 PSI
2 – 38 PSI
Interactive Touchscreen 440-Yes 450-Yes
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 8 of 33
HydroMassage®Installation Preparation Instructions
Room Preparation
Determine where the unit will be located. The minimum room size is 8’ x 6’. To maximize user comfort an
8’ x 10’ or larger is preferred. For best results with the Series 320/350/500/700 Series (with external cooling
system), it is recommended that cooling system is installed in a separate area or vented to remove heat from
room – see “External Cooling System Heat Exhaust Vent” section.
Electrical Requirements
Series 440-450 Lounge
•A dedicated line supplying a voltage within the range of 208-volt to 240-volt power.
•30-amp dedicated breaker
•Requires 10 gauge wire (2 hot legs and a ground*) USA / 4 mm wire internationally
•Equipment is shipped with a NEMA L6-30 Locking Receptacle (shown below- 3 prong plug) / For
International installations: please have your electrician install an appropriate plug and receptacle
according to code
•Requires a 110 Volt outlet within 5’ of the center of the HydroMassage Lounge.
•CAT 5 or Cat 6 Internet / Network connection at least 6’ from Lounge
Please be sure your electrical installation is completed before the unit arrives.
*If the equipment will be installed in a patient care area, additional electrical requirements may apply.
Water Requirements
Distilled water contains no chlorine and is free of minerals and other chemicals that can cause build-up and
decrease the life expectancy of key components. Distilled water is available at most major supermarkets or
directly from your water supplier (if you have a water delivery service). Please have water on hand the day of
installation.
•Series 440-450:
•Add 20 gallons
Specifications
Dimensions: 80” (239cm) long, 32” (95cm) wide, 43” (69cm) high
Weight: 285lbs (130kg) without water. 405lbs (184kg) with 20 gallons (60L) of distilled water.
Requires a doorway larger than 29” to install in room.
NEMA L6-30R
Locking Receptacle
(USA Only)
X
Y
G
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 9 of 33
HydroMassage®Delivery / Unpacking Instructions
Tools & Supplies Needed
•Small Scissors (to remove wrapping)
•Adjustable Crescent Wrench
•Phillips Screw Driver
•Tin-Snips (for removing bands)
•25-30 Gallons Distilled Water (see previous page)
Unpacking Shipping Crates
1. Snip packing bands
2. Remove Lid
3. Remove box (sleeve) by lifting up
4. Pull down sides of box at base and sides of
Lounge
5. Remove plastic shrink wrap around Lounge
Use small scissors (not a knife or razor).
6. Unsnap and remove
cover sheet and comfort pad
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 10 of 33

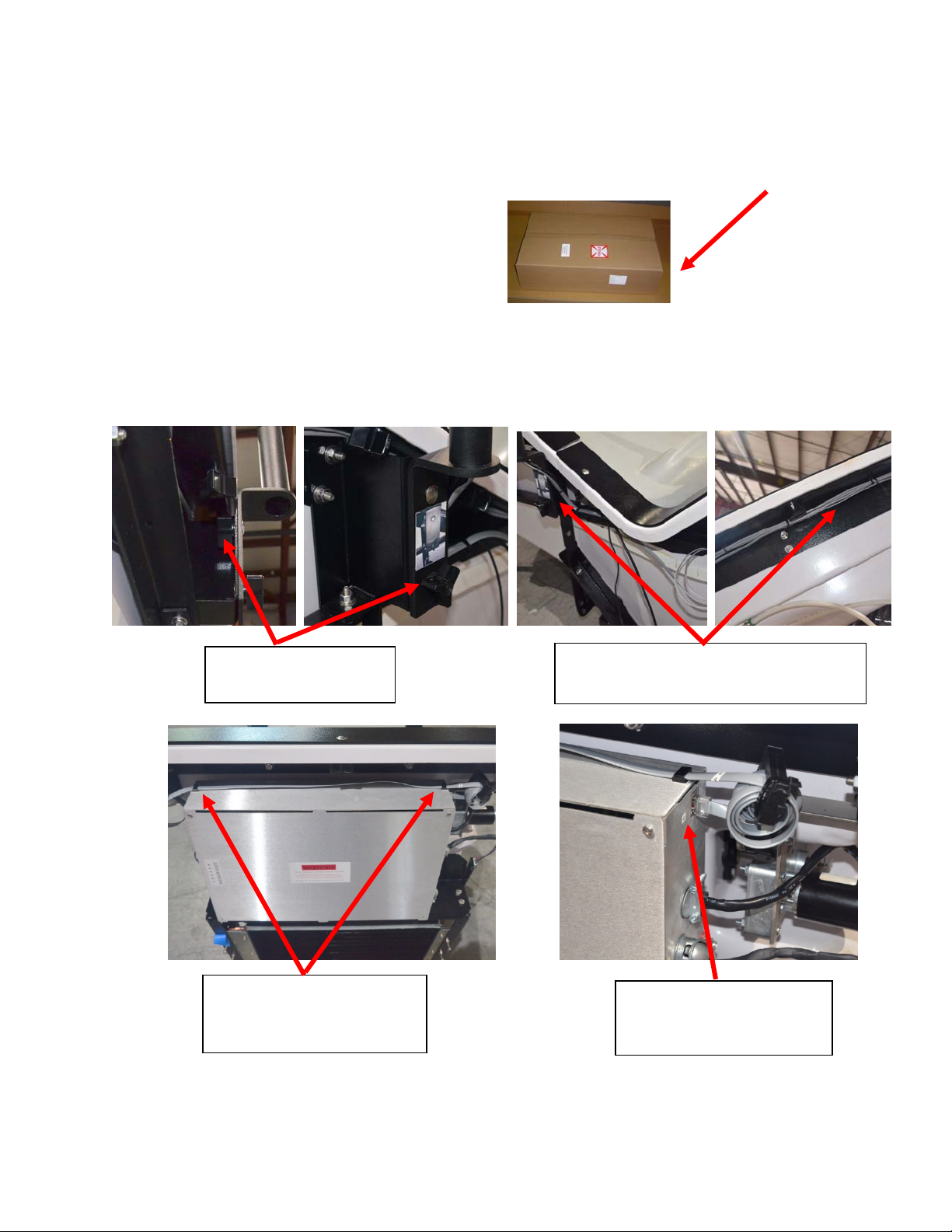

7.Remove both side panels then both end panels
by remove the 4 thumb screws at the foot and
head end of the lounge
.
8. Remove 4 BLUE packing bolts used to secure unit Lounge to shipping platform.Remove the
Touchscreen Computer and Suppy Boxes. Do not carry unit or move by using plywood-shipping platform.
Remove 4 BLUE packing bolts,
2 on each side of the Lounge Remove the Touchscreen Computer
And Supply Boxes
Touchscreen Arm Tie
Wrapped to Frame
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 11 of 33
9. Remove the 2 shipping screws from the ramp at the head end of the Lounge and place the ramp as
shown.
10. Removing the Lounge from the shipping skid. Carefully lift the foot end of the Lounge up by the handle
until the Lounge is on the very back 2 rollers as shown below.
Slowly roll the Lounge towards and down the ramp at the head end of the skid until the Lounge has cleared the
mounting blocks. You can then lower the Lounge down onto the 4 casters on the bottom of the frame.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 12 of 33

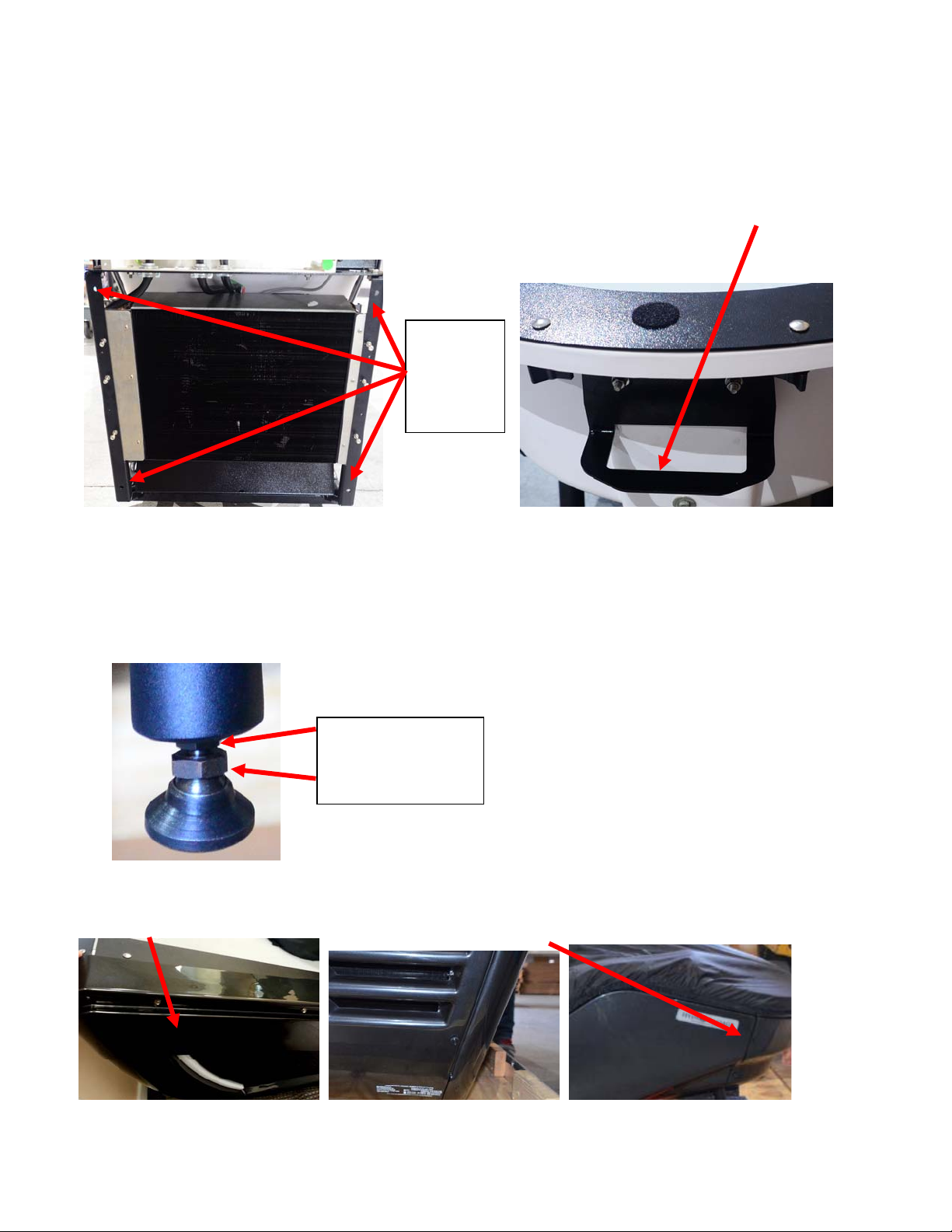

HydroMassage®Delivery / Moving Lounge to Desired Location
1) Move Lounge to desired location. Always try to make sure the metal control box is facing toward the
center of the room for easy access.
a) If you must stand the Lounge on end, you must mount the extra casters that are included in the supply
box to the frame at the head end of the lounge after removing the mesh filter as shown below. Always
lift by the handle at the foot end.
b) Use cardboard ring from the shipping box to protect the floor, walls and door threshold and to assist in
sliding the Lounge if necessary.
2) Once the Lounge is in place.
Lower the front leg feet using a 5/8” wrench until they are both firmly on the floor. Lock in place by
tightening the ½” nut up until tight against the leg
3) Put side and end panels back on unit.
Use black thumb screws from Parts Supply Box to secure end panels
Mounting
holes for
extra
casters
½” locking nut
5/8” adjusting nut
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 13 of 33

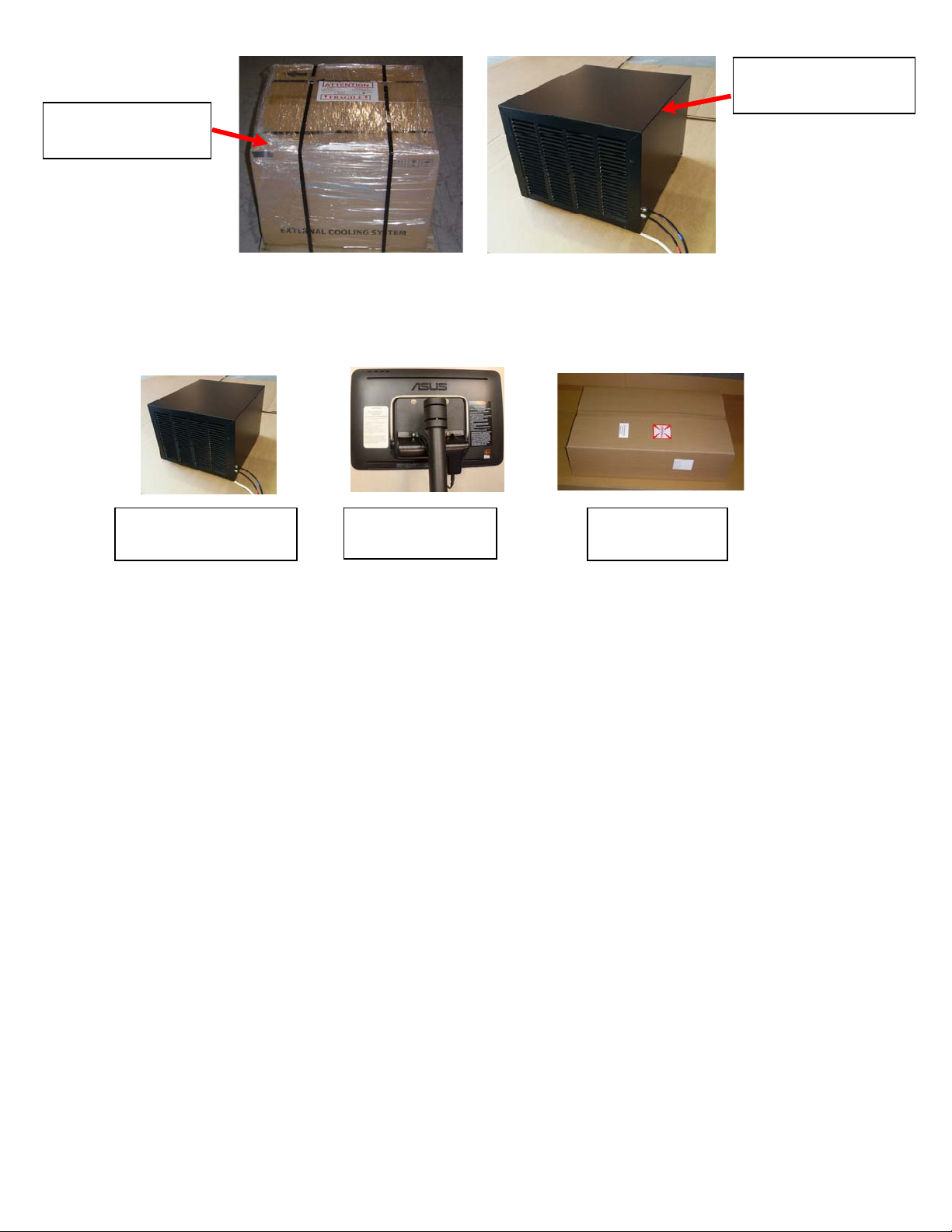

Before beginning installation, the following components should be ready:
Also, the following items should be ready:
•T-Max controller (if applicable)
•Any additional items as specified on the invoice
**THIS IS THE END OF THE DELIVERY / UNPACKING INSTRUCTIONS.
INSTALLATION INSTRUCTIONS BEGIN ON NEXT PAGE**
2 Parts Supply
Box
Touch Screen
Computer
External Cooling
System (If applicable)
External Cooling
System Crate
External Cooling
System
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 14 of 33
Touchscreen Components Supplied
Part Picture
Part Picture
Touchscreen Monitor
& CPU (front view)
Power Cord For Touch
Screen (already
connected to
Touchscreen)
Touch Screen Mount
with wiring
(back view)
Mount the Touchscreen
by bolting the arm to the
bracket as shown
Mount the arm
through the bracket
secure with the top
bolt black knob on
the inside and the
black knob for the
bottom bolt on the
outside as shown
Touchscreen Mount
located on top / right or
left side of lounge.
(Depending on
configuration at the time
of the order)
Touchscreen
Mounting
Touchscreen Pole
Adjustment
Allen Wrench
to tighten
Touchscreen Pole if
necessary. Found in
bag attached to
frame.
Battery Backup
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 15 of 33
HydroMassage®Pre-Installation Checklist
1) Verify HydroMassage room is ready for installation
2) Check to ensure the following are available:
a) Distilled water
b) 220V outlet (not applicable for 100 Series)
c) 110V outlet
d) CAT5 cable (if applicable)
e) T-Max wall cut-outs (if applicable)
f) Internet connection (if applicable)
g) External cooling system mounting structure (if applicable). Check with contractor to ensure structure is
able to hold up to 300 pounds and has method of securing system in place during use, as system will
vibrate slightly.
3) Check to ensure no shipping damage to all HydroMassage components:
a) Shipping boxes
b) Lounge panels
c) External cooling unit (if applicable)
d) External cooling unit cabinet (if applicable)
4) Position HydroMassage unit(s) in desired location
a) If possible, Lounge should be positioned with electrical box (mounted on frame) facing towards center
of the room for ease of access during service
b) If external cooling system will be installed on the HydroMassage room floor, ensure there is sufficient
space available for cooling unit, and allow for a minimum of 12” of space for both the intake and
exhaust vents of the cooling unit. Exhaust should not be directed towards the HydroMassage Lounge.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 16 of 33
Skip This Section If Your Lounge Did Not Come With An External Cooling Unit
HydroMassage®External Cooling System Installation
(This section only applies to 450 series)
1) Do not connect the 220V outlet to the Lounge prior to installing the External Cooling System
2) Position the External Cooling System where desired (maximum of 20’ from pump end of Lounge). Do
not place anything on top of or within 2 feet of either vent.
3) Connect the External Cooling System to the Power Cord
•Run tubing and power cord under frame to ensure side panels can be attached to frame
•Connect the cooling system electrical cord (A) to the corresponding power cord (B) coming from the
Lounge. If the cord is not already connected to the control box, insert the power cord through the right
side of control box and connect to the corresponding 10, 11 and 12 (C) on the circuit board as shown
below.
4) Connect the External Cooling System Water Lines
•The lines are in the supply box have red or blue color-coded tape which matches the colored dots at
the connections on the cooling system. After inserting the tubes in the cooling unit, connect the RED
line to the fitting on the top of the pump, the BLUE line gets connected to the elbow on the foot of the
tube.
5) Neatly coil the excess cooling system tubing, and secure to the inside of the Lounge frame with a
reusable tie supplied (do not squeeze tubing). Allow for a minimum of 3’ of excess wiring to enable
movement of HydroMassage unit during servicing or maintenance
Connections
for color-
coded water
lines coming
from tank,
BLUE goes
to tub, RED
goes foot of
the pump
A
B
Coolin
g
S
y
stem C
Cooling System
Power Cord
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 17 of 33
HydroMassage®Touchscreen Installation
(This section only applies to L440 series)
1) Remove Touchscreen from the box and unwrap the Touchscreen Pole and open supply boxes
2) Identify all component on previous page
3) Attachment the Touchscreen mounting pole into Lounge frame
•Touchscreen is typically installed on the side of the Lounge adjacent to a wall.
•Secure using the supplied bolts and black knobs. (top knob on inside, bottom knob on the outside)
•
Mounting bolts and
black knobs Secure wires and communication cable as
shown with supplied tie wraps
Secure the communication
cable with the clips on top of
the control box
Plug the communication
cable into the #4 port on the
side of the control box
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 18 of 33
4) Plug the Battery Backup into your 110 volt outlet, Plug Touchscreen Power Cord to Battery Backup.
•The black power cord coming from the Touchscreen needs to be plugged into the battery back-up.
**IMPORTANT: make sure the Touchscreen power cord is plugged into the correctly labeled outlet on
the battery backup.
5) Connect Touchscreen Communications Cable #4 to Control Box.
6) Neatly secure Touchscreen wiring to HydroMassage frame.
•Pictures illustrate proper Touchscreen wiring
Battery Backup
Touchscreen
Power Cord
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 19 of 33
7) Users may plug headphones into headphone jack on back of Touchscreen
8) If installing T-Max or other remote usage controls, make connections at this point.
•See Page 28 for wiring diagram
•Call HydroMassage technical support at 727-536-5566 with questions.
HydroMassage Owner’s Manual, Revision 10-25-15
JTL Enterprises, Inc 1-727-536-5566 • www.HydroMassage.com
Page 20 of 33
HydroMassage®Initial Start-up
1) Make sure HydroMassage power cord is NOT plugged into 220V outlet. If the Touchscreen is not
turned on, the Lounge should never be plugged in at the 220V electrical outlet.
2) Underneath Lounge, check to ensure two PVC pump unions are tight.
•Prior to adding water, do a quick check of the PVC unions (connections on both sides of the black
pump) underneath the Lounge to make sure they did not loosen during shipment. (See Photo in 5)Turn
clockwise to tighten **Do not need to turn Lounge on its side.
3) Unscrew small PVC breather tube, and screw the large PVC Water Filler Tube (found in Parts
Supply Box) into the foot end of the tank to add water.
4) Add first 5 gallons of water ONLY (of the total 20 gallons to be added)
5) With the first 5 gallons of water in the tank, re-inspect PVC fittings underneath Lounge to ensure all
fittings are tight. Also, tighten 18 black knobs at under the top edge of tank frame.
6) Press and hold power button on Battery Backup to turn on power to Touchscreen
Water
Filler
Tube
Breather
Tube
This manual suits for next models
1
Table of contents
Other HydroMassage Massager manuals
