Operation Manual
Dual Temperature Digital
Dry Block Incubator
Catalog No. INCUBATOR2
Rev C. April 2016

- 2 -
Thank you for your purchase. This manual contains operation information for the Dual
Temperature Digital Dry Block Incubator (catalog no. INCUBATOR2).
Opening Check
Please check the instrument and packing list when you first open the instrument
packing case. If you find there is something wrong or missing with the instrument,
contact Hygiena at www.Hygiena.com.

- 3 -
Safety Warnings and Guidelines
1. Important operation information:
In order to use the instrument properly, please read the manual thoroughly before
use.
2. Safety:
The operation, maintenance and repair of the instrument should comply
with the basic guidelines below. Failure to comply may have an effect on
the life of the instrument and the protection provided.
This product is an indoor Instrument which conforms to Standard B
style- I type- GB9706.1.
Before using the device, read the manual carefully. These units are
designed for use in laboratory environments. The device must be used
by skilled personnel with the appropriate training.
The operator should not open or attempt to repair the Instrument by
himself, which will result in loss of repair guarantee or may cause an
accident. If there is something wrong with the Instrument, contact
Hygiena.
A.C. power grounding should be reliable to safeguard against an electric
shock. The 3-pin plug supplied with power cable is a safety device that
should be matched with a suitable grounded socket.
The instrument should be operated in an environment with low
temperature, little dust, no water and away from sunlight or strong lamp.
The location should have good airflow, no corrosive gas or strong
disturbing magnetic field. It should be far away from central heating,
camp stove and other heat resources. The vent on the Instrument is
designed for aeration. In order to prevent overheating, do not cover the
vent. If you use the more than one Instrument the same time, the distance
between them should be more than 100cm.
Before turning the incubator on, verify the voltage matches the
requirements. If the electric chord is damaged, the user should replace it
with the same type. The user should assure there’s nothing on the
electric line and the user should not put the electric line in the
ambulatory place. Hold the plug when removing from the socket, do not
pull the electric chord.

- 4 -
3. Maintenance & Cleaning
To ensure optimal functionality and thermal conductivity, the wells on
the block should be cleaned regularly. Clean the wells with a soft, clean
cloth, dampened with a little alcohol.
Power the instrument off when not in use. For extended non-use, unplug
the electric chord and cover the incubator with a cloth to shield from dust.
Turn the power off when cleaning the Instrument.
When cleaning the wells, do not drop cleaning liquid into the well.
Do not use corrosive cleaning liquid.
In the case of the following scenarios, pull the connector plug from the
jack at once and contact the vendor:
There is some liquid flowing into the instrument.
Fire damage.
Abnormal operation: such as abnormal sound or smell.
Dropped instrument or outer shell damaged.
Any other major functionality change.

- 5 -
Contents
SECTION 1 INTRODUCTION---------------------------------------------------------------------------------- 6
SECTION 2 SPECIFICATIONS-------------------------------------------------------------------------------- 7
1. NORMAL OPERATING CONDITION:----------------------------------------------------------------- 7
2. BASIC PARAMETERS AND CHARACTERISTICS------------------------------------------------ 7
3. OPTIONAL BLOCK -----------------------------------------------------------------------------------------8
SECTION 3 BASIC INSTRUCTIONS------------------------------------------------------------------------ 9
1. STRUCTURE OVERVIEW-------------------------------------------------------------------------------- 9
2. KEYPADS ----------------------------------------------------------------------------------------------------10
3. DISPLAY------------------------------------------------------------------------------------------------------10
SECTION 4 OPERATION GUIDE----------------------------------------------------------------------------11
1. TEMPERATURE AND TIME SETTING---------------------------------------------------------------11

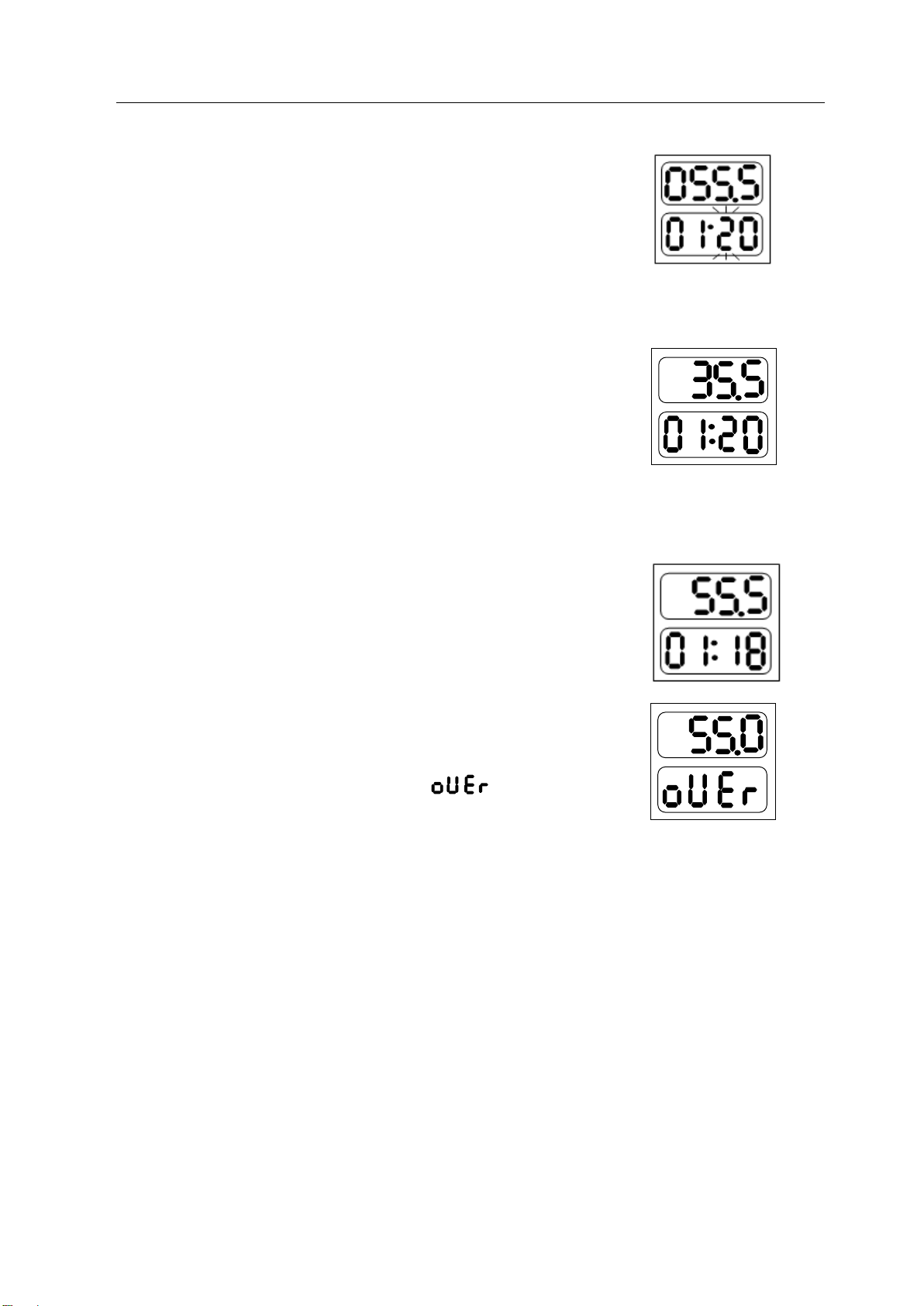

2. RUNNING AND STOPPING A PROGRAM ---------------------------------------------------------12

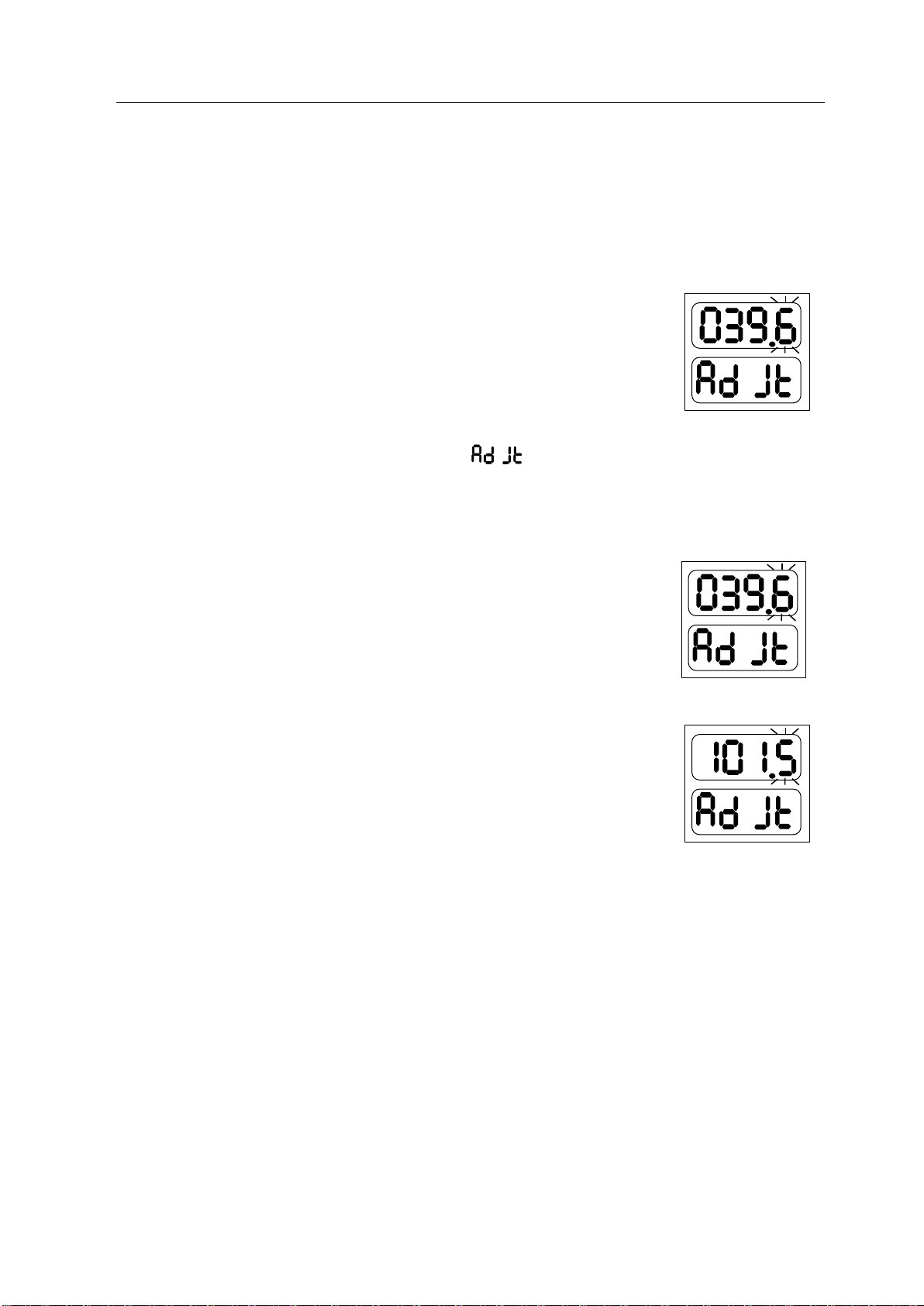

3. TEMPERATURE CALIBRATION ----------------------------------------------------------------------13

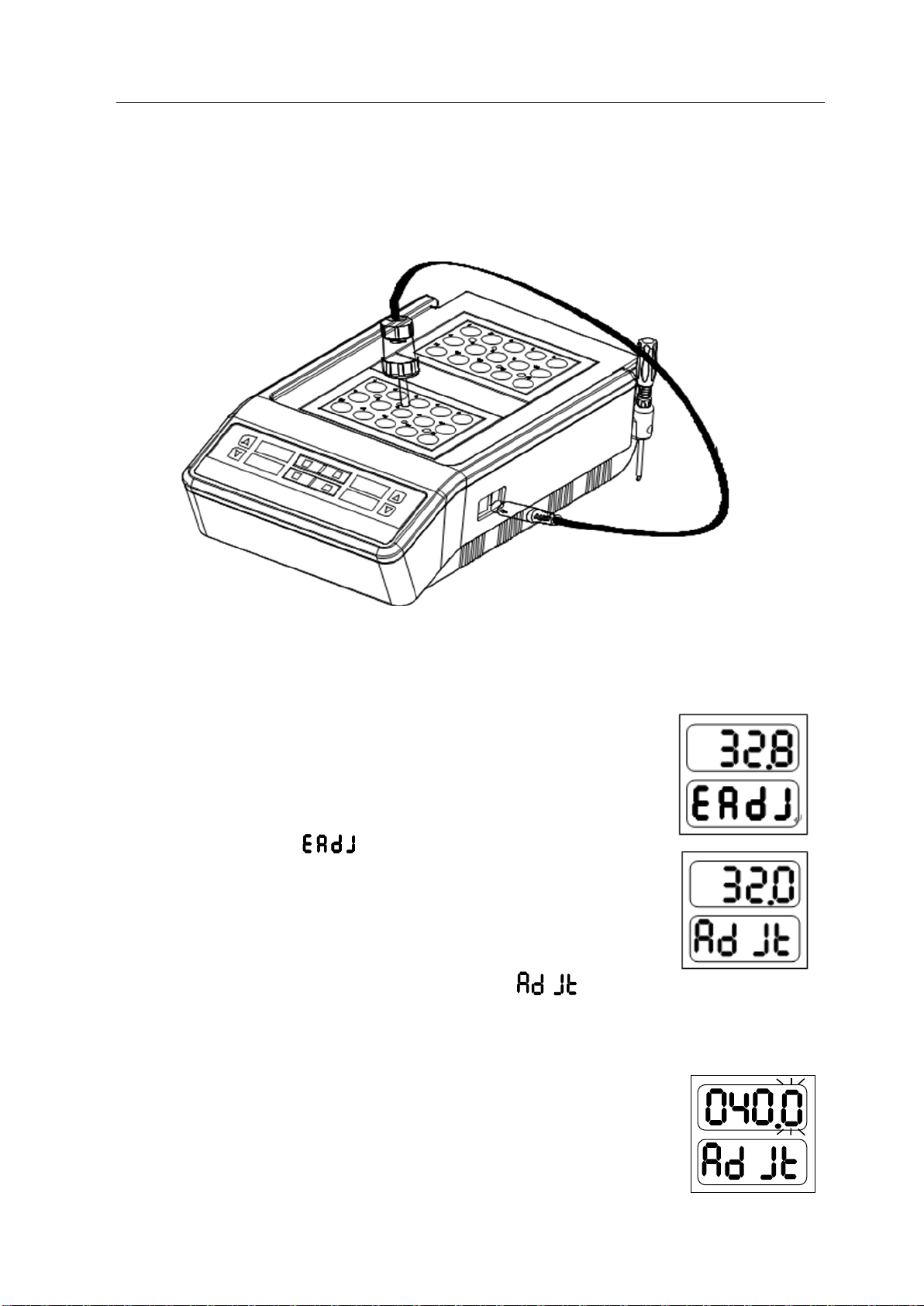

4. TEMPERATURE CONTROL BY EXTERNAL SENSOR-----------------------------------------18
5. HOW TO EXCHANGE A METAL BLOCK--------------------------------------------------------------18
SECTION 5 FAILURE ANALYSIS AND TROUBLESHOOTING ------------------------------------- 0
APPENDIX：WIRING DIAGRAM----------------------------------------------------------------------------- 1

Operation manual for INCUBATOR2 Section 2 Specifications
6
Section 1 Introduction
The Dual Temperature Digital Dry Block Incubator Features:
Digital temperature and time displayed in LED
Interchangeable metal dry blocks
Easy replacement, cleaning and disinfection of blocks
Built-in overheating protection
Calibrating temperature discrepancy
Buzzer alarm at the end of temperature control duration.

Operation manual for INCUBATOR2 Section 2 Specifications
7
Section 2 Specifications
1. Normal operating conditions:
Ambient temperature：5C 35C
Relative humidity：≤70%
Power supply：AC100-120V～50-60Hz
2. Basic parameters and characteristics
Basic parameters：
Type
Parameter
INCUBATOR2
Temperature range
RT+5C 105C
Timing time
Max. 99h59min.
Temperature control
accuracy
≤ 0.5 C
Display accuracy
0.1 C
Temperature uniformity
≤ 0.5 C
Heating time（20-105C）
≤20min
Block
2pcs (sold separately)
Power
240W
Fuse
250V 4A Ф5×20
Meas.(mm)(L×W×H)
365x210x150
Weight（kg）
4.5

Operation manual for INCUBATOR2 Section 2 Specifications
8
3. Optional products
Item No.
Type
Capacity + Diameter
Meas.(mm)
AS90925000050
IB001
35*9.1mm
108X72X49 mm
AS90925000060
IB002
15*17mm
108X72X49 mm
AS-01181-27
External
sensor
PT1000
AS-01181-28
Lifter
M4

Operation manual for INCUBATOR2 Section 3 Basic Instructions
9
Section 3 Basic Instructions
This section focuses on the introductions of the structure, keypads and key-functions of
the instrument, as well as preparatory work before starting.
1. Incubator structure overview
Zone A block
Power supply
plug
Fuse
On/Off button
Zone B block
Zone A Display
Zone B Display

Operation manual for INCUBATOR2 Section 3 Basic Instructions
10

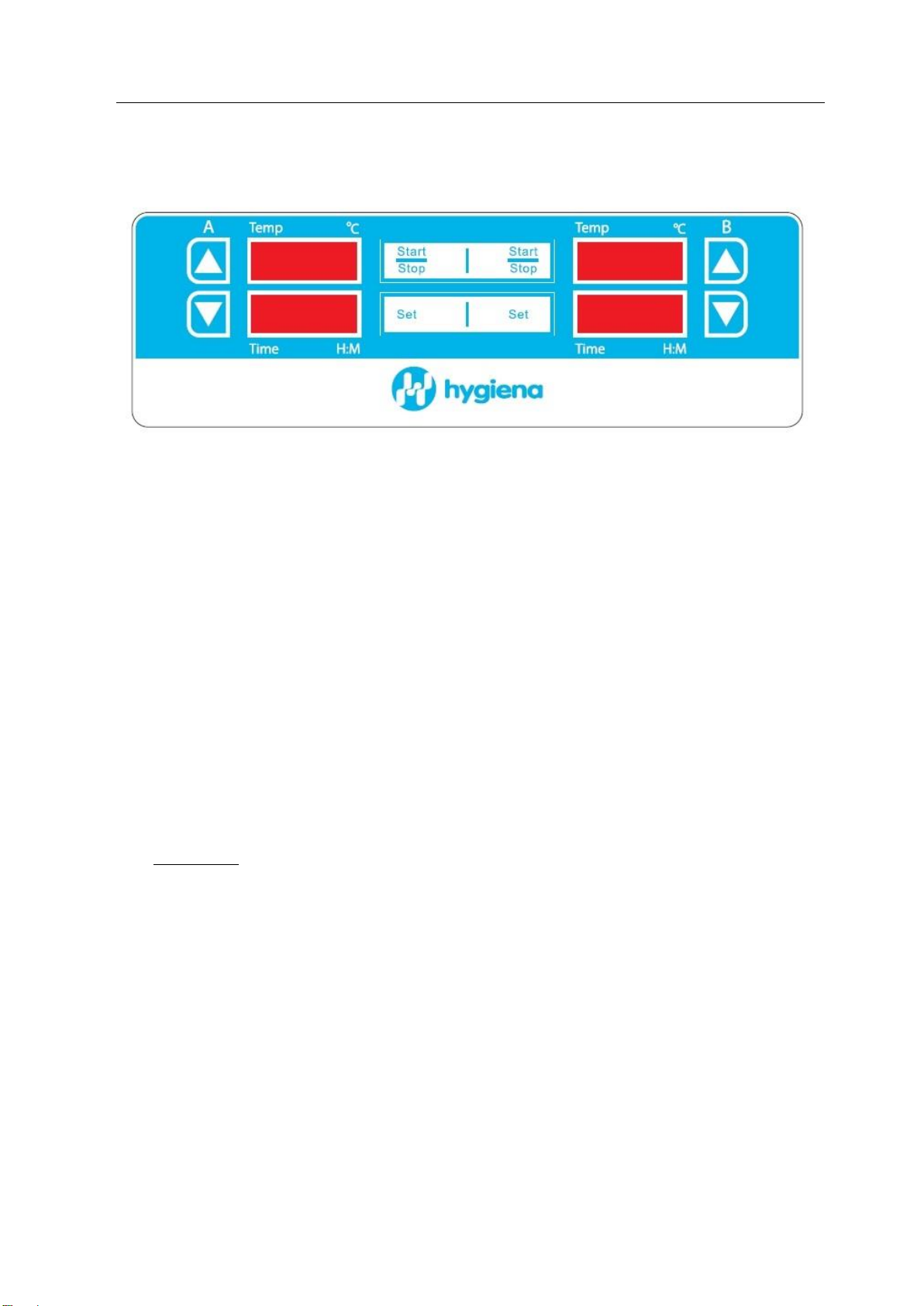

2. Keypads

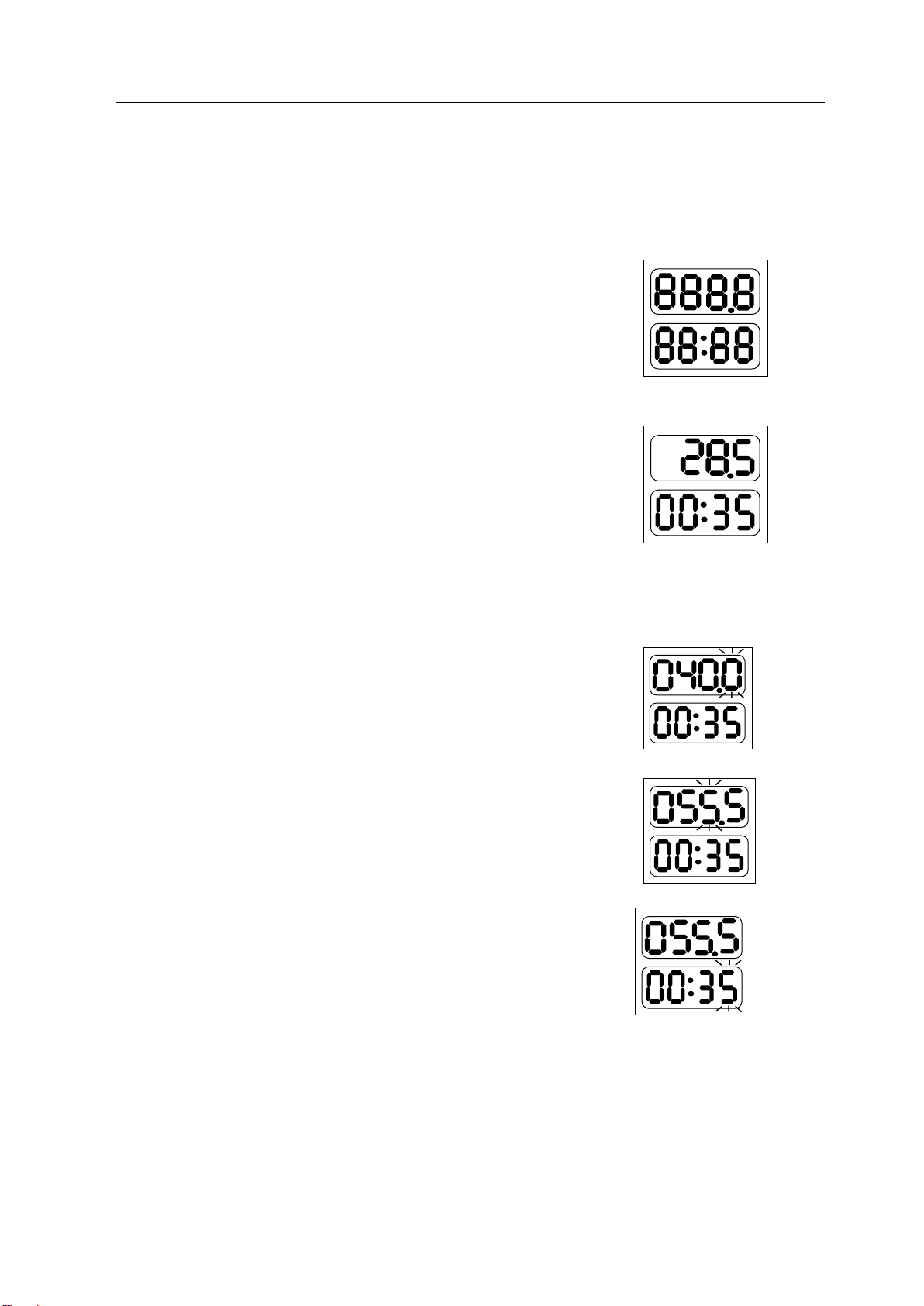

3. Display
Set


Start
Tip: The keys in Zone A and Zone B will respectively control their own zones.
Down key: decreases number.
Up key: increases number.
Set key: Used in conjunction with the Down or Up keys to
set the temperature and time.
Start/Stop key. After temperature and time is set, press this key to
start. Also, press this key to stop when running.
Stop
