hylite Mightylite MLF136 User guide

Installation & operating instructions
F4 Enterprises Limited
7 Abbey Square, Chester
CH1 2HU, UK
Tel: [phone]
www.f4enterprises.co.uk
The Hylite Mightylite floodlight a low energy, high powered outdoor LED floodlight which is suitable for installation on solid
walls in a range of locations including entrances, gardens, staircases, garages and outdoor parking areas
The unit requires connection to a 230 AC 50Hz mains electricity supply.
WARNING: THIS PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN, AND CHECKED TO ENSURE
IT IS SAFE BEFORE USING
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL AND OPERATE THIS LIGHT
The risk of electric shock should be minimized by the installation of appropriate safety devices including the
incorporation of an RCCB (Residual Current Circuit Breaker) into the main distribution board.
DO NOT wire this floodlight directly into the lighting circuit. Use a switched fused spur. Cables should always be
protected against short circuit and overload by use of an RCD.
Ensure the voltage marked on the product is the same as the electrical power supply to be used.
DO NOT install the light where it is likely to be knocked or hit, or in hot or humid conditions such as bathrooms, shower
rooms or saunas; or near an exhaust outlet e.g. boiler flue, dryer outlet.
DO NOT position the light near flammable or combustible materials (such as cloth or paper) or near flammable,
combustible or explosive liquids, solids, gases or equipment.
DO NOT look directly into the light or point it towards a person’s eyes. This light has a very intensive light output which, if
incorrectly used, could cause eye damage.
ALWAYS disconnect the mains power supply before installing, servicing or performing any maintenance.
ALWAYS maintain the light in good condition, with repairs only undertaken by a qualified electrician.
ONLY carry out repairs using genuine parts. Non-authorised parts may be dangerous and will invalidate the warranty.
1. IMPORTANT SAFETY INSTRUCTIONS
HYLITE MIGHTYLITE WITH PIR – INSTALLATION AND OPERATING INSTRUCTIONS
TROUBLESHOOTING

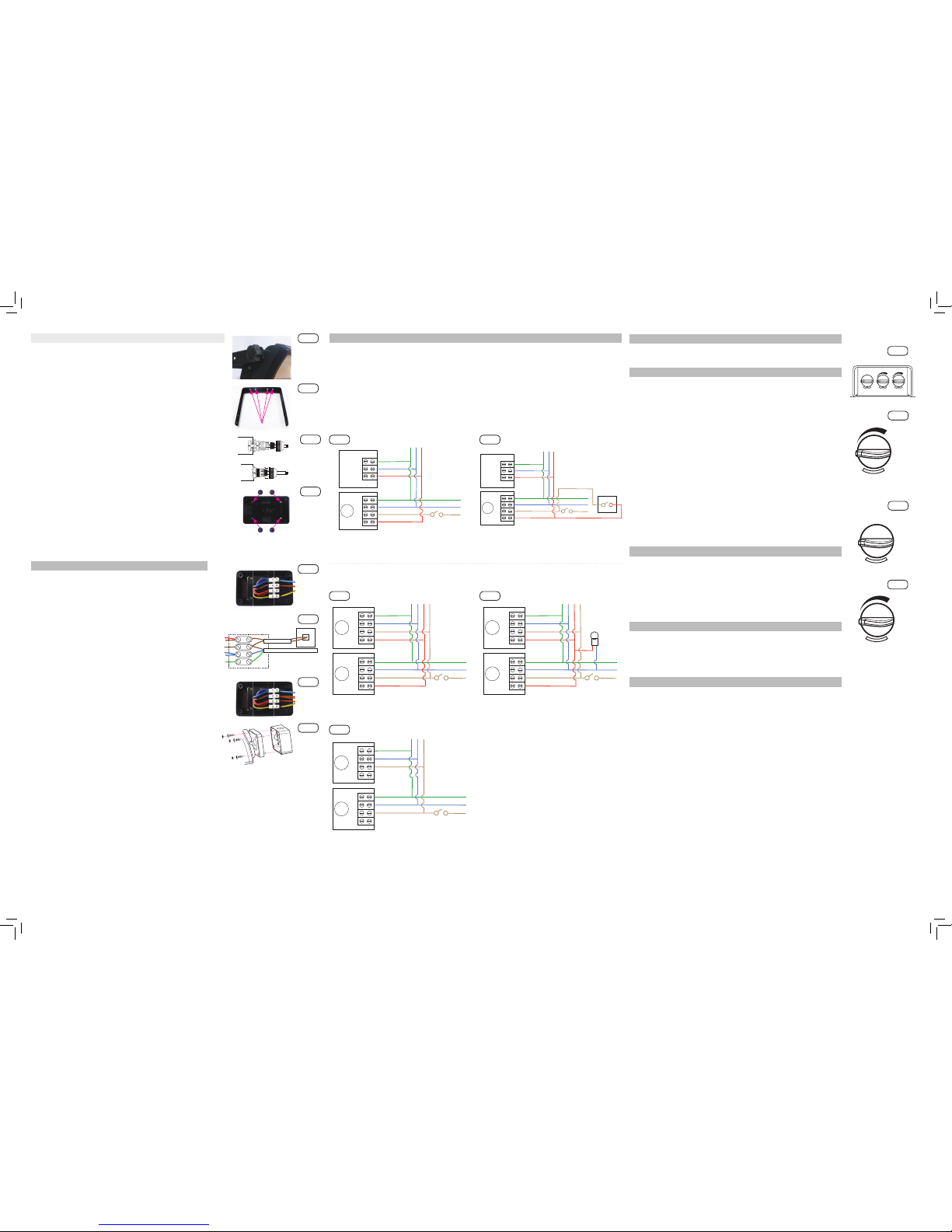

Fig.2
Fig.3
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
3-5m
The PIR detector on the floodlight responds to changes in temperature as well as
movement, therefore please ensure that the following steps are taken in choosing
a location:
• Mount the floodlight onto solid brick or woodwork, 3 - 5m above the ground
[Fig. 2]
• Avoid positioning the light near heat sources such as hot ventilator ducts,
air conditioning units, street lighting or traffic which may interfere with its
operation.
• Avoid pointing the light towards objects that may move in the wind, such as
trees or shrubs, or highly reflective surfaces.
• When positioning the light, note that the PIR sensor is more sensitive to a heat
source moving across its coverage area and less sensitive to a heat source that
moves directly towards the PIR sensor [Fig.3].
3.1 CHOOSING A MOUNTING LOCATION
3. INSTALLATION INSTRUCTIONS
WARNING: Isolate the power supply before installation.
The Mightylite can be fixed in position by EITHER:
Option 1: Attaching the connection box directly to a wall (or vertical surface) and
attaching the Mightylite to the connection box , or
Option 2: Attaching the U bracket to the mounting surface and attaching the
Mightylite to the U bracket.
3.2 FIXING THE MIGHTYLITE
2. WIRING REQUIREMENTS
Fig.1
TO MAINS MIGHTYLITE
Earth
L in L out
N in Nout
The unit requires connection to a 230 AC 50Hz mains electricity supply.
It is recommended that the unit is connected to the domestic lighting circuit via a 5 amp
fused spur and using 2-core round flexible cable of at least 1mm2gauge (waterproof
cable should be used for outdoor installations).
It is also advisable to install a single pole wall switch to allow easy control of the
floodlight (Fig. 1).
NOTE: The MightyLite has a switched override facility enabling it to be switched on
manually, via a second wall switch, without requiring PIR activation. See section
“Wiring the Floodlight” for wiring details.
TOOLS REQUIRED
Electric/hand-held drill
No.8 masonry drill bit
Electricians screwdriver
Large cross-head screwdriver
Small cross-head screwdriver
Wire cutters
THIS PRODUCT IS SUITABLE FOR WALL MOUNTING ONLY.
PARTS INCLUDED
1 x Mightylite LED Floodlight with built-in PIR
1 x Connection box
1 x Cable gland
4 x Connection box screws
4 x Connection box screw covers
4 x Connection box fixing screws
4 x Connection box fixing screw covers
1 X U bracket
2 x Securing knobs
Mightylite 36W LED Floodlight with built-in PIR
Model: MLF136
1.1 IMPORTANT OPERATION & MAINTENANCE INSTRUCTIONS
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Lights won’t come
on
• Power not on
• Wired incorrectly
• PIR not detecting movement
• Light conditions too bright
• Turn on indoor switch or check fuse
• Check wiring is the same as wiring diagram
• Adjust the angle and direction of the PIR. For best
results walk across the beam
• Wait until light conditions are darker (at dusk or
under 40 Lux) or turn the LUX control up.
Lights stay on • TIME set too high
• Wired incorrectly
• Frequent changes in heat are being
detected
• Switched override ON
• Turn ‘Time’ knob towards ‘-’ end (15 secs to 5 min
adjustable)
• Check wiring is the same as wiring diagram.
• Check sensing area for possible heat sources
(e.g. air vents, moving vehicles, moving trees) and
re-position the sensor or alter the RANGE control
downwards
• Check status of switched override and change if required
Lights keep turning
on and off (cycling)
• Changes in heat are being detected
from a fixed heat source.
• Changes in heat are being detected
from a moving object.
• Light and heat are being reflected
back onto the sensor.
• Sudden temperature changes due to
storms or high winds
• Check the sensing area for air vents, light fittings or
fans and either re-position the sensor or adjust the aim
• Check the sensing area for moving vehicles, animals,
pedestrians, moving trees and alter the aim of the
sensor accordingly
• Alter aim of the sensor or paint the reflecting surface
with a dull finish
• Turn sensor off until storm passes or install in a
sheltered location
Sensor operates
differently in hot and
cold conditions
• Temperature differences are
affecting the sensitivity of the sensor
• Turn the sensitivity (RANGE) control knob toward
the MAXIMUM end for summer (hot conditions) and
toward MINIMUM for winter (cold conditions). This
compensates for variations in temperature.
• Position the unit on the wall and mark the position for the connection box
(which can be positioned in either landscape or portrait planes [Fig. 4].
• Ensure the wires can easily enter the connection box through either one of the
knock-outs on the side of the connection box, or through the knock-out at the
rear of the box.
NOTE: It is recommended that the knock-outs on the sides of the
connection box are used in conjunction with the cable gland [Fig.5]
as using the knock-out at the rear of the connection box will reduce the
weatherproof rating.
• However, If feeding a wire(s) through the knock-out at the rear of the connection
box, this will need to be removed, the sealing grommet fitted [Fig 6] and the
wire pushed through into the connection box BEFORE it is secured to the wall.
• If feeding a wire(s) through the side knock-outs, it is easiest to fit the cable
gland to the connection box [Fig.5]BEFORE securing it to the wall, and wires
should enter the connection box from the sides or underneath, not from the top.
• Use the connection box Fixing Holes [Fig.7] to mark the 4 drill holes required to
secure the box to the wall (and mark the cable outlet location if required). Drill
the wall and screw the connection box onto the wall using the screws and wall
plugs provided.
• When the Connection Box has been screwed onto the wall, covers (provided)
should be fitted over the screws to prevent water entering the Connection Box
through the screw holes.
• Once the wire(s) has been fed through the Sealing Gland, the nut on the gland
should be gently tightened up against the gland body [Fig. 8] to ensure the
wire(s) is secured in place and no water can get though into the connection box.
3.2.1 OPTION 1: ATTACHING MIGHTYLIGHT VIA THE CONNECTION BOX
Fig.8
Fig.7
Fig.5
Fig.6
Fixing Holes
Landscape
Portrait
Fig.4

3.3 WIRING THE FLOODLIGHT
• Once the power cable has been fed through the cable gland (or sealing
grommet if using the knock-out at the rear of the connection box)
approximately 6mm of insulation should be stripped from each of the cores of
AC cable ready to attach it to the terminal block in the front of the light fitting.
NOTE: The Hylite Mightylites MLF136 is a Class 1 fitting and therefore needs
to be Earthed
IF CONNECTING TO A STANDARD POWER SUPPLY (NO SWITCHED
OVERRIDE)
• Connect the BROWN or RED (Live) wire to the terminal (marked “L”) holding
the single BROWN wire in the floodlight unit [Fig.13].
• Connect the BLUE or BLACK (Neutral) wire to the terminal (marked “N”)
holding the TWO BLUE wires in the floodlight unit.
• Connect the YELLOW/GREEN or bare (Earth) wire to the terminal (marked
“E”) holding the single YELLOW/GREEN wire in the floodlight unit [Fig. 13].
IF CONNECTING A SWITCHED OVERRIDE (optional)
• If using a switch override, the switched override wires should enter the
connection box via a second cable gland and circuits should operate as
shown in [Fig. 14]
• The override switch to the Mightylite should be wired as shown in [Fig.14].
• When wiring to the Mightylite, connect L1 Switch override BROWN or RED
(Live) wire to the terminal (marked “SL”) holding both the RED and BROWN
wires. (Note: If the wire to the Switch Live terminal is Blue then a Brown
sleeve should be slid over the wire to indicate it is Switch Live)
• Connect the Common (C) BROWN or RED (Live) wire to the terminal (marked
“L”) with the single BROWN wire only [Fig.15]
• After the connections have been secured, the floodlight front (Connection Box
front) should be fastened to the Connection Box using the 4 Connection Box
Screws provided [Fig.16]
• Once screws are secure, the screw covers (provided) should be fitted [Fig.16]
• If the Mightylite has been attached to the wall via the Connection Box, then
it can be adjusted by simply holding the box firmly whilst moving the head of
the floodlight to the required position.
• If the Mightylite has been attached via the U bracket then it can be adjusted
by simply loosening the 2 Securing Knobs which connect the light to the U
bracket, setting the required position of the light, and tightening the knobs.
Fig.14
Fig.13
Junction Box
Override Switch
Switch Live
SL
E
N
Live Feed
L
Fig.15
Fig.16
4. OPERATING THE MIGHTYLITE
The controls on the back of the Mightylite [Fig.22] can be used to control the ambient light level at
which the light operates (control marked “F”); the time the light operates for after activation by the
PIR (control marked “T”); and the range or sensitivity of the PIR (control marked “R”).
For DAYTIME testing:
• Turn the Time control (length of time light switches on ) marked “T” [Fig. 23] to minimum and the
ambient light level control marked “F” to position “5” (maximum).
• Turn on the power to the floodlight.
• The floodlight will turn on for approx. 5 seconds before switching OFF.
For NIGHTTIME testing:
• Turn the Time control) to minimum and the ambient light level control marked “F” to position “1”
(minimum).
• Turn on the power to the floodlight.
• The floodlight will turn on for approx. 5 seconds before switching OFF.
• Check the operation of the sensor and the field of view by walking in front of the floodlight
so that the light comes on.
• Once the light comes on, move to a new position and stand still until the light goes out (approx
5 sec), move again until the light comes on.
• Repeat and adjust the angle of the sensor head until the optimum field of view is achieved
• Finally, turn the TIME, LUX and RANGE (to alter detection range of PIR) controls to the desired
positions for AUTO operation.
The TIME control “T” [Fig.23] should be turned up if the lights are required to switch on for longer.
• Time is adjustable between approximately 15 seconds to 5 minutes
• If a moving heat source is detected, the sensor is triggered, switching on the light and beginning
timing out according to the pre-set TIME period. If triggered further, the light will stay on for the
pre-set time period from the last trigger.
• The ideal ON time for general domestic situations is usually 2-3 minutes.
The LUX setting “F” [Fig.24] adjusts how low the light level needs to go down to (level of darkness)
before the light operates
• The LUX control adjusts the light level at which the light and PIR operate. At level marked “1”
it operates at maximum darkness, at level marked “5” it operates in daylight.
The RANGE sensitivity of the PIR is affected by the range of detection and the amount of infra-red
radiation (heat) required to trigger the sensor
• The Range sensitivity adjustment “R” [Fig.25] can also be used to compensate for the changes in
outside air temperature in winter and summer
• To be effective but keep nuisance tripping to a minimum it is advised to turn the RANGE control
to the middle position where the ambient air temperature is between 15°–20°C.
4.1 SETTING UP THE MIGHTYLITE
Fig.22
4.2 SETTING THE DURATION OF THE LIGHT
4.3 SETTING THE LUX (AMBIENT LIGHT LEVEL)
4.4 SETTING THE RANGE
Fig.24
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
Fig.25
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
Fig.23
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T
R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
FUSE
3 AMP FUSE
TO LAMP
FROM MAINS
SUPPLY
DOUBLE-POLE SWITCHED FUSED SPUR
F
1
2
5
4
3
T R
PIR
sensor
More sensitiveLess sensitive
L
N
SL
E
Override switch
Live
C L1
Neutral Earth
To Mains MightyLite
N In N Out
L In L Out
3.4 WIRING SLAVE LIGHTS OFF THE MIGHTYLITE
The PIR on the MightyLite Floodlight can be used to activate additional PIR and non-PIR Mightylites that are wired into the same circuit.
When wiring, the Live for the slave units should simply be a connection from the Switched Live (marked “SL”) terminal on the main
Mightylite (with PIR) unit as shown in [Fig.13]. The Neutral for the “slave” unit should be a connection to the Neutral terminal (marked “N”)
on the main Mightylite (with PIR) unit. Other wiring options are shown in [Figs. 13 - 17].
NOTE: the Mightylite can only drive other Mightylite LED floodlights up to a maximum combined wattage of 80W i.e. the
Mightylite can drive 5 x 16W Mightylites, 3 x 28W Mightylite or any combination of the two, so long as the combined wattage of
slave lights does not exceed 80W.
Fig.9
3.2.2 OPTION 2: ATTACHING THE MIGHTYLITE VIA THE U BRACKET
• Attach the Mightylite to the U bracket using the two Securing Knobs provided,
[Fig.9]
• Position the unit against the mounting surface and mark the position for the U
bracket, ensuring the wires can easily reach the unit.
• Use the U bracket Fixing Holes [Fig.10] to mark the 4 drill holes required to
secure the U bracket to the wall (and mark the cable outlet location if required).
• Drill the wall and screw U bracket onto the wall using the screws and wall plugs
provided.
• Choose which of the 5 knock-outs (4 on the side of the box, one at the rear)
is going to be used for the cable to enter the connection box, ensuring wires
enter the box from the sides or underneath, not from the top. Once the knock-
out has been removed, fit the cable gland to the connection box [Fig.11].
• Once the wire(s) has been fed through the Sealing Gland, the nut on the gland
should be gently tightened up against the gland body [Fig. 11] to ensure the
wire(s) is secured in place and no water can get though into the connection
box.
• IMPORTANT – Ensure that the 4 screw covers are fitted to to inside of the
connection box to prevent water entering the box through the connection box
screw holes [Fig.12].
Fig.11
Fig.10
Fixing Holes
Fig.12
PIR
NON-PIR
OFF
ON
EARTH
NEUTRAL
LIVE
SWITCH LIVE
EARTH
NEUTRAL
LIVE
EARTH
NEUTRAL
LIVE
REPEAT UP TO A MAX 5 UNITS
PIR OFF
ON
EARTH
NEUTRAL
LIVE
SWITCH LIVE
EARTH
NEUTRAL
LIVE
EARTH
NEUTRAL
LIVE
REPEAT UP TO A MAX 5 UNITS
PIR
SWITCH LIVE
PIR
NON-PIR
OFF
ON
EARTH
NEUTRAL
LIVE
SWITCH LIVE
EARTH
NEUTRAL
LIVE
EARTH
NEUTRAL
LIVE
REPEAT UP TO A MAX 5 UNITS
OFF
ON
MANUALOVERRIDE SWITCH
PIR OFF
ON
EARTH
NEUTRAL
LIVE
SWITCH LIVE
EARTH
NEUTRAL
LIVE
EARTH
NEUTRAL
LIVE
REPEAT UP TO A MAX 5 UNITS
PIR
SWITCH LIVE
PIR OFF
ON
EARTH
NEUTRAL
LIVE
SWITCH LIVE
EARTH
NEUTRAL
LIVE
EARTH
NEUTRAL
LIVE
REPEAT UP TO A MAX 5 UNITS
PIR
SWITCH LIVE
Connecting a Mightylite Master unit (with PIR) and Mightylite
slave units (non-PIR) on the same circuit [Fig.13].
Note: When the PIR triggers all lights will illuminate.
Note: With the Switch Live connected, when one PIR triggers,
all lamps will illuminate.
Note: With the manual override switched off when the PIR
triggers all lights will illuminate, When the override is switched
on, all lights will illuminate continuously.
Note: Adding a remote indicator light or buzzer which will
activate when the PIR is triggered.
Connecting multiple Mightylite Master units (with PIR)
for more flexible lighting solutions [Figs. 15, 16 & 17].
Note: With the Switch Live not connected, each PIR and lamp
triggers independently.
NB: The above option could prevent another fitting in close
proximity from working due to the photocell picking up the light
from the illuminated unit and the photocell thinking this is daylight
and not operating. Successful operation will depend on the
installed spacing and aiming of each floodlight.
Connecting a Mightylite Master unit (with PIR) and Mightylite
slave units (non-PIR) with Switched Override function.
Fig.17
Fig.19
Fig.21
Fig.18
Fig.20
